Project - Position control of mass spring damper system

Explanation :-

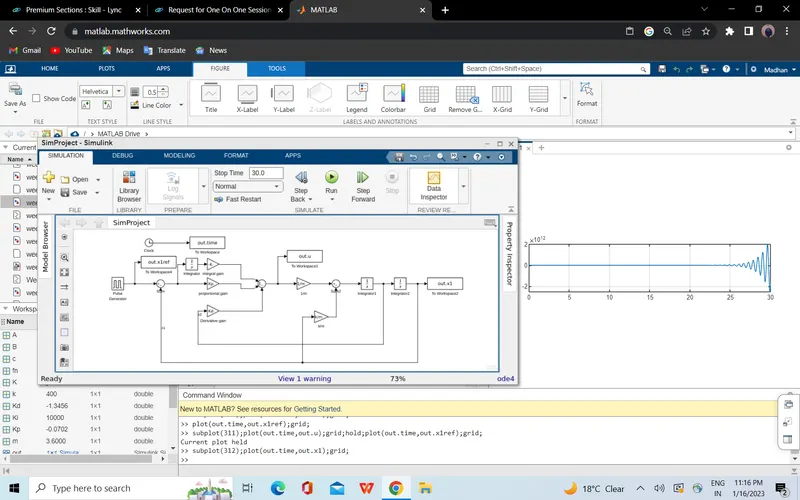

The transfer function of a spring mass damper system is solved and plots are taken out. Initially the matlab code was done and inputs for that was given and according to the equation the simulink model is built.

Since m,k,c values were given Wn and fn values were found and it was uploaded as per the answers got and also the zeta value was found out by calculating using the formal 2*zeta*Wn=c/m, because c value was given and the model is built according to values i got.

This model is runned for 30secs.

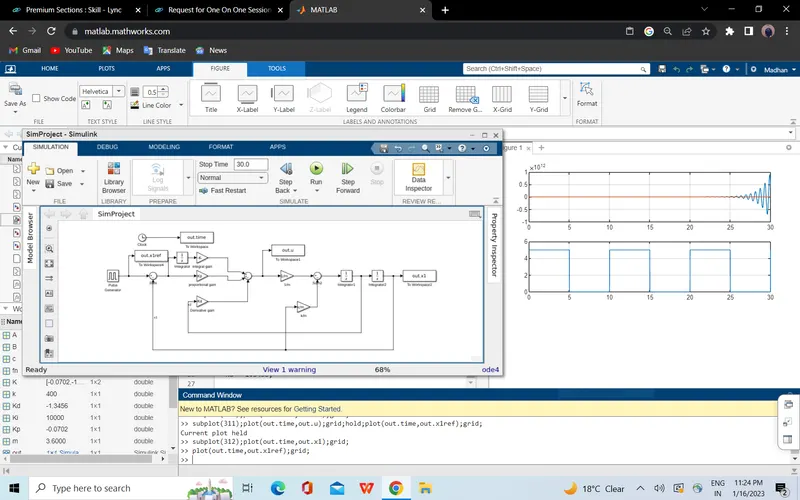

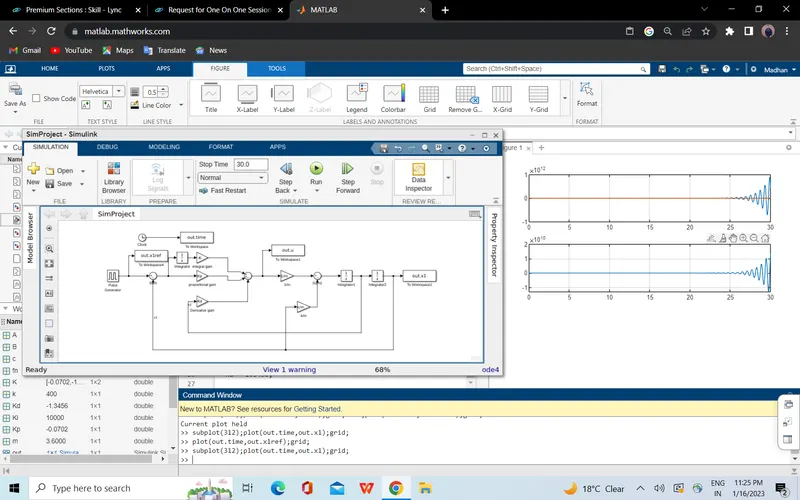

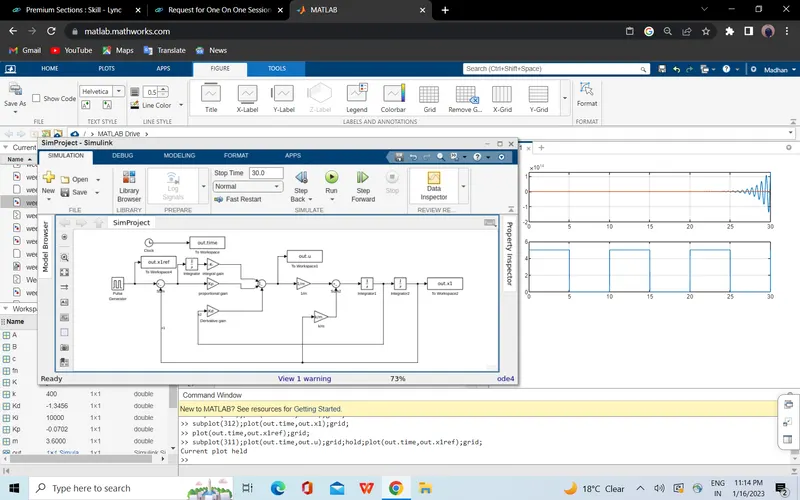

It was calculated for couple of x1 values by varying and plots are uploaded accordingly.

This are the things that are performed in this project.

Thank you!
