Project 1 Mechanical design of battery pack

Battery pack capacity: 18 kWh

Cell: ANR26650M1-B

Prepare a detailed battery pack drawing along with its enclosure. State your assumptions.

AIM :-

To develop a battery pack of 18KW using ANR26650M1-B cells along with their mechanical design.

THEORY :-

BATTERY PACK:

A battery pack is a set of any number of (preferably) identical batteries or individual battery cells. They may be configured in a series, parallel or a mixture of both to deliver the desired voltage, capacity, or power density. The term battery pack is often used in reference to cordless tools, radio-controlled hobby toys, and battery electric vehicles.

Components of battery packs include the individual batteries or cells, and the interconnects which provide electrical conductivity between them. Rechargeable battery packs often contain a temperature sensor, which the battery charger uses to detect the end of charging. Interconnects are also found in batteries as they are the part which connects each cell, though batteries are most often only arranged in series strings.

When a pack contains groups of cells in parallel there are differing wiring configurations which take into consideration the electrical balance of the circuit. Battery regulators are sometimes used to keep the voltage of each individual cell below its maximum value during charging so as to allow the weaker batteries to become fully charged, bringing the whole pack back into balance. Active balancing can also be performed by battery balancer devices which can shuttle energy from strong cells to weaker ones in real time for better balance. A well-balanced pack lasts longer and delivers better performance.

As we know that the electric vehicle market is gradually increasing. With the growth of an electric vehicle, the growth and interest in Lithium-ion cell are also increasing. The energy source for an electric vehicle is stored in cylindrical cells.

Lithium-ion cells are capable of delivering very high power. Lithium-ion cells are used in aerospace, automotive electric vehicle, mobile devices, medical devices and other electronic devices which is based on these cells. The battery pack is installed in lower-floor of the electric vehicle so that weight may distribute equally and also the centre of gravity also maintain properly.

The high voltage battery pack is one of the most important components of any electric vehicle. The traction battery of an electric vehicle must achieve the following thing:

• Provide maximum traction motor torque
• Vehicle range in sense of kilometre
• To achieve the proper life cycle of battery

The battery pack of an electric vehicle is generally having a series or parallel combination. Large battery pack have multiple cell modules, in which many numbers of cells are kept together to build a large battery pack. Basically, a series connection is used to compound the voltage whereas the parallel connection is for compound current capacity. A battery cell consists of five major components that are electrodes – anode and cathode, separators, terminals, electrolyte and enclosure.

Mechanical design of battery pack :

Safety and reliability are two major things for large battery packs. While mechanical designing of large battery pack we should follow some technical criteria so, that the battery may not fail.

• Mechanical vibration should decrease
• Controlling on high impact force
• Better thermal runway for cooling
• Serviceability and recyclability

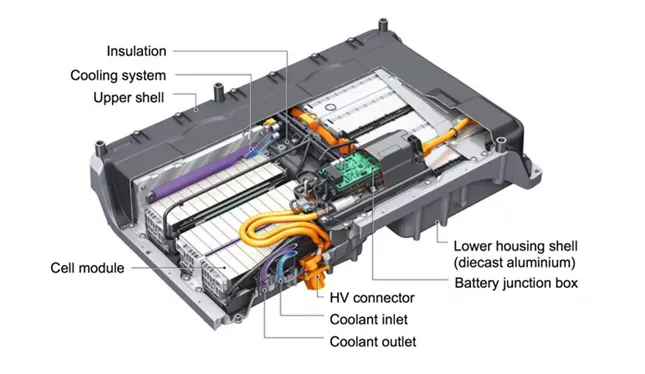

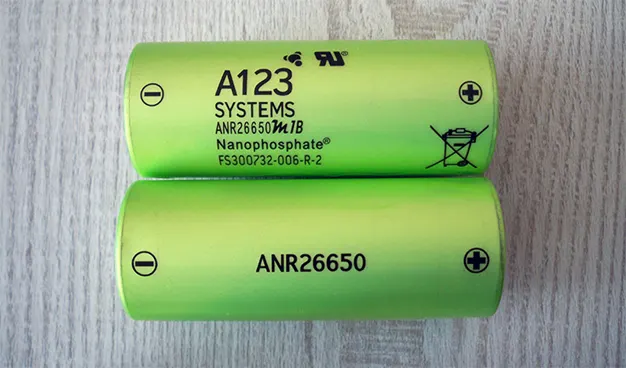

For the designing of 18 kWh battery pack here, we use a base model of ANR26650M1B Lithium-Ion Cell. ANR26650M1B cell is consist of lithium iron phosphate chemistry (LiFePO4) and it is best for use in a wide range of temperatures and conditions. The ANR26650M1B Lithium Ion cell may achieve the following features:

• Stable chemistry
• Faster charging
• Consistent output
• Excellent cycle life
• Superior cost performance

The provided battery cell type is ANR26650M1-B and its datasheet is used to get all the required information about it. After that, we will figure out how many cells do we require to achieve the said 18 kWh capacity and also the configuration of their connection. In the end, a detailed battery drawing along with its enclosure is given to understand the working of it more deeply.

CALCULATIONS :-

To make the battery pack, we have to first finalize the nominal voltage and capacity of the pack. Either it will be in term of Volt, mAh/ Ah or Wh.

Total required Battery pack capacity is 18 kWh = 18000 wh

The individual Cell: ANR26650M1-B has

Nominal voltage = 3.3 V

Current Capacity = 2.5 Ah

So, let us assume that for 18 kwh battery pack we need supply voltage of 200 V and 90 Ah

200 V = 3.3 * Cell in series

Cell in series = 200/3.3 = 60.60 = 60

Now, as we know that battery pack capacity (Wh) = Total current * Total voltage = (2.5* cell in parallel) * 200

18000 = (2.5* cell in parallel) * 200

Cell in Parallel = 18000/ (2.5*200) = 36

Module capacity:

The required battery pack combination is 60S36P

For this we decided to choose 5 series and 3 parallel module connection.

Each 5S3P configuration Module Voltage capacity = 5*3.3 = 16.5 V

Each 5S3P configuration Current Module capacity = 3*2.5 = 7.5 Ah

So, total capacity of 1 module is = 16.5 * 7.5 = 123.75 Wh

Total Cells:

Total number of cells = cell in 1 module * 144

Total number of cells = (5*3) *144

Total number of cells = 2160

1 cell capacity = 3.3* 2.5 = 8.25 Wh

So, total cell capacity = 2160*8.25

Total cells capacity = 17820 Wh = 17.82 KWh (almost 18 KWh)

Note: We should always target more KWH then required considering the losses and connection limitations.

Weight of one cell = 76 g = 0.076kg

So, Battery pack cell weight = 0.076*2160 = 164.16 kg

Module Connection:

For 18 KWh of total 200 V and 90 Ah battery pack capacity we need 18000/123.75 = 145.45 modules.

For Simplicity of configuration we took 12*12= 144 modules of 5S3P.

We have to connect the cells in parallel to reach the desired capacity (mAh) and connect such parallel group in series to achieve the nominal voltage (Volt).

In this way, to achieve 200 V battery voltage, number of 5S3P configuration in series connected modules are = 200/16.5 = 12.12 = 12.

For 90 Ah battery current, now we connected 12(90/7.5 = 12) times such (series of 12 module of 200 V) in parallel to get 90 A current from this battery pack.

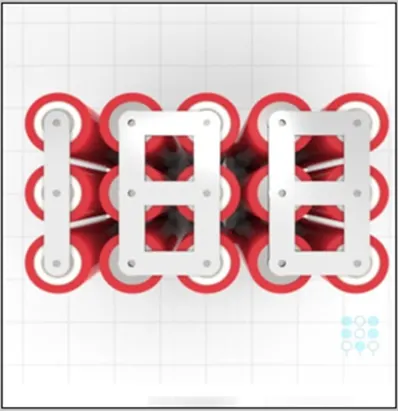

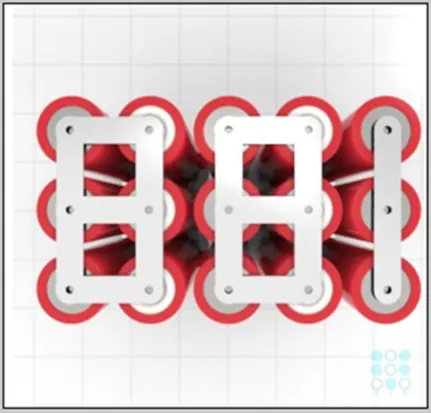

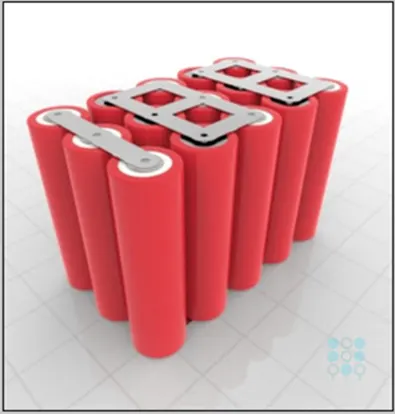

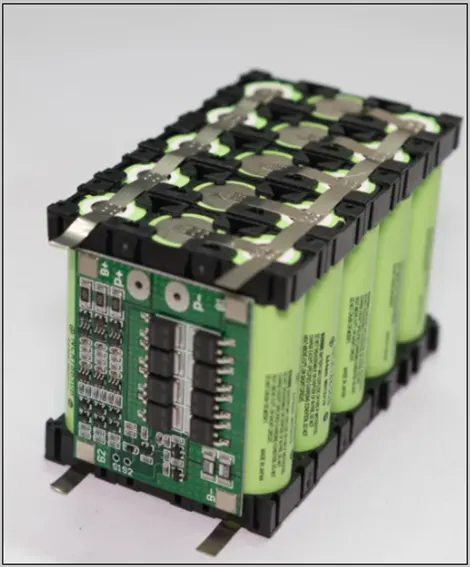

The 5S3P connection of ANR26650M1-B cell is shown below.



• This 16.5 V lithium ion battery pack has a 5S3P configuration with 7.5Ah (amp-hours) capacity.

A typical bill of materials (BOM) includes the following:

• Battery cell
• Nickel or other tabbing
• PCB/PCM/BMS
• PVC shrink wrap
• Insulating paper (barley paper)
• Insulating foam
• Connectors and wires

Battery Pack construction :-

Step 1: Select the ANR26650M1-B Cells for the Battery Pack



Step 2: Check the Cell Voltage

• Before connecting the cells in parallel, first check the individual cell voltages.
• For paralleling the cells, the voltage of each cells should be near to each other, otherwise a high amount of current will flow from the cell with higher voltage to the cell with lower voltage.
• This can damage the cells and even result in fire on rare occasions.

Step 3: Assemble the ANR26650M1-B Cells



• From the previous step, it is clear that our battery pack is made up of 3 parallel groups connected in series and each parallel group have 5 cells.
• Now we have to arrange the 15 cells properly for making the electrical connection among them and with the BMS board.
• Place the first parallel group of cells (5 nos) positive side up, then place the second parallel group negative side up and then finally the last parallel group positive side up.
• We can assemble the cells to make the pack by using hot glue or by using plastic 18650 battery holder. I used plastic the ANR26650M1-B cell holders/spacers to assemble the 15 cells.
• It provides space between the cells, which allow fresh air to pass and the battery get cooled easily.
• It also makes our battery pack solid and reliable and provide safety anti vibration to our battery pack.

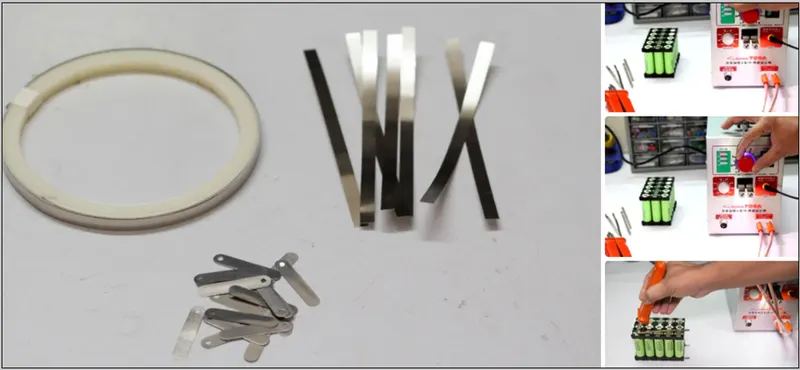

Step 4: Choosing the Right Battery Strips and Spot Weld the Nickel Strips

We have two options two connect the ANR26650M1-B cells together:

1. Soldering
2. Spot Welding

The best choice is always Spot welding, but Spot Welder is much costlier than a good quality Soldering Iron.



• To make the battery pack, we have to connect the ANR26650M1-B cells together by means of Nickel strips or thick wire.
• Generally, Nickel strips are widely used for this.
• In general, two types of nickel strips are available in the market: nickel-plated steel strips and pure nickel strips.
• The pure nickel is little bit costlier than the nickel-plated steel, but it has much lower resistance. Low resistance means, less heat generation during the charging and discharging, which leads to longer useful battery life.

Step 5: Adding the BMS



A battery management system (BMS) is any electronic system that manages a lithium battery pack and the main functionalities are

1. Monitors all of the parallel groups in the battery pack and disconnect it from the input power source when fully charged.
2. Balance all the cells voltage equally
3. Doesn't allow the pack from over-discharged.

Step 6: Install cooling structures for air cooling or liquid cooling

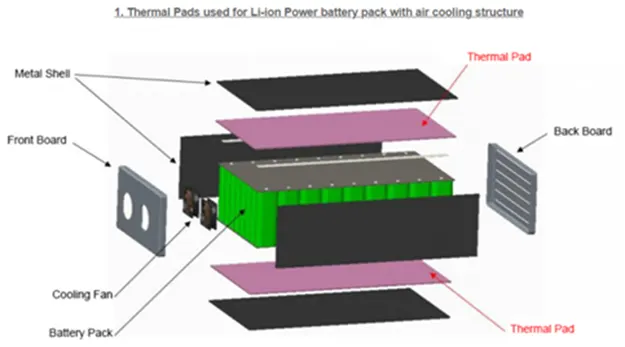

Install cooling structures for air cooling/ liquid cooling as shown -



Step 7: Install the battery pack inside the enclosure

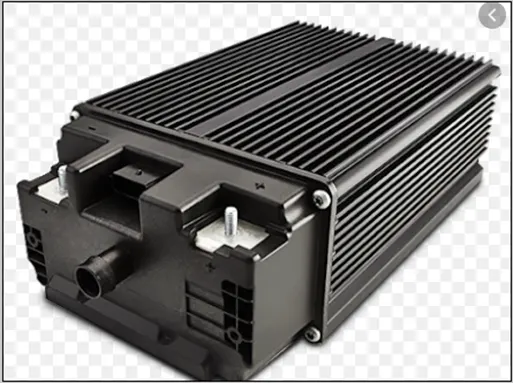

The battery pack have all around exposed nickel strips, to avoid any accidental shorting an Enclosure used.



CONCLUSION :-

Thus we have studied how to model a battery pack for 18kw battery.
