Project 1 - Creation of user defined data type to implement the user interfaces for working with ‘Set’ (Mathematical Set theory)

Project1:

Aim:

• To create interfaces for mathematical Set Theory implemented using C programming language.

Objective:

• To get the union and intersection operation performed for the two sets of datas given by the user.
• Implementation of interface for mathematical Set Theory using C programming.

Principle:

Intersection of two sets:

• It is the set that contains all the elements that are common to both the sets.
• Example X={1,2,3} and Y={2,3,4} so the intersection gives {2,3}

Union of two sets:

• It is the set containing all the elements of the given sets.
• Example X={1,2,3} and Y={2,3,4} so the union gives {1,2,3,4}

Code:

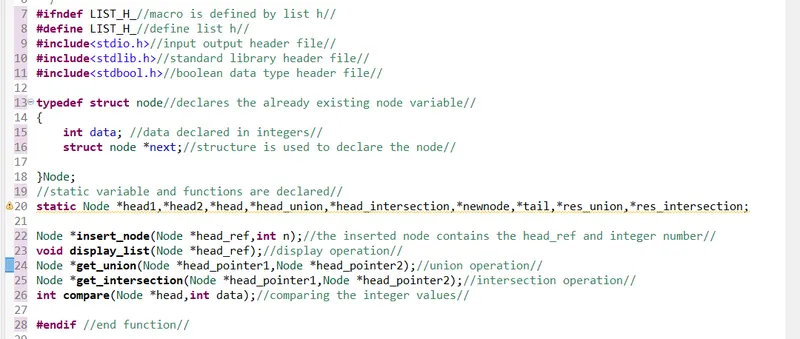

list.h file:

#ifndef LIST_H_
#define LIST_H_
#include
#include
#include

typedef struct node
{
	int data;
	struct node *next;

}Node;

static Node *head1,*head2,*head,*head_union,*head_intersection,*newnode,*tail,*res_union,*res_intersection;

Node *insert_node(Node *head_ref,int n);
void display_list(Node *head_ref);
Node *get_union(Node *head_pointer1,Node *head_pointer2);
Node *get_intersection(Node *head_pointer1,Node *head_pointer2);
int compare(Node *head,int data);

#endif

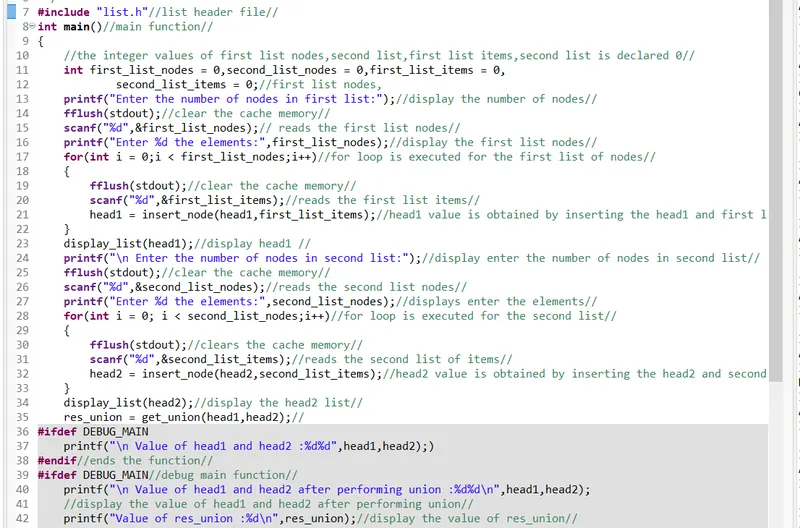

main.c file:

#include "list.h"
int main()
{
	int first_list_nodes = 0,second_list_nodes = 0,first_list_items = 0,
			second_list_items = 0;
	printf("Enter the number of nodes in first list:");
	fflush(stdout);
	scanf("%d",&first_list_nodes);
	printf("Enter %d the elements:",first_list_nodes);
	for(int i = 0;i < first_list_nodes;i++)
	{
		fflush(stdout);
		scanf("%d",&first_list_items);
		head1 = insert_node(head1,first_list_items);
	}
	display_list(head1);
	printf("\n Enter the number of nodes in second list:");
	fflush(stdout);
	scanf("%d",&second_list_nodes);
	printf("Enter %d the elements:",second_list_nodes);
	for(int i = 0; i < second_list_nodes;i++)
	{
		fflush(stdout);
		scanf("%d",&second_list_items);
		head2 = insert_node(head2,second_list_items);
	}
	display_list(head2);
	res_union = get_union(head1,head2);
#ifdef DEBUG_MAIN
	printf("\n Value of head1 and head2 :%d%d",head1,head2);)
#endif
#ifdef DEBUG_MAIN
	printf("\n Value of head1 and head2 after performing union :%d%d\n",head1,head2);
	printf("Value of res_union :%d\n",res_union);
#endif

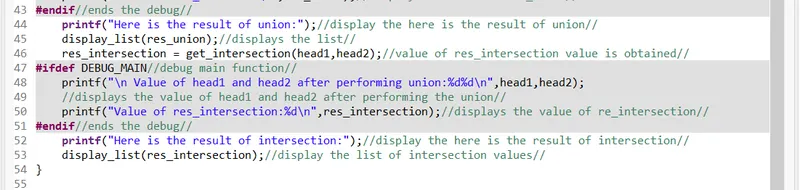

	printf("Here is the result of union:");
	display_list(res_union);
	res_intersection = get_intersection(head1,head2);
#ifdef DEBUG_MAIN
	printf("\n Value of head1 and head2 after performing union:%d%d\n",head1,head2);
	printf("Value of res_intersection:%d\n",res_intersection);
#endif
	printf("Here is the result of intersection:");
	display_list(res_intersection);
}

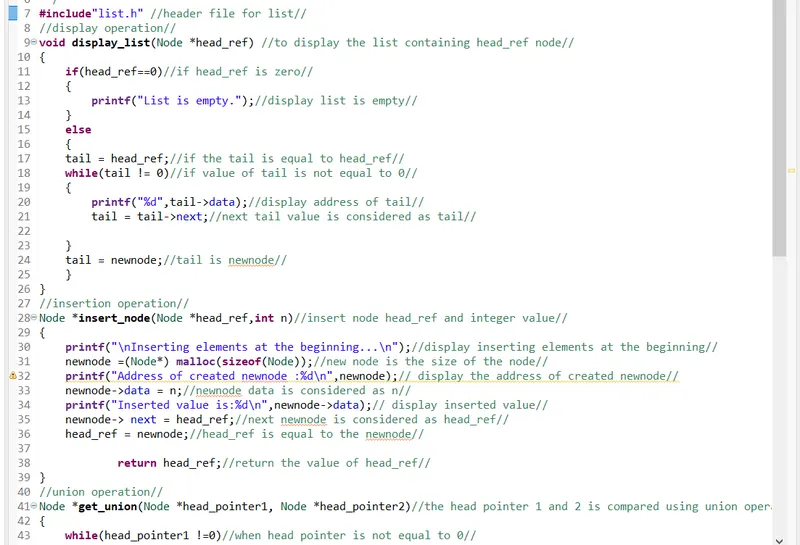

list.c:

#include"list.h"
void display_list(Node *head_ref)
{
	if(head_ref==0)
	{
		printf("List is empty.");
	}
	else
	{
	tail = head_ref;
	while(tail != 0)
	{
		printf("%d",tail->data);
		tail = tail->next;

	}
	tail = newnode;
	}
}
Node *insert_node(Node *head_ref,int n)
{
	printf("\nInserting elements at the beginning...\n");
	newnode =(Node*) malloc(sizeof(Node));
	printf("Address of created newnode :%d\n",newnode);
	newnode->data = n;
	printf("Inserted value is:%d\n",newnode->data);
	newnode-> next = head_ref;
	head_ref = newnode;

			return head_ref;
}

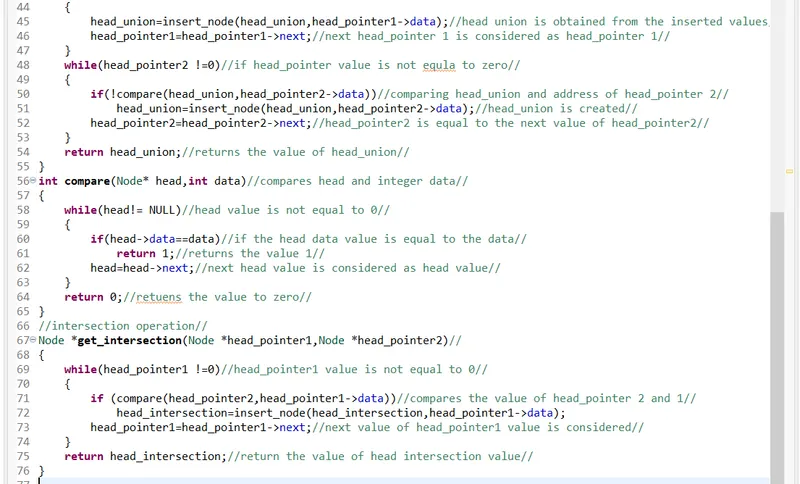

Node *get_union(Node *head_pointer1, Node *head_pointer2)
{
	while(head_pointer1 !=0)
	{
		head_union=insert_node(head_union,head_pointer1->data);
		head_pointer1=head_pointer1->next;
	}
	while(head_pointer2 !=0)
	{
		if(!compare(head_union,head_pointer2->data))
			head_union=insert_node(head_union,head_pointer2->data);
		head_pointer2=head_pointer2->next;
	}
	return head_union;
}
int compare(Node* head,int data)
{
	while(head!= NULL)
	{
		if(head->data==data)
			return 1;
		head=head->next;
	}
	return 0;
}
Node *get_intersection(Node *head_pointer1,Node *head_pointer2)
{
	while(head_pointer1 !=0)
	{
		if (compare(head_pointer2,head_pointer1->data))
			head_intersection=insert_node(head_intersection,head_pointer1->data);
		head_pointer1=head_pointer1->next;
	}
	return head_intersection;
}

Program:

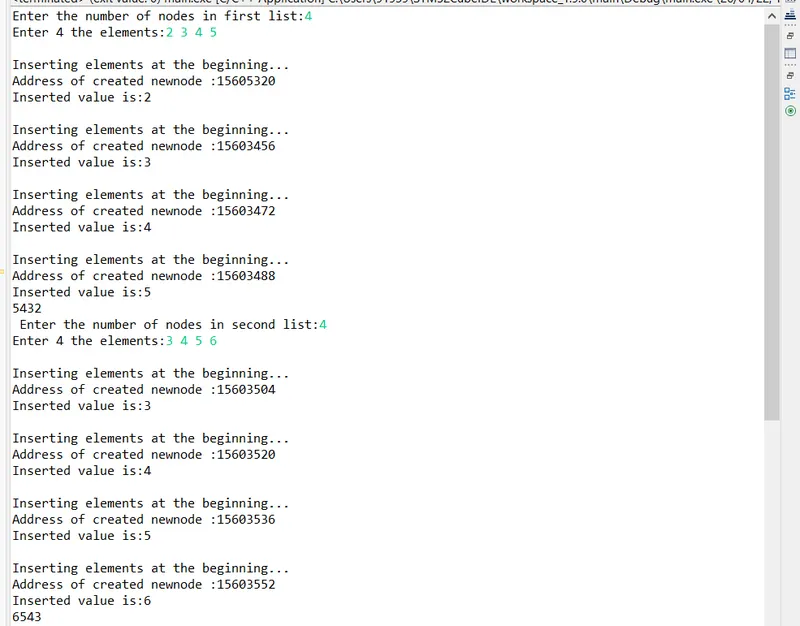

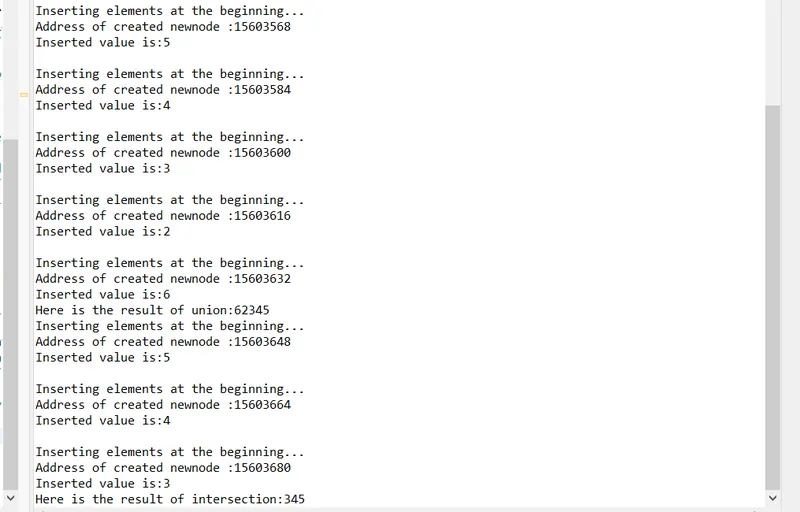

Output:

Result:

Thus a program is created to interface mathematical Set Theory implemented using C language.
