Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

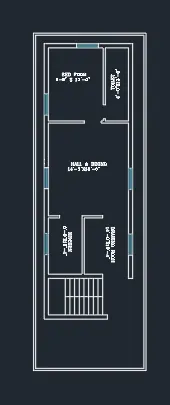

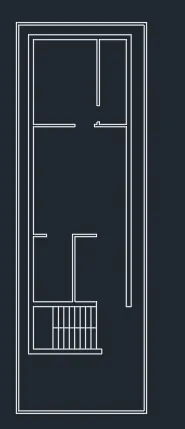

a. Floor plan of plot size (60'x20')

To draw a given floor plan using autocad.

procedure: The following steps should be followed as a procedure to draw a given floor plan using autocad

• To draw the given floor plan in autocad, the following steps should be followed as a procedure. At first open the AutoCAD and set dimensions that the dimensions are in feets and inches.
• Then enter the Line command in AutoCAD and after that enter the first point of the given diagram as that line should be started at the point in the coordinate system.

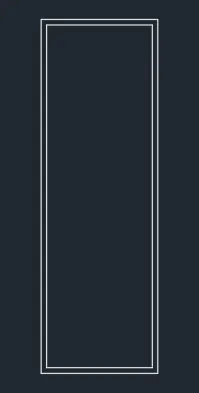

• Then with that point draw a rectangle using rectangle command using the dimensions of the rectangle as length is 60' and width is 20'.

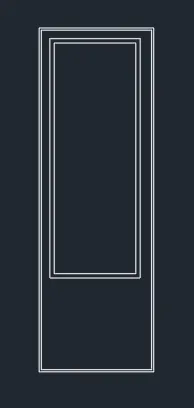

• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• then select the last line of the rectangle and make offset of 4.5" ie the width of the both inner walls by using the offset command in autocad.

• next make offset of that line ie the width of the inner wall is equal to 4.5", ie enter the offset command and give the width of 4.5".
• next make the offset of the line left corner of the rectangle to get the length of the bedrooms by using the offset command in autocad give the offset lenth as 4.5".
• next make offset of that line 4.5" ie the width of the inner wall is equal to 4.5", ie enter the offset command and give the width of 4.5".
• next make the offset of the line left corner of the rectangle to get the length of the bedrooms by using the offset command in autocad give the offset lenth as 9".
• Then with that point draw a rectangle using rectangle command using the dimensions of the rectangle as length is 9'9" and width is 13'.

• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• then select the last line of the rectangle and make offset of 14'3" ie the width of the both bedrooms by using the offset command in autocad.
• next make the offset of the line left corner of the rectangle to get the length of the bedrooms by using the offset command in autocad give the offset lenth as 16'6".
• next make offset of that line 4' ie the width of the inner wall is equal to 150, ie enter the offset command and give the width of 13'.
• next make the offset of the line left corner of the rectangle to get the length of the bedrooms by using the offset command in autocad give the offset lenth as 4.5".

• next make offset of that line 14' ie the width of the inner wall is equal to 3050, ie enter the offset command and give the width of 4.5".
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• make the offet of 14'6" and from that line make offset of 10'6" to get the width of the living room and the kitchen and make offset from that line of 4.5" for the inner wall and 9" as the outer wall as diameter.

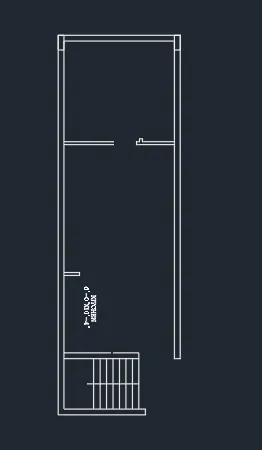

• Trim the unwanted lines for the door and the other openings the length of the line of that doors as per the given dimensions.
• for stair case make the offset of the line left corner of the rectangle to get the length of the staircase 10" and raiser 7" by using the offset command in autocad give the offset lenth as 7".

• next make the offset of the line to get the length of the toilets by using the offset command in autocad give the offset lenth as 4.5" in both sides.
• next make the offset of the line left corner of the rectangle to get the length of the one of the bathrooms by using the offset command in autocad give the offset lenth as 12'6".
• next make the offset of the line right corner of the rectangle to get the length of the another bathroom by using the offset command in autocad give the offset lenth as 16'4".
• next make offset of that line 4.5" ie the width of the inner wall is equal to 300 ie enter the offset command and give the width of 4.5"
• delete the unwanted lines by using the trim command in autocad.
• next make the offset of the line right corner of the rectangle to get the length of the another bathroom by using the offset command in autocad give the offset lenth as 14"6".
• next make offset of that line 14"6" ie the width of the inner walls of lift is equal to 14'6", ie enter the offset command and give the width of 4.5"
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 300.
• make the offet of 17'5" and from that line make offset of 17'5" to get the width of the living room and the another room and make offset from that line of 4.5" for the inner wall and 9" as the outer wall as diameter.
• Trim the unwanted lines for the door and the other openings the length of the line of that doors as per the given dimensions.

• and by using the multitext command or by copying the text which has been present in the another column the header text has been written sizes of the rooms or edited and edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.
• edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.
• to draw the door by using the autocad commands that by line command we can draw the line and by arc command we can draw the arc and by rectangle command we can draw the chouckets and then trim the unwanted lines. repeat the process for each and every door point side as per the required floor plan.
• enter the dimensions of the rooms as per the given dimensions using the Multi text command in autocad and enter the dimensions wich is required in the given floor plan to gte the required floor plan of the bathrooms and vanity and all other rooms.
• and by using the multitext command or by copying the text which has been present in the another column the header text has been written sizes of the rooms or edited and edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.

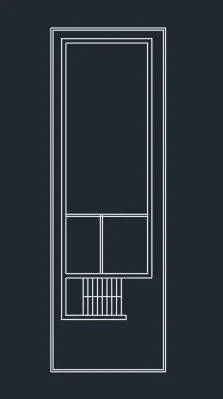

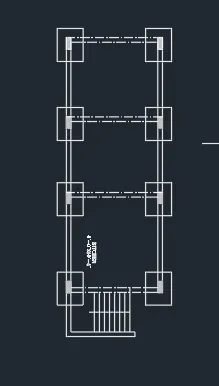

b) Structural drawing (columns, beams, etc):

To draw a given floor plan structural drawing ie columns, beams schdule using autocad.

procedure: The following steps should be followed as a procedure to draw a given floor plan structural drawing ie columns, beams schdule using autocad

• To draw the given floor plan structural drawing ie columns, beams schdule in autocad, the following steps should be followed as a procedure. At first open the AutoCAD and set dimensions that the dimensions are in feets and inches.
• Then enter the Line command in AutoCAD and after that enter the first point of the given diagram as that line should be started at the point in the coordinate system.
• Then with that point draw a rectangle using rectangle command using the dimensions of the rectangle as length is 60' and width is 10'.
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• then select the last line of the rectangle and make offset of 4.5" ie the width of the both inner walls by using the offset command in autocad.

• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• then select the last line of the rectangle and make offset of 14'3" ie the width of the both sides by using the offset command in autocad.
• next make the offset of the line left corner of the rectangle to get the length of the sides by using the offset command in autocad give the offset lenth as 16'6".
• next make offset of that line 4' ie the width of the inner wall is equal to 150, ie enter the offset command and give the width of 13'.
• next make the offset of the line left corner of the rectangle to get the length of the bedrooms by using the offset command in autocad give the offset lenth as 4.5".

• next make offset of that line 14' ie the width of the inner wall is equal to 3050, ie enter the offset command and give the width of 4.5".
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• make the offet of 14'6" and from that line make offset of 10'6" to get the width of the living room and the kitchen and make offset from that line of 4.5" for the inner wall and 9" as the outer wall as diameter.
• Trim the unwanted lines for the door and the other openings the length of the line of that doors as per the given dimensions.
• for stair case make the offset of the line left corner of the rectangle to get the length of the staircase 10" and raiser 7" by using the offset command in autocad give the offset lenth as 7".

• next make the offset of the line to get the length of the toilets by using the offset command in autocad give the offset lenth as 4.5" in both sides.
• next make the offset of the line left corner of the rectangle to get the length of the one of the bathrooms by using the offset command in autocad give the offset lenth as 1'6".
• next make the offset of the line right corner of the rectangle to get the length of the another bathroom by using the offset command in autocad give the offset lenth as 1'6".
• next make offset of that line 4.5" ie the width of the inner wall is equal to 300 ie enter the offset command and give the width of 4.5"
• delete the unwanted lines by using the trim command in autocad.
• next make the offset of the line right corner of the rectangle to get the length of the another bathroom by using the offset command in autocad give the offset lenth as 2'.
• next make offset of that line 2' ie the width of the inner walls of lift is equal to 1'6", ie enter the offset command and give the width of 4.5"

• next make the offset of the line to get the length of the toilets by using the offset command in autocad give the offset lenth as 4.5" in both sides.
• next make the offset of the line left corner of the rectangle to get the length of the one of the bathrooms by using the offset command in autocad give the offset lenth as 1'6".
• next make the offset of the line right corner of the rectangle to get the length of the another bathroom by using the offset command in autocad give the offset lenth as 1'6".
• next make offset of that line 4.5" ie the width of the inner wall is equal to 300 ie enter the offset command and give the width of 4.5"
• delete the unwanted lines by using the trim command in autocad.
• next make the offset of the line right corner of the rectangle to get the length of the another bathroom by using the offset command in autocad give the offset lenth as 2'.
• next make offset of that line 2' ie the width of the inner walls of lift is equal to 1'6", ie enter the offset command and give the width of 4.5"

• and by using the multitext command or by copying the text which has been present in the another column the header text has been written sizes of the rooms or edited and edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.
• edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.
• to draw the door by using the autocad commands that by line command we can draw the line and by arc command we can draw the arc and by rectangle command we can draw the chouckets and then trim the unwanted lines. repeat the process for each and every door point side as per the required floor plan.
• enter the dimensions of the rooms as per the given dimensions using the Multi text command in autocad and enter the dimensions wich is required in the given floor plan to gte the required floor plan of the bathrooms and vanity and all other rooms.
• and by using the multitext command or by copying the text which has been present in the another column the header text has been written sizes of the rooms or edited and edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.

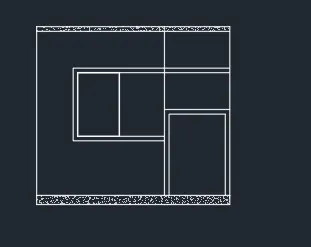

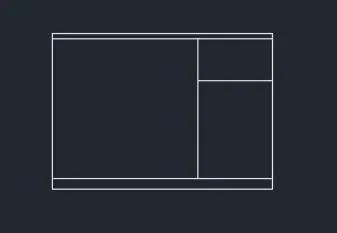

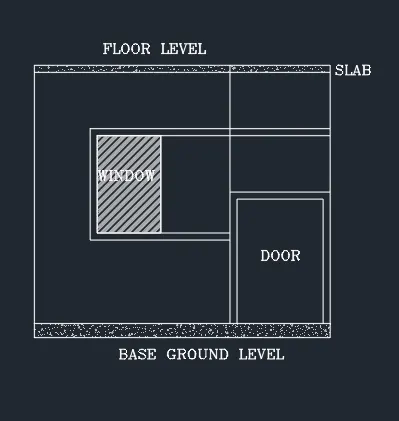

c) Elevation:

To draw a given floor plan elevation using autocad.

procedure: The following steps should be followed as a procedure to draw a given floor plan elevation using autocad

• To draw the given floor plan elevation in autocad, the following steps should be followed as a procedure. At first open the AutoCAD and set dimensions that the dimensions are in feets and inches.
• Then enter the Line command in AutoCAD and after that enter the first point of the given diagram as that line should be started at the point in the coordinate system.
• Then with that point draw a rectangle using rectangle command using the dimensions of the rectangle as length is 60' and width is 10'.
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• then select the last line of the rectangle and make offset of 4.5" ie the width of the both inner walls by using the offset command in autocad.

• next make the offset of the line to get the length of the elevation steps by using the offset command in autocad give the offset lenth as 4.5" in both sides.
• next make the offset of the line left corner of the rectangle to get the length of the one of the bathrooms by using the offset command in autocad give the offset lenth as 1'6".
• next make the offset of the line right corner of the rectangle to get the length of the another front elevation by using the offset command in autocad give the offset lenth as 1'6".
• next make offset of that line 4.5" ie the width of the inner wall is equal to 300 ie enter the offset command and give the width of 4.5"
• delete the unwanted lines by using the trim command in autocad.
• next make the offset of the line right corner of the rectangle to get the length of the another elevation by using the offset command in autocad give the offset lenth as 2'.
• next make offset of that line 2' ie the width of the inner walls of lift is equal to 1'6", ie enter the offset command and give the width of 4.5"

• ext make offset of that line 14' ie the width of the inner wall is equal to 3050, ie enter the offset command and give the width of 4.5".
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• make the offet of 14'6" and from that line make offset of 10'6" to get the width of the living room and the kitchen and make offset from that line of 4.5" for the inner wall and 9" as the outer wall as diameter.
• Trim the unwanted lines for the door and the other openings the length of the line of that doors as per the given dimensions.
• for stair case make the offset of the line left corner of the rectangle to get the length of the staircase 10" and raiser 7" by using the offset command in autocad give the offset lenth as 7".

• next make the offset of the line to get the length of the elevation steps by using the offset command in autocad give the offset lenth as 4.5" in both sides.
• next make the offset of the line left corner of the rectangle to get the length of the one of the bathrooms by using the offset command in autocad give the offset lenth as 1'6".
• next make the offset of the line right corner of the rectangle to get the length of the another front elevation by using the offset command in autocad give the offset lenth as 1'6".
• next make offset of that line 4.5" ie the width of the inner wall is equal to 300 ie enter the offset command and give the width of 4.5"
• delete the unwanted lines by using the trim command in autocad.
• next make the offset of the line right corner of the rectangle to get the length of the another elevation by using the offset command in autocad give the offset lenth as 2'.
• next make offset of that line 2' ie the width of the inner walls of lift is equal to 1'6", ie enter the offset command and give the width of 4.5"

• and by using the multitext command or by copying the text which has been present in the another column the header text has been written or edited and edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.
• and next by using the hatch command in autocad make the hatcing the required places as per the column ie enter the hatch command H enter and then select the required hatch pattern in the hatch settings and then scale it as per the diagram.
• continue the process of hatching for the remaing down wardbrobe cross section remaning and then select the hatch serings and pattern as required as shown in the figure.

• make the offet of 14'6" and from that line make offset of 10'6" to get the width of the living room and the kitchen and make offset from that line of 4.5" for the inner wall and 9" as the outer wall as diameter.
• Trim the unwanted lines for the door and the other openings the length of the line of that doors as per the given dimensions.
• for stair case make the offset of the line left corner of the rectangle to get the length of the staircase 10" and raiser 7" by using the offset command in autocad give the offset lenth as 7".
• make the offet of 14'6" and from that line make offset of 10'6" to get the width of the living room and the kitchen and make offset from that line of 4.5" for the inner wall and 9" as the outer wall as diameter.
• Trim the unwanted lines for the door and the other openings the length of the line of that doors as per the given dimensions.
• for stair case make the offset of the line left corner of the rectangle to get the length of the staircase 10" and raiser 7" by using the offset command in autocad give the offset lenth as 7".

• and by using the multitext command or by copying the text which has been present in the another column the header text has been written sizes of the rooms or edited and edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.
• edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.
• to draw the door by using the autocad commands that by line command we can draw the line and by arc command we can draw the arc and by rectangle command we can draw the chouckets and then trim the unwanted lines. repeat the process for each and every door point side as per the required floor plan.
• enter the dimensions of the rooms as per the given dimensions using the Multi text command in autocad and enter the dimensions wich is required in the given floor plan to gte the required floor plan of the bathrooms and vanity and all other rooms.
• and by using the multitext command or by copying the text which has been present in the another column the header text has been written sizes of the rooms or edited and edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.

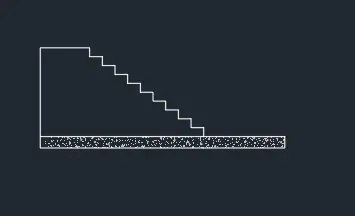

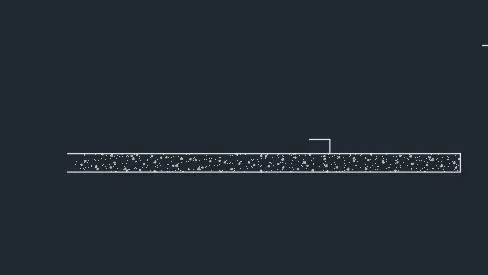

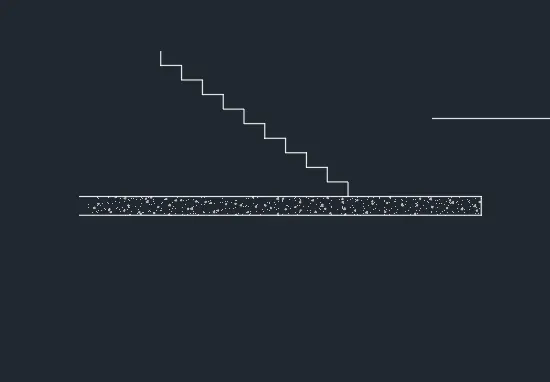

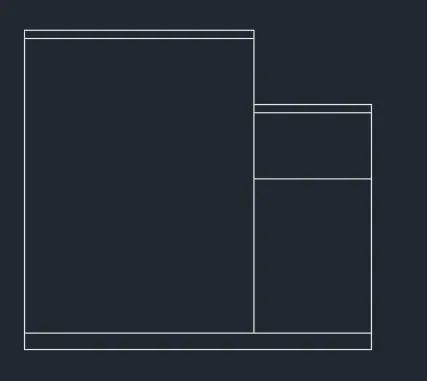

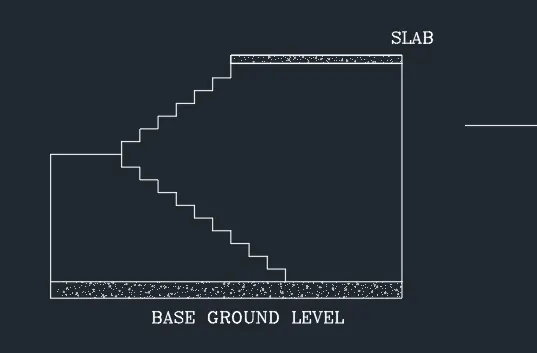

d) SECTION VIEW OD FLOOR PLAN:

To draw a given section view of a floor plan using autocad.

procedure: The following steps should be followed as a procedure to draw a given section view of a floor plan using autocad

• To draw the given section view of a floor plan in autocad, the following steps should be followed as a procedure. At first open the AutoCAD and set dimensions that the dimensions are in feets and inches.
• Then enter the Line command in AutoCAD and after that enter the first point of the given diagram as that line should be started at the point in the coordinate system.
• Then with that point draw a rectangle using rectangle command using the dimensions of the rectangle as length is 60' and width is 20'.
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• then select the last line of the rectangle and make offset of 4.5" ie the width of the both inner walls by using the offset command in autocad.

• next make offset of that line 14' ie the width of the inner wall is equal to 4.5", ie enter the offset command and give the width of 4.5".
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• make the offet of 14'6" and from that line make offset of 10" to get the width of the steps height thread and lift and the and make offset from that line of 4.5" for the inner wall and 9" as the outer wall as diameter.
• Trim the unwanted lines for the door and the other openings the length of the line of that doors as per the given dimensions.
• for stair case make the offset of the line left corner of the rectangle to get the length of the staircase 10" and raiser 7" by using the offset command in autocad give the offset lenth as 7".

• next make offset of that line 14' ie the width of the inner wall is equal to 4.5", ie enter the offset command and give the width of 4.5".
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• make the offet of 14'6" and from that line make offset of 10" to get the width of the steps height thread and lift and the and make offset from that line of 4.5" for the inner wall and 9" as the outer wall as diameter.
• Trim the unwanted lines for the door and the other openings the length of the line of that doors as per the given dimensions.
• for stair case make the offset of the line left corner of the rectangle to get the length of the staircase 10" and raiser 7" by using the offset command in autocad give the offset lenth as 7".

• continue the process and next make offset of that line 14' ie the width of the inner wall is equal to 4.5", ie enter the offset command and give the width of 4.5".
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• make the offet of 14'6" and from that line make offset of 10" to get the width of the steps height thread and lift and the and make offset from that line of 4.5" for the inner wall and 9" as the outer wall as diameter.
• Trim the unwanted lines for the door and the other openings the length of the line of that doors as per the given dimensions.
• for stair case make the offset of the line left corner of the rectangle to get the length of the staircase 10" and raiser 7" by using the offset command in autocad give the offset lenth as 7".

• next make offset of that line 14' ie the width of the inner wall is equal to 4.5", ie enter the offset command and give the width of 4.5".
• by using the offset command in autocad make offsset of 9" for the outer wall ie enter the dimension of the offset as 9".
• make the offet of 14'6" and from that line make offset of 10" to get the width of the steps height thread and lift and the and make offset from that line of 4.5" for the inner wall and 9" as the outer wall as diameter.
• Trim the unwanted lines for the door and the other openings the length of the line of that doors as per the given dimensions.
• for stair case make the offset of the line left corner of the rectangle to get the length of the staircase 10" and raiser 7" by using the offset command in autocad give the offset lenth as 7".

• and by using the multitext command or by copying the text which has been present in the another column the header text has been written sizes of the rooms or edited and edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.
• edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.
• to draw the door by using the autocad commands that by line command we can draw the line and by arc command we can draw the arc and by rectangle command we can draw the chouckets and then trim the unwanted lines. repeat the process for each and every door point side as per the required floor plan.
• enter the dimensions of the rooms as per the given dimensions using the Multi text command in autocad and enter the dimensions wich is required in the given floor plan to gte the required floor plan of the bathrooms and vanity and all other rooms.
• and by using the multitext command or by copying the text which has been present in the another column the header text has been written sizes of the rooms or edited and edit the text as per the required and paste it on the row which has been present and edit the text and place the texting height as per the required table as shown in the figure below.
