Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

AIM : Design and Draft a layout of a residential building.

Introduction : Layout of residential building of plot size (60'x20' ) with east facing.But built up area is less than plot area. 4' from east-west side and 1' from north south side is left for passage area,piping and drainage purposes. Floor plan,elevation,section ,column,beam and footing plan are drawn. I am going to draw 2 BHK Building.

Procedure : (FOR FLOOR PLAN)

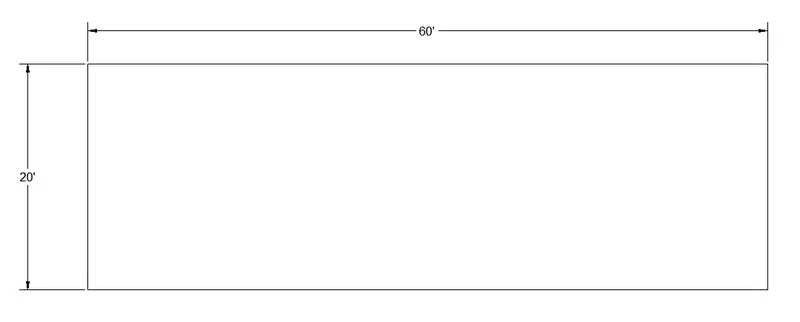

Step 1 : First draw plot area (60'x20') with east facing.

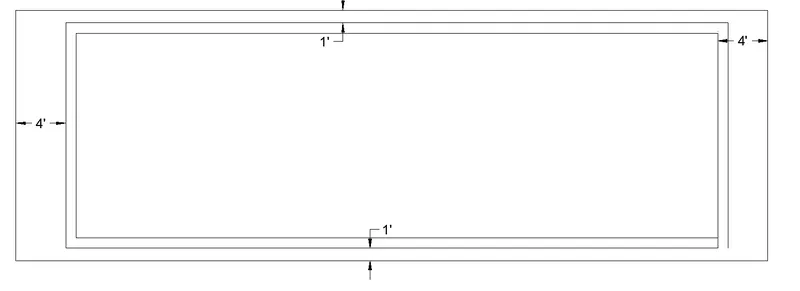

Step 2 : Now start drawing external wall of thickness 10" with 4' from east-west side and 1' from north south side is left .

Step 3 : Now start drawing interior wall for room,kitchen,bathroom ,corridor and dinning/living.

: add door and window,vantilation and staircase.

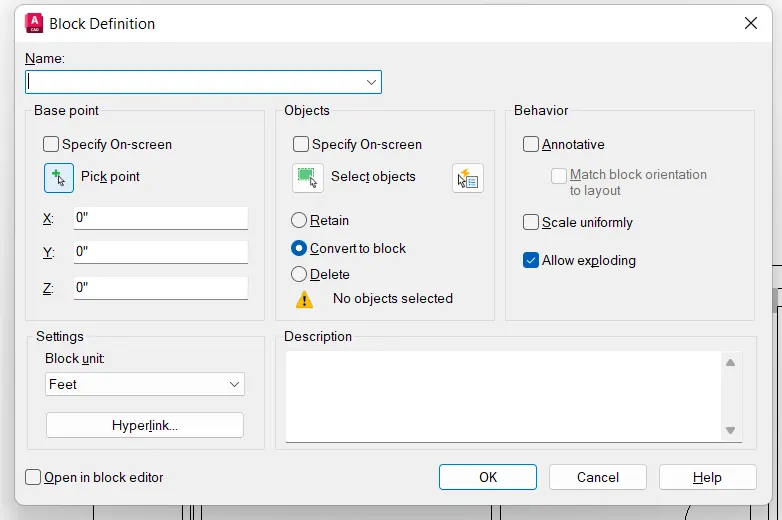

: for door and window use block command : First make door and then type "B" for making it block,then select object then click okk.

:

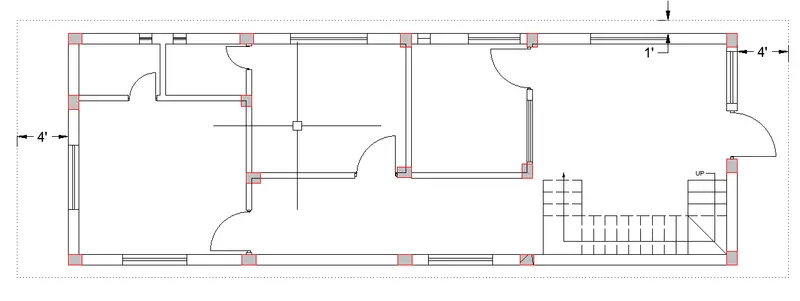

Step 4 : Now start placing column as per my knowledge (try to place column in every corner of room and distance should not be greater 12' for 10"by10" column)

: For reconizing column,draw it in different layer and hatch it.

==> (Elevation East facing)

Step 5 : Type "Xline" and select vertical and start drawing with corner point.

: draw base line and offset 10'

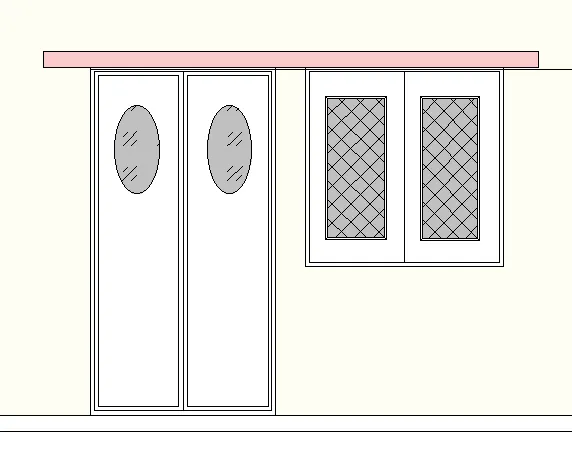

: now create front elevation of door and window

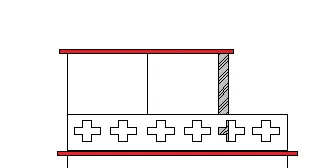

:now above 7' draw prapet wall with design and head room of height 8'

: now draw lintle at door level and draw floor thickness 4" and roof thickness 5"

==> (SECTION A-A)

Step 6 : Draw section A-A in floor plan

:first create base level same as elevation.

: copy the fornt elevation

: delete unnecesary elements from copied elevation

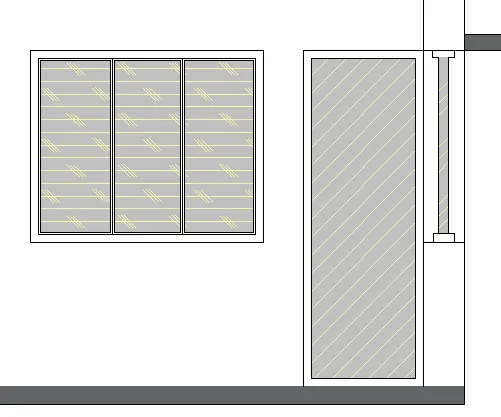

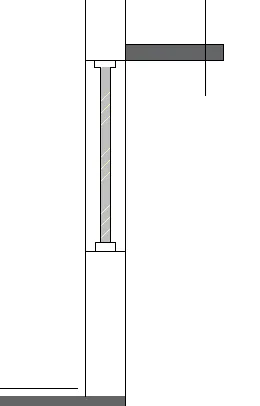

: now start from east face right side and draw cut section of wall with window

:now in floor plan we clearly see after wall there are door and window .so we are going to create it.

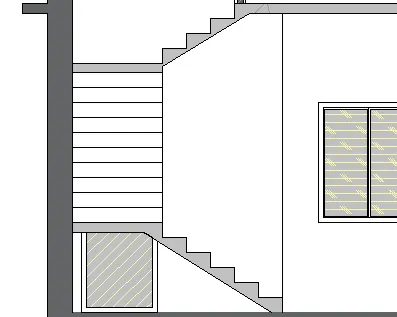

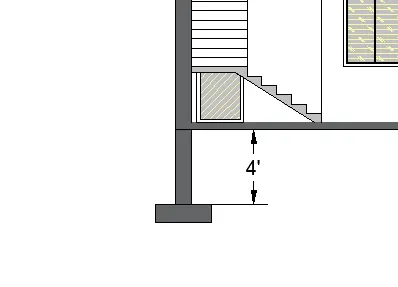

: after that create staircase in section with door in background as we see in floor.

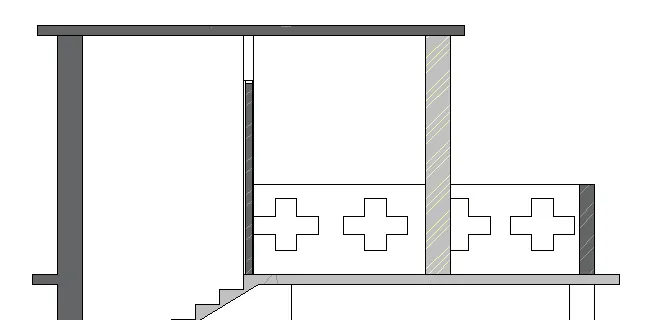

: now create parapet wall and head room section

: now creating section below base level

: creating column with isolate footing.

==> ( COLUMN PLAN- STRUCTURAL)

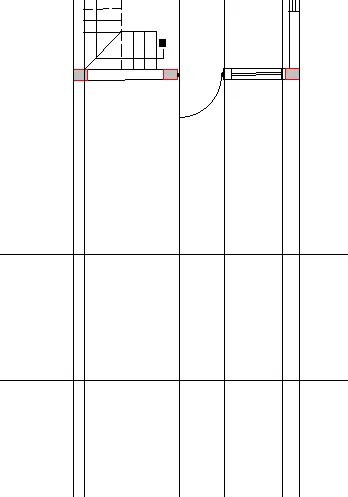

Step 7 :First copy floor plan

: draw the line in between the external wall 10"

: Try to draw line either left or right of 5" internal wall as per required.

:after creating center to center line diagram

:now align column in the floor plan

:now turn off the wall,door and other components

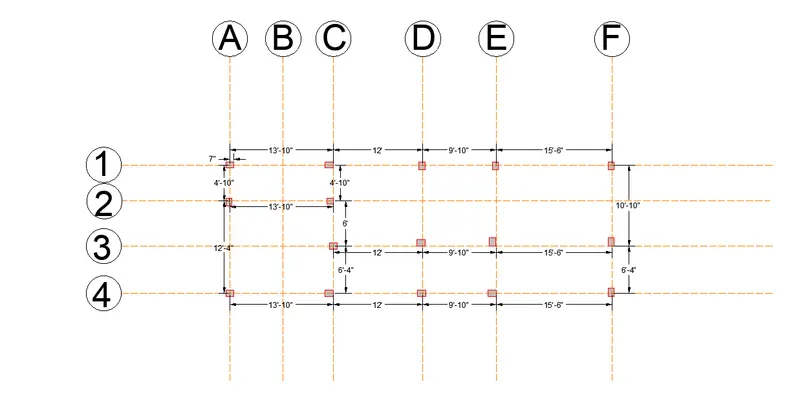

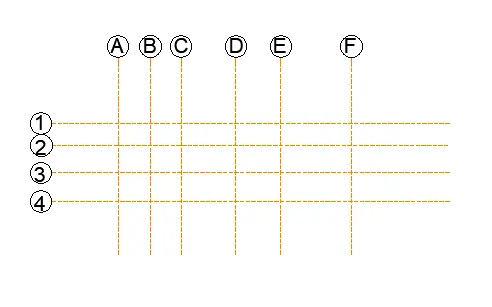

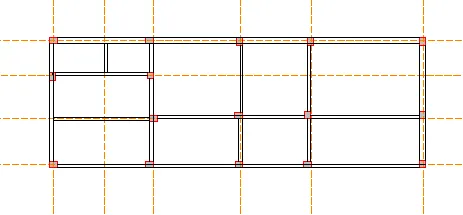

: now make center to centre line grid

: now place column in it

==> ( BEAM PLAN-STRUCTURAL)

Step 8 : first make copy of column plan

: now connect the column with beam as per required

: adjust the width of beam as per width of column

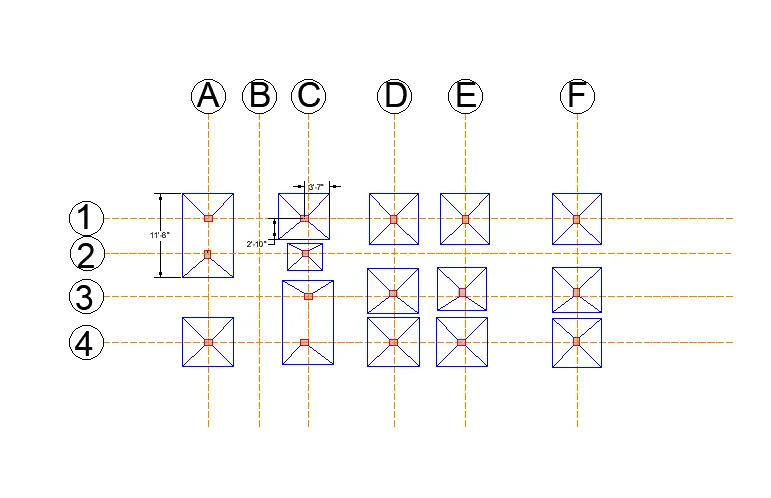

==> ( FOOTING PLAN- STRUCTURAL)

Step 9 : make the copy of column plan

: generally the size of isolated footing 3'x3' but it will be combined footing if the distance between two column is closed.

:we measure the distance from the centre of column

:

RESULT : Here are final result of every plan (floor,section,elevation,column,beam and footing).

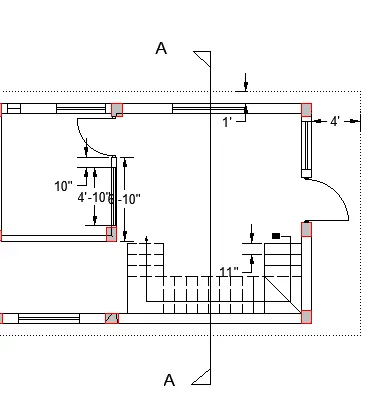

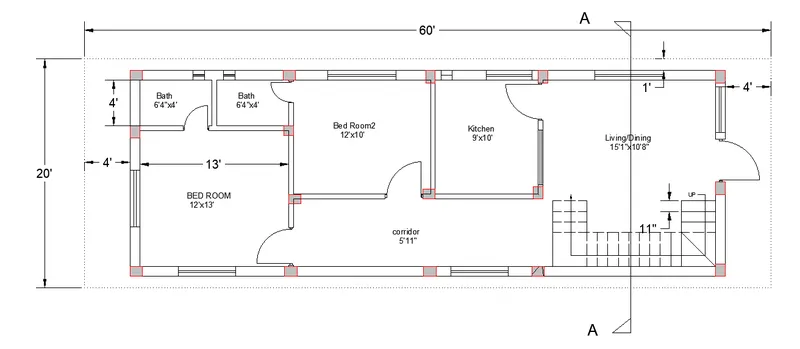

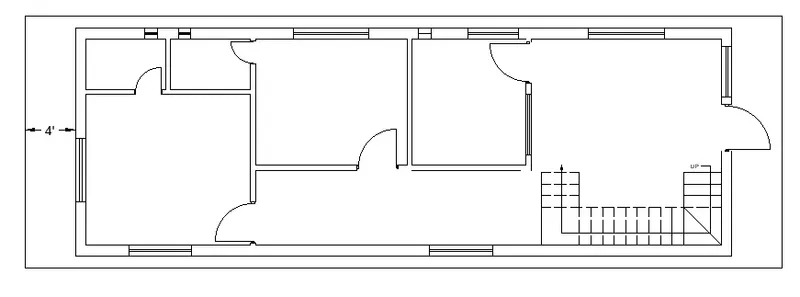

(FLOOR PLAN )

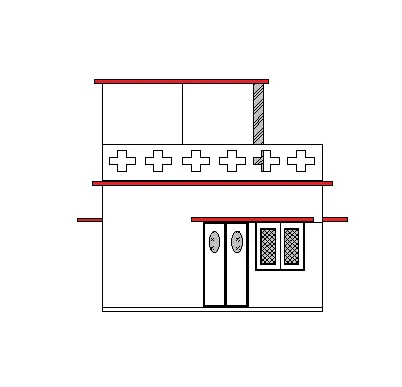

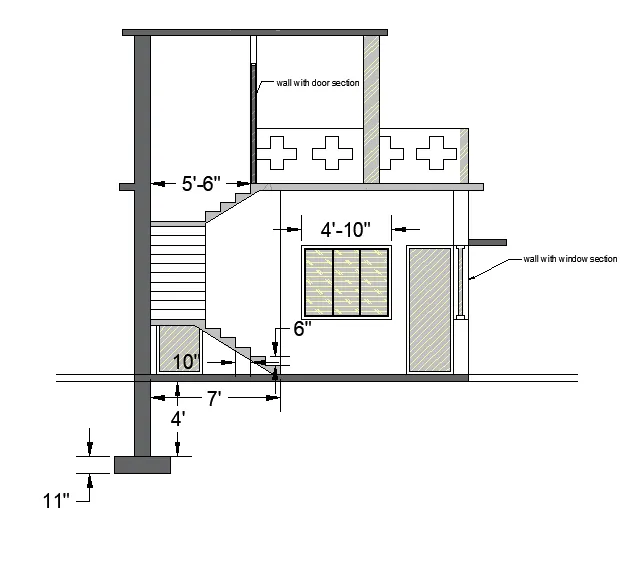

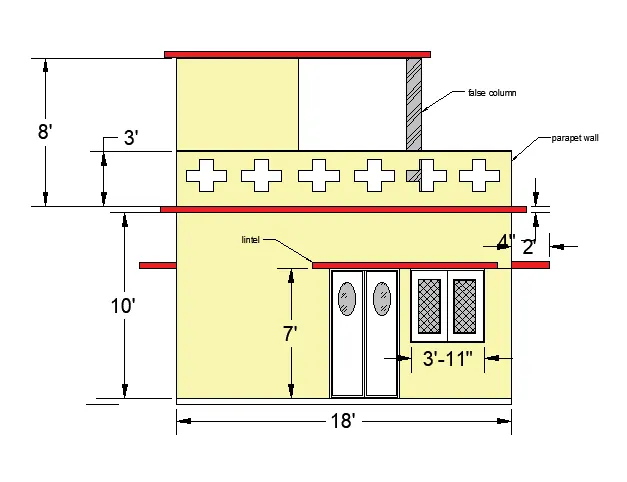

Elevation east facing SECTION A-A

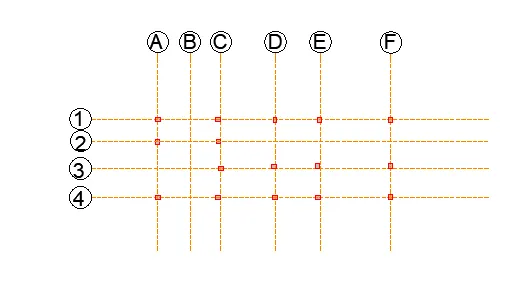

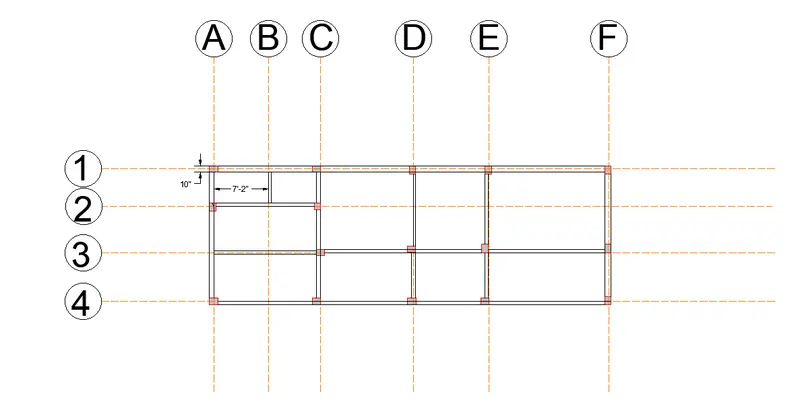

COLUMN PLAN FOOTING PLAN BEAM PLAN

============================================================================================================================

THANK YOU.
