Project 1 : CFD Meshing for Tesla Cyber Truck

AIM:

To study and perform surface meshing on Tesla cyber truck and also to create a wind tunnel(perform surface meshing).

OBJECTIVE:

For the given Tesla cyber truck first, we have to solve the geometrical errors on the half portion and perform them with the given Target length and element Quality criteria(TRIA). Once the meshing of the half model is done perform the symmetry to another side and also take care of the meshing size element error and off element. Finally, we are creating the wind tunnel for the Tesla cyber truck model to do the surface meshing for the given target length and element quality type.

TOOLS USED:

• FILL HOLE
• HOT POINTS(INSERT)
• TRANSFORM(SYMMETRY)
• TOPO
• CONS(PROJECT)
• CONS(RELEASE)
• FACES(EXTEND)
• DELETE
• FACE(FITTED)
• FACE(PLANNER)
• FACES(CUT)
• FACES(OFFSET)
• FACES(ORIENT)
• CURVES(CREATE)
• CURVES(DELETE)
• CURVES(CONS2CURVE)
• AUXILIARIES(FINE)
• PERIMETER(LENGTH AND MACROS)
• PERIMETER(SPACING)
• MESH GENERATION(ERASE)
• SHELL MESH(RECONSTRUCT)
• CFD MESH
• UNFREEZE
• V MESH( VOLUME=>DEFINE)
• VOLUMES(LIST)


PROCEDURE:

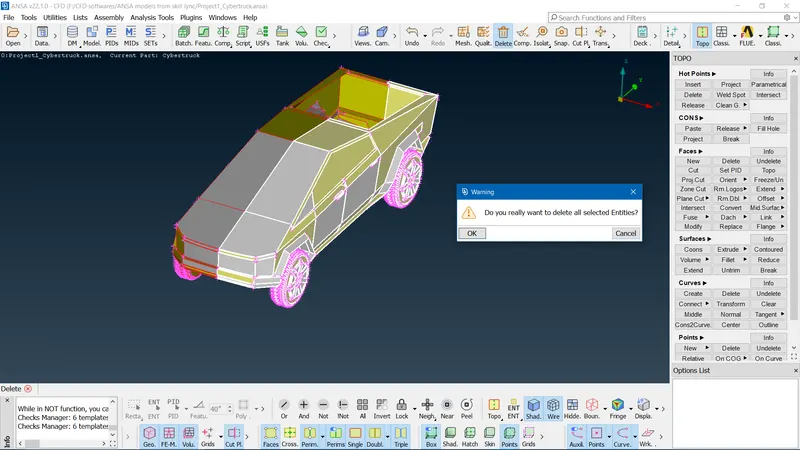

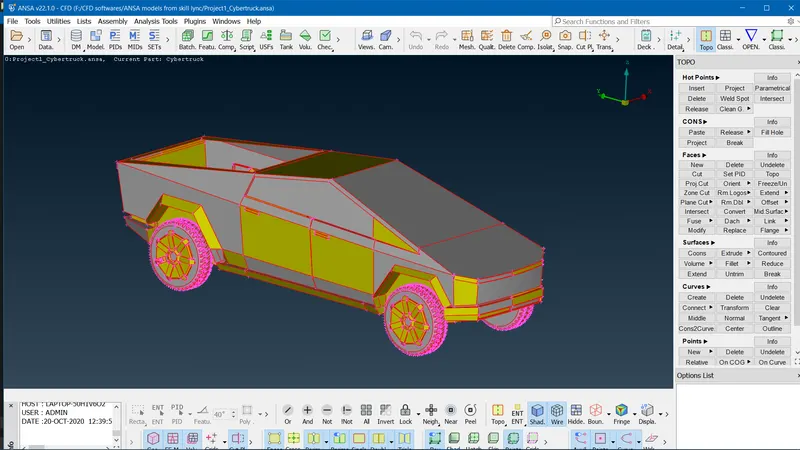

• As we can see from the above figure we can see single cons and triple cons issues also intersection errors once the checks manager is done on the entire car model. The first step of proceeding with the car models taking care of the geometrical error of the entire car which would be a tedious process for solving the entire car model. The best solution is to delete the half symmetrical surface solve for geometrical errors and do surface mesh then copy the solved half model to the other surface. But first, we delete half the surface of the car(Surface with minimal errors) as shown below figure.

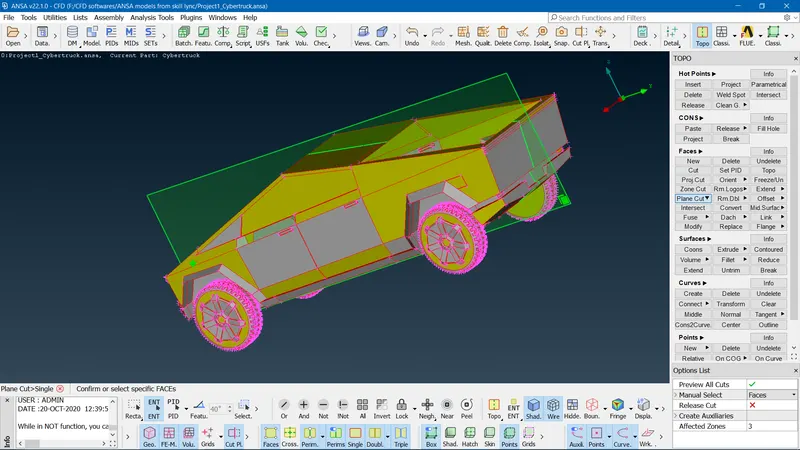

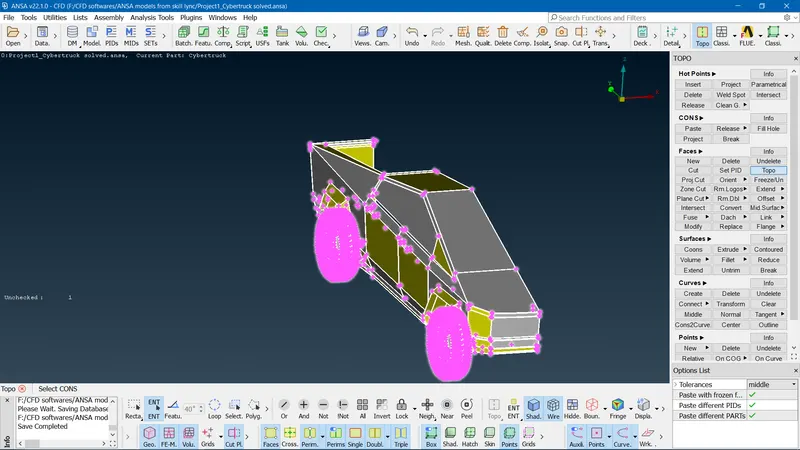

• First, I do the plane cut option to divide the truck into two parts and once the half surface of the car model is deleted we do the checks managers we find out numerous errors such as single con, triple con, intersections, and overlapping surface. These errors have to be solved one after the other in order to get clean geometry for meshing.

• Initial use TOPO option to take care of single con errors

• Note that the main purpose of deleting unwanted surfaces is to prevent the meshing complexity of the truck model.

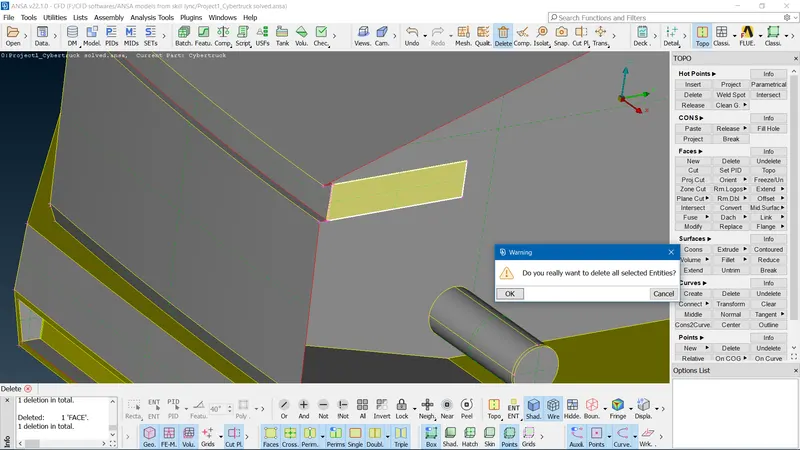

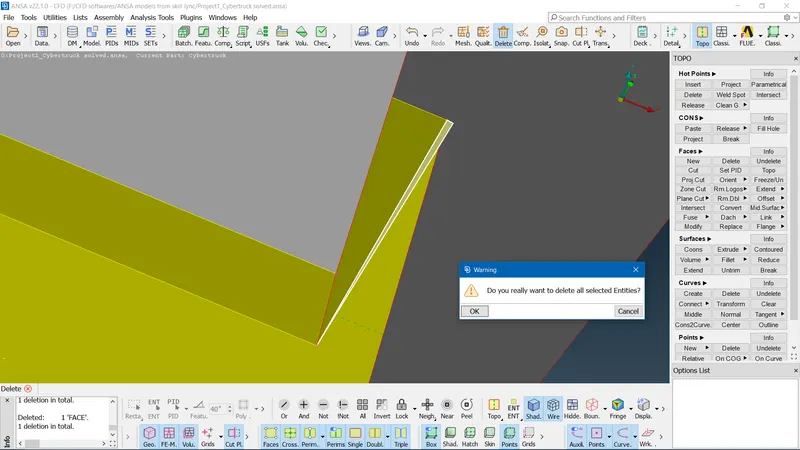

• we can find there are unwanted surfaces for meshing first we delete these surfaces and use FACES==>NEW==>PLANNAR option==>ok to create a simple plane surface.

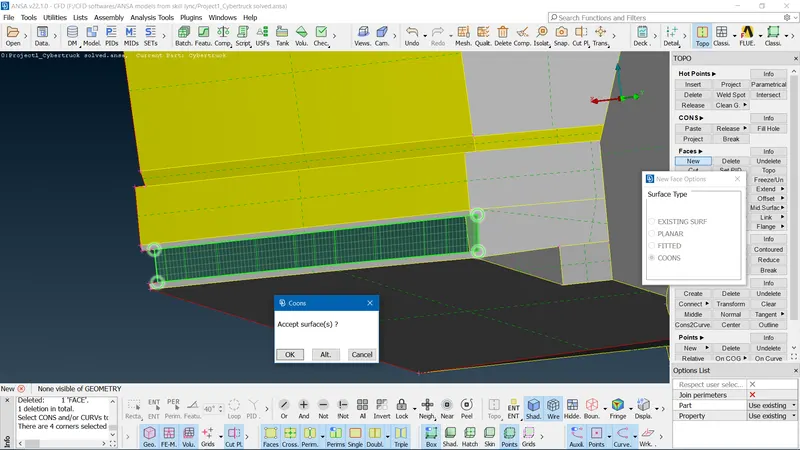

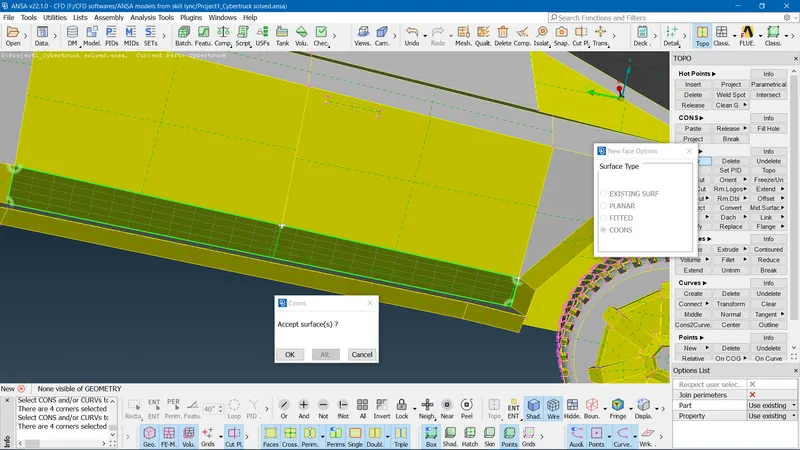

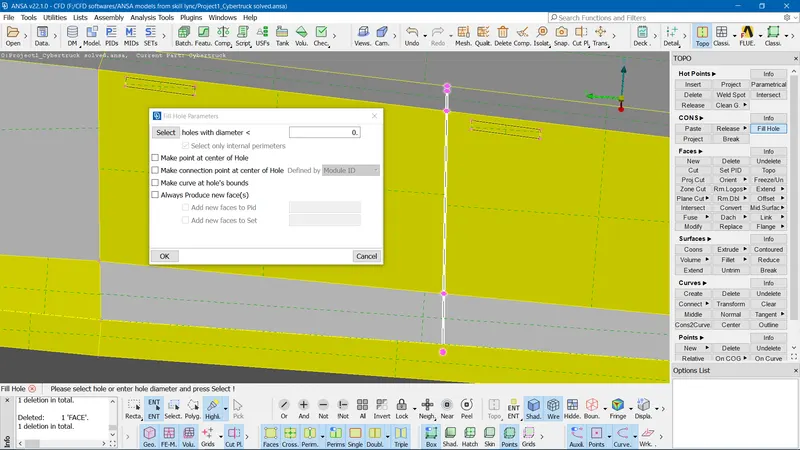

• For the truck, we have to create air-tight geometry by closing all the surfaces either using use CONS==> FILL HOLE option or FACES==>NEW==>PLANNAR option==>ok.

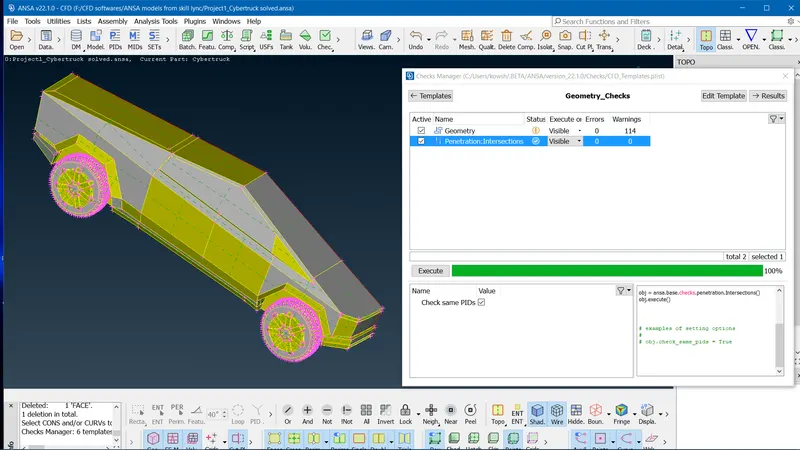

• Since we have cleaned up the entire half of the truck model to have confirmation we do CHECH MANAGER to check for errors. We do get some single con error at the end cut surface of the car which is ok because we are going to do the symmetry option at the final stage and I get the following results.

• We create PIDs for individual components of the car by opening the PID option==>right clicking on Shell property==>create new shell property==>apply each component into the newly created component==>ok.

• Sometimes we get intersection errors this can be due to the quality of the geometry this can be resolved by increasing the quality of the geometry.

• So once we are finished with the geometrical cleanup we go for the meshing process. This is done by changing the TOPO option to the MESH option.

SURFACE MESHING OF TESLA CYBER TRUCK

• For the surface meshing of the Tesla cyber truck, we cannot select the entire truck and mesh once and for all because we have different target lengths given so according to the target length and type of meshing we have to mesh each and every component of the car separately.

• First, we edit the QUALITY CRITERIA by selecting the required parameters such as MINIMUM AND MAXIMUM LENGTH ALSO SKEWNESS.

• To get finner mesh for complex geometry we use CFD mesh whereas SPOT mesh is used for simple geometry.

• Steps for CFD MESH

1. Initially, we take the component we give the target length under PARAMETER==>SPACING OPTION==> select AUTO CFD option we get pop up window==> give CFD spacing parameters such(PERIMETER AND MACROS individually)==>specify minimum and maximum target lengths==>ok.
2. Under MESH GENERATION==>Select CFD option==> visible.
3. If we get too many OFF elements we do reconstruct by going to the SHELL MESH option ==>select RECONSTRUCT option==>select visible==>ok.

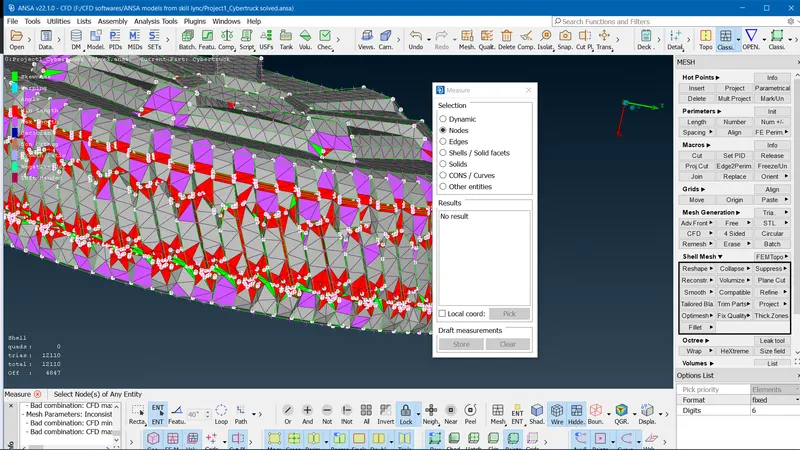

4. Still, if we get off elements where elements are failing for minimum/maximum/skewness we use various operations.
5. Under GRIDS options==> select MOVE option==> select each node(This option is used to move individual nodes for our satisfaction).
6. Under ELEMENTS option==> select SPLIT option==> select the maximum nodal length(This option is used to split the element).
7. Note there are off elements(minimum/maximum/skewness) errors at boundary surfaces of each part this ok because there is a difference in target length between the components hence this ok.

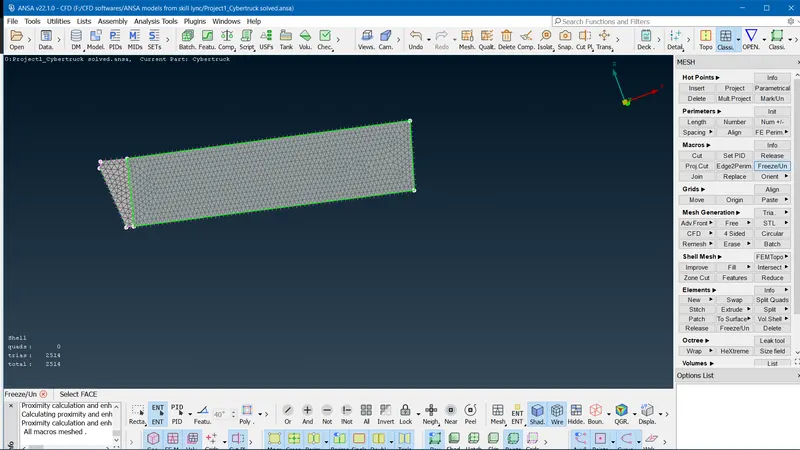

8. Also once the meshing of a particular component is done we freeze the component by using the FREEZE option so that there are no changes that can be done to the component.
9. The following steps are repeated for all other components of the car till we get no off components in the meshed surface.

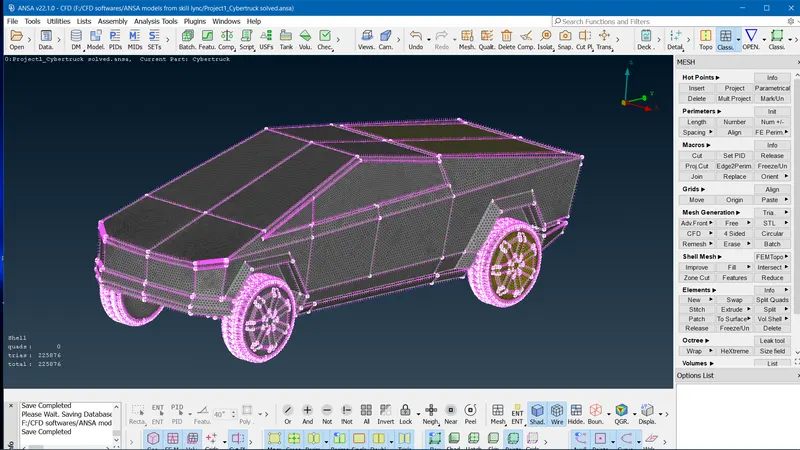

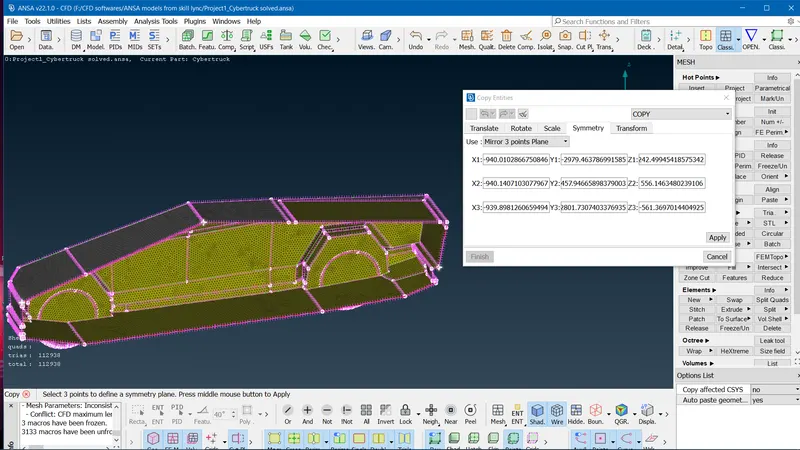

• Once the half model is cleared with geometry errors and meshed all the components use the TRANSLATE (symmetry) option to copy the other surface of the truck.

CREATING THE WIND TUNNEL AND PERFORMING SURFACE MESHING

• To create a wind tunnel first we have to predict the exact coordinates with respect to truck length(x). The measured distance of the car x=5980mm.

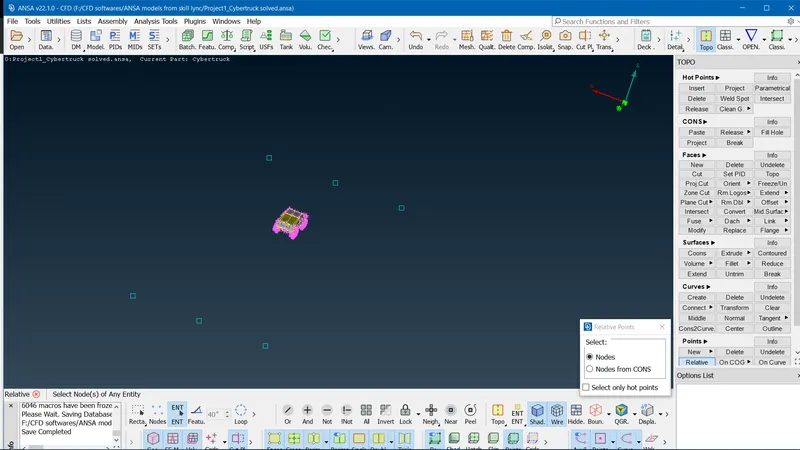

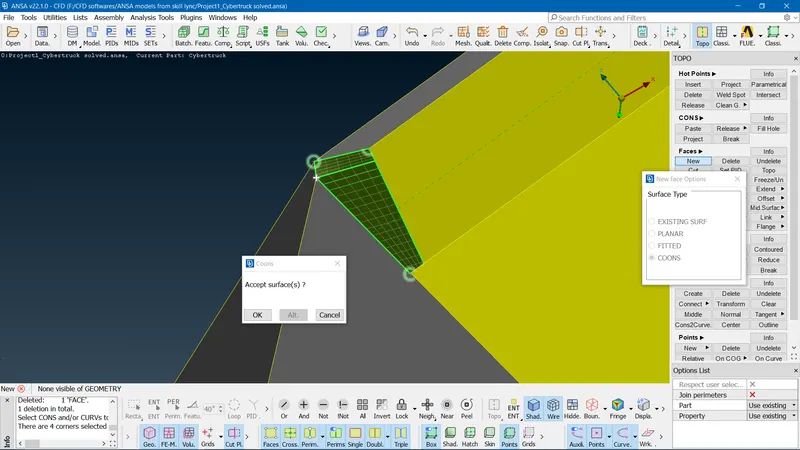

• Initially, we are creating relative points their measurement is given as frontal relative point is distance 4x, rear relative point distance is 6x, top relative point distance is 3x, sides relative point distance is x. These points are plotted with reference to the center plane of the truck using POINTS==>select the RELATIVE option to calculate the distances ==> enter the values in their respective coordinates. Use the CURVE option to connect all the relative points created. Finally, we are creating the bottom surface of the wind tunnel by using FACES==>NEW==>COONS option==>ok.

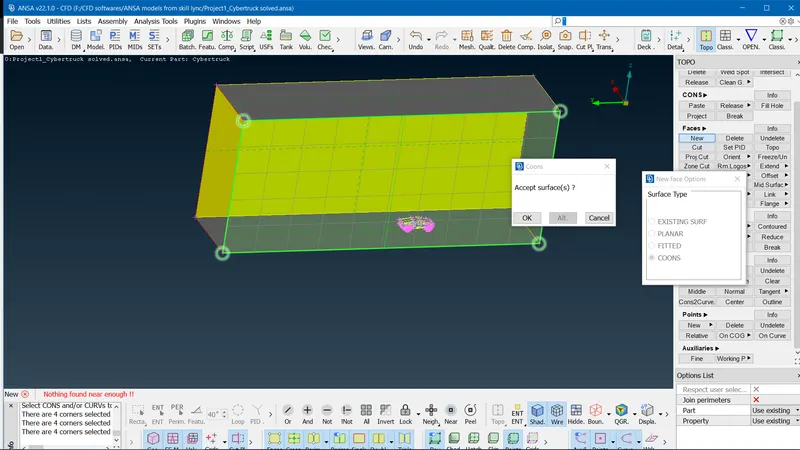

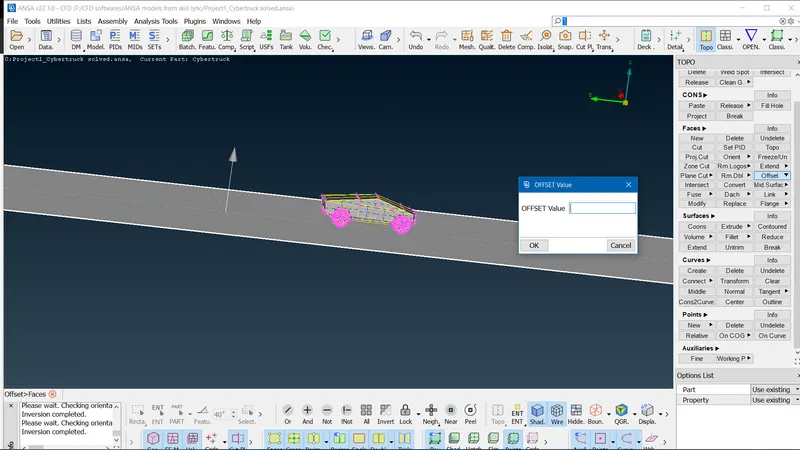

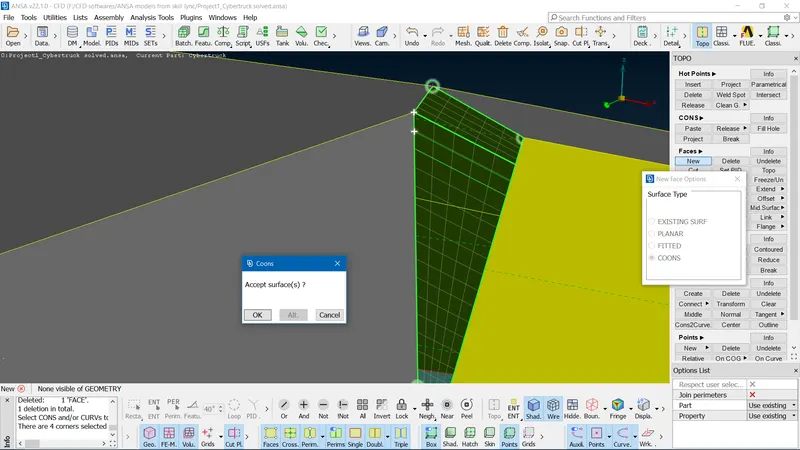

• The top surface of the wind tunnel is created by offsetting the bottom surface at a distance of ground clearance+height of the car+3x. This offsetting is done by using the OFFSET option==>select the nominal surface==>enter the offset distance==>ok. Once both surfaces are done create the side surfaces of the tunnel by using FACES==>NEW==>COONS option==>ok.

Once the wind tunnel is created we move on to the surface meshing of the wind tunnel

1. Since the surface of the wind tunnel is simple we use SPOT MESH. Note the important point that we need refined fine mesh at the bottom surface of the wind tunnel because we have the car model and we need to study the characteristics and values affecting the surface of the truck.
2. Initial we mesh the top surface of the car by using PARAMETERS option==> select LENGTH option==> pop up window(PERIMETER AND MACROS)==>Individually give target length==>ok.
3. Under MESH GENERATION==> select SPOT MESH==> select the surface/body to be meshed.

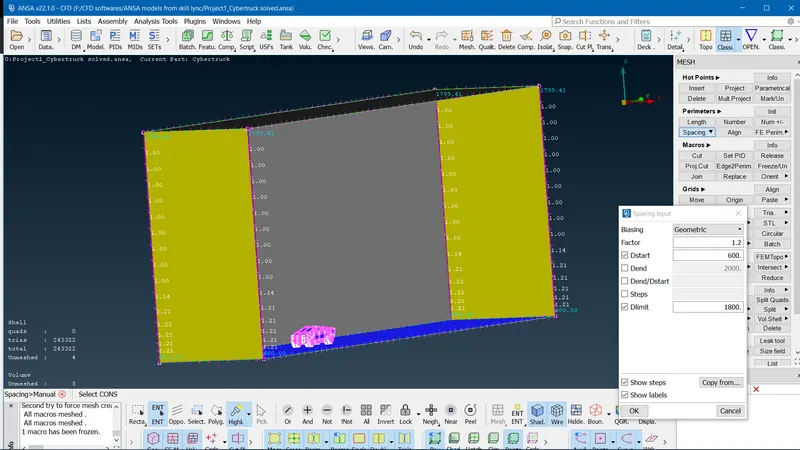

4. Since the mesh should vary from bottom to top (600mm to 1800mm) for side surfaces we use under the PERIMETER option==> select the SPACING manual option==> we get pop up window to assign factor=1.2, dmin=600mm, and dlimit=1800mm==>select the edges==>ok. Finally SPOT MESH option.
5. Once the sides of the wind tunnel mesh we notice that perimeter and macros are created respectively hence we do direct the SPOT mesh option to the bottom surface.

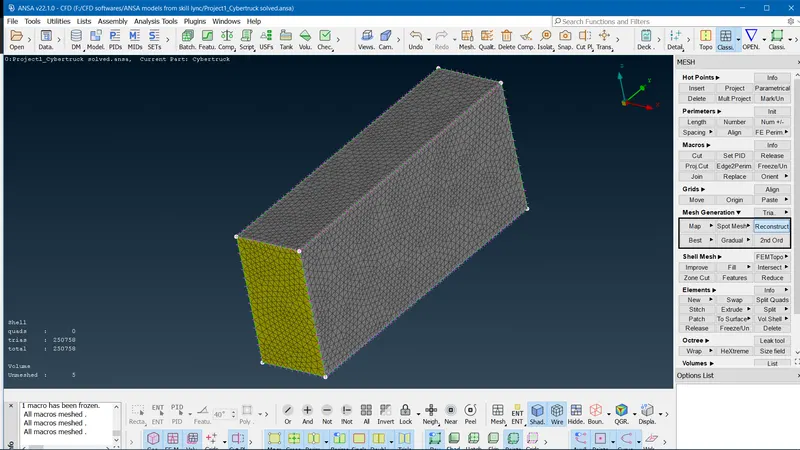

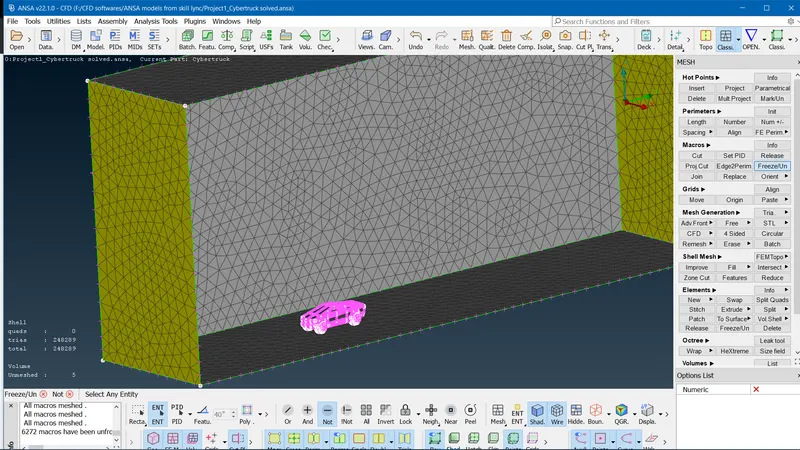

6. Hence the surface mesh is created for the wind tunnel as shown below.

LINK FOR THE TESLA CYBER TRUCK

https://drive.google.com/file/d/1iQZrK14-Eoy2aHWu3Km8iq4EEon3XXTS/view?usp=sharing

CONCLUSION:

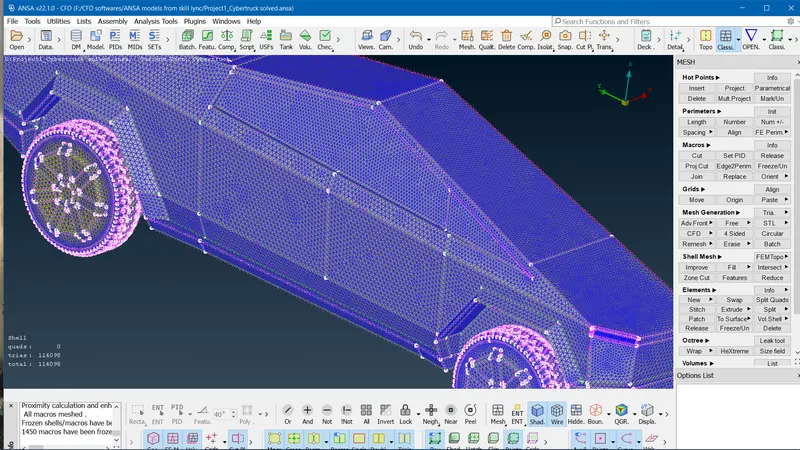

I have successfully solved the geometrical errors for the given tesla cyber truck and surface meshed for different target lengths and element types (TRIA). So here we notice that spot mesh cannot be used for all the components with complicated geometry hence I have opted for CFD mesh. As we can see the surface meshed for components(wheels, optical mirror, body, windows) of the car is an unstructured mesh with finner mesh elements. And our main aim is to create an air-tight geometry to perform aerodynamic analysis on the external surface of the car so this can be checked in the V mesh option by how many volumes are present or created. Finally, I create a wind tunnel for the BMW car model and meshed the surface.
