Project 1 : CFD Meshing for Tesla Cyber Truck

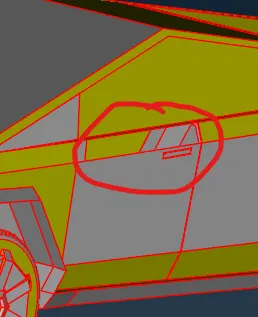

fill all open areas with faces>new coons(loop selection method)

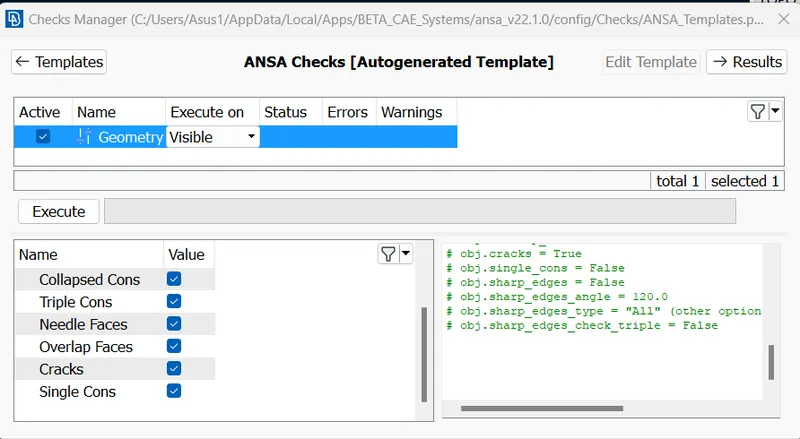

check for single cons using geomentry checks option
if they turnout no errors

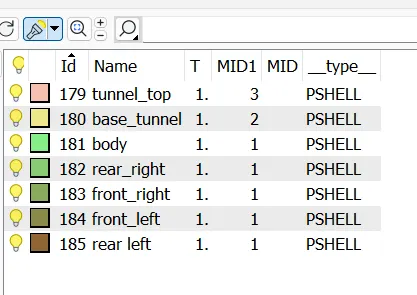

asign PID IN the PID manager
change to mesh deck

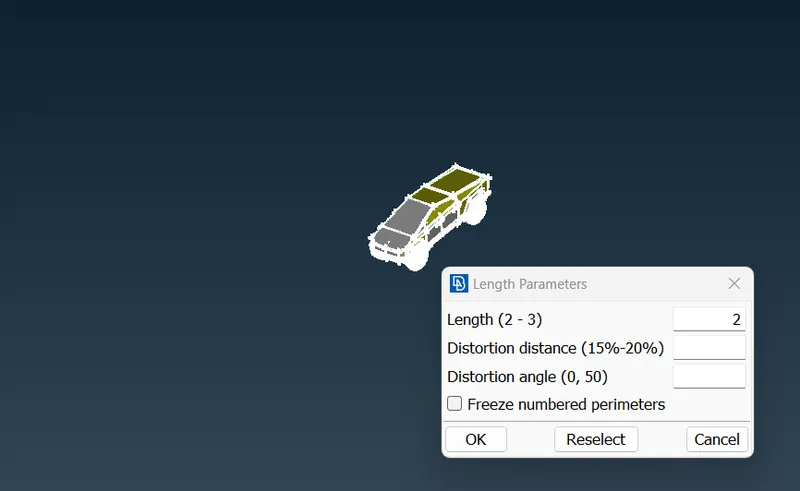

asign length using length option , quality criteria,mesh properties.

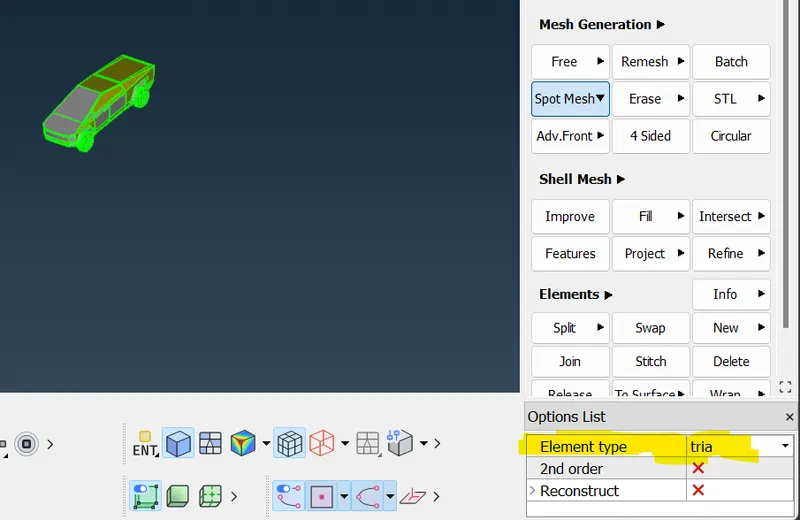

spotmesh>change to tria elements
spotmesh>visible (wait until meshing is compleated )

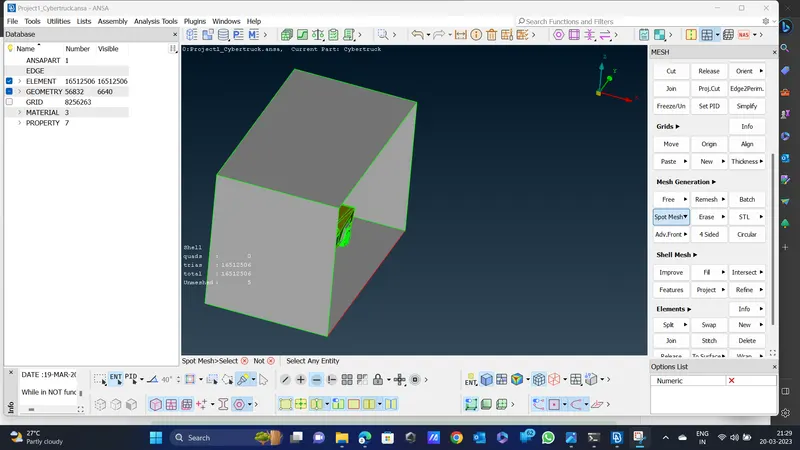

create a wind tunnel in length 4x the length of truck and 3x length using relative point and curves
using coons option form a surface asign PID to it
deleate curves and points

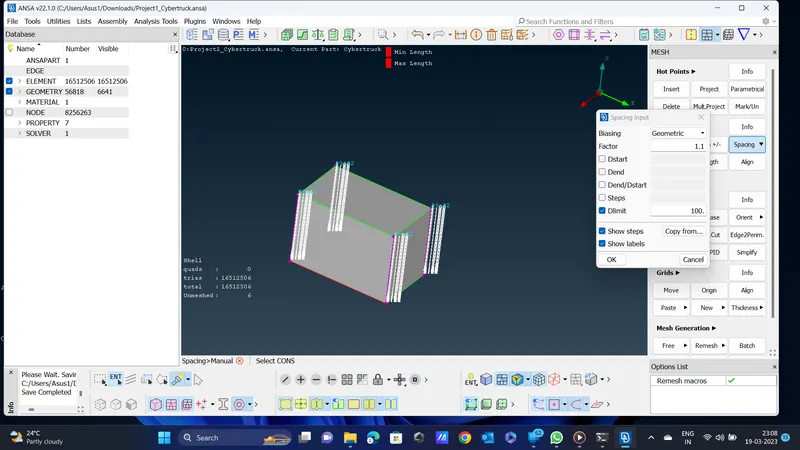

change to mesh deck and form a variable mesh using spacing>linear
switch to volumetric mesh deck deleate uneesery volume mesh them
**the file size was big so kindly obtain the same from the one drive link below
