Project 1 : CFD Meshing for Tesla Cyber Truck

AIM:

To given model to solve the geometrical error and assign PIDs perform meshing with suitable target length.

PROCETURE:

STEP 1:

Download the model to the dashboard

STEP 2:

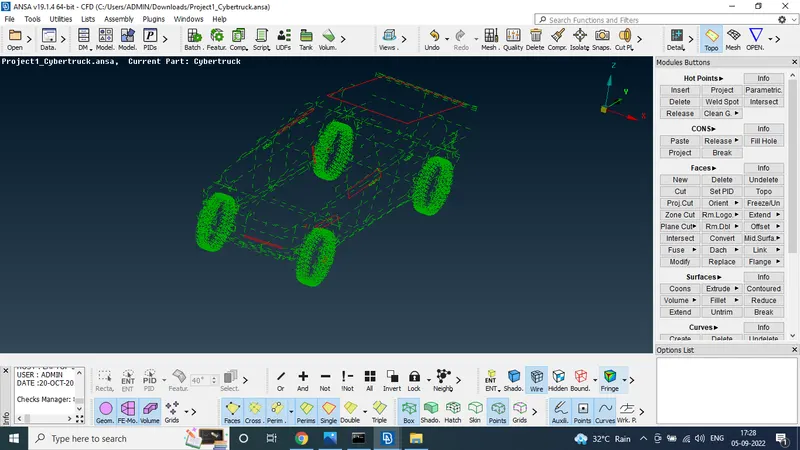

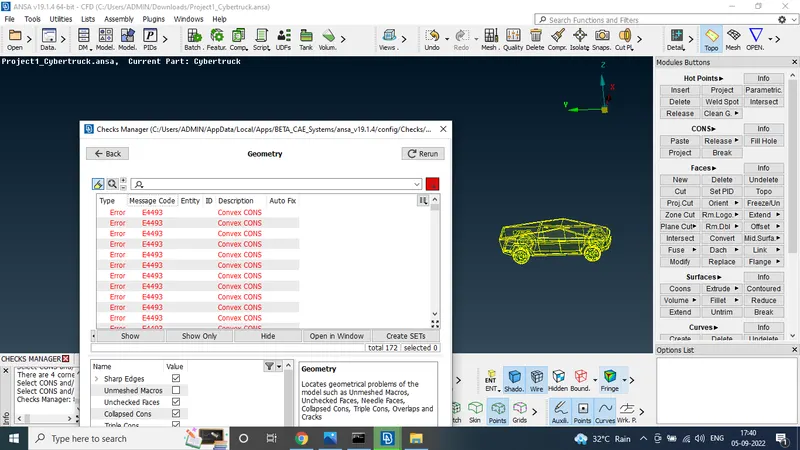

usin the check manager tool to find the geometric and penetration error of the model

STEP 3:

To solve the error

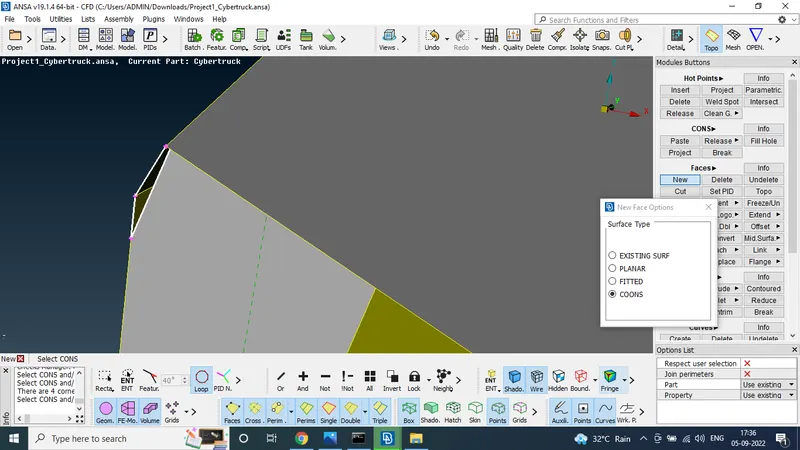

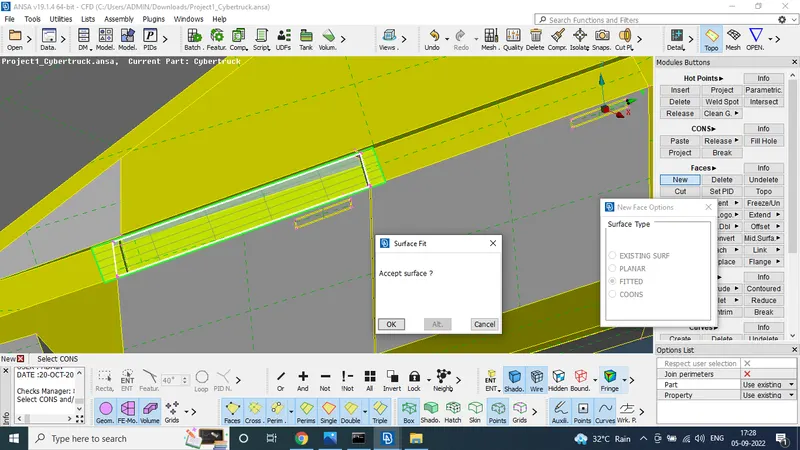

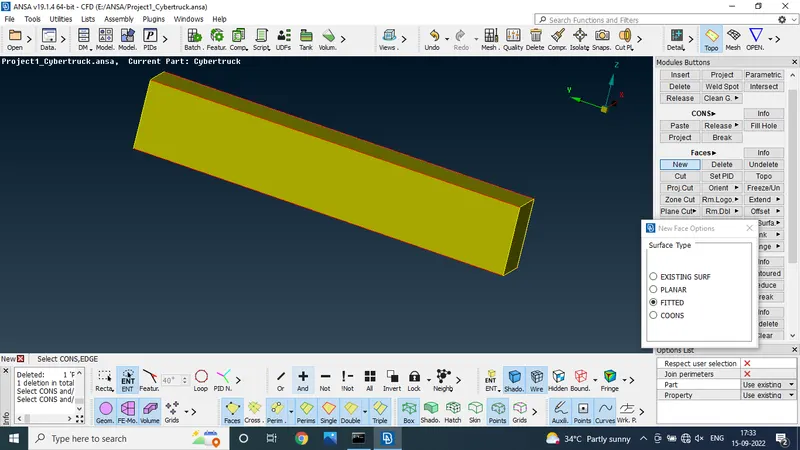

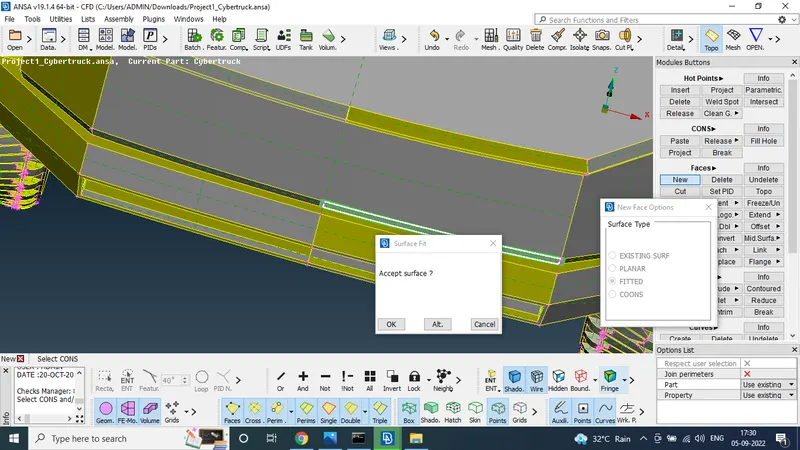

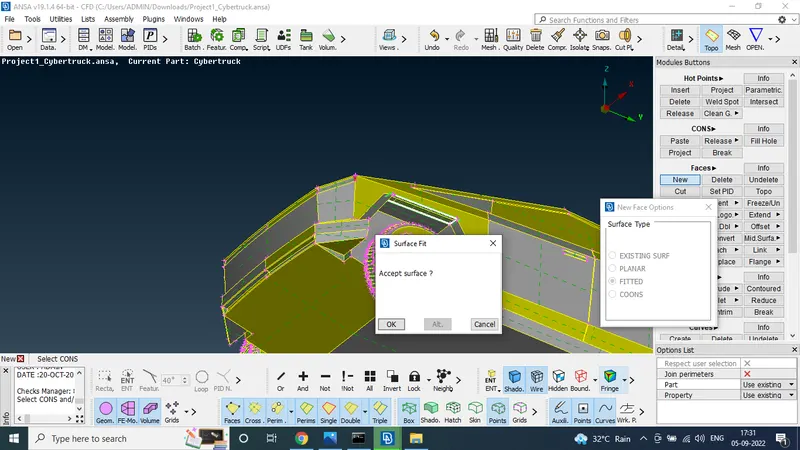

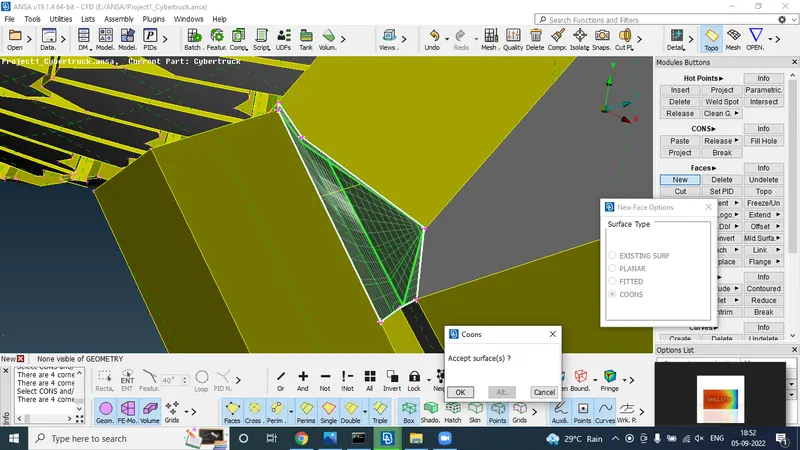

fill the surface using face new tool to use the fitted option to crete the face

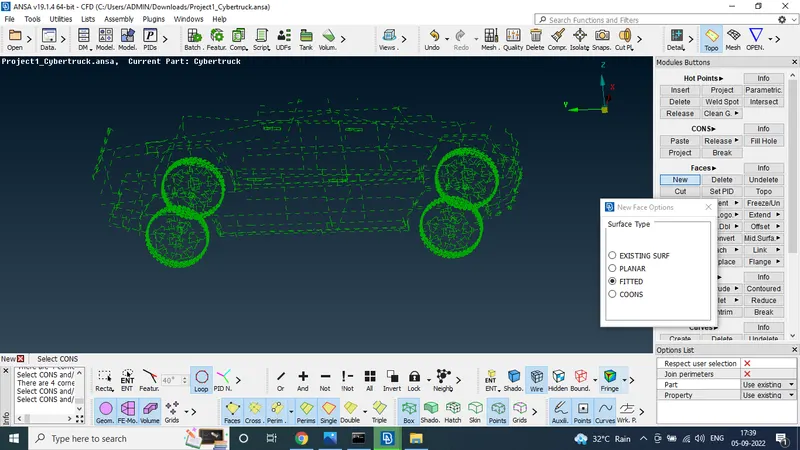

using the same above mensioned option to crete the faces

STEP 4:

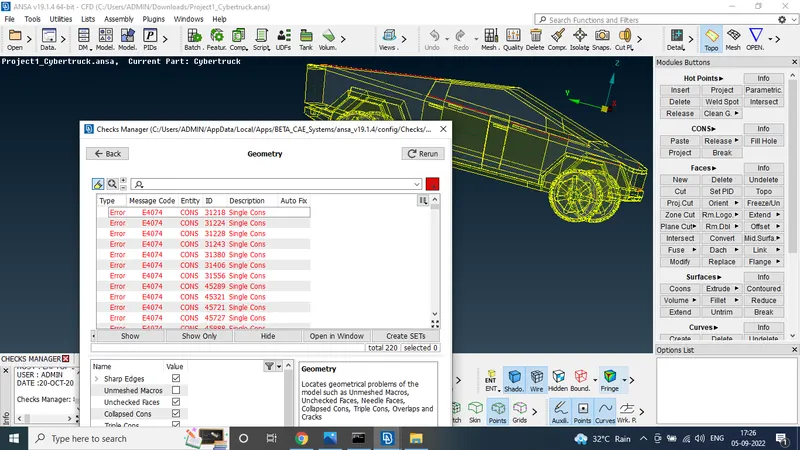

no single and trible cones

STEP 5:

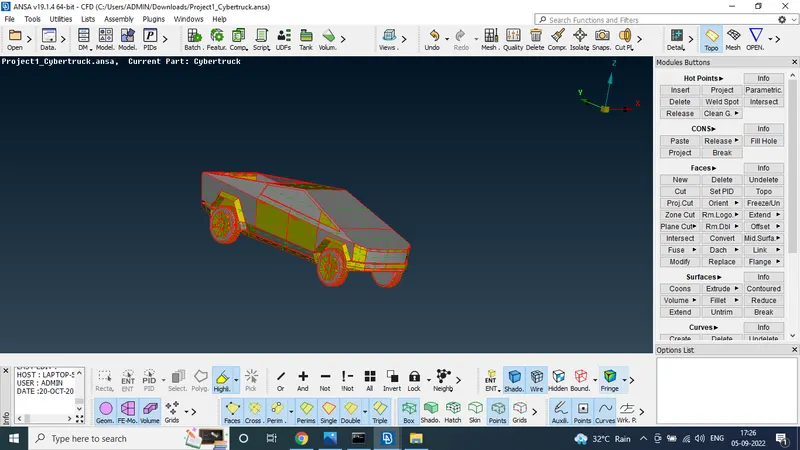

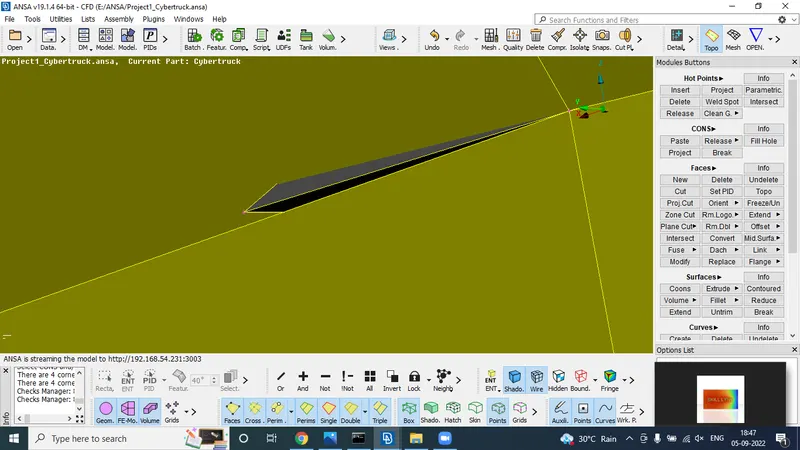

Again check the giometric ERROR

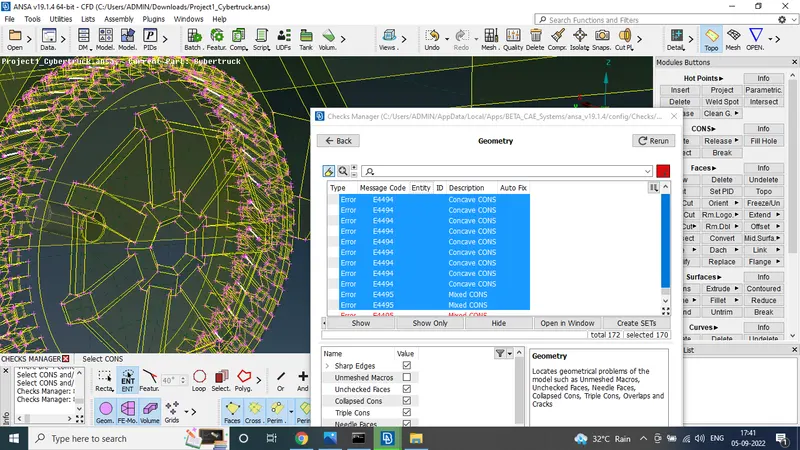

the error was founded by tyre this are convex and concave cones so neglete the cones

STEP 6:

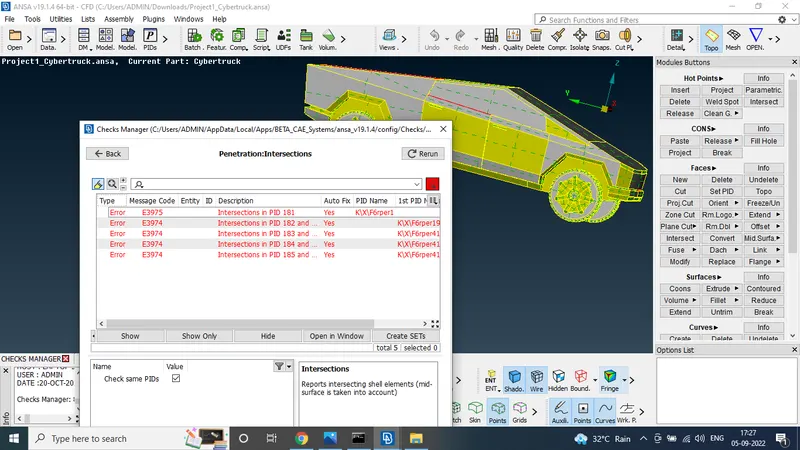

to solve the penetration error

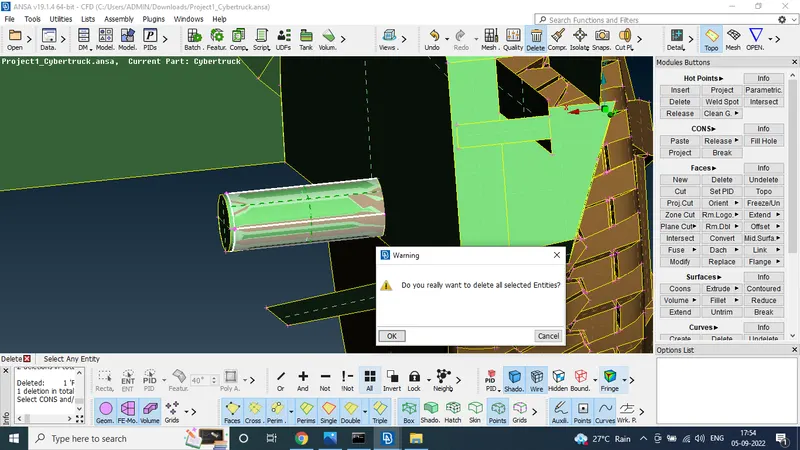

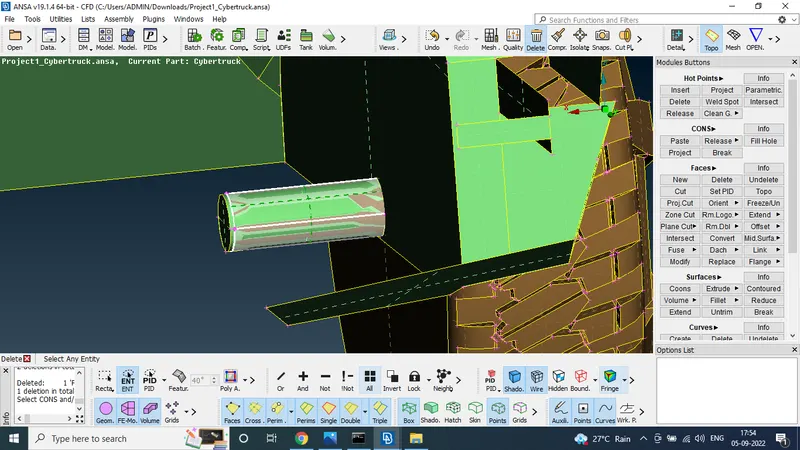

using the universal Delete option to delete the unwnated surface

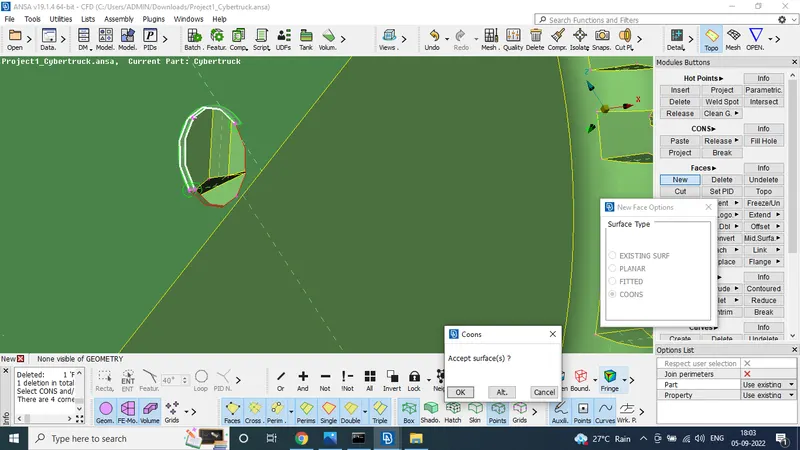

after delete the surefec to project the cones to the surface and crete the surface

this method used in all wheels

STEP 7:

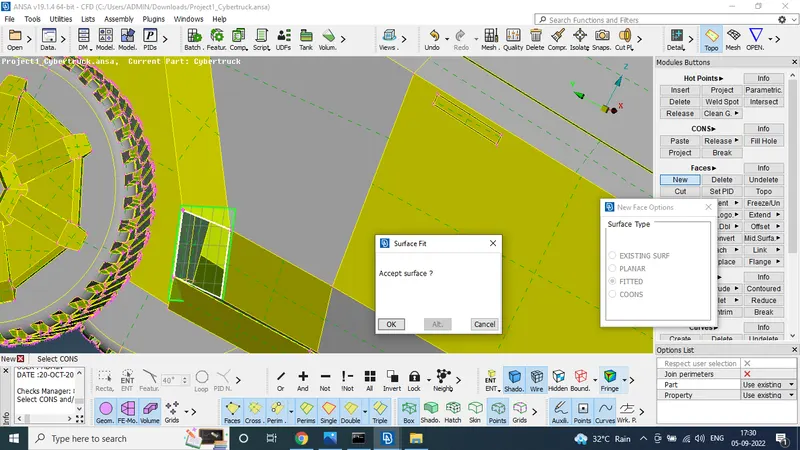

one more penetration error was founded

it was deleted and crete the new surface

STEP 8:

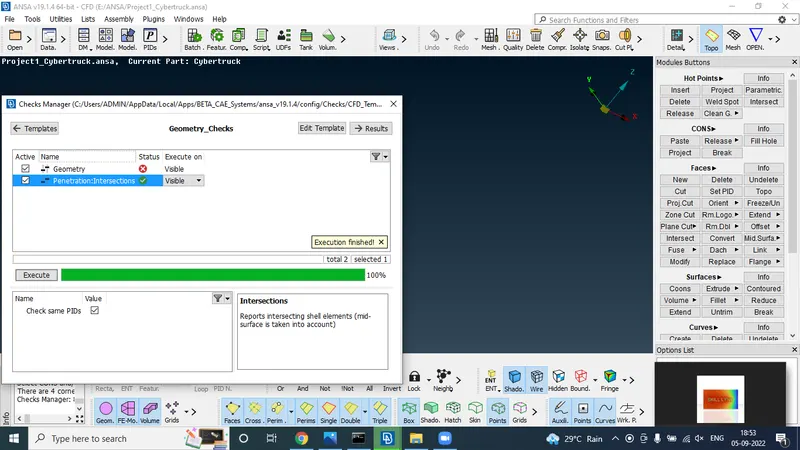

now check the check manager

no penatration error but geometric errors are show

this geometric error like convex and concave cones

STEP 9:

to set the pids

using the set pids option to set the pids for

1.tyres

2. windows

3. body

STEP 10:

After set the PIDS

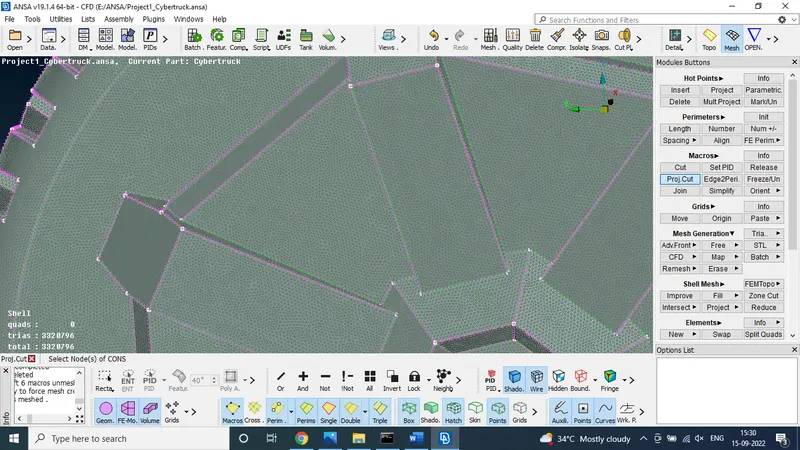

we going to the mesh

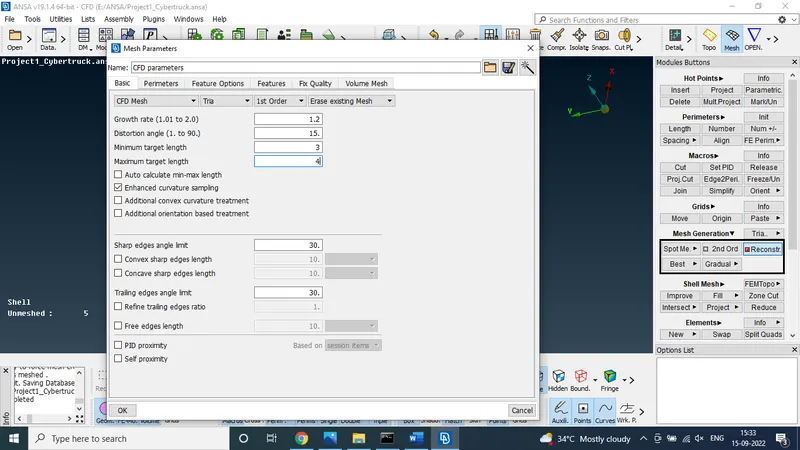

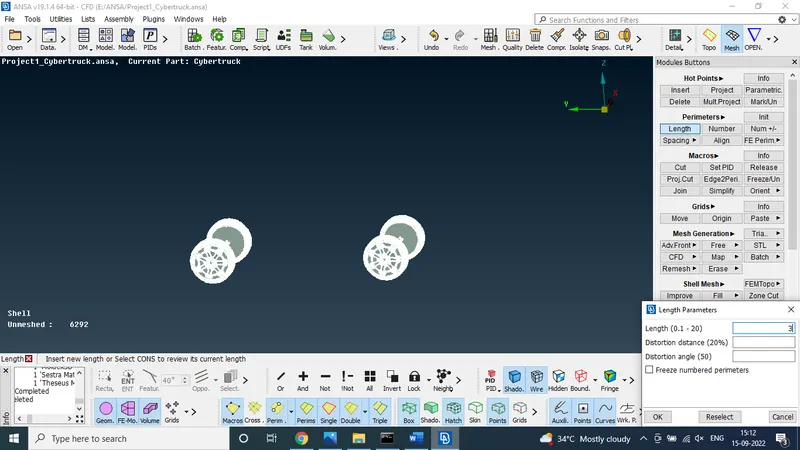

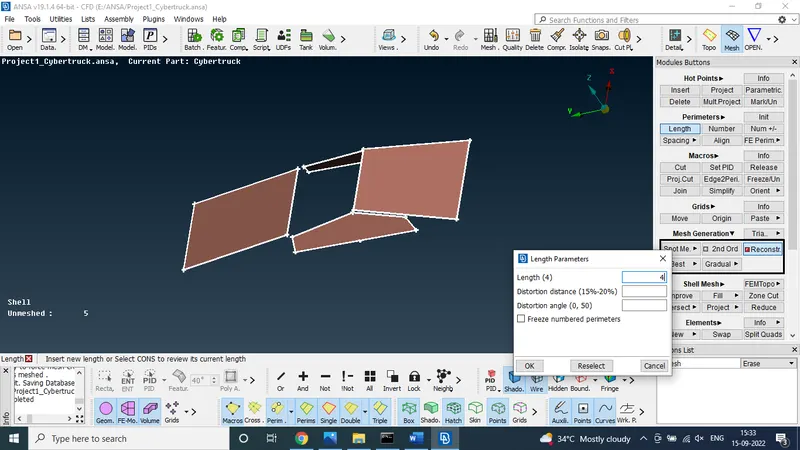

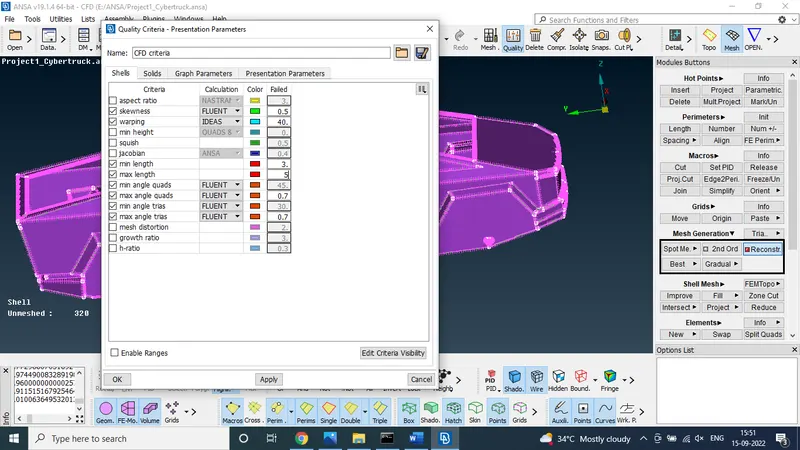

FOR tyre target length 3 mm

body  5 mm and windows target length 4 mm



now car meshing was finshed

STEP 11:

make the 3d point

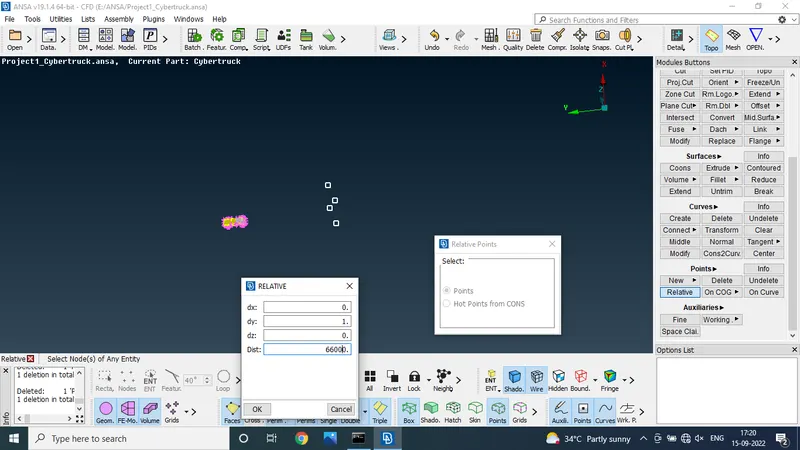

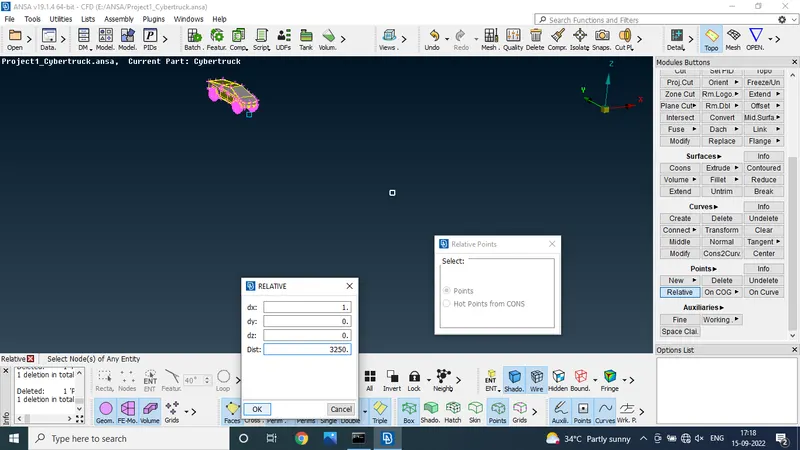

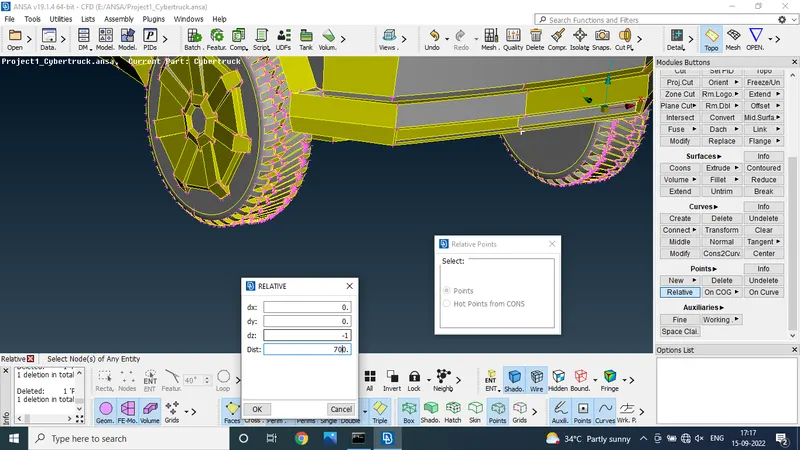

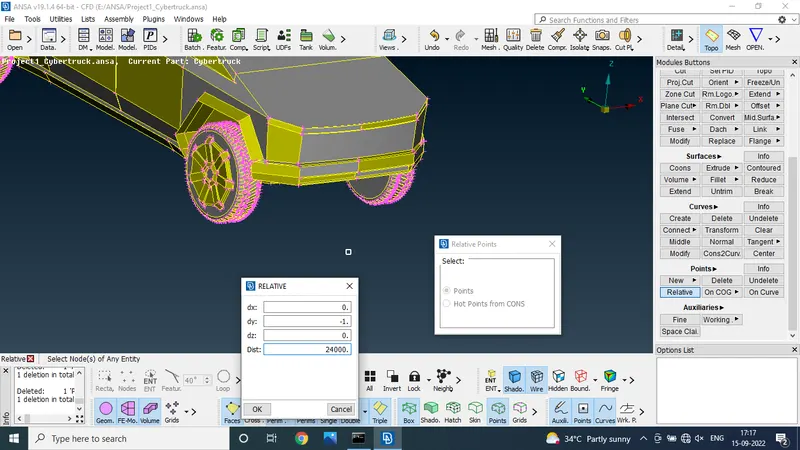

to use the point relative option to make the 3d points

CAR dimentions is 6000*3200*2100

so 3d point box creted to length 66000,height 12800 and width 7500

STEP 12:

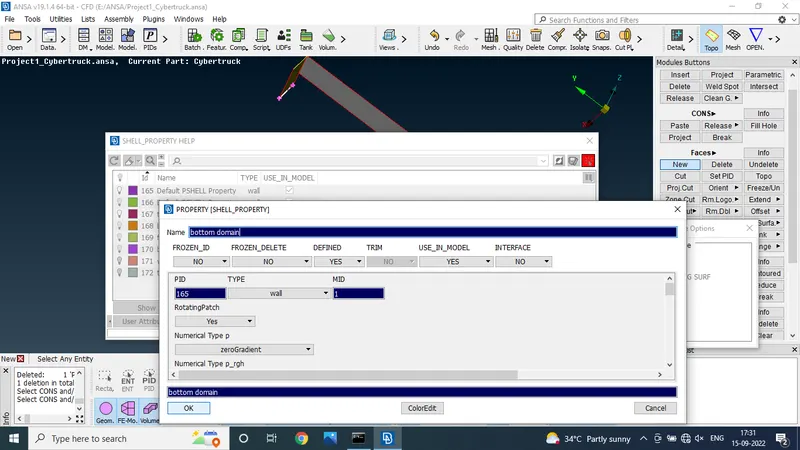

set PIDs for the domain

top domain

side domain

rear domain

front domain

STEP 13:

mesh the domain

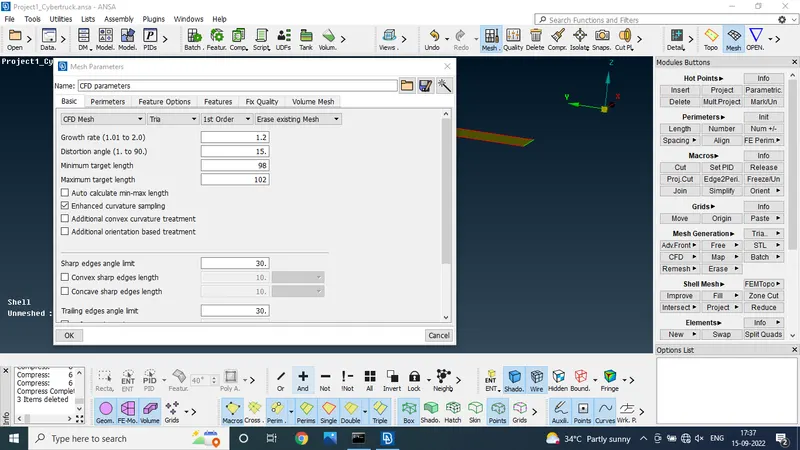

top domain target length 100 mm

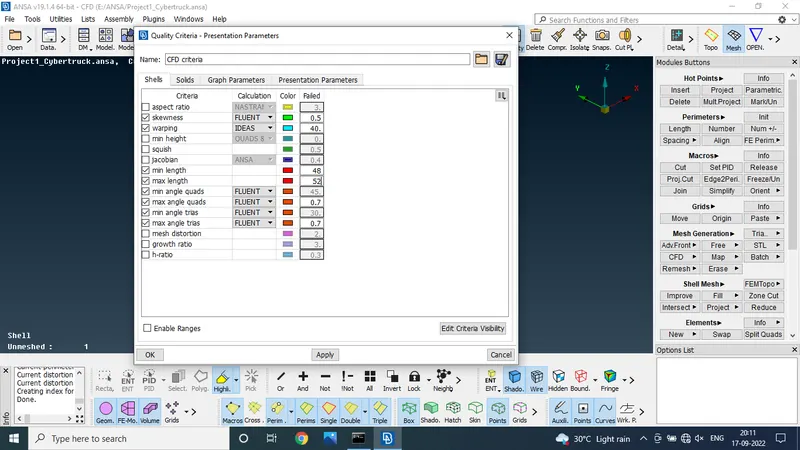

bottom and side domains are 50 mm

STEP 14 :

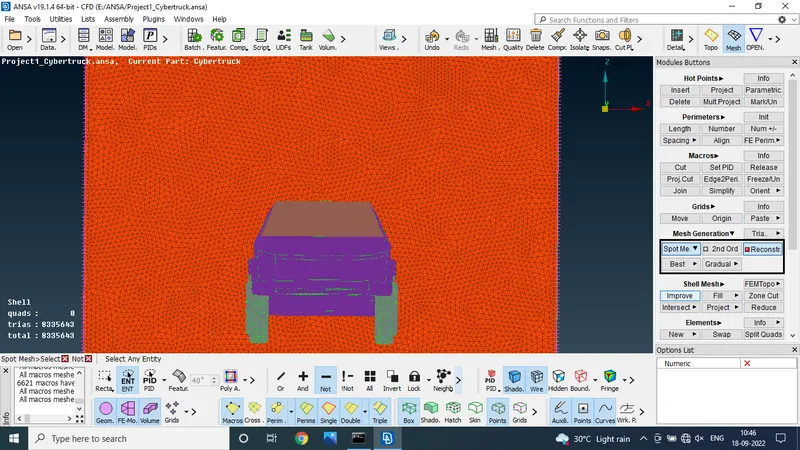

 finaly we got the cfd domain

CONCLUSION :

TO the given model was solved by geometric error as well as finish the mesh suitable target length
