Week 2 Challenge : Surface meshing on a Pressure valve

AIM:

To check the geometrical errors and perform topology to the given model and also mesh three different target lengths as three different cases.

PRODETURE:

STEP 1:

Download the sample file in skill lynk dashbiard and upload to the ANSA

STEP 2:

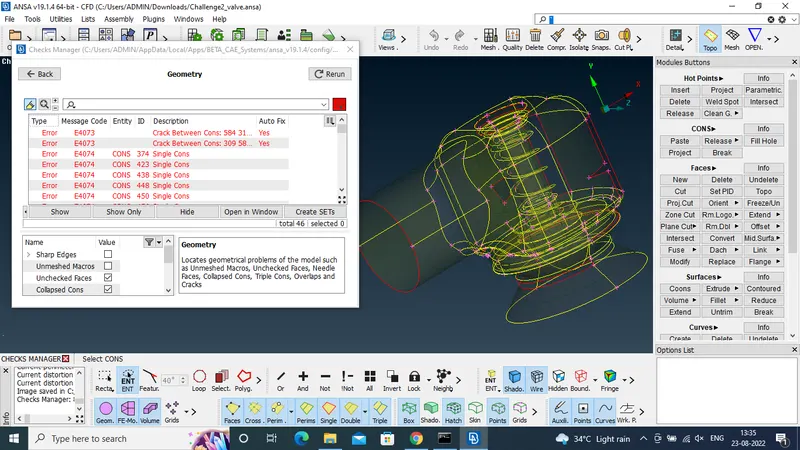

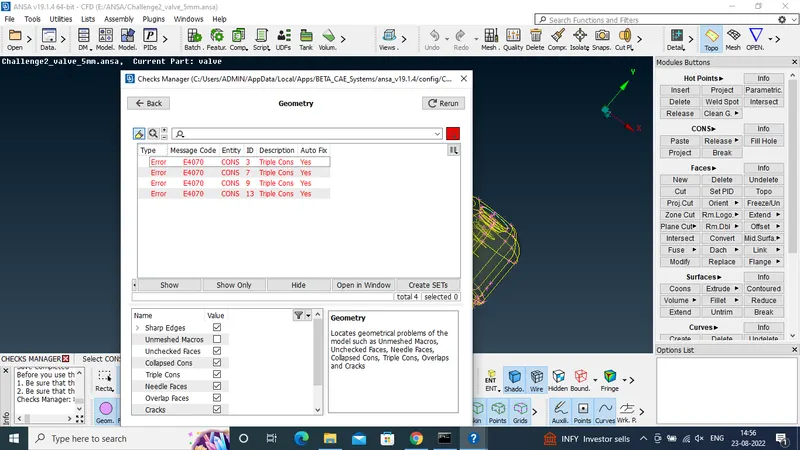

Using the CHECK tool to check the geometric errors

STEP 3:

check the errors are rectified to the ansa tools

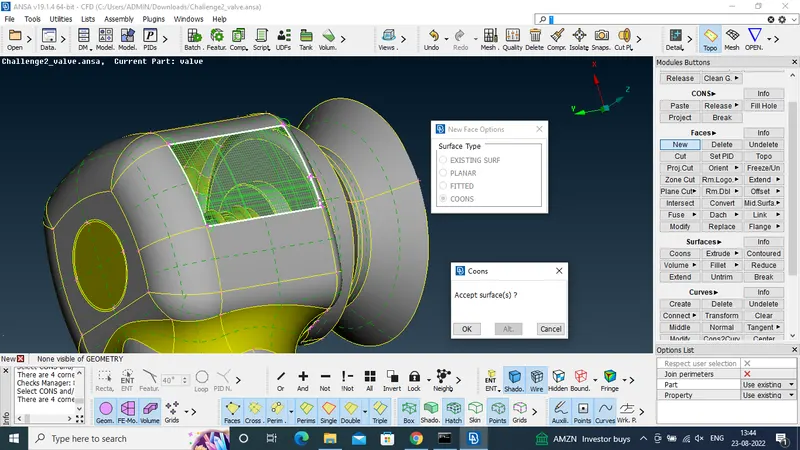

using the fill holes and new command to fill the all sufaces

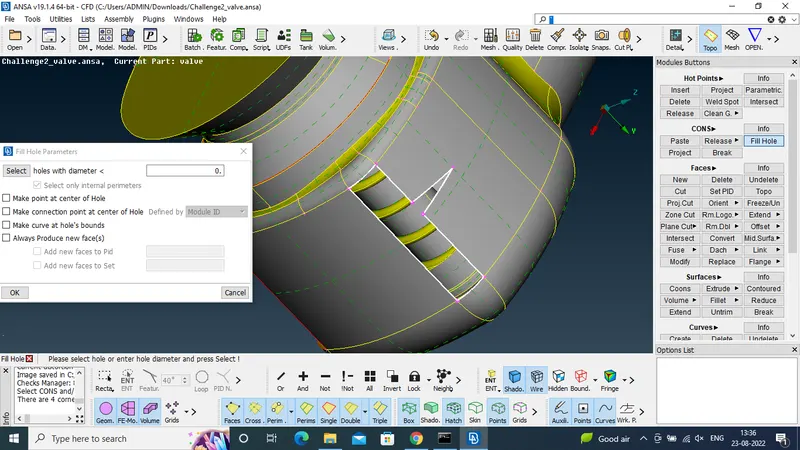

FILL HOLES TOOL

NEW TOOLS

STEP 3:

check the trible,double and single surface

using the TOPO tool to solve the un even and meating surfaces

STEP 4:

one time check the all the errors are rosolved or not check by geometric tool

STEP 5:

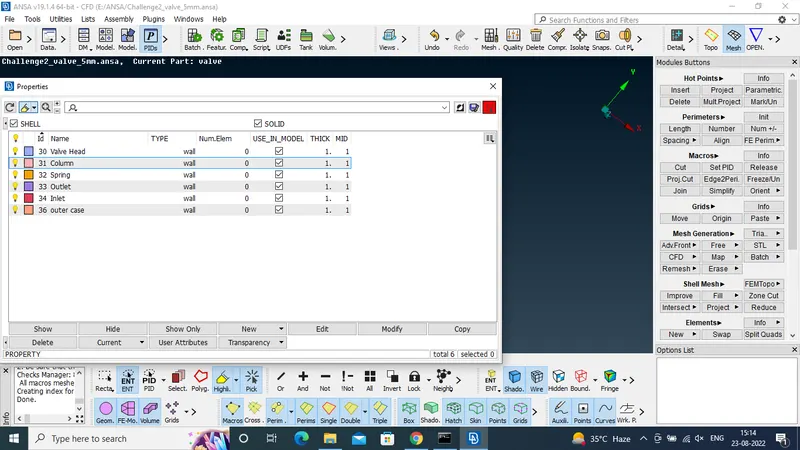

in this stage to creat the PISs

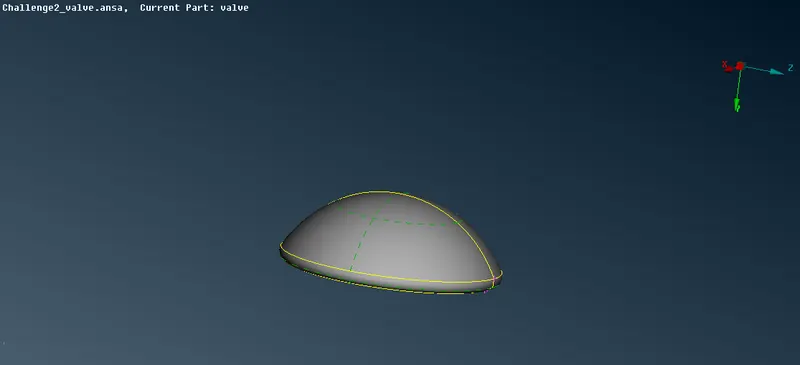

volve head:

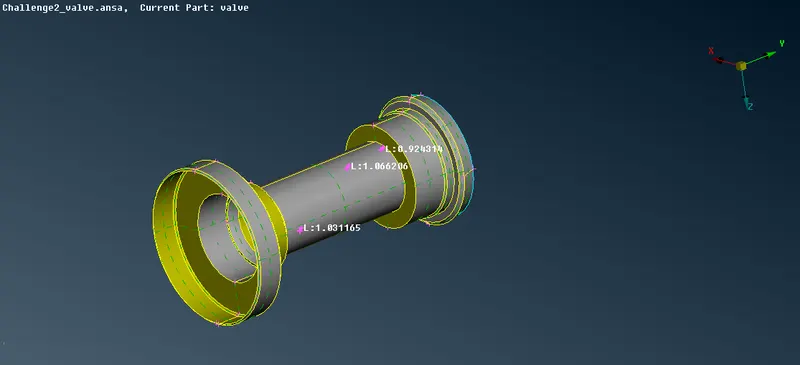

column

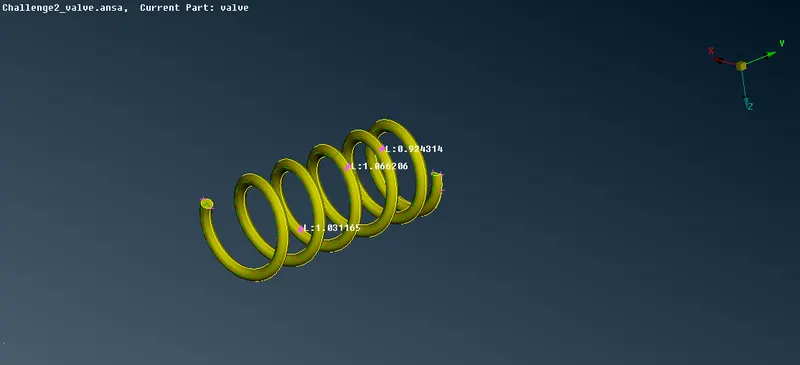

spring:

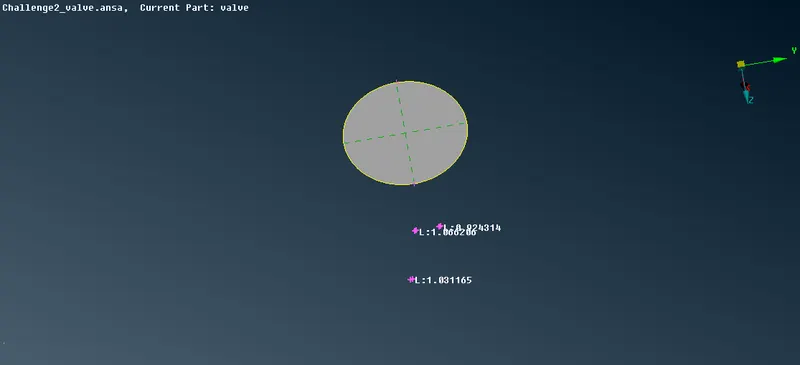

outlet:

inlet:

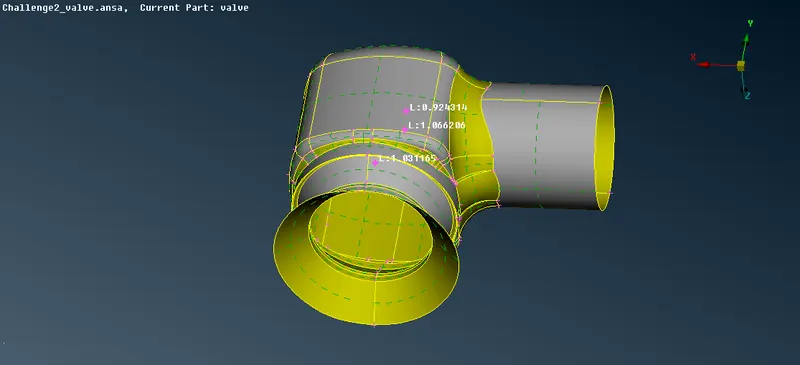

outer case:

STEP 6:

going to mesh

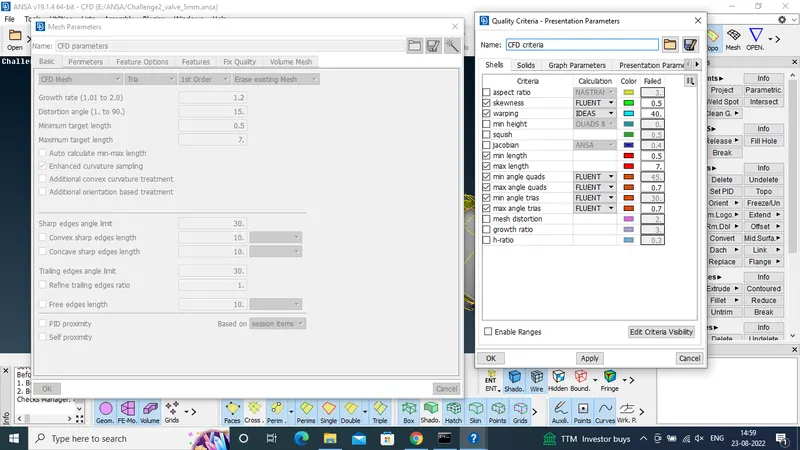

first i apply to Quality cretiria and quality parameters for the mesh

usin the min length 0.5 mm and max length is 7 mm

STEP 7:

Using the mesh tool box and select the perimeters

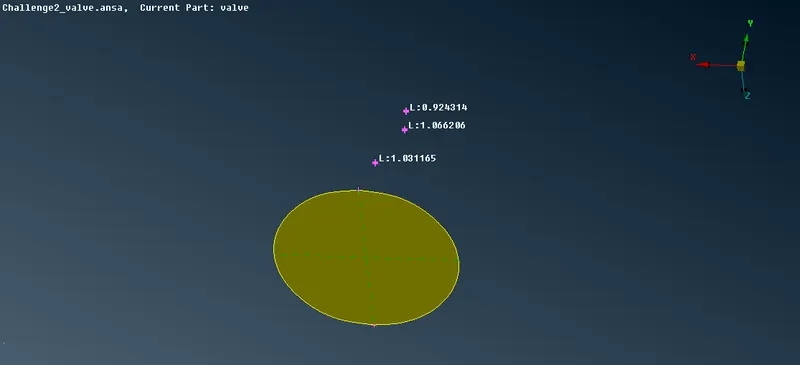

after to give the mesh length for using length tool

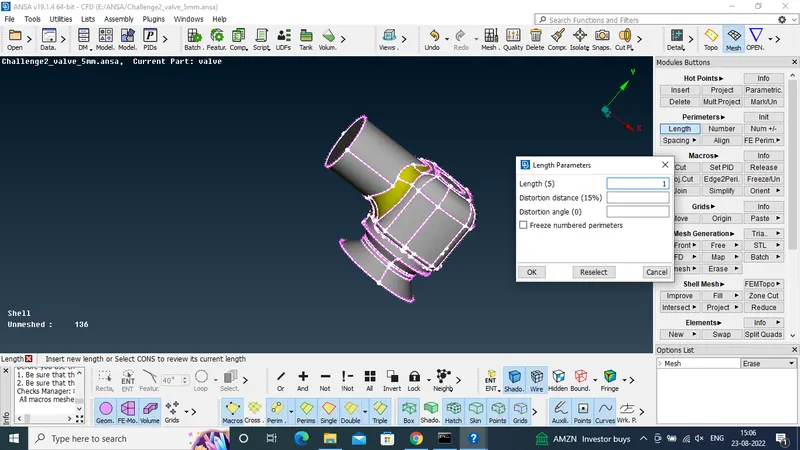

the first case is perimeter length 1 mm and macros length also 1 mm to set

and using the mesh generation tool to using spot mesh to get the mesh

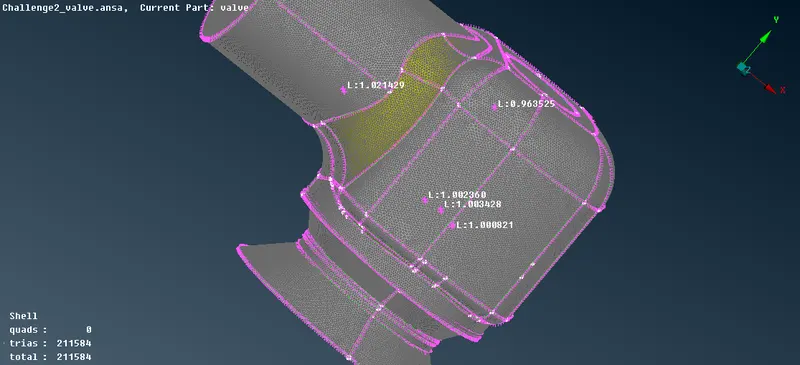

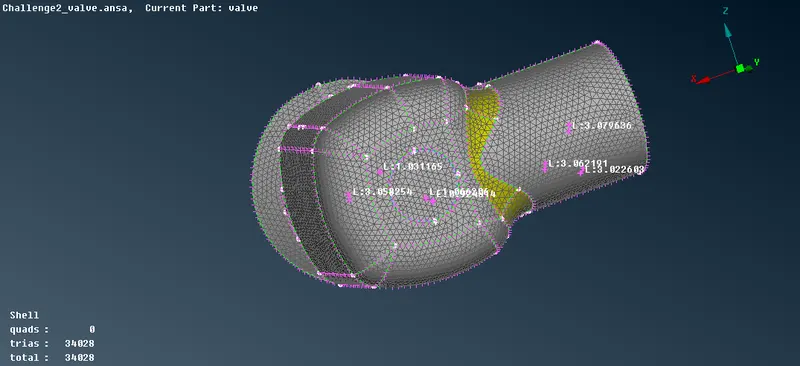

1 mm length

STEP 8:

Above the same procetures using to mesh the 3 mm and 5 mm lengths lenths mesh

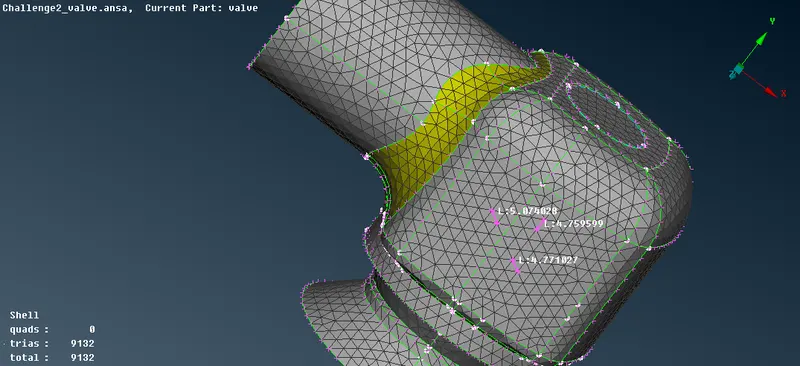

3 mm length mesh

5 mm length mesh

STEP 10:

in before meshing 5 and 3 mm lengths spring actual dia is 3 mm so we can alply the 5 and 3 mm length even mesh not apperd

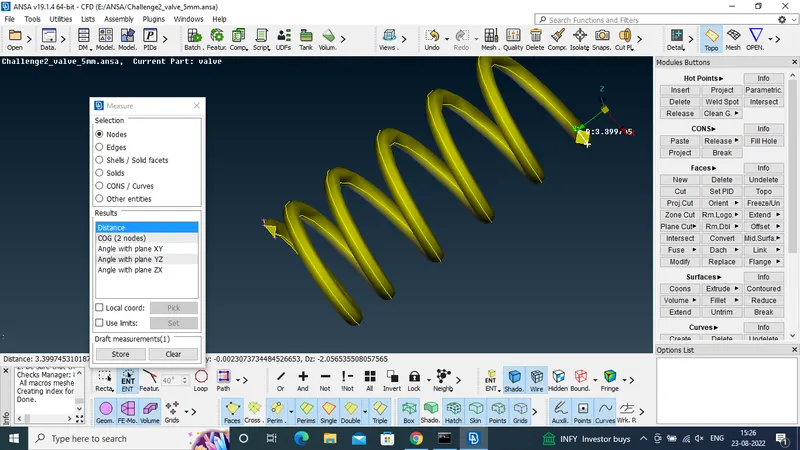

so slect the spring only to mesh 1 mm and using the freez tool

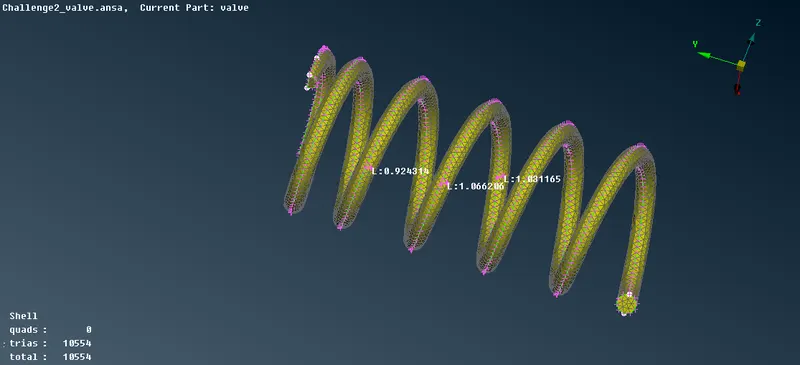

spring mesh

CONCLUSION :

Finaly we check the geometrical errors and perform tologycal clean up

and also given targets lentgth mesh are done
