Project 1
1). I HAVE Loaded the Project1 folder as the Current Folder in Matlab.

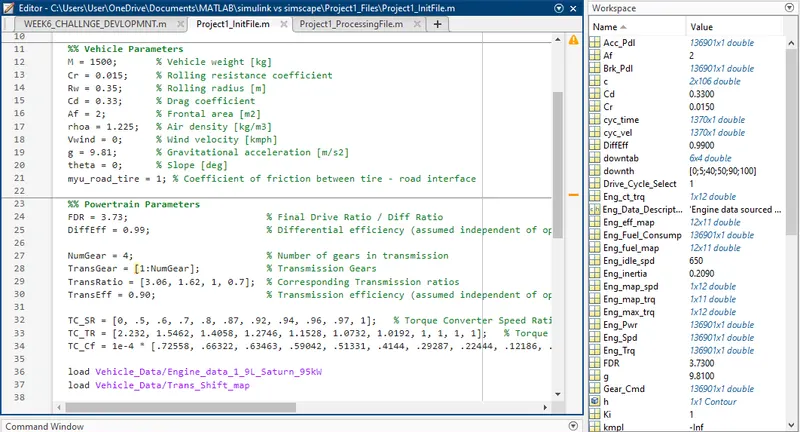

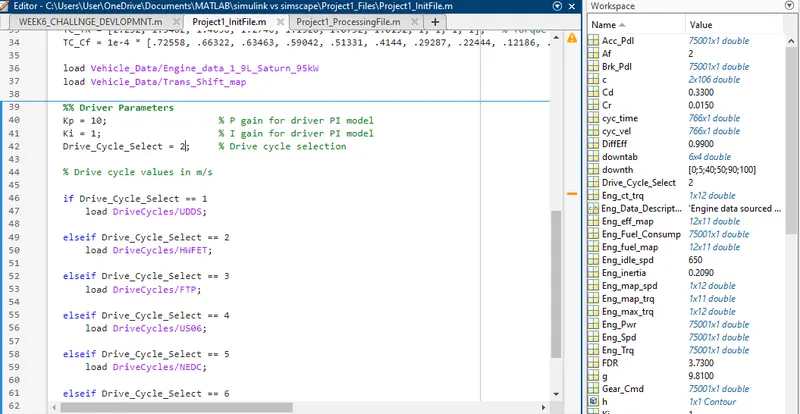

2).YES I Run the “Project1_InitFile.m” Matlab script. AS I ATTACHED IN THE BELOW SCREEN

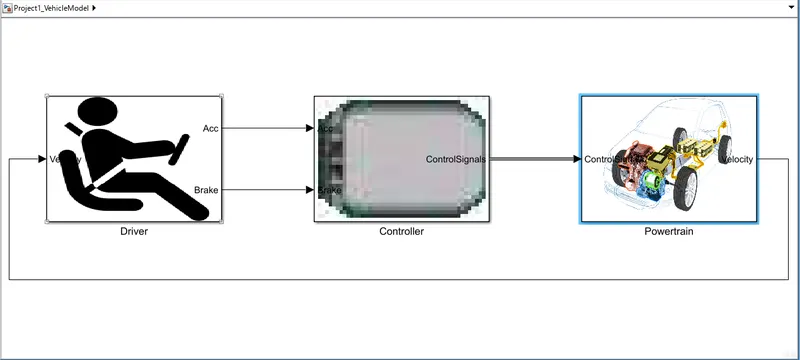

3)AND 4).YES I HAVE provided vehicle Simulink model “Project1_VehicleModel.slx” is incomplete. The engine and vehicle dynamics block contents have been deleted. Build the Simulink blocks by referring to the course lecture and example block images provided. You can run the model and analyze the results using a ‘Scope’ for debugging.
Added additional ‘To Workspace’ blocks for transferring the desired Simulink vehicle data into the Matlab workspace FOR THE USE OF PLOTING GRAPHS.

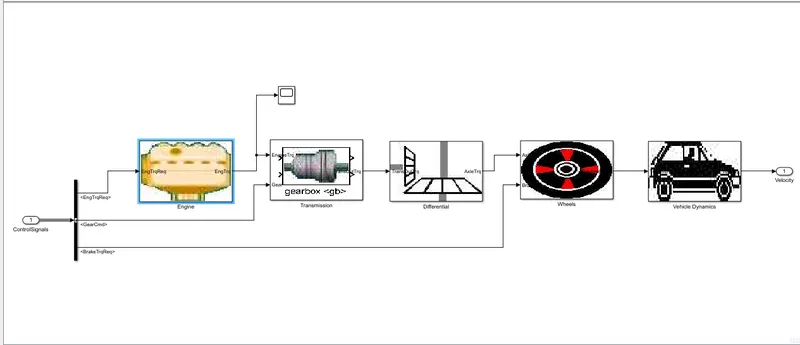

THE BLOW SCREEN IS INSIDE THE POWERTRAIN BLOCK VIEW;

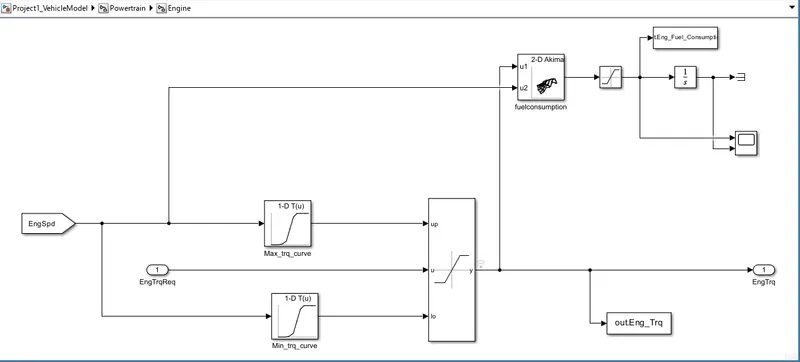

THE BELOW SCREEN IS FOR THE ENGINE BLOCKS ;

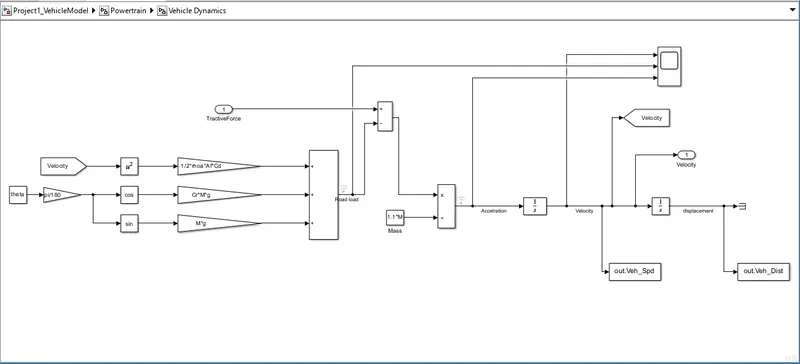

THE BELOW SCREEN IS FOR THE VEHICLE DYNAMICS BLOCKS ;

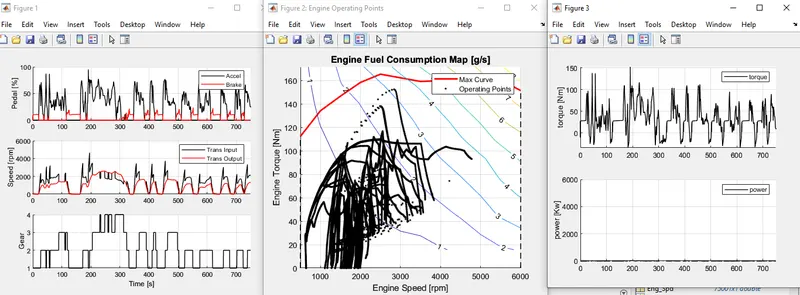

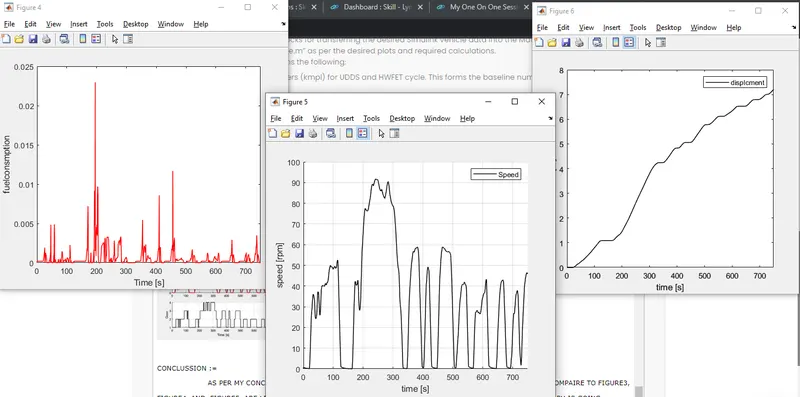

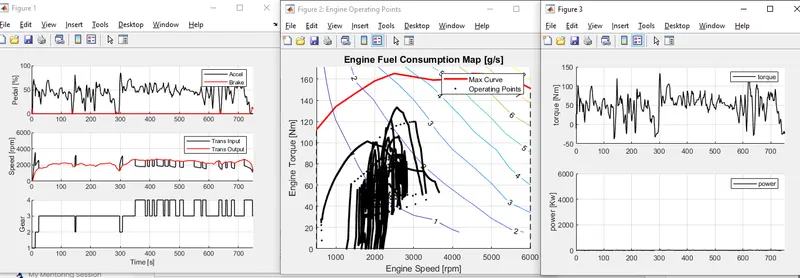

5) AND 6). ALL THE RESULTS FOR DRIVE CYCLE 1 MEANS UDDS DRIVE CYCLE;

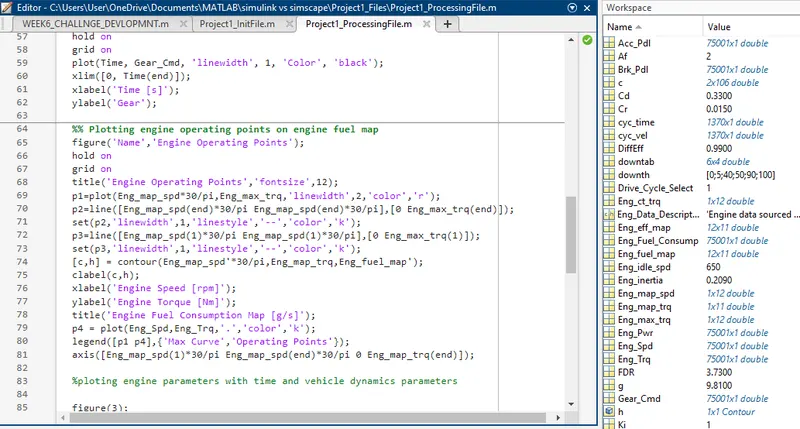

GRAPH RESULTS OF ALL THE PARAMETERS LIKE VEHICLE SPEED , ENGINE TORQUE ,SPEED,POWER ,TRANSMISSION ENGINE TORQUE ,SPEED,AND VEHICLE DISPLACEMENT etc. THE MORE DETALIS IN THE .M FILE I HAVE COMMENTED THE ALL PLOTING CAMMANDS IN THAT .M FILE AND I HAVE ATTACHED THAT IN THE ANSWER BODY

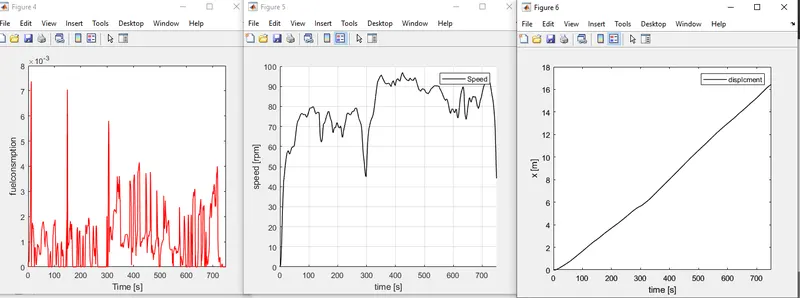

ALL THE RESULTS FOR DRIVE CYCLE 2 MEANS HWFET DRIVE CYCLE;
GRAPH RESULTS OF ALL THE PARAMETERS LIKE VEHICLE SPEED , ENGINE TORQUE ,SPEED,POWER ,TRANSMISSION ENGINE TORQUE ,SPEED,AND VEHICLE DISPLACEMENT etc. THE MORE DETALIS IN THE .M FILE I HAVE COMMENTED THE ALL PLOTING CAMMANDS IN THAT .M FILE AND I HAVE ATTACHED THAT IN THE ANSWER BODY
CONCLUSSION :=
AS PER MY CONCLUSION FOR BOTH DRIVE CYCLE FIGURE 1, 2, 3 AND 4 ARE SAME BY SEEING THE GRAPG RESULTS CHANGE IN THE LAST TWO FURES THAT IS FIGURE 5 AND 6 THE ALL THE GRAPH RESULTS ARE DIFFERENT WITH THEIR VALUES BUT AS COMPAIRE TO FIGURE3,
FIGURE4, AND FIGURE5, ARE LITTRALLY CHANGE AND THE FIGURE 2 IS CONFUSING WITH THE RESULT BECOUSE ITS MIXXED WITH THE FUELS CONSUMPTION POINTS LINES WITH THEIRE VALUES , BUT THE DISPLACEMENT OF THE VEHIVCLE GRAPH IS GOING DOWNWORD IN THE NEGATIVE DIRECTION
=;THANK YOU;=
