Project - Data Handling and Interpolation

AIM:=  Use the provided styling surface to come up with a back door design, use appropriate design methodologies, and provide the necessary reinforcements and embosses.   What is a back door?  A door is a hinged part which is used for entry and exit of the vehicles. Back doors are one of the type doors of…

 AIM:        For the Given Roof styling, create an ASSEMBLY by developing the essential flanges for the outer roof and creating the reinforcements. AS PER THE MENTIONED IN THE MAIN QUETION THE OBJECTIVES ARE := Design car roof with  essential flanges and reinforcements  like…

AIM:    Follow the given Master section to create the Drip Area OBJECTIVE:  Design Drip Area,  Design Sill Mount Area  Design Body Mount Area  Design Bumper Mount Region and A-pillar mount Region. INPUT FROM STYLING TEAM:-            A Class Surface  INTRUDUCTION…

AIM:        Calculate the Wheel Arch gap at required points and check whether the car passes the European standard. IN ORDER TO CALCULATE THE WHEEL ARCH GAP I NEED TO SKECTH ON WHEEL ARCH AND MAKE SOME POINTS TO  CALCULATE DIFFERENCE BY MEASURING THE PONTS I HAVE MADE . European…

   Aim:  To calculate the section modulus of the previously designed hood for analyzing its strength and also optimizing the design to see the difference in the bending strength of the hood. Higher the section modulus of a structure, the more the resistive it becomes to bending.  Section modulus: Section modulus is a geometric…

AIM:=        Design Hood Outer Panel, Inner Panel and the necessary reinforcements by following the Master Section mentioned with the Design parameters explained in the videos. Objectives:= Submit an ASSEMBLY of Hood Inner Panel, Outer Panel, Latch, Hinge and the Reinforcements.A…

AIM:= 1. Write a one-pager about Under-Body Coating and its purpose, its types in detail, and its pros and cons.   OBJECTIVES: Write a one-pager about Under-Body Coating Its types in detail Its purpose Its pros and cons.                                                                                  1. UNDERBODY COATING…

AIM: 2. Prepare a report explaining what is Bench-Marking     BENCHMARKING Benchmarking is a process of measuring the performance of a company’s products, services, or processes against those of another business considered to be the best in the industry, “best in class.” The point of benchmarking is to identify internal…

AIM:  To route the wiring harness on the given backdoor assembly and prepare the flatten view drawing in CATIA V5.     AUTOMOTIVE WIRING HARNESS BACKDOOR Statement of assignment: Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices…

AIM: To route the wiring harness for the given engine. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required.       Objective-       The objective of the project is to route the wiring harness on given Engine and prepare…

AIM:= To flatten the wire harness assembly completed in week 4 assignment and place the flattened view on a drawing sheet.   OBJECTIVE:   To flatten the wire harness assembly completed in week 4 assignment. To orient the wire bundle as shown in the layout.     To place the flattened view on a drawing…

   AIM:=       Route two electrical harnesses as per the given layout and interconnect them as a single harness assembly and then check for bundle continuity, bundle warnings, and then give annotations to the final harness assembly. OBJECTIVE:=   The objective of this project is to first route the two Harness A and Harness…

AIM:= To Route the following harness layout in the Electrical workbench.  Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Given:         CAD data of the following Connectors:  DT06-4S DT06-6S DT06-2S DT06-08SA        Connectors Layout…

  Q1:  Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties. P clamp The given clip was downloaded and opened as a part file. I have to define two points that will be used as entry and exit points. Then a plane has to be…

AIM:= Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.   Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html) Tyco 174357-2…

AIM:        For a 10 cell series lithium ion battery model, simulate the thermal effects and compare life cycle performance at various temperatures, charge & discharge rates using MATLAB.   Blocks needed in making simulink model: Battery (Table based) This block models a battery based on tabulated…

  Q:    Battery pack capacity: 18 kWh           Cell: ANR26650M1-B            Prepare a detailed battery pack drawing along with its enclosure. State your assumptions. Ans:  Aim: To develop a mechanical design of battery pack based on the required…

A)To run three test cases from harness dashboard of closed loop BMS control. B)To explain coulomb counting for finding the SOC estimation in BMS.  Downloading and open closedloop BMS harness dashboard model: In file exchange open the document of 'Design and Test Li-ion Battery Management Algorithm'. Download the Zip…

1). LITHIUM ION BATTERIES:=  The most popular technology of the battery sector currently is the lithium ion battery. Relative to other types of batteries,  Lithium ion batteries have better energy, power density and higher cycling ability. These qualities are extremely important in the use…

I HAVE BEEN USED THE MATLAB2022b TRAIL VERSION MATLAB SOFTWARE. YES I HAVE DONE THE PROJECT AS PER THE MENTIONED IN THE QUETION WITH CONDITION AND STEPS 1) Load the Project2 folder as the Current Folder in Matlab.2) Run the “Project2_InitFile.m” Matlab script. THE BELOVW SCREEN IS OF INITFILE LOADED IN THE…

1). I HAVE Loaded the Project1 folder as the Current Folder in Matlab. 2).YES I Run the “Project1_InitFile.m” Matlab script. AS I ATTACHED IN THE BELOW SCREEN   3)AND 4).YES I HAVE  provided vehicle Simulink model “Project1_VehicleModel.slx” is incomplete. The engine and vehicle dynamics block contents have been deleted.…

yes i have buid the double acting actuator model using simscape multibody and simscape cmponents  with the help of mathworks help. The Double-Acting Actuator (TL) block represents a linear actuator with piston motion controlled by two opposing thermal liquid chambers. The actuator generates force in the…

1). yes i have done this project with same as 8 week matlab demo with challenge as in mentioned with parameters  i have Designed a PID controller to regulate the speed of the DC Motor MY SIMULINK BLOCK SCREEN BELOW PROGRAMMS ARE FOR THE PARAMETERS WHICH HELPS TO BUILD THE GAINS VALUE REFERENCE SCOPE GRAP BY USING THE UNIT…

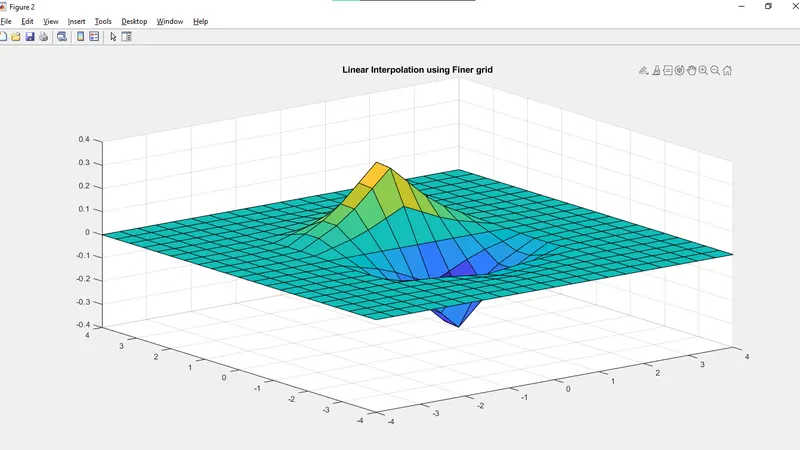

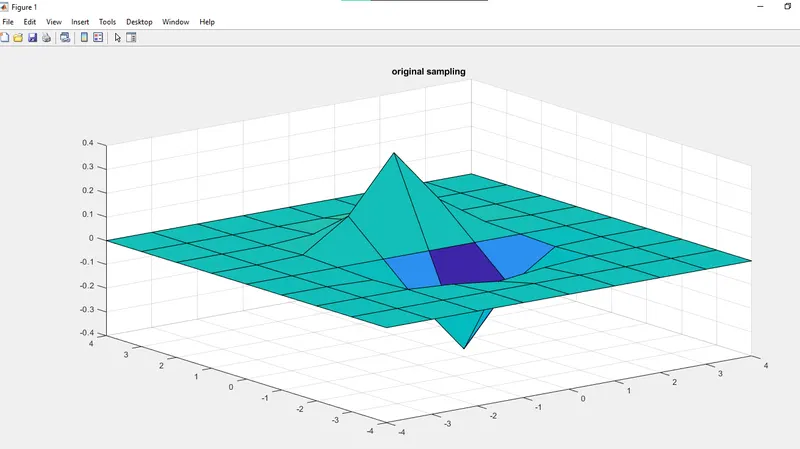

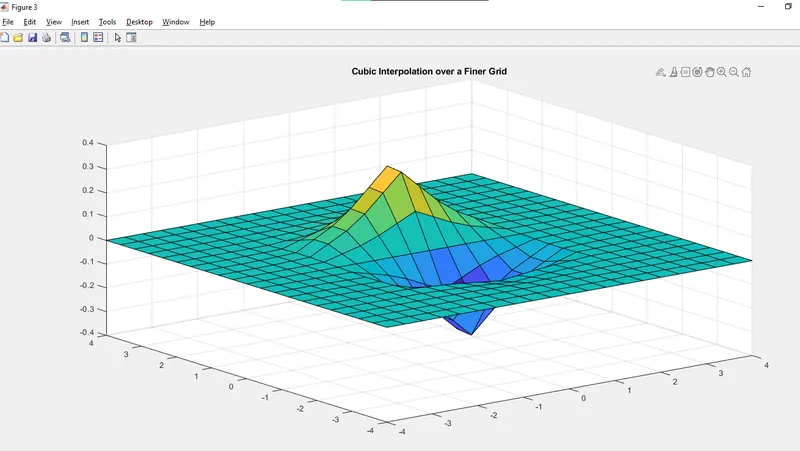

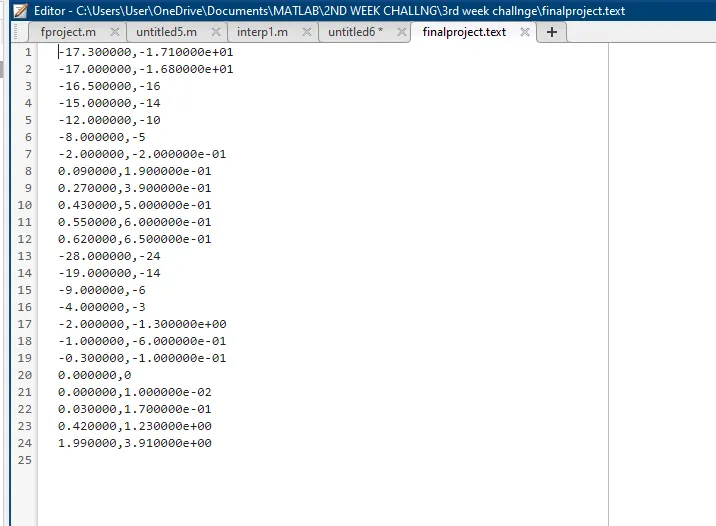

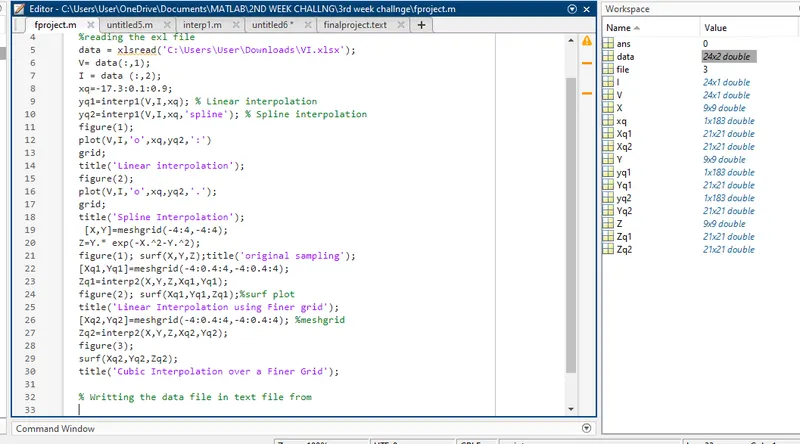

1).MY MATLAB CODE IS   clc clear all close all %reading the exl file data = xlsread('C:\Users\User\Downloads\VI.xlsx'); V= data(:,1); I = data (:,2);   xq=-17.3:0.1:0.9; yq1=interp1(V,I,xq); % Linear interpolation yq2=interp1(V,I,xq,'spline'); % Spline interpolation figure(1); plot(V,I,'o',xq,yq2,':') grid; title('Linear…

1. Major elemnts : BATTERY, STARTOR, BREAKER,DISTRUBUTOR, GENERATOR, FUSE,GROUND ,SWITCH etc 2.     A. BATTERY: Is the device which stores the chemical energy and converts into electric energy.the chemical reaction in the battery involves the flow of electrons thats provides an electric current that can be used…
