Challenge

REVIT_3D Rendering of a House plan_Project 1

SShashank Kumar16 Nov 2020

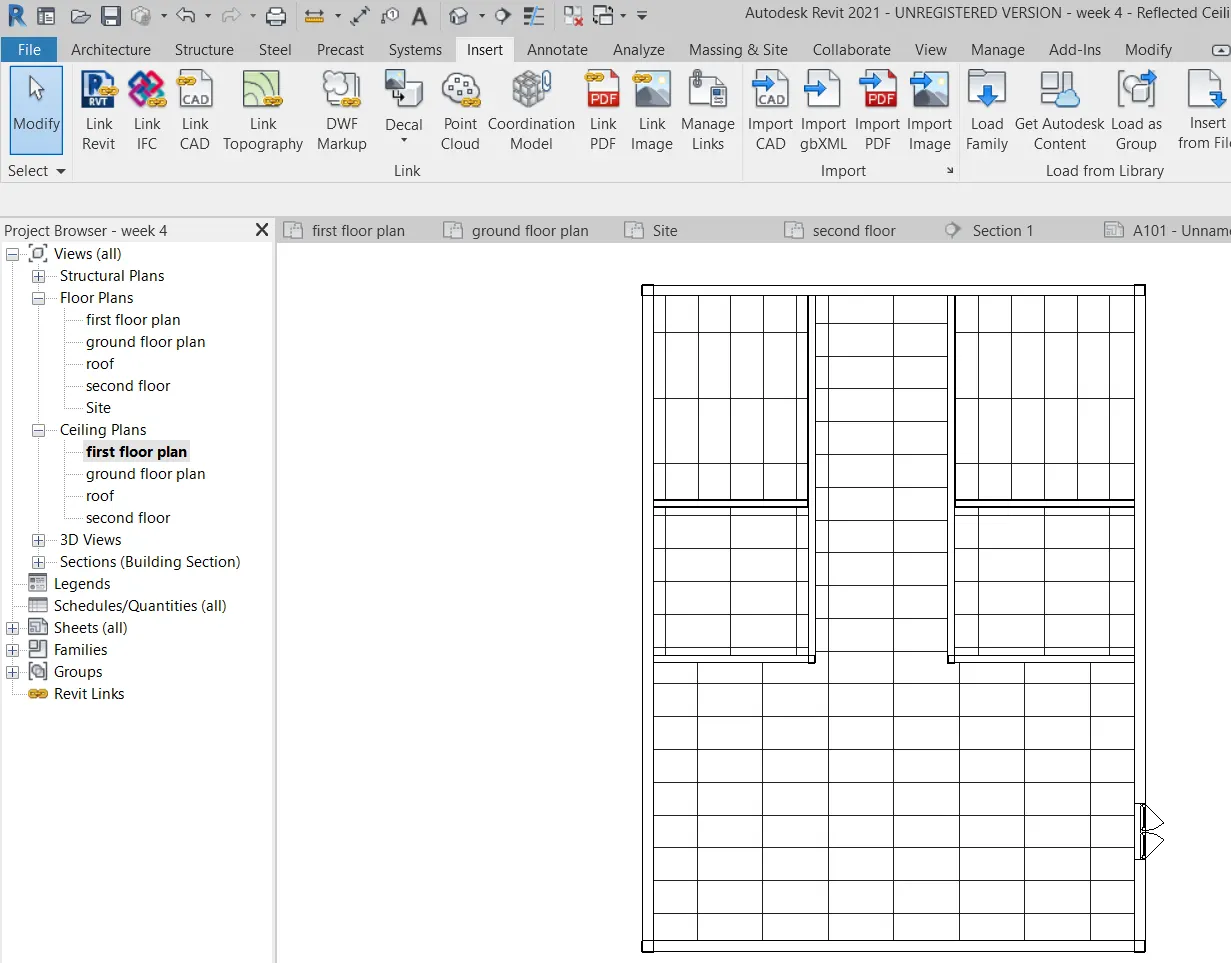

1) Based on the project saved from Week 3, proceed from First Floor Level .Model a Ceiling from architecture tab above the walls at first floor level

AIM:- Create a ceiling from architectural tab at first floor

Commands used;-

Architectural

ceiling

Automatic ceiling/ sketch ceiling

Procedure:-

Open the file in revit

Select the first floor plan

Select the architectural tab from ribbon

select the ceiling command and select sketch ceiling

Select the type of ceiling from property

draw the ceiling

See the ceiling in 3d view

Result:-

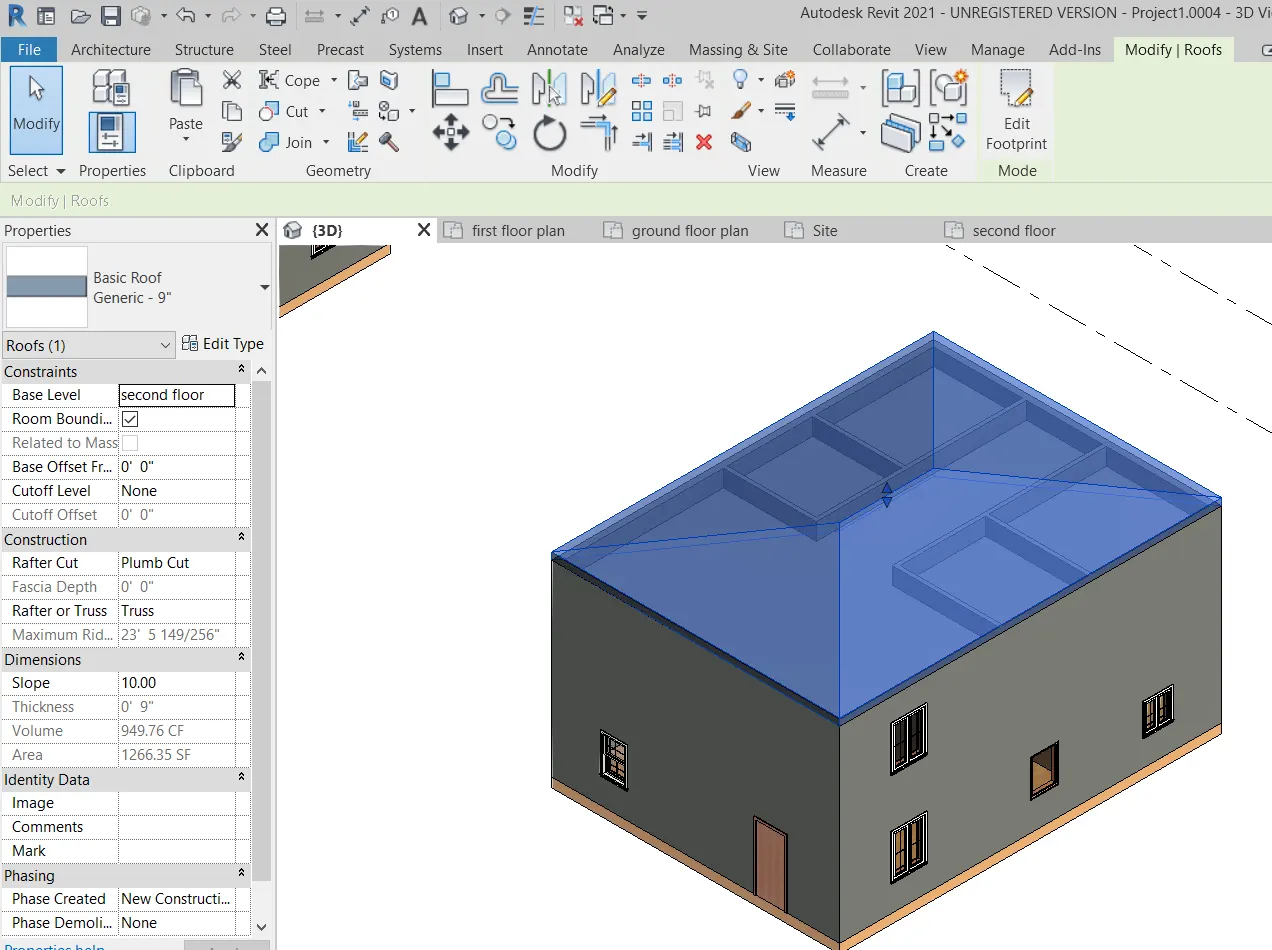

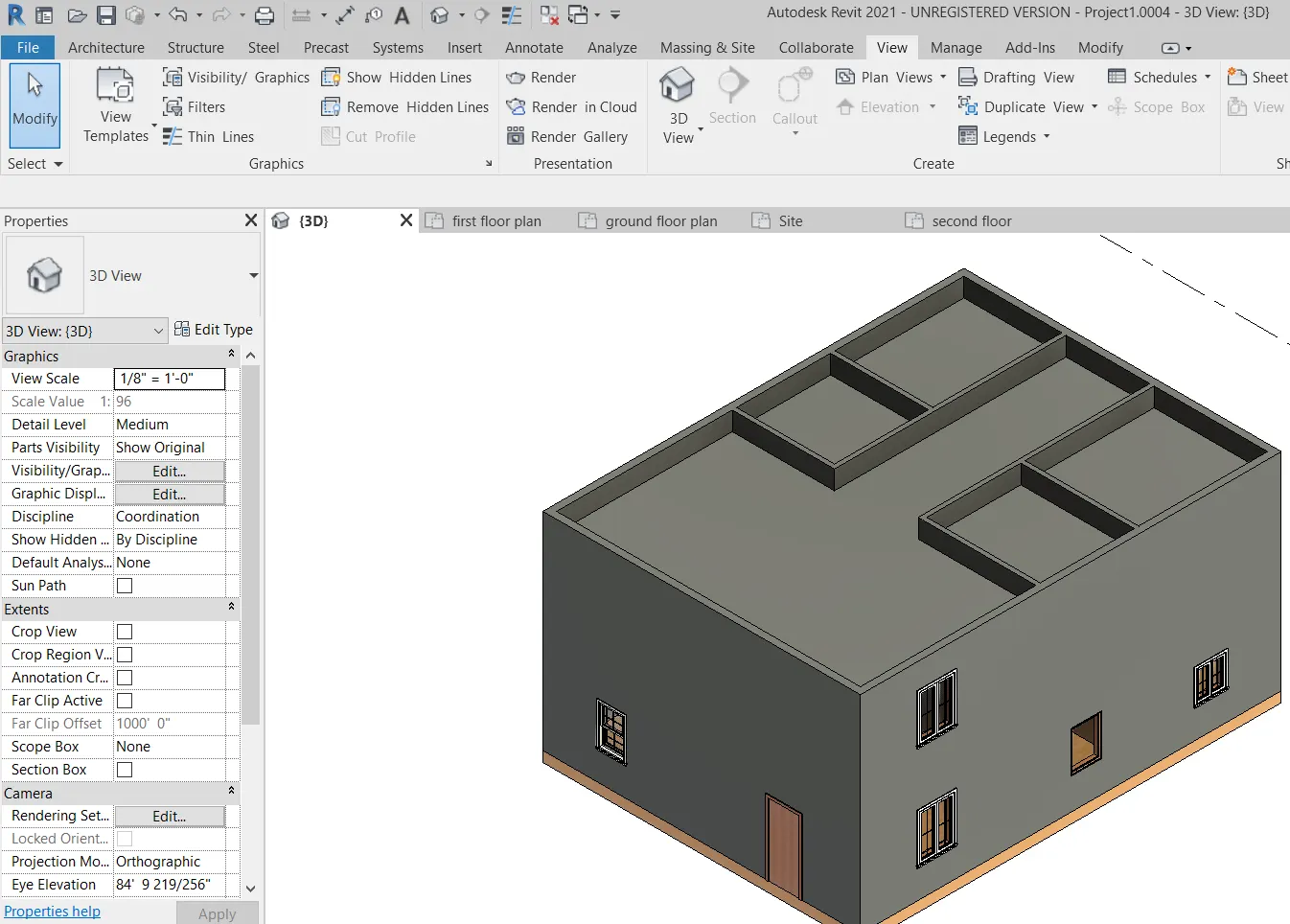

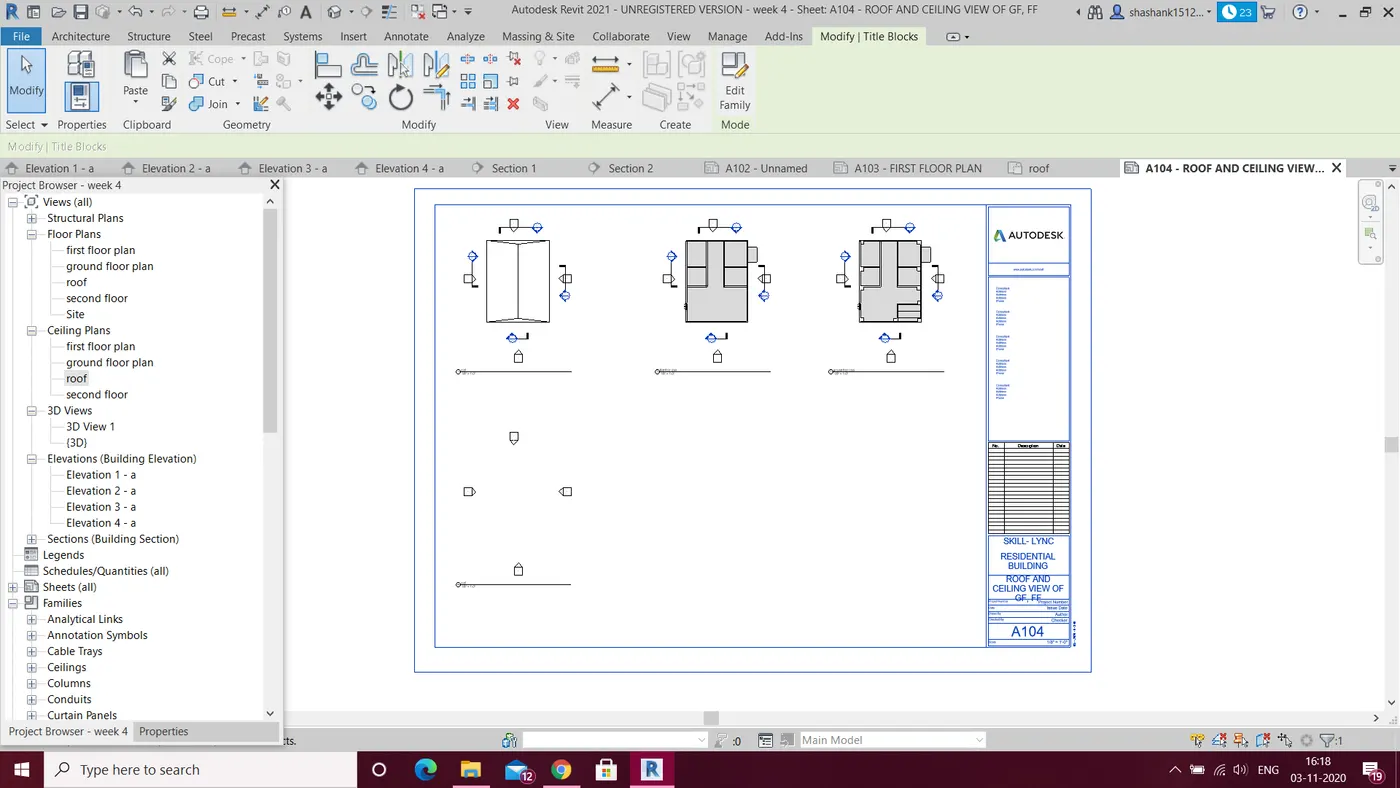

2) Model a roof above the ceiling by selecting the footprints of ceiling. Using the adjustment tool bars appearing on screen adjust the roof slope to 10 degrees

AIM:- Create a roof by footprint method at an slope of 10 degrees

Commands Used:-

Architectural

Roof by footprints

Manage

Project units

Procedure:-

Open the file in revit

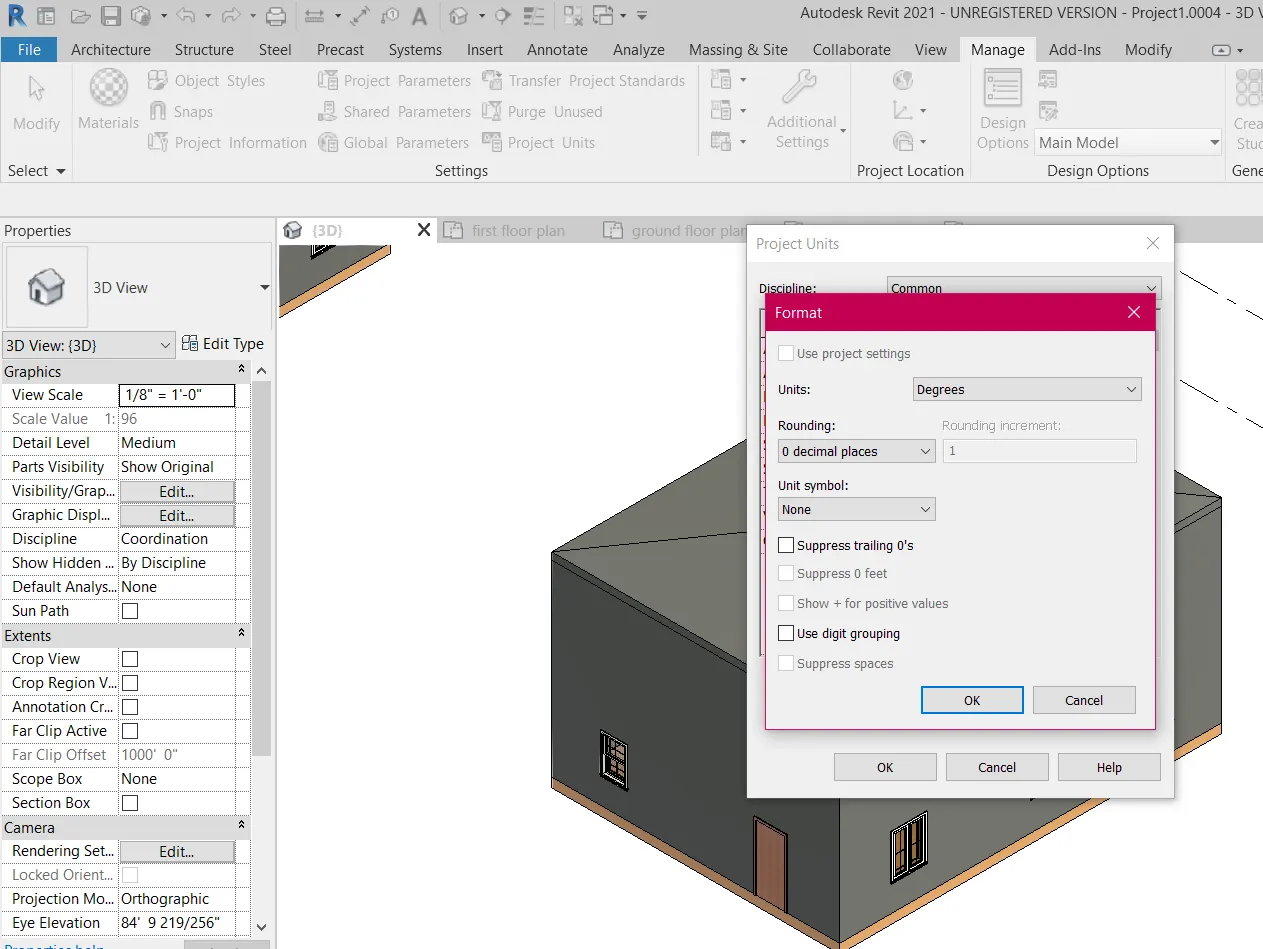

Go to manage option and select project units and select slope and select degree

Select the architectural tab and select roof by footprints

select the lines and draw the roof

From the property tab assign the roof material and define the slope as 10 degree

Roof will be created

Results:-

The roof is created with the slope of degree

3) Using the file saved from week 2 to 4, create plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls , floors and all the components placed within the building
b. Structure plan must have details of only walls, floors and columns

AIM:- Create plan views for ground floor level and first floor level (architectural and structural plan)

Commands used:-

View

Plan views

Procedure:-

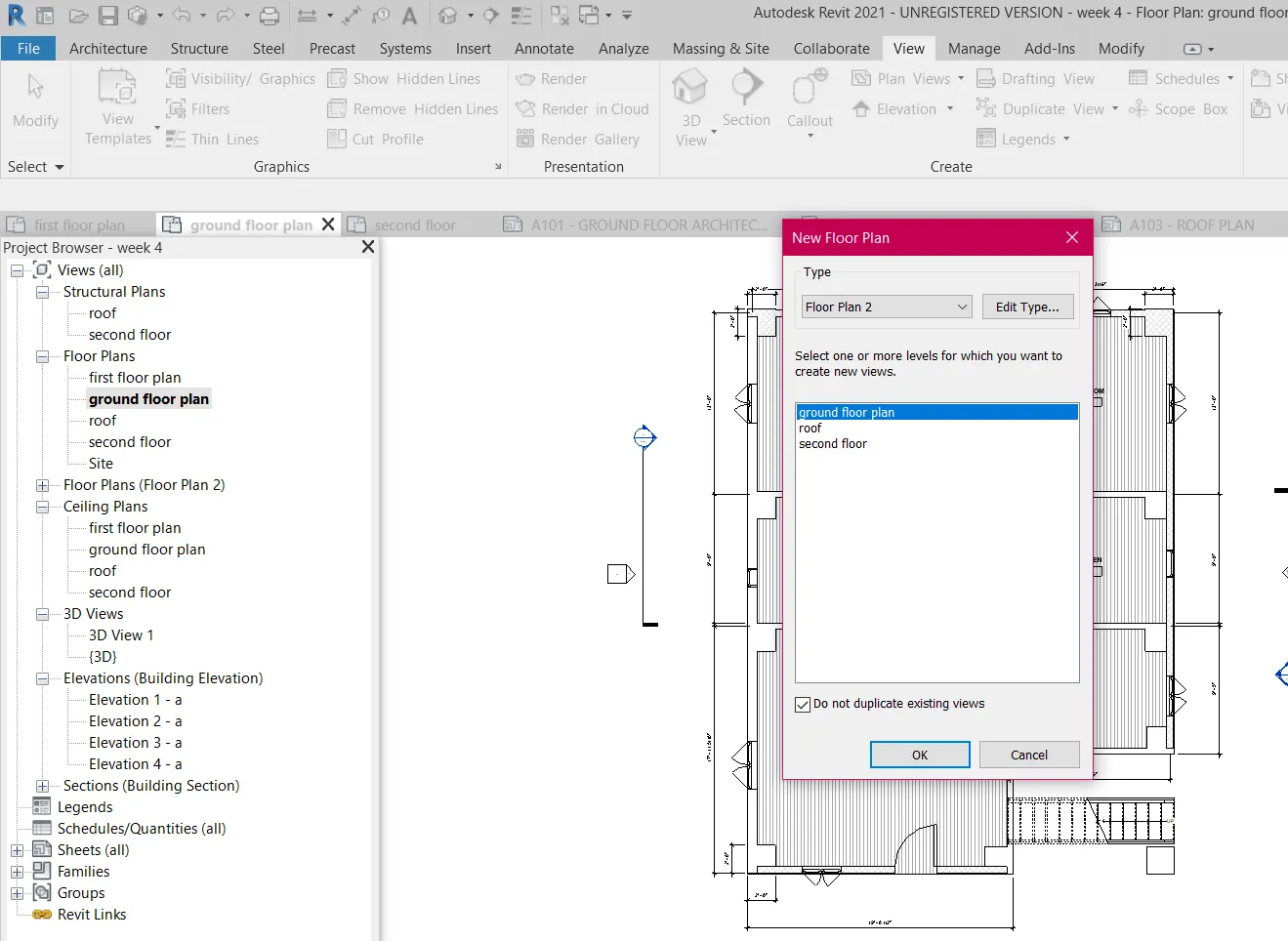

Open the file in revit

select the view option from ribbon bar

select the plan view

rename the view

select the floor plan as ground floor plan and the floor plan is ready

Result:-

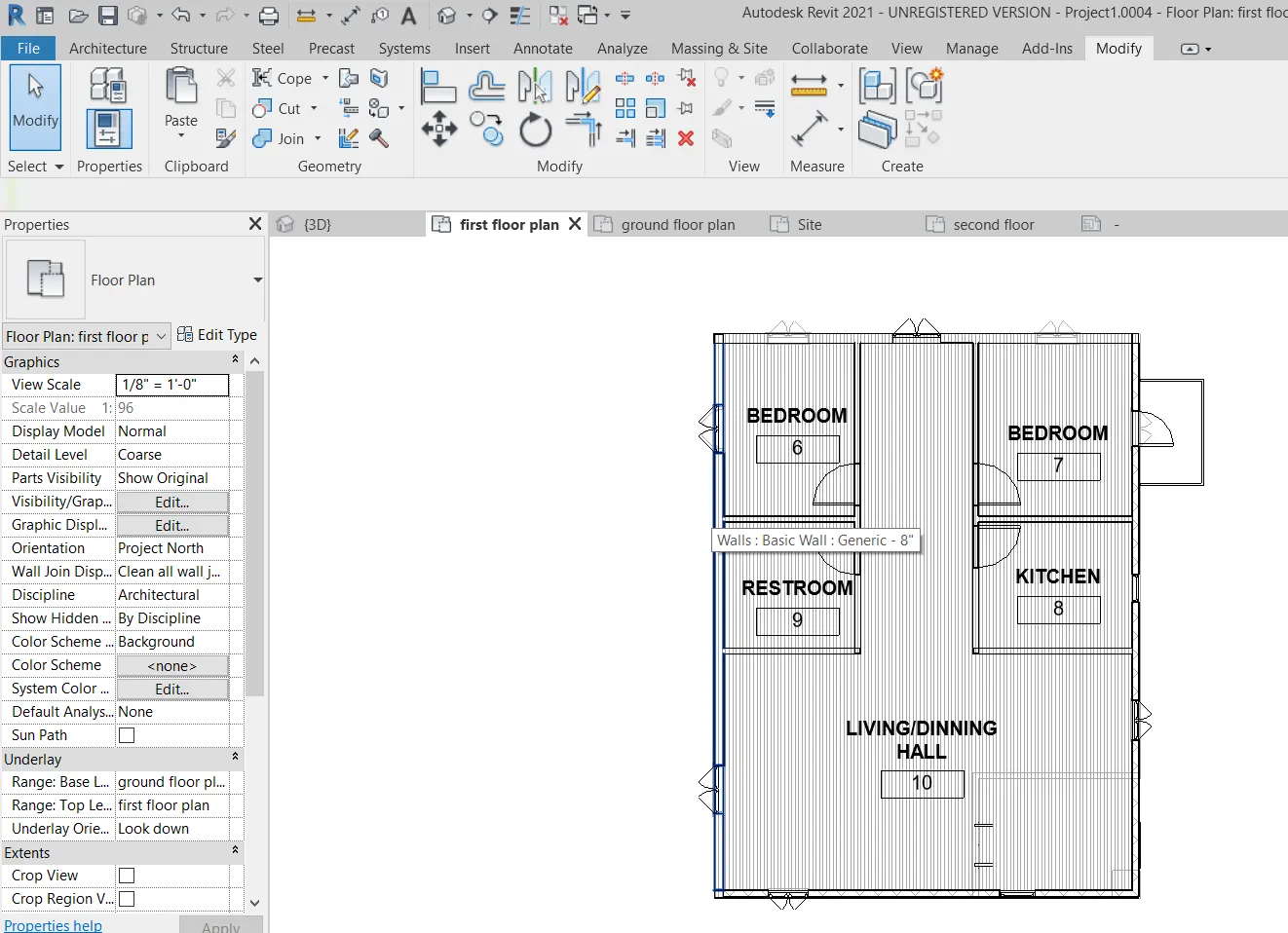

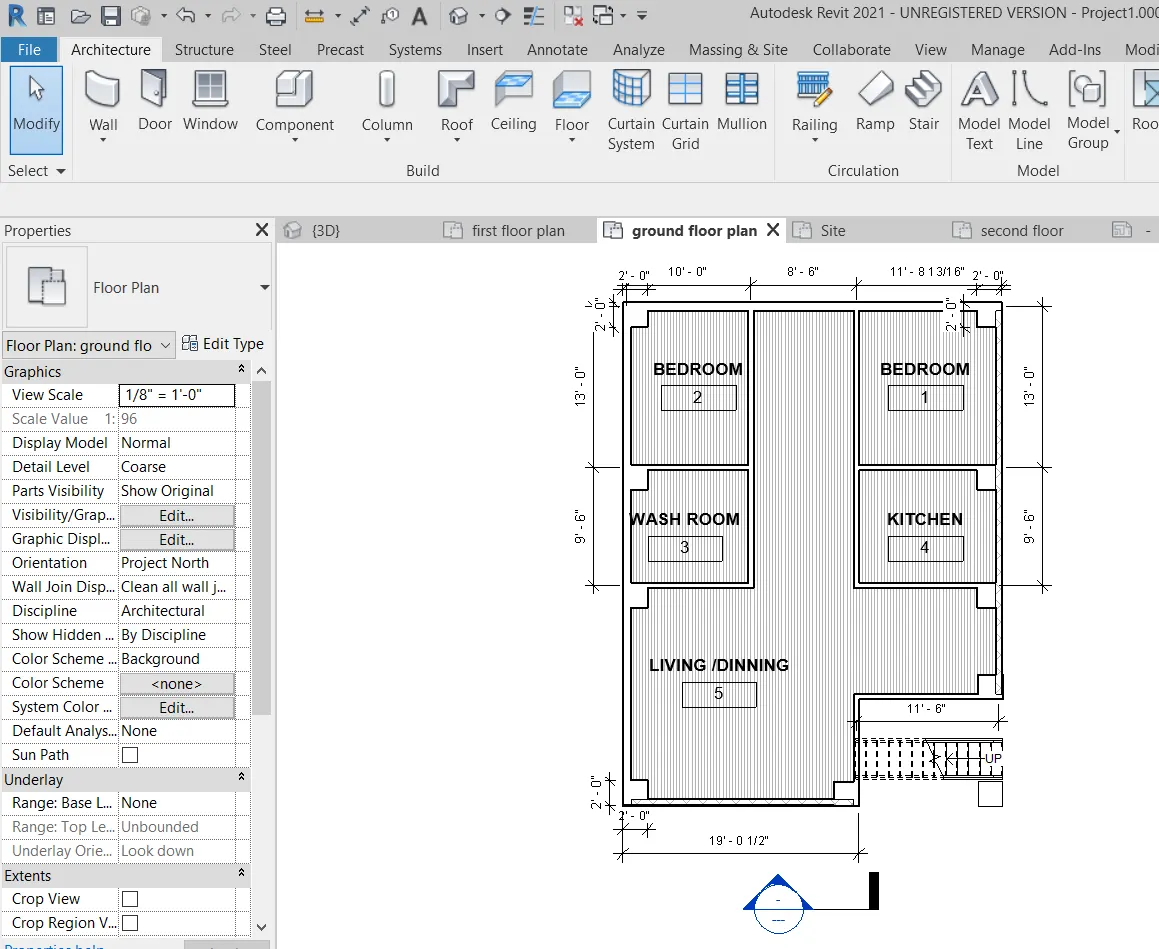

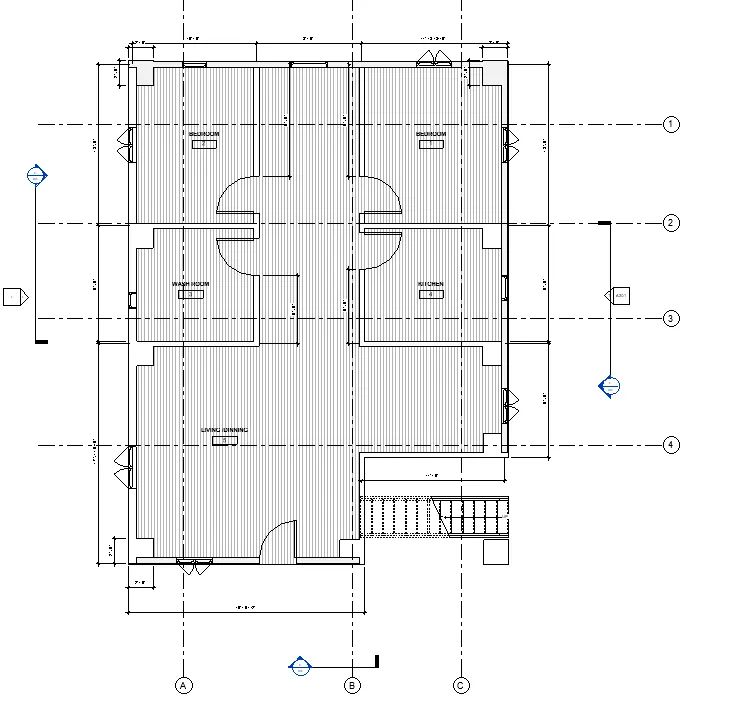

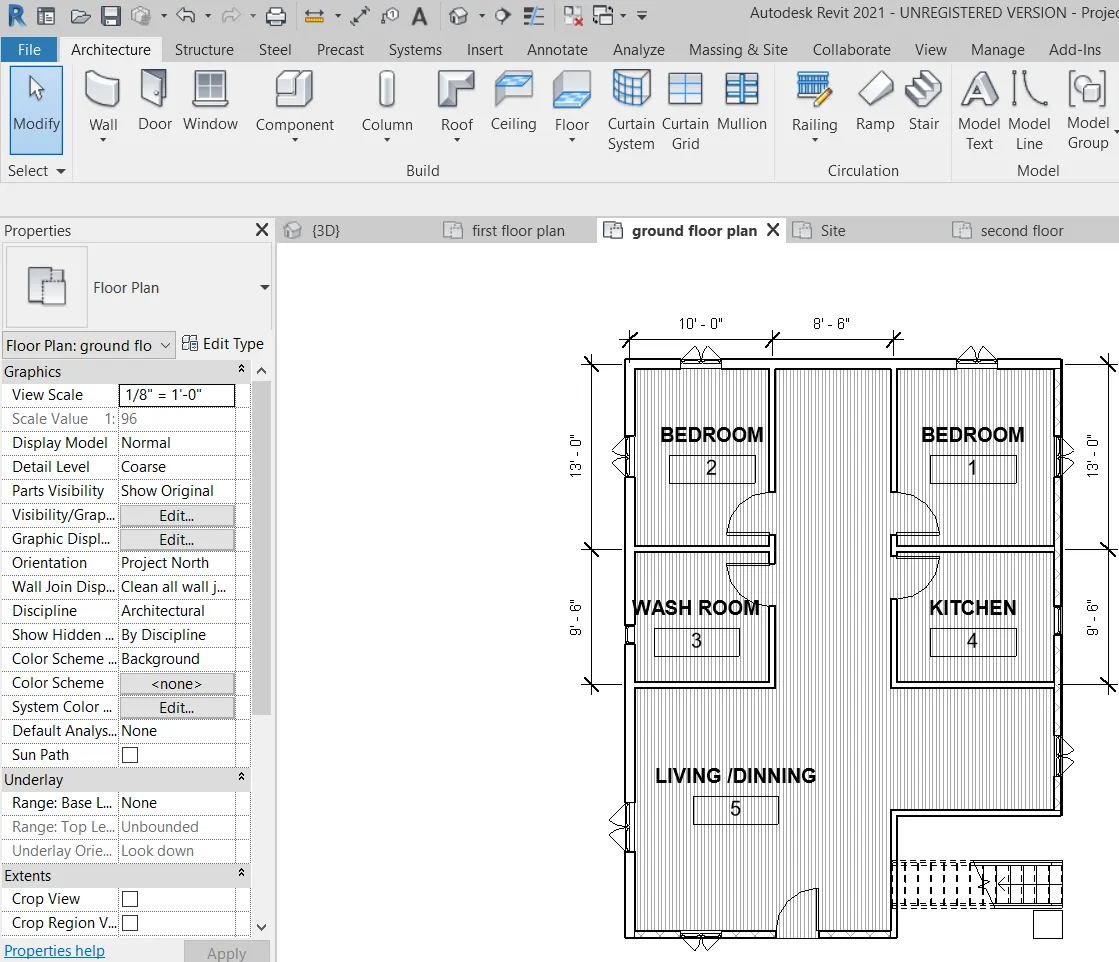

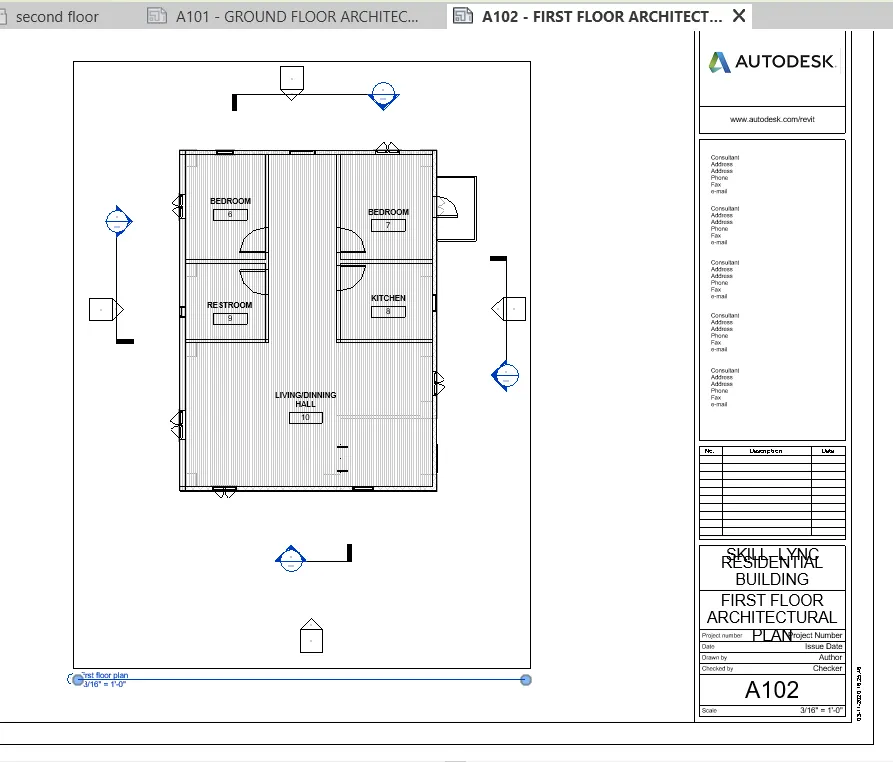

These are the architectural view of the residential building as it contains all the components of the buildings as doors windows, etc P.S AS OTHER COMPONENTS IS NOT ADDED DUE TO SOFTWARE LIBRARY ISSUE

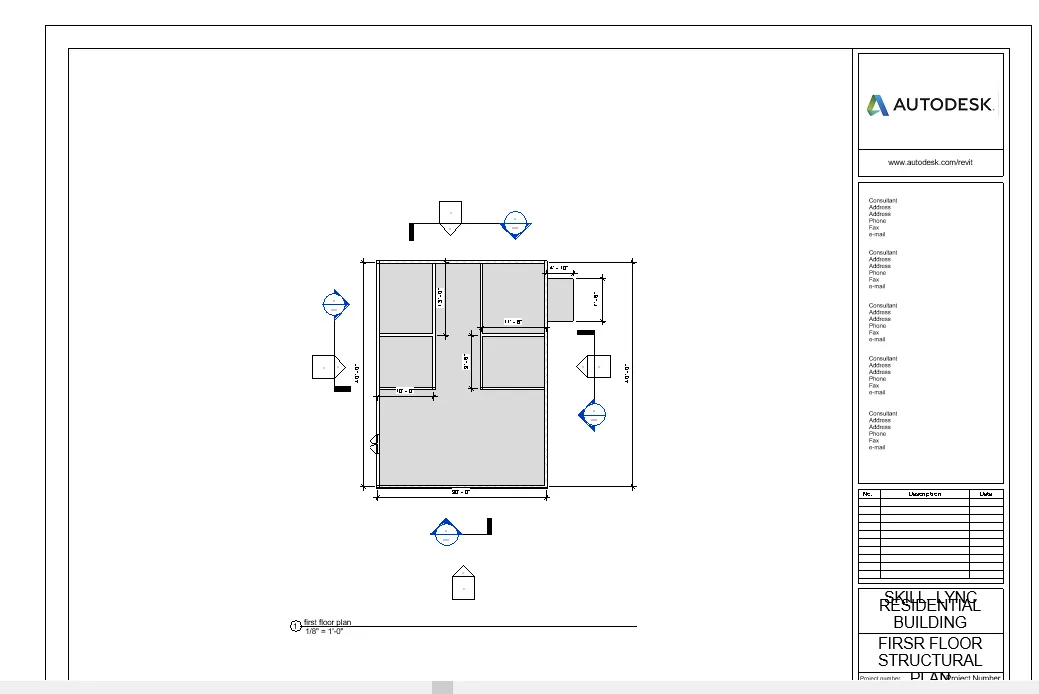

These are teh structural floor plan as it contains information of the walls ad columns (all the structural part)

4) Using annotate tool bar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

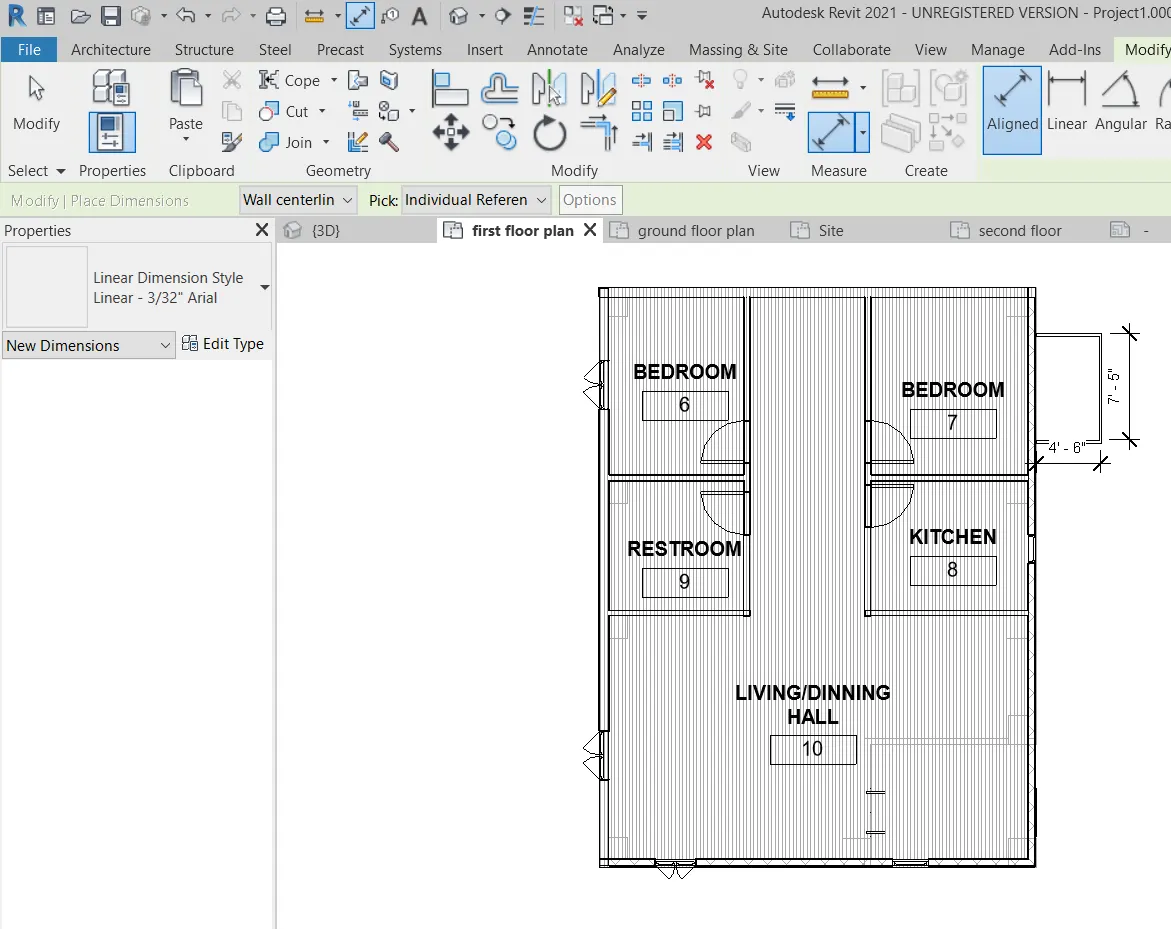

AIM:- Add dimensions of all the walls, columns and other components with reference to the grids

Commands used:-

Architectural

Grids

Annotations

Dimensions

Alligned

Linear

Procedure

Open the file in revit

Select the architectural and then select grids

Draw the grids with equal interval say as 2' (horizontally and vertically)

Rename the vertical grids as A B

Select the annotate command

select teh alligned or linear

Do the detailing with reference to the grids

Repeat the procedure for both structural detailing and as well as architectural detailing

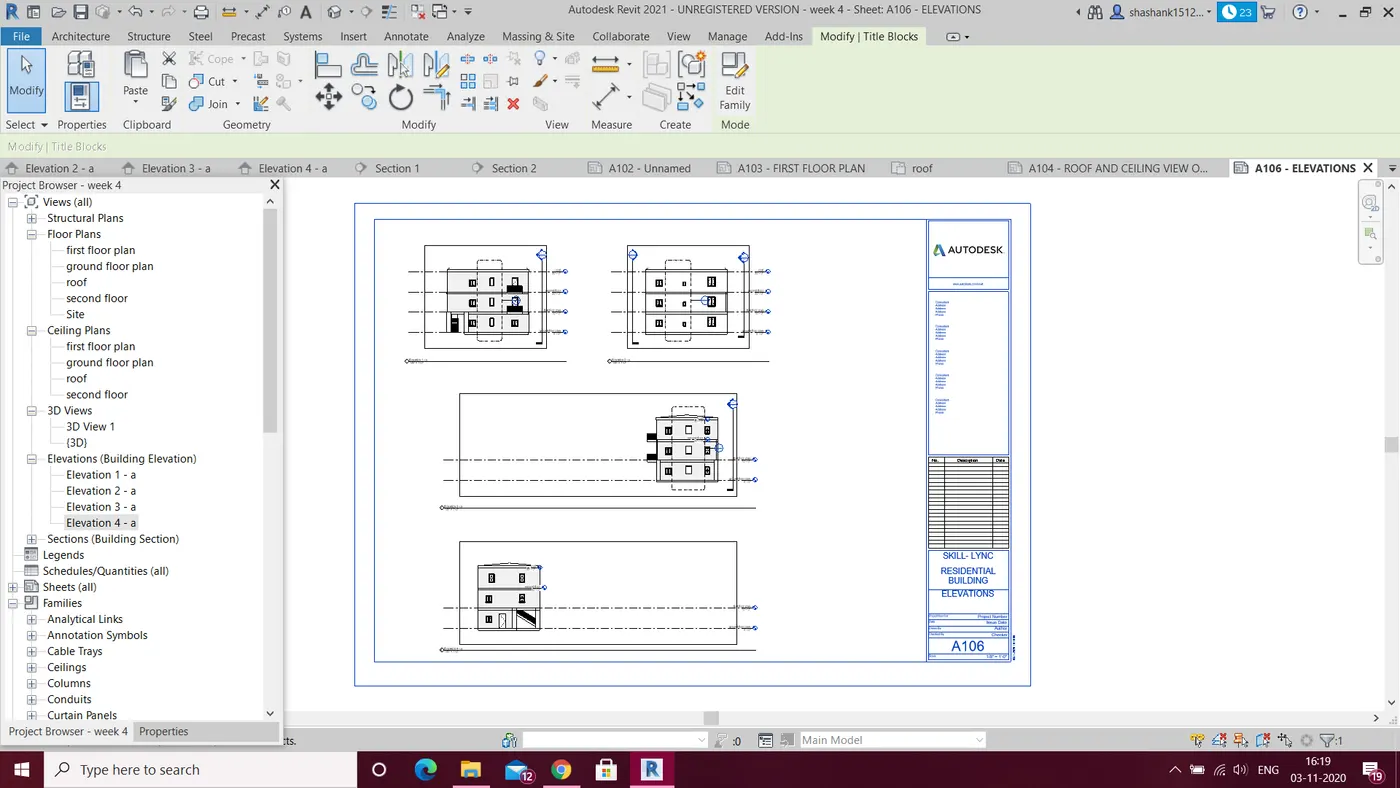

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

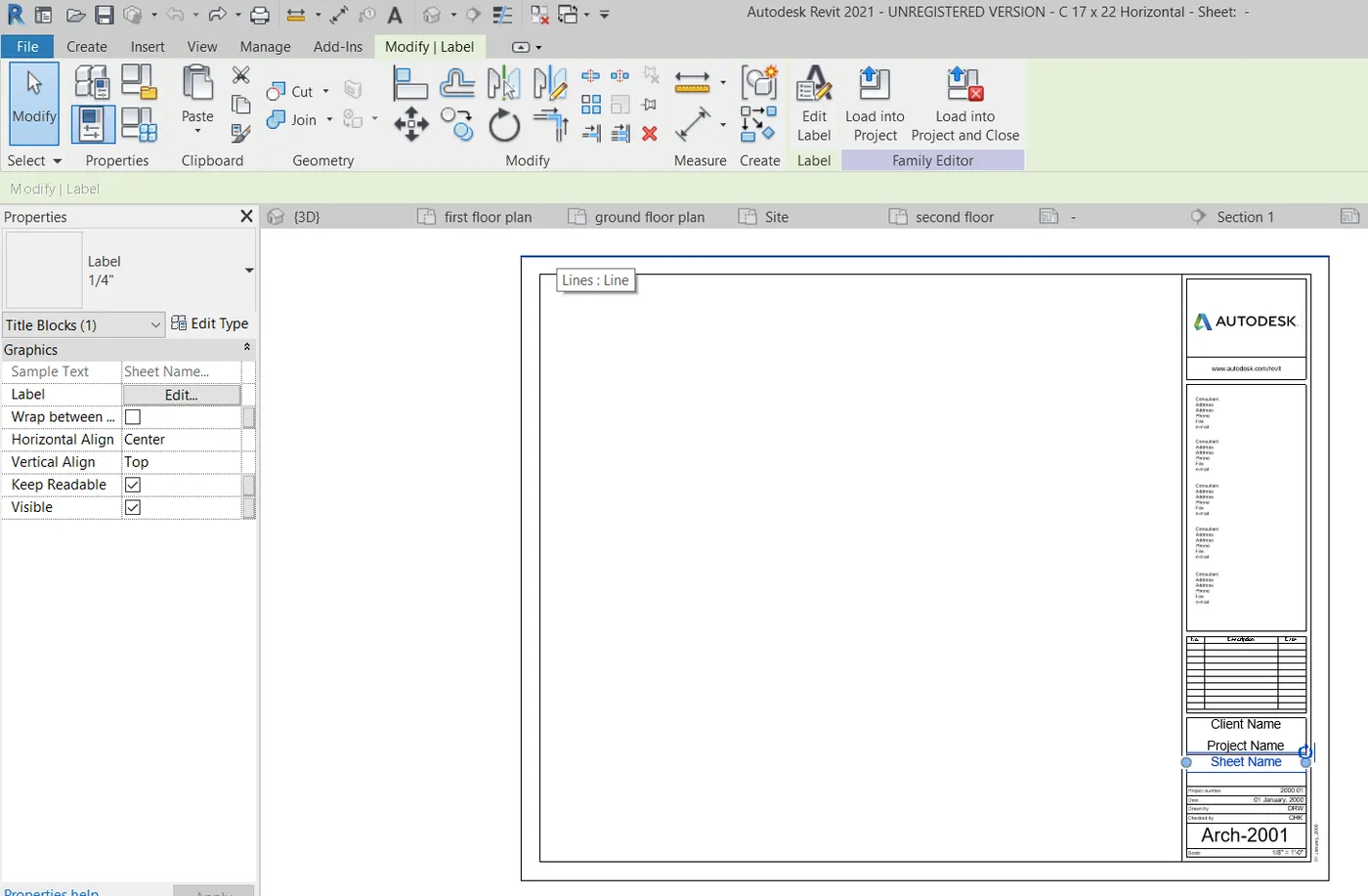

AIM:- Create a sheet template from the view tab

Commands used

View

sheet

load items

Procedure

Open the file in revit

Select the view command and select the sheet option

Load the items and select title block and select the template

Double click on the parameters in the title as (Name of project, Drawing no etc)

Edit them with suitable titles

Result:-

These are the views created in the sheet

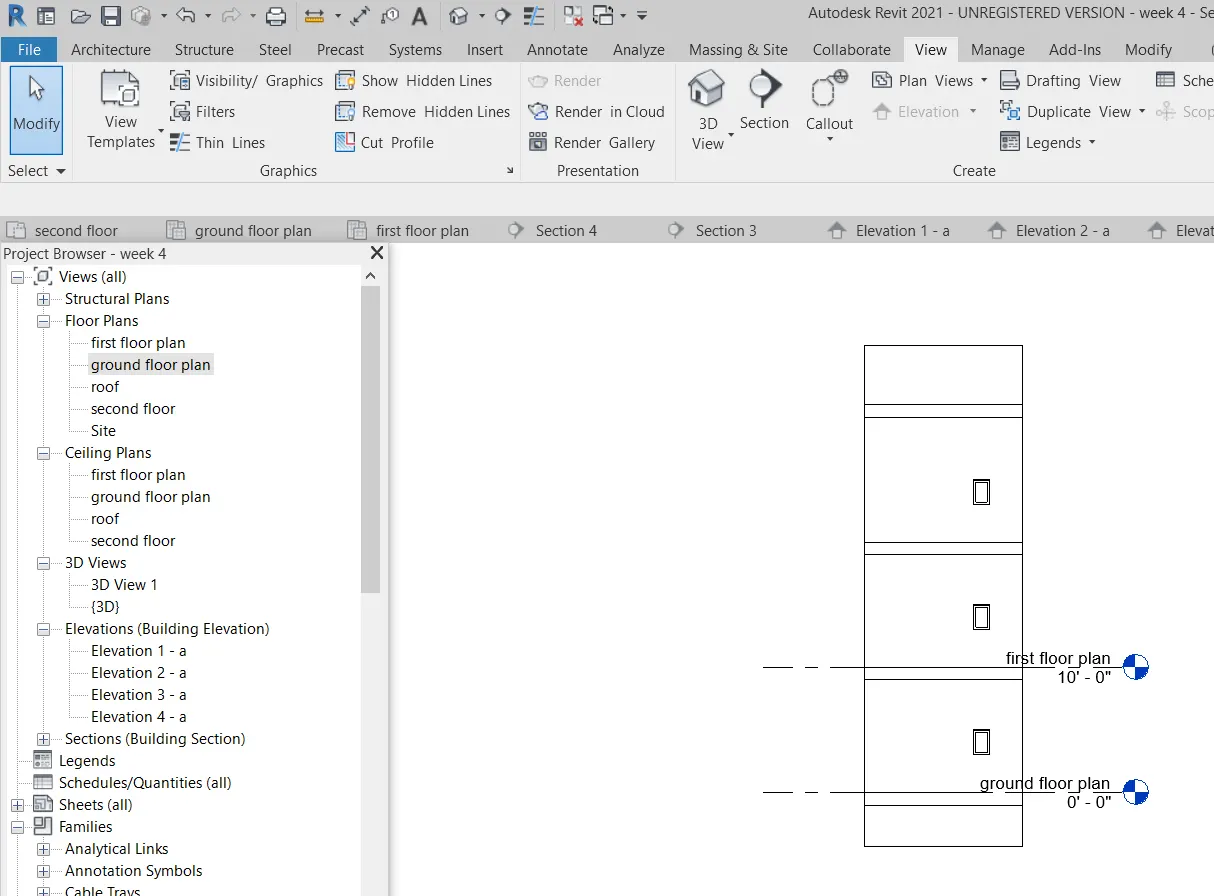

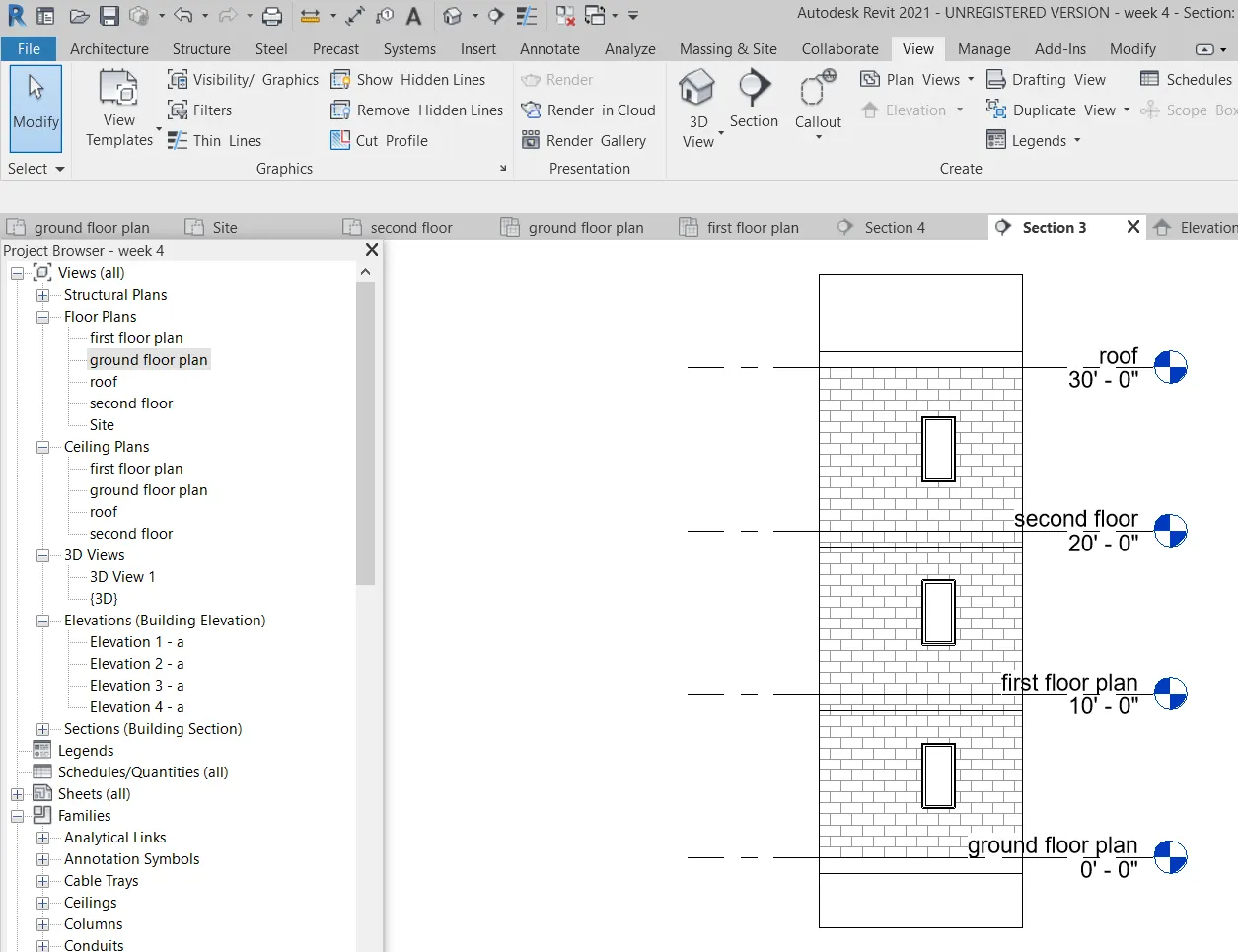

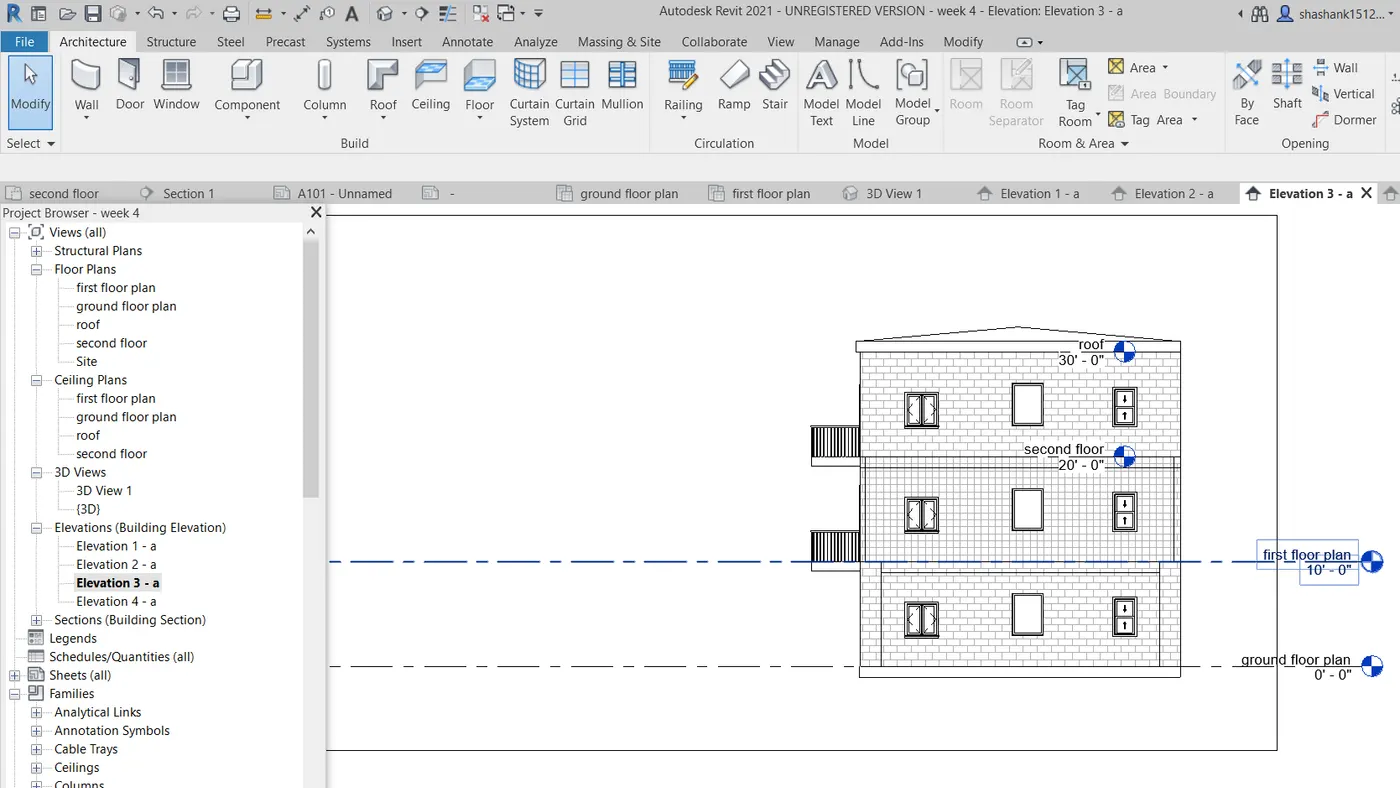

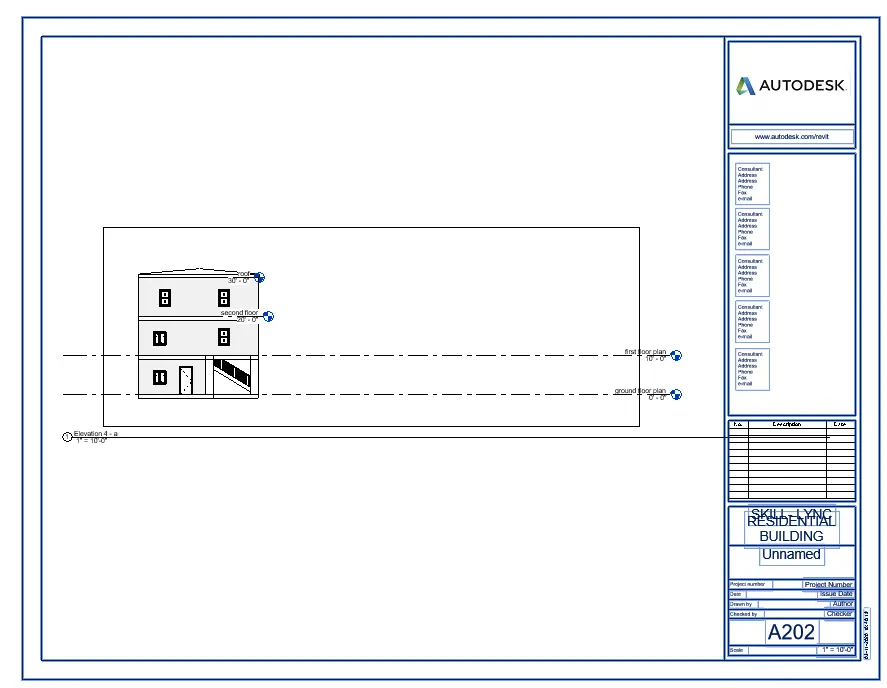

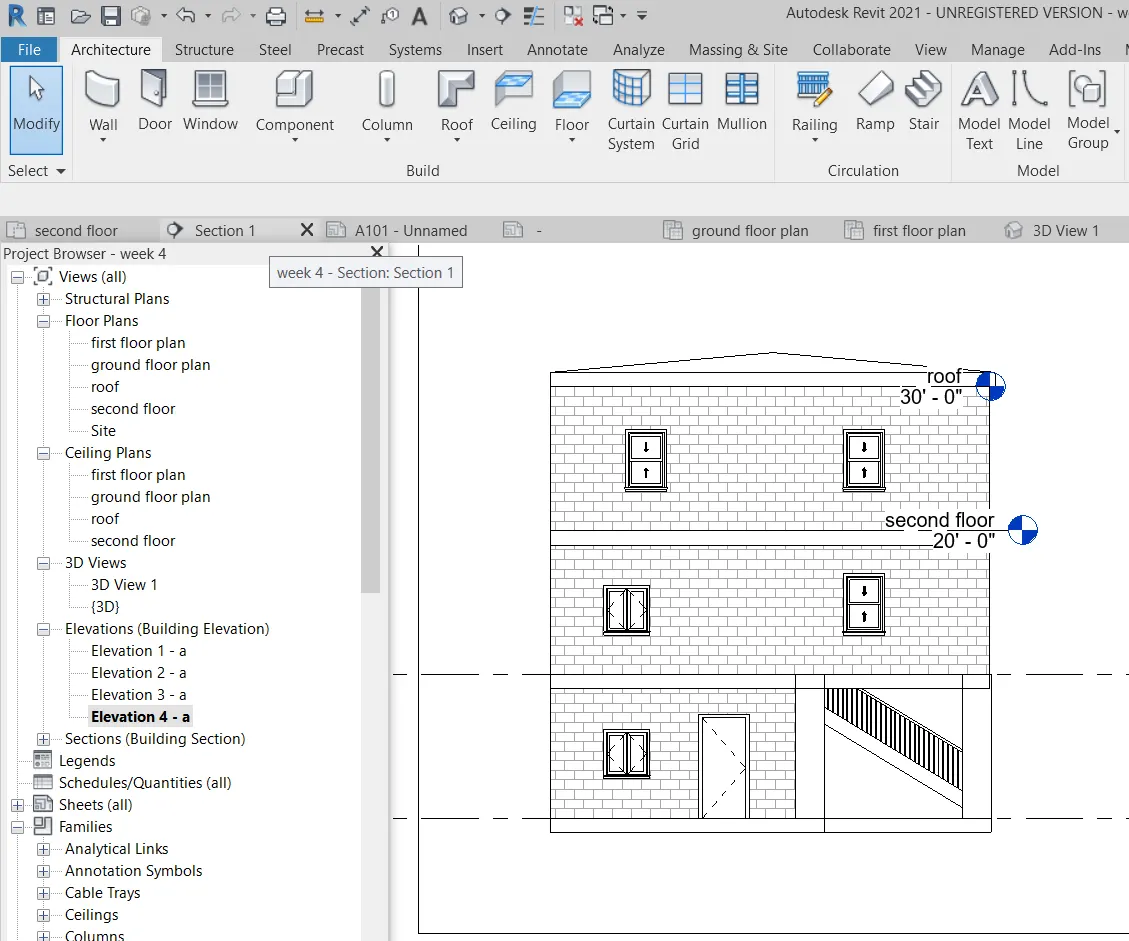

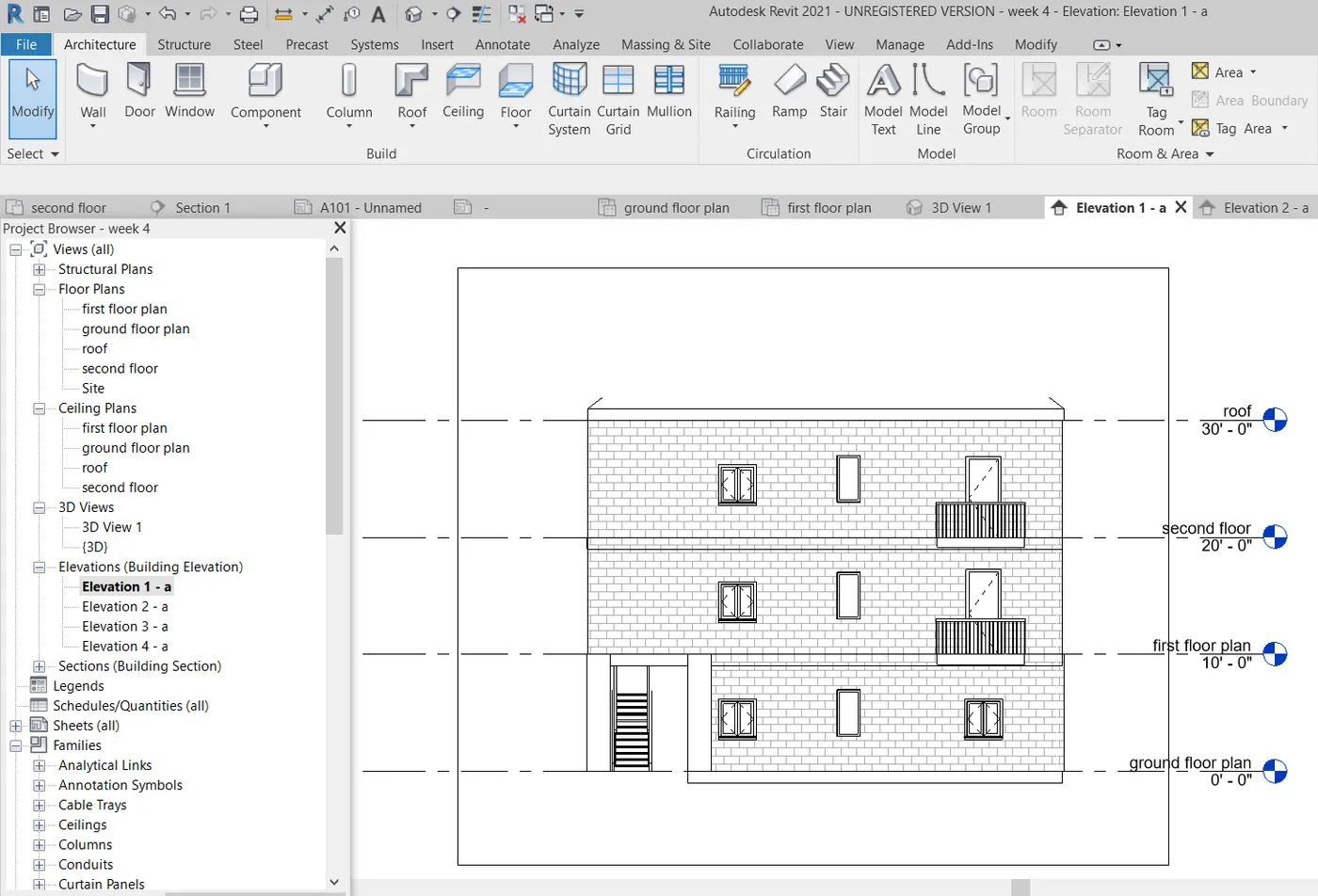

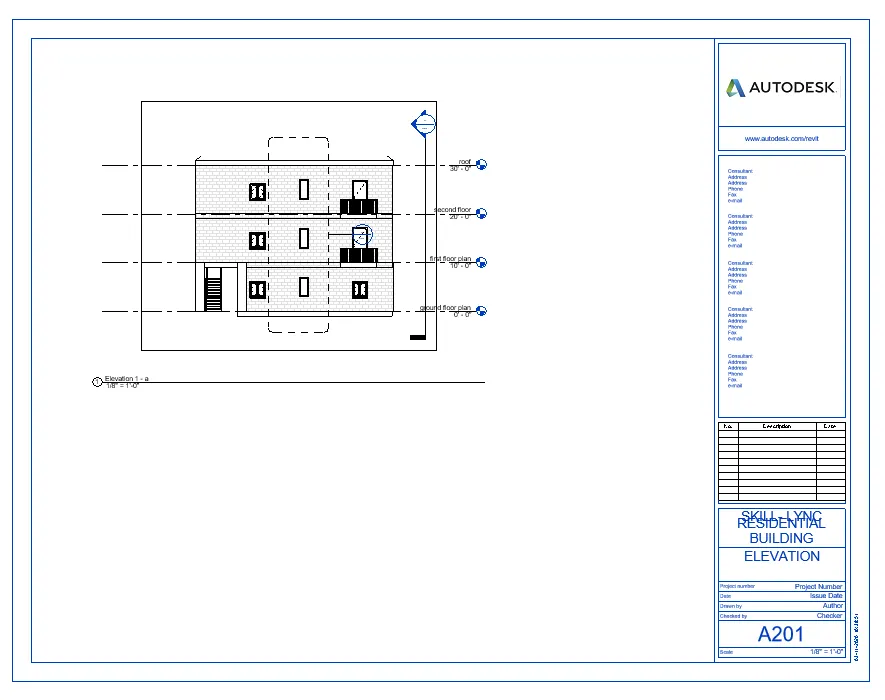

6) Using the elevation tab create the elevation views, looking at your building from East, North, South and West

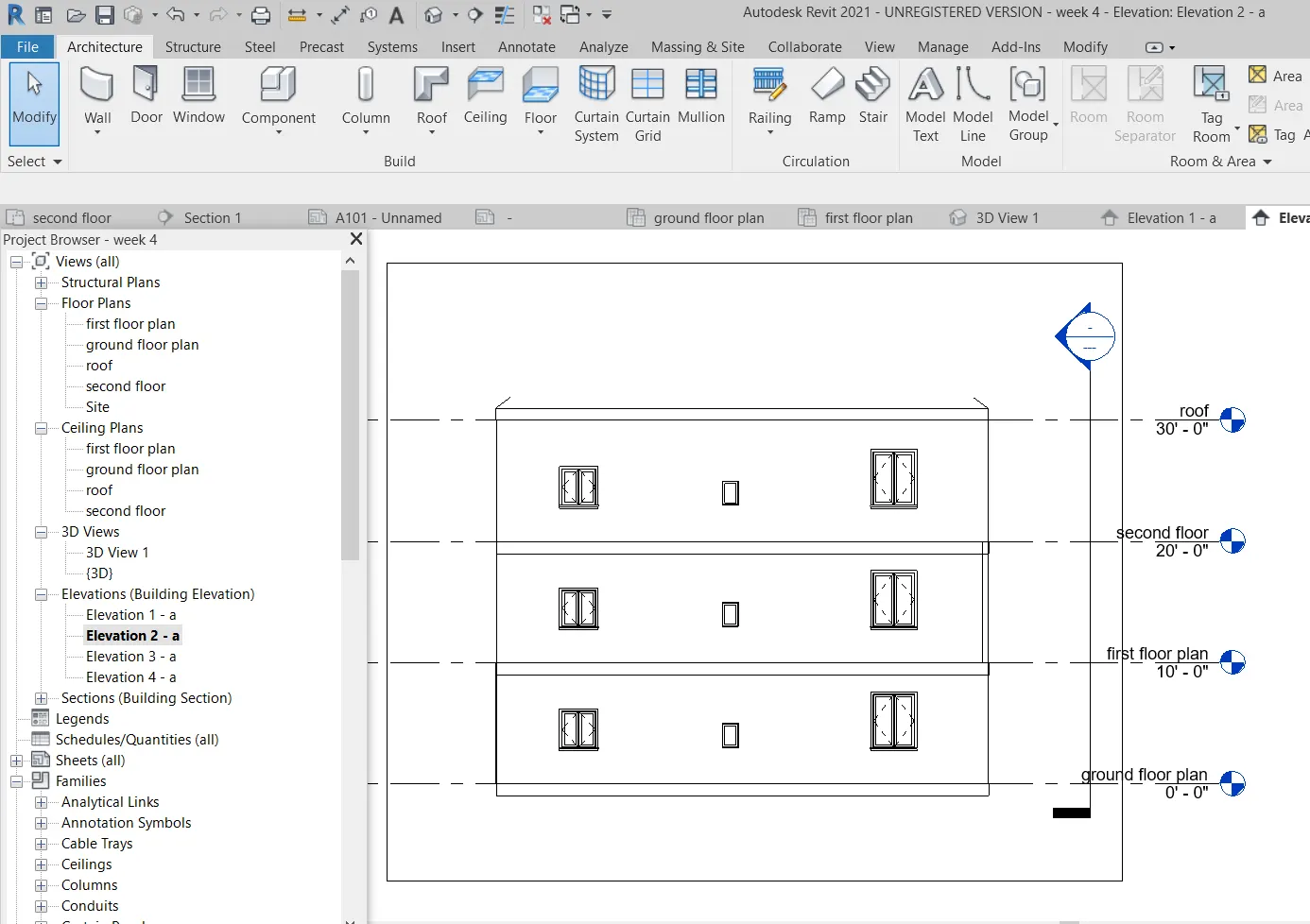

AIM:- Create elevation view using elevation tab in all four direction

Commands used:-

View

Elevation

Procedure:-

Open the file in revit

Select the view option and then select elevation

select the point where elevation is required in a residential building

Double clcik on the elevation icon and see the elevation

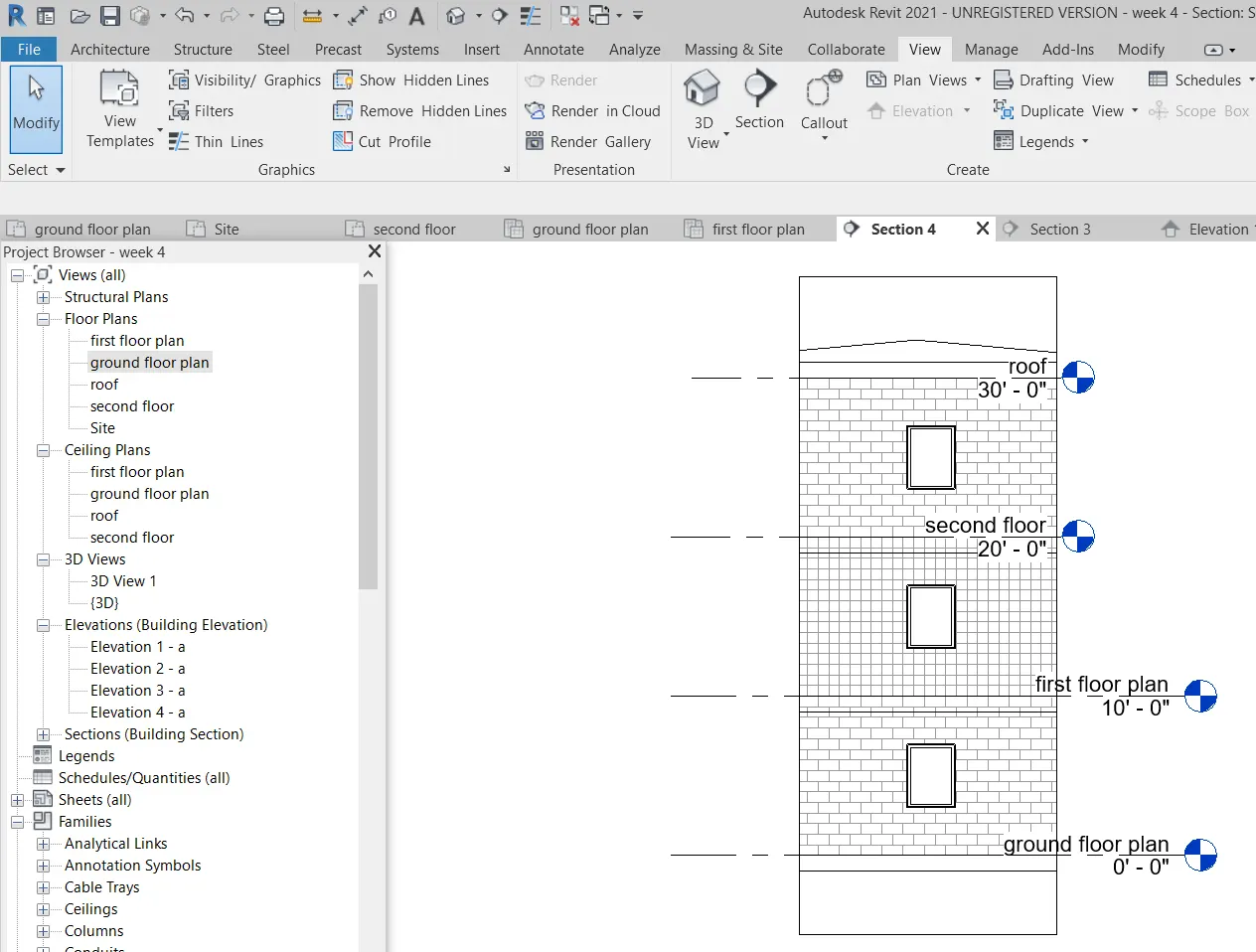

Result:-

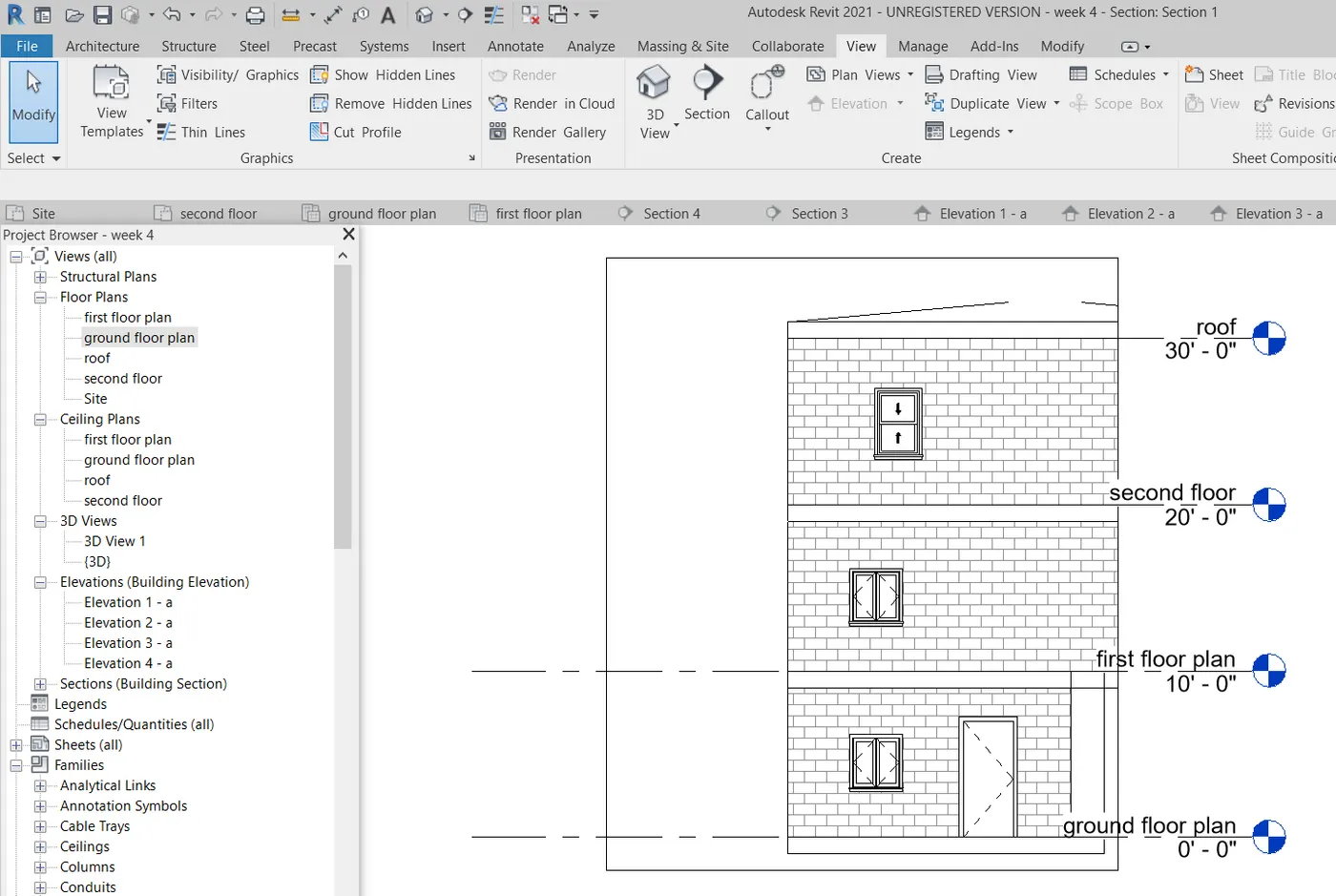

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

AIM:- Create section cut longitudinally or transverse direction

Commands used:-

View

Section

Procedure:-

Open the file in revit

Select the view option and select section

Draw the section in the floor plan ( I have drawn cutting longitudinally and transverse direction both

Double click the section and see the section

Result:-

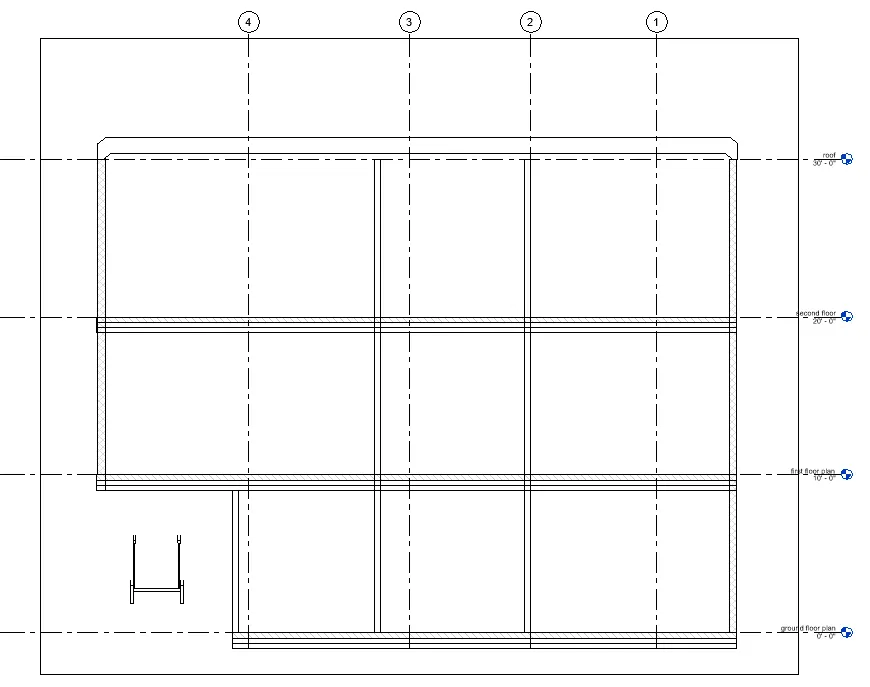

8) Classify the views , Plan Views, Section Views and Elevation views to either Design or Documentation category using Properties browser

AIM:- Classify the plan views, section view and elevation view for design or documentation category

Commands used:-

View

sheet

load items

Procedure

Open the file in revit

select the view option and select sheet

Select the load items and select the template which is required

from the property view drag the plans to the sheet and select the scale in the property and so the appropiate scale

double click on the text in sheet and do the detailing as required

View is ready for design or documentation part

Result:-

These are some views which i have made

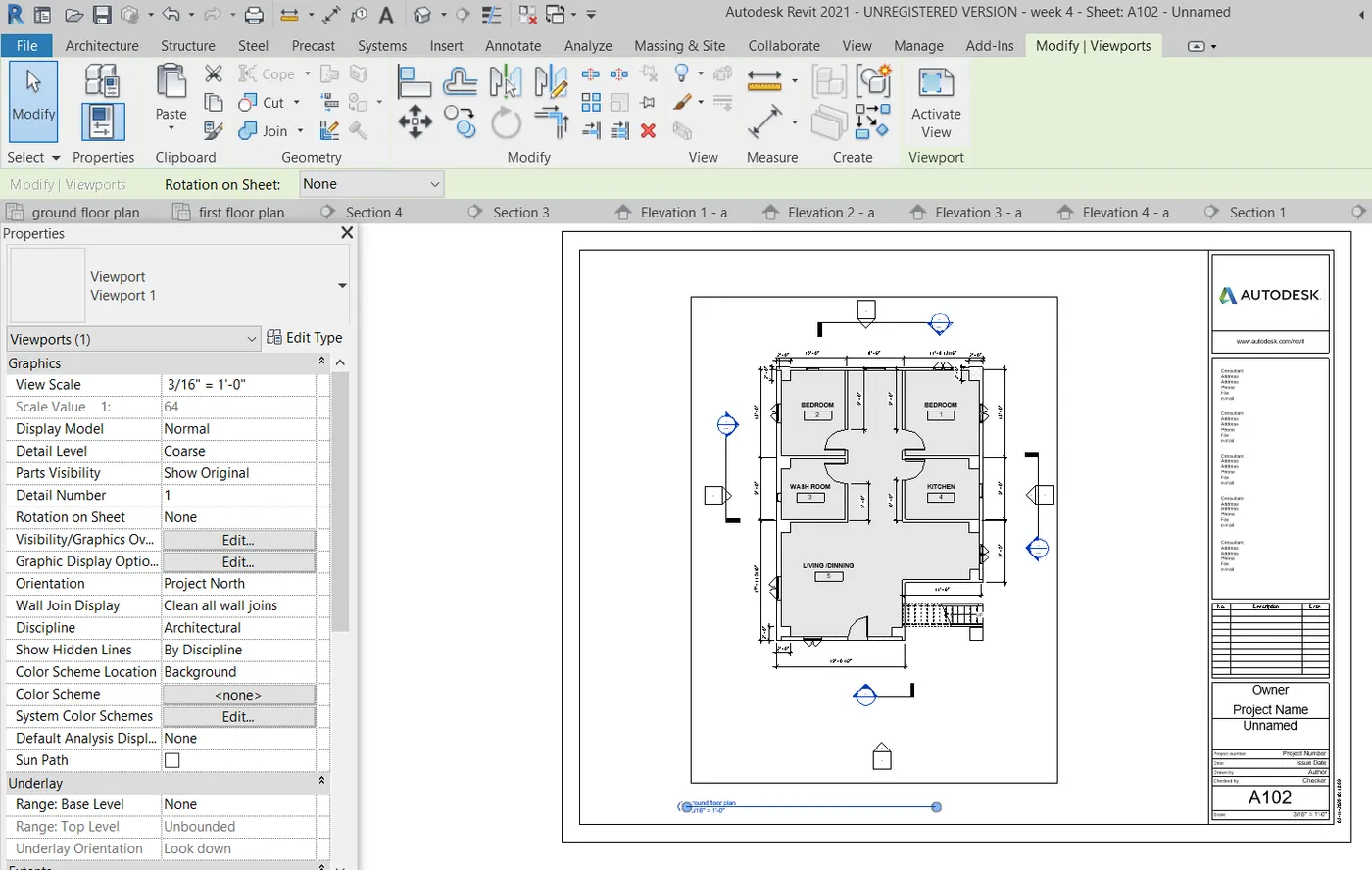

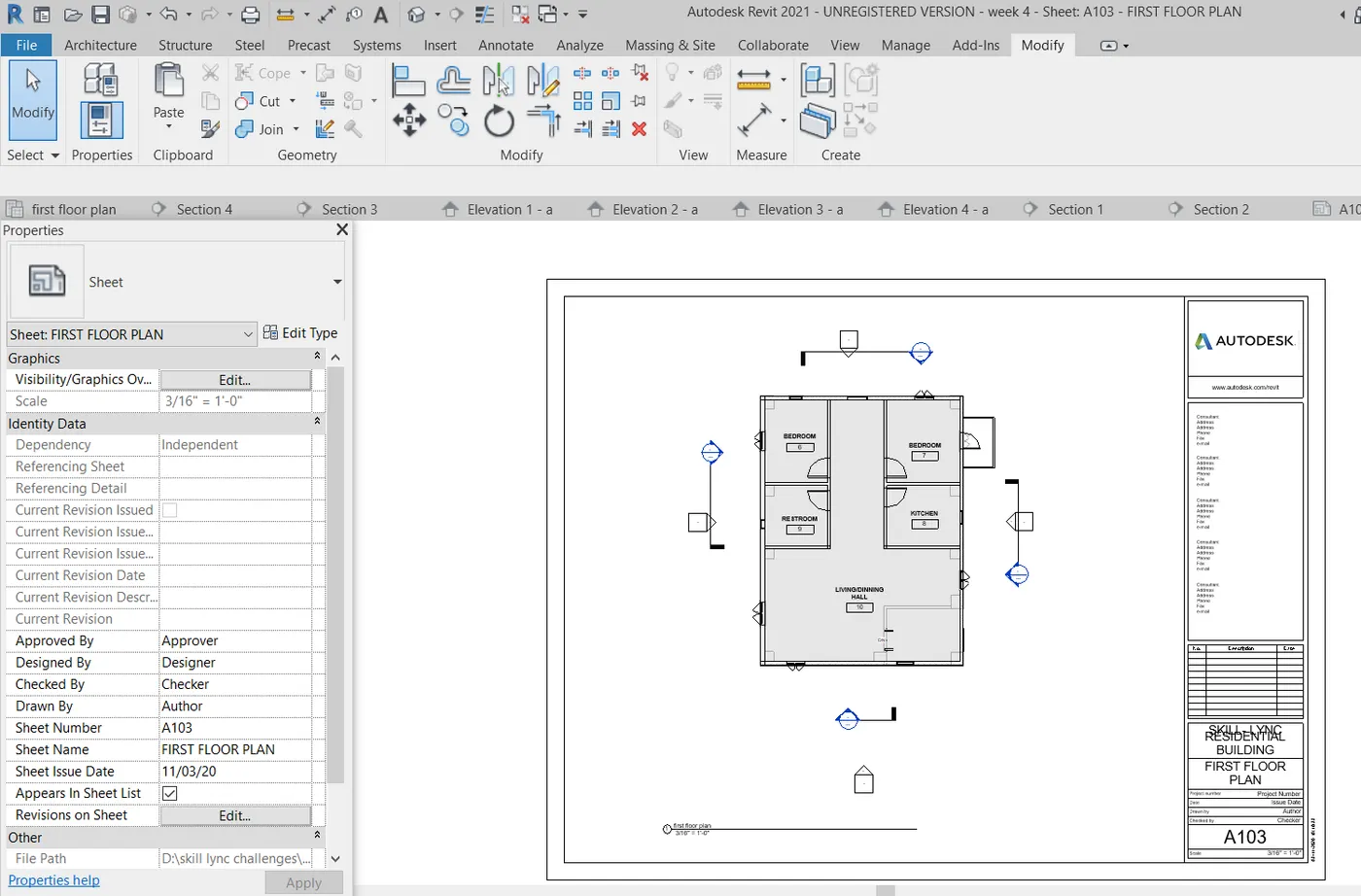

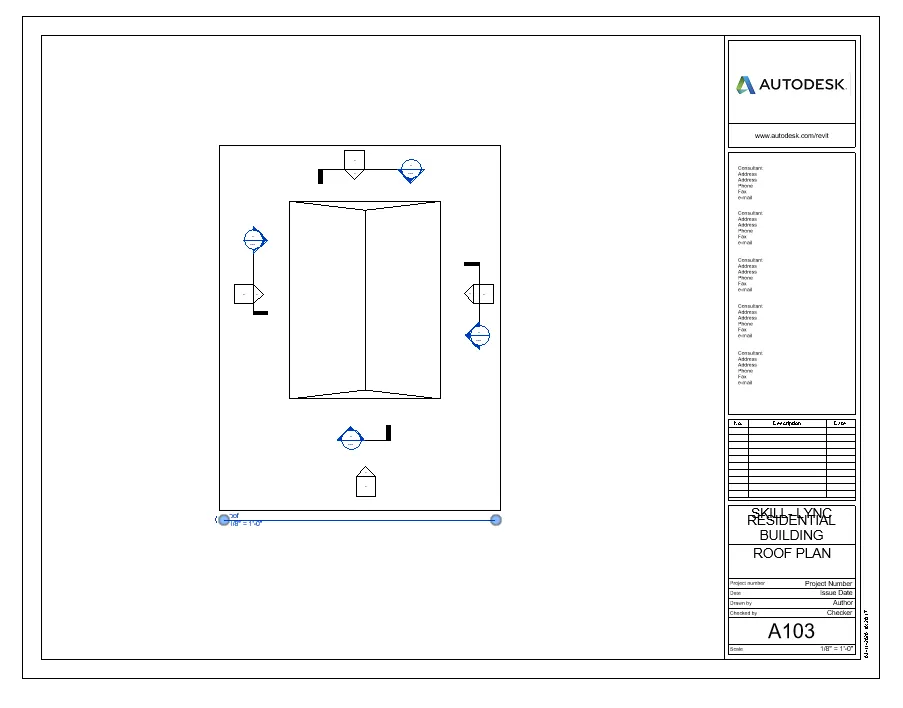

9)Using the sheet template produced create multiple sheets as follows

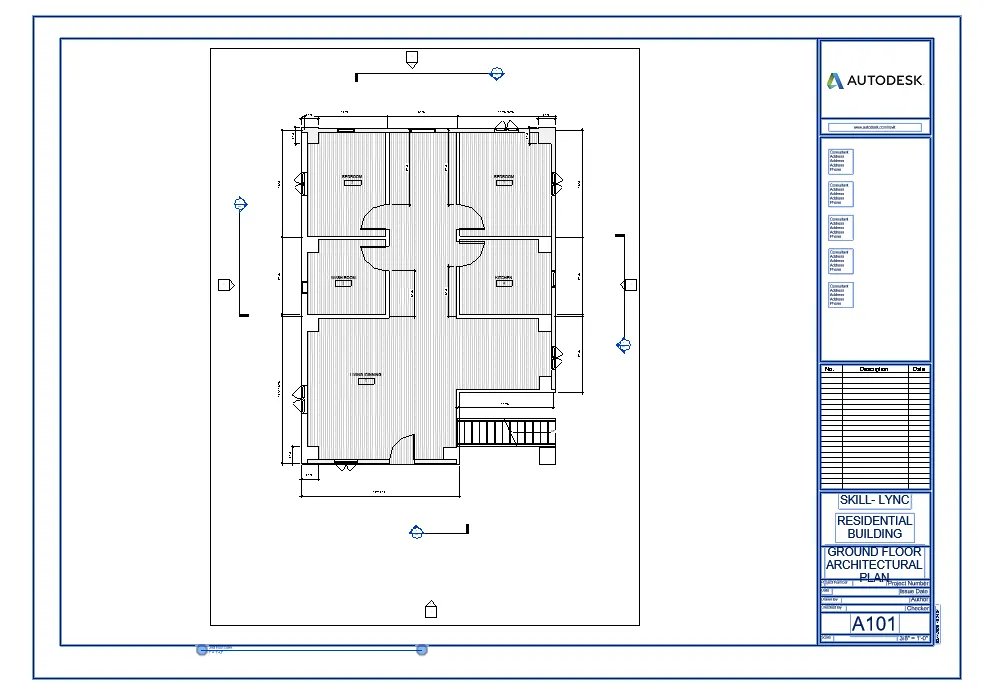

a. A 101 – Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan

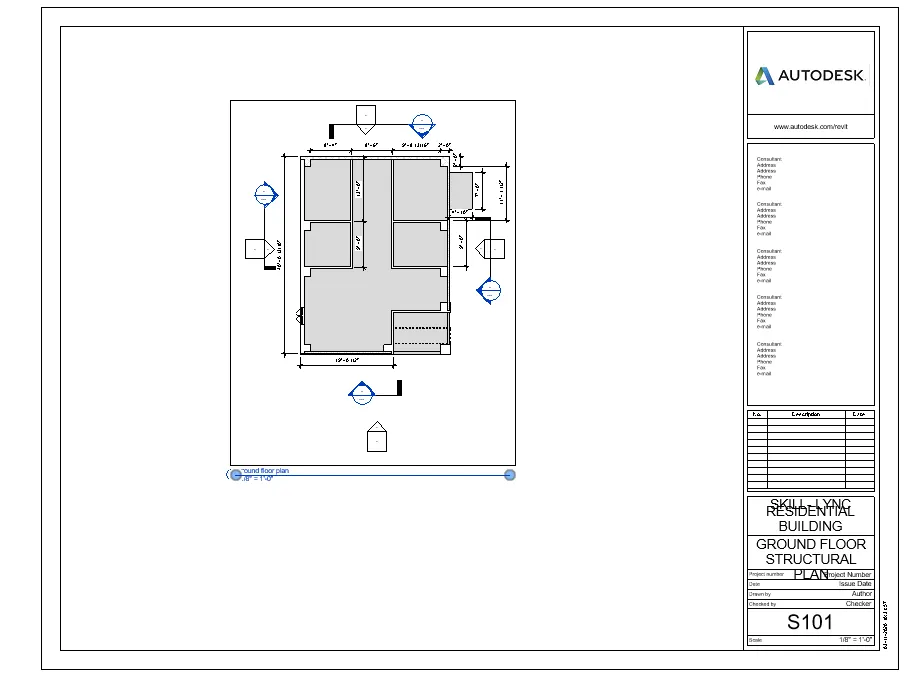

d. S 101- Ground Floor Structural Plan
e. S 102 – First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201 – North South Elevations
h. A-202- East West Elevations

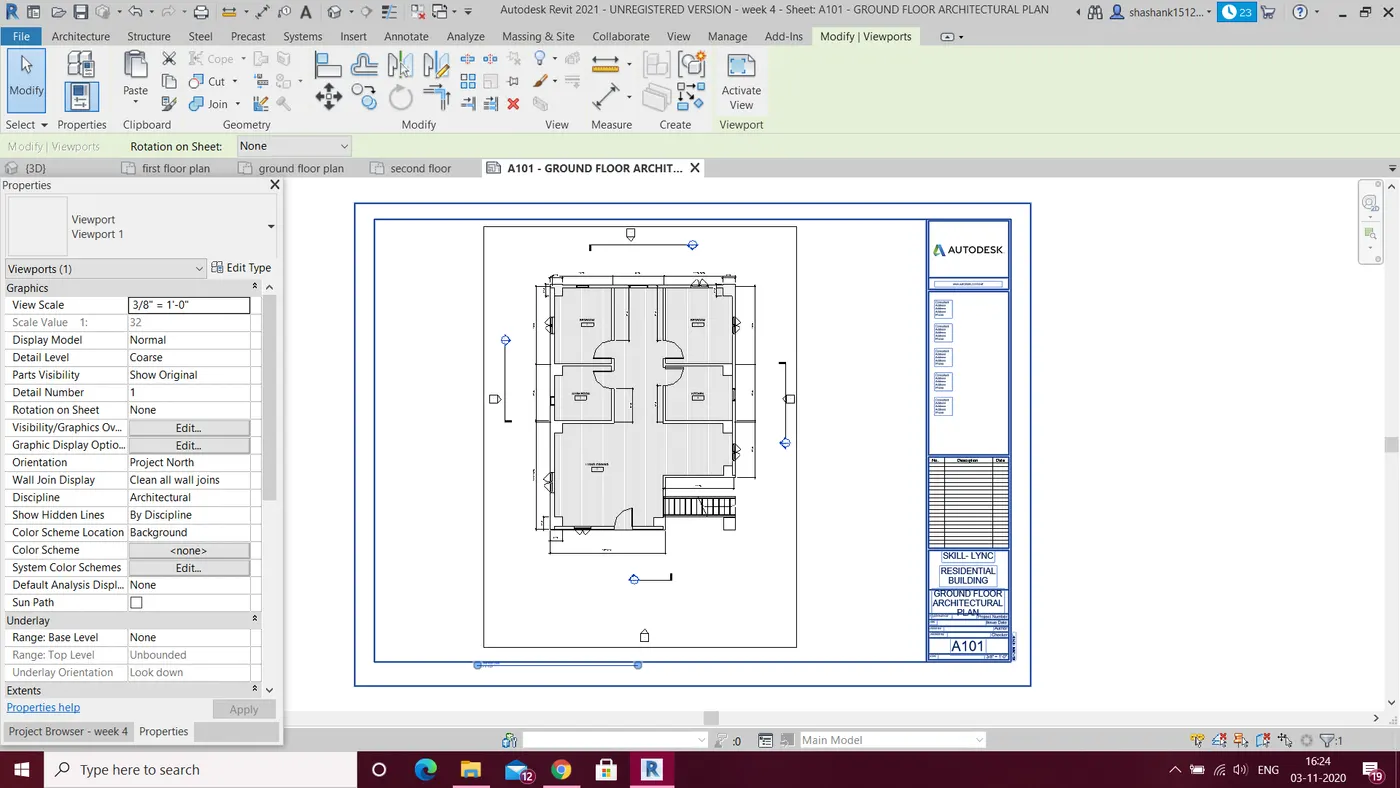

AIM:- Create the views according to the following drawing list

Commands used:-

View

Sheet

Procedure:-

Open the file in revit

select the view tab and select sheet

Select the the plans from the property and drag it to the sheet

select the appropiate scale and name the drawing no and title as mentioned

Result:-

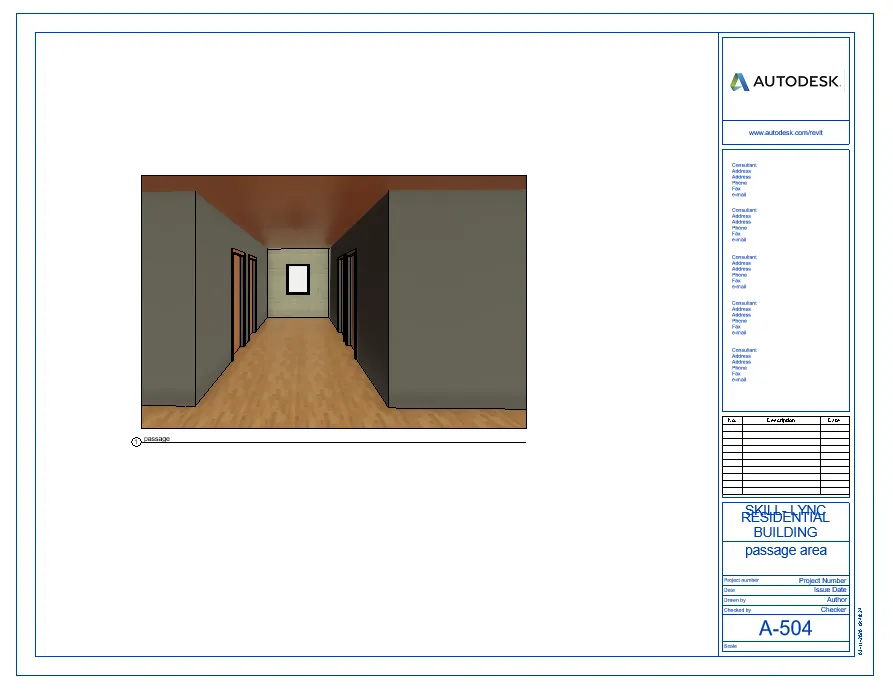

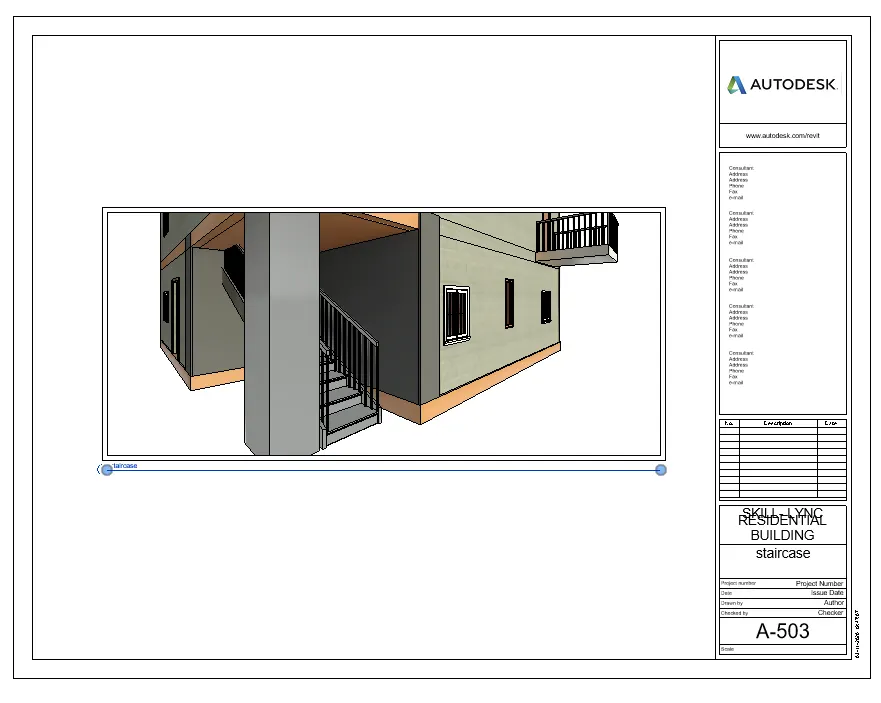

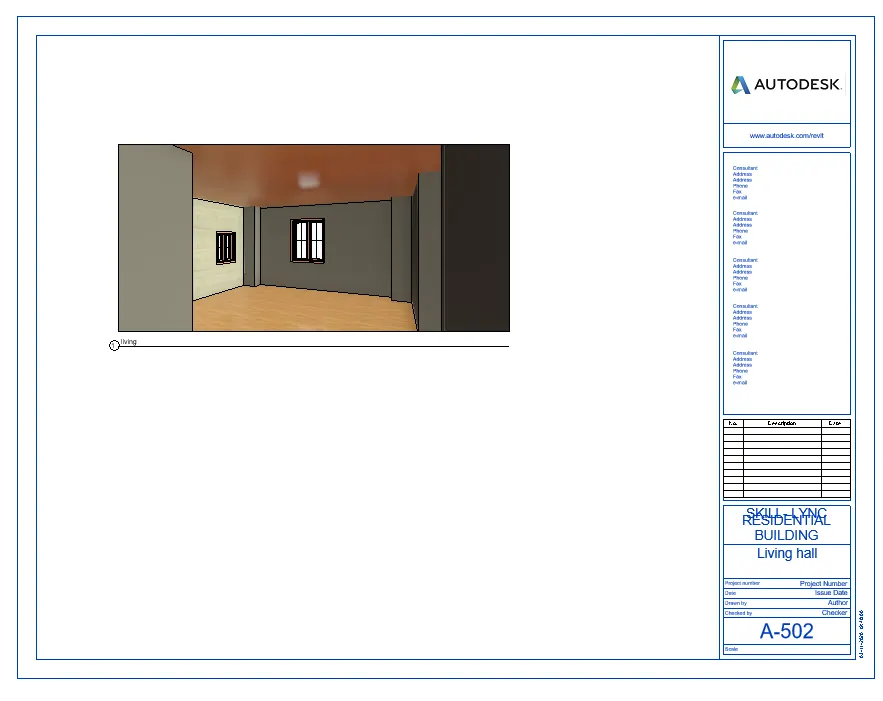

10) Create a camera specific view or a 3D view in each room ( living, dining, bed room ) . Based on the views create new shet of sheets starting A-501 (you can add as many sheets after , 502, 503.. n)to place the 3D view images.Produce the sheets as a part of project drafting.

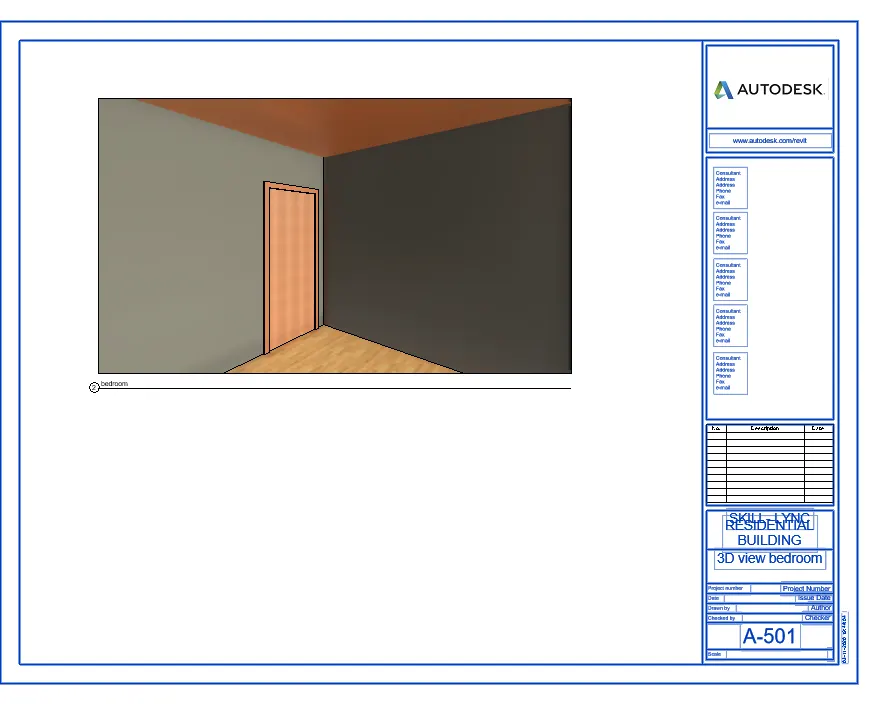

AIM:- Create 3d view of different rooms in the sheet

Commands Used:-

View

Sheet

camera

Procedure:-

Open the file in revit

Select the view and select camera, place the camera at the appropiate place

select the view and select sheet and load the title block

Drag the 3d views of different rooms in different sheets with the sae procedure

Result:-
