Project 1

Define tooling direction The Tooling Direction is basically the direction that the mold pulls apart. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dyeline or the Tooling Direction.      Parting…

                                                                                           …

                                                                                               Car Back Door Design   Aim: To design car back door from given styling surface data under given design rules and regulations.  Car Back Door and Components:  The back door is a hinged door/tailgate at the rear of the vehicle.…

                                                                                          …

                                                                                           …

Front Fender Design Aim: To Design Front Fender and the necessary mountings by following the Master section with the design parameter. Introduction: Fender is the American English term for the part of an automobile, motorcycle, or other vehicle body that frames a wheel well (the fender underside). Its primary…

Fender A fender is a part of an automobile, motorcycle, or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other roads spray from being thrown into the air by the rotating tire. Fenders are typically…

                                                                                           …

Objective: Writing a one-pager about Under-Body Coating and its purpose, its types in detail, and its pros and cons. What is under Body Coating: Underbody coating is a thick cladding (typically made of rubber) that is placed uniformly to the car's underside. When the automobile is fresh off the lot and spotless, it is…

                                                                                                                        Benchmarking Project Objective: - In This Project, I am Going to Suggest a Big Car for Mr.D.S. Pughazhyendhil Under 8 to 10 Lakhs on Road for Official and Family Purpose Traveling Distance Around 500km.…

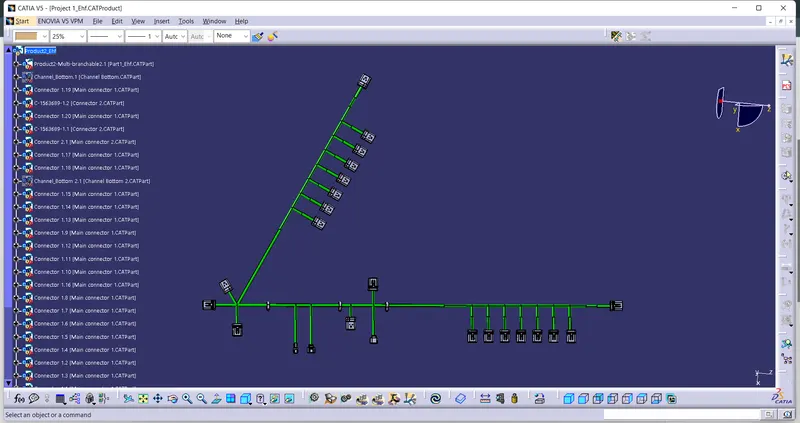

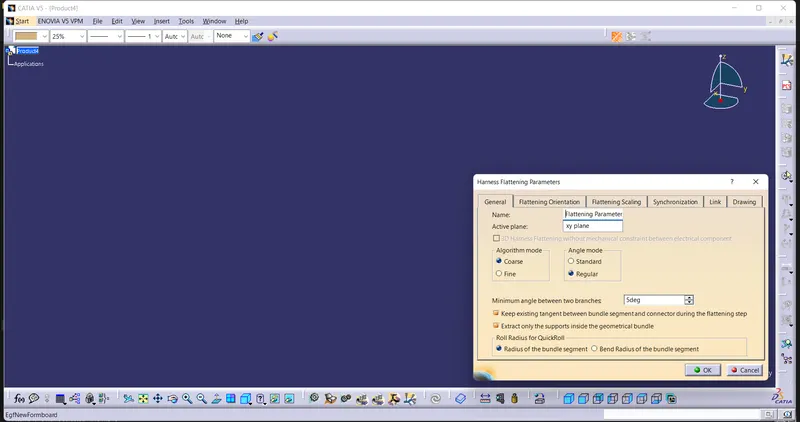

                                                                                                BACK DOOR WIRING HARNESS ROUTING AIM: Route the wiring harness on the Given car body and prepare to flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be…

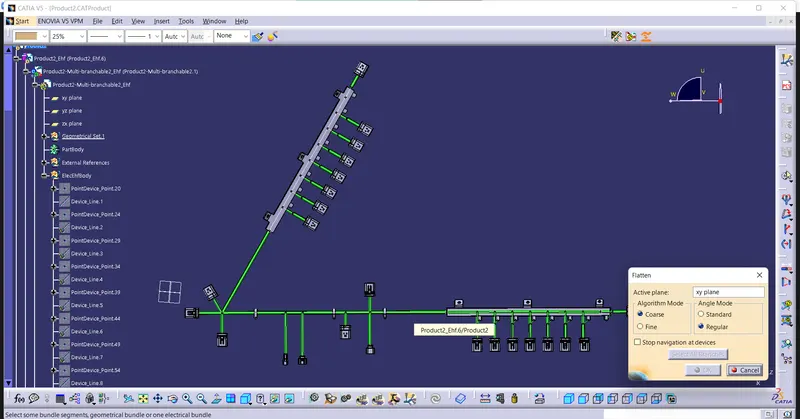

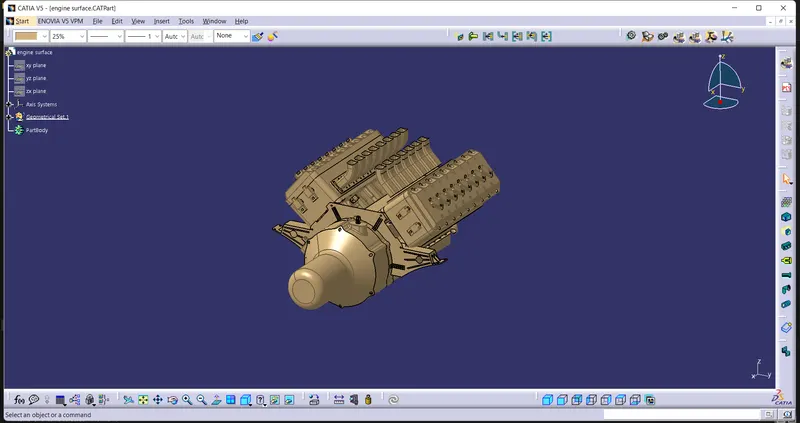

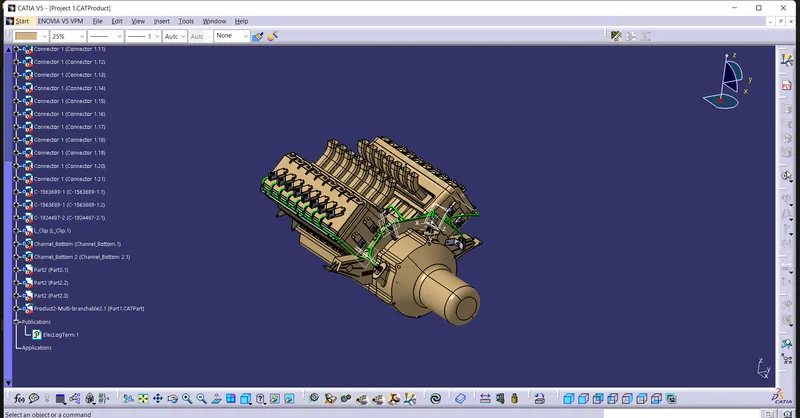

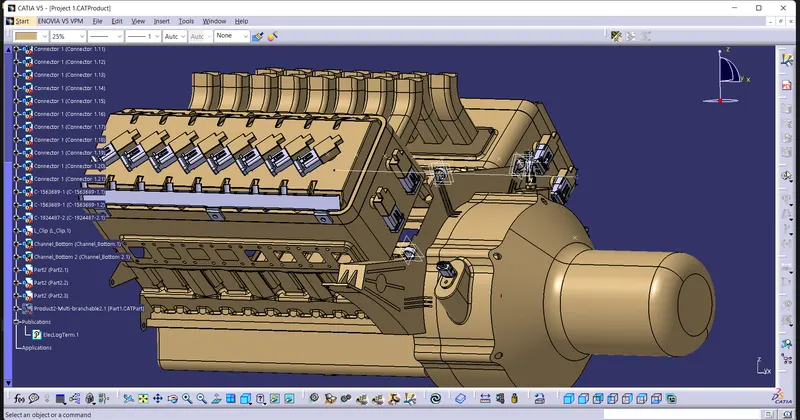

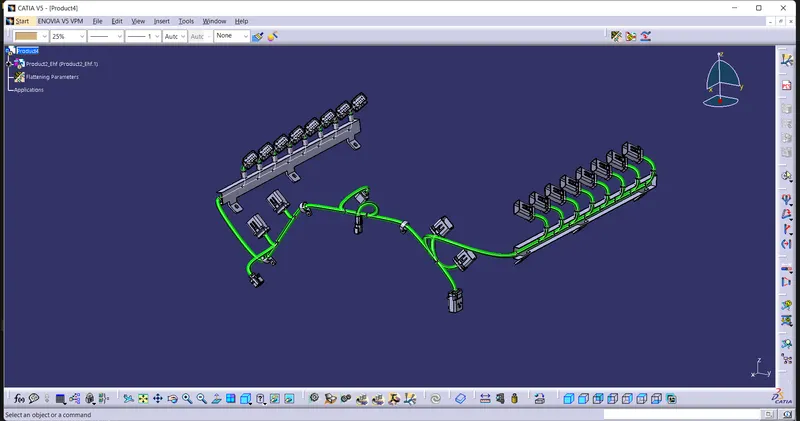

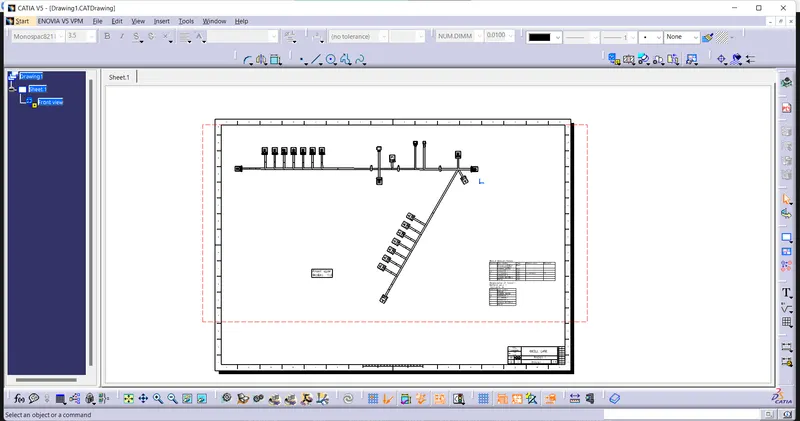

 WIRING HARNESS OF V16 ENGINE ASSY   AIM: Route the Wiring Harness on Given Engine and Prepare to flatten the view drawing in CATIA V5 PACKAGING RULES AND ASSUMPTIONS: • Provide Enough Clearance to the wiring harness with respect to the surrounding • Avoid harness routing and clipping in the blind zone…

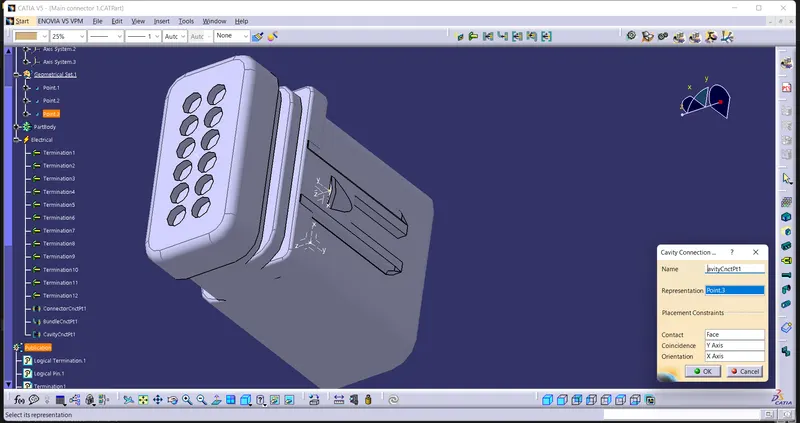

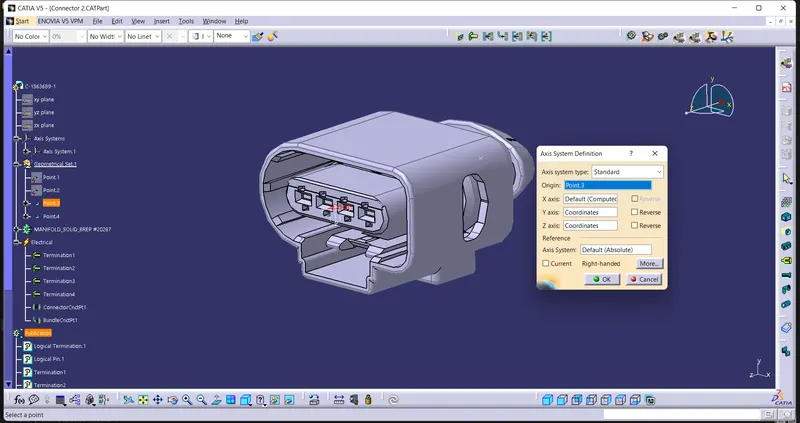

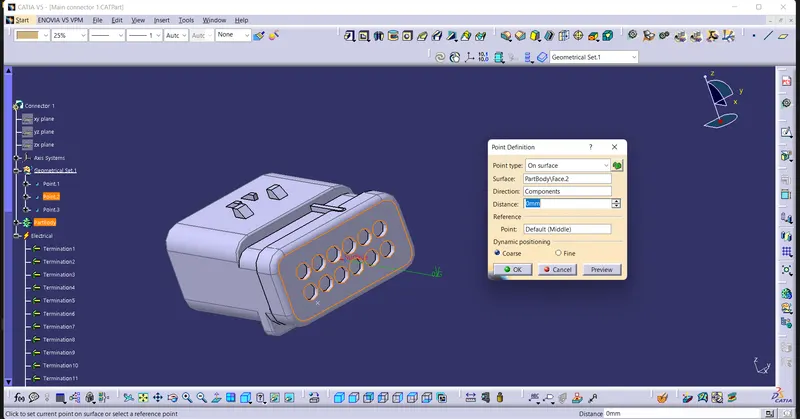

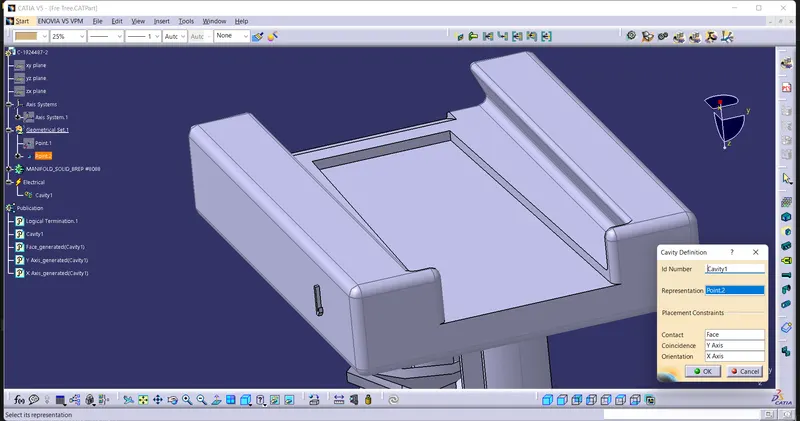

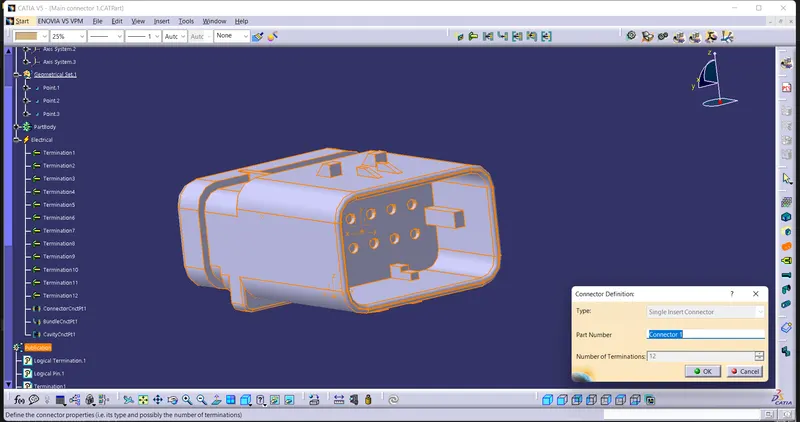

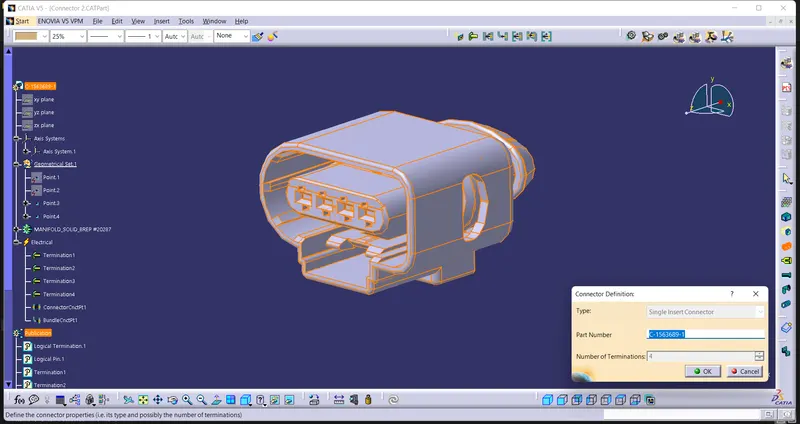

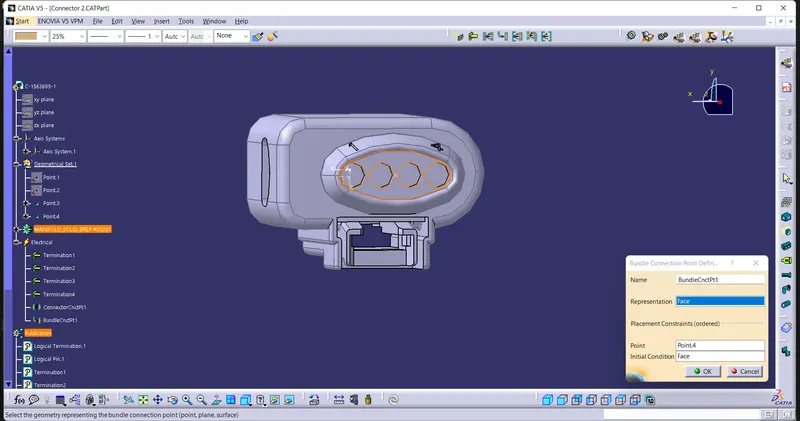

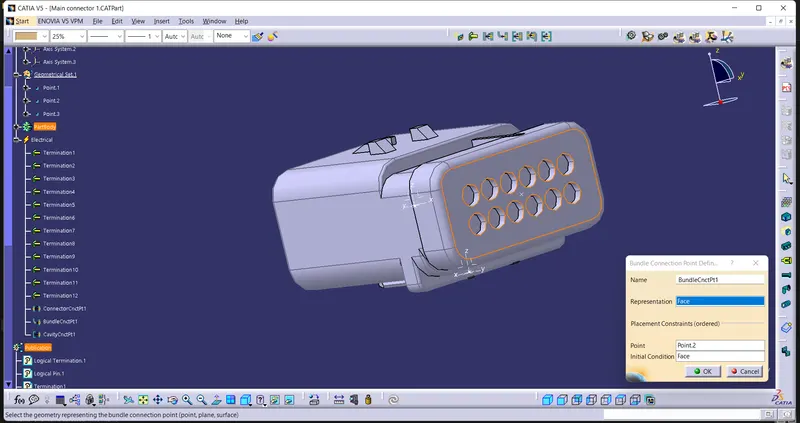

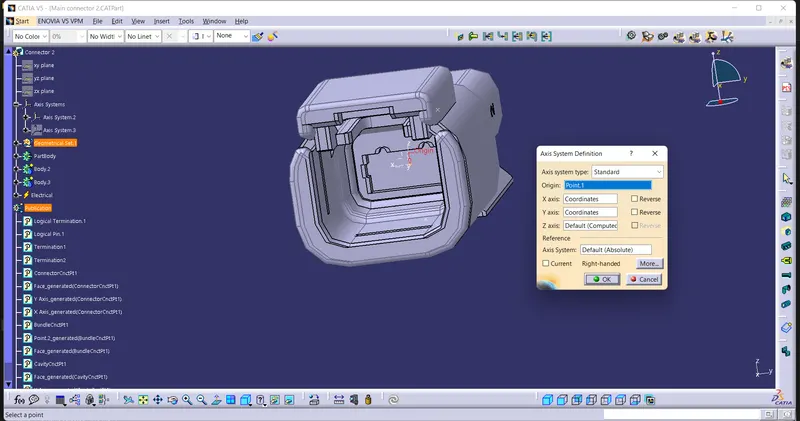

DT06-2S First imported models from given link. open mechanical part design. Defined the middle point with help of the mid-point. On the connector side and bundle side. Given axis system to connector side. Rotated x-axis 90 degrees for y-axis coincidence.  Now changing the workbench electrical part design. Defined…

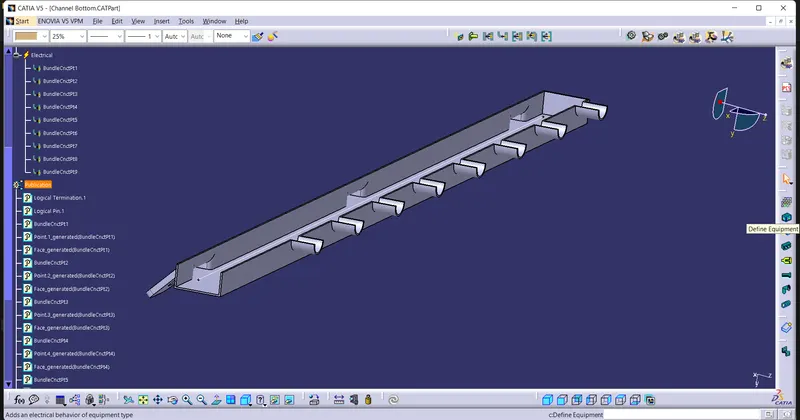

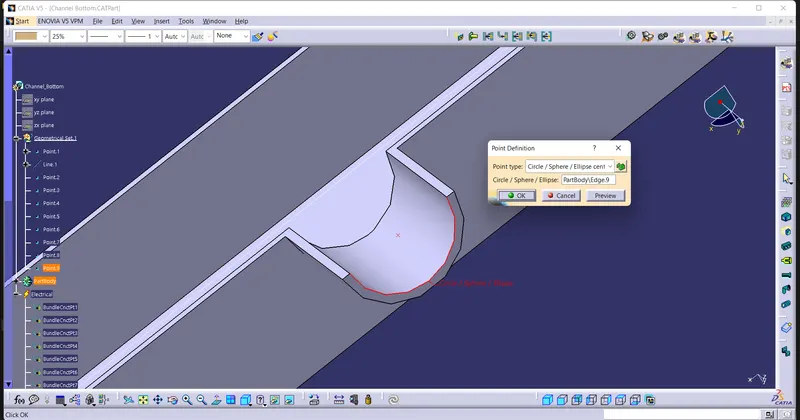

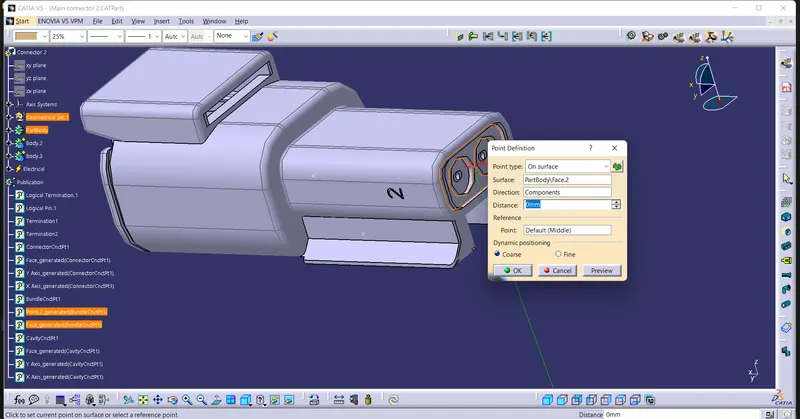

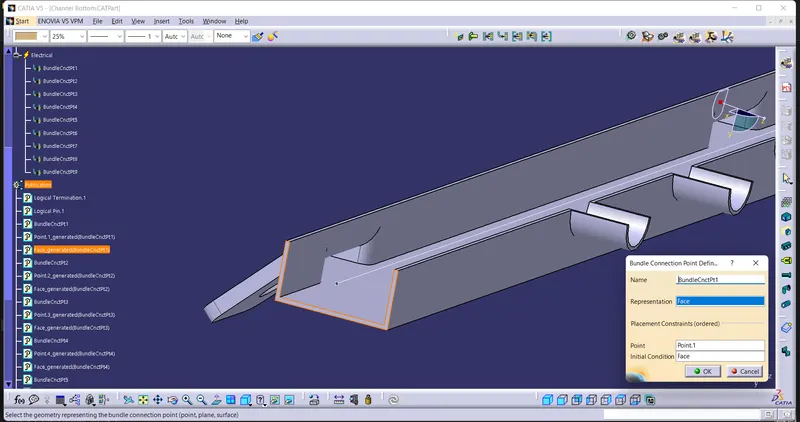

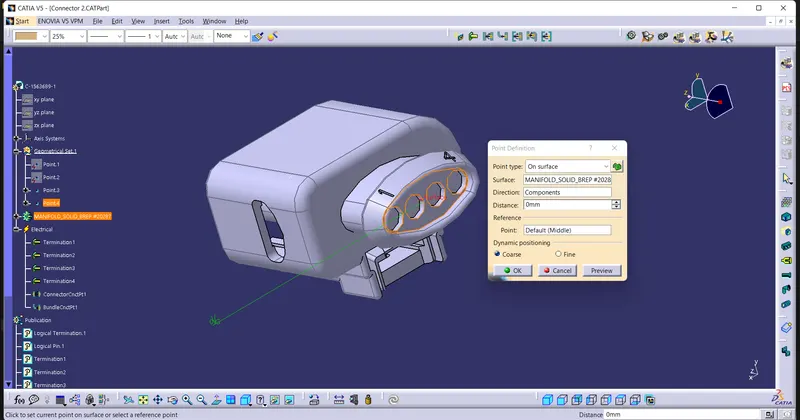

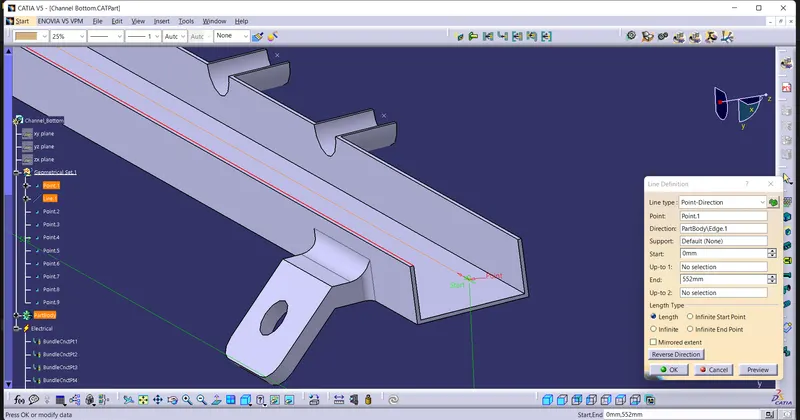

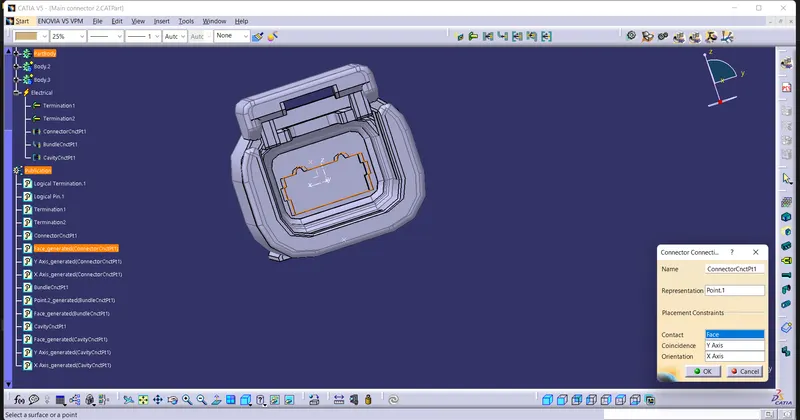

                                                                          Route the following harness layout in Electrical workbench Harness A  C-1-174357-2 Import the file from the given link and open it in mechanical part design Then defined points on the connector side and bundle side. Now defined the axis system on…

                                                                                           …

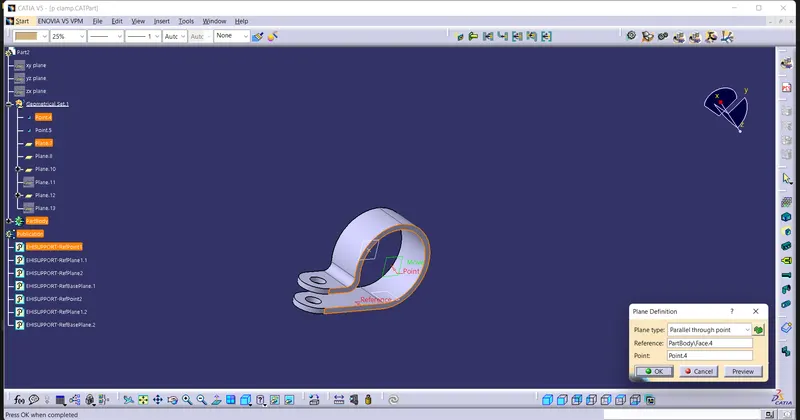

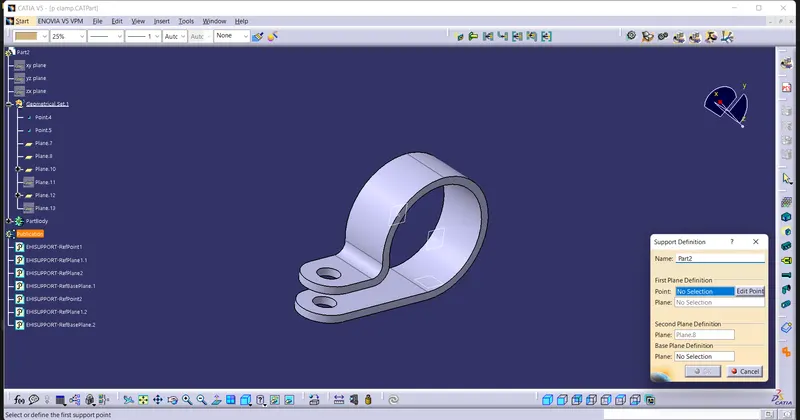

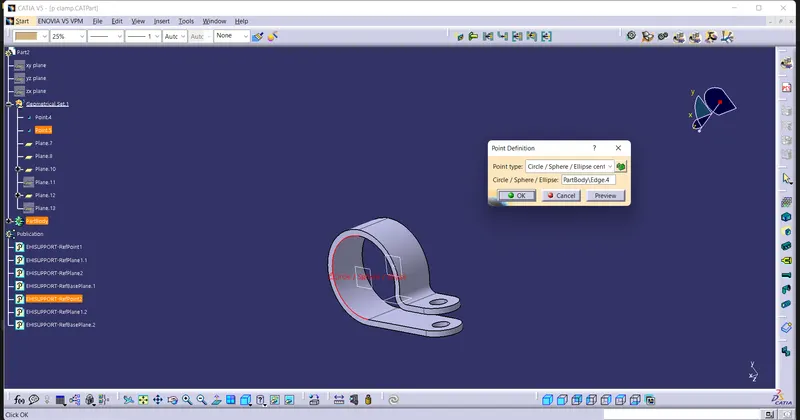

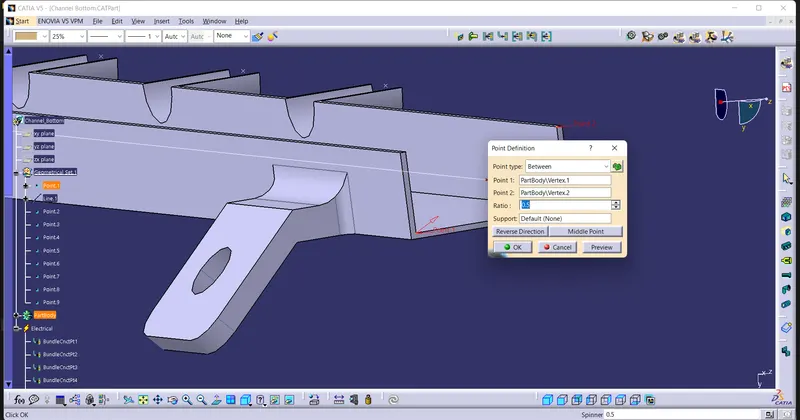

                                                                     Wiring harness routing & packaging Rules Week 3 Challenge   P Clamp First downloaded file from given link open mechanical part design.   The defined point with circle reference on wire entre side and exit side. Then Wire Entre side and exit define the…

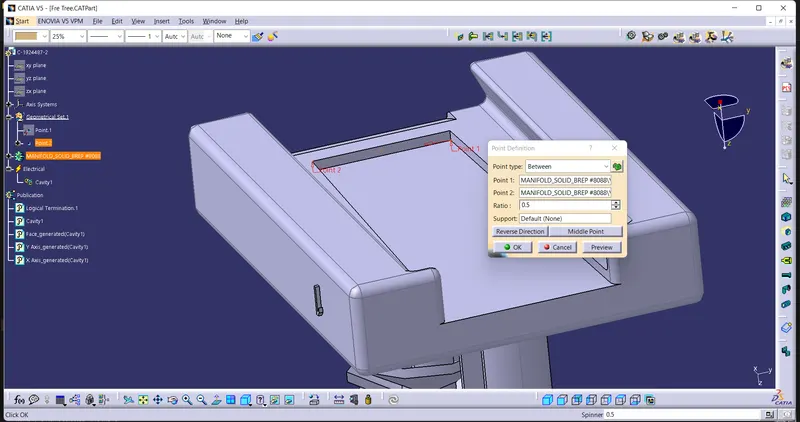

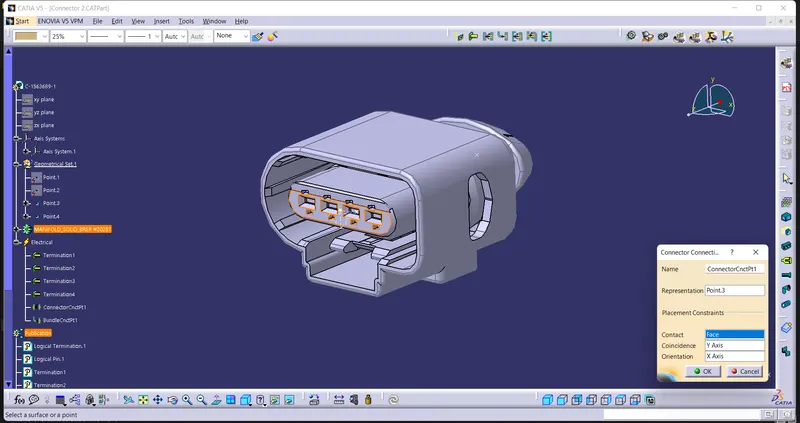

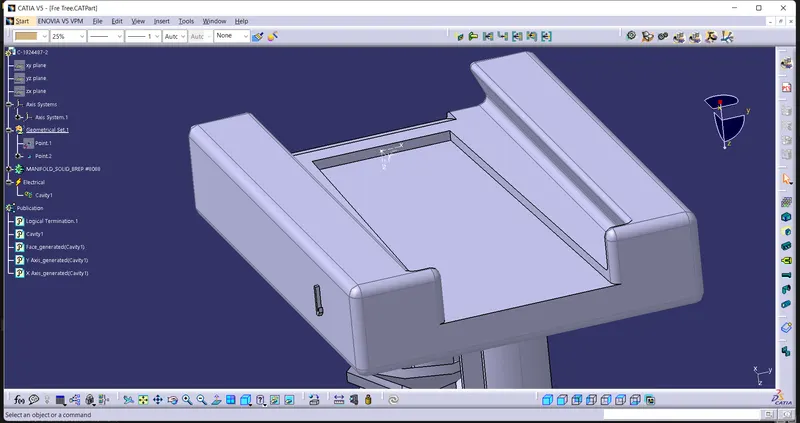

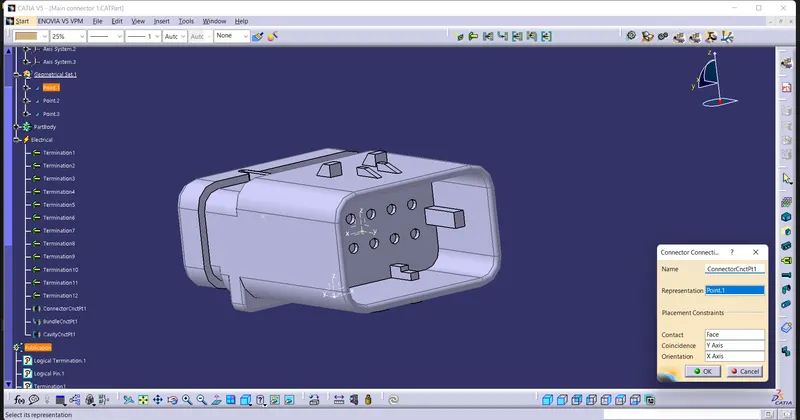

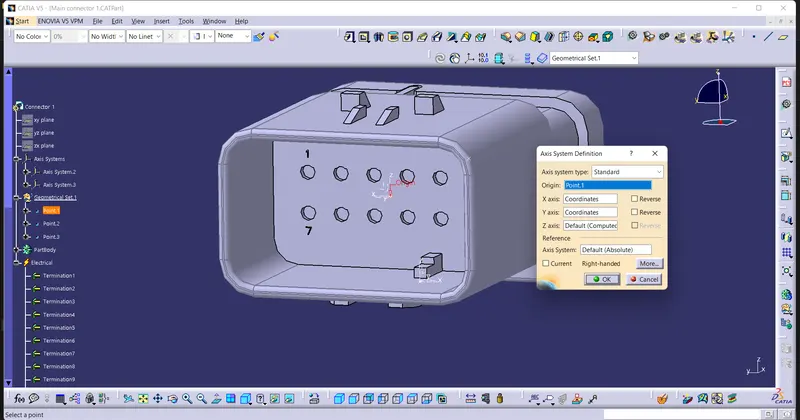

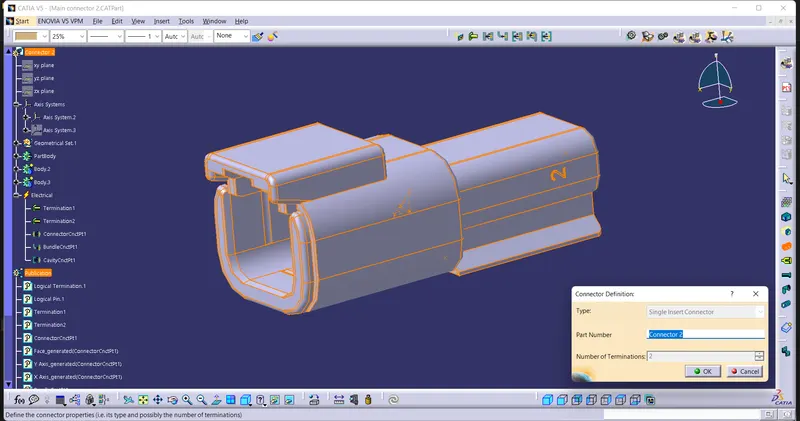

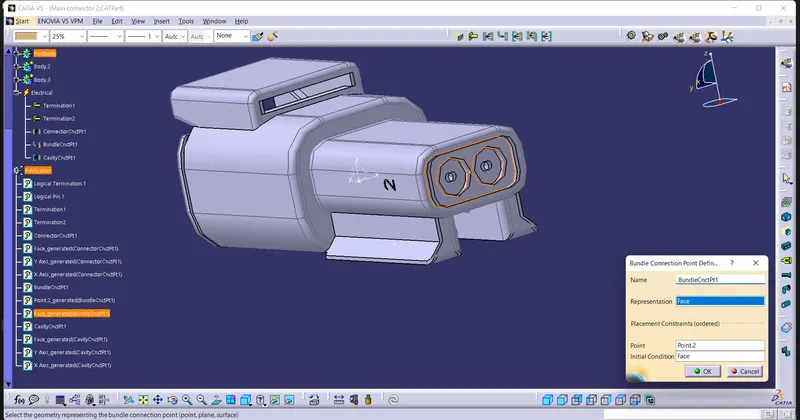

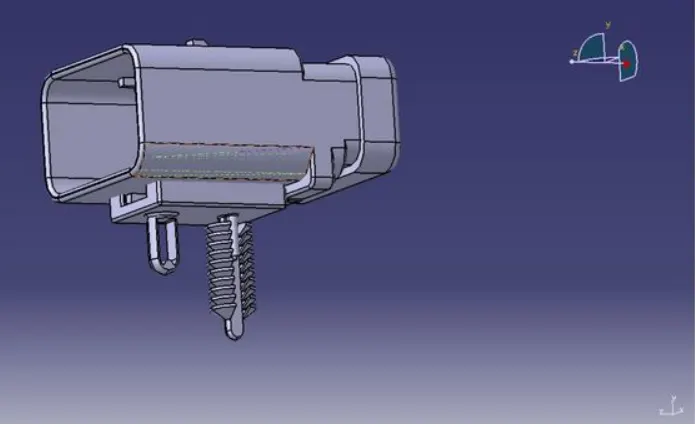

   Wiring harness design Challenge 2 Connector 1 First, I loaded the model from the given link.     Open Mechanical Design -> Part Design in part design given a Center point with help of Between point. Given Axis System connector connection side. In the Axis system X-axis rotated 90 degrees…

                                                            Final project Door Trim panel In this project the input surface has been given, we need to create class B…

QUICK RETURN MECHANISM CV JOINT FILE REVIEWED BY TECHINICAL SUPPORT ENGINER

                                                                                         A PILLAR…

DOOR TRIM LOWER Aim: To Create the Door trim lower component through the given Class-A surface. Objectives: • Creation of Tooling axis with appropriate draft angle. • Creation of other surfaces (eg, B and C surfaces) for creating a solid component. • Perform Draft analysis on Class A surface and Solid model…

Tooling Axis creation: It is defined as the direction in which the mould/core and cavity open. Selection of the direction of the tooling axis depends on the ease at which components can be easily ejected.   By analysing the component the most easily ejectable direction is somewhere close to the Z direction,(might…

                                                 DOOR HANDLE Tooling Axis creation: It is defined as the direction in which the mould/core and cavity open. Selection of the direction of the tooling…

Challenge 5 - Core & Cavity Design DRAFT ANALYSIS Draft analysis is a method used in design to check whether the component created in CAD is manufacturable based on the draft condition applied. The main reason behind the draft analysis is the part manufactured should be easily removed from the mold. It also gives an…

 Door Arm Rest Once the class A surface is received, the designer has to check whether the surface is closed. This can be checked by using the join or boundary option. Creation of tooling axis The tooling axis plays an important role in the manufacturing of plastic products. This axis decides in which direction the…

Coin Holder Design Aim: To create the Coin Holder Plastic component through the given Class-A surface, Objectives • Creation of Tooling axis with appropriate draft angle. • Creation of other surfaces(eg. B and C surfaces) for creating a solid component • Perform Draft analysis on Class A surface and Solid…

  Switch Bezel Design Aim: To Create the Switch Bezel Plastic component through the given Class-A surface. Objectives: • Creation of Tooling axis with appropriate draft angle. • Creation of other surfaces (eg, B and C surfaces) for creating a solid component. • Perform Draft analysis on Class A surface…

Base Bracket Design Aim: To Create the Base Bracket Plastic component through the given Class-A surface. Objectives: • Creation of Tooling axis with appropriate draft angle, • Creation of other surfaces (eg. B and C surfaces) for creating a solid component. • Perform Draft analysis on Class A surface and…

Draft Analysis on a Fan Cover Draft The draft is the amount of taper for moulded or cast parts perpendicular to the parting line. Draft angles are a design consideration that makes it much easier for a part to release cleanly from a mould. A draft angle is calculated as a degree measurement (or, less often, an inch or…

Rendering Project   CONCLUSION:   I have learned how to render a model for presentation. Overall, I have learnt enough that I can make a model with good surfaces and looks with some practice.

                                                                    Surfacing Kia Sportage       1.OBJECTIVE - Technical Surfacing Kia Sportage.       2.INTRODUCTION - Build a Technical Surfacing Kia Sportage.       3.METHODLOGY -            Import an image into canvas image.                                           …

                                                                                           …

                                                                                           …

                                                  Modelling of SIDE FENDER     1.OBJECTIVE -Modelling of Side fender.       2.INTRODUCTION - Build a side fender.…

                                                     Modelling of CAR BUMPER       1.OBJECTIVE -Modelling of Car Bumper.       2.INTRODUCTION - Build…

                                                                                       Modelling of…
