Project 1

Piston The primary piston body shape was obtained by sketching one side of the picture shown in section view A-A, then rotating the figure around the vertical axis. After that, a plane was constructed at a distance of 25 mm, and two circles were drawn on it before it was extruded by 21.5 mm. Finally, following the diagrams,…

Stock support base One side of the sketch was drawn, and then it was revolved around the vertical axis, as seen in section view A-A. Created a plane at the offset number shown in the sketch, drew a circle, padded it, drew another circle on top of the first one, then extruded the whole thing up to the main surface to build…

Upper Housing The profile of the upper housings is sketched out at the sketcher's bench. The pad command in the part workbench was used to model the part at an 8 mm scale. In the sketcher workbench, I have drafted a plan for the blower exhaust system. Profile curvature was set at a radius of 10 mm. There's a new bodily…

For V block I started by switching over to the sketcher workbench from the mechanical workbench, where I had previously defined the geometric parameters for the position of the sketch. Using the profile tool, I drew a 78 mm by 48 mm rectangle. I used the profile feature tool to model the part and insert it into the body.…

Introduction In additive manufacturing, data from CAD programmes or 3D object scanners is used to control machinery that deposits material in successive layers to form complex geometries. Additive manufacturing, as the name implies, involves adding material to an already existing product throughout the manufacturing process.…

Introduction Forearm crutch is a device that is used by the people that are not able to walk on their own due to some physical disabilities. This device aids them to walk around easily. There are three types of crutches, Axilla crutches, Forearm crutches and Gutter crutches. All of the crutches can be used in the different…

Introduction The delicate nature of orthopaedic and dental implants makes it all the more important to implement a thorough risk management strategy during production. The primary purpose of this study is to investigate the feasibility of implementing an ISO 14971-based risk management system at orthopaedic medical device…

Product Name: Pulse Oximeter About the product: Pulse Oximeter (SPO2) as we know is an integral machine in checking the heartbeat of the patient as well as checking the pulse of the patient if they are doing great or if they need a doctor. Well our product not only monitors the patients required parameters but it helps…

Introduction Patient monitor is a device that is used to get the vitals of ther patient. The device helps the doctor witrh daignosis, tells the support staff about how the patient is doing and if they need any attending to do. Since, the nurses cannot be with just one patient all the time, this device helps with the problem…

Introdcution Infusion Pump is a device that is used to administer dosage of IV fluids at a reguloar time interval.The machine helps in administrating fluids on a set time setting set up by the doctor resposible for the patient. The doctor will put in the fluid bag containing the medicine and set some time for the medicine…

Task 1 Now let us first understand what a disposable syringe is. A disposable syringe is only a one-time syringe. Since we know the syrionges are used for multiple things such as taking out blood from a patient, injecting some drug into the body etc. Now before the time disposable syringes were a thing doctors would use…

Task 1 Let us first under what Pulse oximeter is. Pulse oximeter is a device that is used to record the heartbeat of a person. This device reads the pulse of a human being via the blood flow in the blood vessels. Due to the recent events such as Covid-19 the market cap of pulse oximeter reached to 2.66 bilion USD in 2021.…

Task 1 Crutches are the medical assistive device that is used by people that have problem with walking with just their legs. Crutches help them move with the help of arms and upper body by lifting the legs in air and replacing the legs by doing so. When I ran market a market analysis about what type of crutches get sold…

Answer What is Healthcare Management System Healthcare management system is a system that is used in healthcare setting for better working coordination. A healthcare management is put into place for the different departments to have coordination without any problem. A hospital management system helps to clear the clutter…

Answer Name: PDMS (Panic Detection and Monitoring System) Basic Breakdown: The device will be used to monitor the sick and elderly. Along with the sck and elderly the device will be used to monitor the people who under constant distress and people who have a suicidal tendency. Suicidal tendency might not come under a physical…

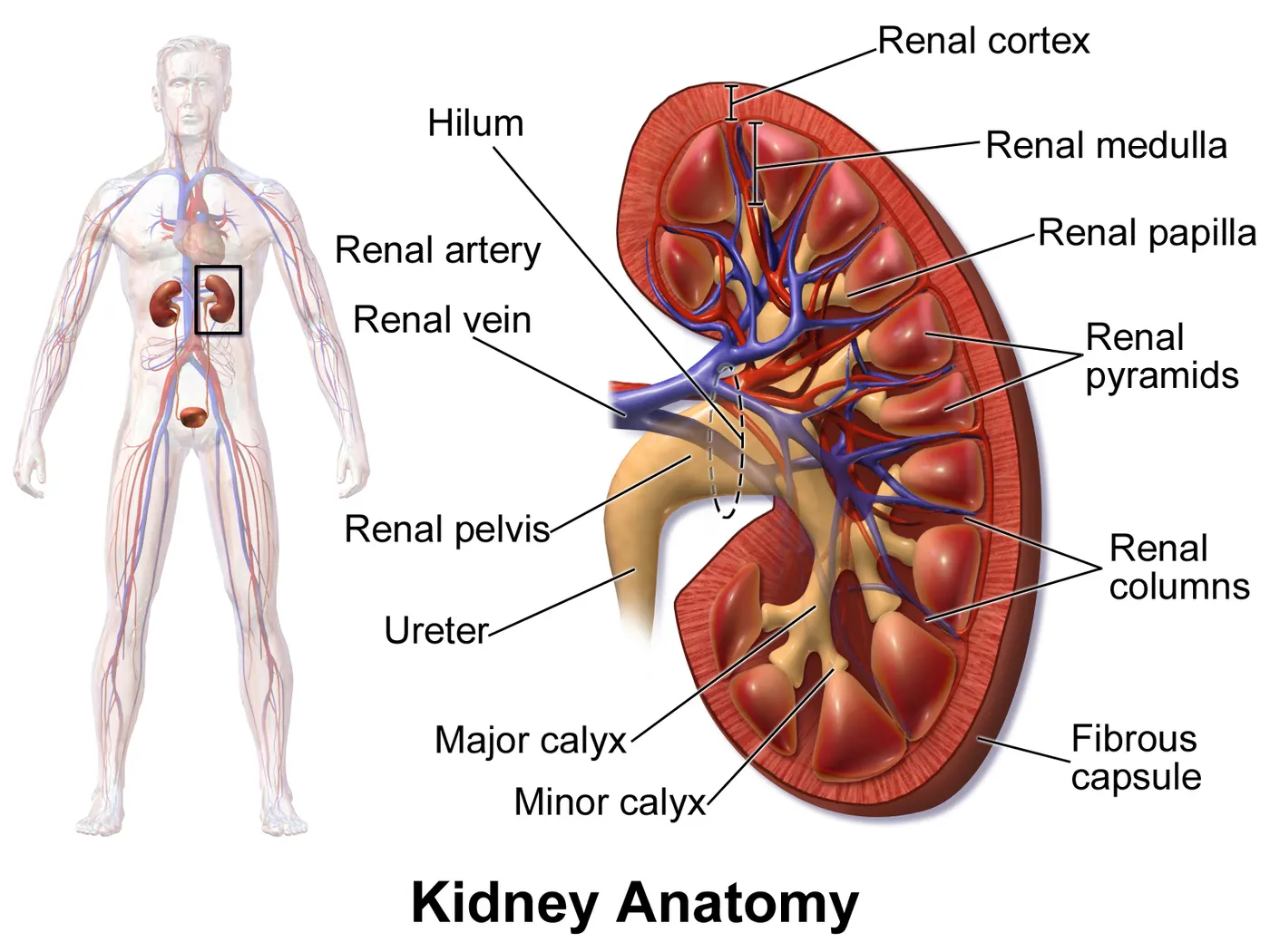

Answer When a person's kidneys no longer work correctly, a transplant can be performed to replace them with healthy kidneys from a living or deceased donor. The kidneys, which are about the size of a bean, are two bean-shaped organs that sit on either side of the spine immediately below the rib cage. Each one is about…

Answer: A patient's many physiological parameters benefit from the use of a multi-parameter physiological monitoring system. With this information, technicians can better grasp their patients' conditions. All multi-parameter physiological monitoring systems have the following basic parameters:a. ECG: An electrocardiogram,…

Answers in pdf

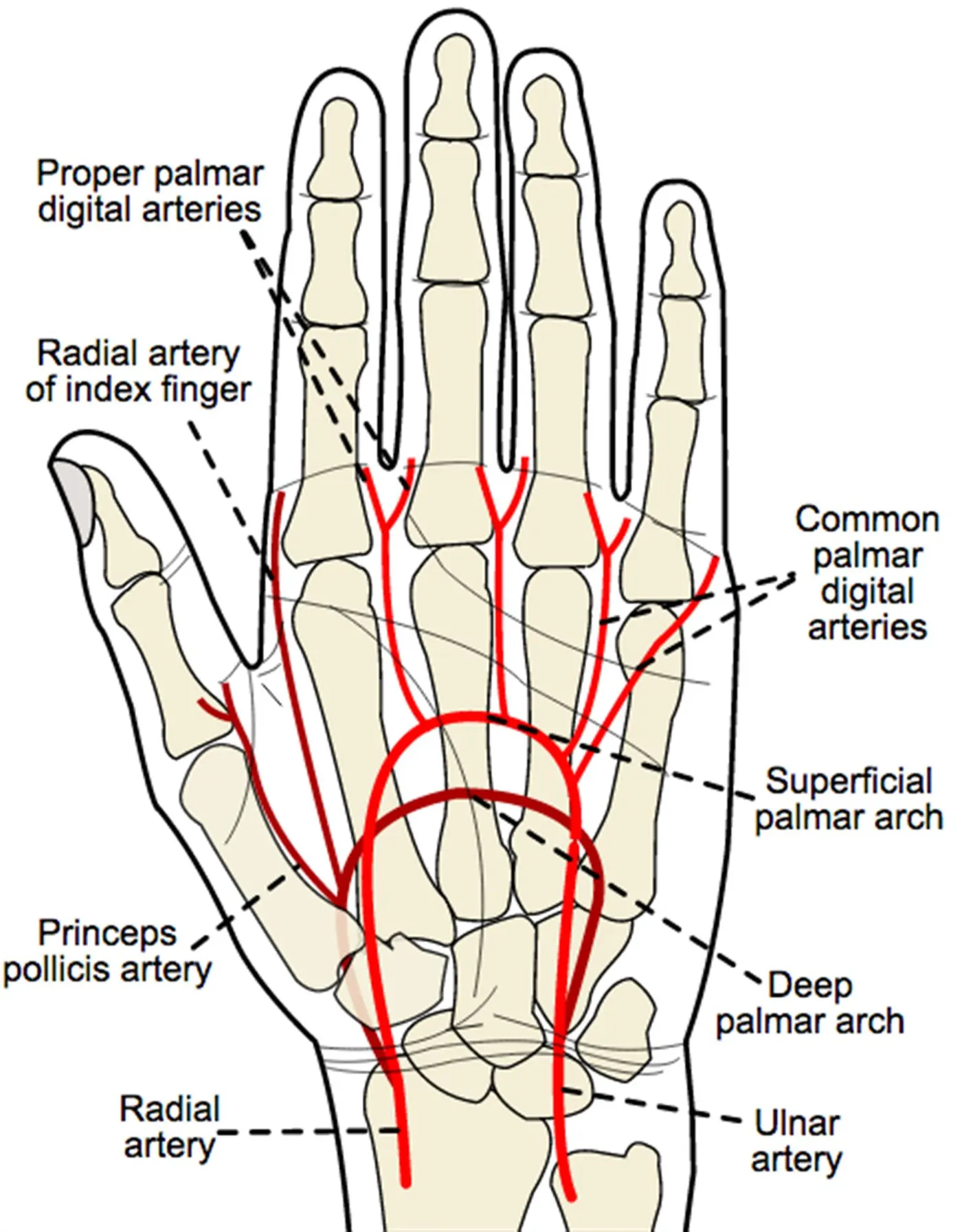

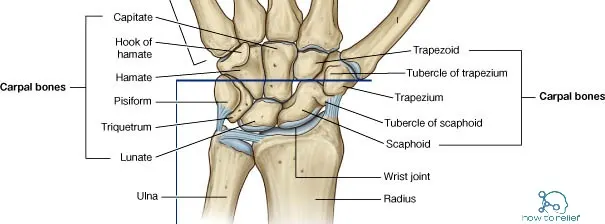

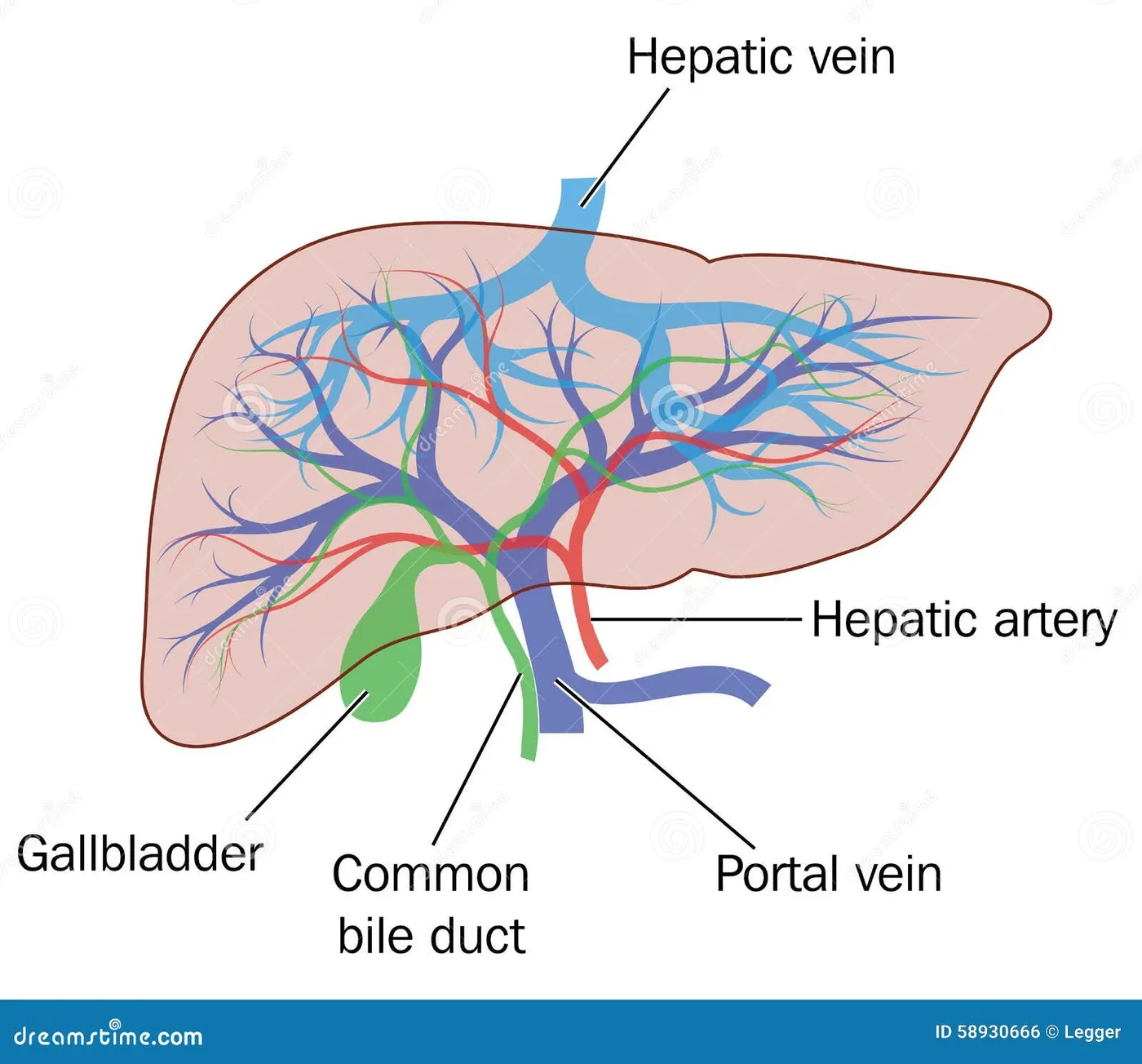

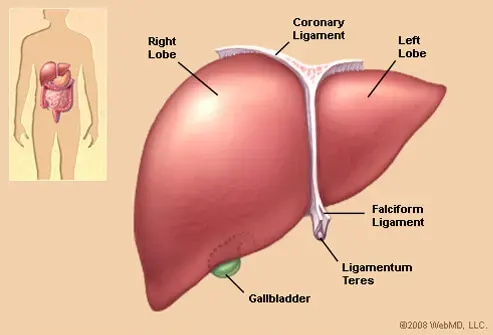

Part A 1. The organs I am going to talk about are: Carpal Bones: Your index or middle finger meets the carpal bones at a point known as the carpometacarpal boss, or carpal boss. The eight little bones that make up your wrist are known as carpals or little fingers. Carpal bossing is another name for the ailment. A hard…
