Project 1

EXERCISE NO.1 SEAT BACK FOAM

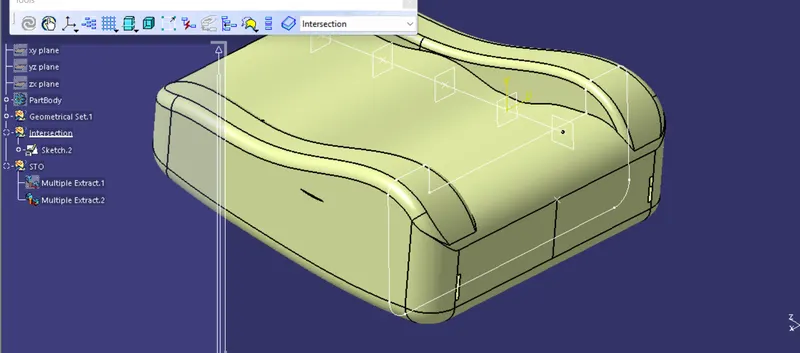

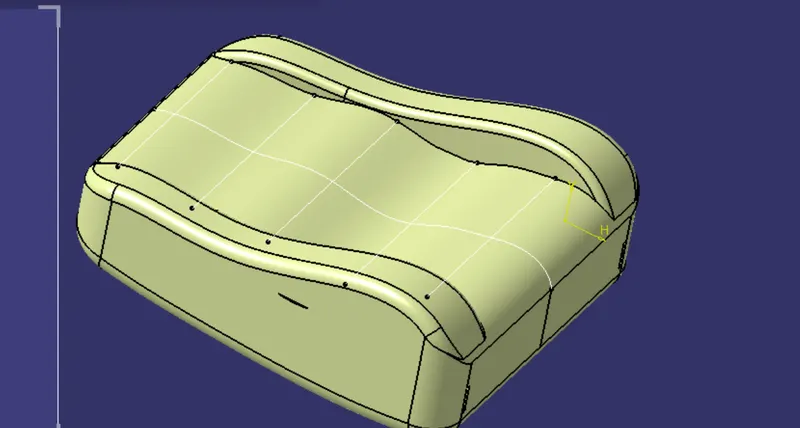

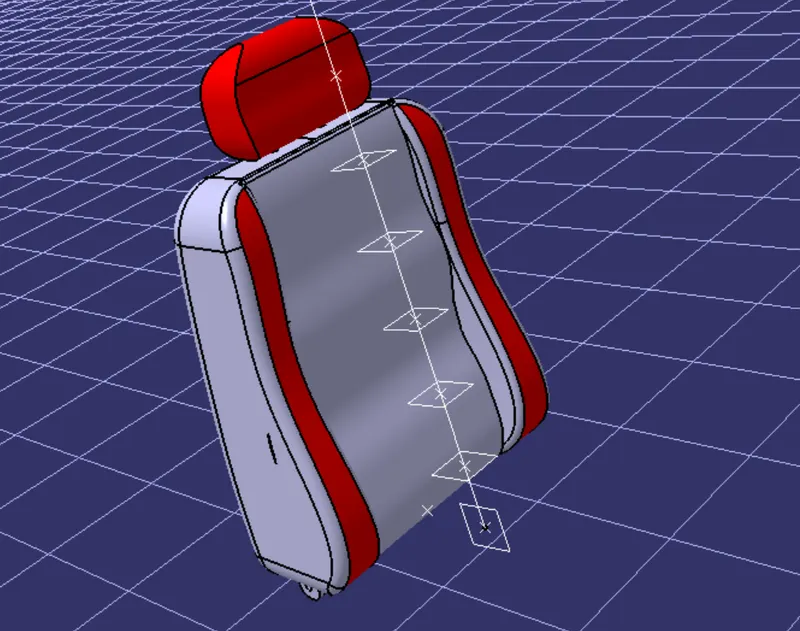

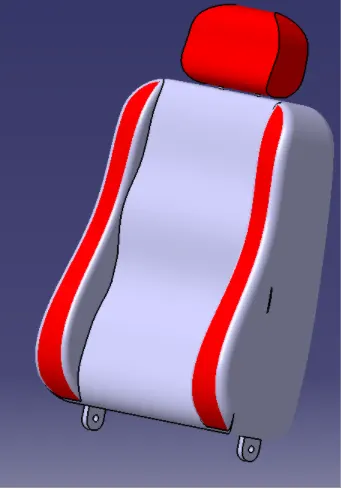

Seat Back cushion foam parametric modelling-

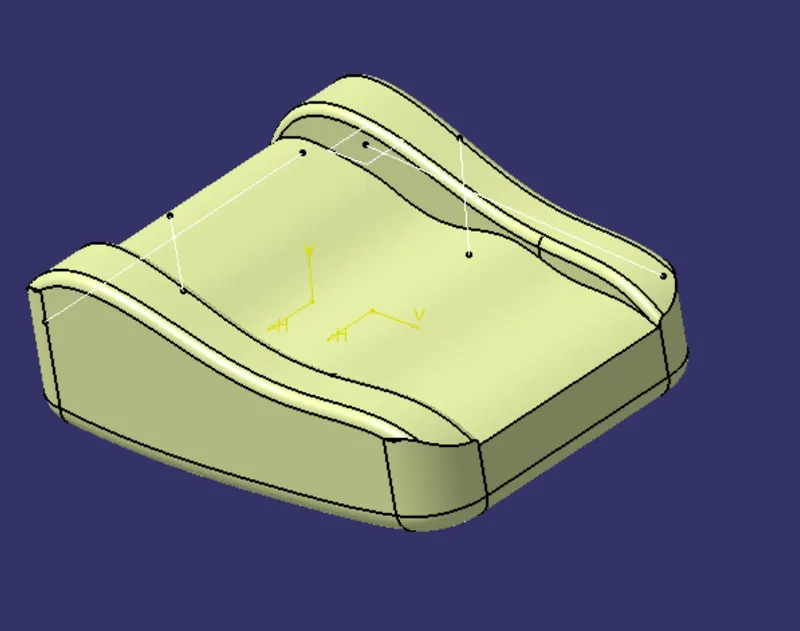

Given model-

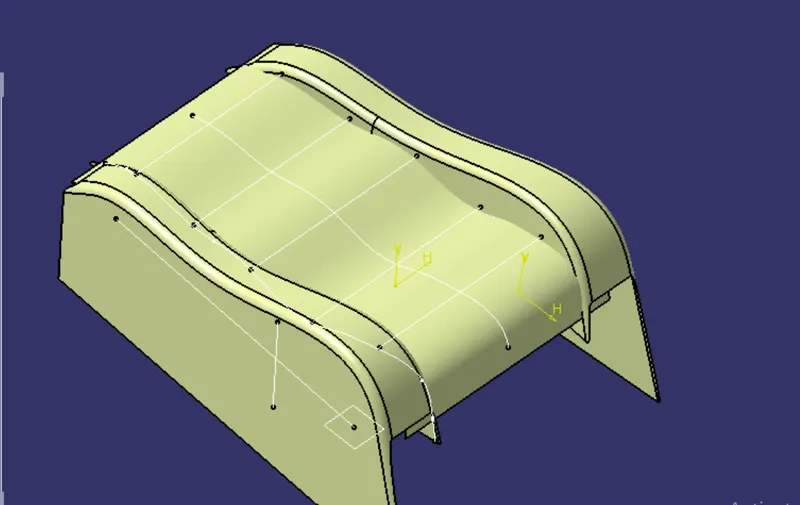

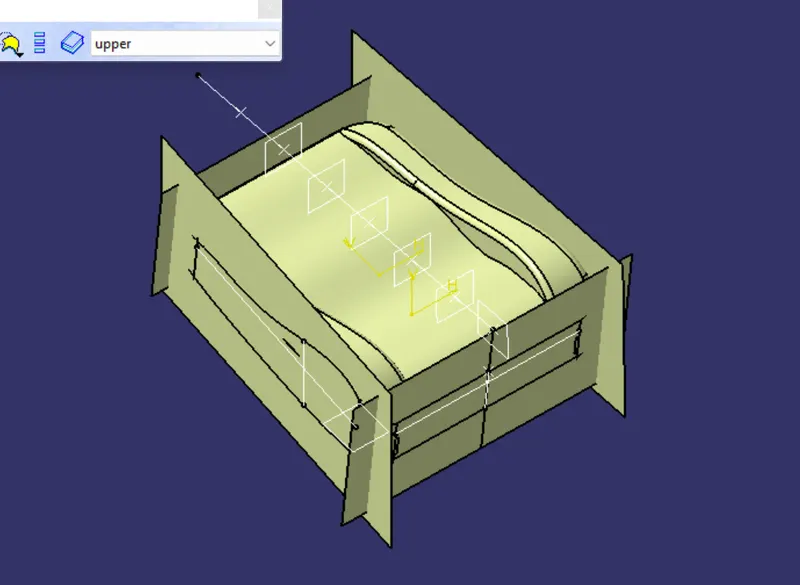

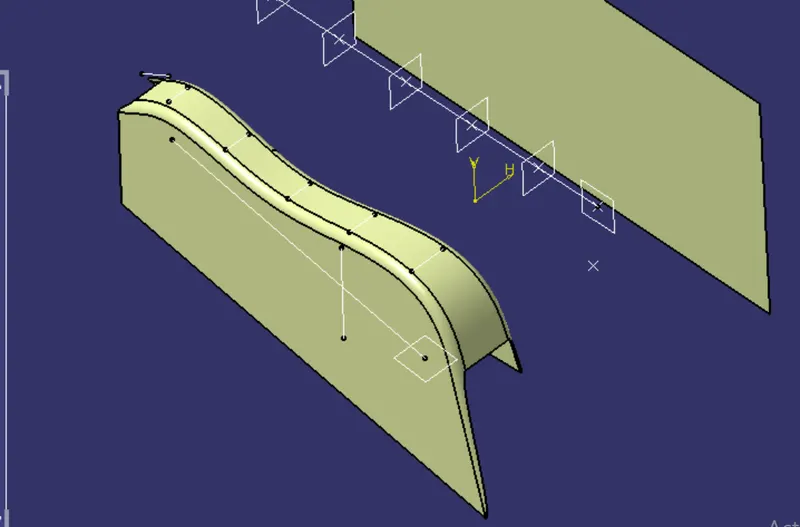

Defining Torso line from H point and planes at 100mm apart-

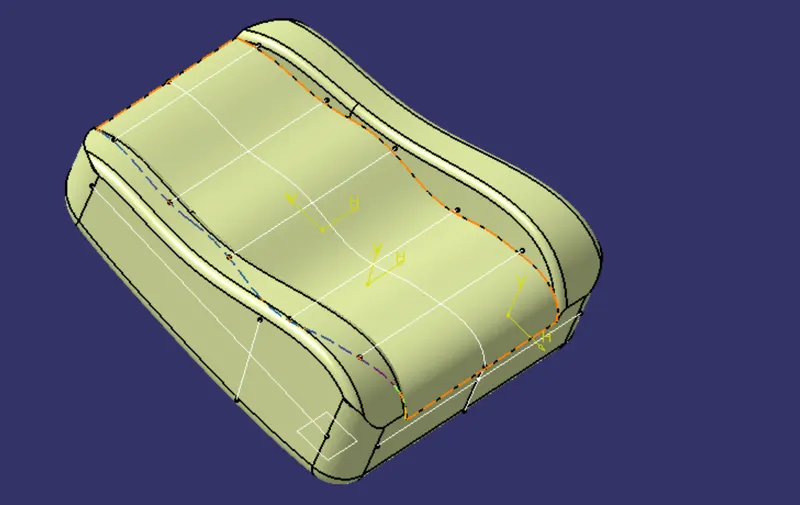

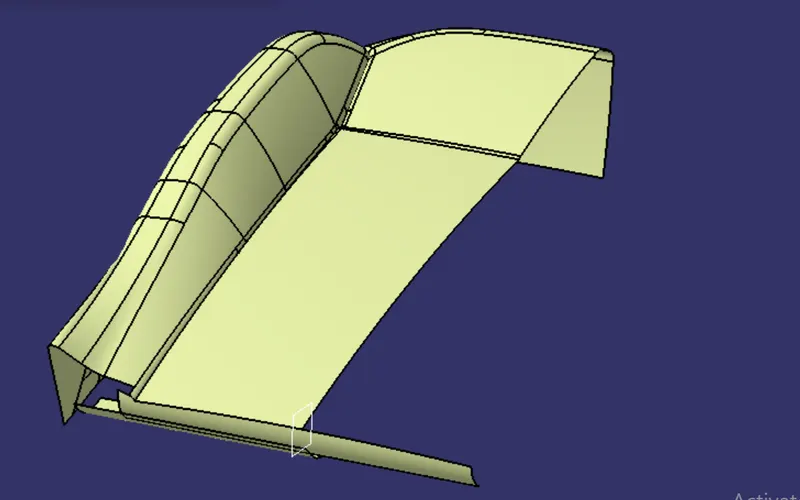

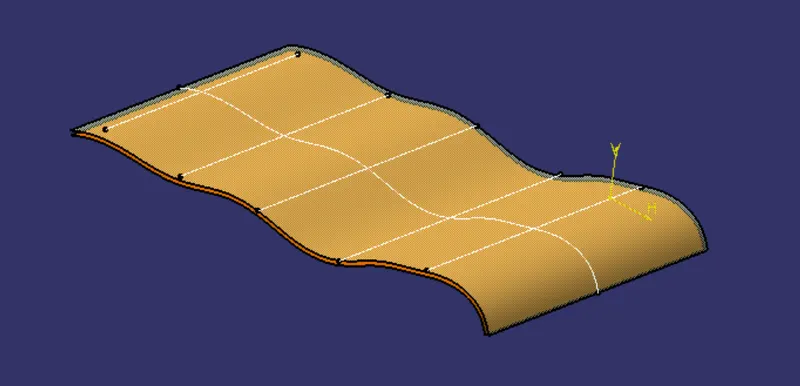

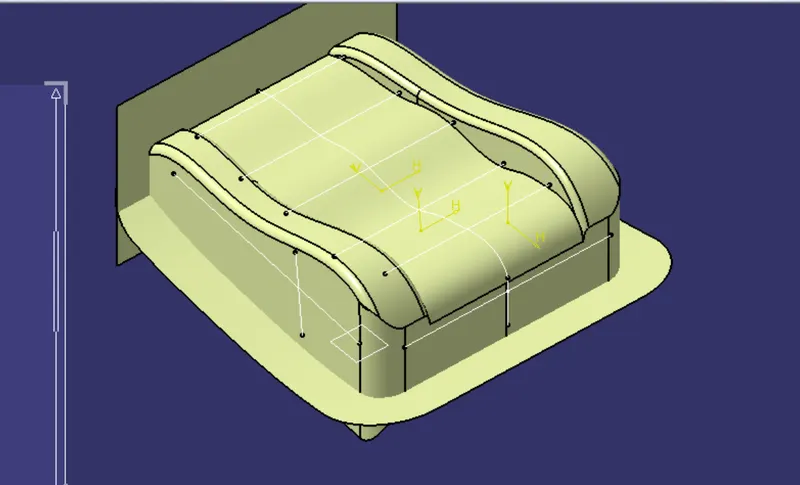

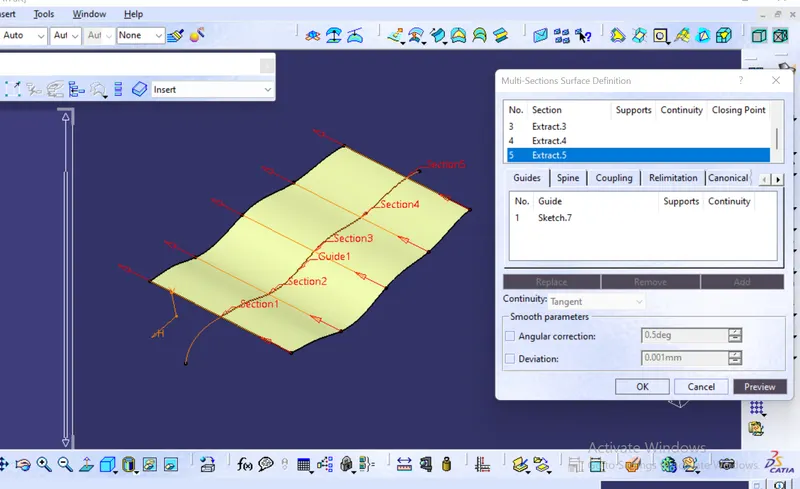

Extracted Foam pad data and first intersection-

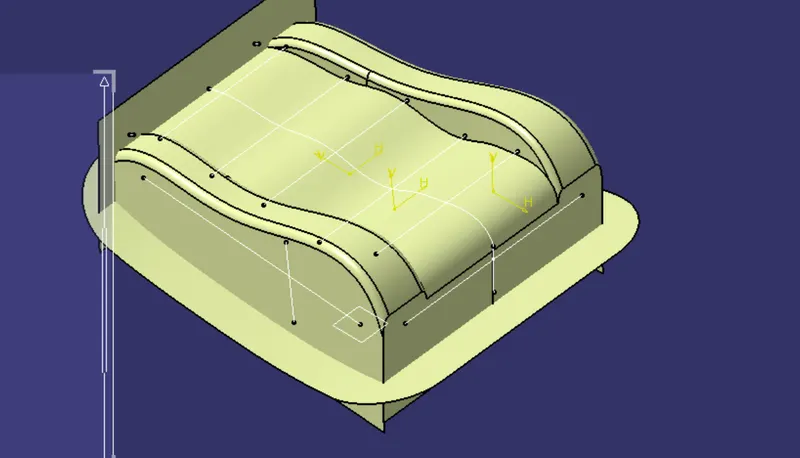

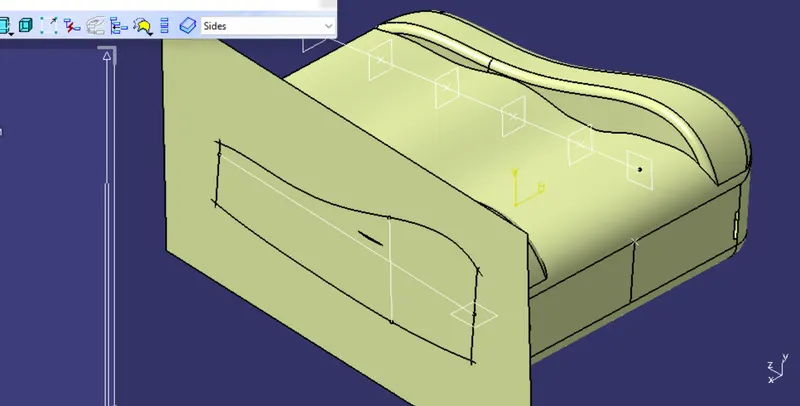

Checking the intersections for symmetry at all planes-

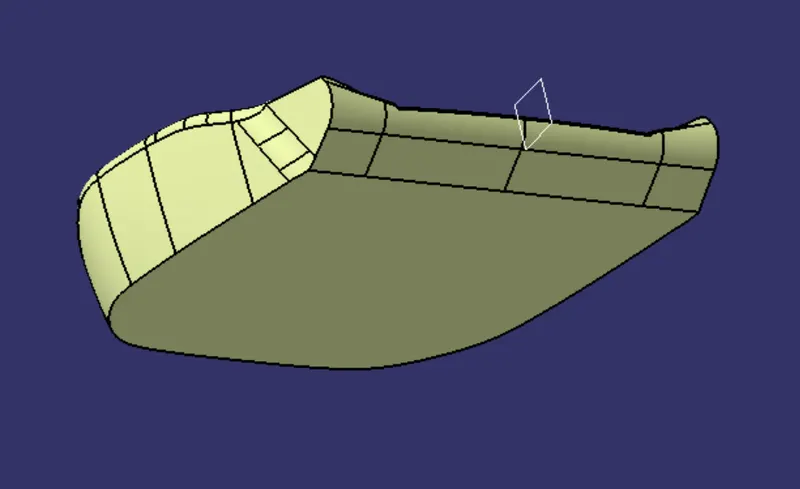

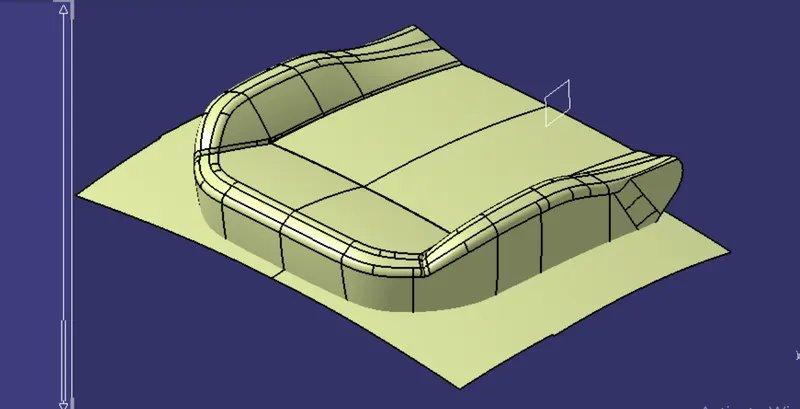

Making foam parts using underbuild, Overbuild technologies-

insert-

Offset 5mm below-

Wings-

Offset distance 2mm

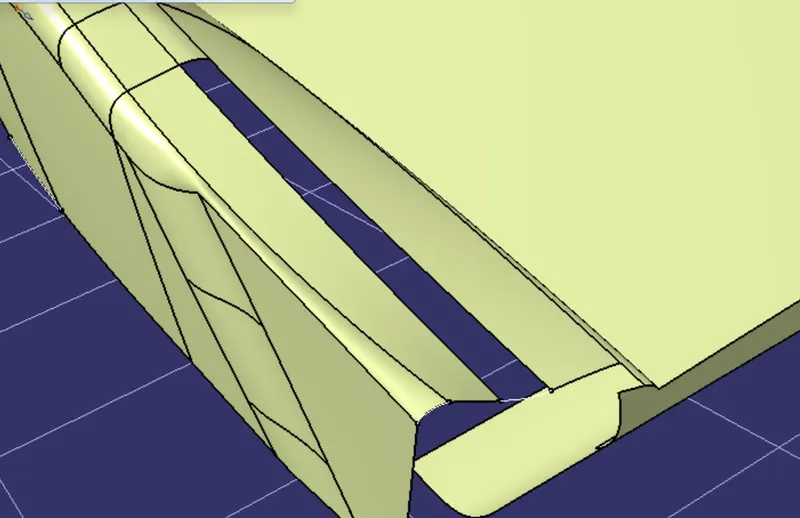

Side, back, lower, upper surfaces-

All 2mm offset-

Trimming and joining all surfaces-

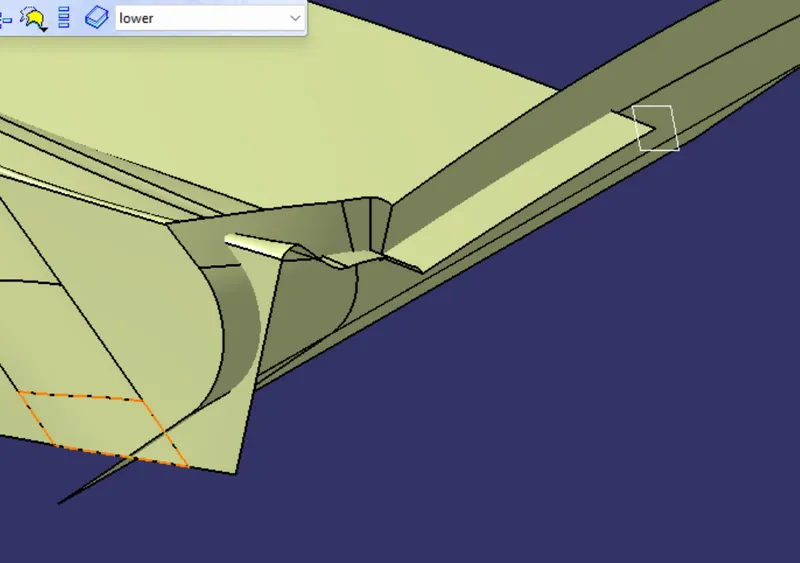

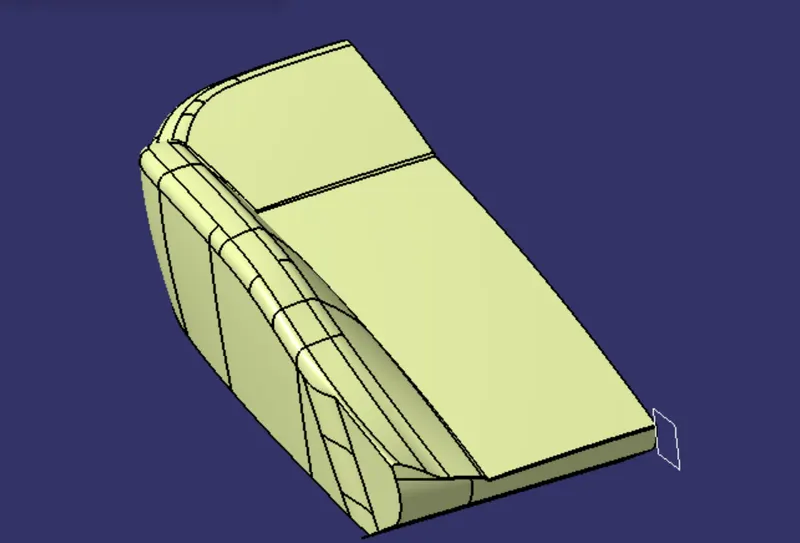

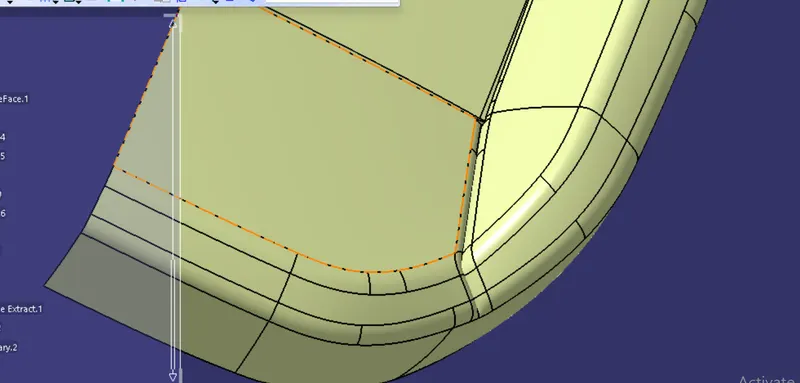

Final trim-

EXERCISE NO.2- SEAT LOWER CUSHION STO

Remodel the given STO to final seat product

Given-

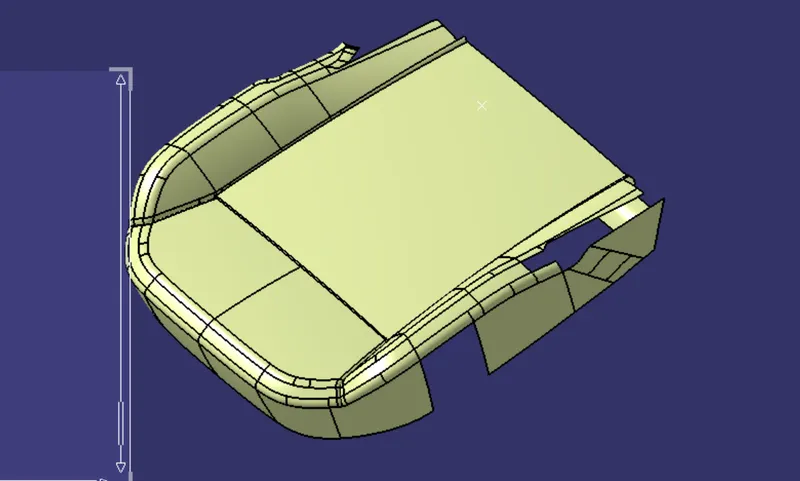

Fixing the missing parts-

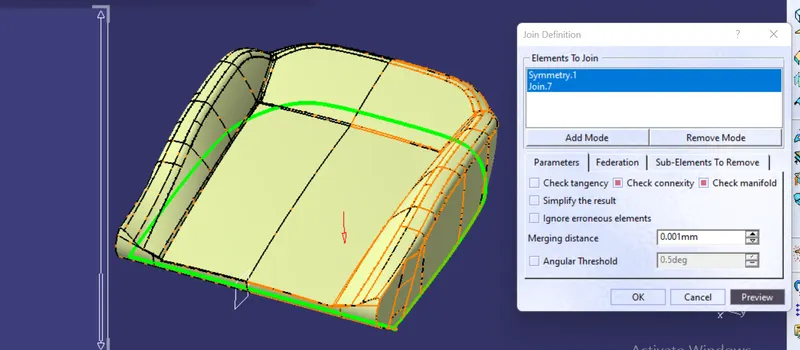

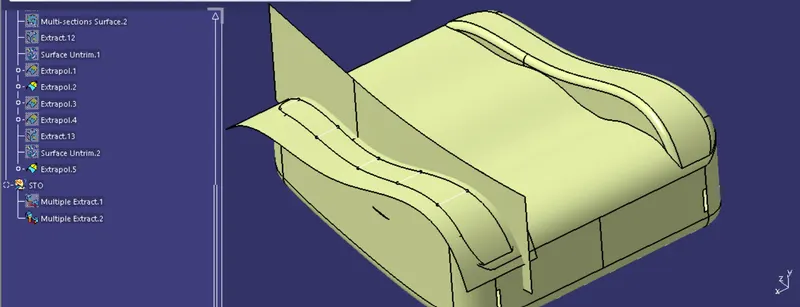

Symmetry projetion and joining-

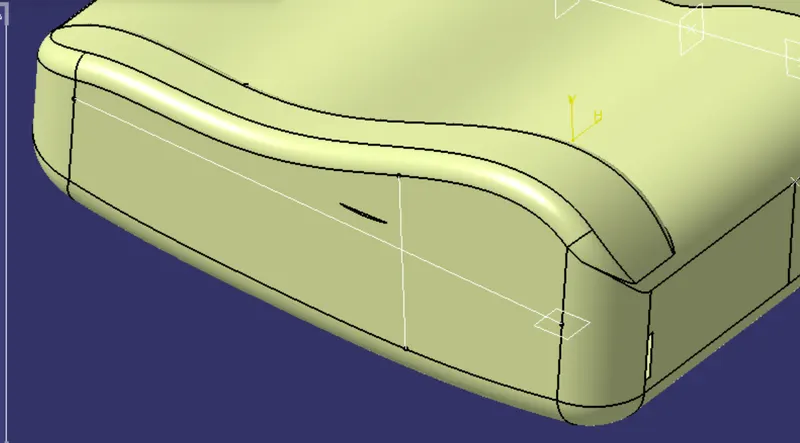

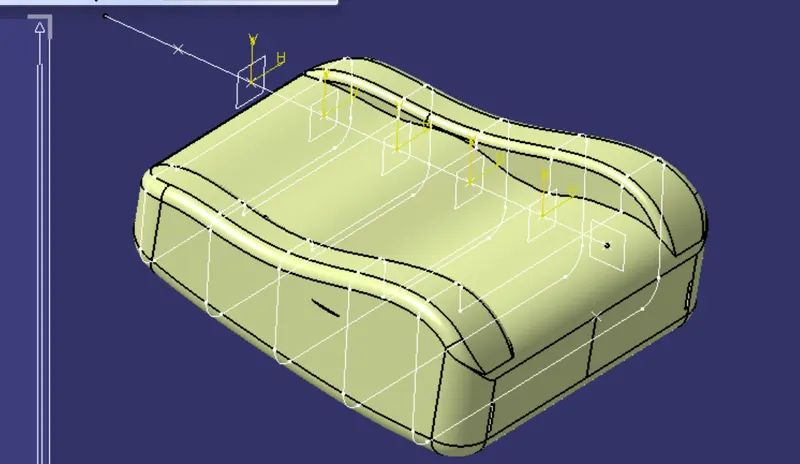

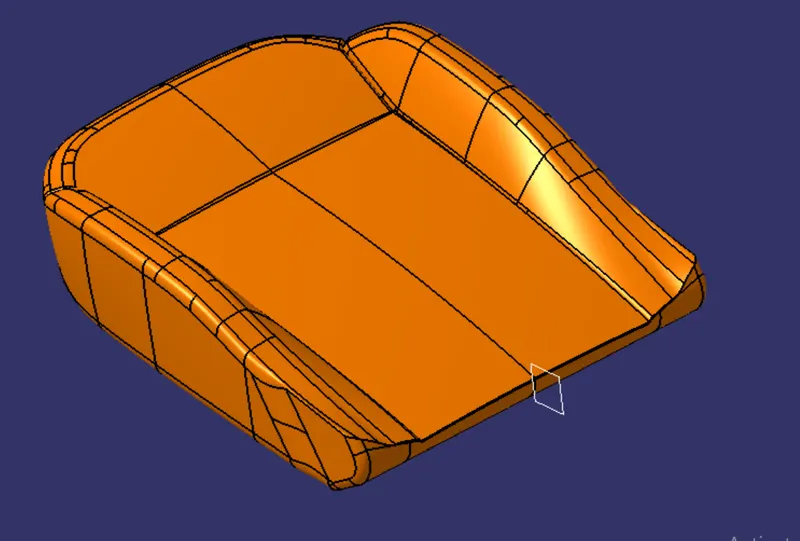

Final closed surface solid part-
