Project 1
The Given part for Routing
First All the part that are requied to be electricaly defined according to their catagories.
Connectors

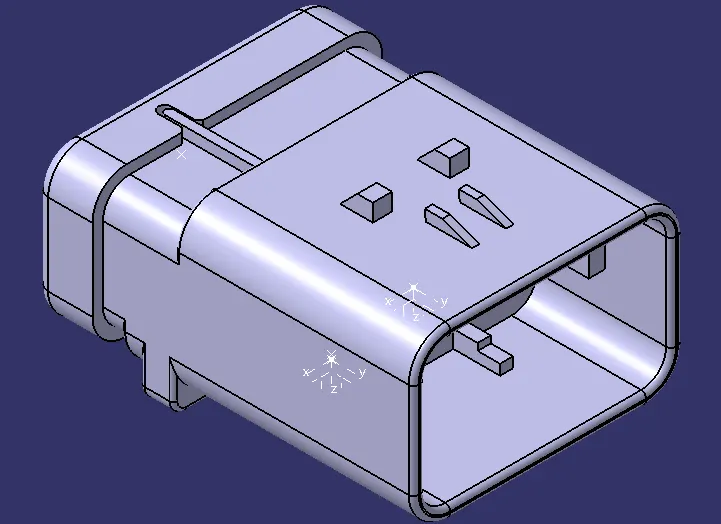

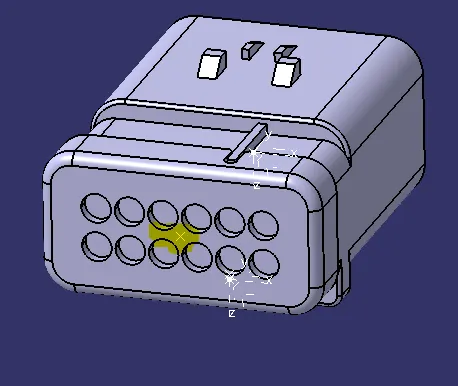

C-776438-4
Connector Connection Point
Bundel Connection Point

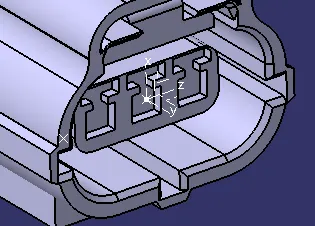

Cavity Connection Point

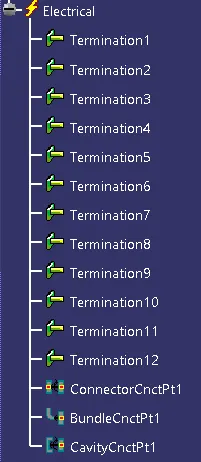

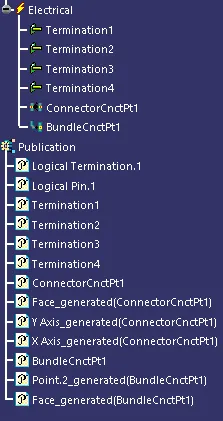

Electrical Properties
C-1563689-1
Connector Connection Point
Bundel Connection Point
Electrical Properties

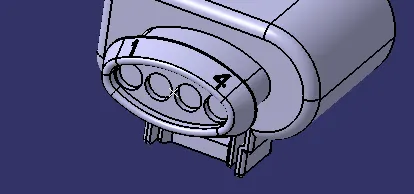

C-1-174357-2
Connector Connection Point
Bundel Connection Point
Electrical Properties
Cavity

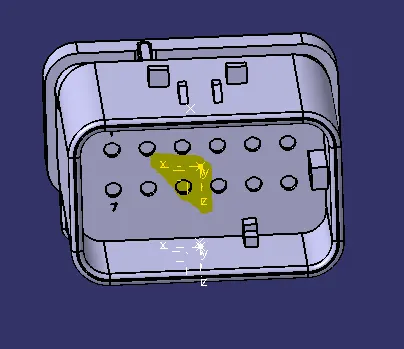

C-1924487-2
Support

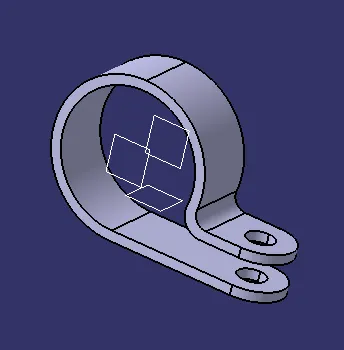

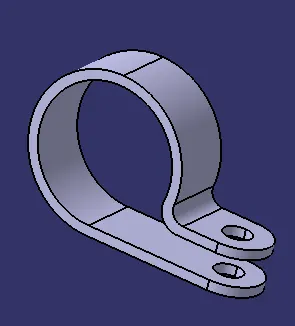

P-Clamp

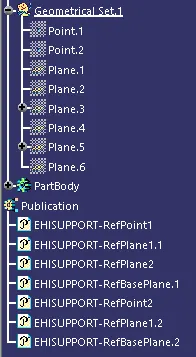

Support Planes
Electrical Properties

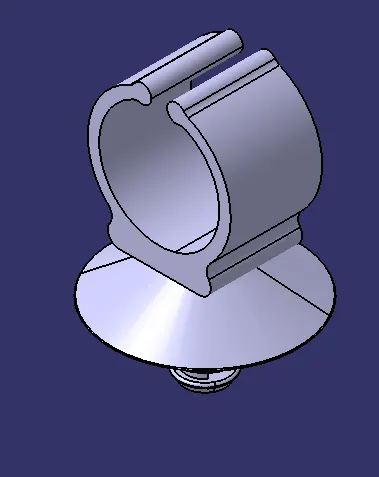

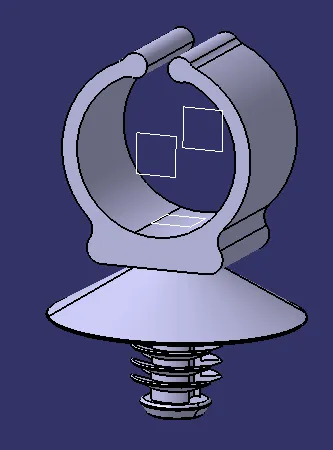

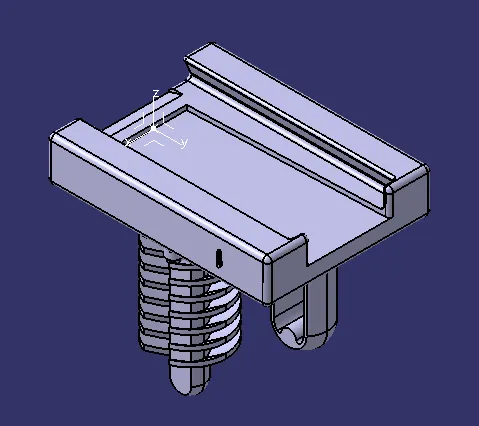

Fir-Tree Clip
Support Planes
Electrical Properties

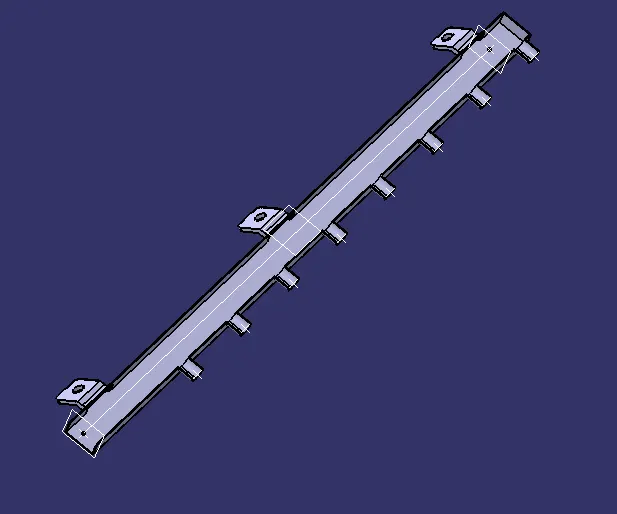

Channel Bottom

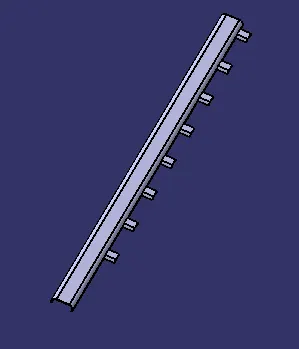

Channel Bottom Right
Electrical Properties

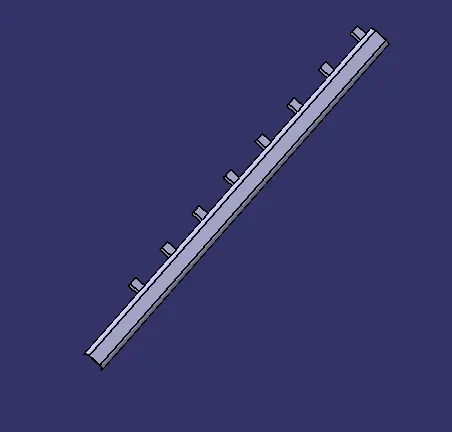

Channel Bottom Left
Electrical Properties
Supports that are not needed to electricaly define are as follows.

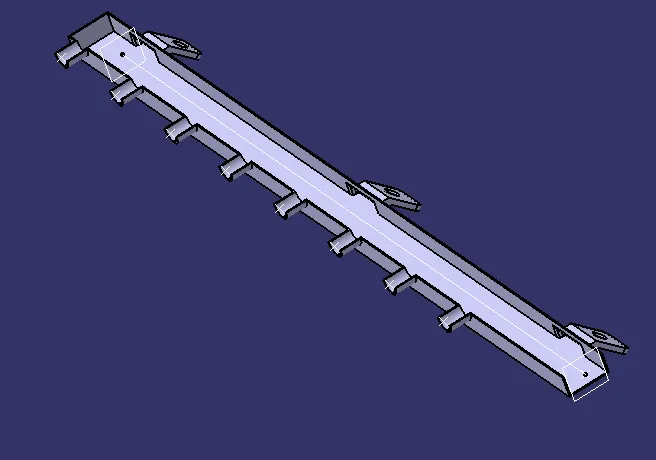

Channel Top
Channel Top Right
Channel Top Left

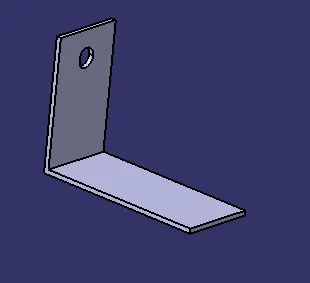

L-Clamp

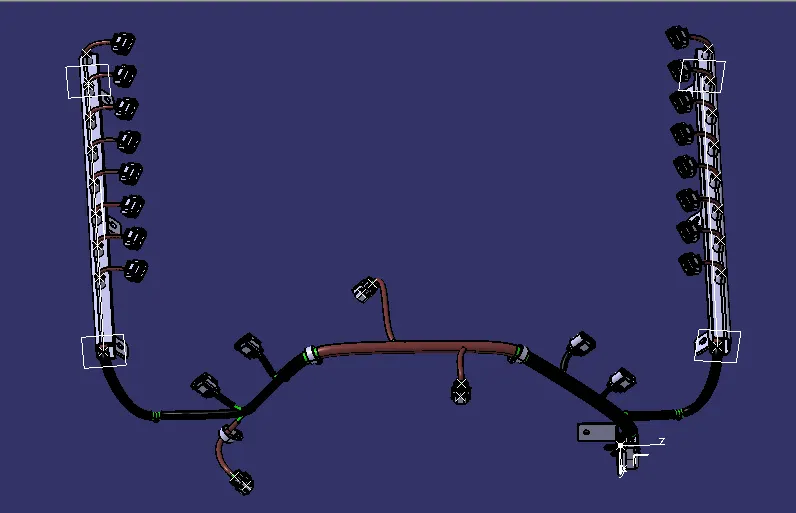

Final Routing
after arranging all the required components at required places the geometrical is defined and the wiring harness was created in the multibranchable CATPart as for all the packaging rules including the protective coverings.
