Project 1 - 2D meshing on the instrumental Panel

Aim- extarct the mid surface and mesh the instrumental panel with given quality criteria.

Procedure-

1. First we individually do topo on This component.

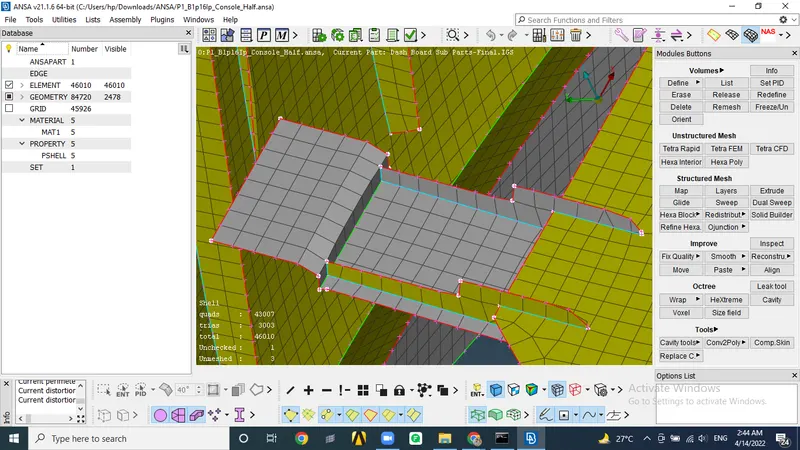

2. Then we do geometry checks from tools and do auto fix.

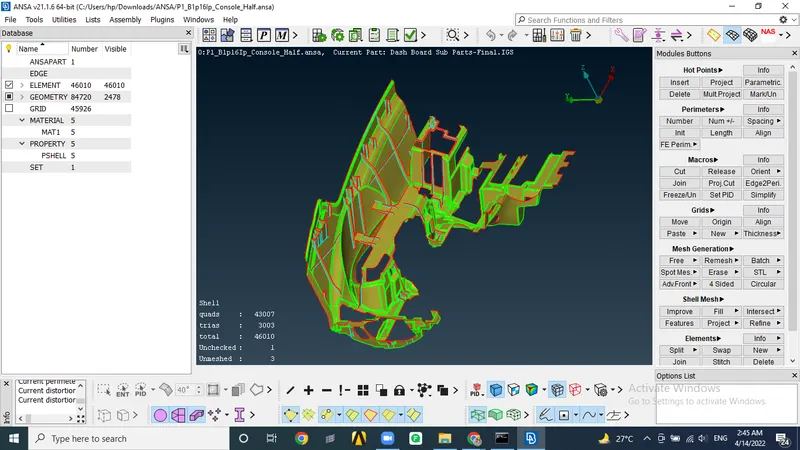

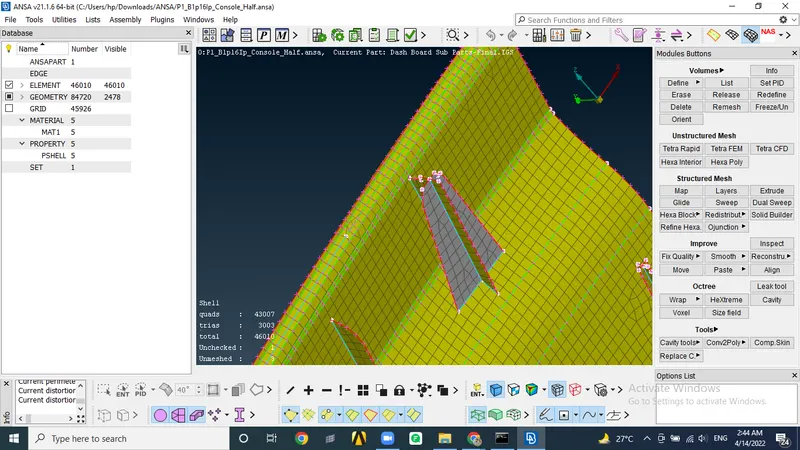

3. Then we create midsurface by manual offset option. chosing surface by featur helps a lot. Then we do a lot of topo cleanup and model dog houses by a cross surface and properly extend and attach all of them.

4. Then before jumping onto mesh we do proper cuts on the model for better mesh flow and assign mesh parameters and quality criteria.

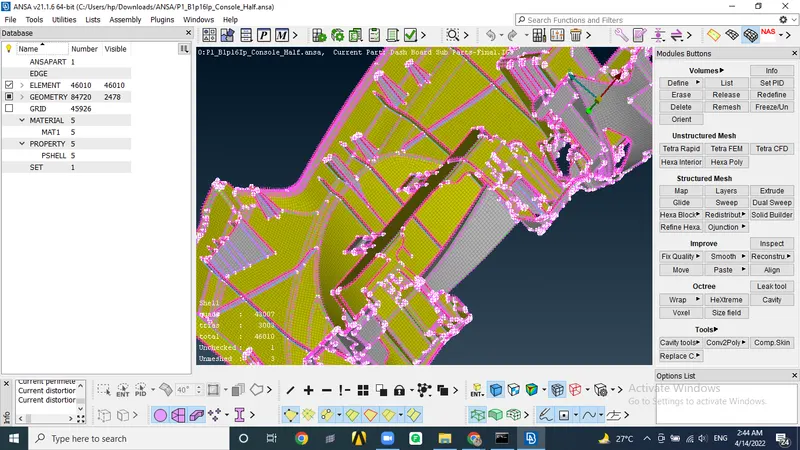

5. Then we do mesh and reconsturct according to needs to organise mesh flow, use splits, paste, align etc. Then we give smooth to free quality failing elements
