Project 1 - 2D meshing on the instrumental Panel

AIM:

To try and perform mid-surfacing and meshing on the given model

OBJECTIVE:

The given model has various features like ribs and dog-houses. Take midsurface of the model using different methods, different tools/options and mesh the component.

Sr. No	Quality Criteria	Value
1	target/average length	4
2	Minimum length	2
3	Maximum length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad angle	45
9	Maximum Quad angle	135
10	Minimum Tria angle	30
1	Maximum Tria angle	120
12	Tria percentage	15

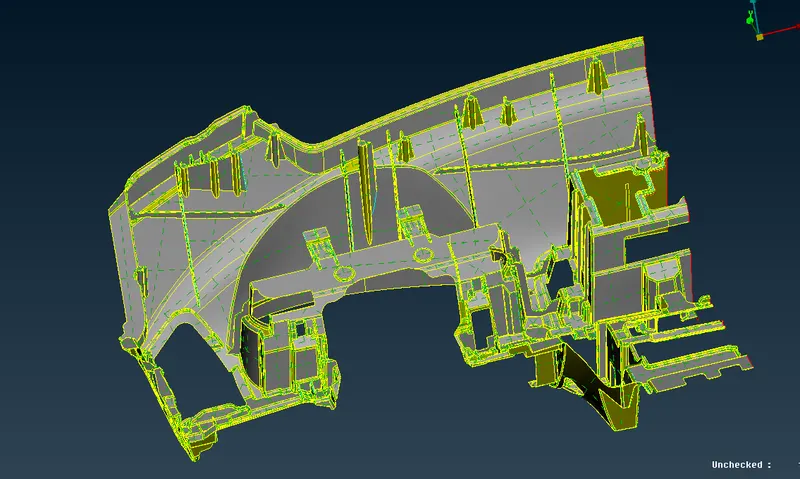

MODEL:

PROCEDURE:

Geometry cleanup

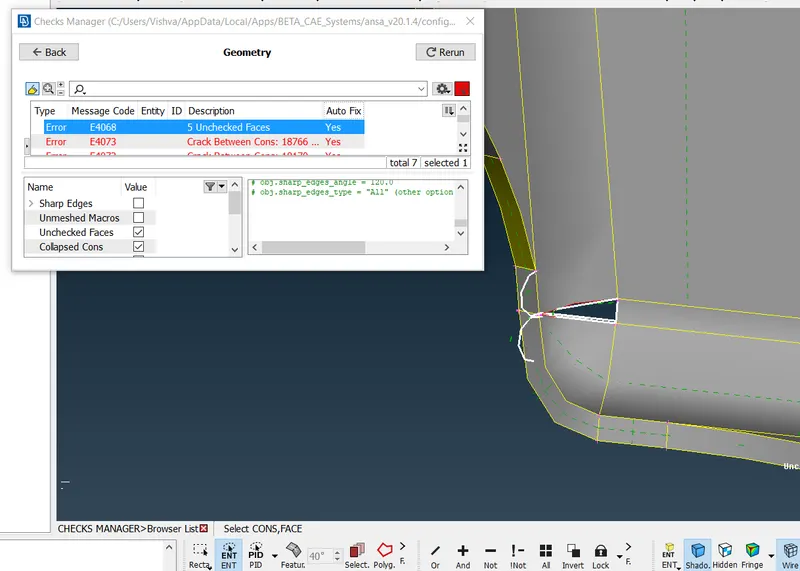

The gemoetrical errors in the model resulting from importing into ANSA should be checked using Checks->Geometry and they can fixed using Auto Fix. Many of the features/Cons lines that these parts have can be suppressed/removed without affecting the geometry, so that managing them and creating mid-surfacing will become easier.

2.Mid-surface generation

Faces->Offset (using feature selection), the base geometry of the model can be obtained in a single step.

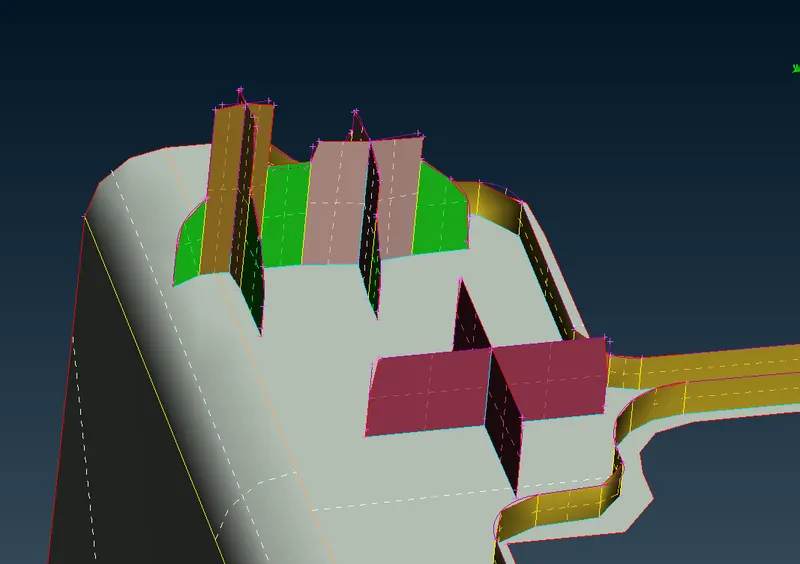

All other features like ribs and dog-houses' mid-surface is taken with the help of options like Curves->middle, Faces->New, middle, extend and intersect.

Many features along the fillet regions have distorted surfaces. These need to be cleaned using options faces->Delete and new.

Many additional CONS lines are present in the model which might create minimum length error for mesh. These can be supressed.

3. Measurement and assigning PIDs.

All the features in the model are not of constant thickness. These thickness are measured for various features and stored.

PIDs with these thickness are created and assigned manually to each macro region.

4. Meshing

For meshing, mesh parameters and quality parameters have been assigned using the given values.

Mesh is generated using Mesh Generation->Best. The elements failing quality criteria can be viewed using Auxiliaries->Hidden mode.

These faults can be rectified using options like Perimeters->Num+/-, Shell mesh->Reconstruct, Shell mesh->Smooth, Elements->Split, Macros->Cut, Hot points->Insert to reduce the number of OFF elements.

• The Triple CONS in the model resulting from various features makes it so that there are some OFF elements which cannot be removed unless further defeaturing of the model is done. So, as to not lose the features, those mesh elements have been left as it is.

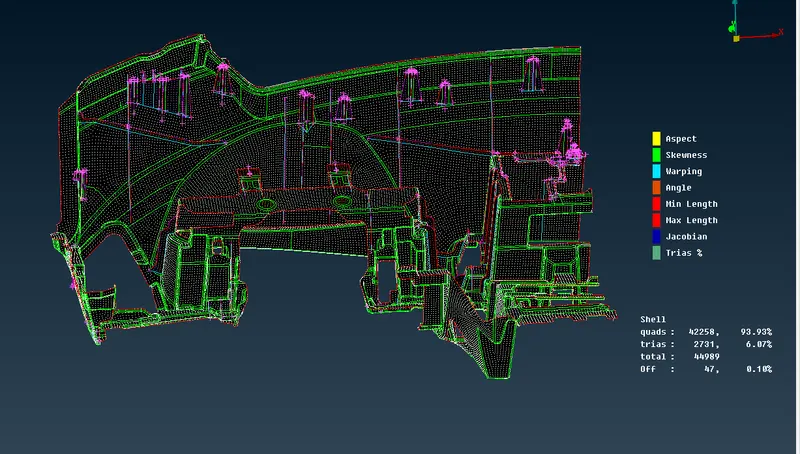

Meshed component:

A total of 47 OFF elements were left out as they are unavoidable.

CONCLUSION:

LEARNT HOW TO TAKE MID SURFACE FOR COLMPLEX GEOMETRY
GEOMETRY CLEAN UP
MESHING AND QUALITY CHECKING
PID ASSIGNING

Thanks,
Vishal.

Final Model :

https://drive.google.com/file/d/1-A6BtgyndCmxOYb-RU0SedP5Fpvk9pqX/view?usp=sharing
