Project 1

Aim:

To perform Form finding and structural analysis of multiple masts.

Procedure:

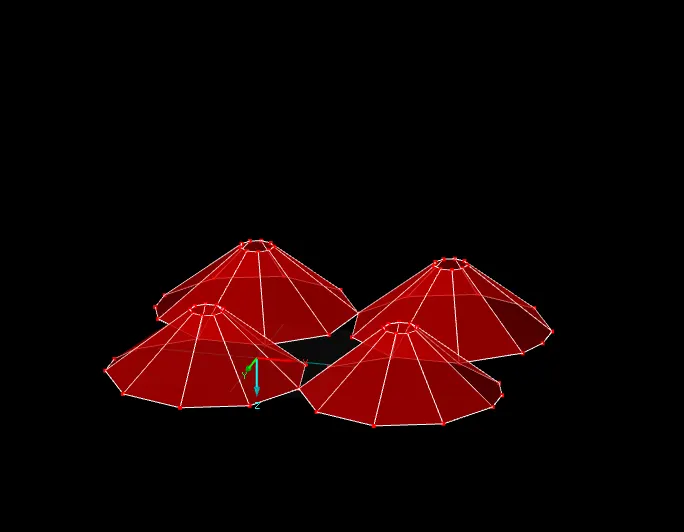

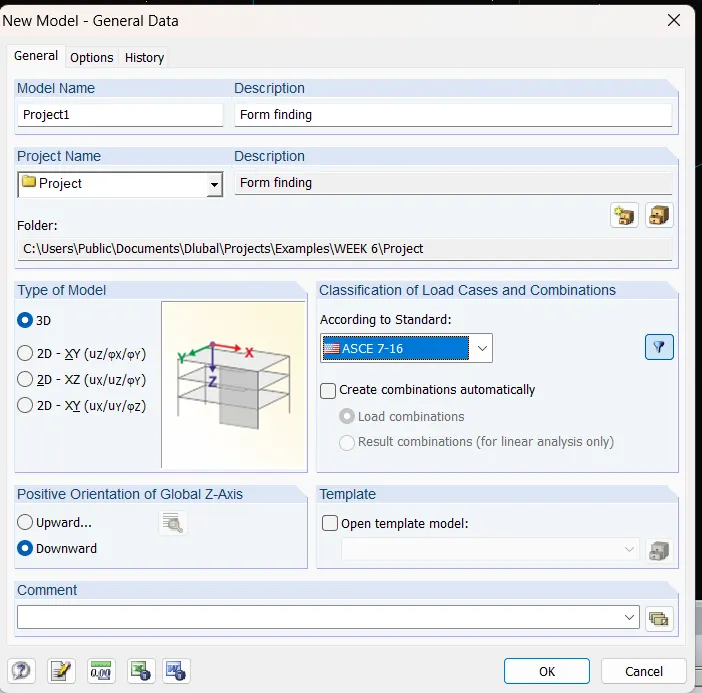

Open RFEM software and input the required data.

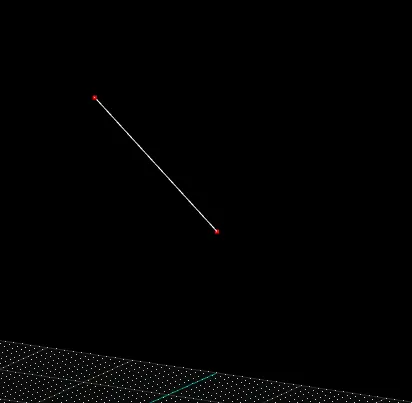

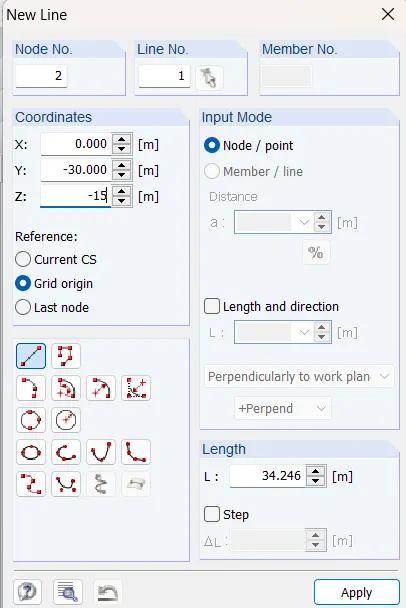

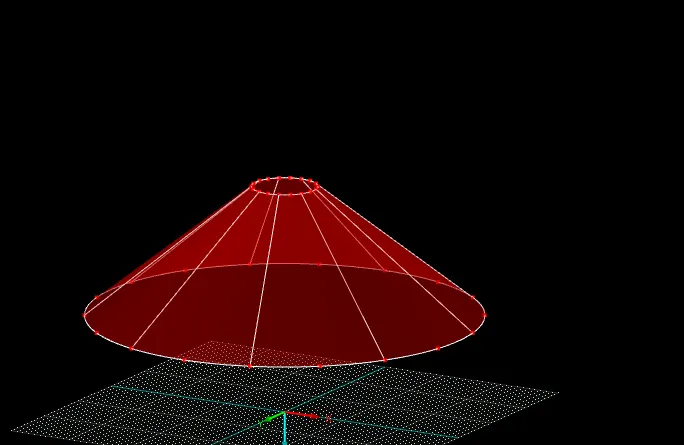

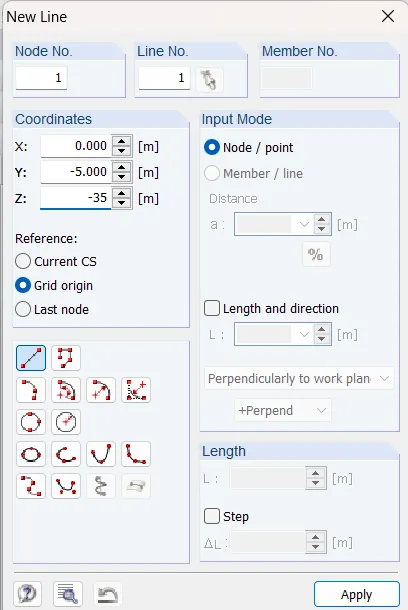

Then now choose line and start drawing

Select the inclined line and choose rotate option and draw the copy of it and make all arches into polylines.And romove all the intermediate nodes

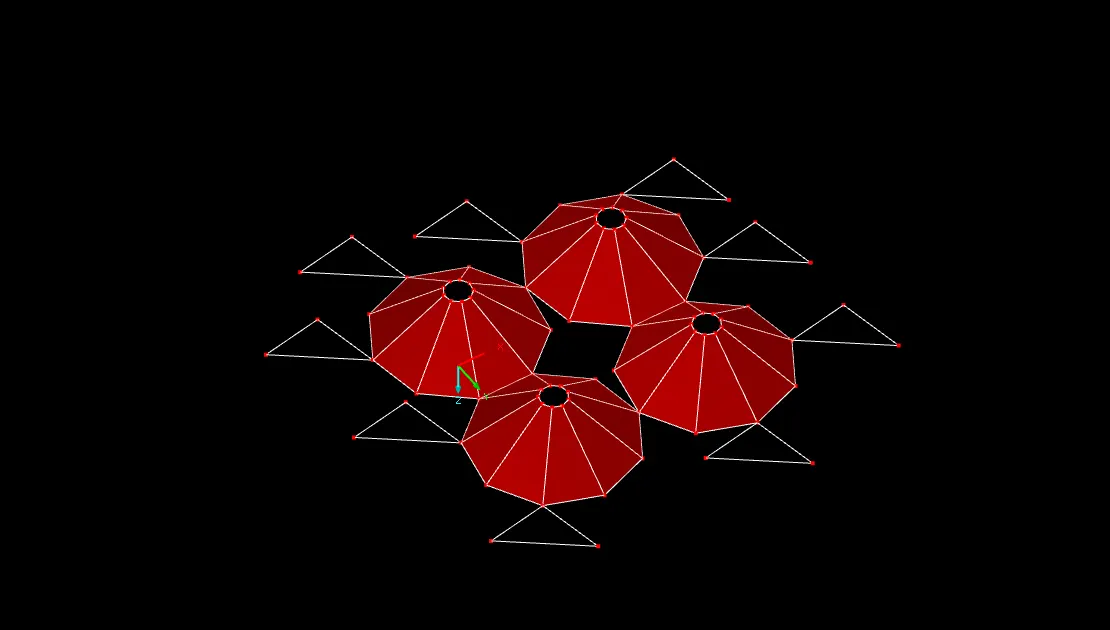

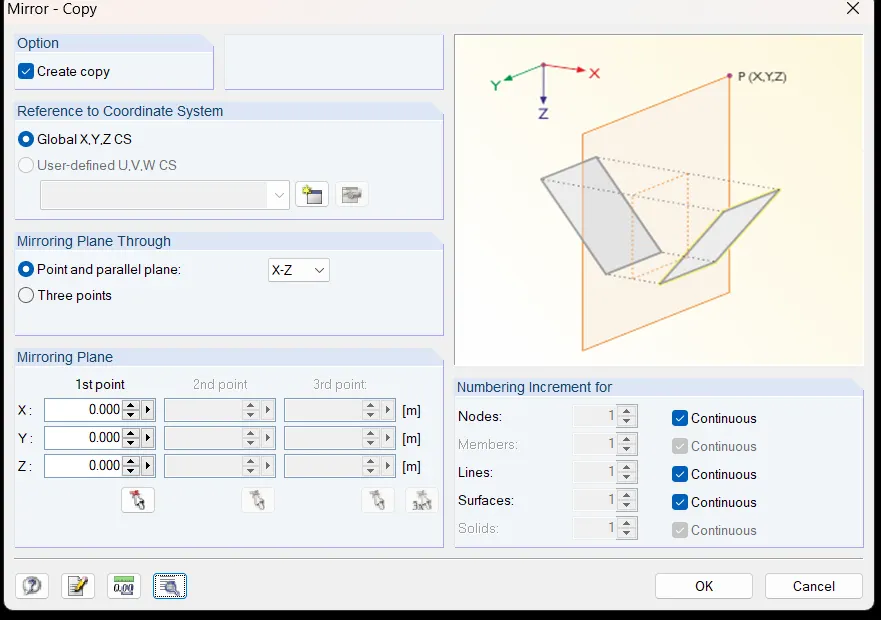

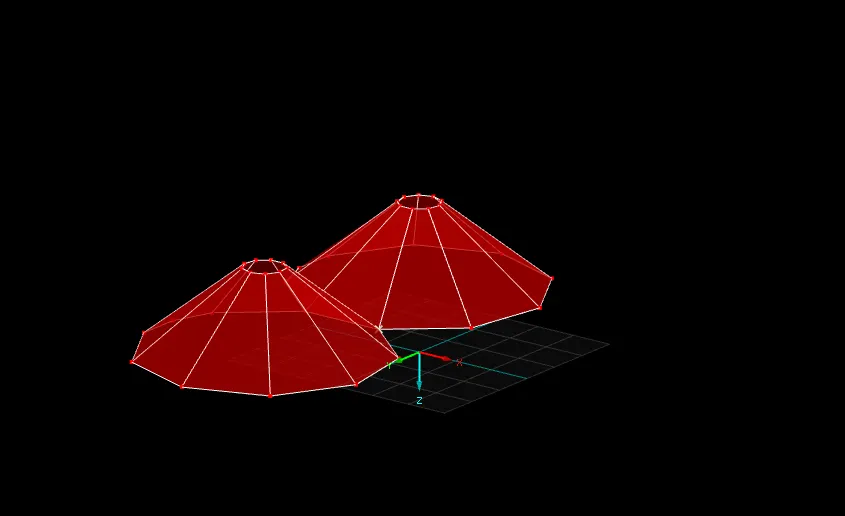

Now mirror the image using mirror tool

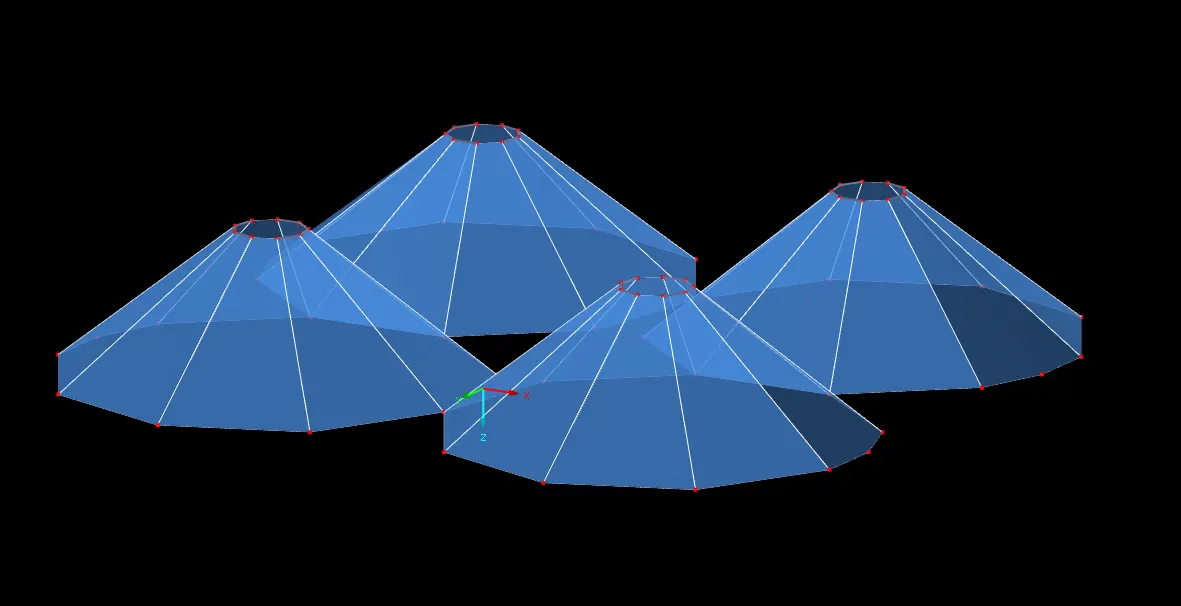

Repeat the same

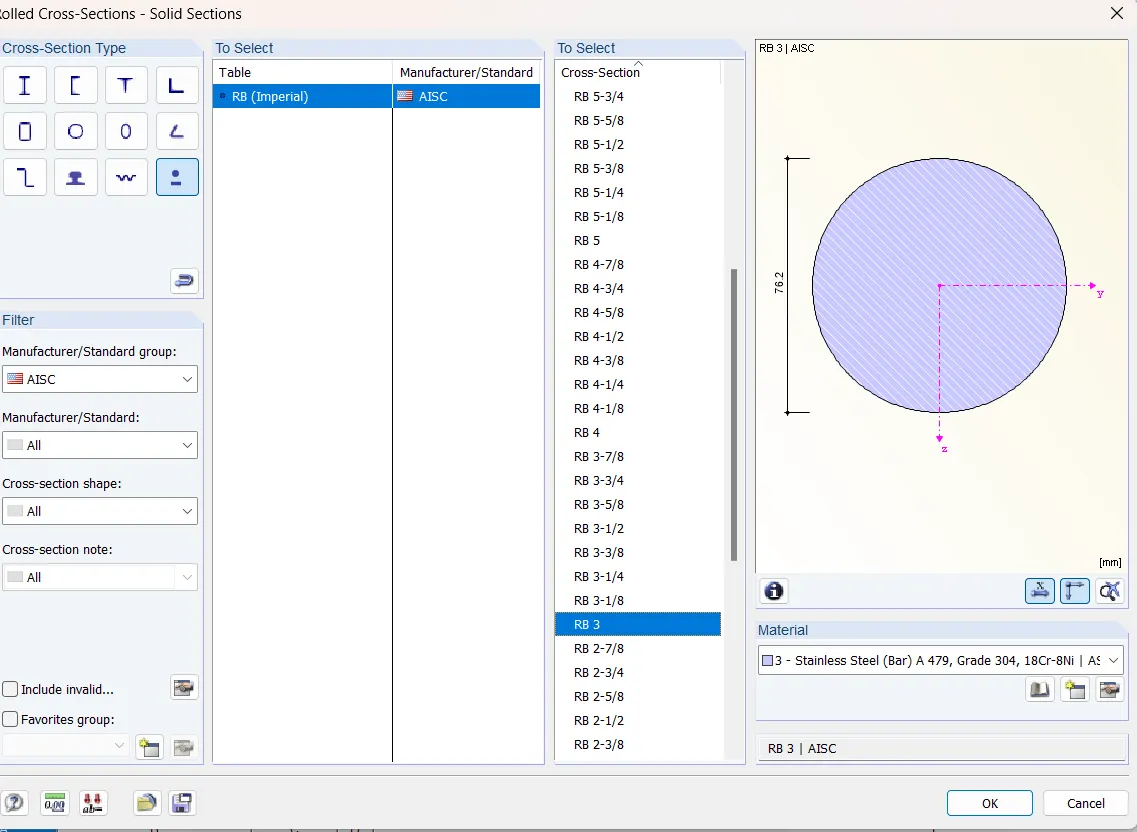

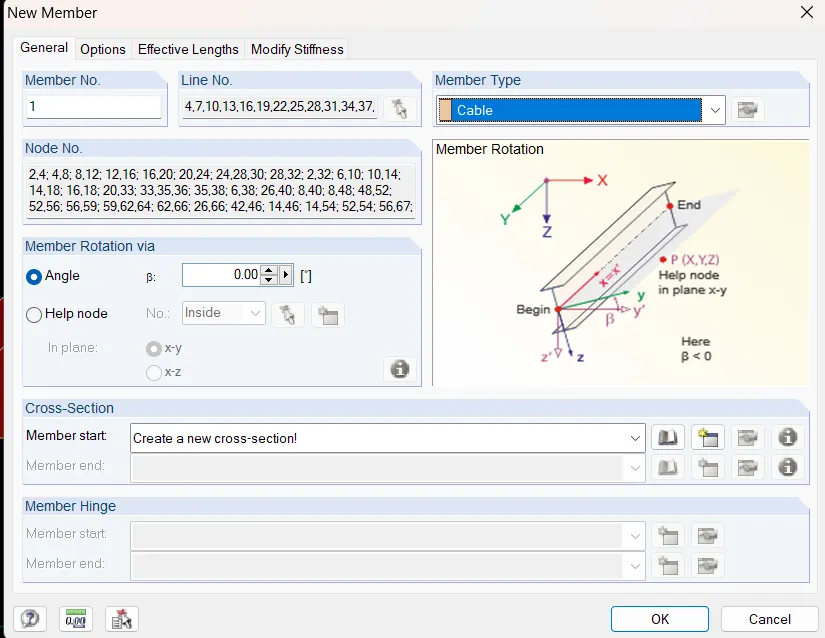

Now assign member as cable

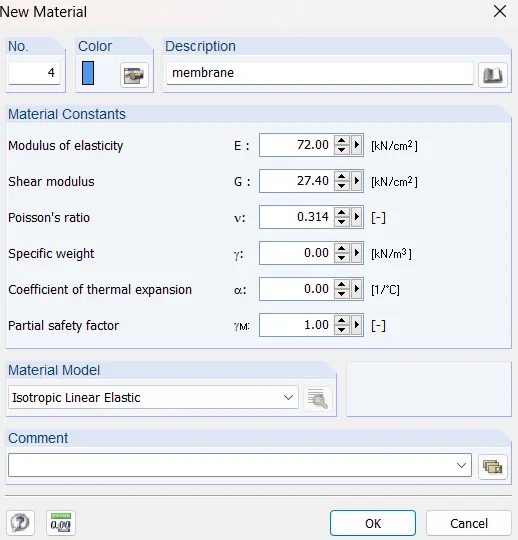

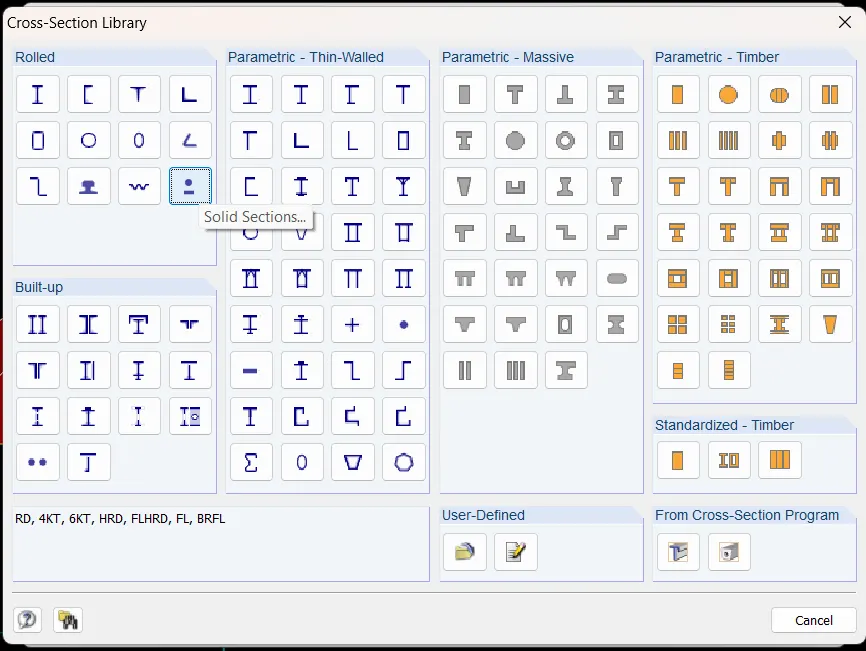

Create new material

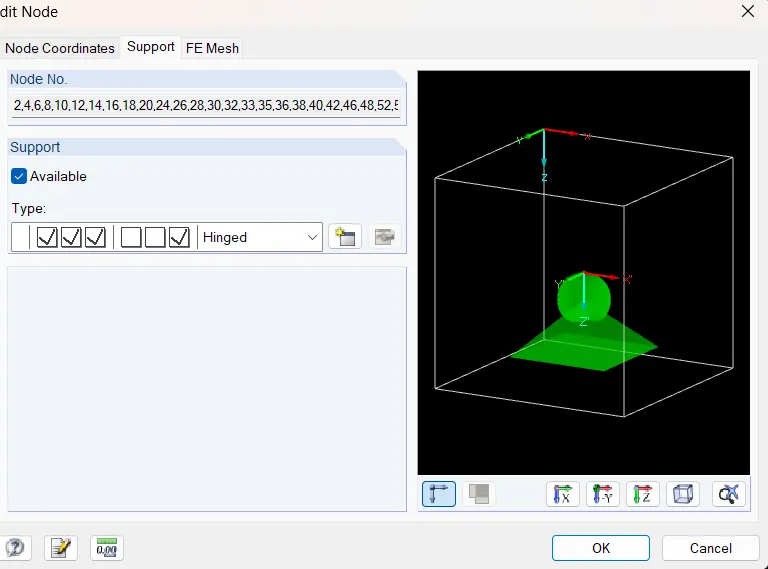

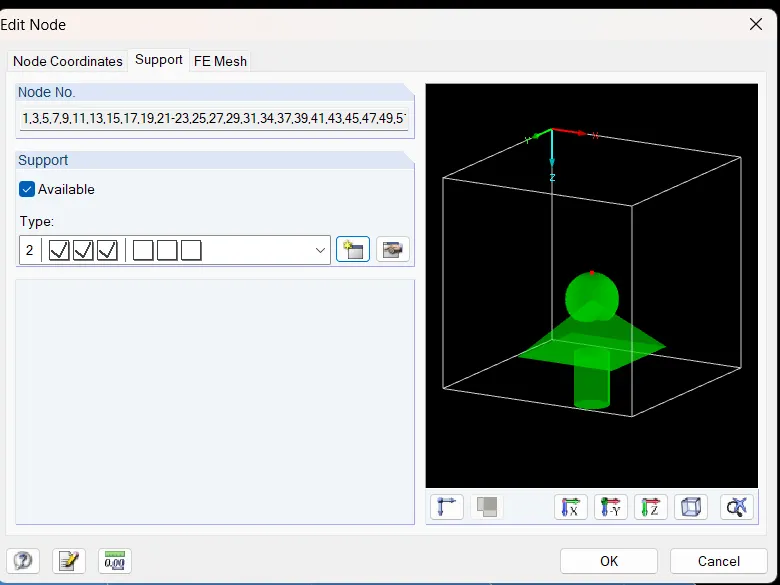

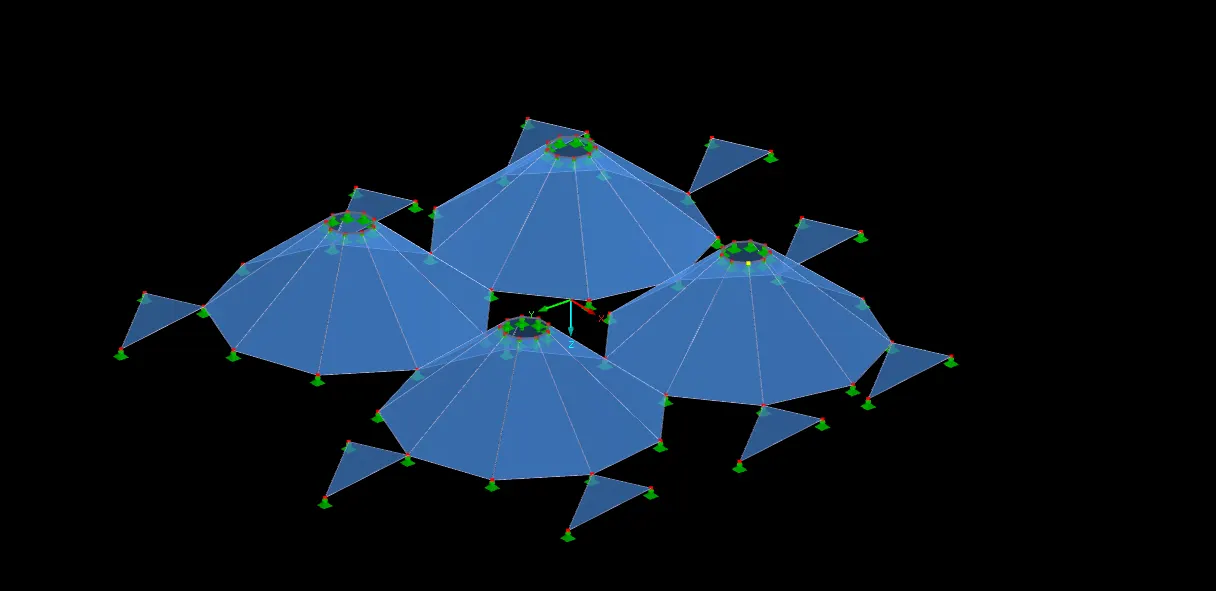

Add supports to all nodes.

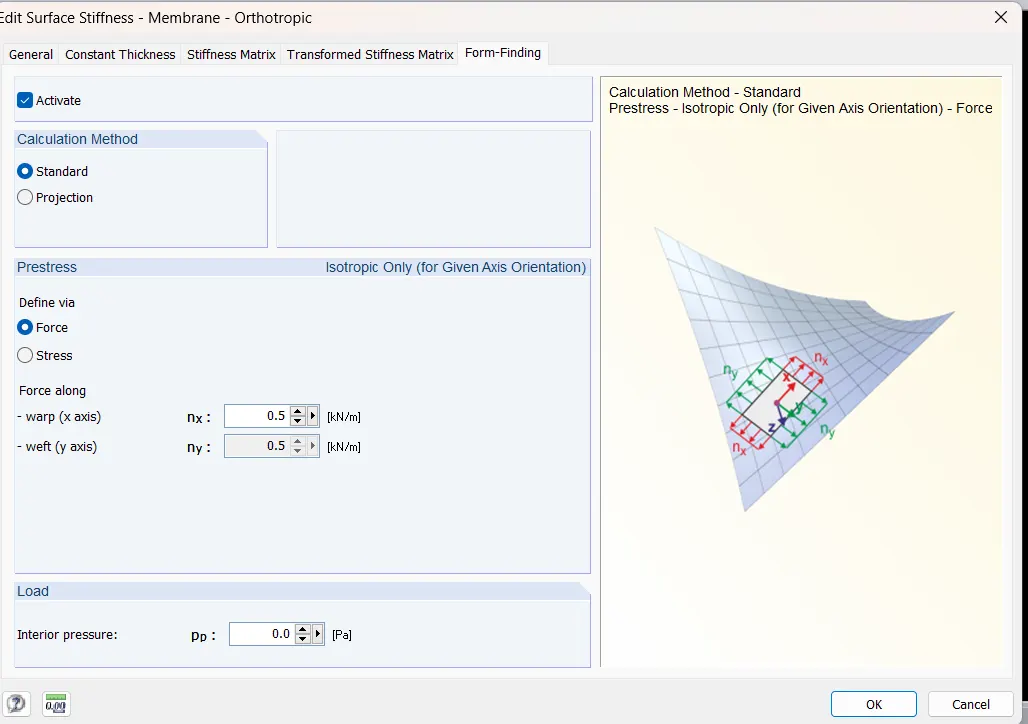

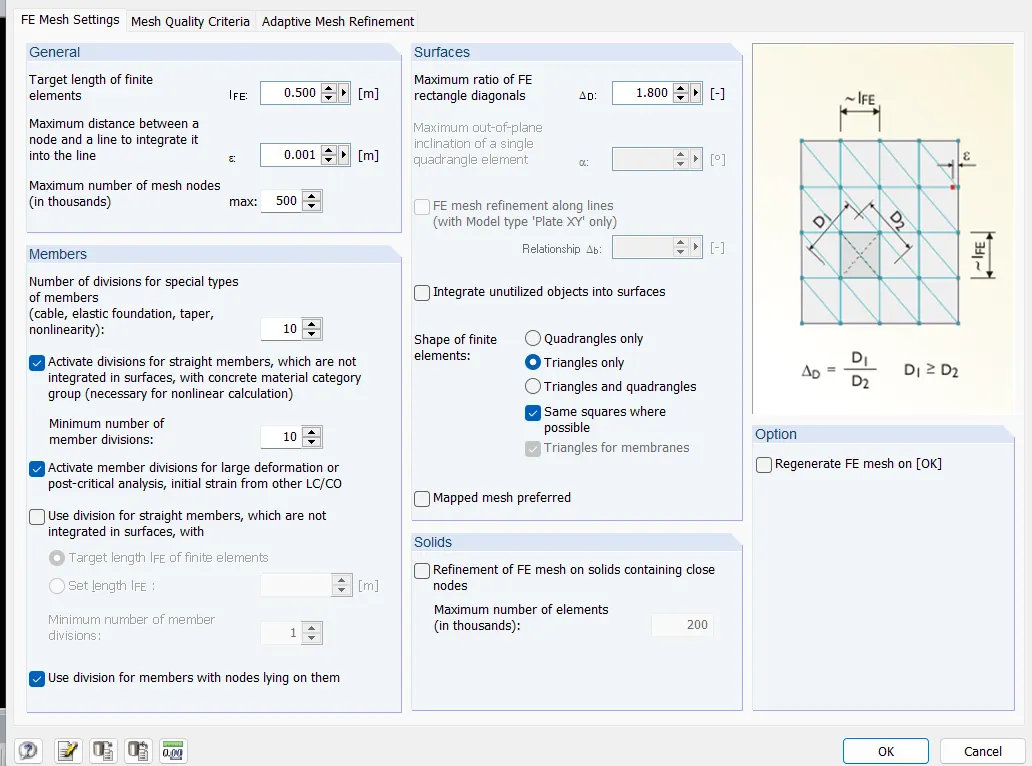

Choose FE settings

Calculate all

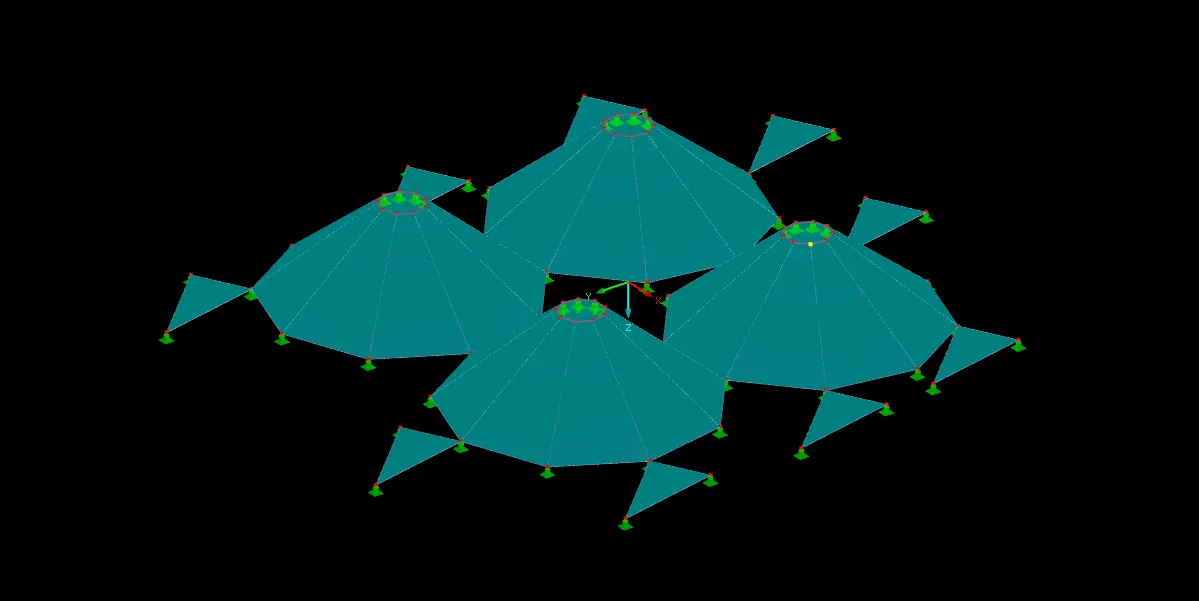

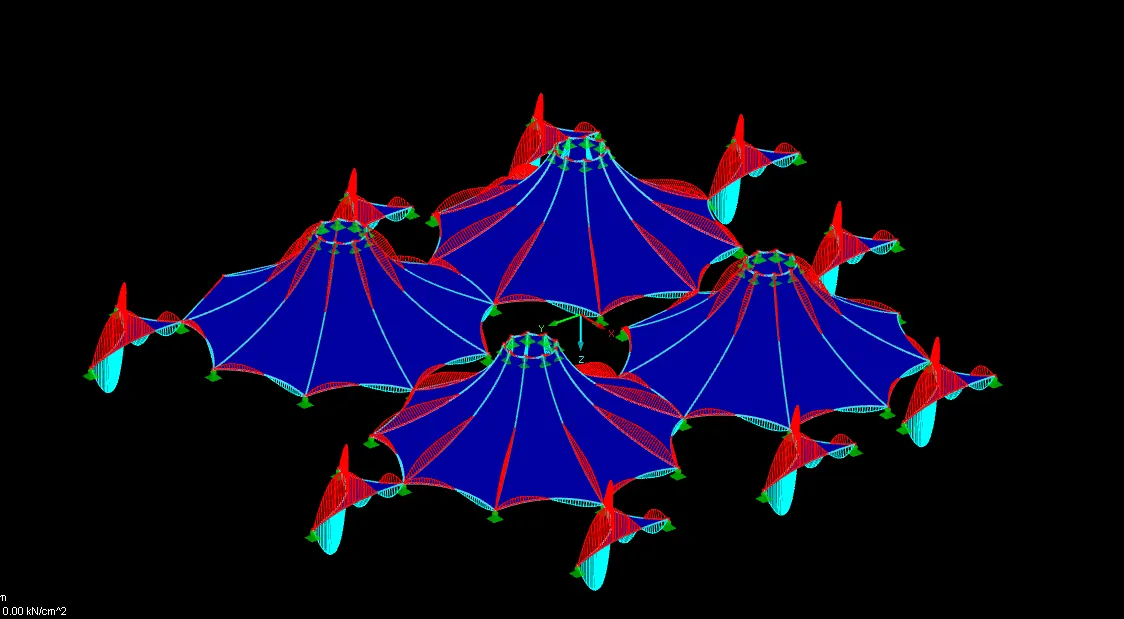

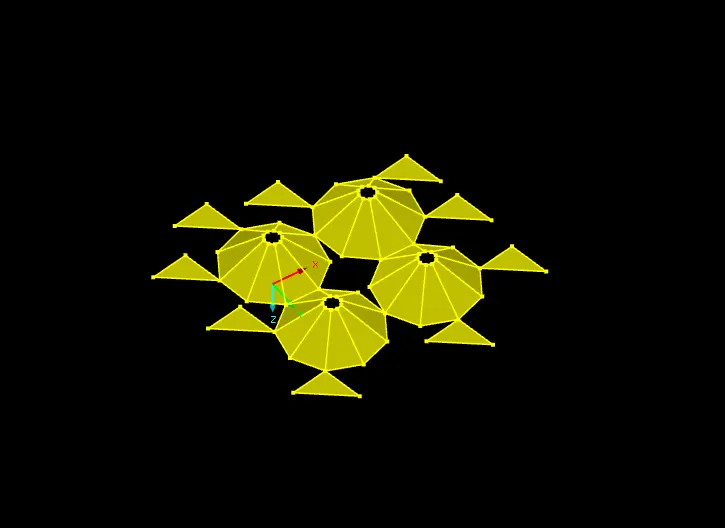

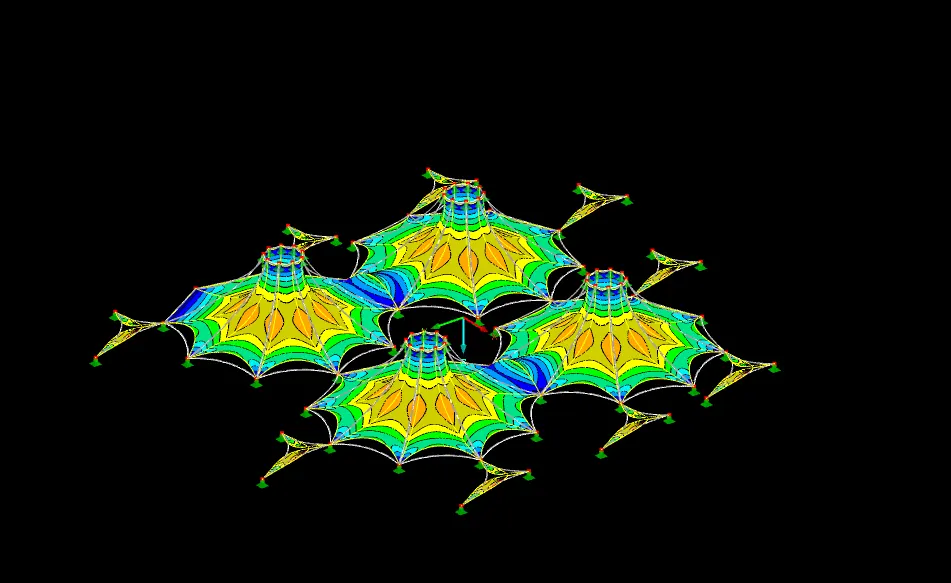

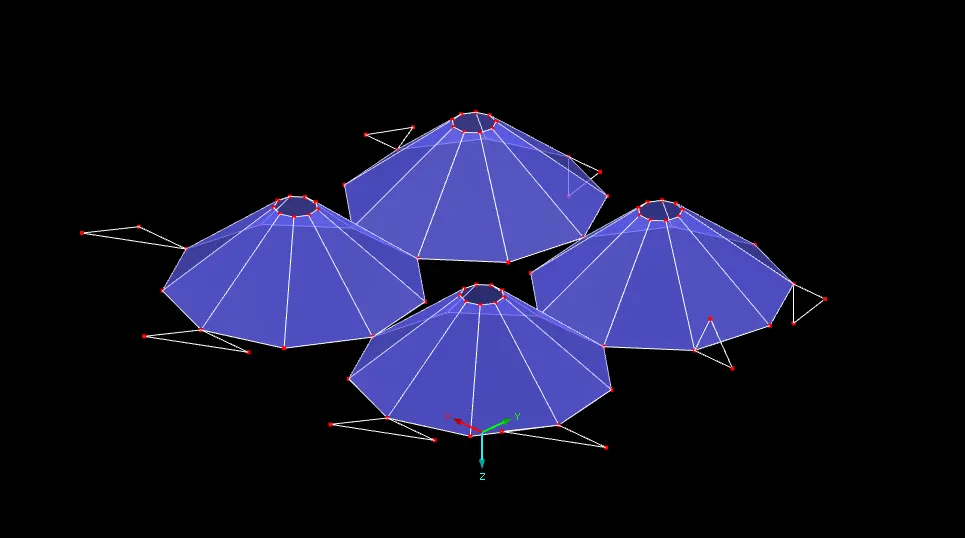

Result:
