Project 1

1. Design a multi-story Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows:

Building floors : G + 6 + R

Plam Dimension : B = 25m, L = 16m

Storey Height : h = 3.5m

Soil : Hard soil

Use : Residential purpose

Safe Bearing Capacity : 180 KN/m^2

Maximum slab Thickness : 150mm.

Assume suitable sections for structural elements . Follow IS 456, IS 1893 and IS875

1. Prepare a design Basis Report the Project.

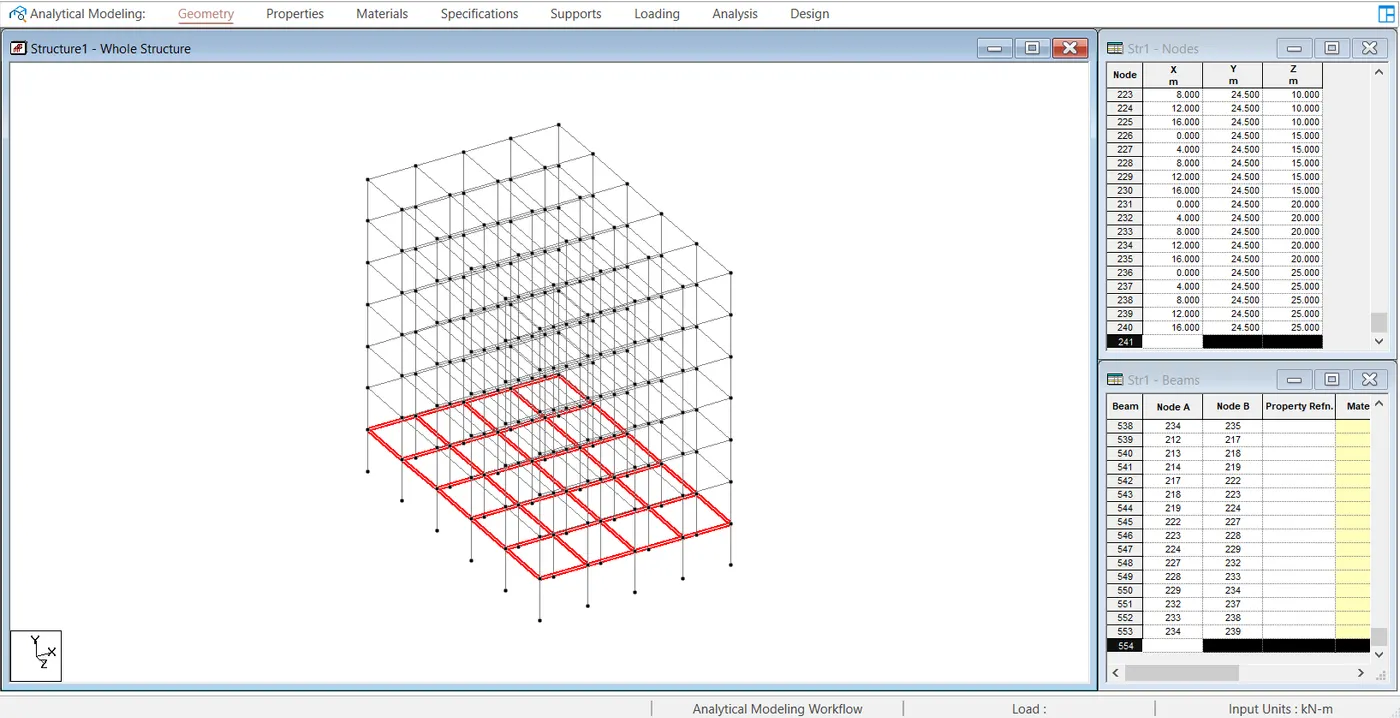

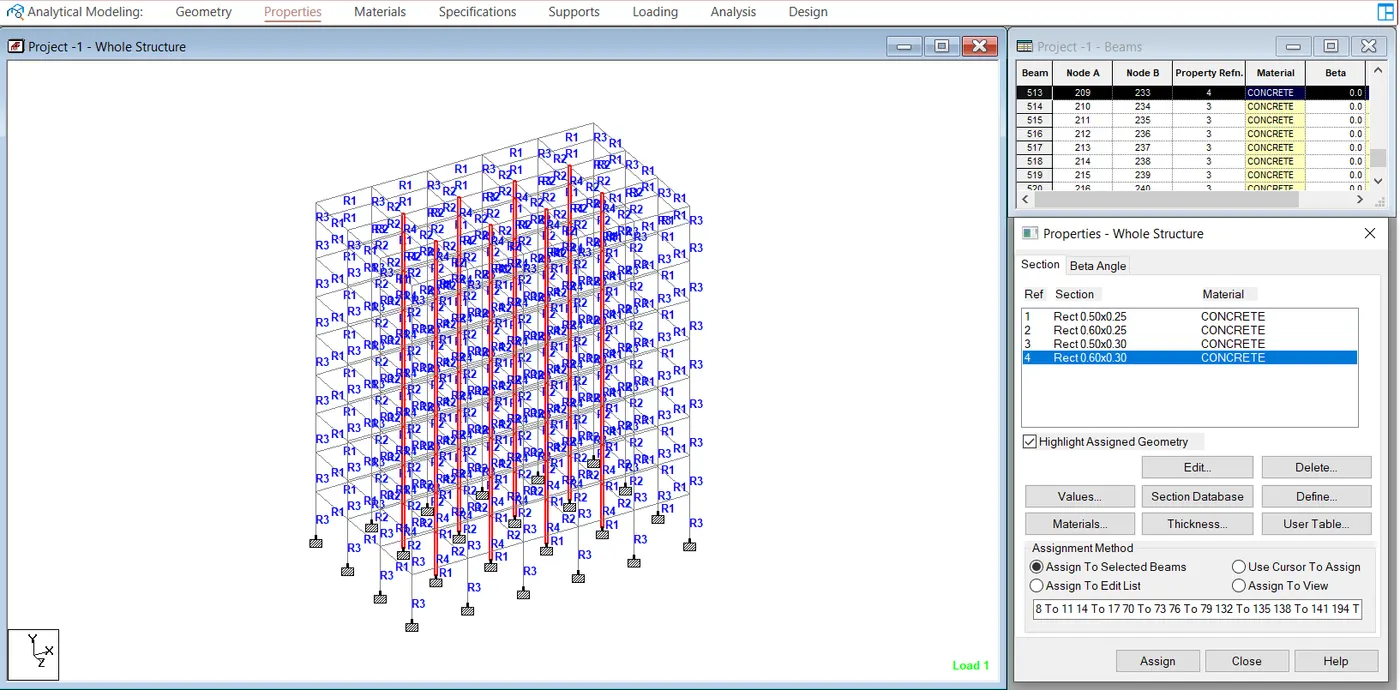

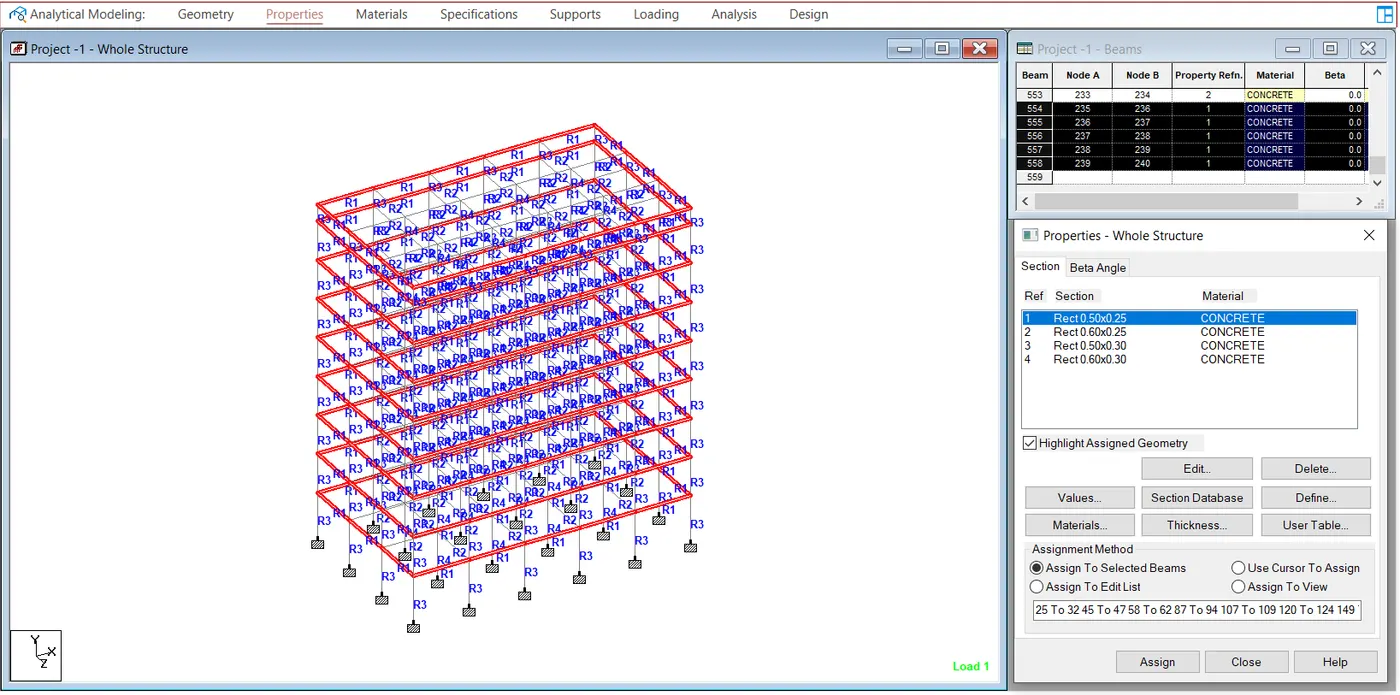

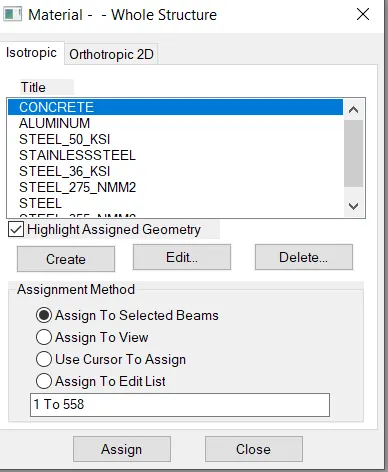

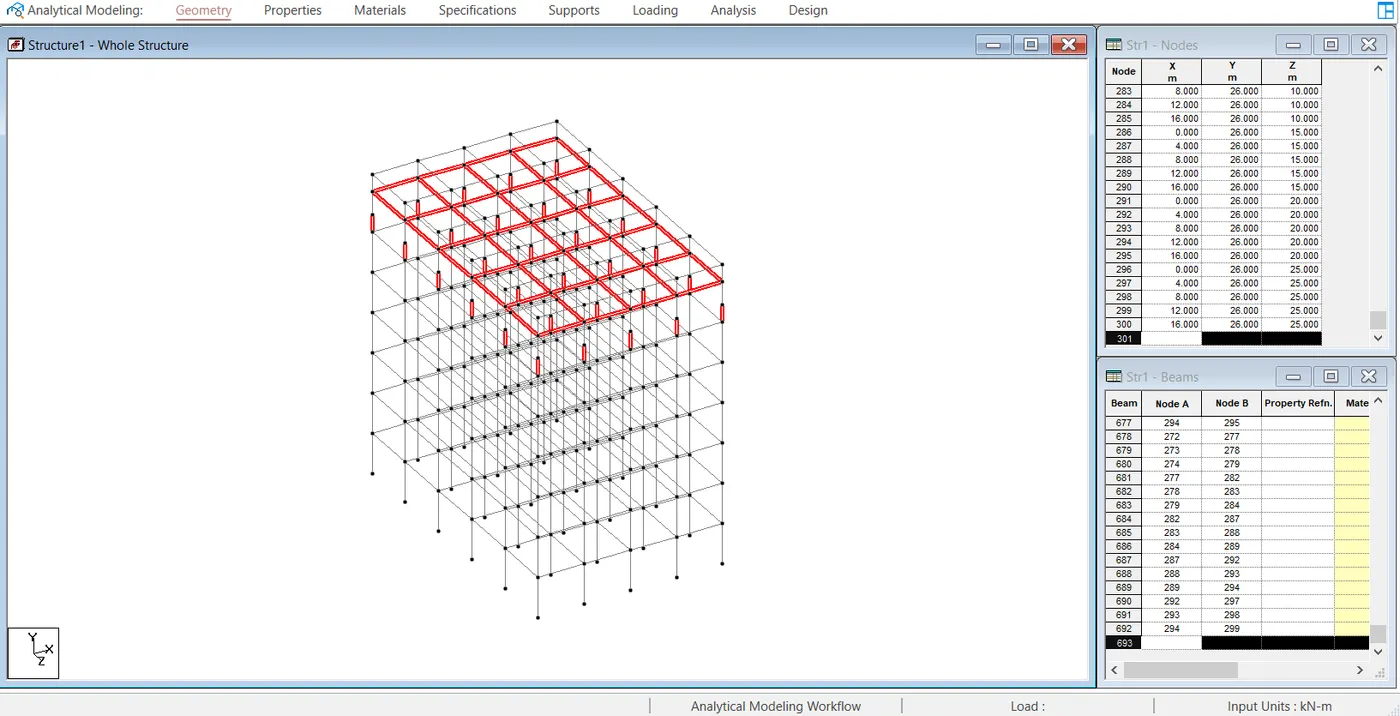

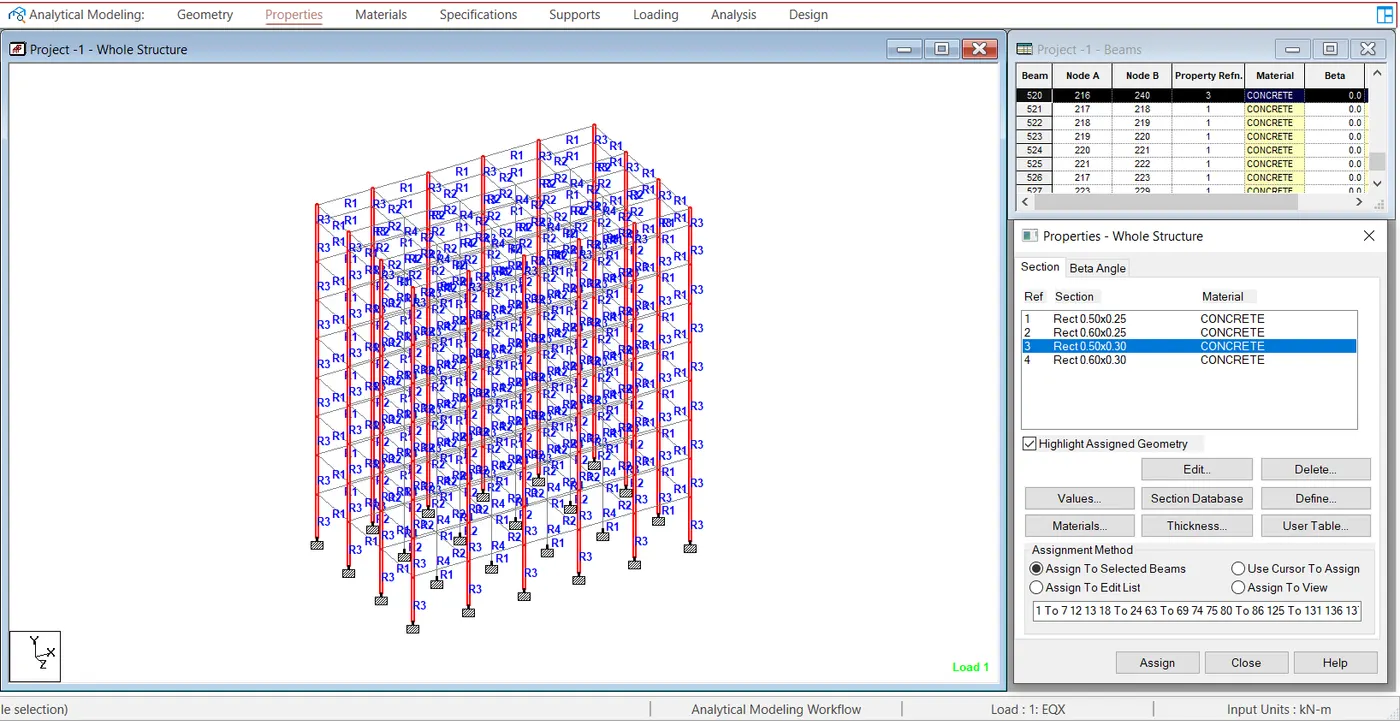

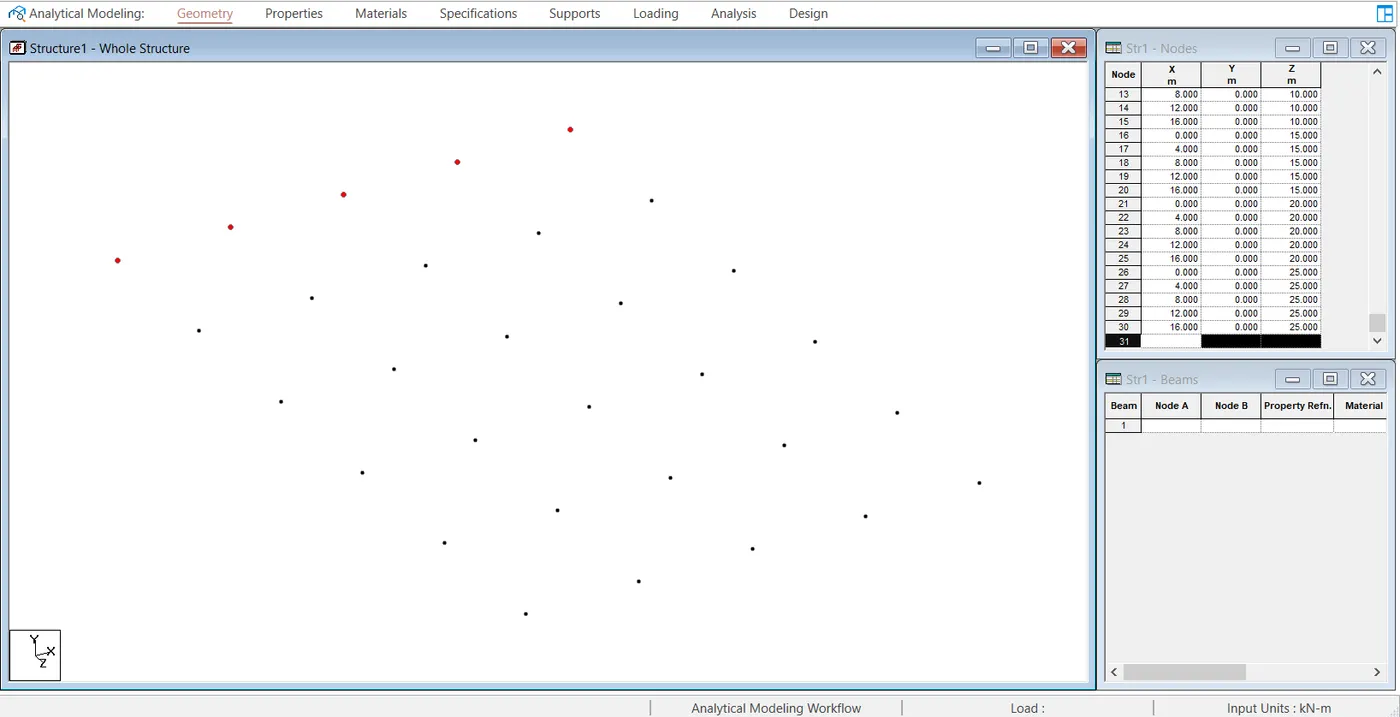

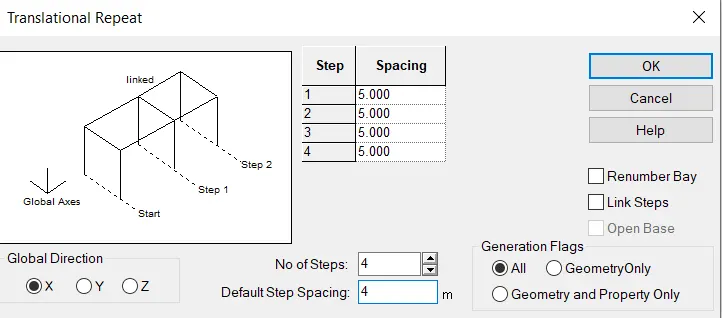

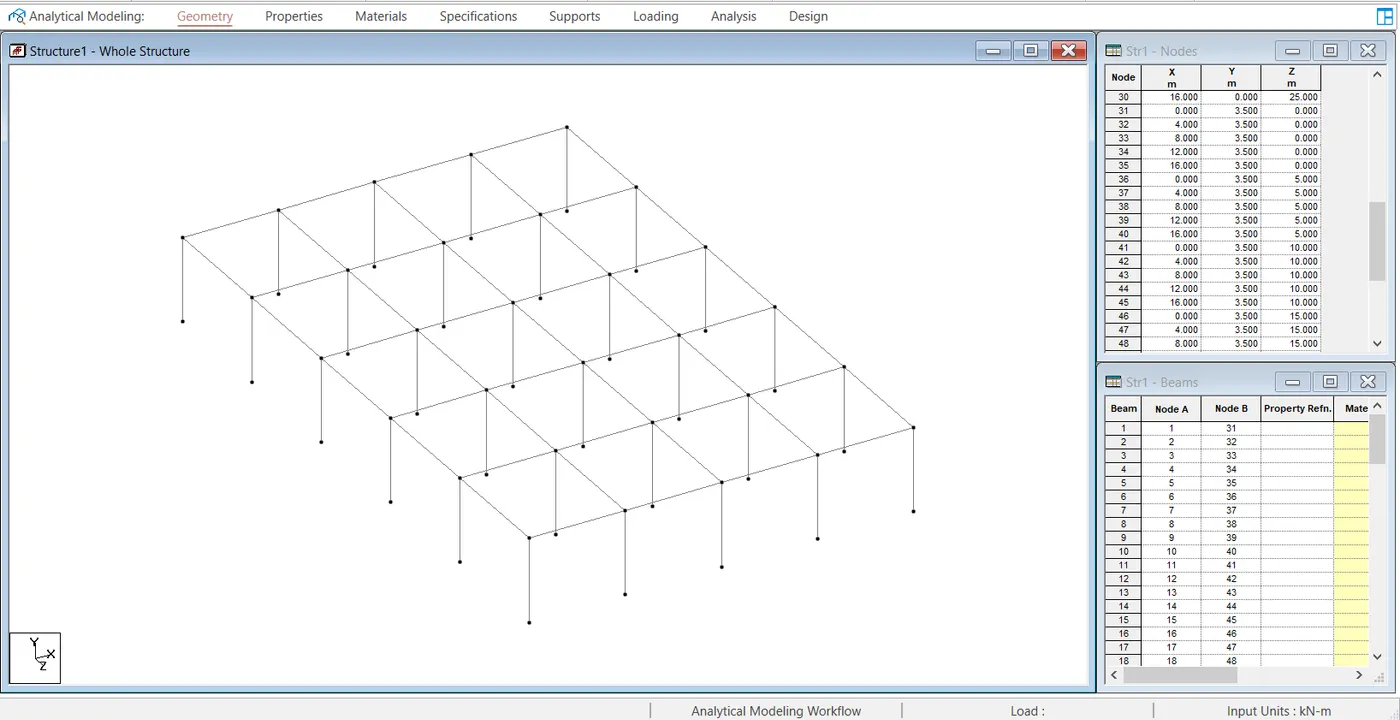

2. Create Structural model using STAAD pro connect Edition.

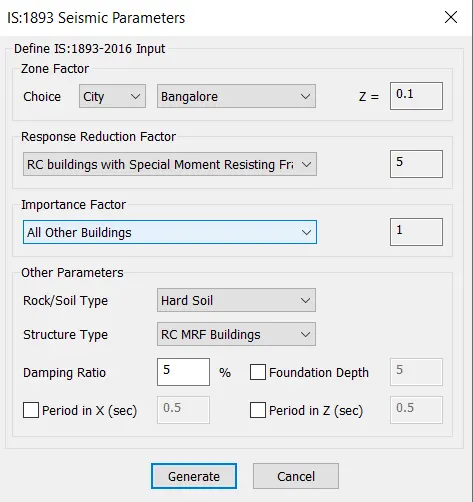

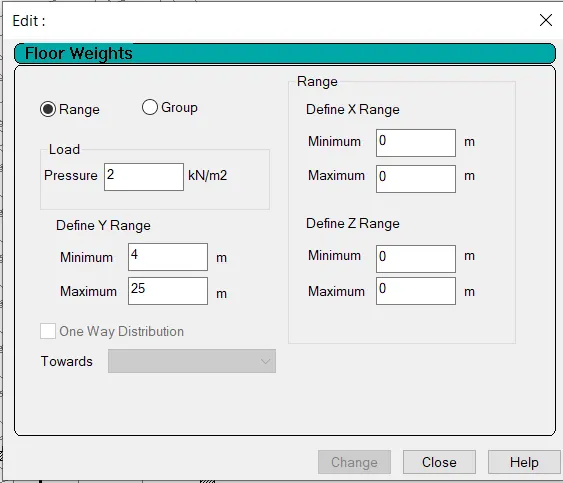

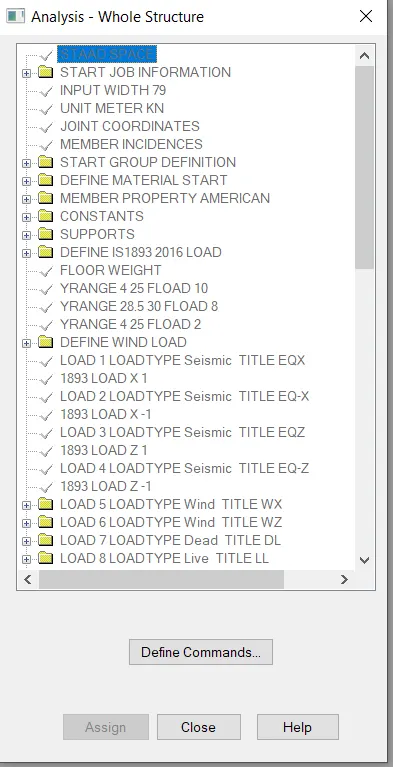

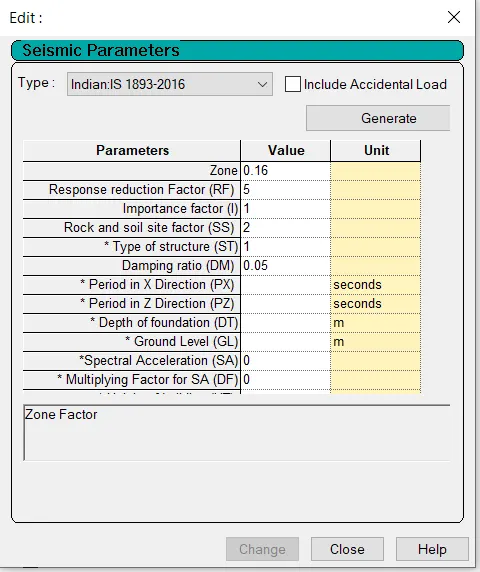

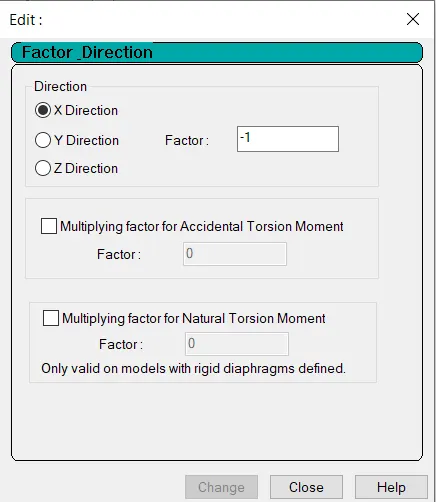

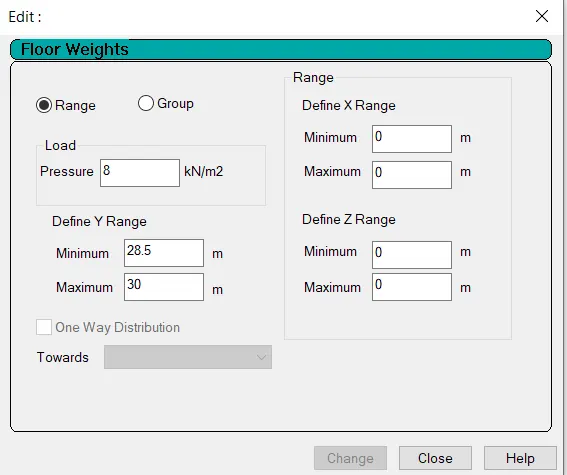

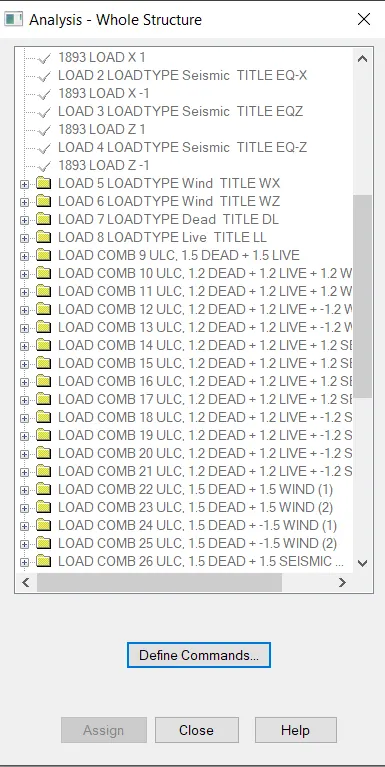

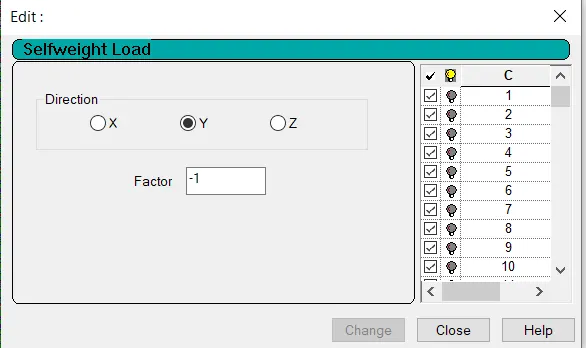

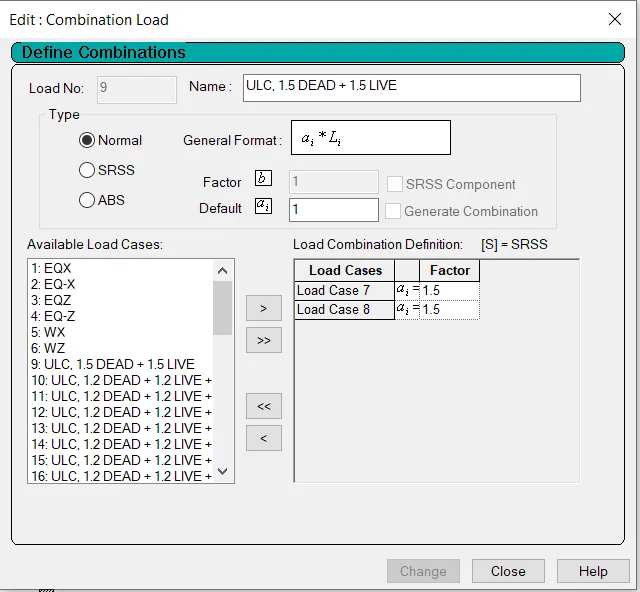

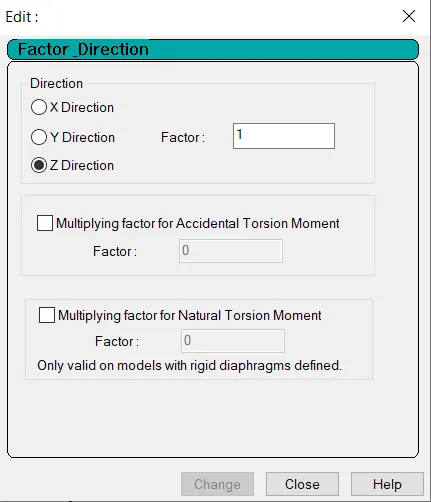

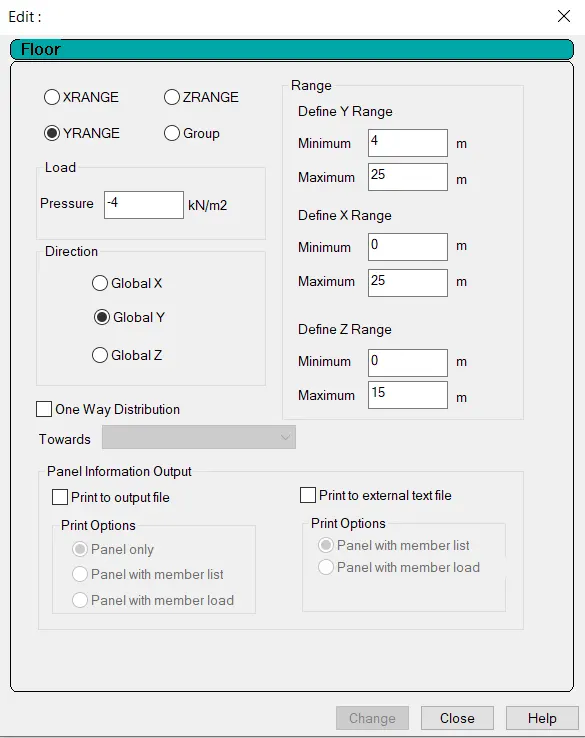

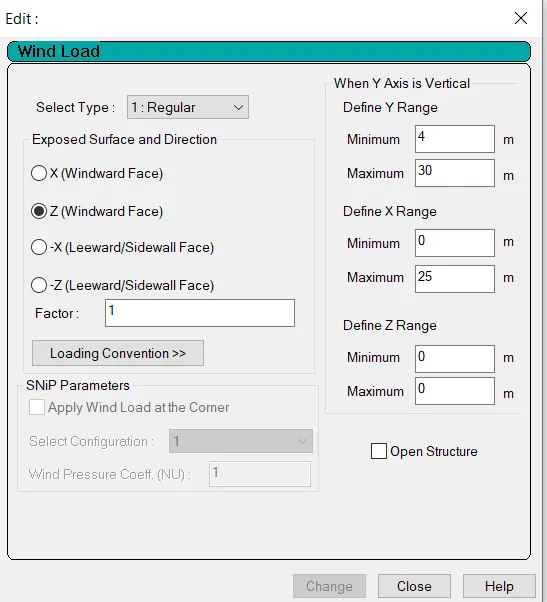

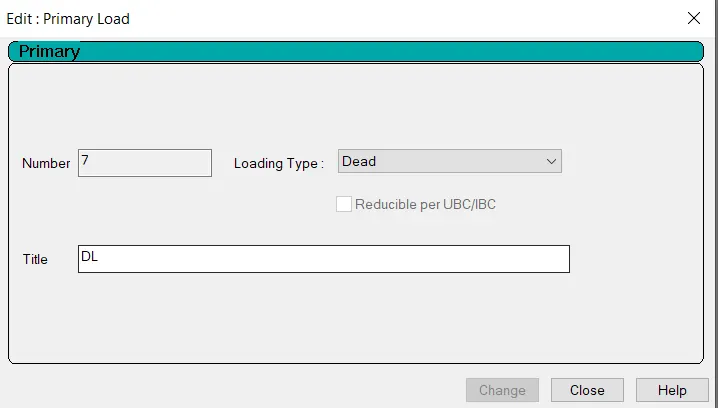

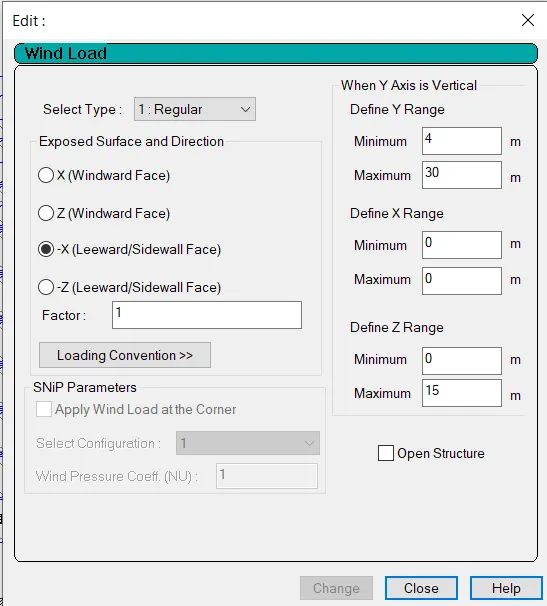

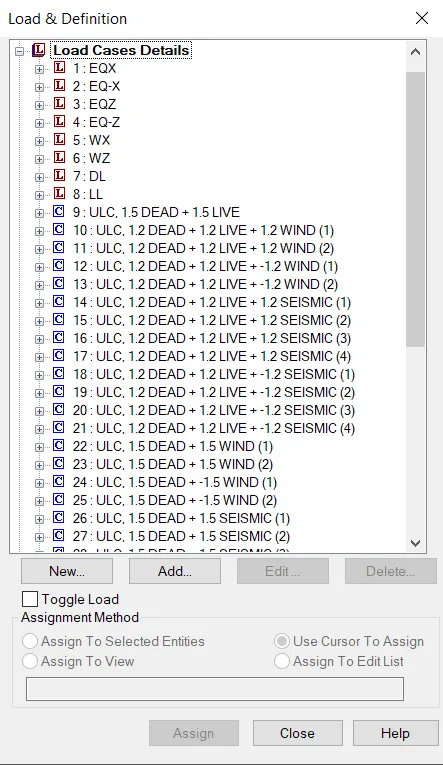

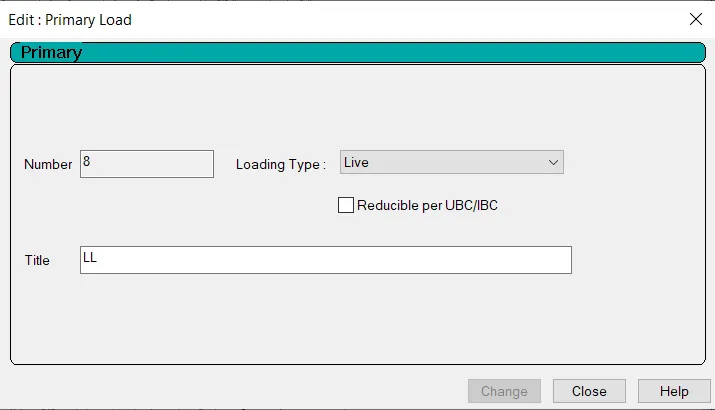

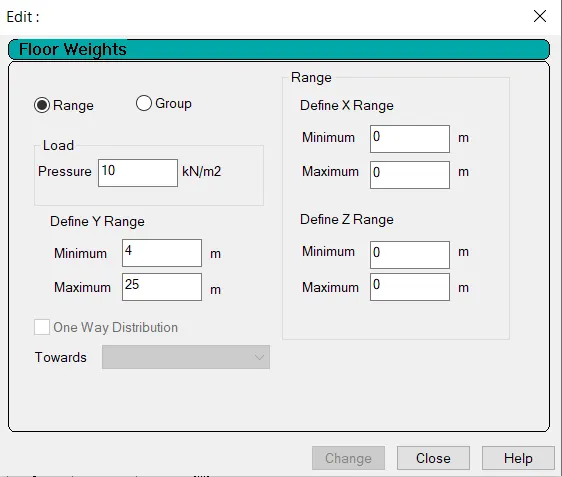

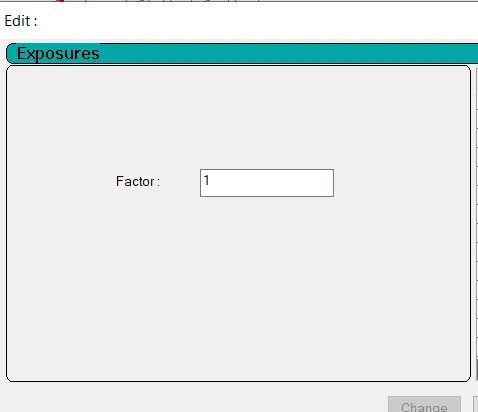

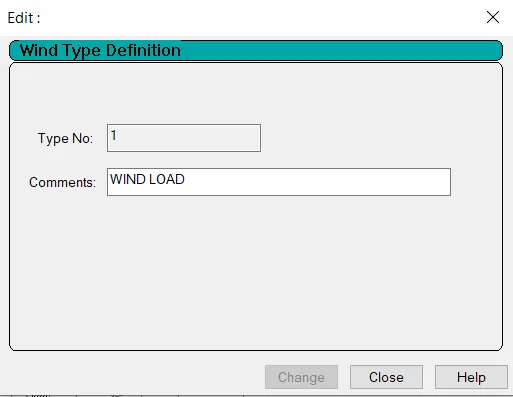

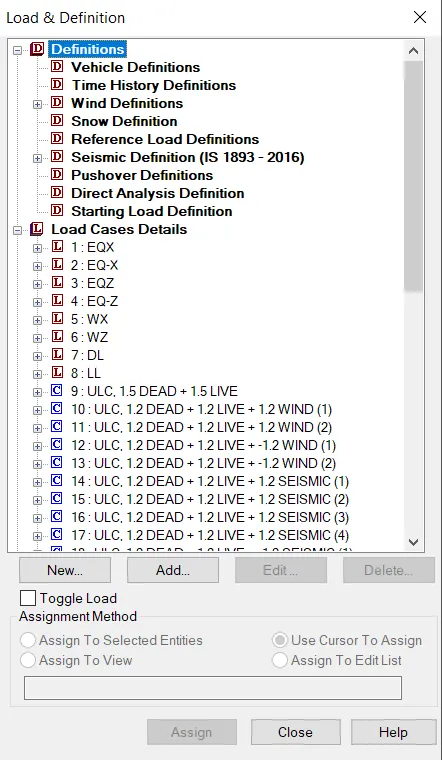

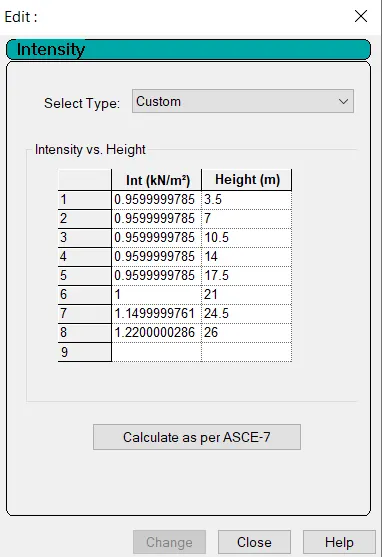

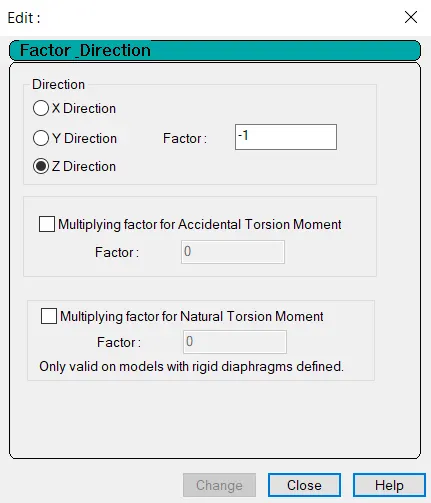

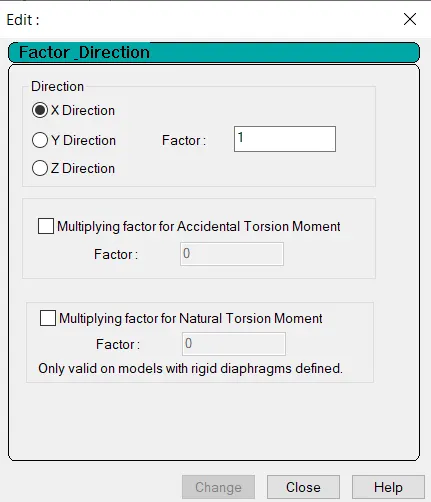

3. Prepared DL, LL, WL and EQL load calculations as per IS 875 standards
4. Design slab element using MS - Excel

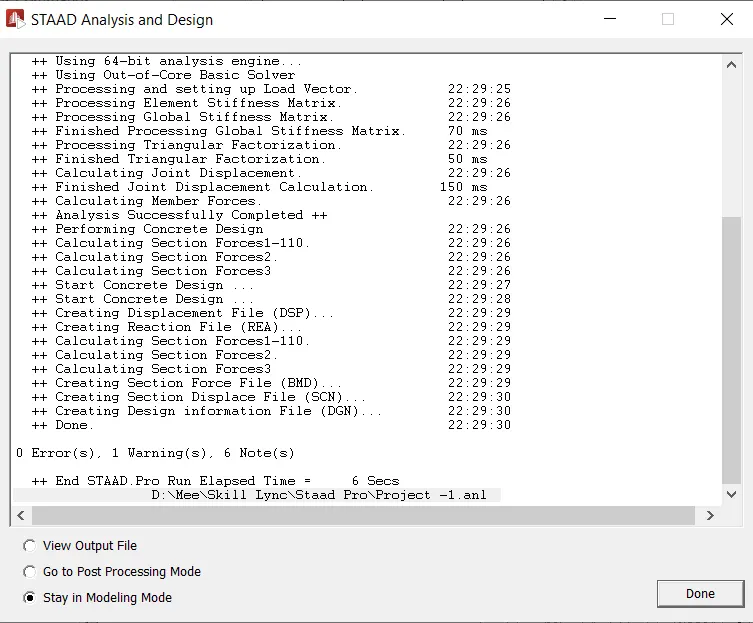

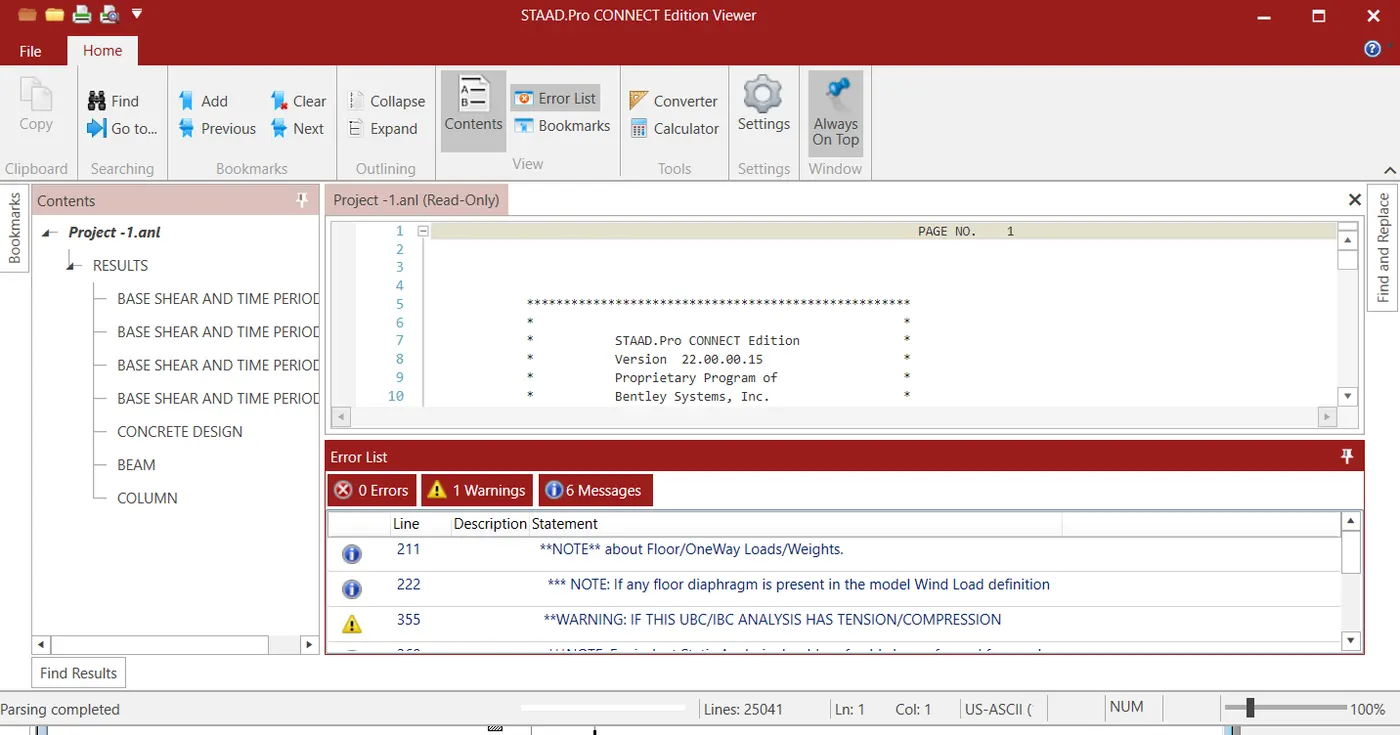

5. Design beam and column element using STAAD RCDC. Attach the design calculation report
6. Design Foundation using STAAD Foundation.
7. Prepare bar bending schedule for beam and column using STAAD RCDC
8. Attach necessary sketchs and drawing wherever required.
9. All stipulations, assumptions and design parameter must adhere to india standards.

ANS:

Unit weight of concrete Yc = 25KN/M^2.

Yelid strength of steel Fy = 415 KN/M^2.

Compressive strength of concrete Fck = 25KN/M^2.

Plain cement concrete = 24KN/M^3.

Cement Masonry unit = 20KN/M^3.

Structural Steel = 78.5KN/M^3.

Soil = 18KN/M^3.

Column:

Width of Column 450mm

Depth of column 450mm

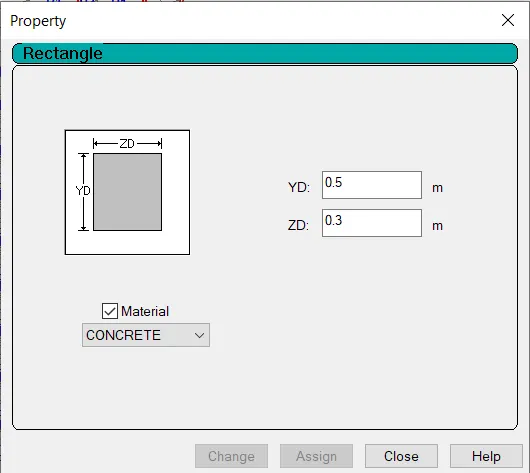

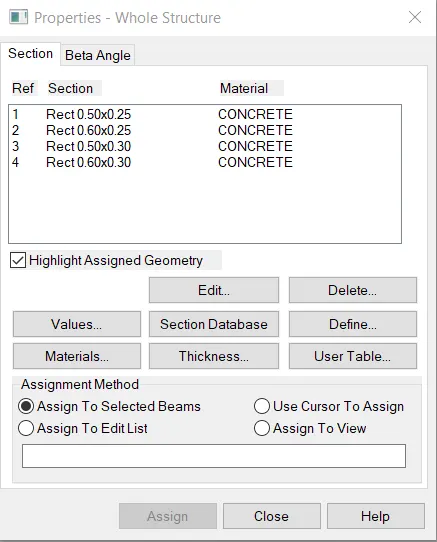

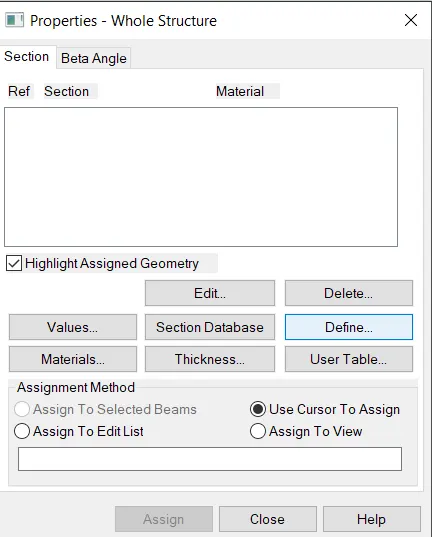

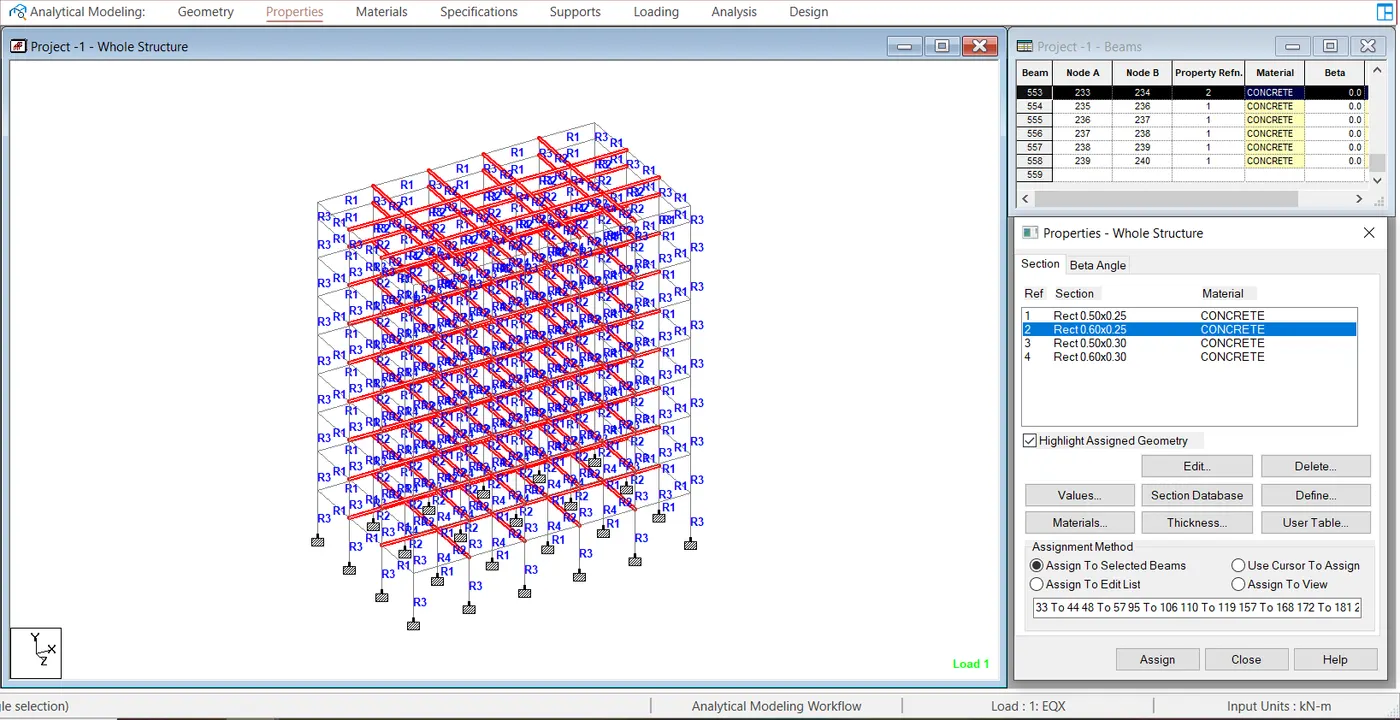

Beam:

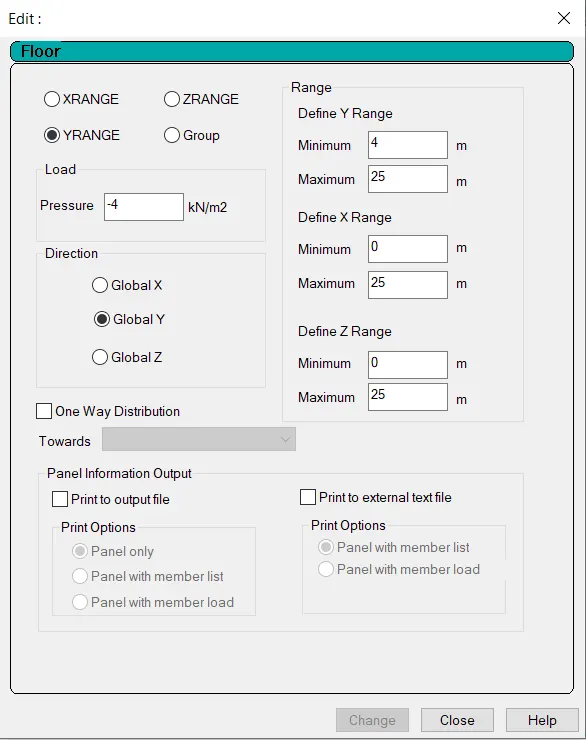

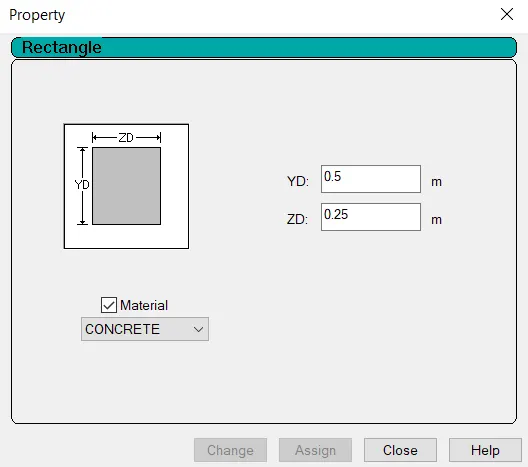

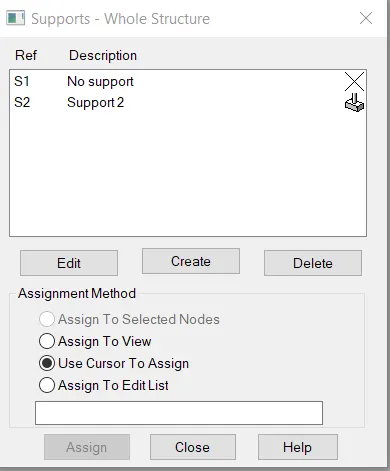

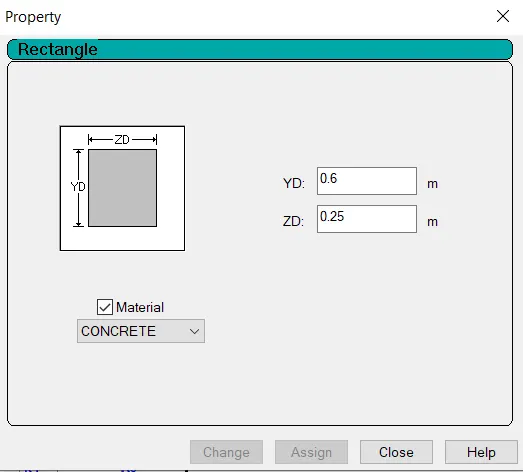

Width of beam : 230mm

Depth of beam : 300mm

Cover:

• Clear cover of column = 40mm.
• Clear cover of beam = 30mm.
• Clear cover foundation = 50mm.
• Clear cover slab = 25mm.

AIM: The Design a multi storey residential building located in Bangalore using STAAD Pro Connect Edition.

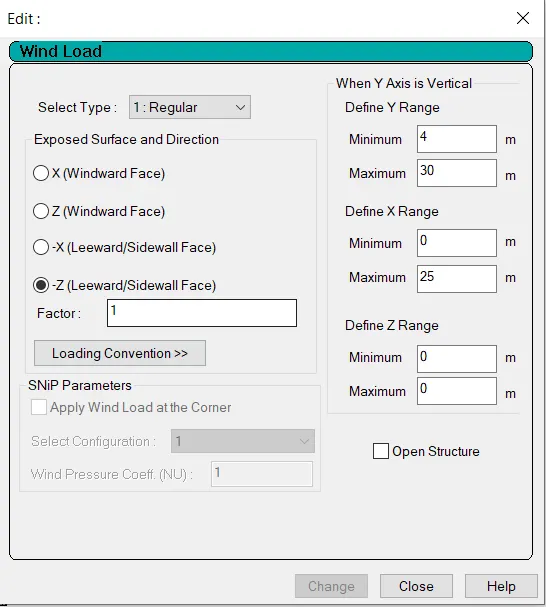

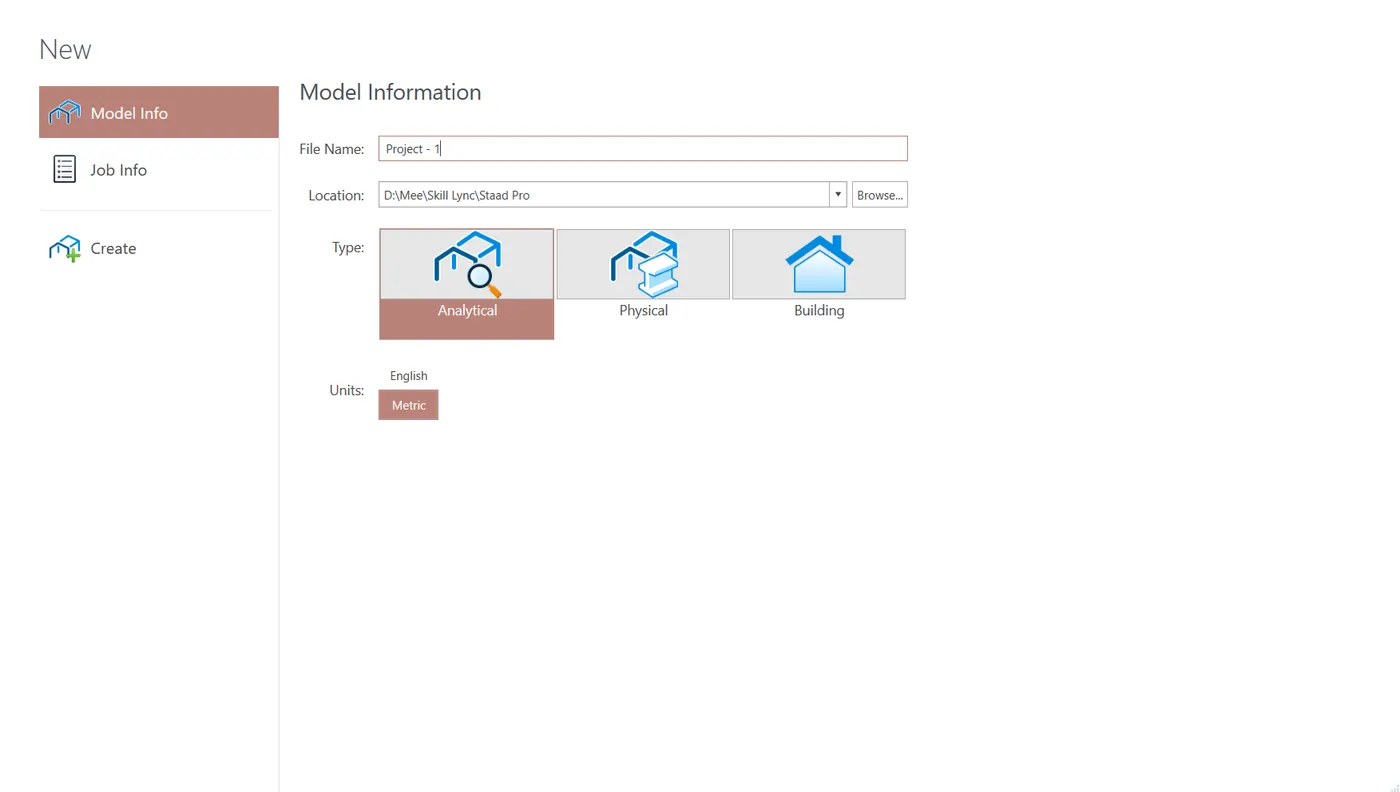

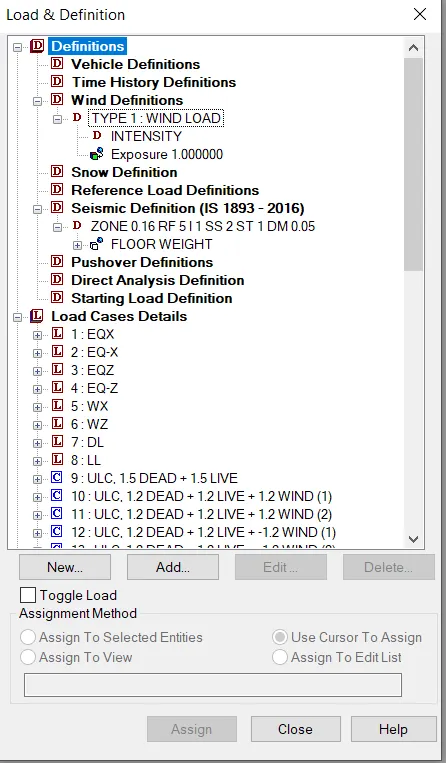

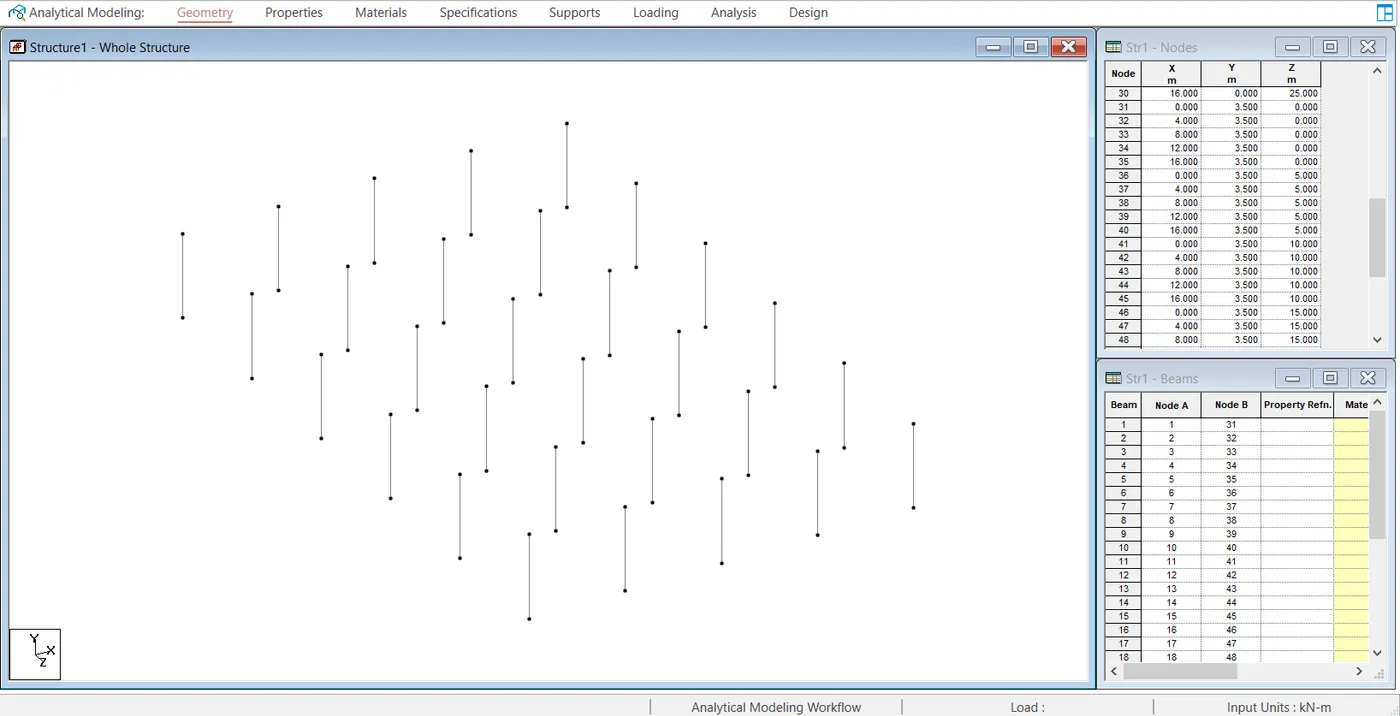

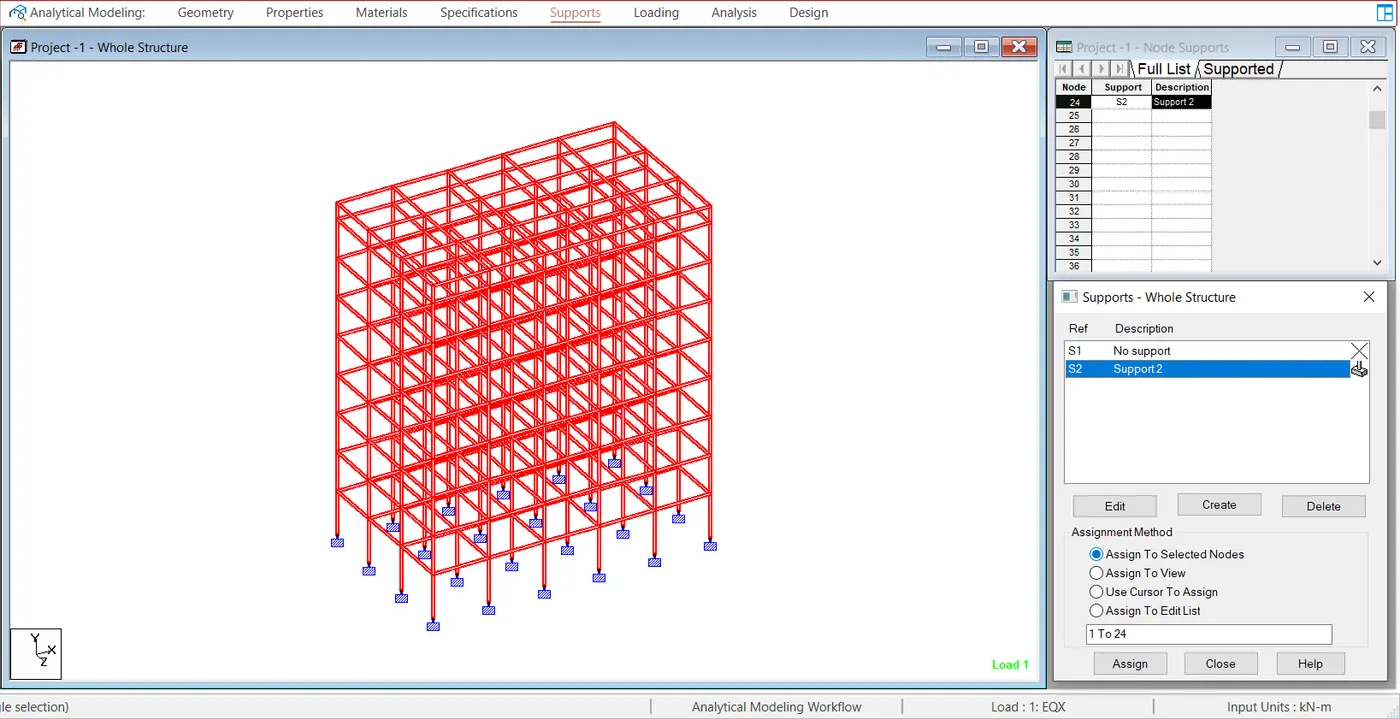

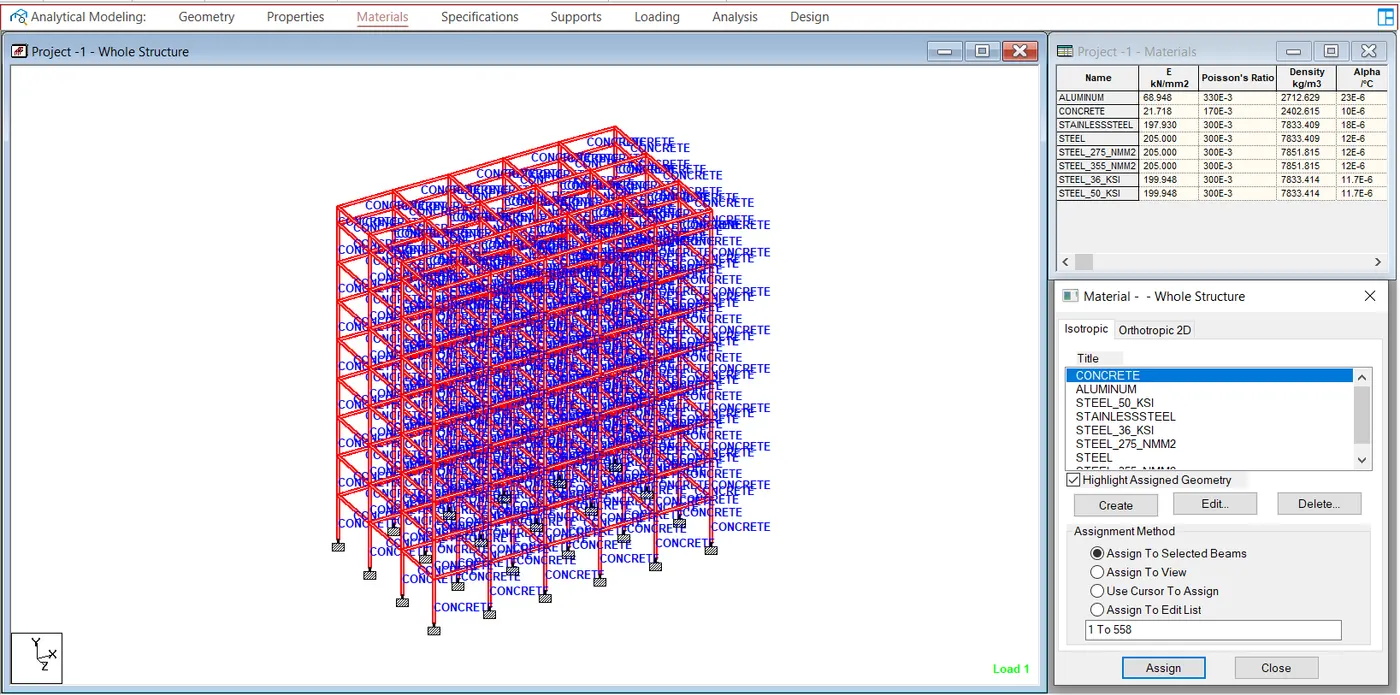

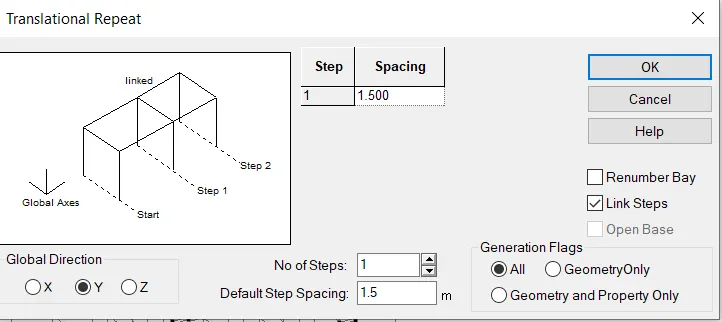

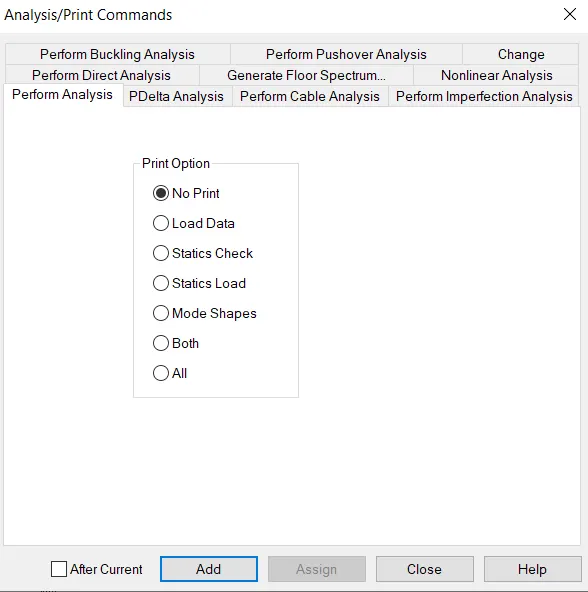

PROCEDURE: Open the Staad pro software and save the project by giving the appropriate file name

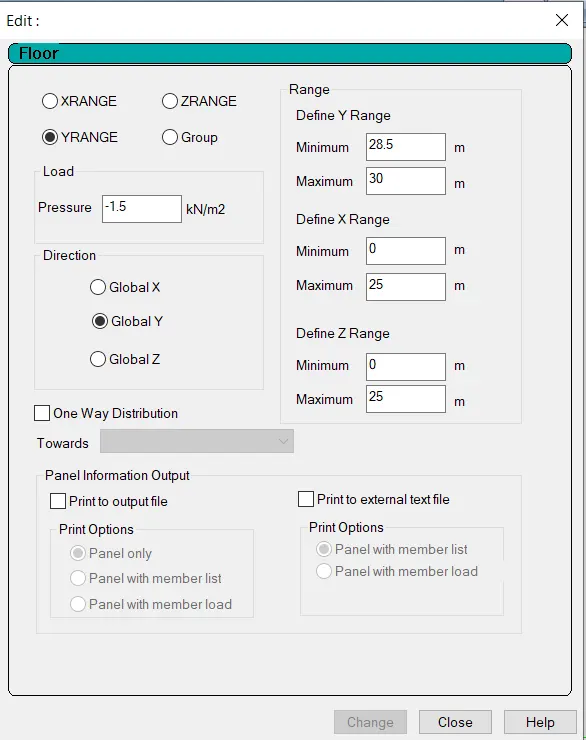

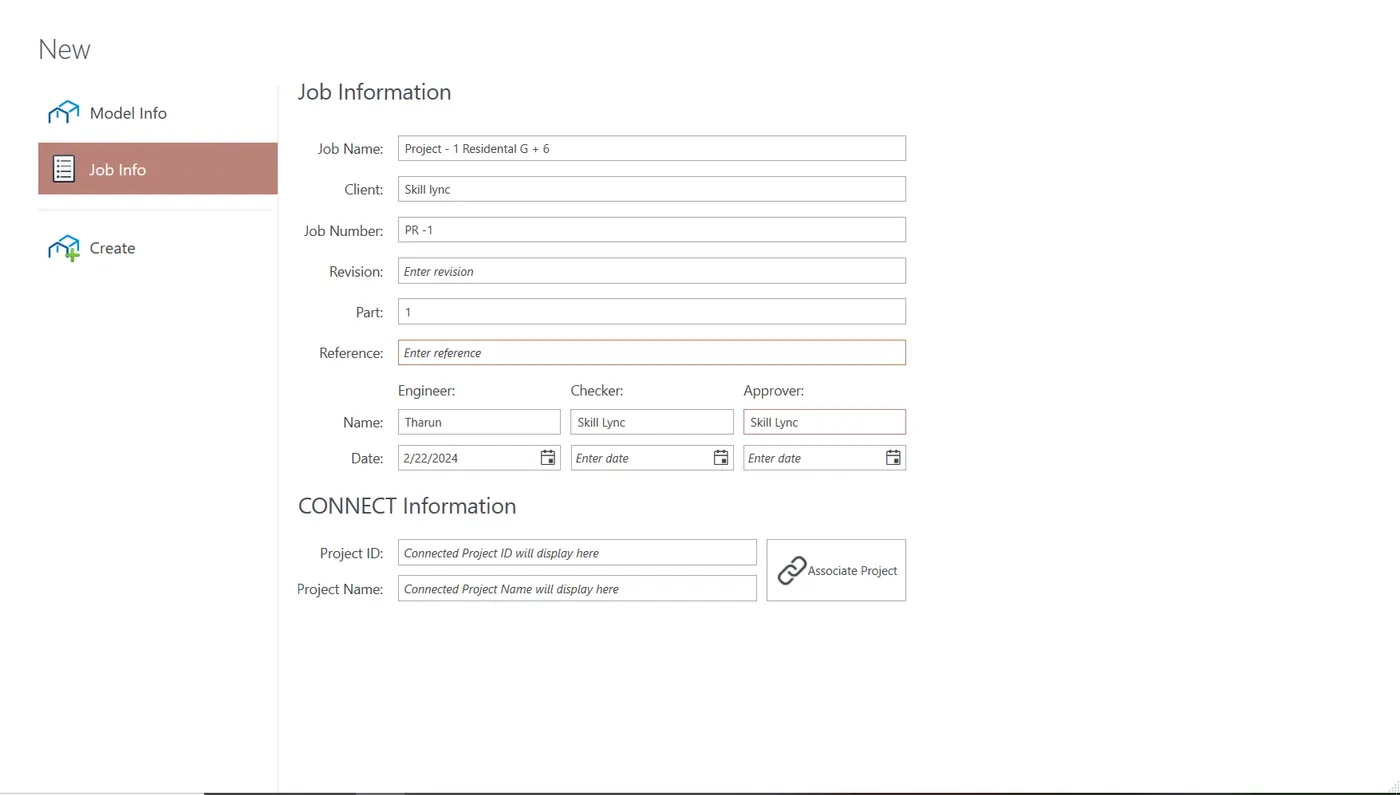

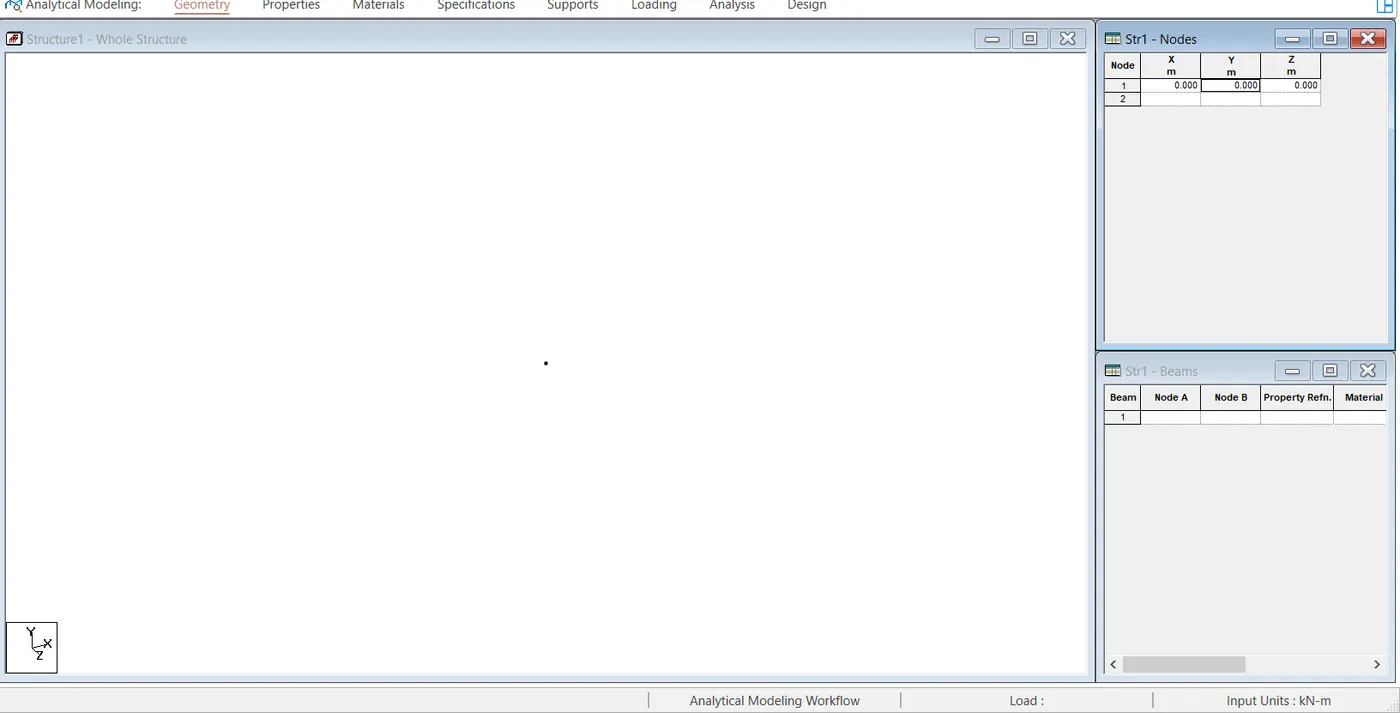

Step -1 : JOB Infromation.

MOdel Information:
