Project 1

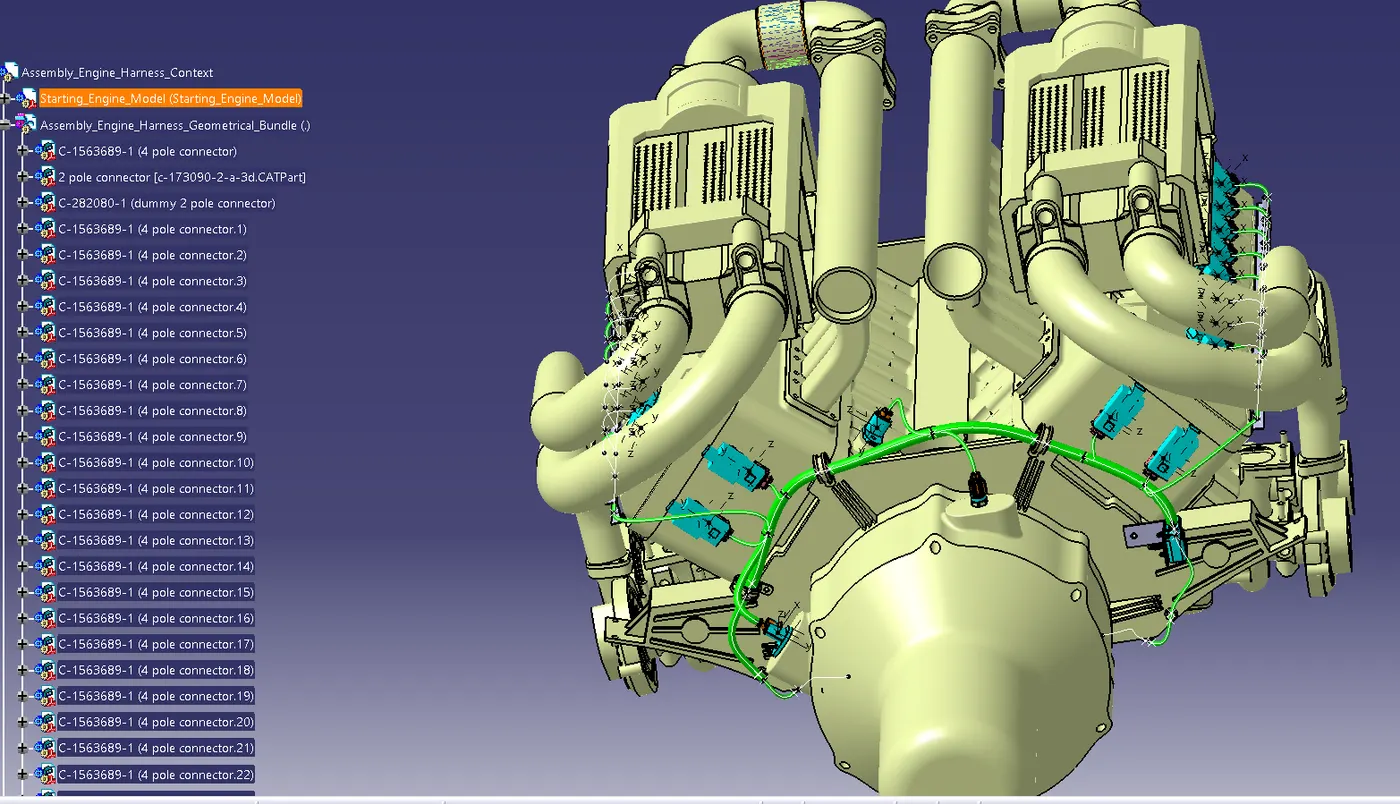

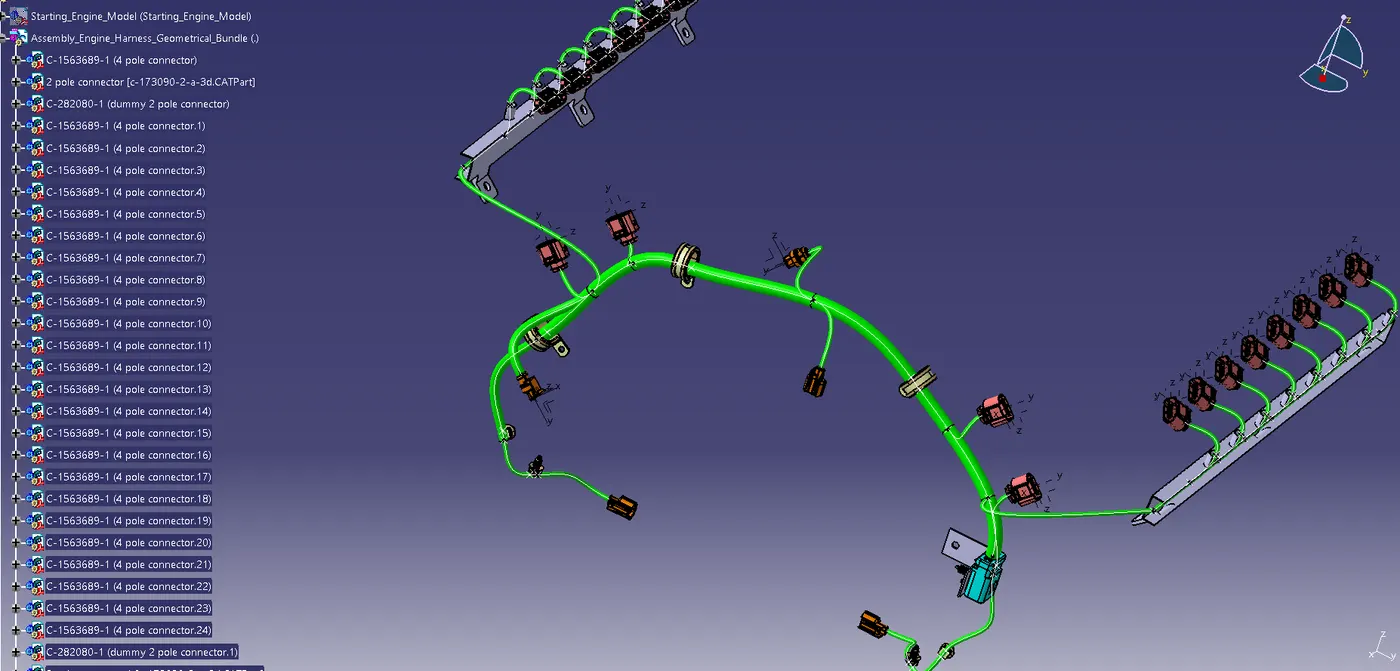

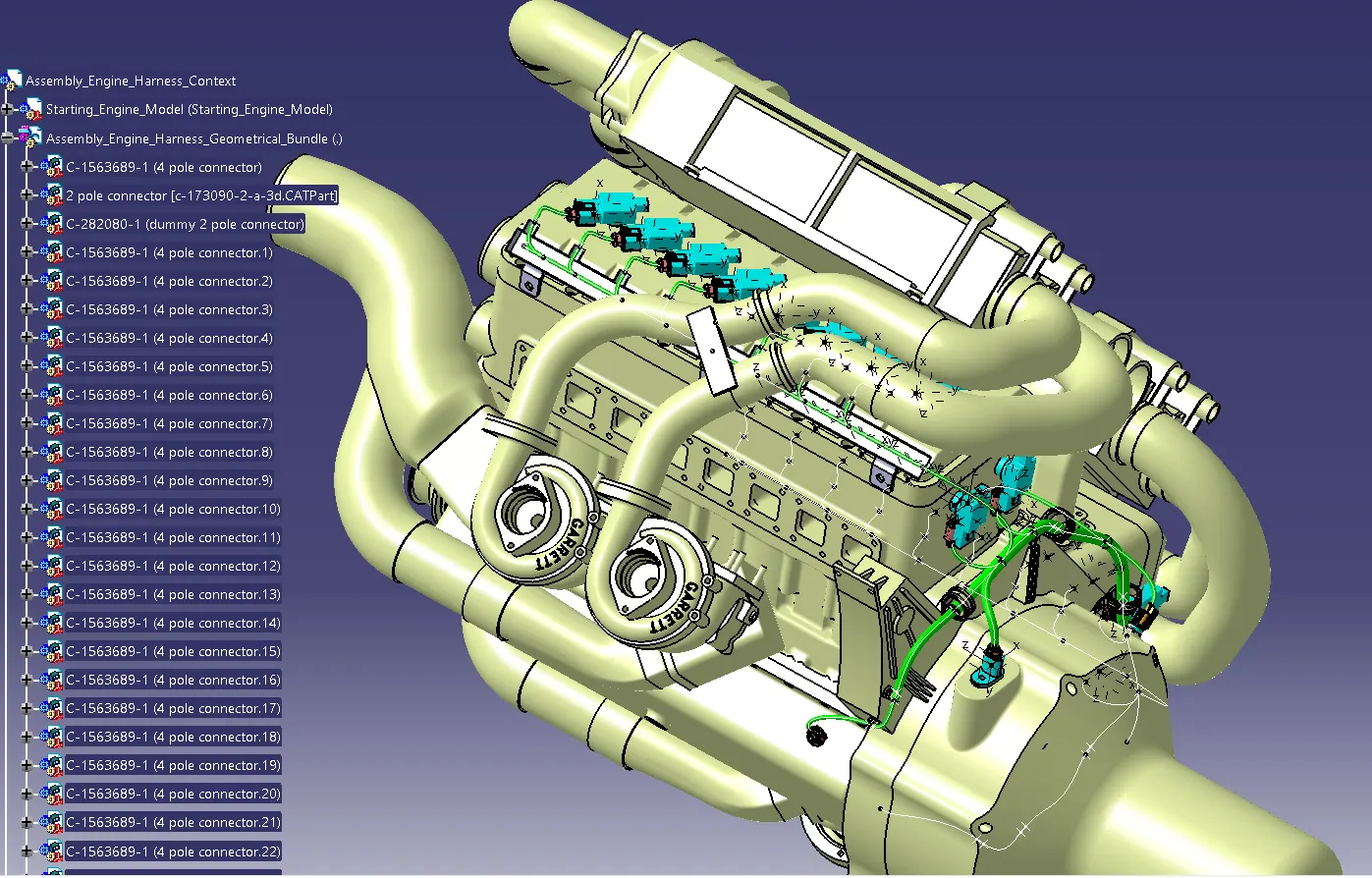

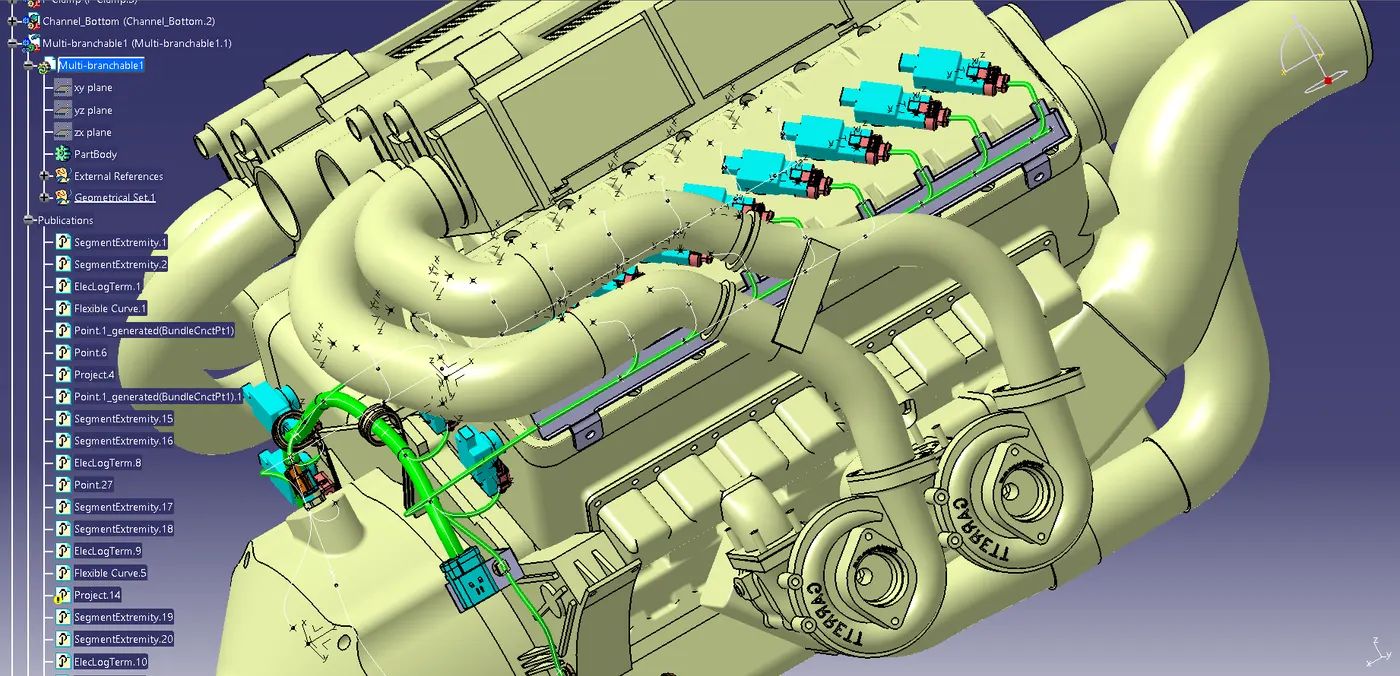

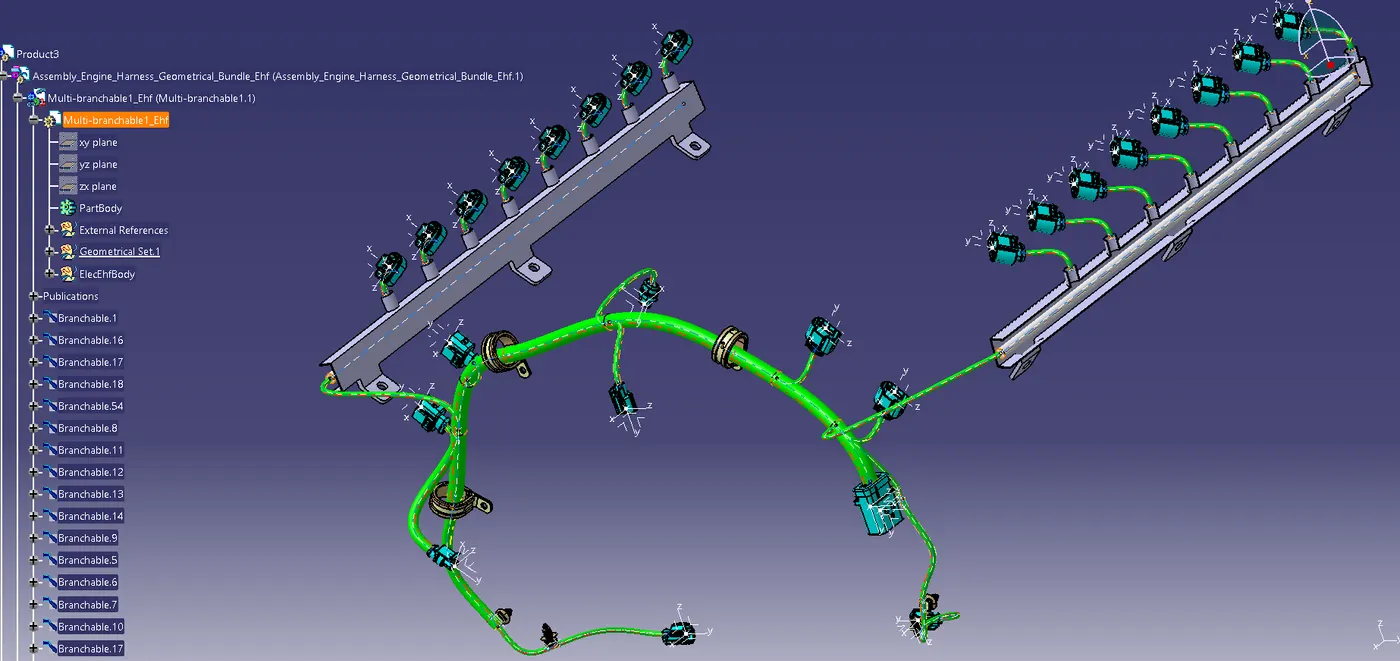

1. wiring harness is routed on given engine.

2. Application of all Packaging rules, Industry best practices studied in this course are demonstrated in the design of this challenge.

3. available connector data is used from te.com.

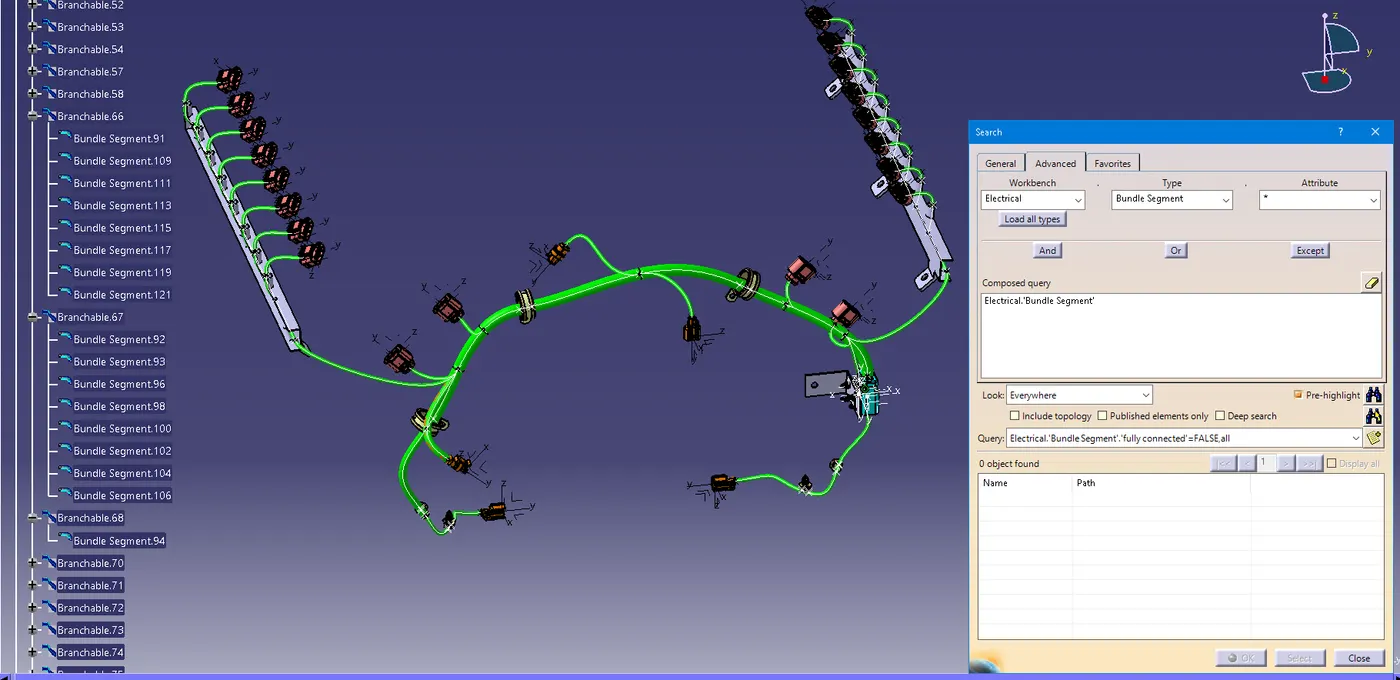

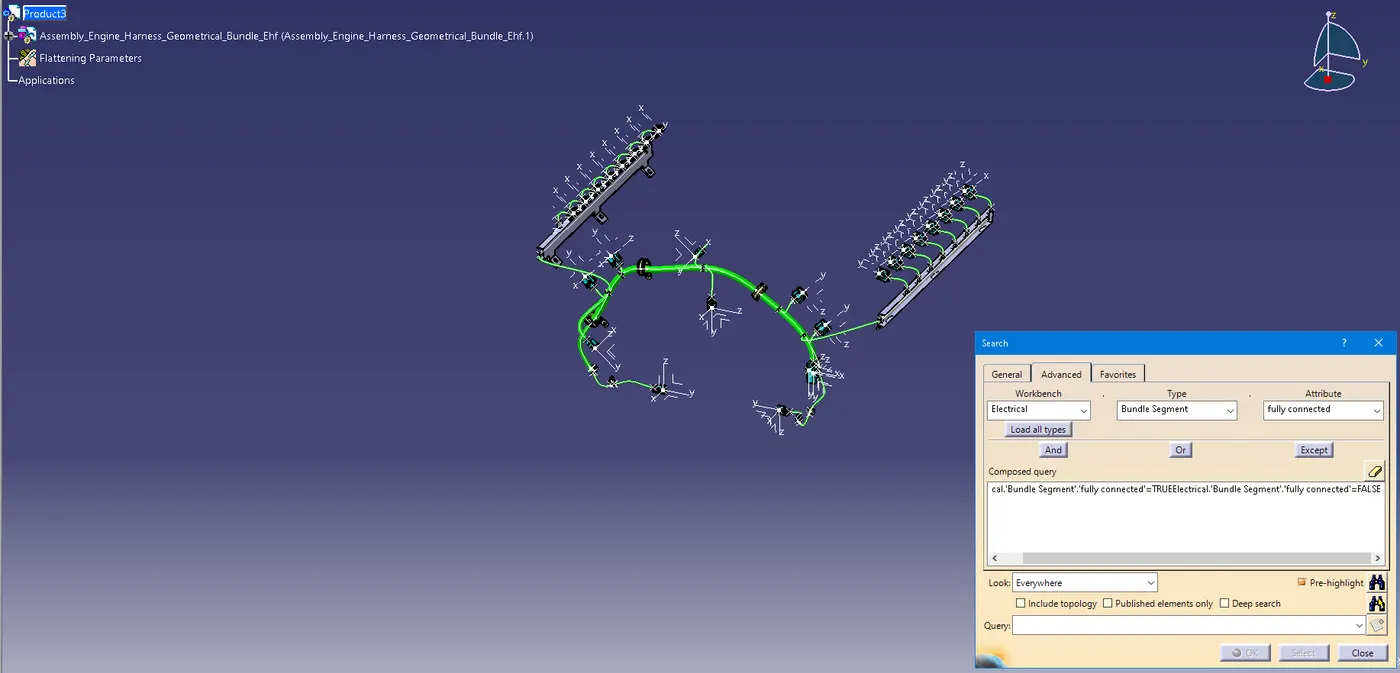

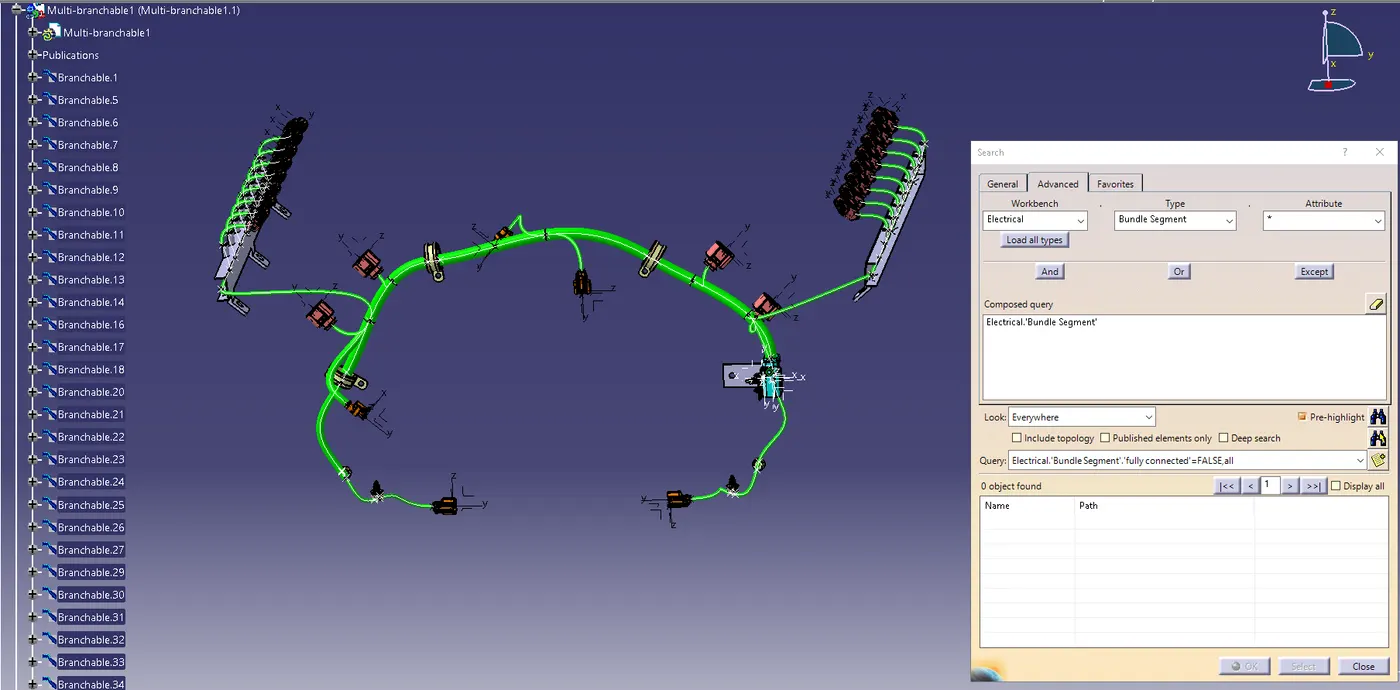

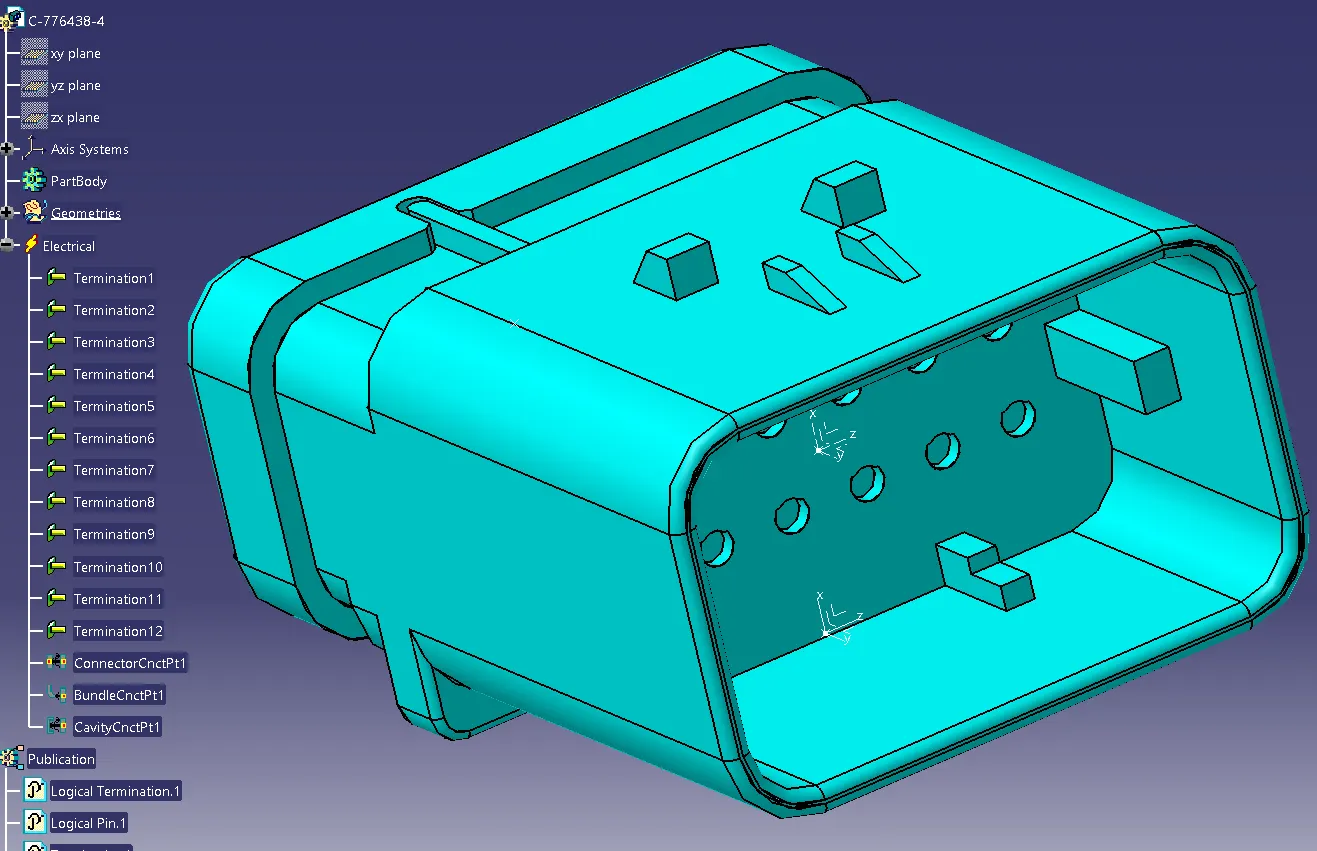

4. harness continuity is checked where bundle segment connections FALSE list is empty. hence all connections are proper.

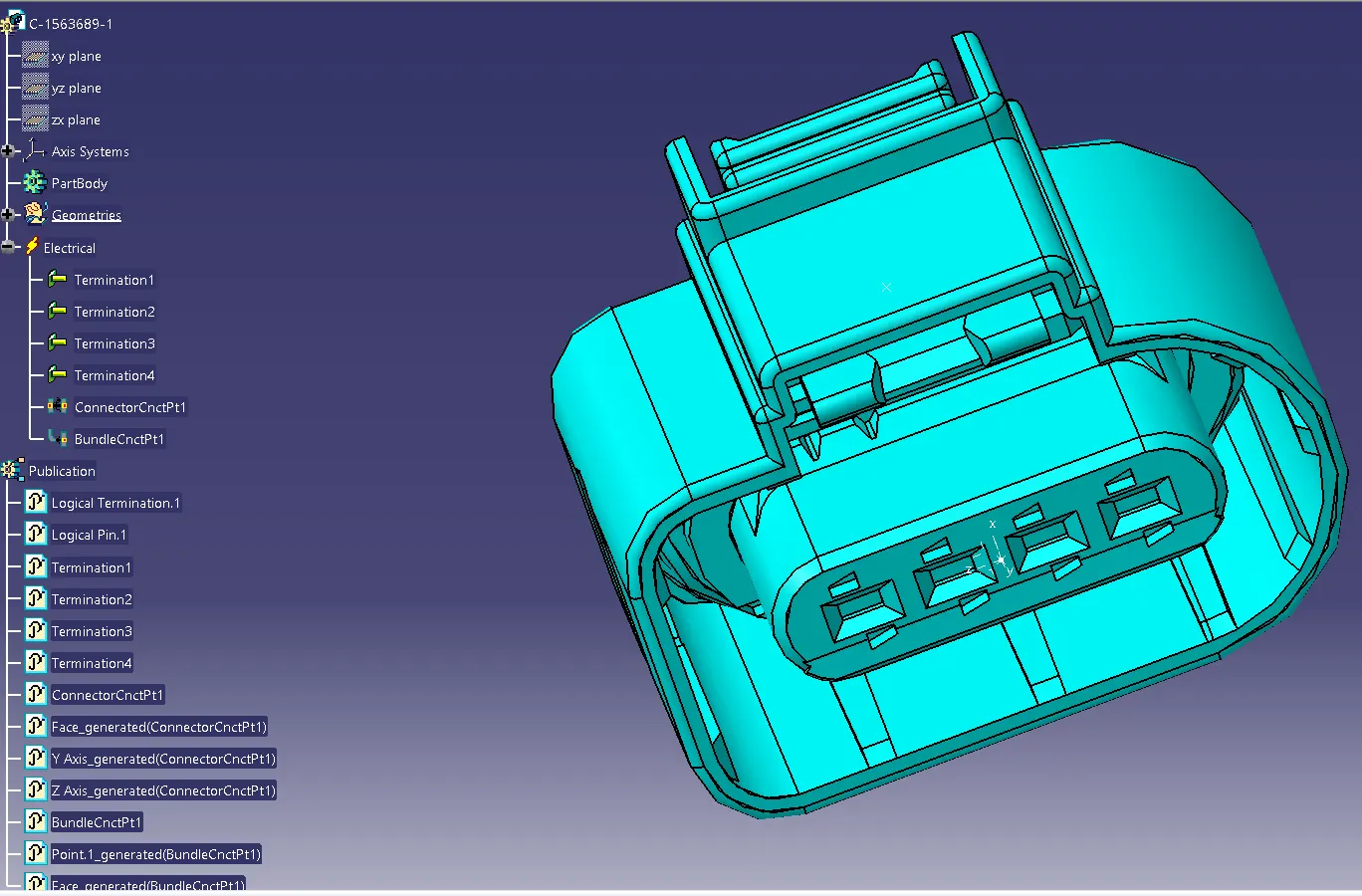

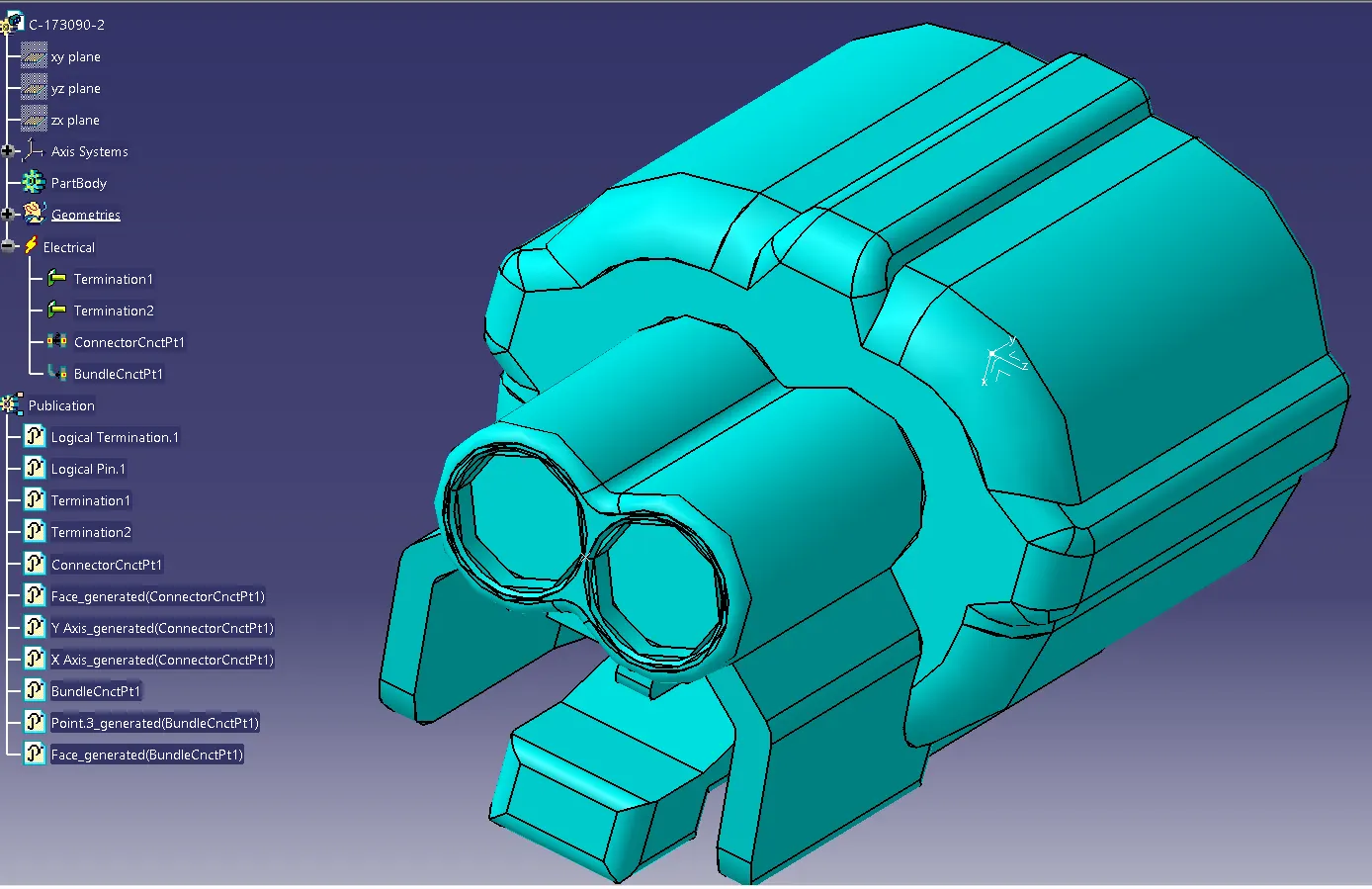

5. connector connection points and bundle connection points are defined properly for each connector.

6. all connectors are used according to the challenge videos.

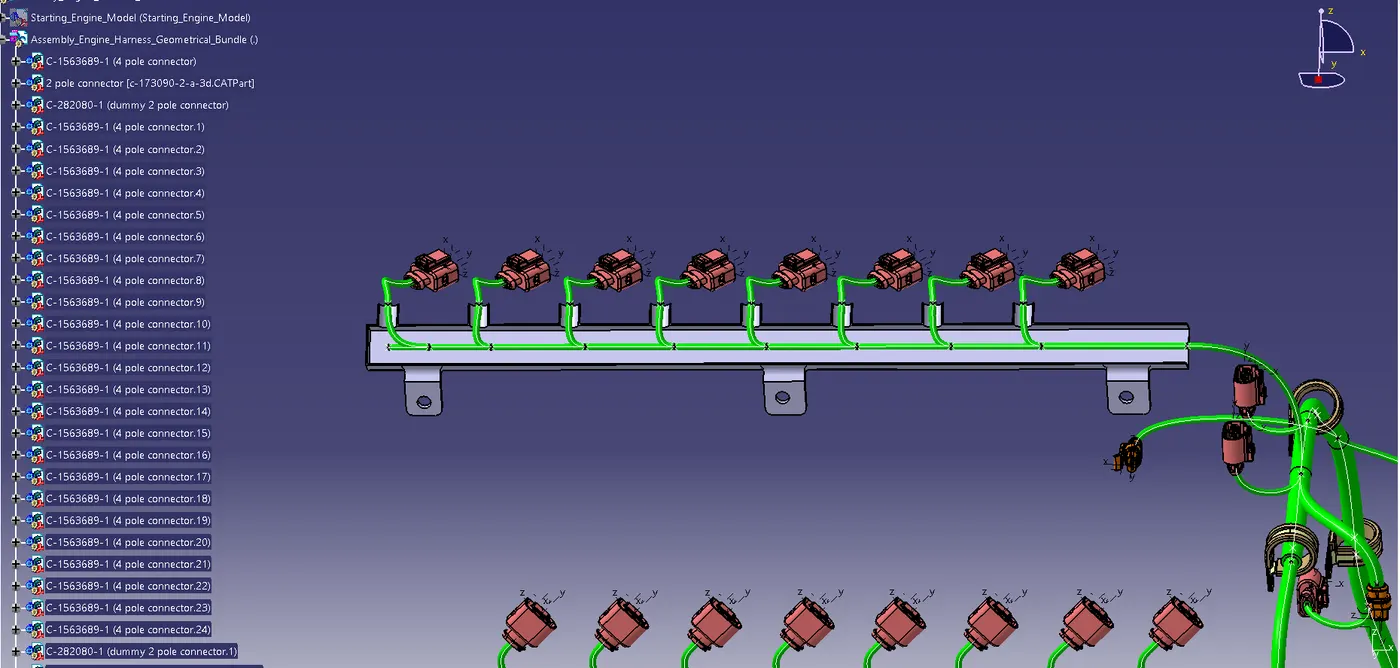

7. all connectors are placed properly at appropriate locations.

8. connecto=ion bundle harness is also applied properly with appropriate slack definition and diameters.

9. the routing point connections are proper.

10. electrical harness flattening assembly is made.

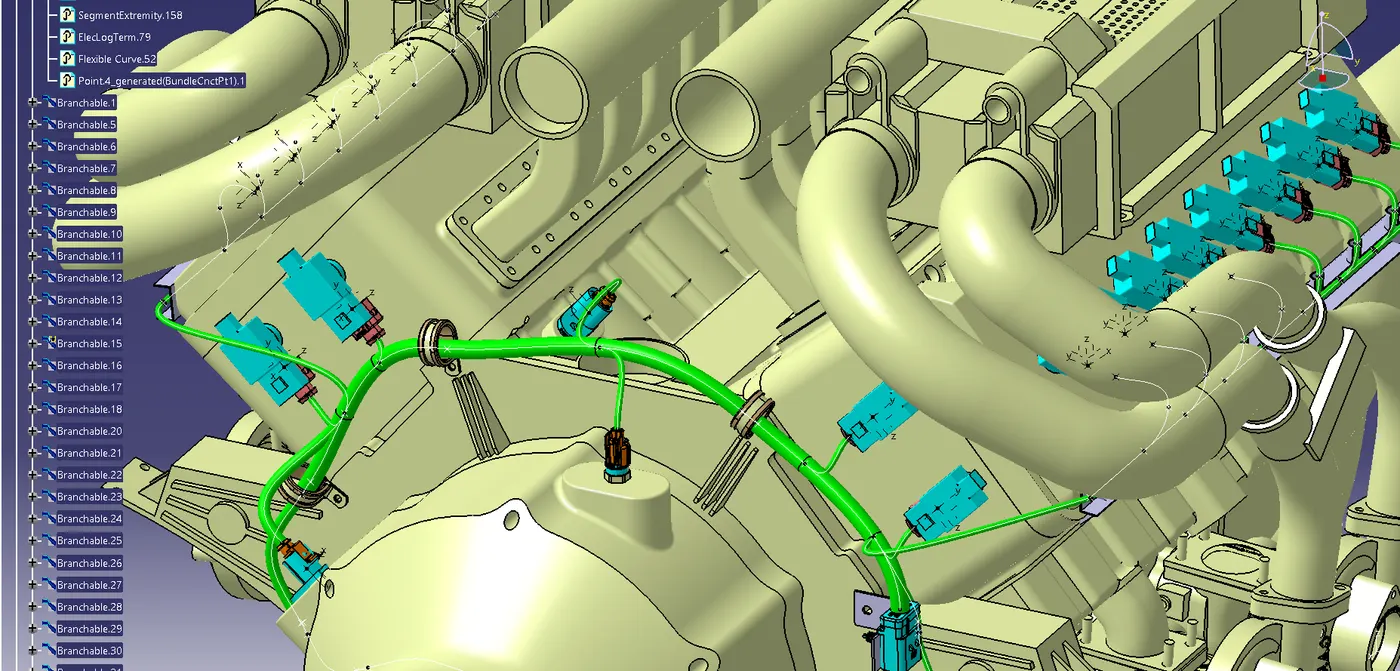

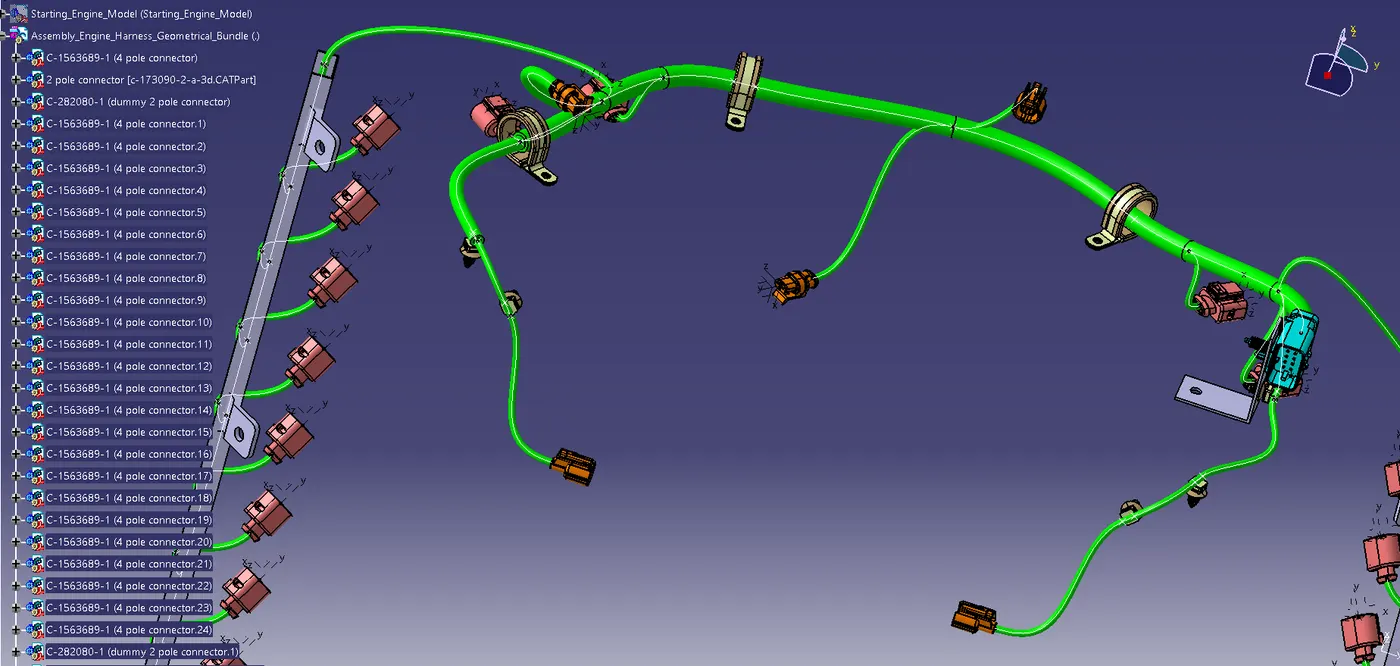

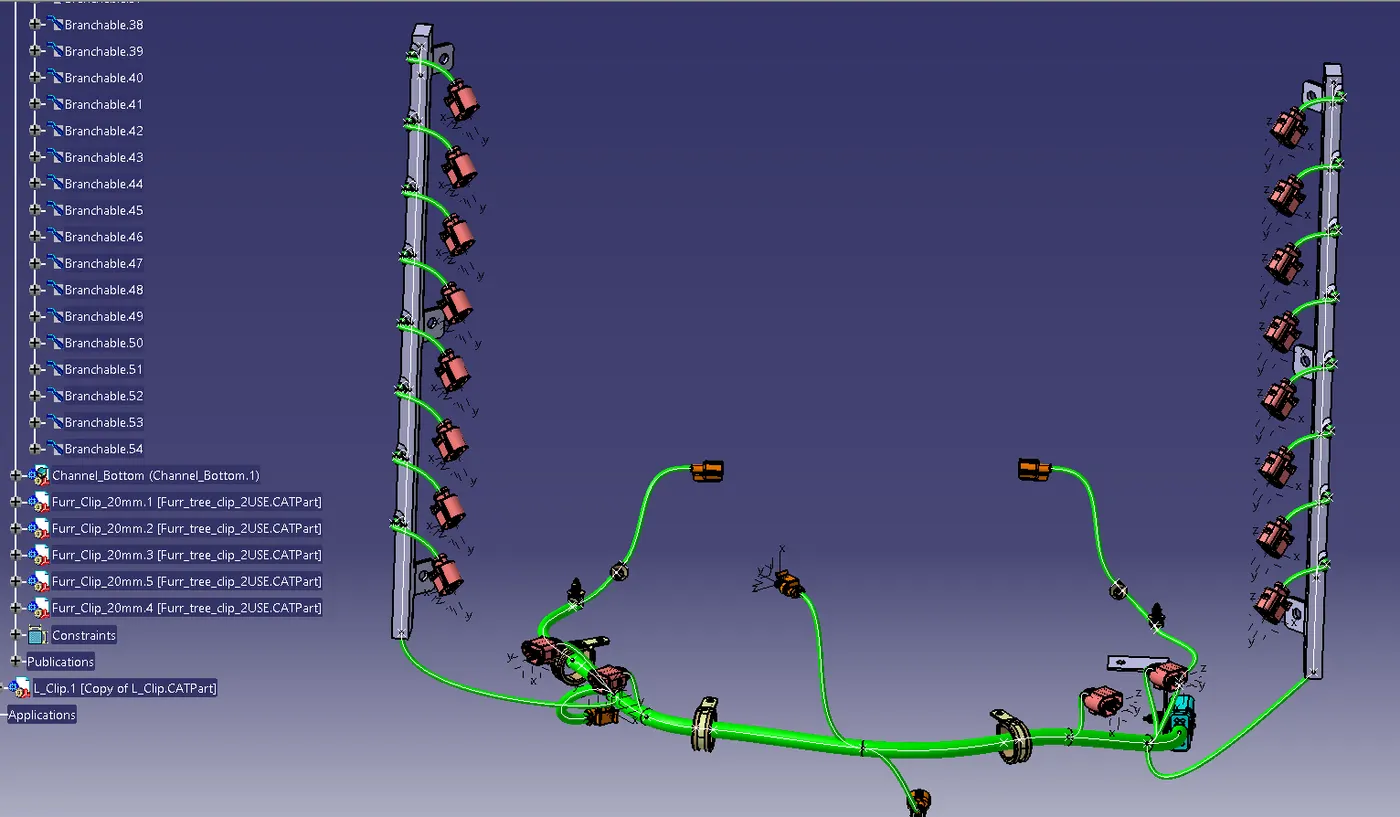

11. P clamps, fur tree clips and L clips are used at proper places.

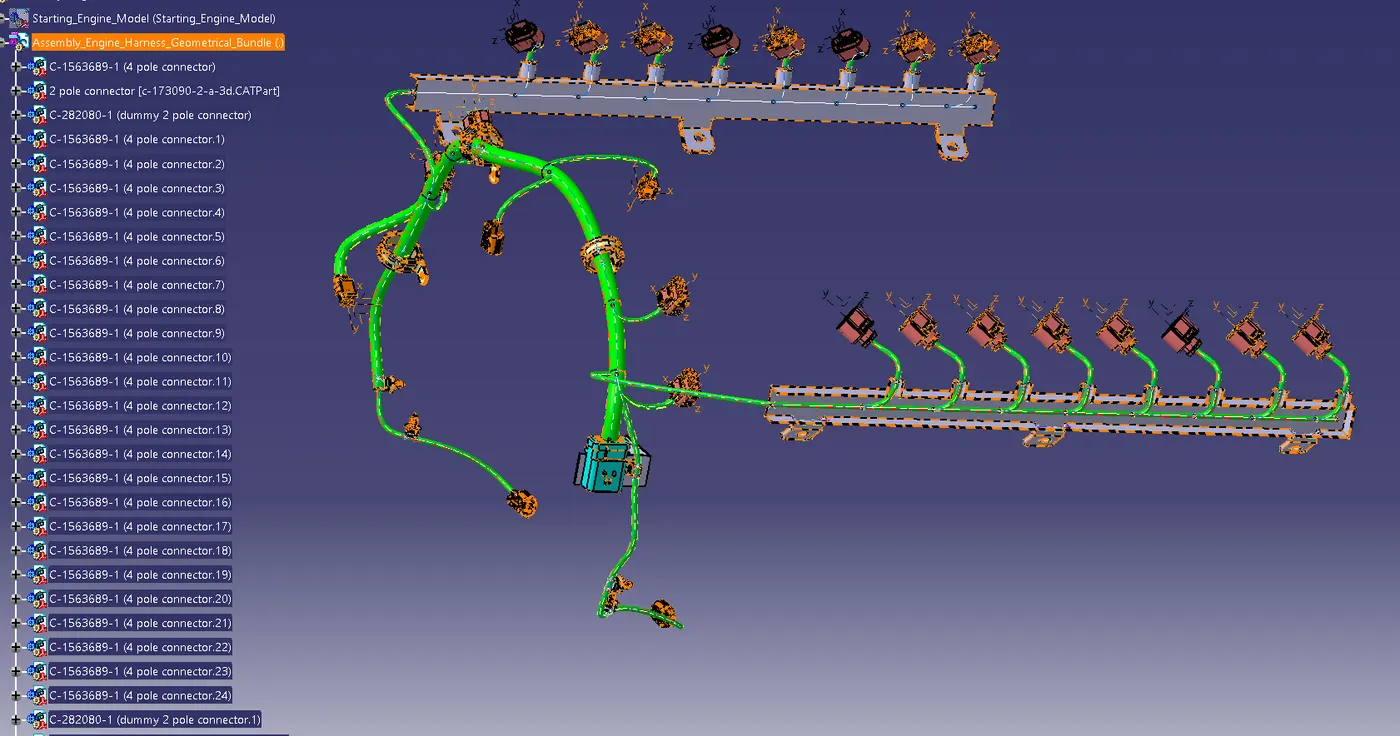

12. the mechanical components were defined electrically and catalogue was made.

13. Provide proper routing of bundle without interference was prepared and also provided support parts like clips and clamps.

screenshots and files are attached.

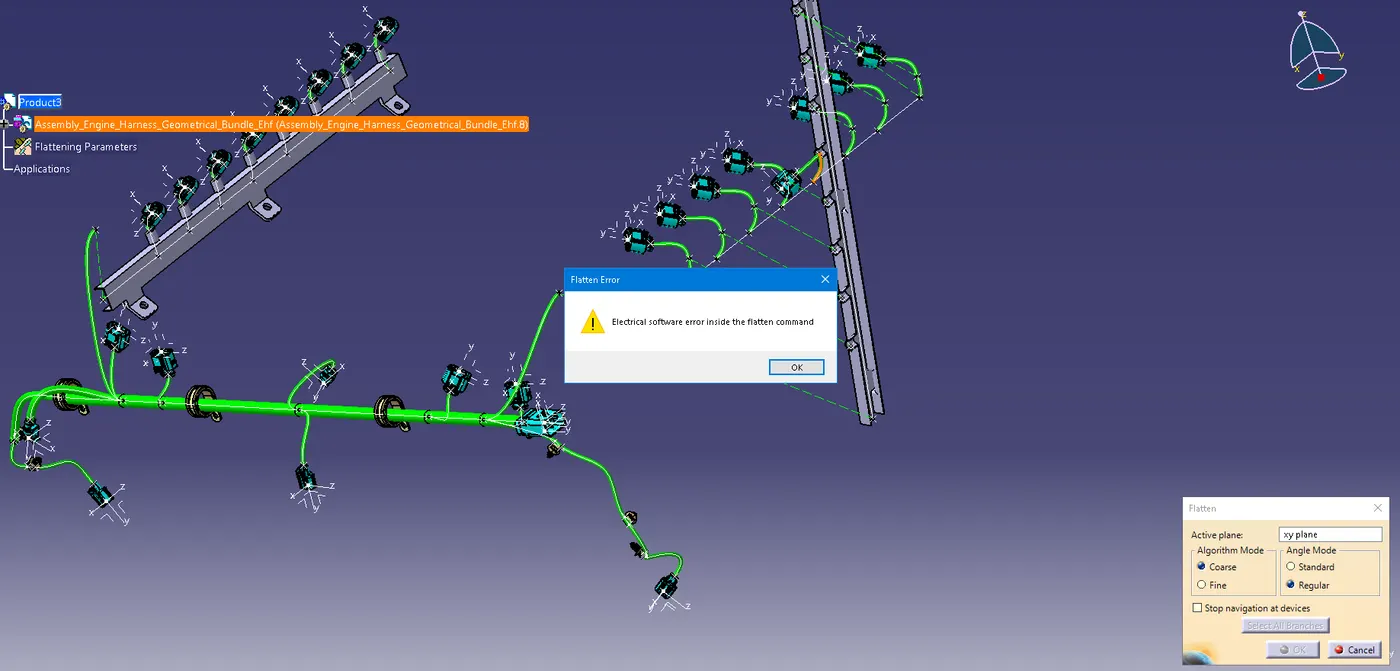

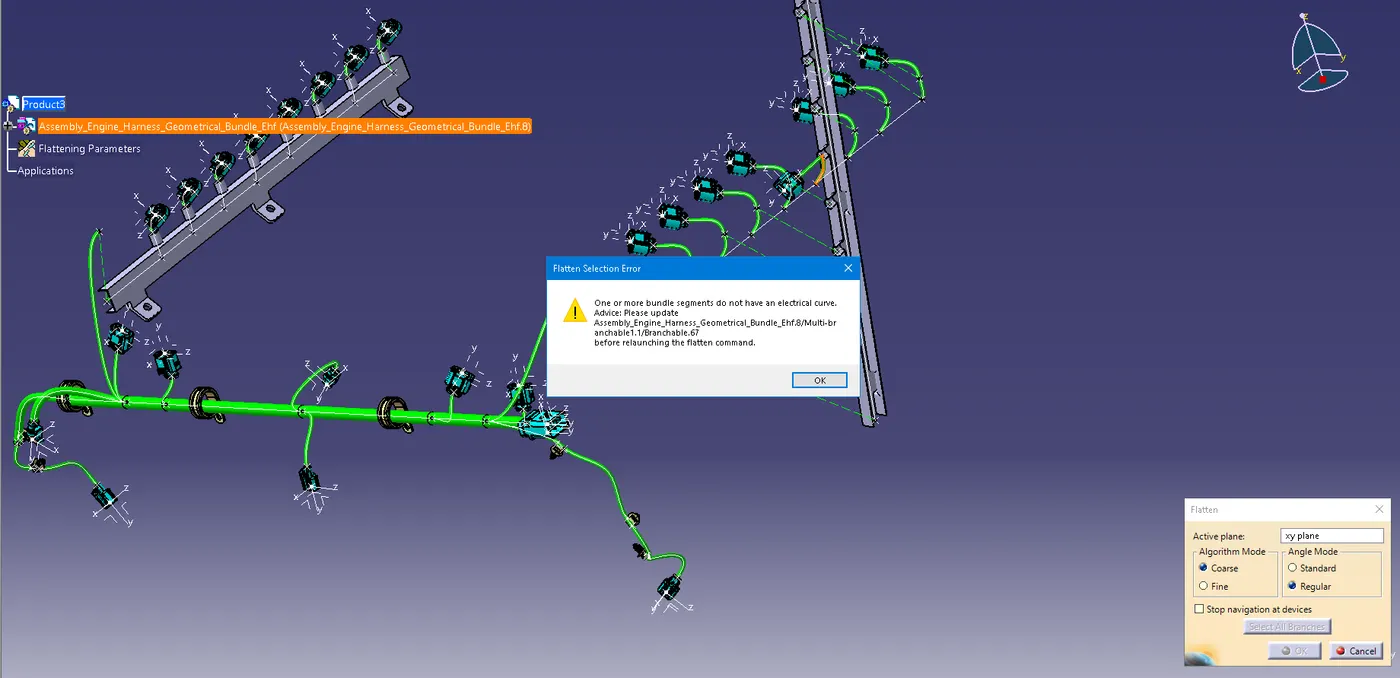

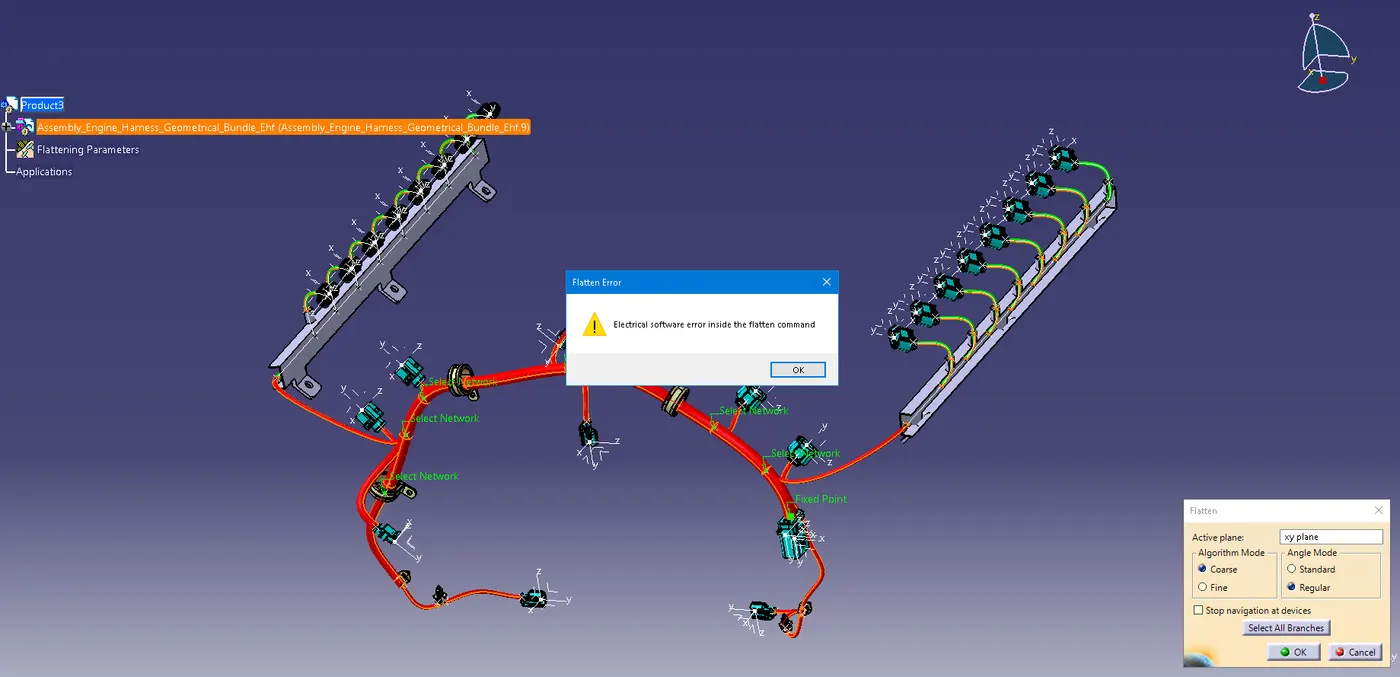

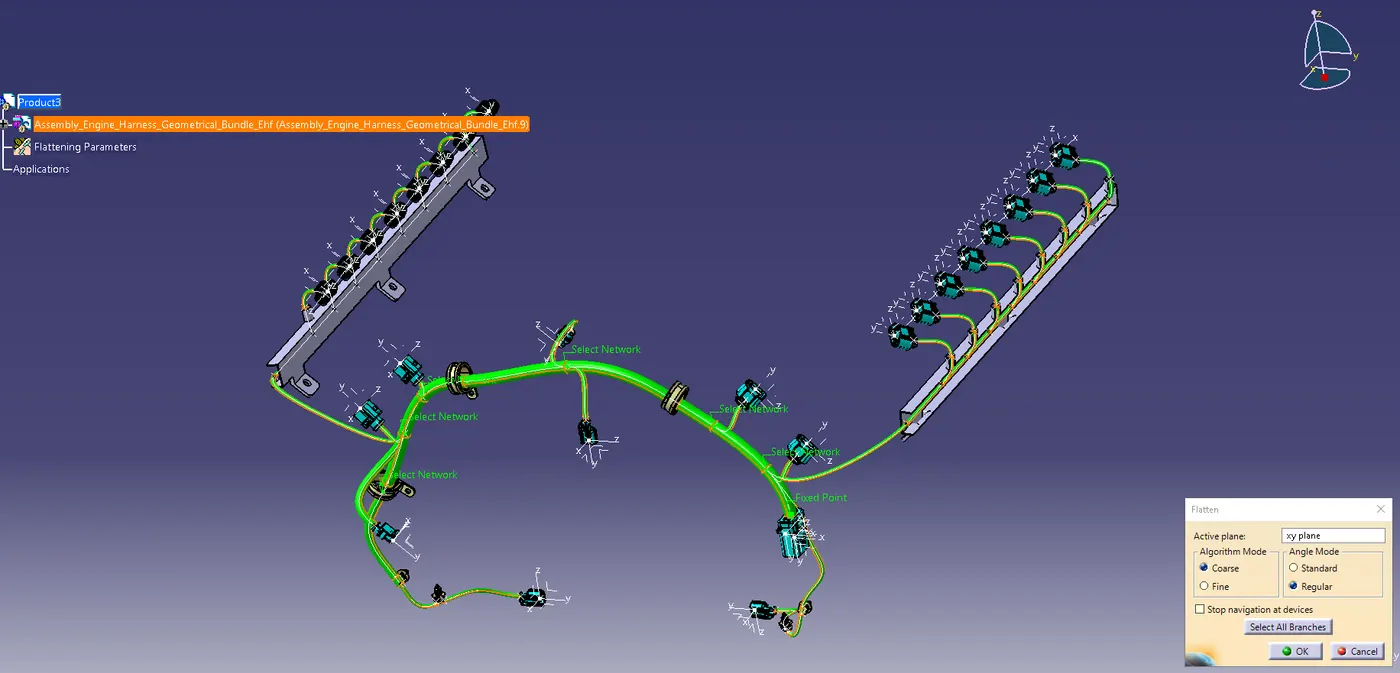

problem while using the flattened command:

1. selecting all branches selects all branches of the harness assembly.

2. still there is some software glitch.

3. the bundle connections to the channel is proper, but it still is not flattened by the command.

4. routing definition to the channel was also modified and checked, but the error was persistent.

5. after multiple discussion in the live sessions, engineer suggested me to submit as it is, without risking any marking shortage.

screenshots are attached.
