Project 1:

The Cad provided is a IGS file without any history. It is front row back foam. Use Under build / Over build technology. Make use of the foam terminology. Make foam parametric and use standards for making the parts.

1 – The Complete design should be parametric.

2 – Use Best Practices as Explained.

3 – Use of best practice and maximum use part design.

The Cad provided is a IGS file without any history. It is front row cushion foam. Use Under build / Over build technology. Make use of the foam terminology. Make foam parametric and use standards for making the parts.

1 – The Complete design should be parametric.

2 – Use Best Practices as Explained.

Estimated Hours to complete the Part : 9 hours

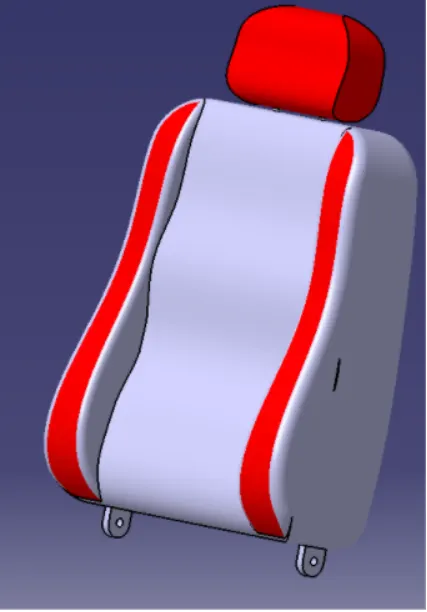

Making of seat back:

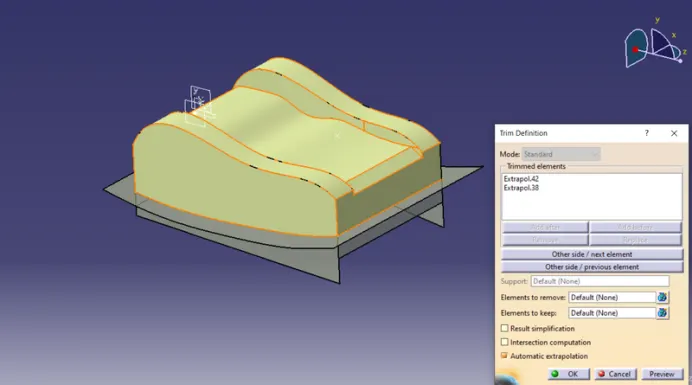

In this case we've got provided with dump solid of seat back and head rest so we'll have to creatte sto then we'll have to create the solid foam so for that i extracted the surfaces of the dump solid and repair some dameges over the surfaces then i've created sto

Creating H-point:

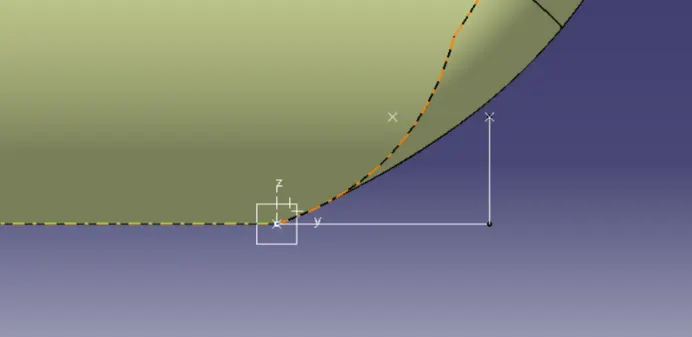

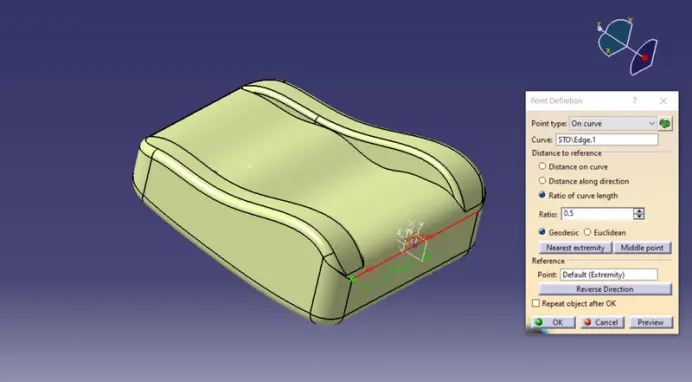

To create the H-point i've created point over the curve then i've created lines from that point in 40 mm length and 20 mm height

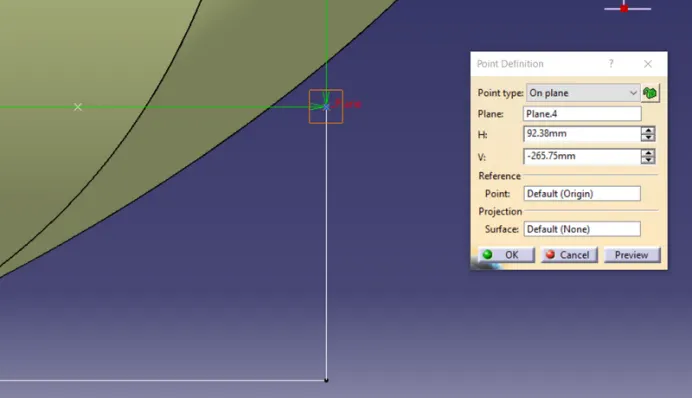

Then i created another point over edge of the line and i created with plane as well so that's our H-point

So, eventually we've got a complete surface body of the foam

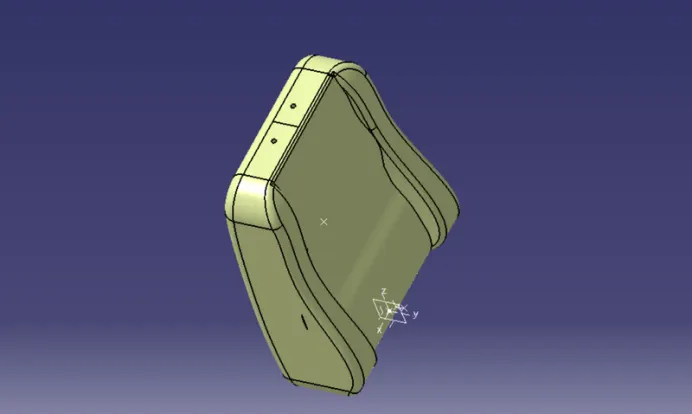

Then i created the soild foam

Making of seat lower part:

Then whatever methods i followed for create seat upper part same thing i applied for the seat lower part as well

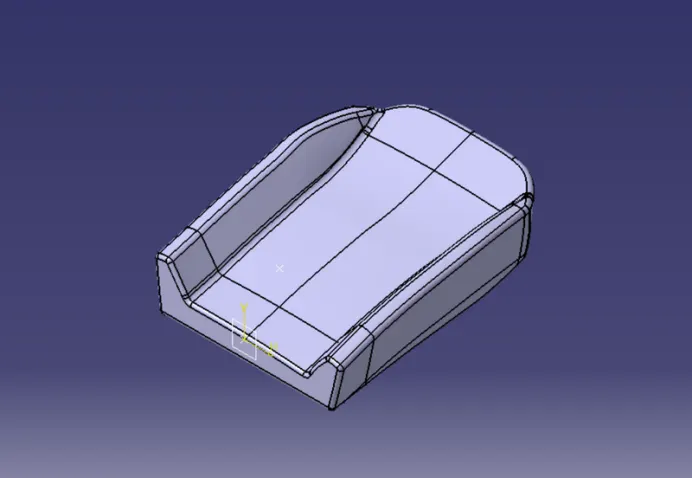

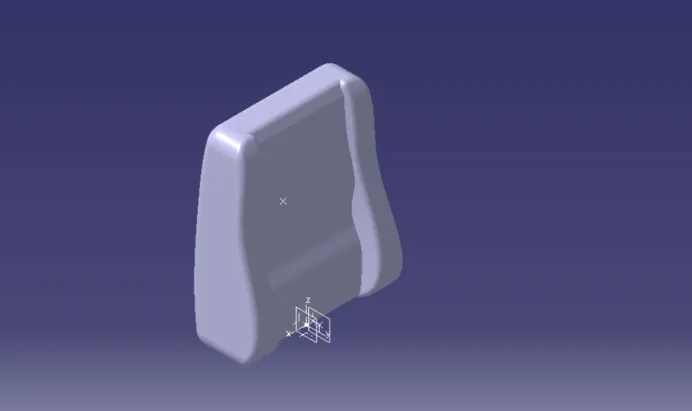

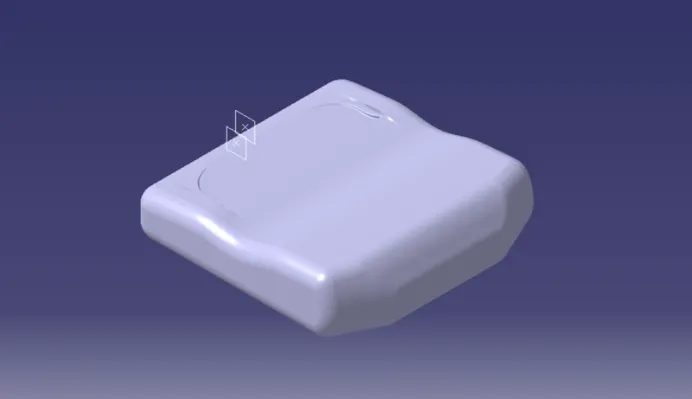

STO:

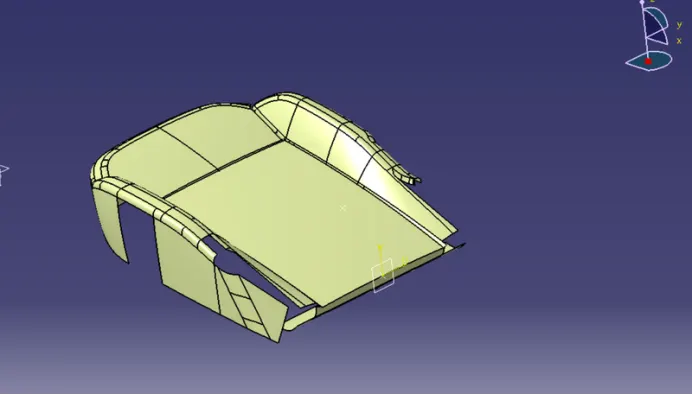

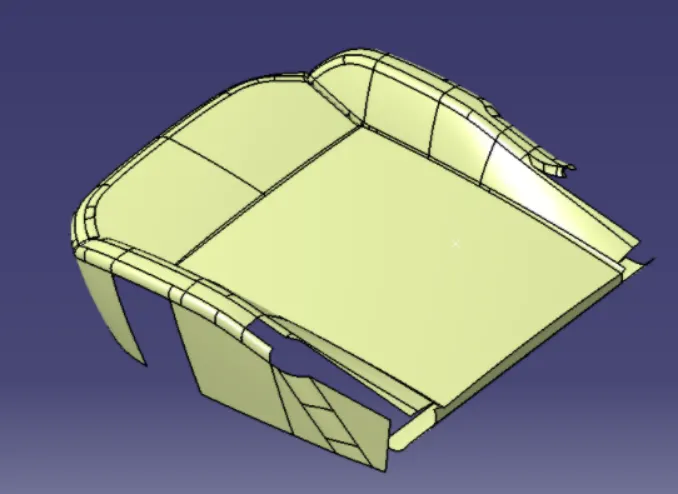

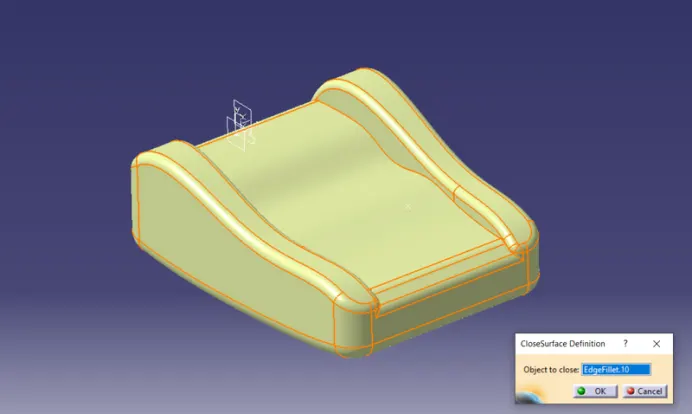

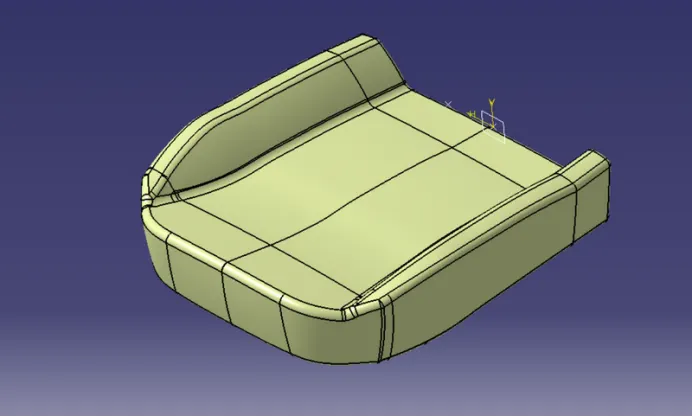

SURFACE BODY:

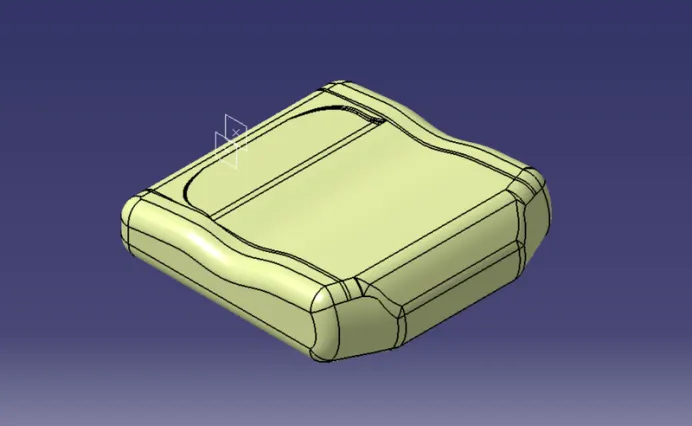

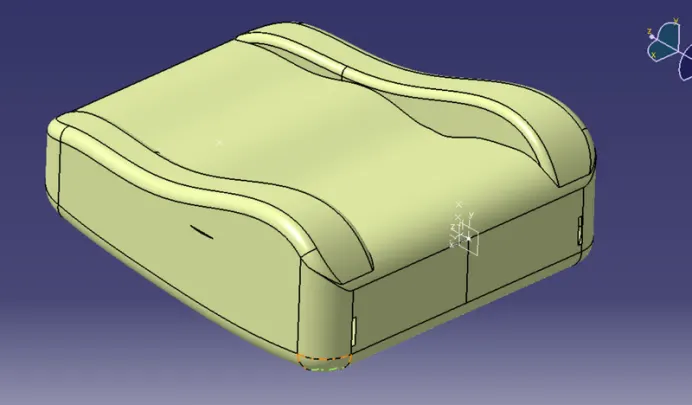

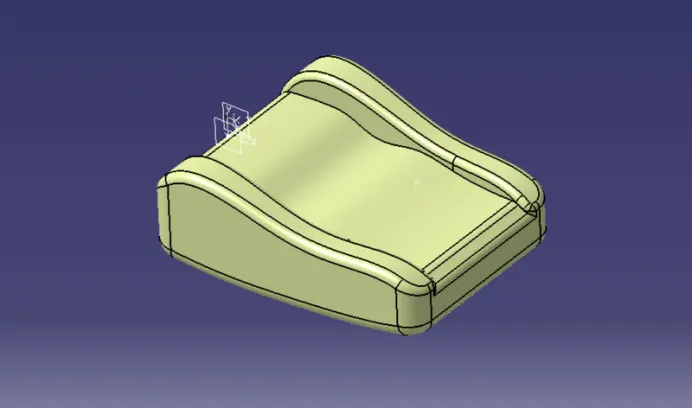

SOLID FOAM:

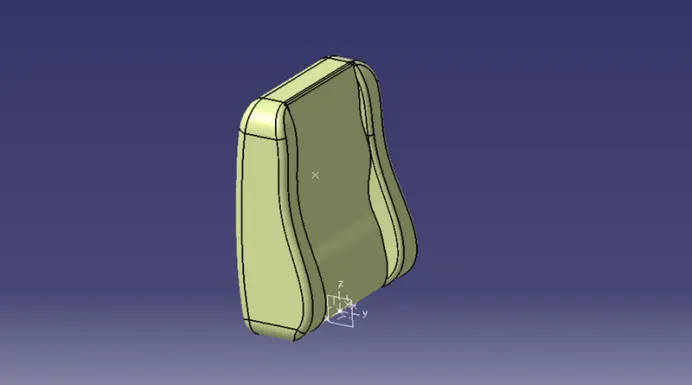

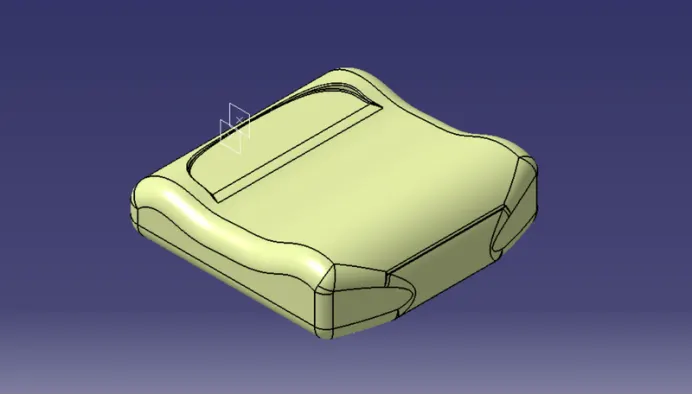

SOLID FOAM:

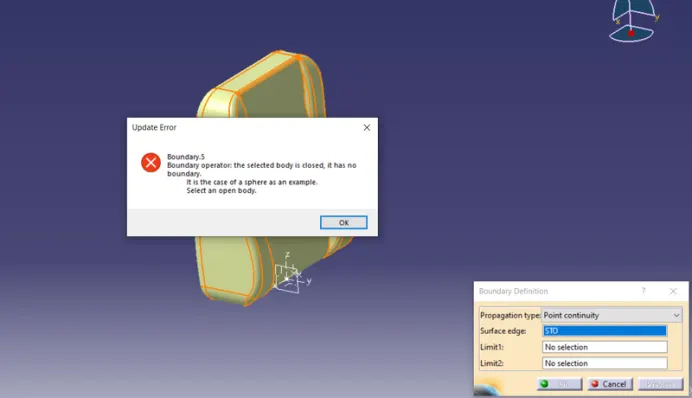

Making a solid foam from Unproper sto:

Given data:

FOAM BODY :

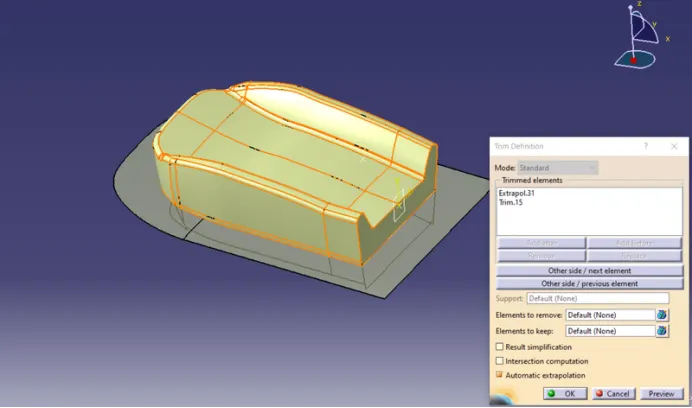

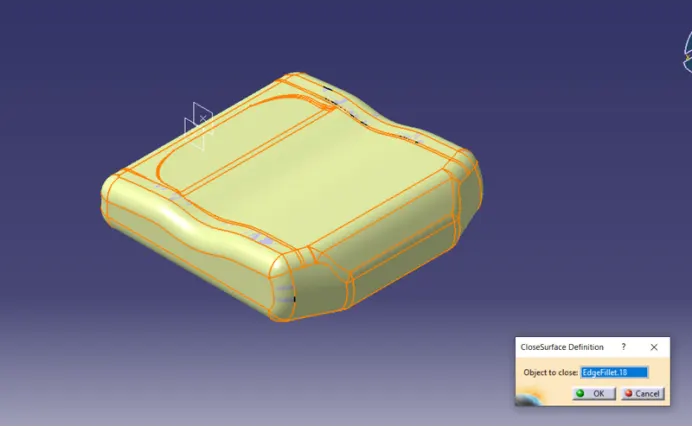

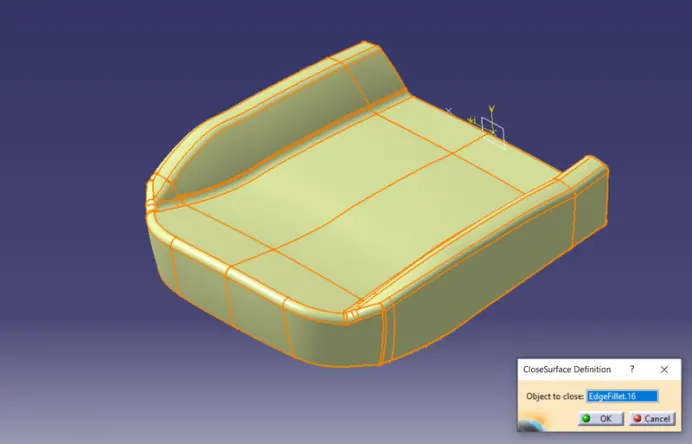

CONVERTING SURFACE BODY TO SOLID BODY :

SOLID BODY :

CONCLUSION:

By working on this project i could learn plenty of things about seating design and seating design terminologies as well.
