Project 1

PROJECT-01: Prepare a Plan to contruct a Bridge which will 6 days working calendar and WBS like Identify the Problem, Determine Constriants, Analysis of Design, Design Refinement, Implement Plan, Construction, Pre-streseed concrete, Final Step and Testing & inception.

• KEY HIGHLIGHTS

A- Create a Calendar:

We have created 2 calendar for this project.

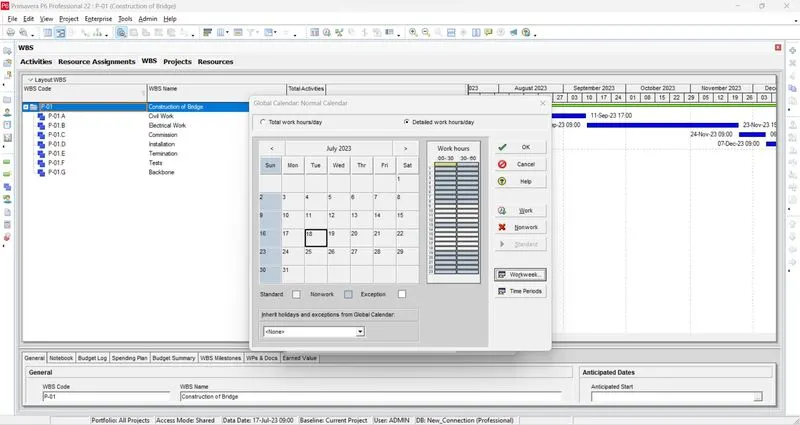

1. Normal Calendar:

• 6 days workweek
• 9:00 AM to 7:00 PM (10 hours work timing)
• 1:00 PM to 2:00 PM (1 hour break)
• Total working hours = 9 hours

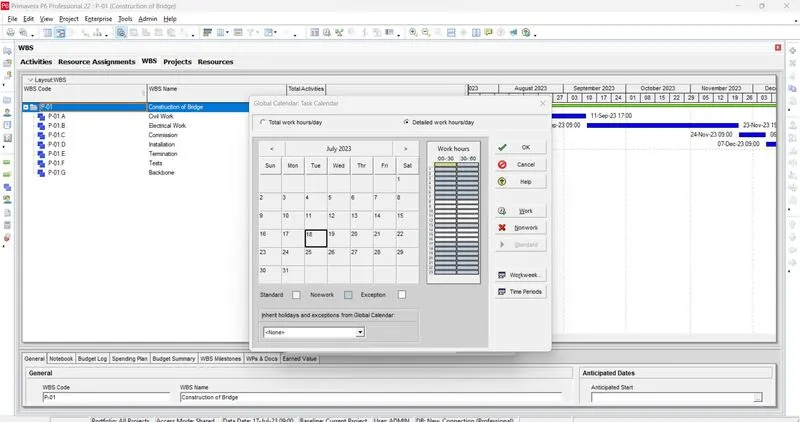

2. Task Calendar:

• 7 days workweek
• 8:00 AM to 5:00 PM (9 hours work timing)
• 1:00 PM to 2:00 PM (1 hour break)
• Total working hours = 8 hours

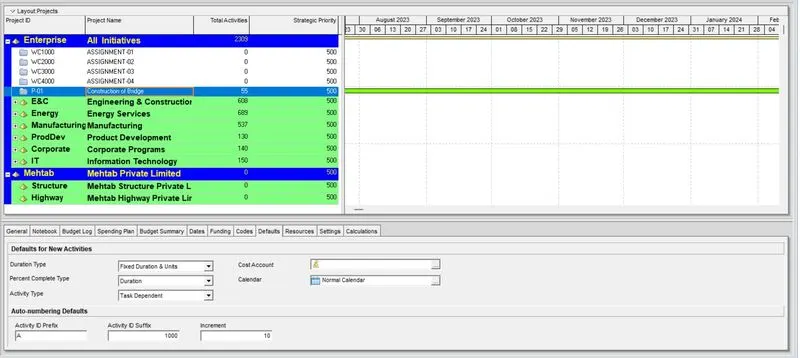

B- Create a Project:

We have created a project

• Project ID :- P-01
• Project Name :- Construction of Bridge
• Total Activity :- 55
• Calendar :- Normal Calendar

C- Create a work package for a project:

We have created 7 work package for the project "Construction of Bridge".

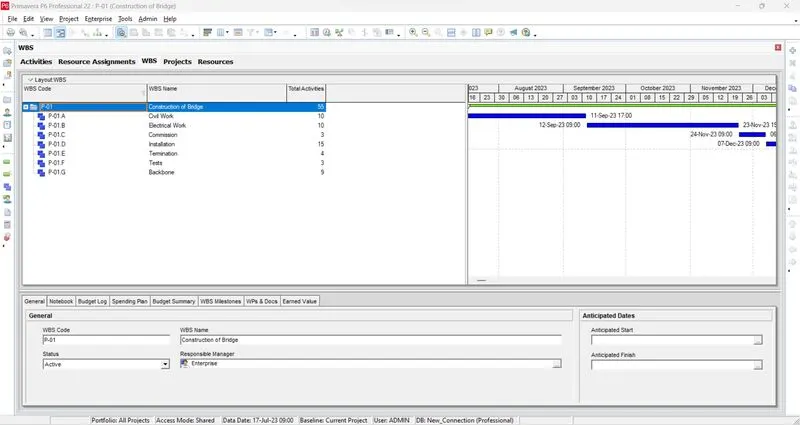

WBS CODE	WBS NAME	TOTAL ACTIVITY
P-01.A	Civil Work	10
P-01.B	Electrical work	10
P-01.C	Commission	3
P-01.D	Installation	15
P-01.E	Termination	4
P-01.F	Tests	3
P-01.G	Backbone	9

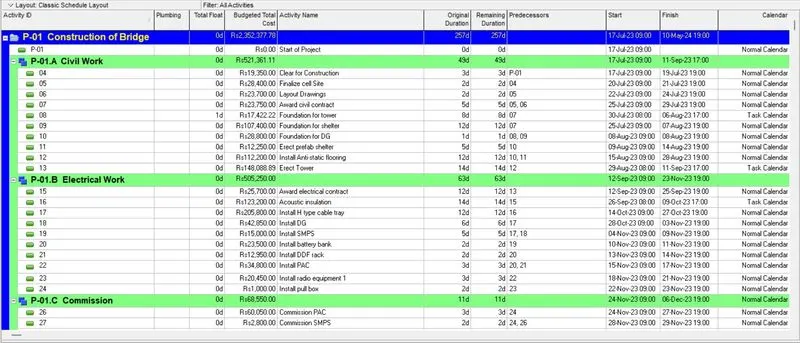

D- Create an Activity:

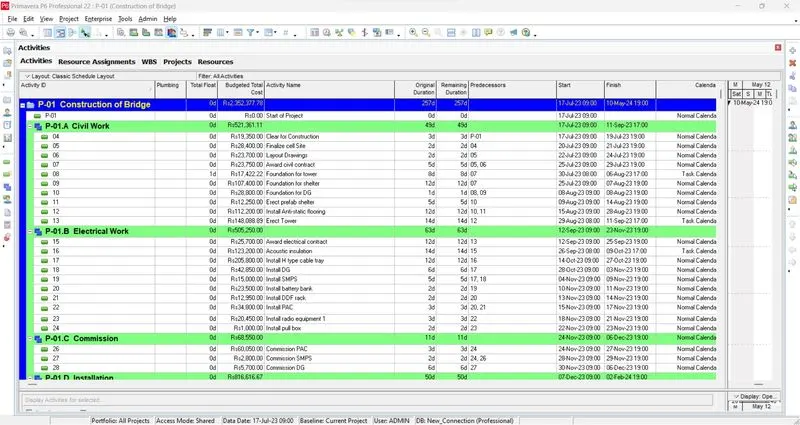

We have created the activity as per given in the question. We have assigned the calendar, predecessors and the resources. After assigning, we have evaluated original duration and budget total cost.

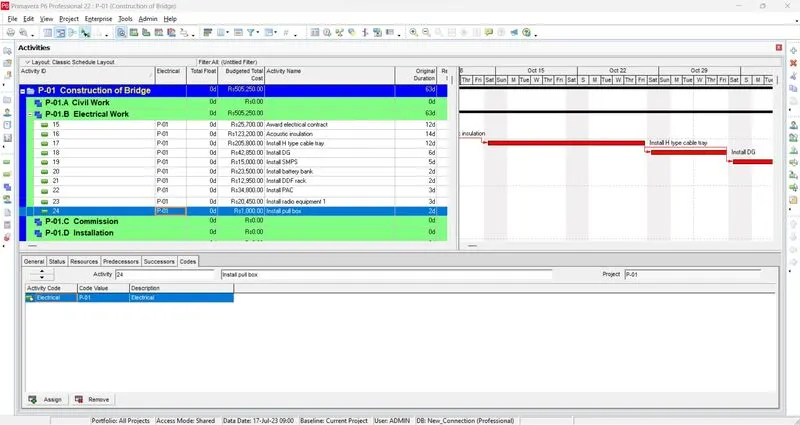

E- Practice Activity Code:

Add activity code to activity, for filtering out the activity which comes under the specific activity code.

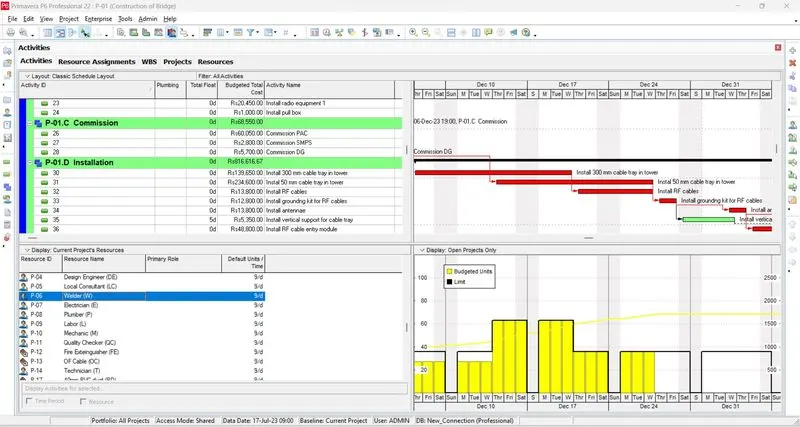

F- Practice Resource Management:

After assigning the resopurces to activity > check the overallocation > if there is any overallocation > fix it with fast tracking or crashing method.

• FINDINGS

1- Find the total duration of project.

Answer: 257 days

2- Find total cost of project.

Answer: 2352377.78 rs

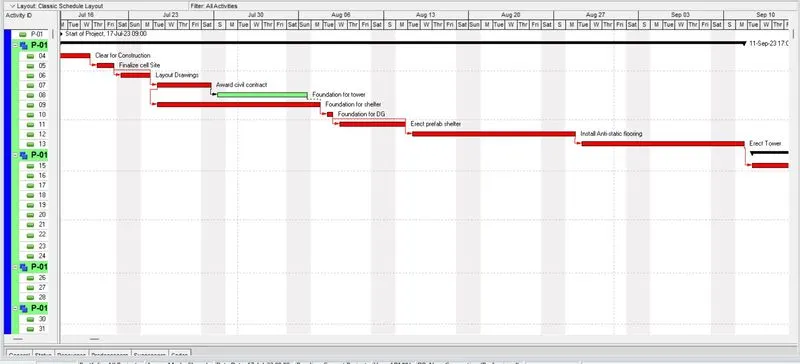

3- Find critical path of the project.

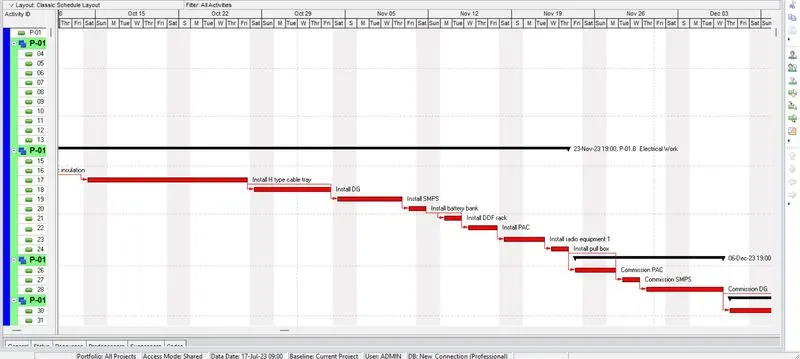

Answer: Red block and red lines represent the critical path of the project.

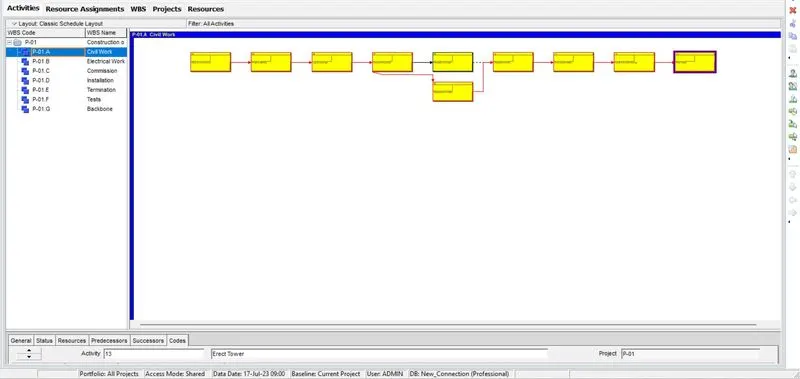

4- Draw the network diagram of the project.

Answer: Yellow block represents the network diagram of the project.
