Project 1

A portal frame has following details:

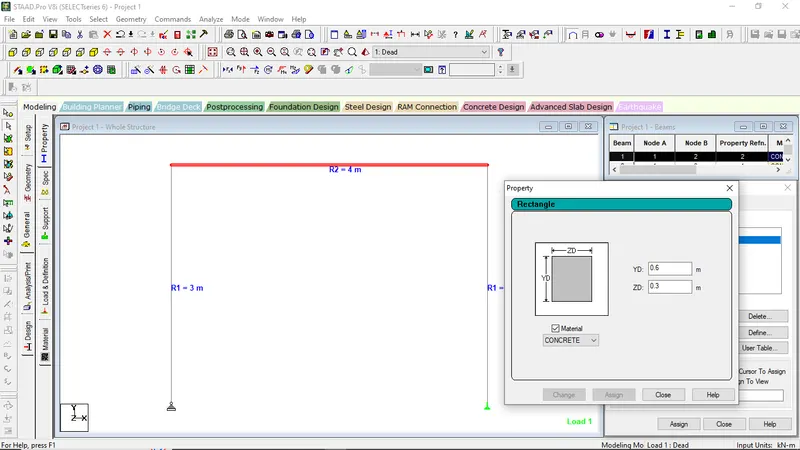

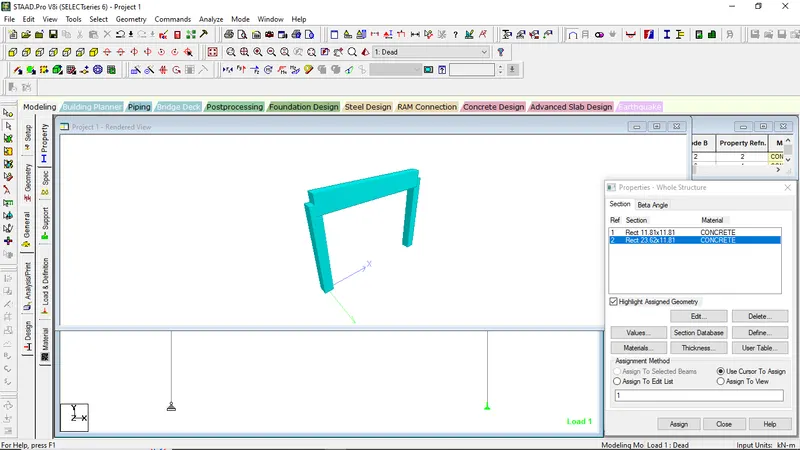

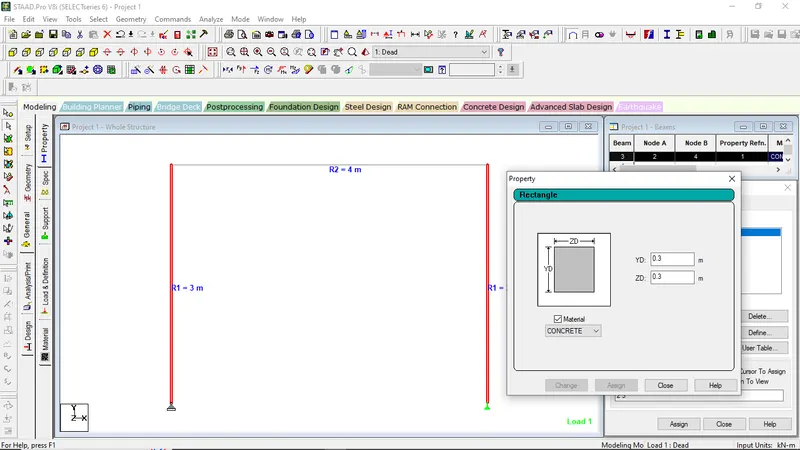

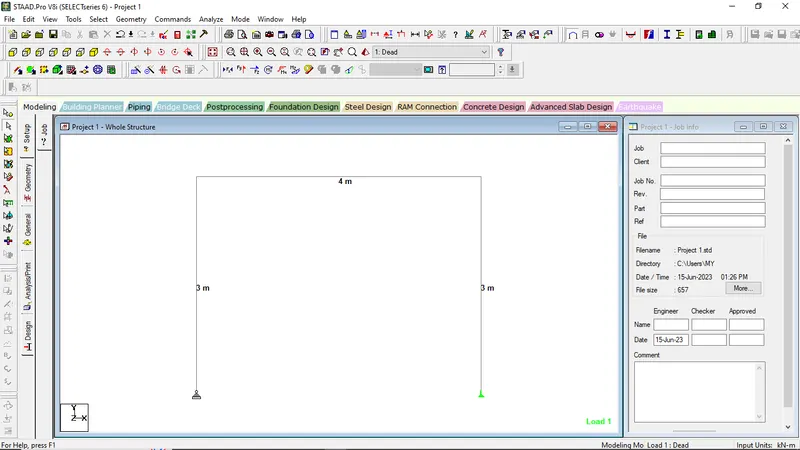

Portal beam having length of 4m and cross section of 300mm x 600mm (depth) and portal columns have height of 3m and cross section 300mm x 300mm.

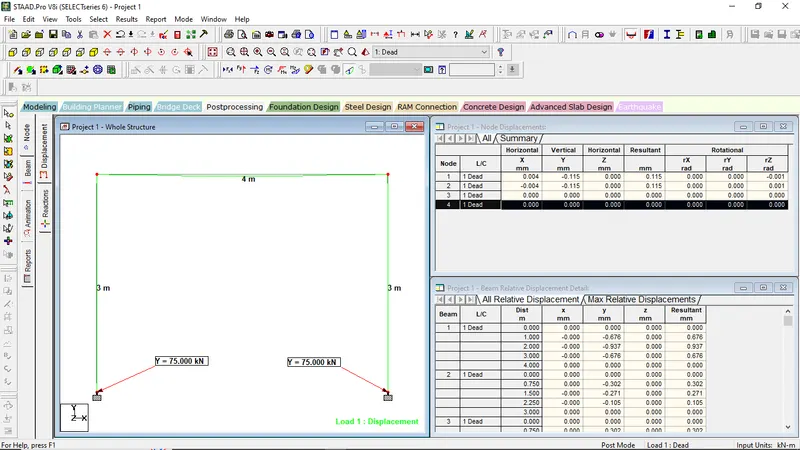

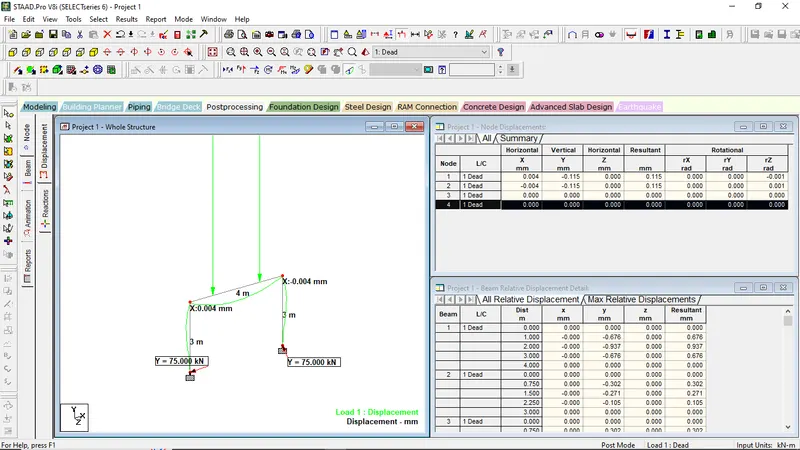

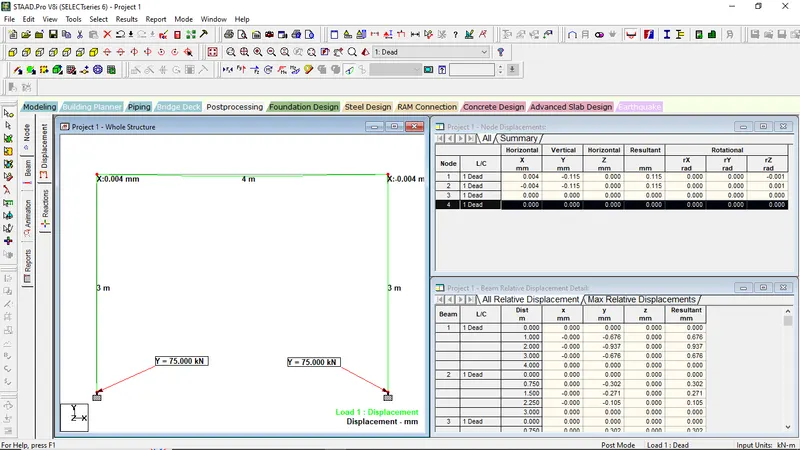

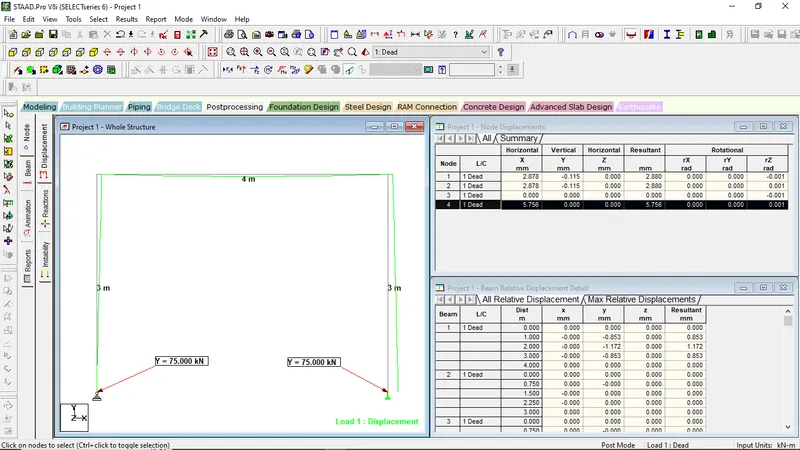

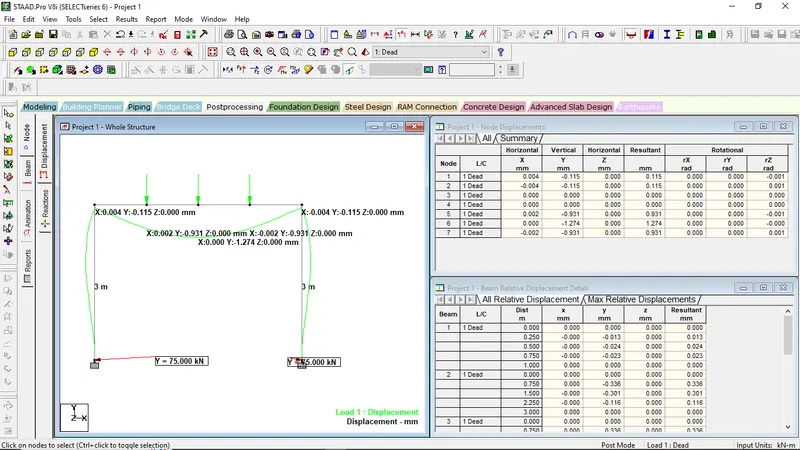

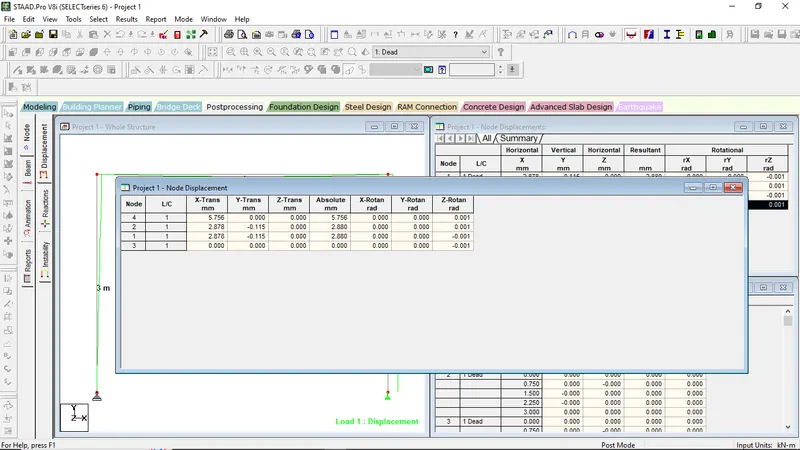

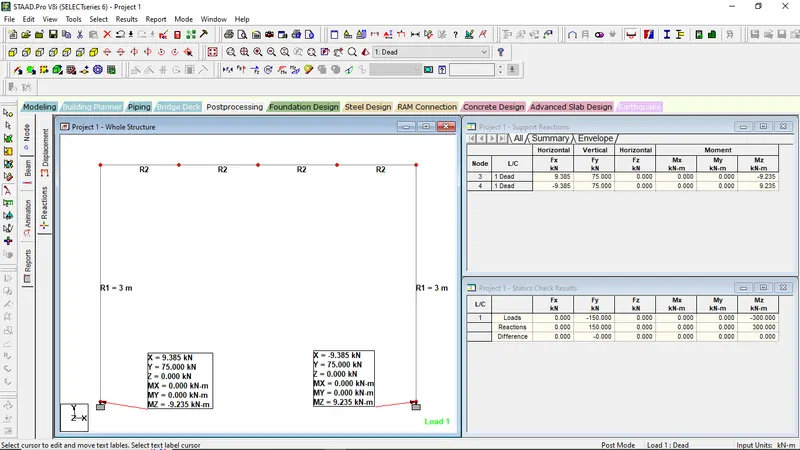

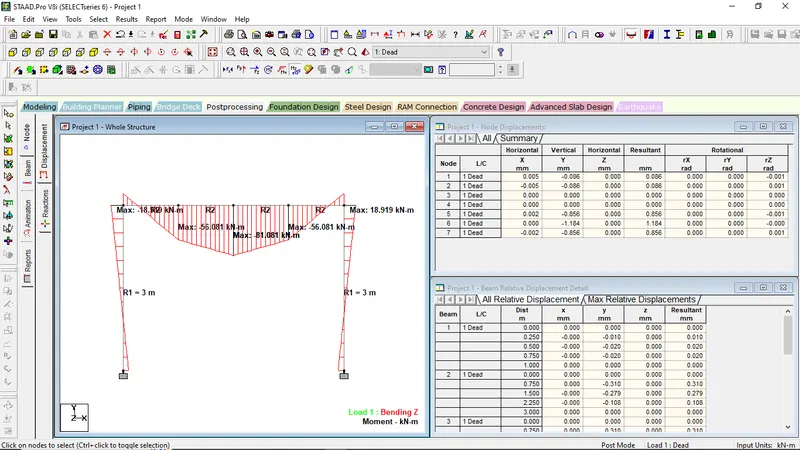

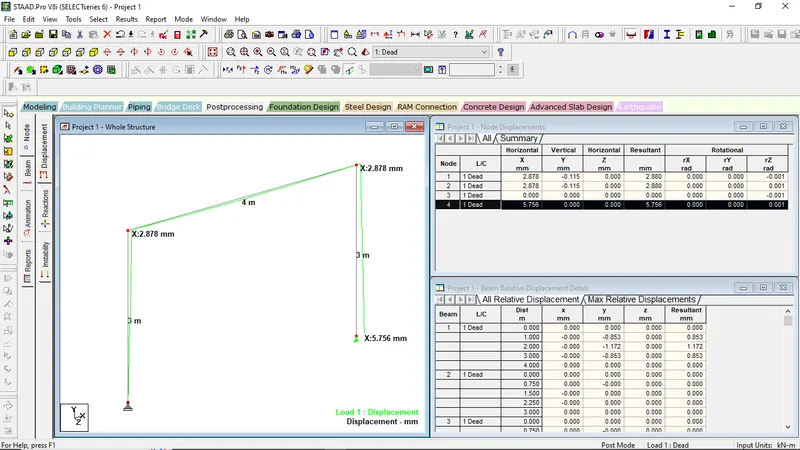

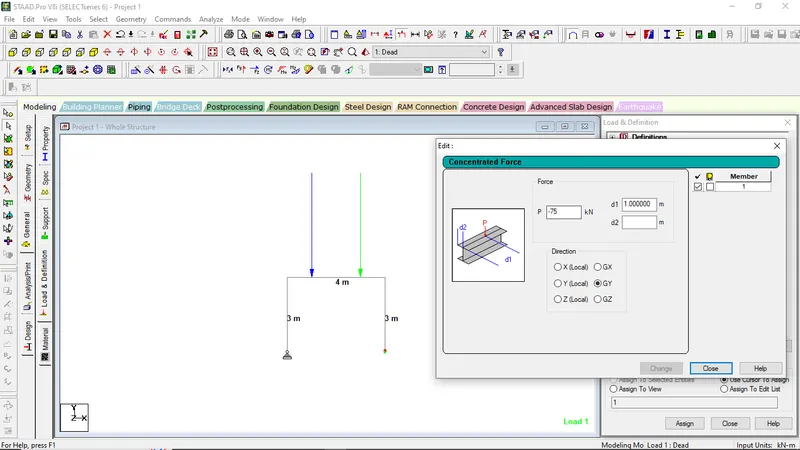

1. The portal beam has two Bearing locations 1m from either end. The load from each bearing is 75 kN. Calculate the support reactions and displacement of each node.

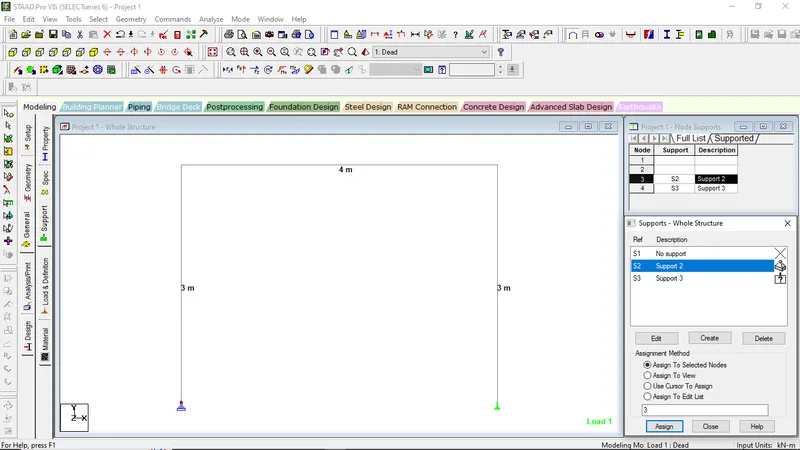

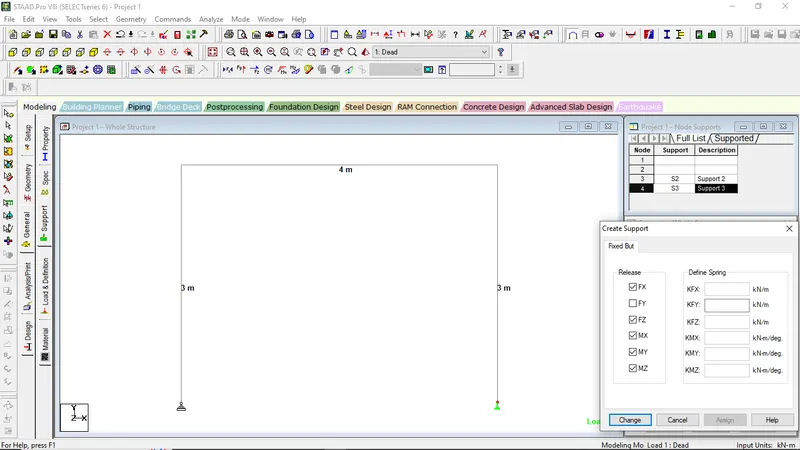

2.Now change both the supports to fixed and compare the reactions and displacements with that of previous sub question.

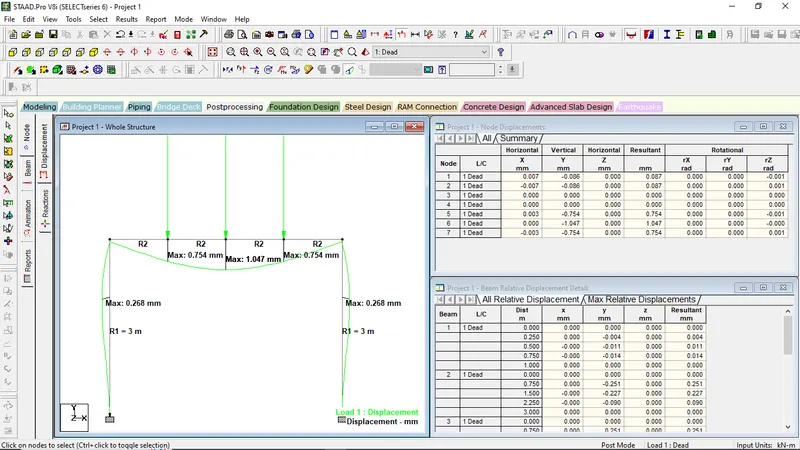

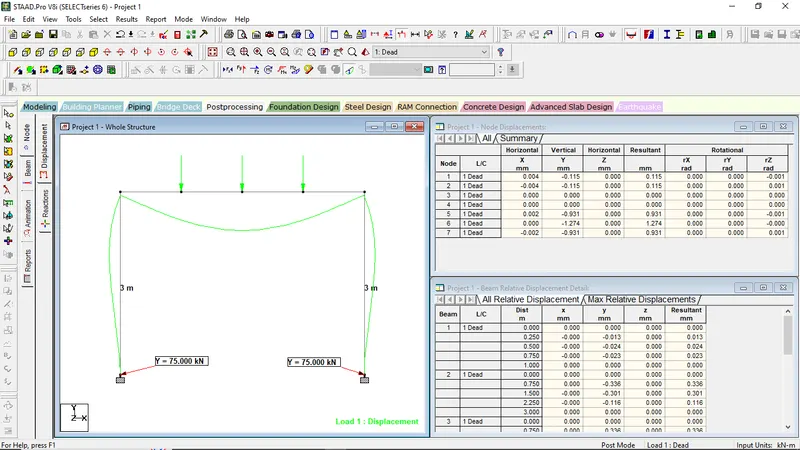

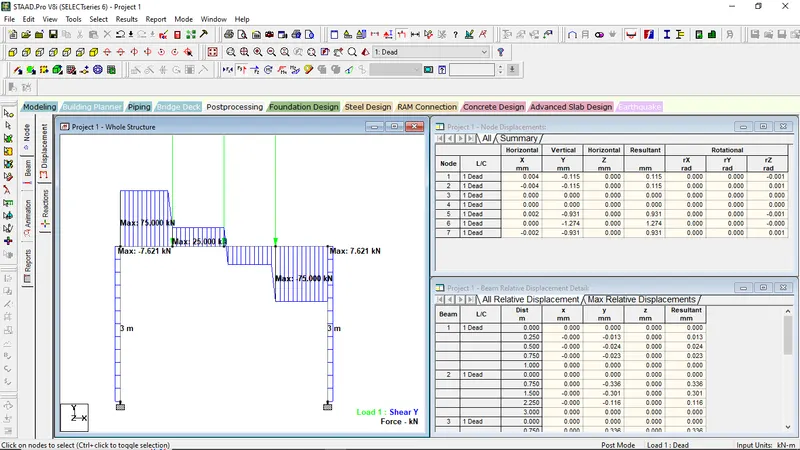

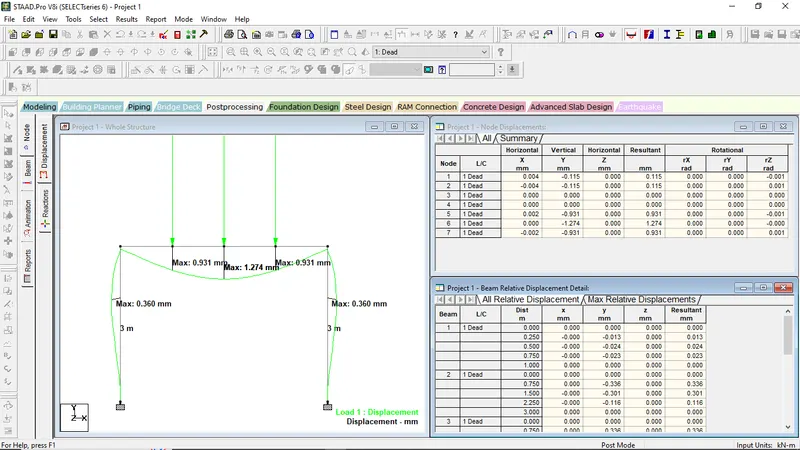

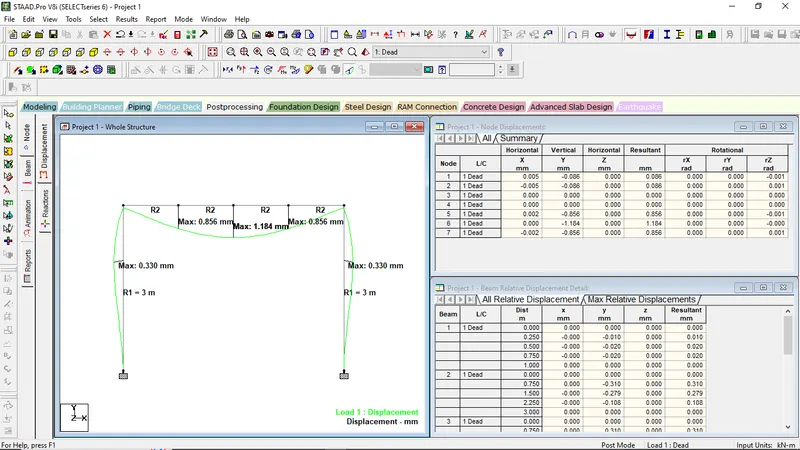

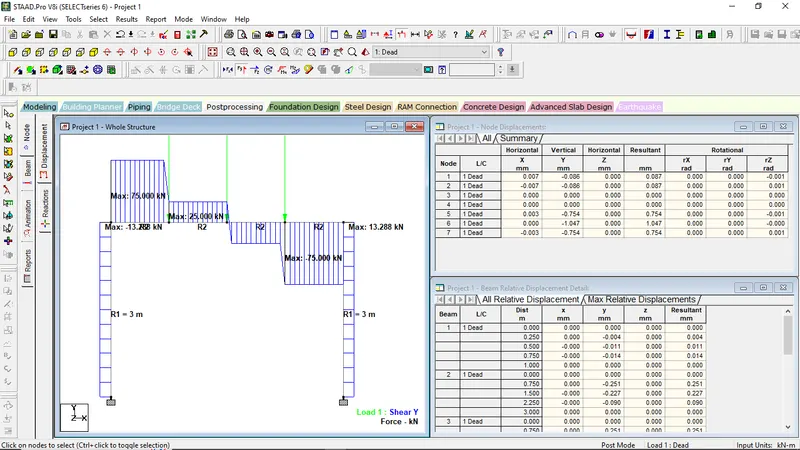

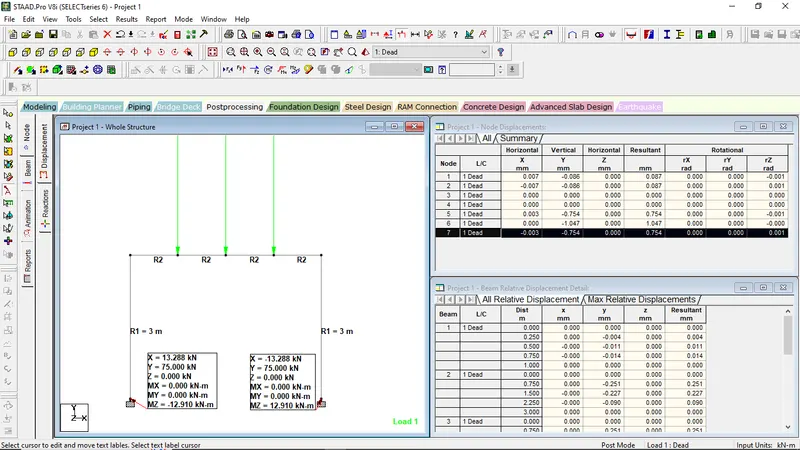

3. Now provide 3 support conditions with 50 kN such that total load on the frame is same as that of Point 1. The bearings are 1m apart and 1st bearing is 1m from the end. Compare the reactions with that of sub question 2 and comment on the results.

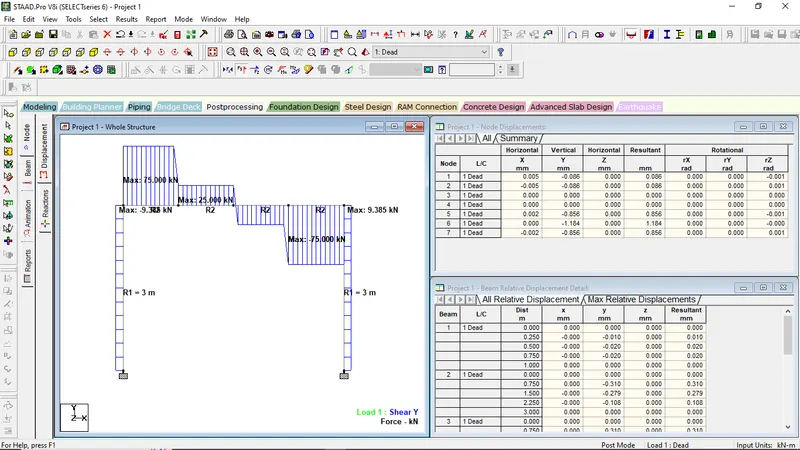

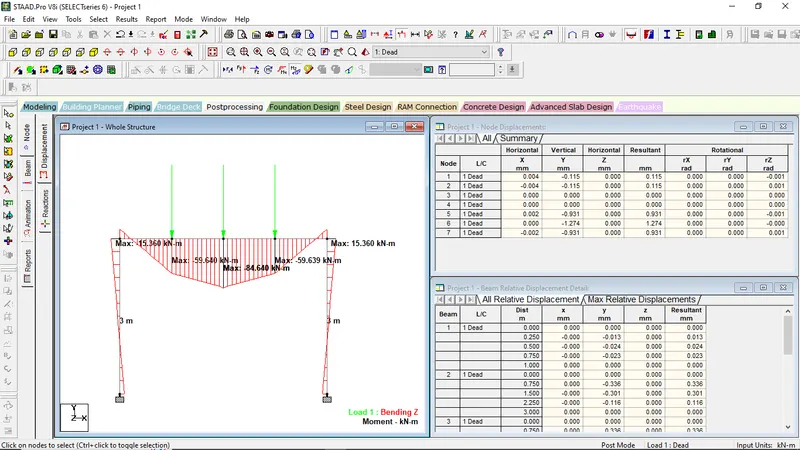

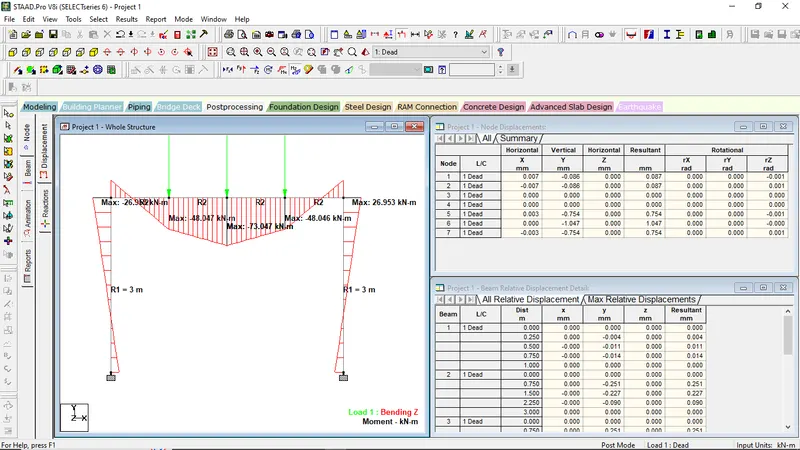

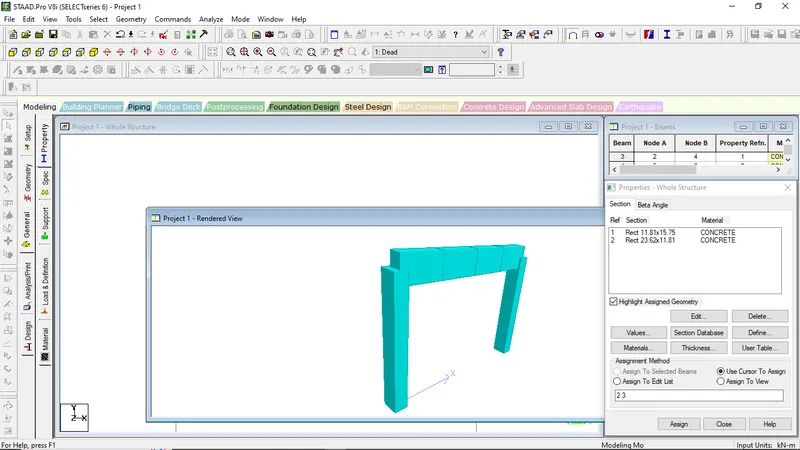

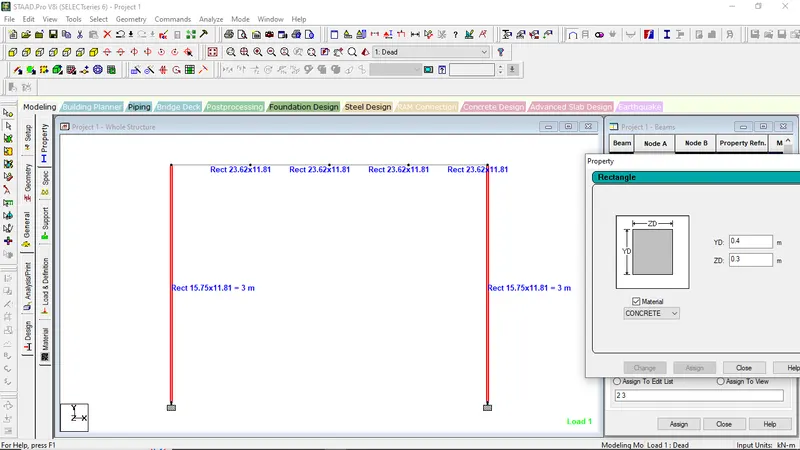

4. Change the cross section of column to 300 x 400 mm such that 300mm width of column aligns with 300mm width of Portal beam. Rest all conditions remain same as that of sub question 2. Compare the portal beam and columns bending moment with that of sub question 2.

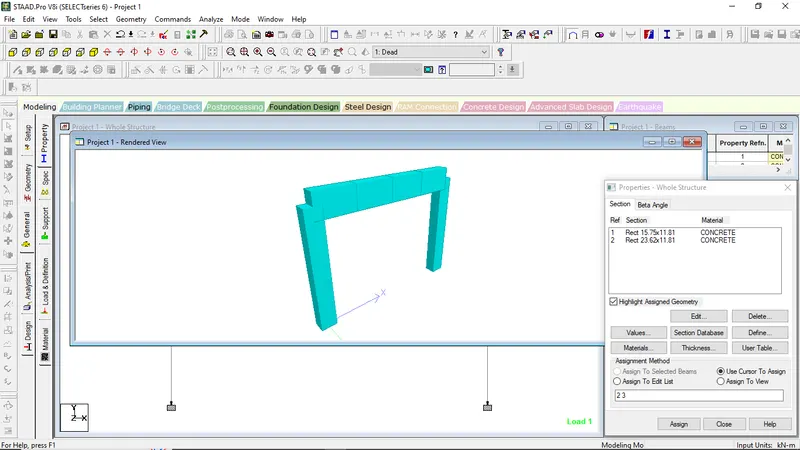

5. Now change the orientation of column such that 400mm size aligns with 300mm width of Portal beam. Compare the beam and column results with that of Sub question 4. Comment on the results.
