Project 1

Aim:

To apply the static process on T-section.

Note:

Units are in mm

Procedure:

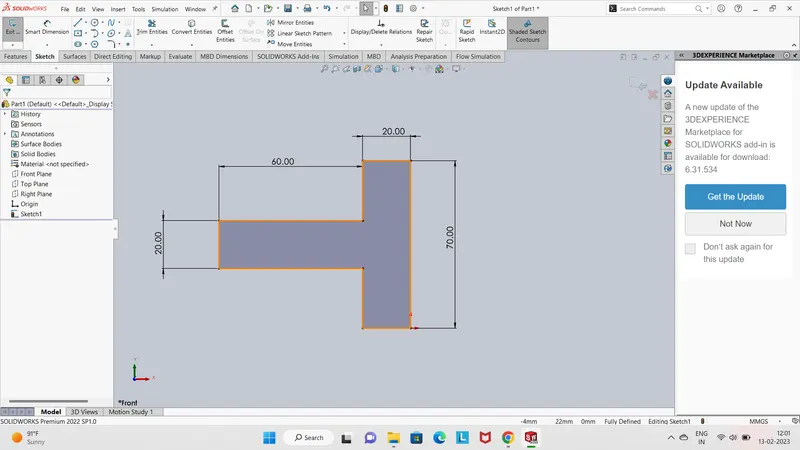

• Select the front plane draw the t section and give the required dimensions.

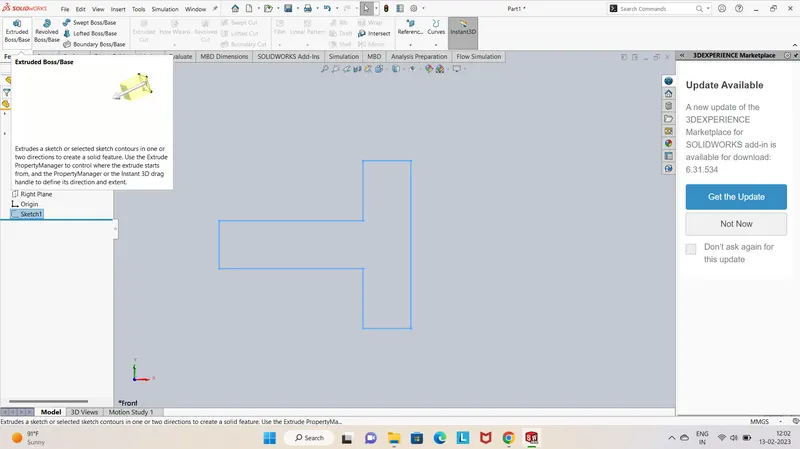

• Now the Boss Extrude

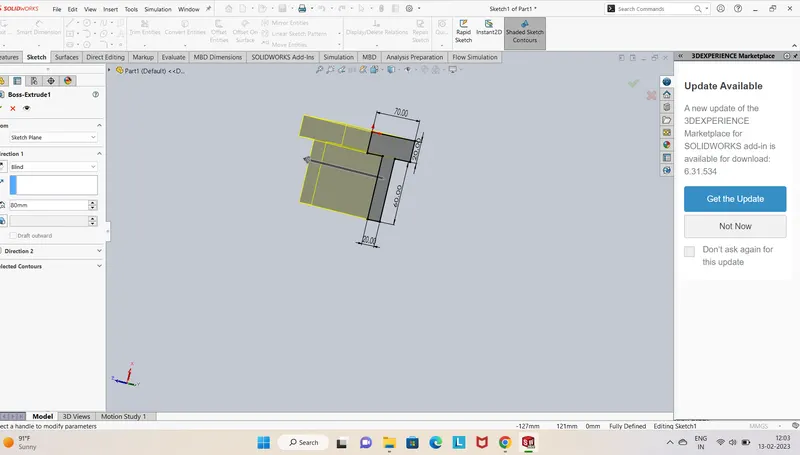

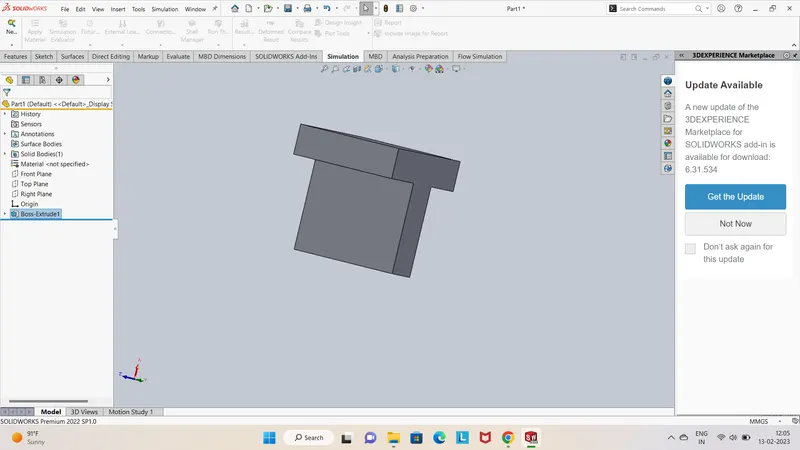

• Now Boss extrude 80mm

• Now do the simulation command

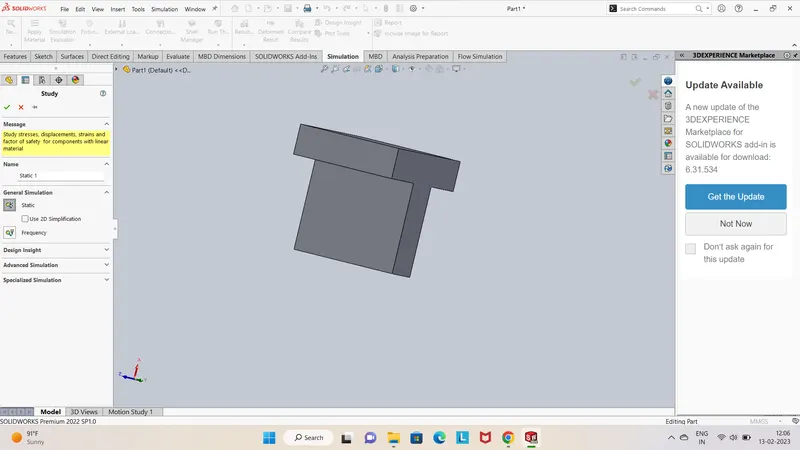

• Create the new study and perform the static process

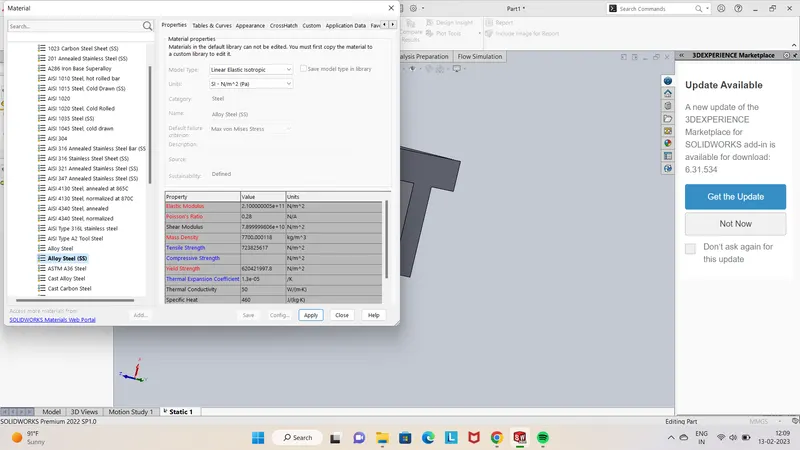

• Now apply the alloy steel(ss) to created body

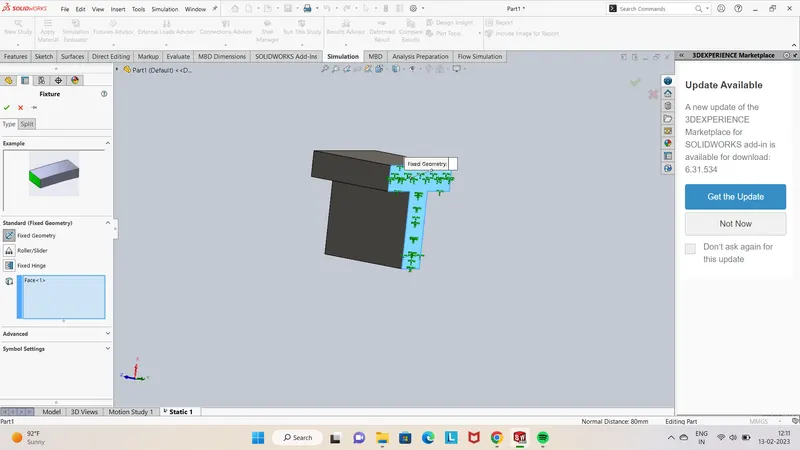

• Now apply the fixtures

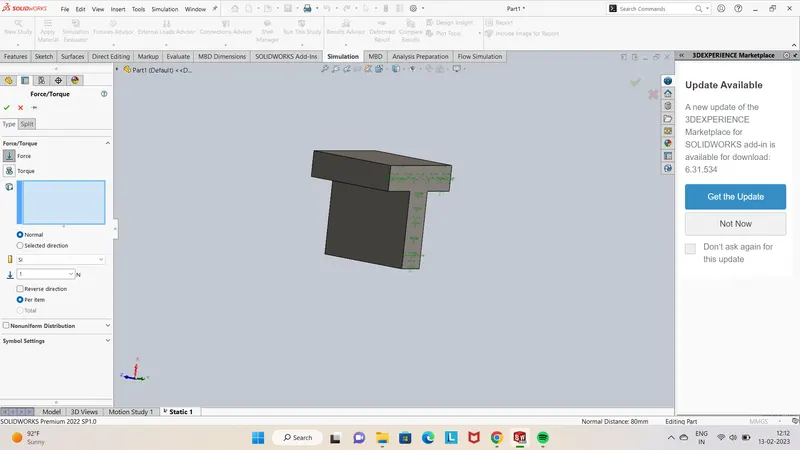

• Now give external load

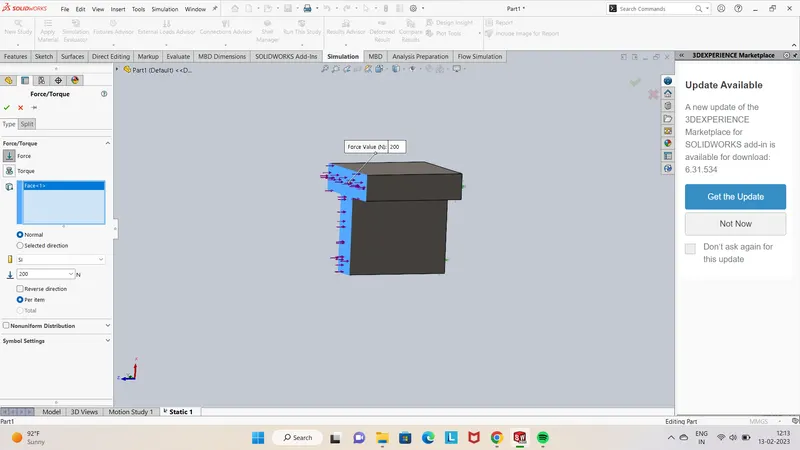

• Now give the external load 200

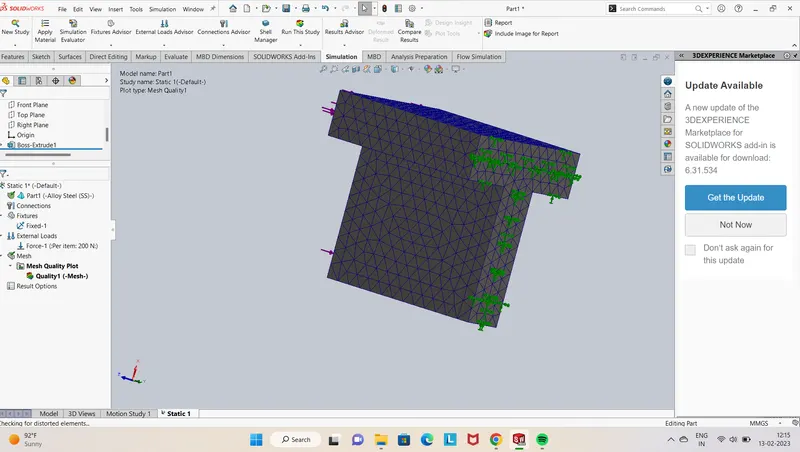

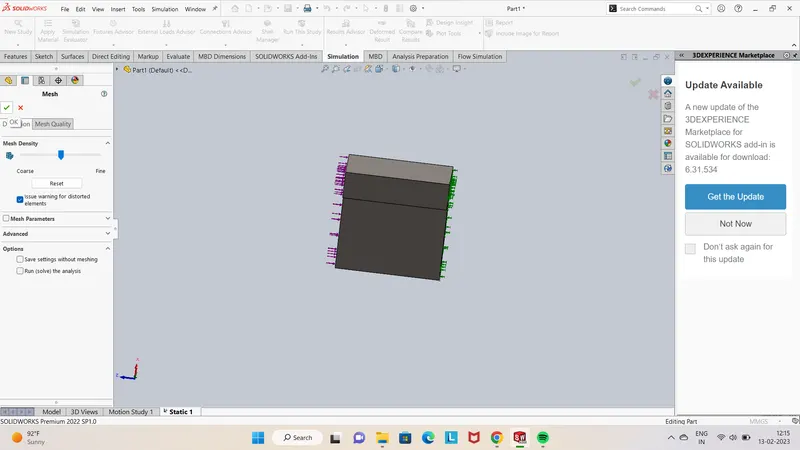

• Now apply the mesh

• Now run the study

Result:

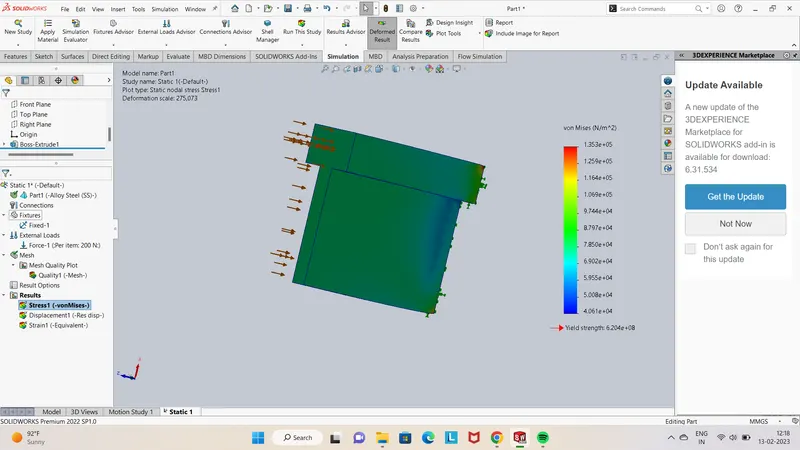

Stress

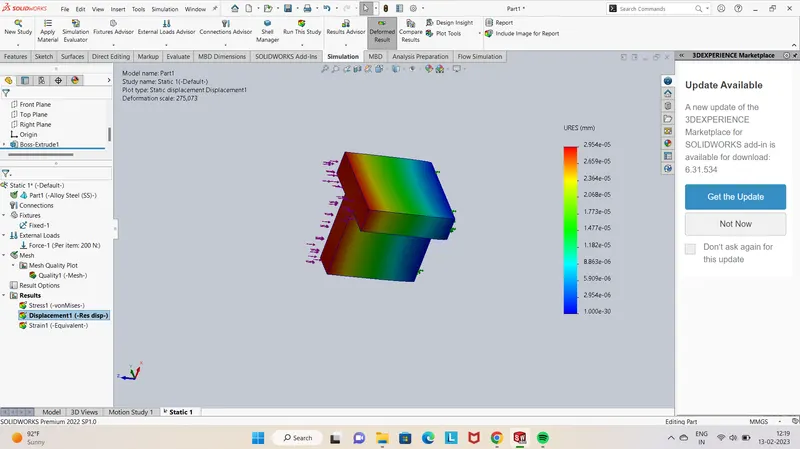

Displacement

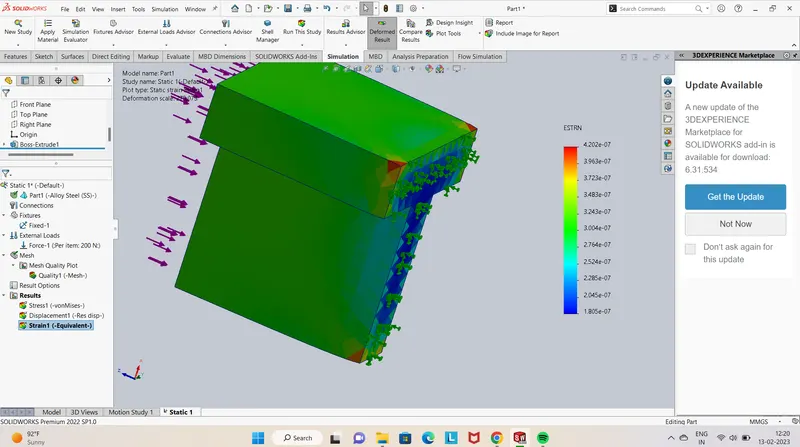

Strain

Conclusion:

Hence calculated static process to designed body
