Project 1

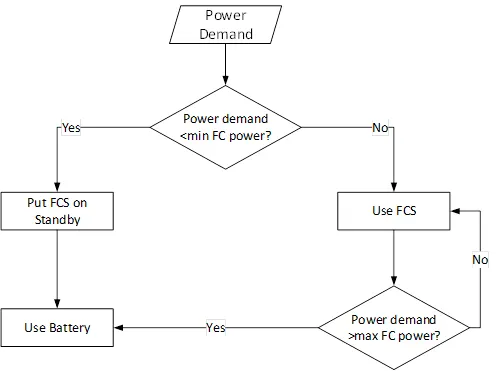

to Create a stateflow or Simulink model for the following flowchart.

The input to the model would be the power demand.

The output should be:

1. Fuel cell power
2. Battery power
3. FC Operating state (running, standby)

Create plot of these outputs against time.

project discussion

in the below show table we are giving the datas required for the powerdemand and supply section. to model the fuel chart we need to assue the minimum and maximum values of power demand of fuel cell. here the minimum and maximum values of power demand of fuel cell are considered as 100 w ( minimum ) and 1000w ( maximum )

Now we willl build a signal for the power demand in matlab, using signal builder ranging values for power demand between 0 to 1200

The Signal Builder block in Simulink is a graphical user interface (GUI) tool that allows you to create and edit signal waveforms.

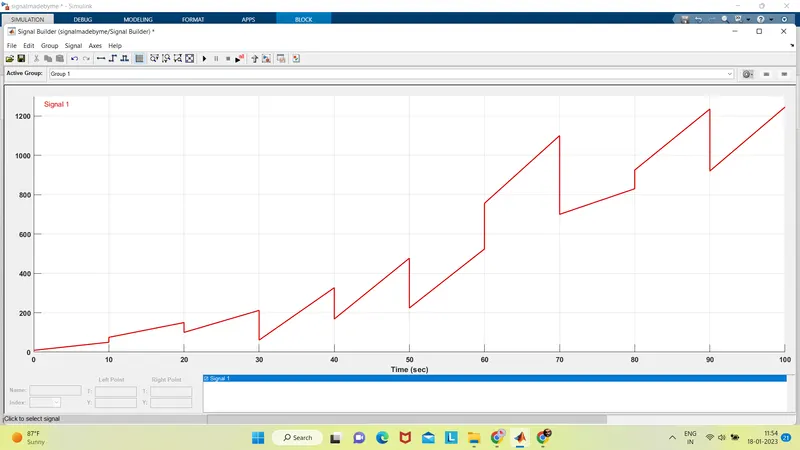

the above shown figure is the waveform created using signal builder

power demand ranging from 0 to 1200 w

time values 0 to 100 s

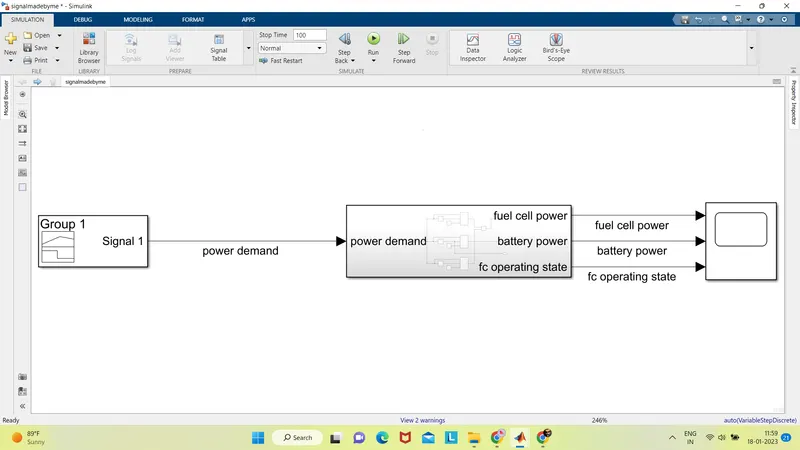

model

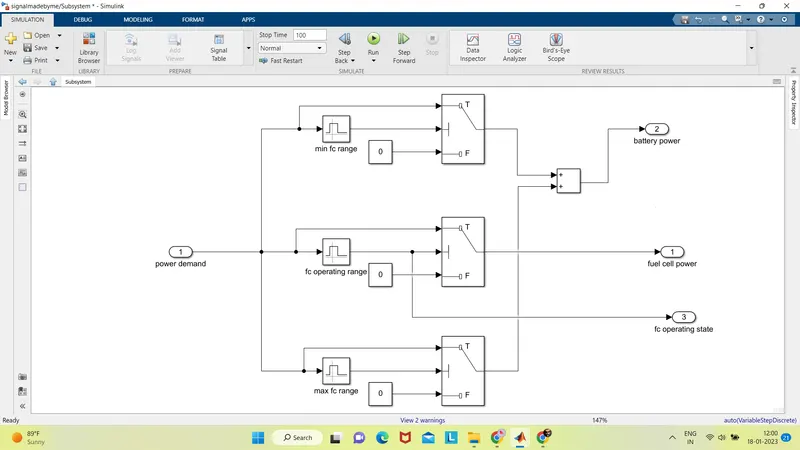

inside subsystem

parameters

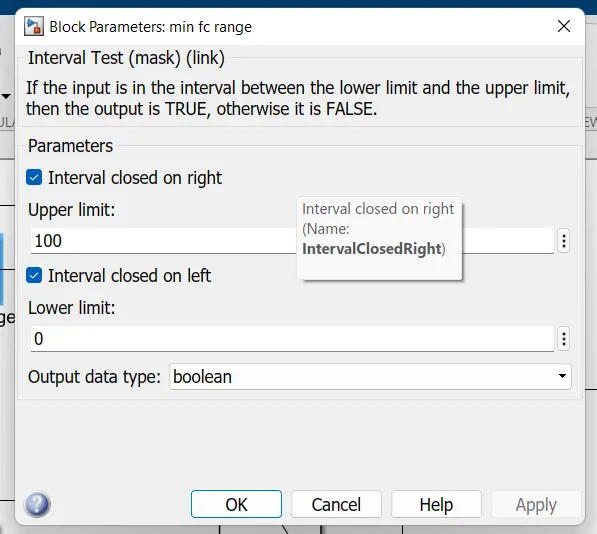

min fc range

here we selest lower limit as 0 and upper linit as 100 , this is the range where fuel cell is not working .. in the rsnge of 0 to 100 battery is the supplier

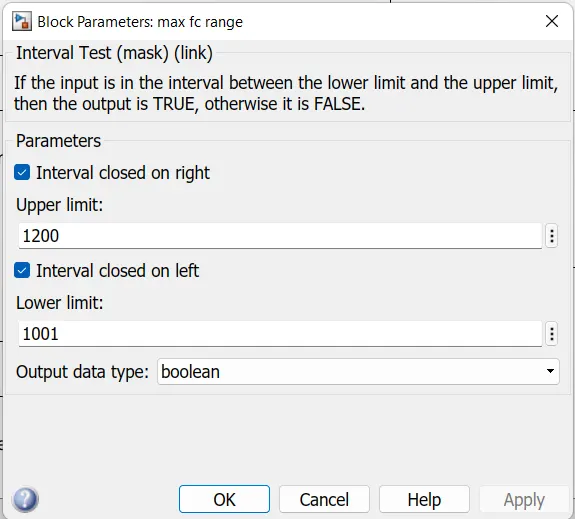

max fc range

here we selest lower limit as 1000 and upper linit as 1200 , this is the range where fuel cell is not working .. in the range of 1000 to 1200 battery is the supplier

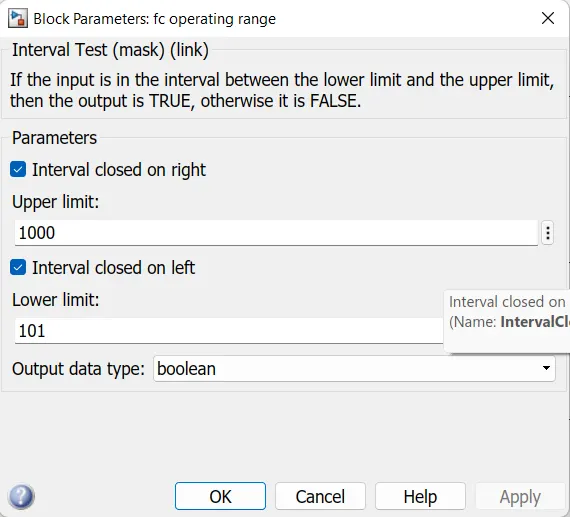

here we selest lower limit as 101 and upper linit as 1000 , this is the range where batteryis not working .. in the range of 1000 to 120 fuel cell is working

working

here we have 3 operating regions at a time only one region works.

case 1 ( battery working )

if the power demand is in between the range of 0 to 100 , battery is the supplier and fuel cell will be stand by

from the model we can see that if the demand meets with the limits if the interval test , first switch works.

case 2( fucel cell works )

if the power demand is in between the range of 101 to 1000 , fuel cell is the supplier and battery will be stand by

from the model we can see that if the demand meets with the limits if the interval test , second switch works

case 3 ( battery working )

if the power demand is in between the range of 1001 to 1200 , battery is the supplier and fuel cell will be stand by

from the model we can see that if the demand meets with the limits if the interval test , third switch works.

obtaining result as sum of min fc and max fc is battery operating range

results

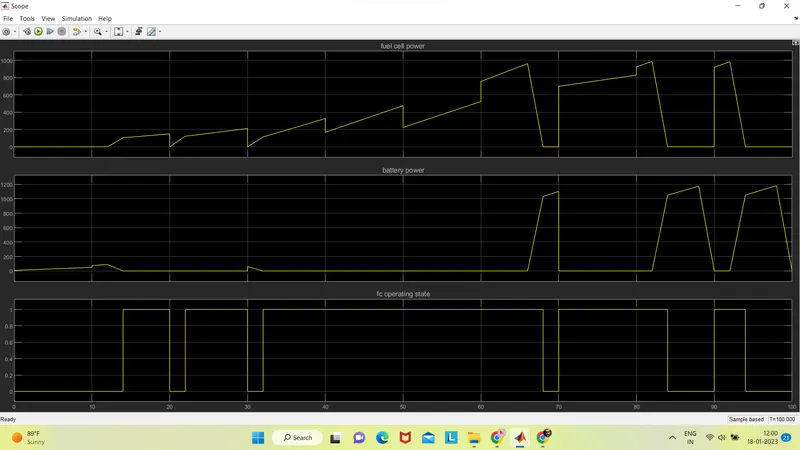

in above figure 3 plot is shown

1. Fuel cell power
2. Battery power
3. FC Operating state (running, standby)

conclusion
