Project 1

PROCEDURE

• FIRST I OPENED CATIA V5
• THEN OPEN PRODUCT FILE NAME AS CONTEXT ASSEMBLY
• IN THAT I CREATED A SUB PRODUCT CALL IT AS GEOMETRICAL BUNDLE
• I ATTACH TWO PARTS TO THE CONTEXT ASSEMBLY ONE IS ENGINE SURFACE FILE AND OTHER IS L CLAMP
• NOW ACTIVATE CONTEXT ASSEMBLY AND EXTRACT ALL THE CONNECTORS
• PLACE THE CONNECTORS IN POSITION BY USING MANIPULATION COMMAND IN ASSEMBLY WORK BENCH
• NOW DEFINE EACH COMPONENT IN ELECTRICAL WORK BENCH AND COPY THE SAME COMPONENT IF IT REQUIRED MULTIPLE TIMES
• THEN EXTRACT ALL SUPPORTING COMPONENTS LIKE P CLAMPS, FIR TREE CLIPS, CHANNELS

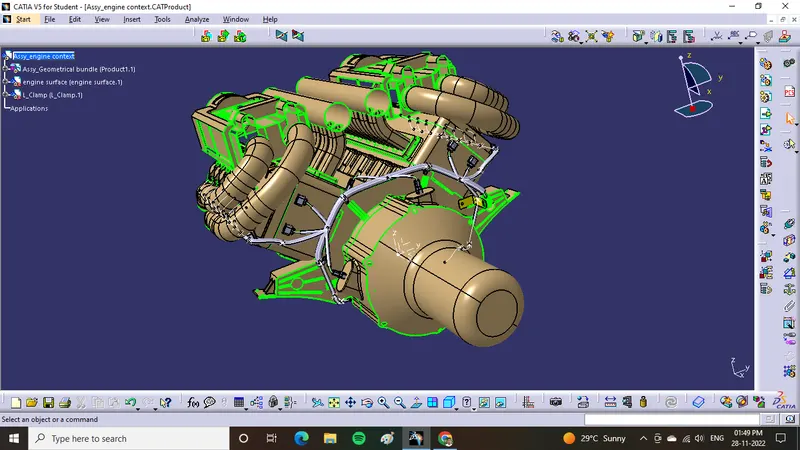

• NOW ROUTE THE BUNDLE IN ELECTRICAL WIRE HARNESS WORK BENCH
• THEN ADD THE COT TUBES TO BUNDLES

• AFTER THAT CREATE NEW PRODUCT FOR FLATTEN WIRE HARNESS
• FIRST DEFINE PARAMETERS FOR FLATTEN HARNESS
• THEN EXTRACT PRODUCT FROM THE CONTEXT ASSEMBLY

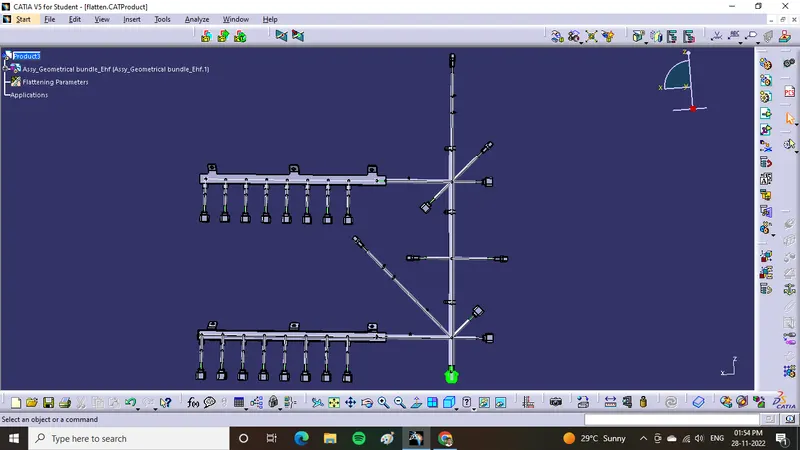

• THEN FLATTEN THE GIVEN HARNESS USING FLATTENING OPTION
• IF IT REQUIRED TO ROTATE BUNDLE USE ROTATE COMMAND

• ACTIVE PLANE SHOULD BE SAME FROM BEGINING TO LAST TO GET FLAT ASSEMBLY

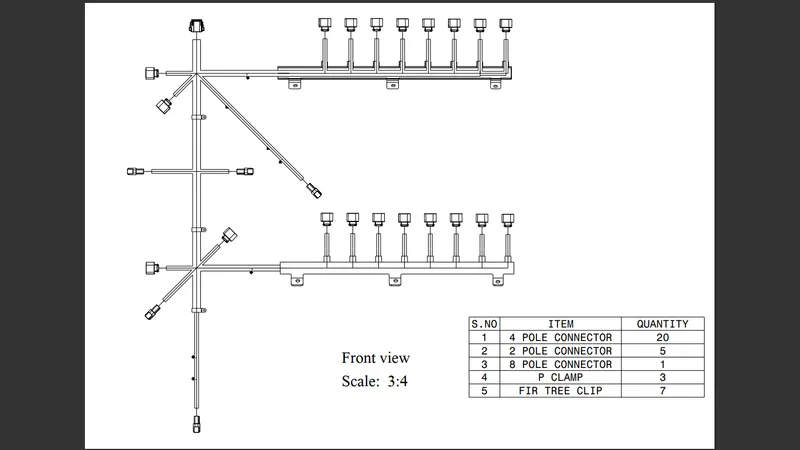

• AFTER THAT CREATE A DRAFING FILE AND ATTACH LIST OF COMPONENTS
• CREATED PDF OF FLATTEN HARNESS
