Project 1

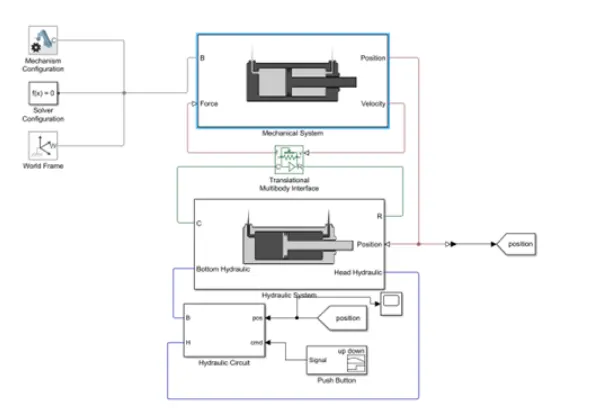

Objective - Develop a double-acting actuator model using Simscape Multibody and Simscape components. The mechanical system of the cylinder needs to be built using Simscape Multibody library components / blocks, and the hydraulic system needs to be modelled using Simscape library physical components.

Report

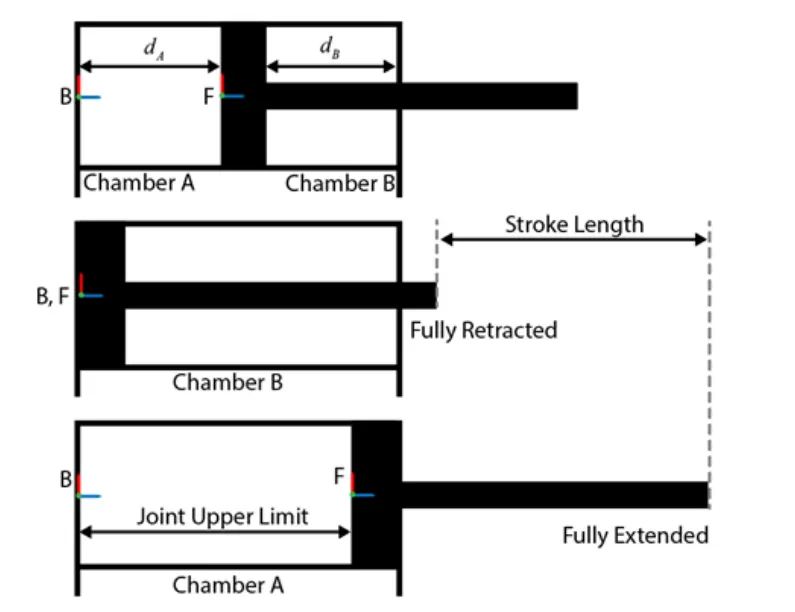

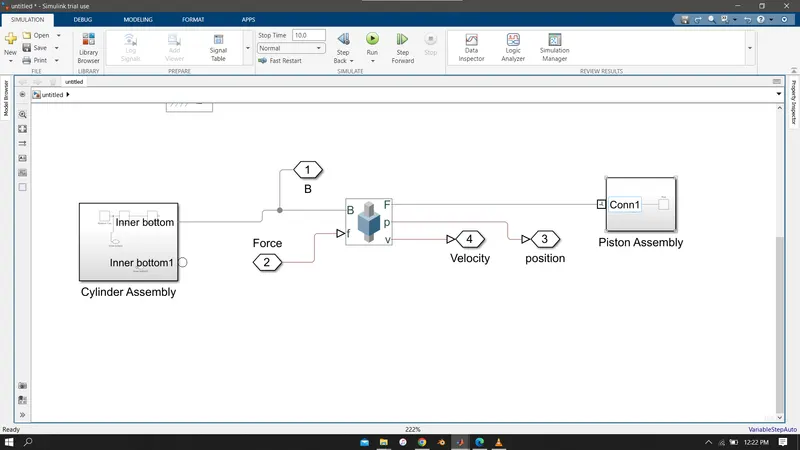

Mechanical System

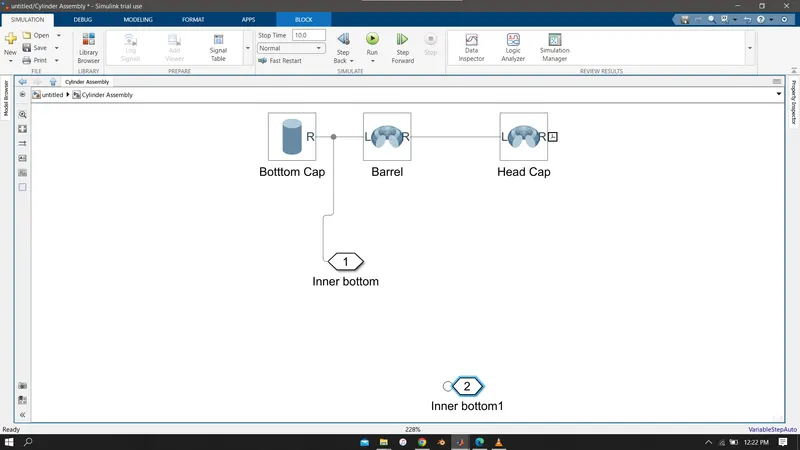

Cylinder Asssembly

Piston Assembly

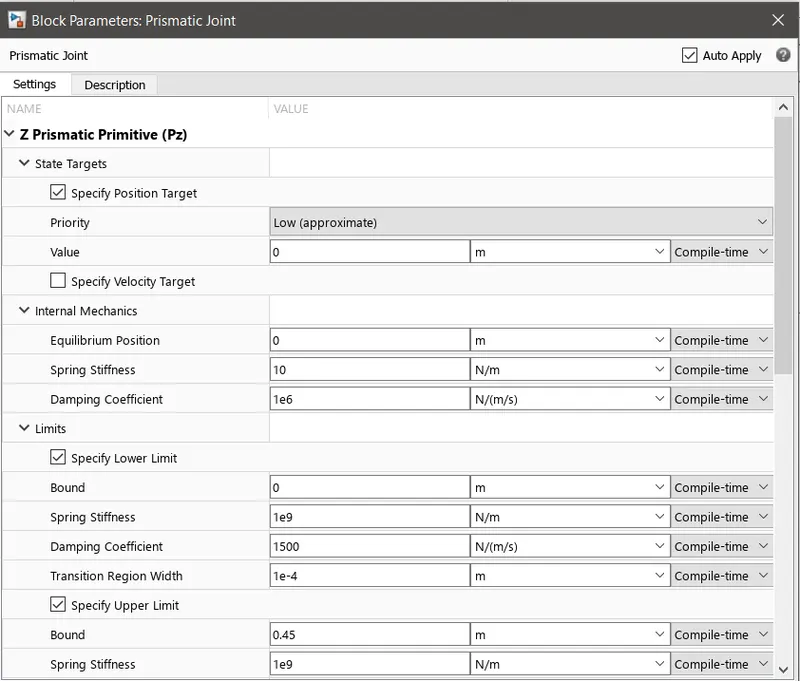

prismatic joint

Hydraulic System

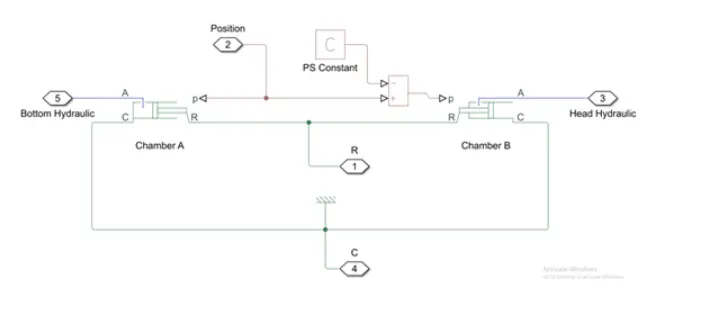

Hydraulics

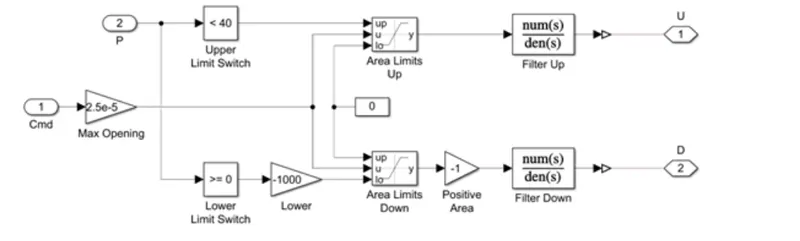

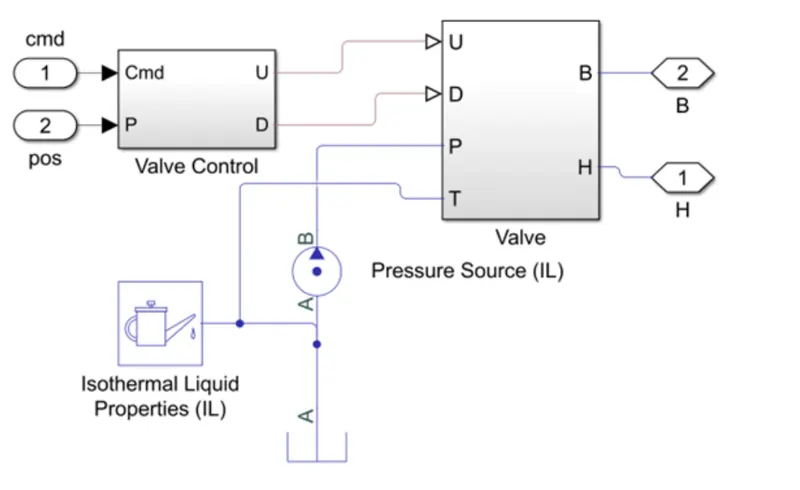

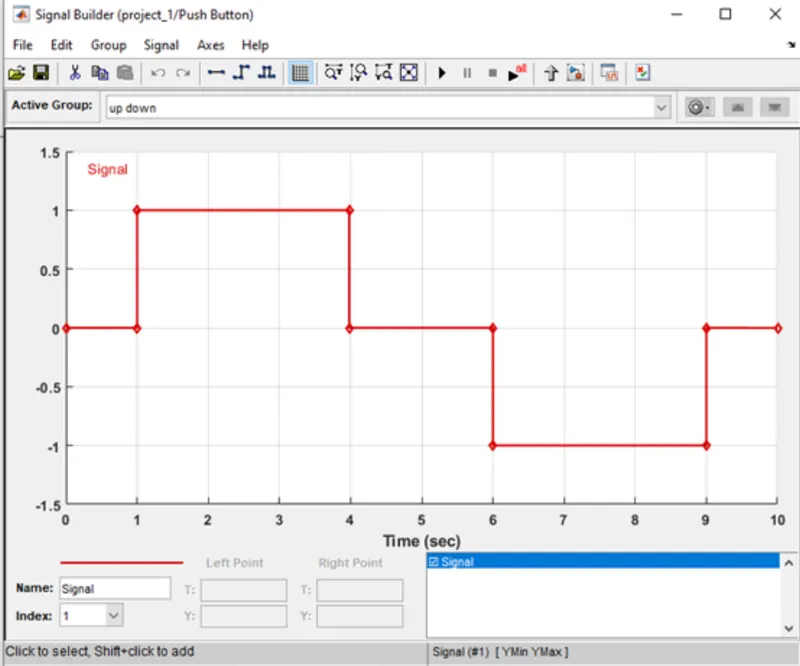

Valve Control
