Preparing Schedule & Cost Estimation for a building using REVIT
Q1) Ans:
Aim: To use shortcut commands for the following tasks.
Introduction:
Using shortcuts in Revit can save a lot of time as it prevents users to save the time looking at the ribbon for every command.
Procedure:
a. Using a 3D model create a section box
SHORTCUT: BX
b. To create similar doors and windows in a floor plan layout
SHORTCUT: CS
c. To reduce the thickness of lines visible in plan views
SHORTCUT: TL
d. To apply override settings to a floor in the model section view
SHORTCUT: VG
e. To increase the range of visibility in a plan view
SHORTCUT: VR
f. To select the previously selected items
SHORTCUT: CTRL<
g. To add annotations to the model views
SHORTCUT: DI
h. To bring the model elements inline
SHORTCUT: AL
i. To rotate the model elements
SHORTCUT: RO
j. To move an object to another location
SHORTCUT: MV
k. To copy a model element
SHORTCUT: CO
l. To mirror an element about an axis
SHORTCUT: MM
m. To create an array of model elements
SHORTCUT: AR
Results:

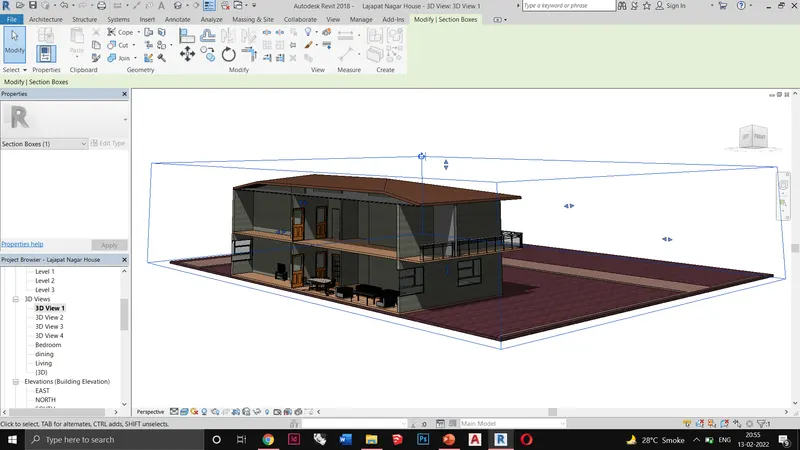

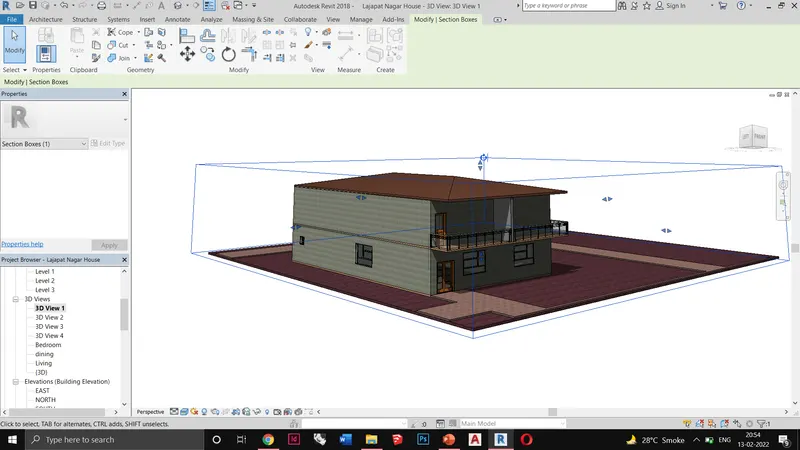

a. Section box - BX
b. To create similar doors and windows in a floor plan layout

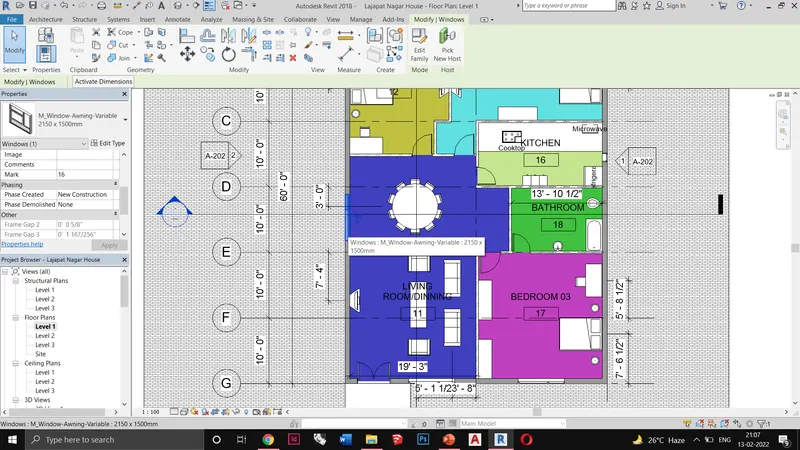

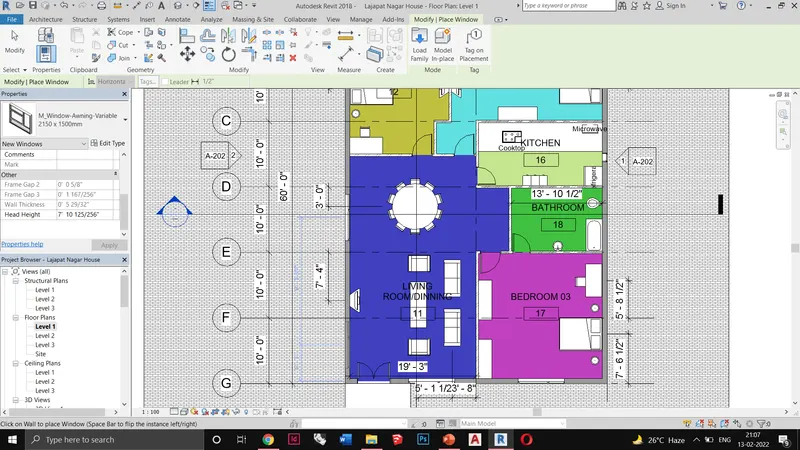

selecting the window and writing CS in the command line

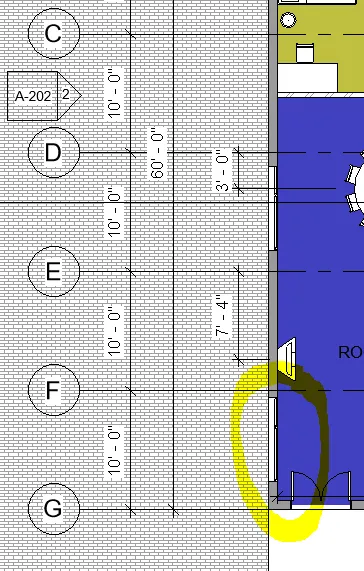

Copied window

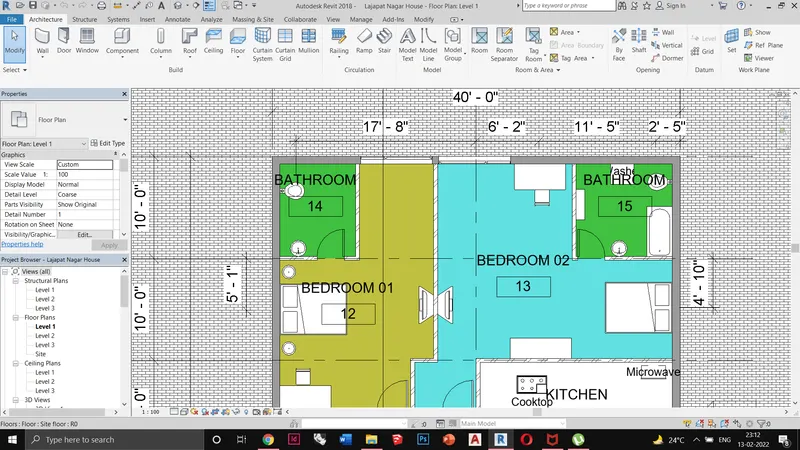

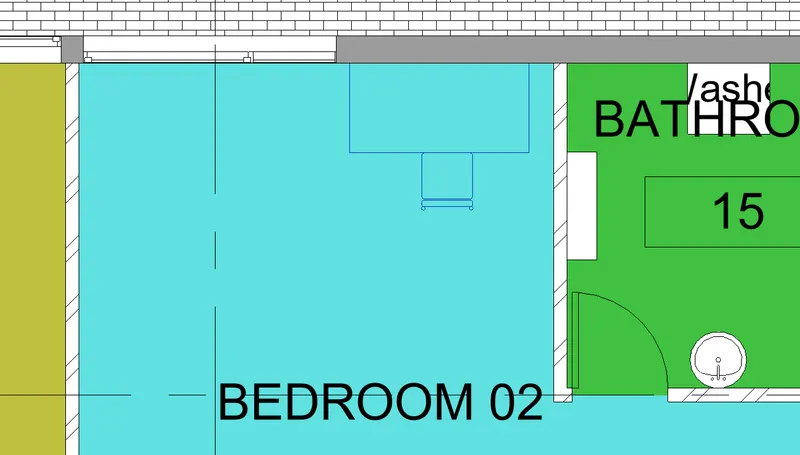

c. To reduce the thickness of lines visible in plan views
thin lines off
thin lines on using TL.

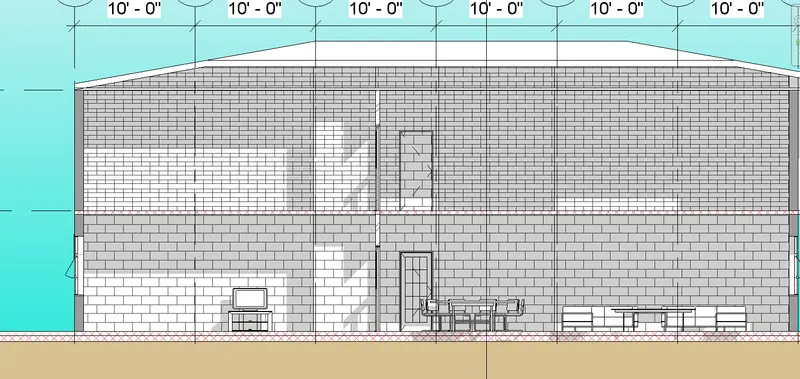

d. To apply override settings to a floor in the model section view

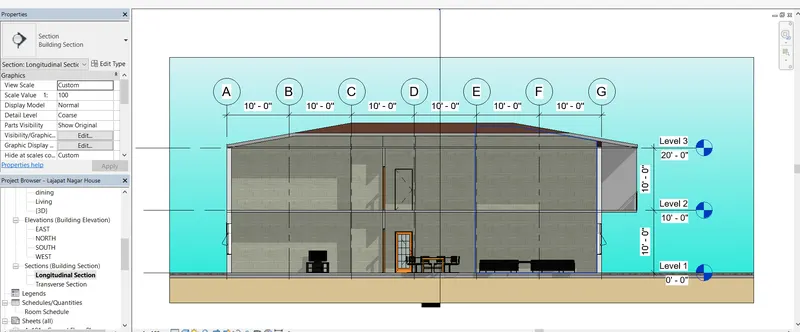

opening the section view

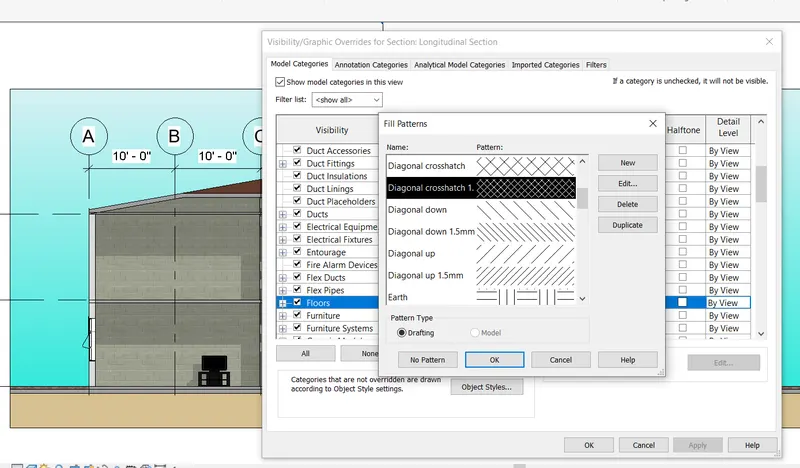

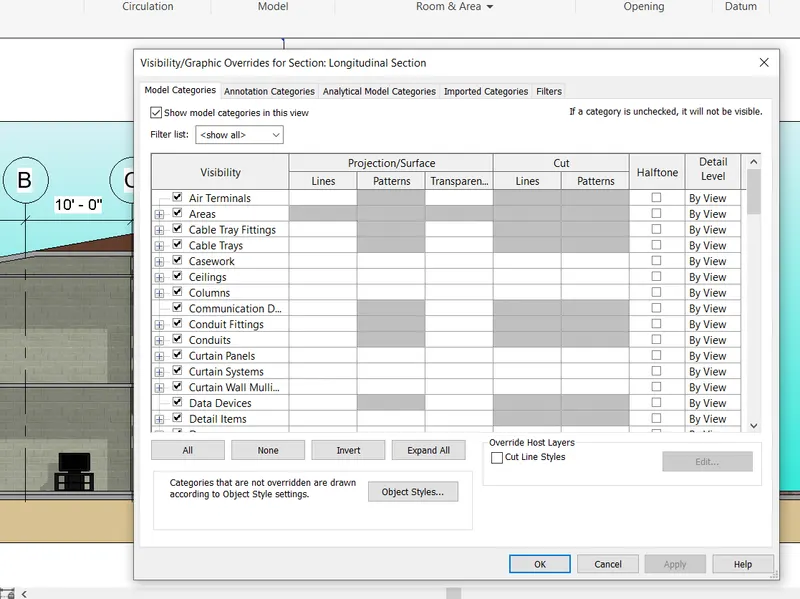

opening the visibility graphics using the VG command
inputting the overrides in the floor option

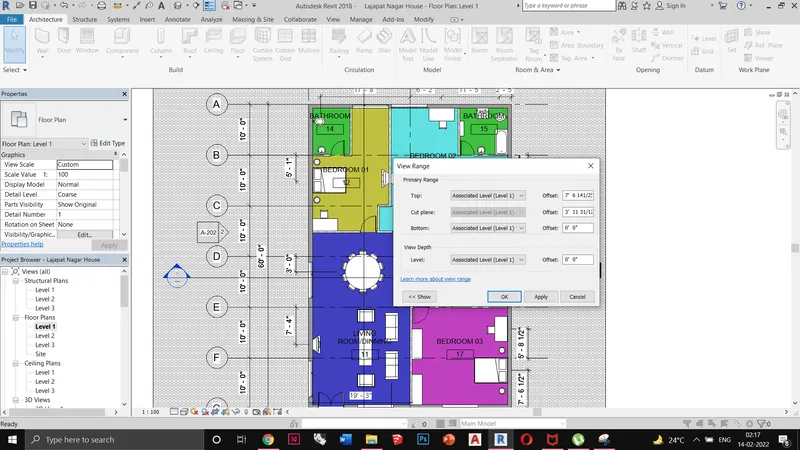

e. To increase the range of visibility in a plan view
f. To select the previously selected items

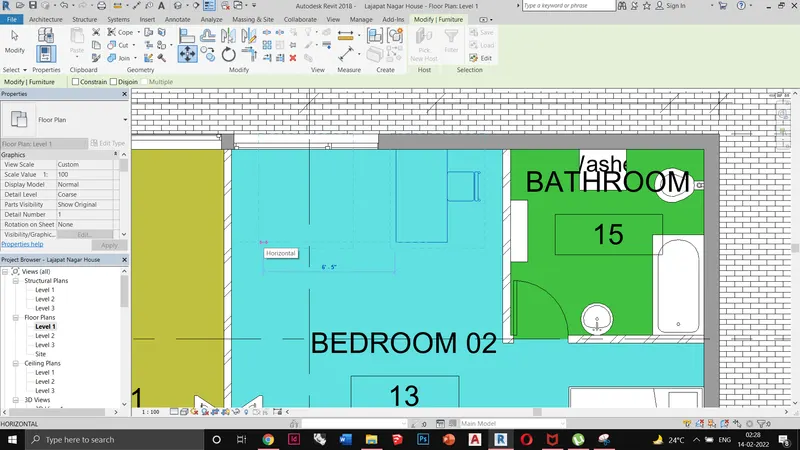

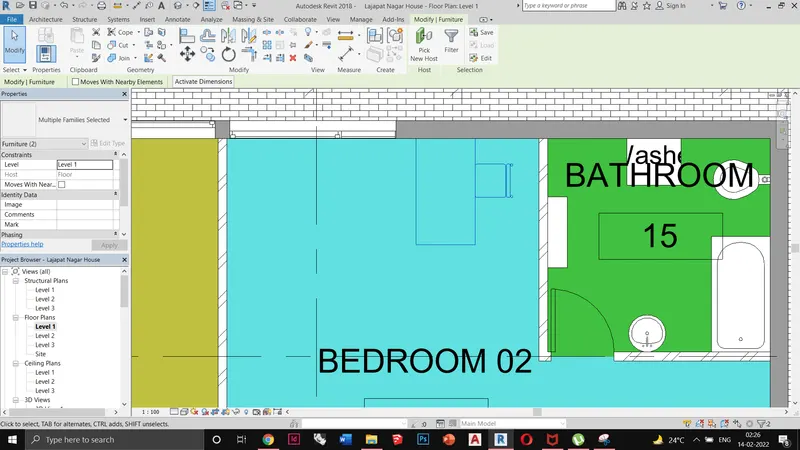

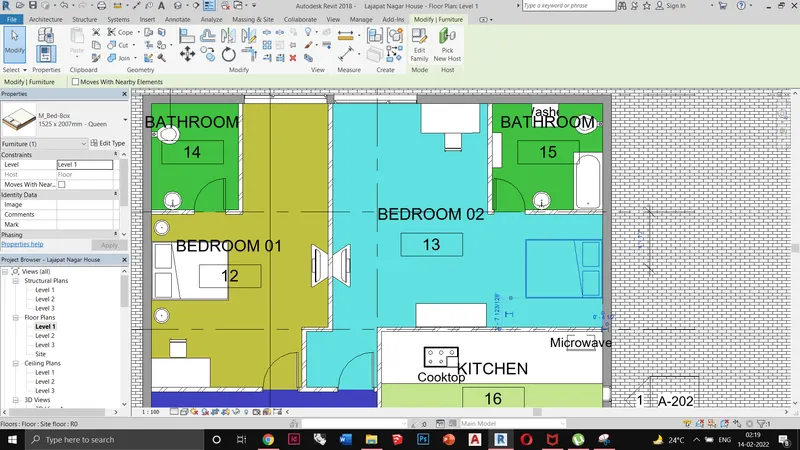

selecting and moving the bed
typing CTRL< to select the previous

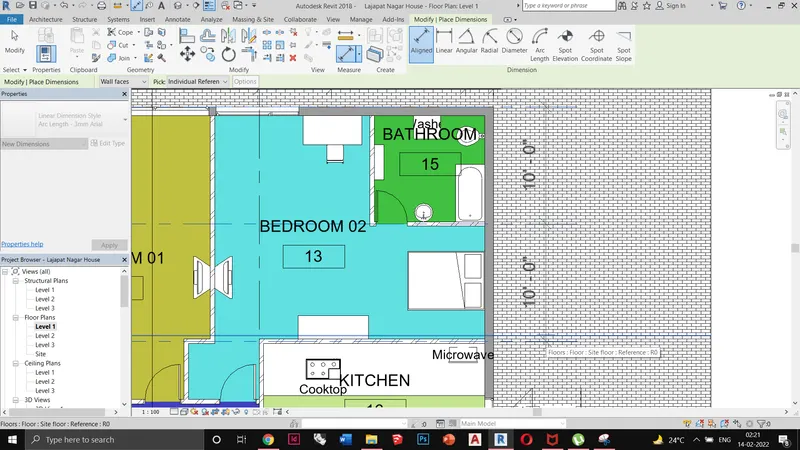

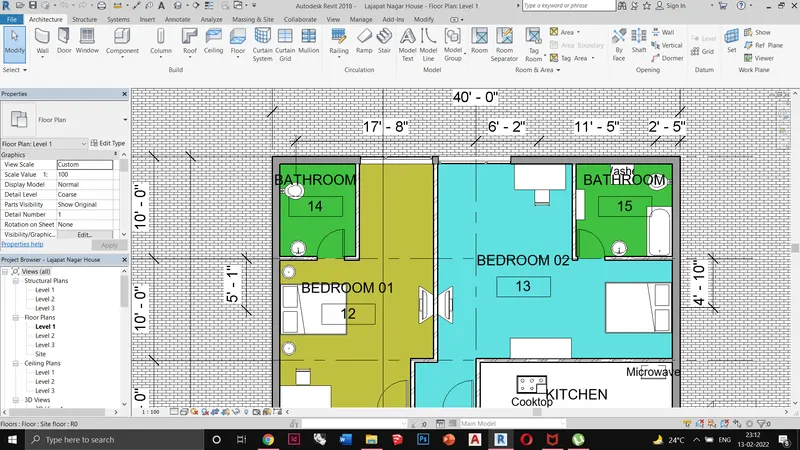

g. To add annotations to the model views
h. To bring the model elements inline

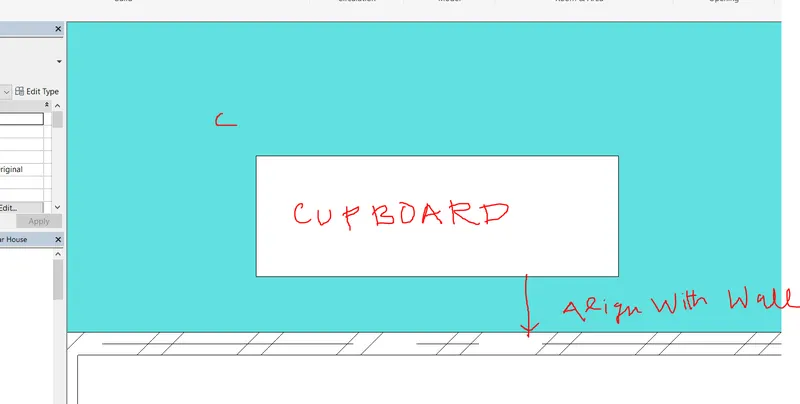

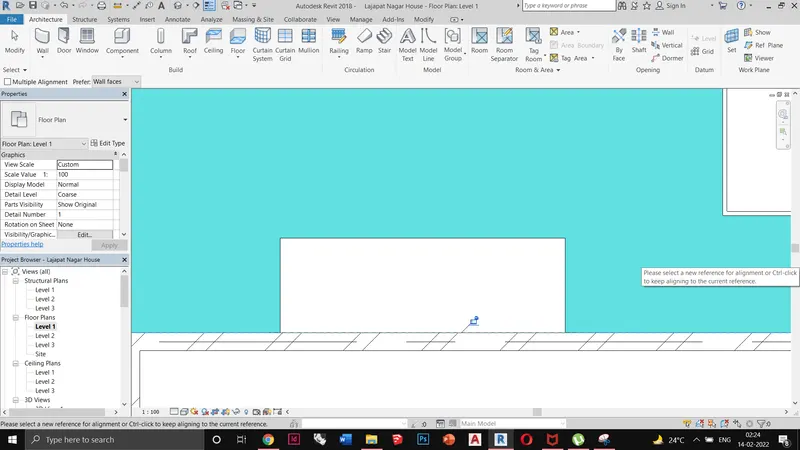

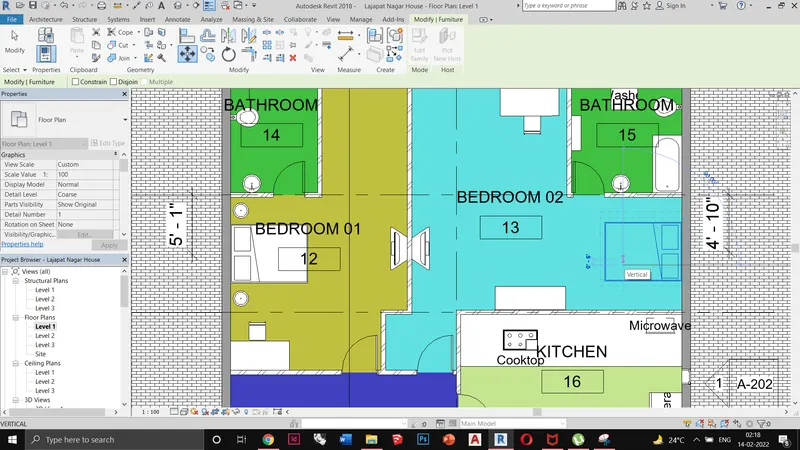

Type AL. select the wall edge and then the cupboard edge to align it with the wall.

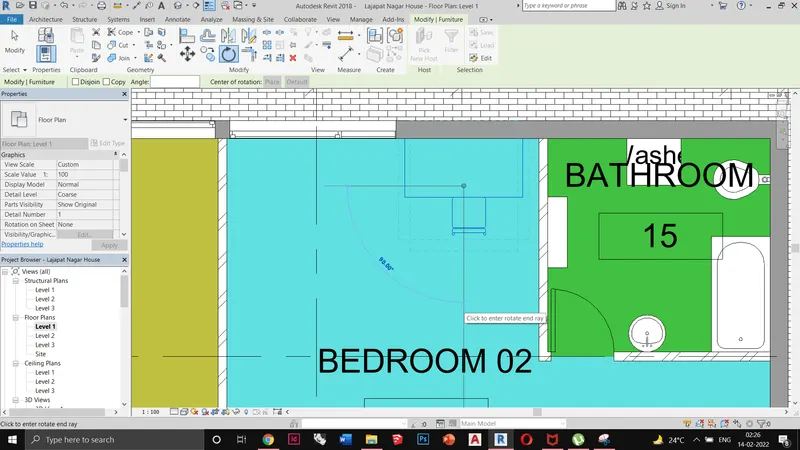

i. To rotate the model elements

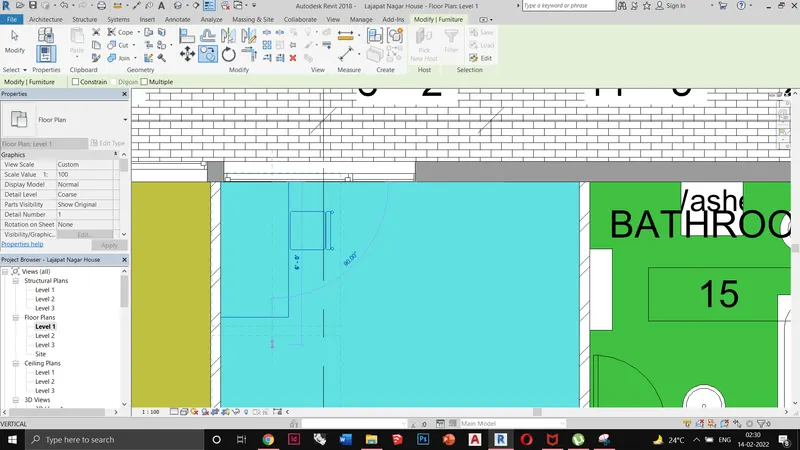

selecting the table - chair
typing RO in the command line
j. To move an object to another location

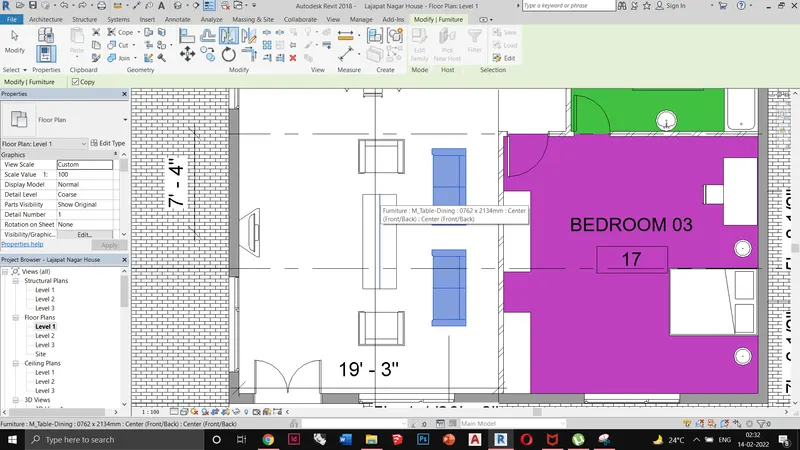

selecting the table
typing MV and moving accordingly

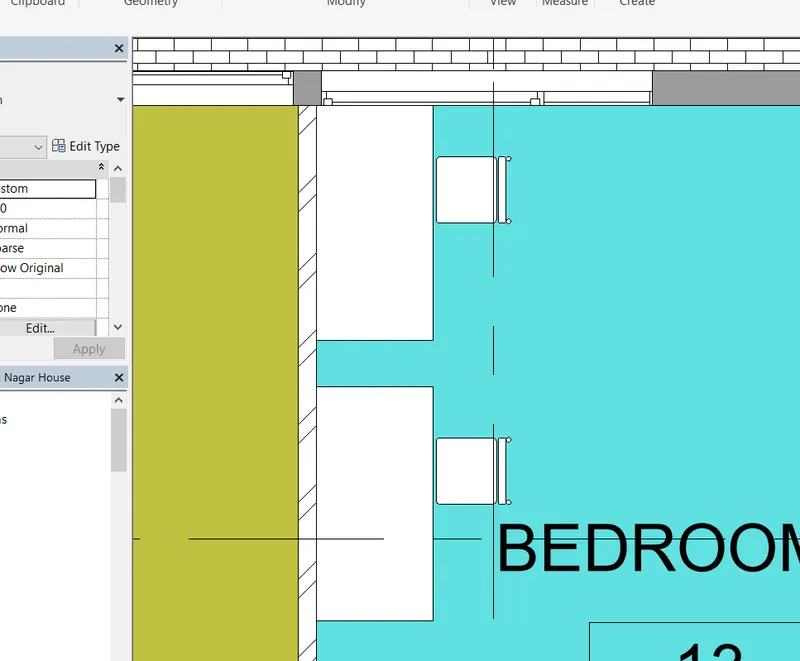

k. To copy a model element
select and typing CO to copy the table chair
l. To mirror an element about an axis

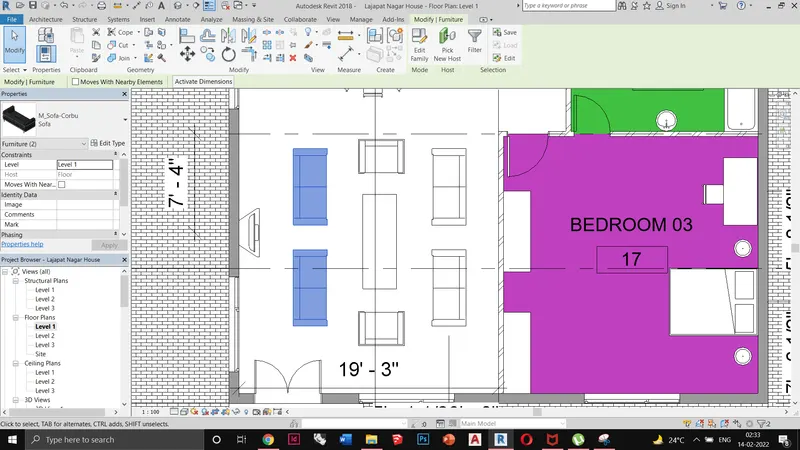

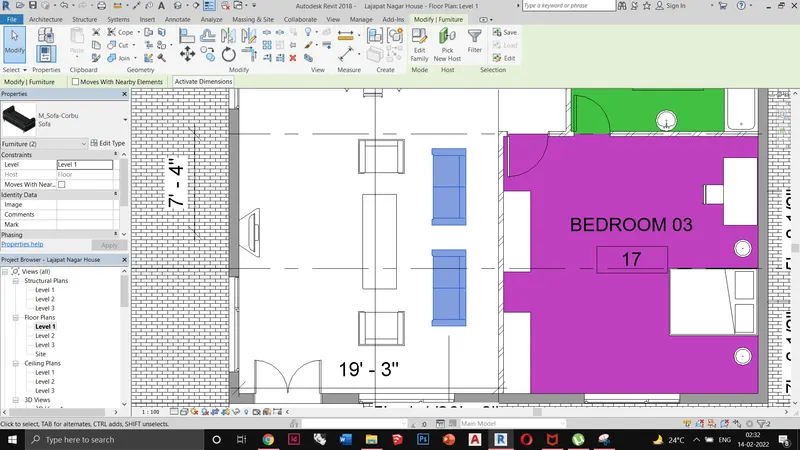

select the sofas
type MM for the mirror. I have taken the median of the table for the mirror axis.
m. To create an array of model elements

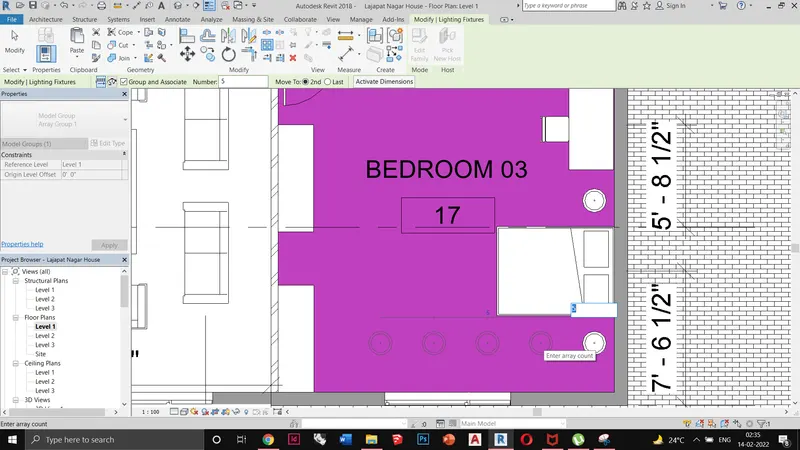

select the lamp. Type AR and put the number and give it a certain distance.
Q2. Ans:
Aim:
To prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood
Introduction:
A schedule is a tabular display of information, extracted from the properties of the elements in a project. A schedule can list every instance of the type of element you are scheduling, or it can collapse multiple instances onto a
single row, based on the schedule's grouping criteria.
Procedure:
* Go to View tab< select schedules< schedule/quantities
* select the category from the new schedule menu
* for example, select wall<select the parameters from the available fields< click ok
Results:

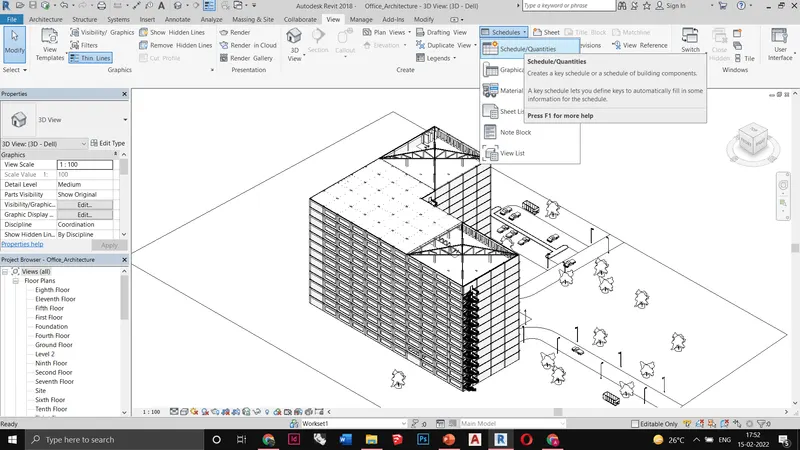

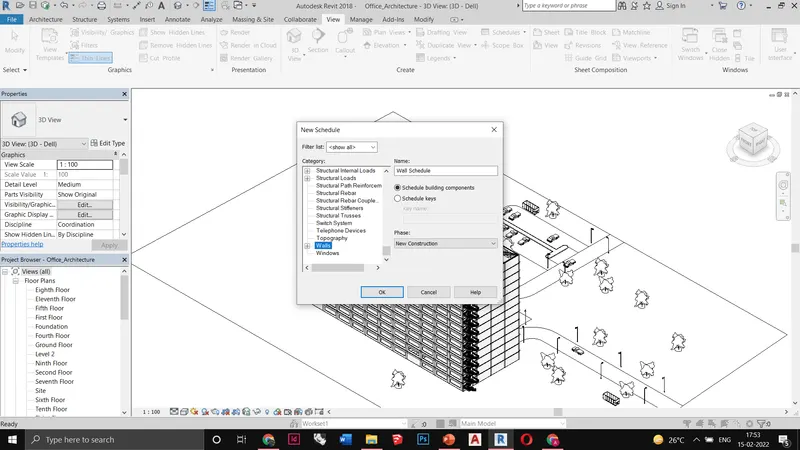

selecting schedule/ quantities from the view tab
selecting wall category as our first schedule

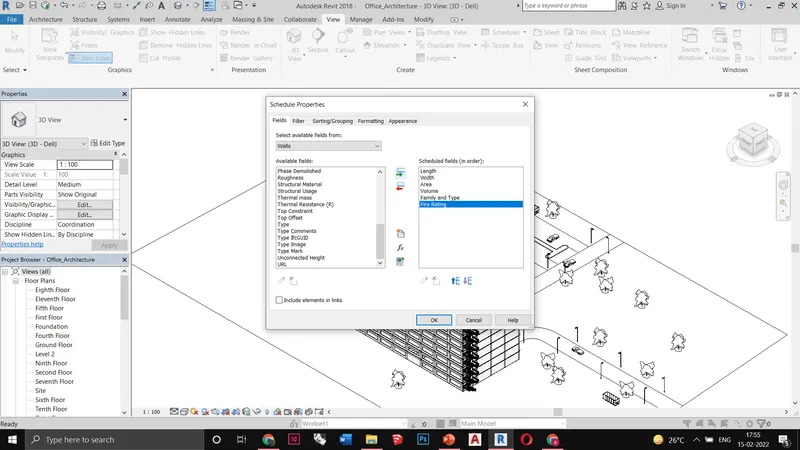

adding parameters to the schedule

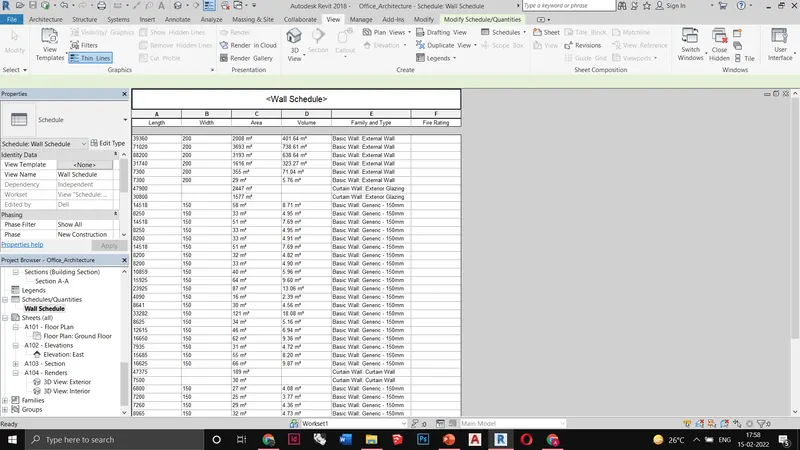

Wall schedule

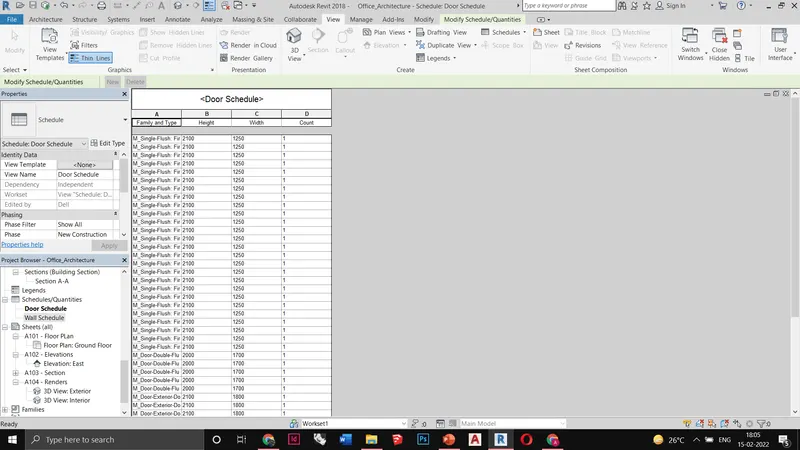

Door schedule

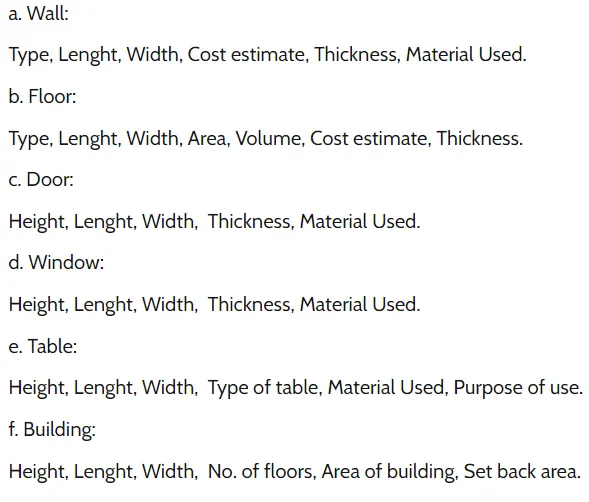

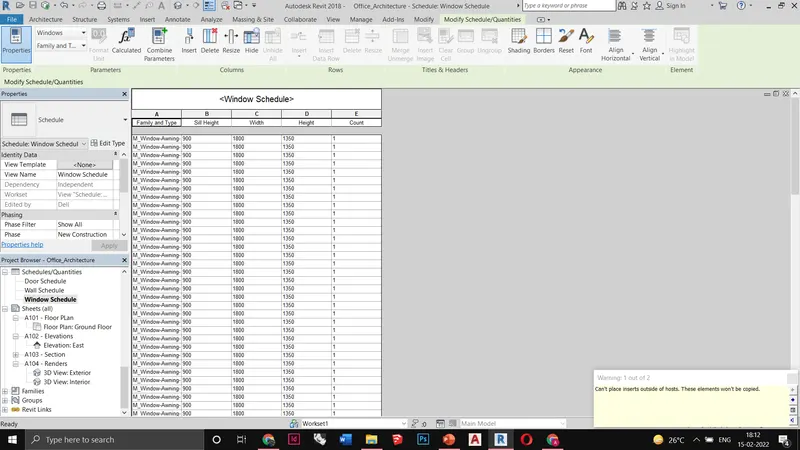

Q6. Ans:
