Preparing Schedule & Cost Estimation for a building using REVIT
1)
Aim :-
Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements
Procedure :-

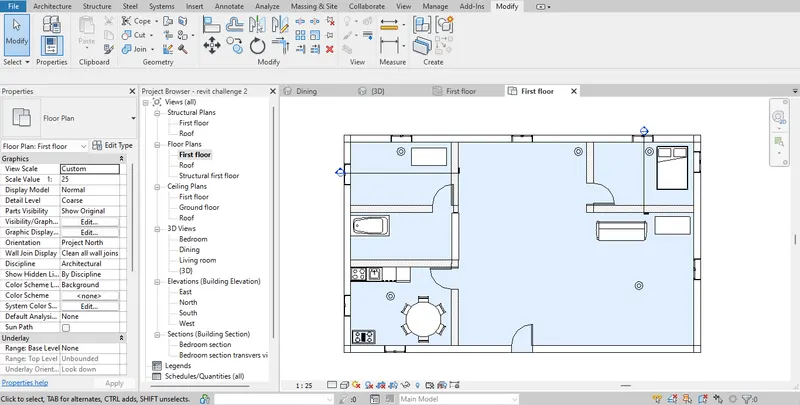

* We can open the before completion project.

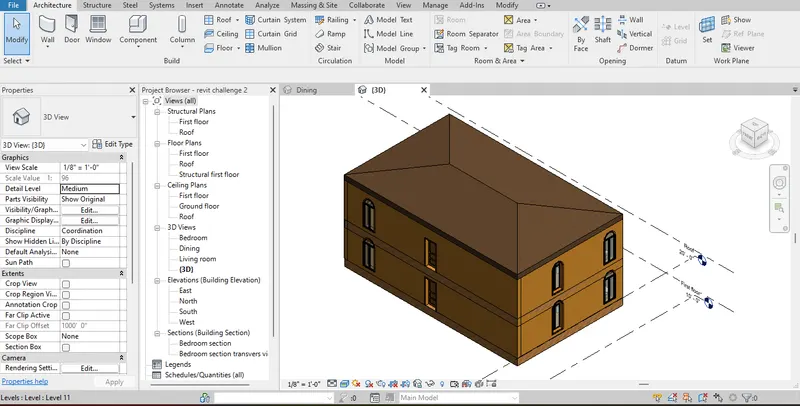

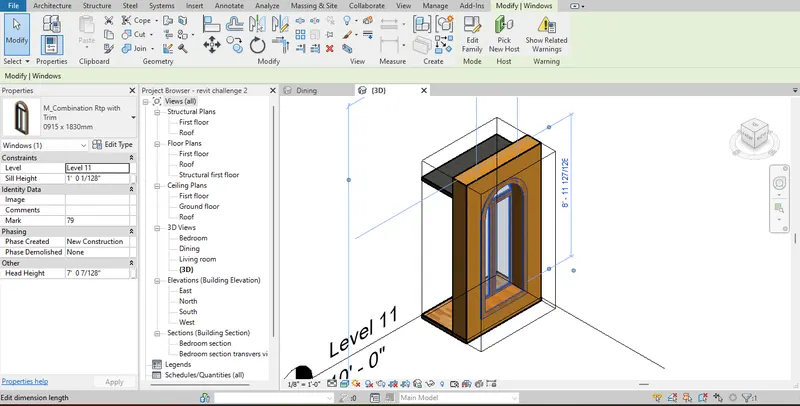

a. Using 3D model create a section box
Shortcut key :- BX
Which object you want the section select that object then type BX. Section of that object will be created.
\
b. To create similar doors and windows in a floor plan layout
Shortcut key :- CS
Same object placed in different places. Select that object then type CS placed in different places.
c. To reduce the thickness of lines visible in plan views
Shortcut key :- TL
Incase the lines reduces thick to thin or thin to thick. Select that line then type TL automatically changes.
d. To apply override settings to a floor in the model section view
Shortcut key :- VG
Type VG dialog box will be appear on the screen.Goto floor option changes the color texture ect.

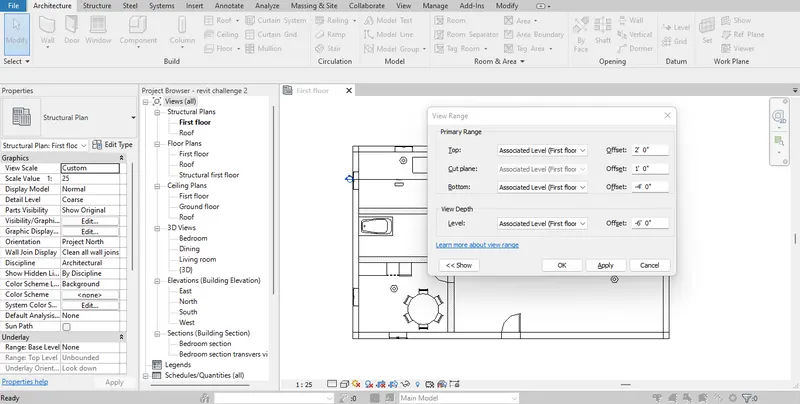

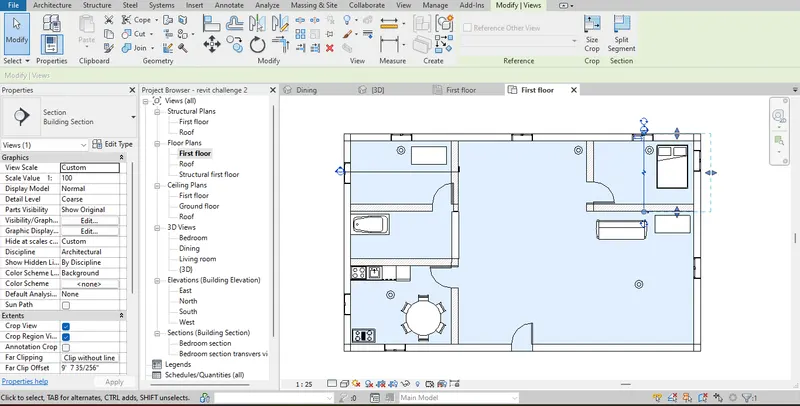

e. To increase the range of visibility in a plan view
Shortcut key :- VR
Type VR dialog box will appear changes the settings than click on OK.
f. To select the previously selected items
Shortcut key :- cntl+<
Type control+< automatically select which we are select before selection object.

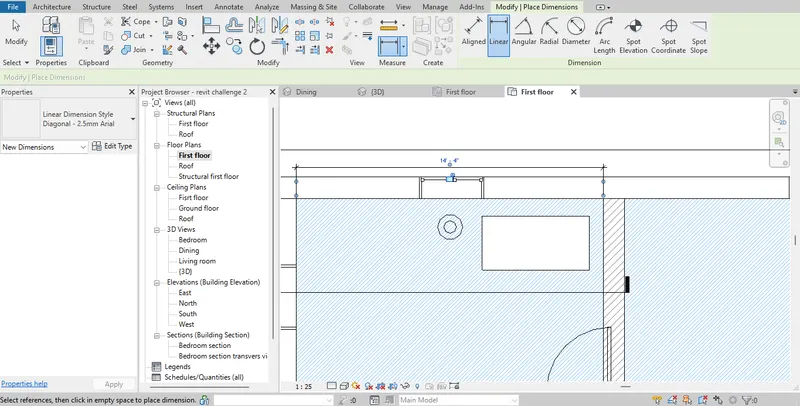

g. To add annotations to the model views
Shortcut key :- DI
Type DI select linear,aligned or any oprtion to give annotations(dimentions).

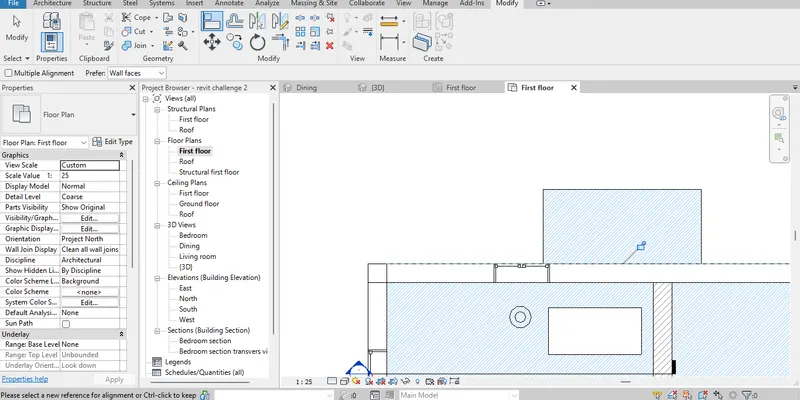

h. To bring the model elements in line
Shortcut key :- AL
If any object is aligned to the model first draw the obect then type AL selct edges of the model and object it's automatically aligned.

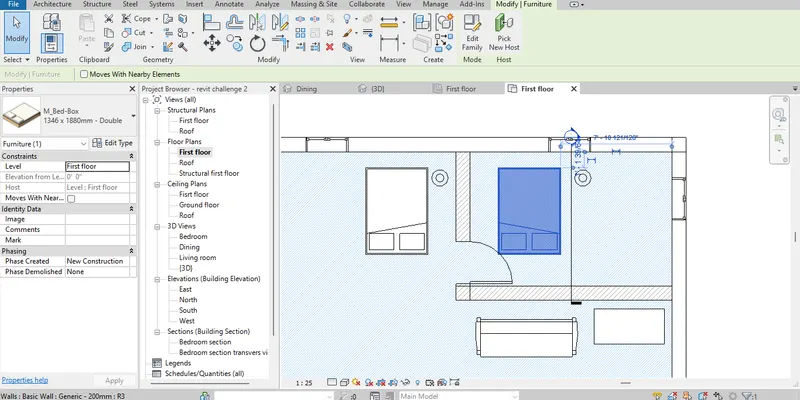

i. To rotate the model elements
Shortcut key :- RO
Which object to rotate select that object then type RO then rotate.

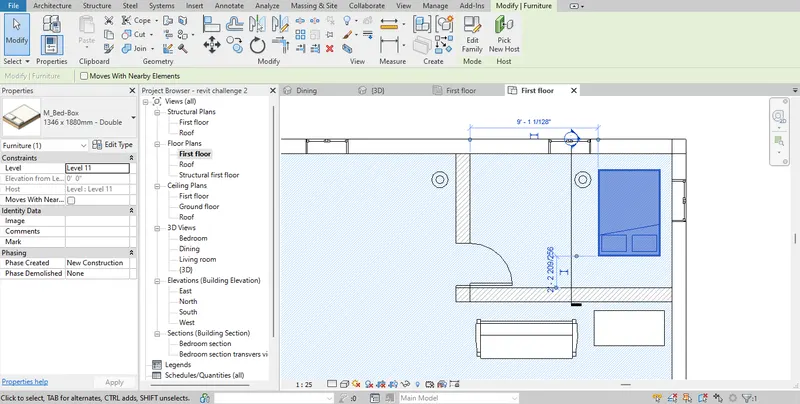

j. To move an object to another location
Shortcut key :- MO
Select which object move type MO then move the object.
k. To copy a model element
Shortcut key :- CO
Select which object you can copy.Type CO then placed the copy object.
l. To mirror an element about an axis
Shortcut key :- MM
Select the object .Type MM then click on axis it's automatically mirror the object.

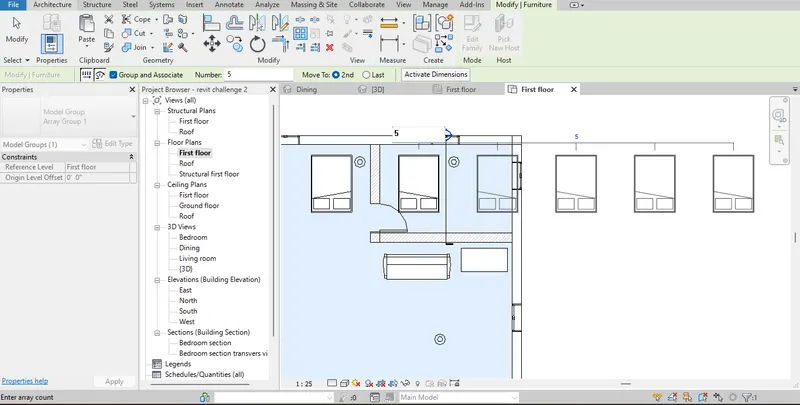

m. To create an array of model elements
Shortcut key :- AR
Select the object. Type AR enter the number of objects then place the distance.
Results :-
Complete the use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements
2)
Aim :-

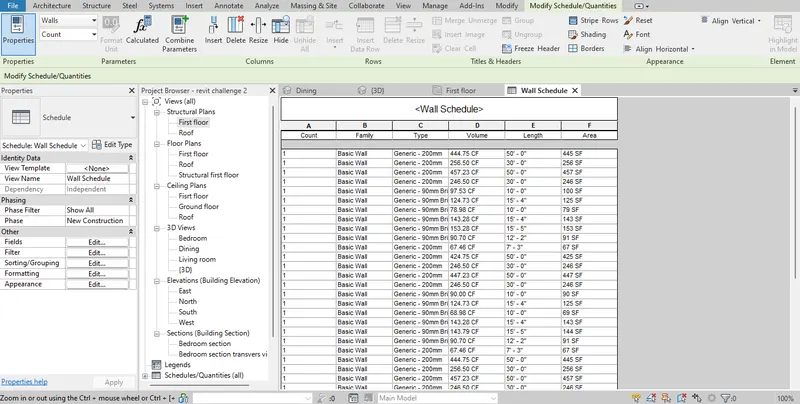

Using Revit and the project used to prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood
Procedure :-
* We can open the before completion project.

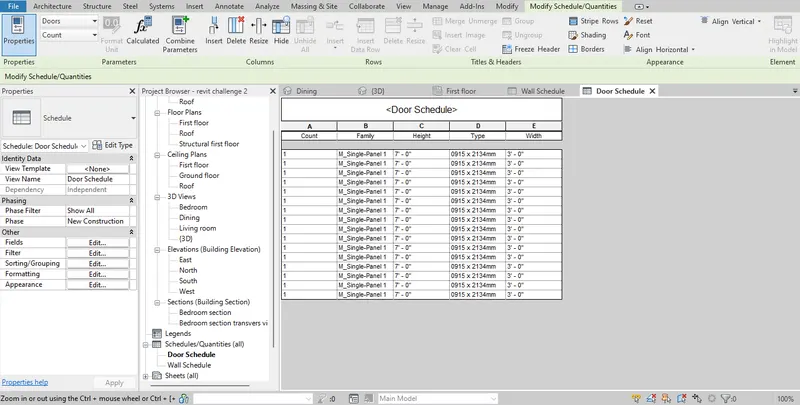

* Goto view tab,drop down the schedule option select the Schedule/quantities.
* Dialog box will be appear in the category Select walls then click on OK.
* Another dialog box will be appear choose the parameters then click on OK.
* It's automatically displays the schedule.

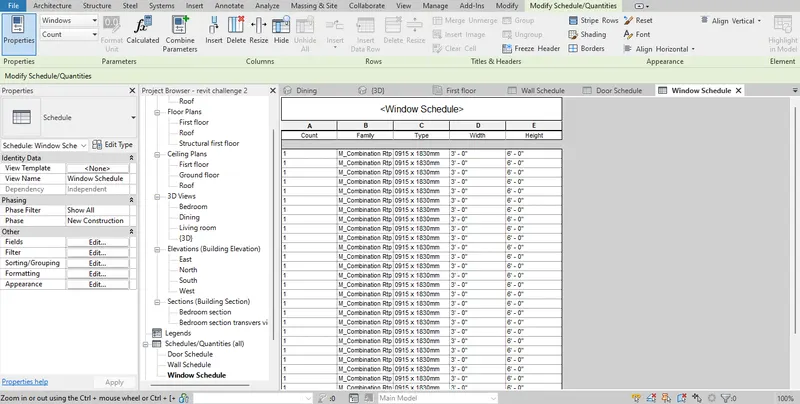

* Same procedure the doors,windows.

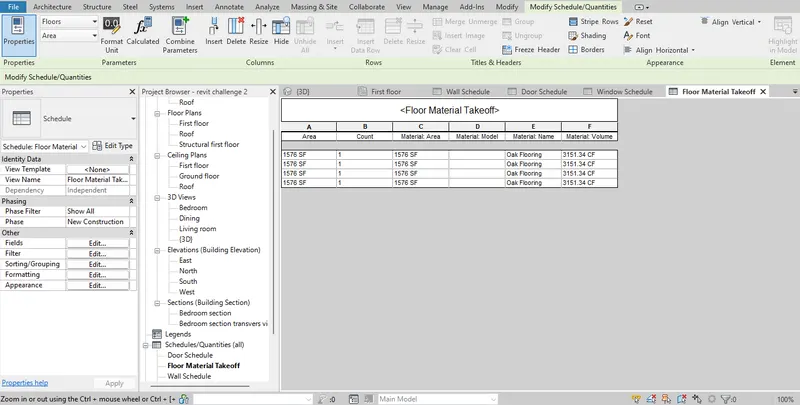

* Goto view tab,drop down the schedule option select the material takeoff.
* Dialog box will be appear in the category Select floors then click on OK.
* Another dialog box will be appear choose the parameters then click on OK.
* It's automatically displays the schedule.
Result :-
Complete using Revit and the project used to prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood
3)
Aim :-

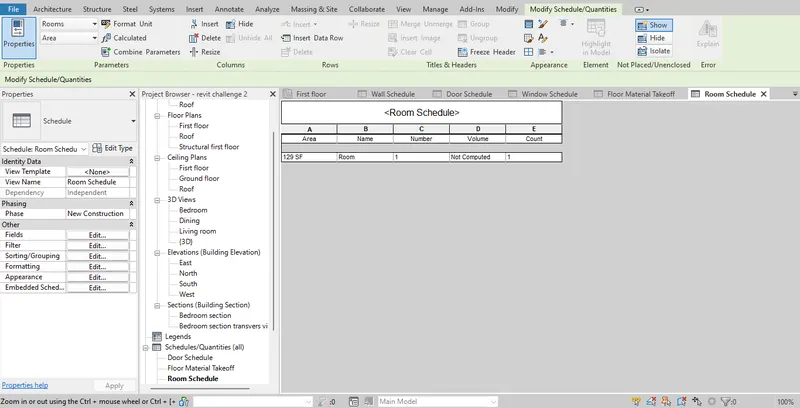

Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.
Procedure :-
* We can open the before completion project.
* Goto view tab,drop down the schedule option select the Schedule/quantities.
* Dialog box will be appear in the category Select walls then click on OK.
* Another dialog box will be appear choose the parameters then click on OK.
* It's automatically displays the schedule.
Result :-
Complete to using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.
4)
Aim :-

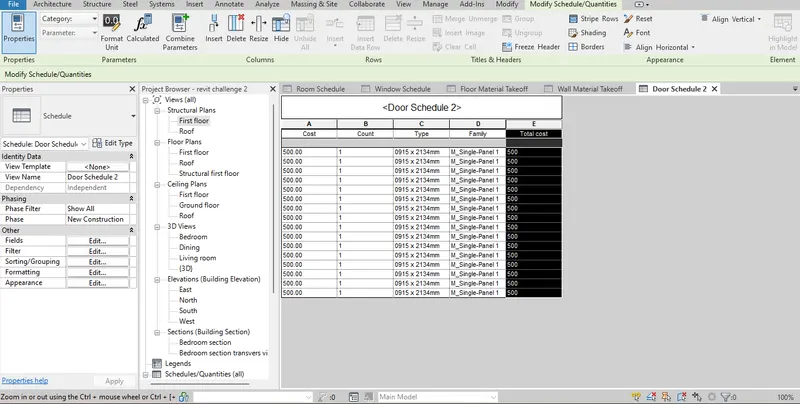

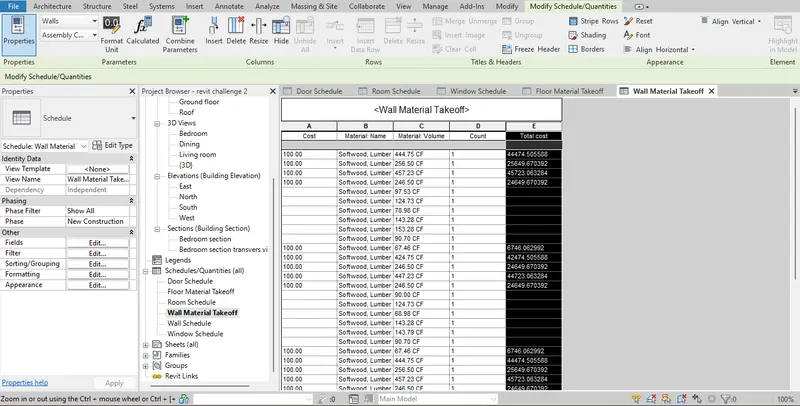

Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off
Procedure :-
* We can open the before completion project.
* Goto view tab,drop down the schedule option select the Schedule/quantities.
* Dialog box will be appear in the category Select walls then click on OK.
* Another dialog box will be appear choose the parameters then click on OK.
* It's automatically displays the schedule.
* Add one dummy column then edit that column.
* Click on that column in the above claculated option are there click that option type name and enter the formula then click on ok.
* It automatically shows the cost.
Result :-
Complete using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off
5)

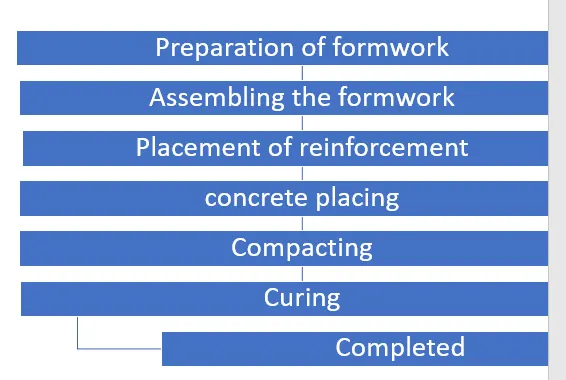

Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario :-

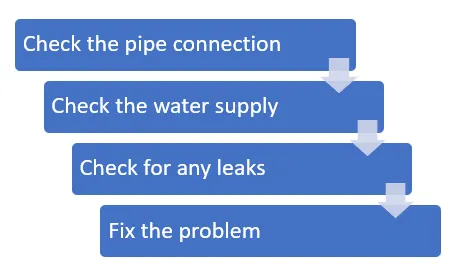

If there is no water coming from the pipes
To decide framings for a structure using Dynamo

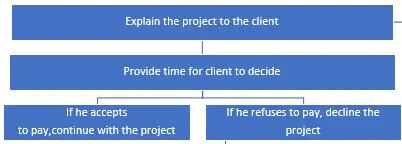

If request for money from client has been declined for the project
6)
Aim :-
List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building
Procedure :-

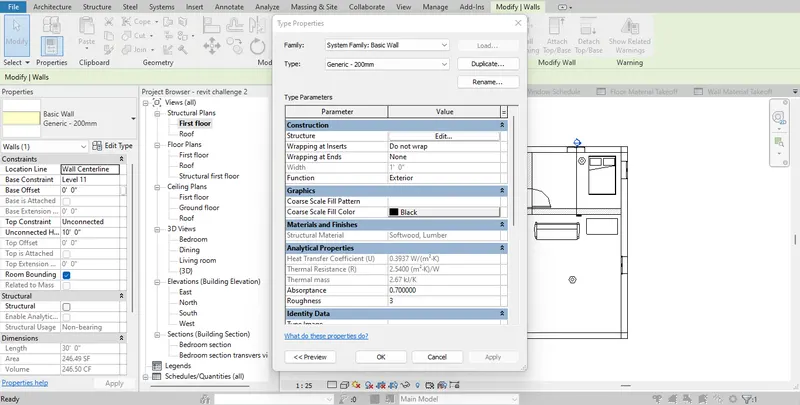

* We can open the project select wall in the left side shows edit type click on that it shows parameters.

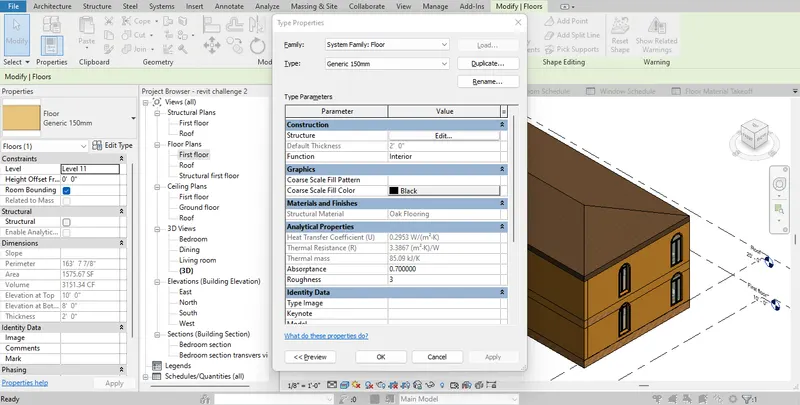

* We can open the project select floor in the left side shows edit type click on that it shows parameters.

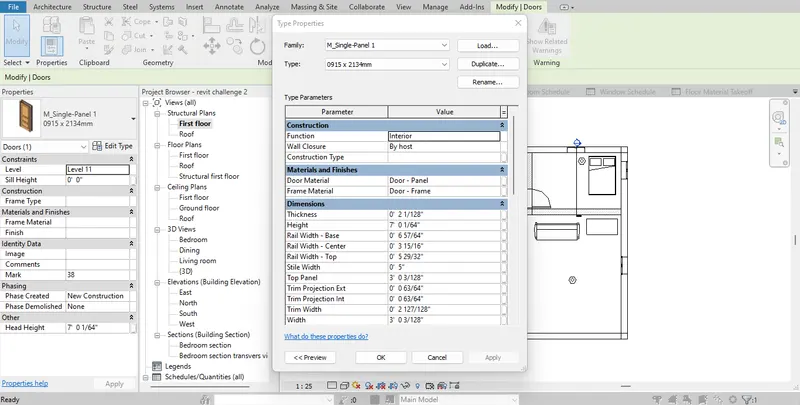

* We can open the project select door in the left side shows edit type click on that it shows parameters.

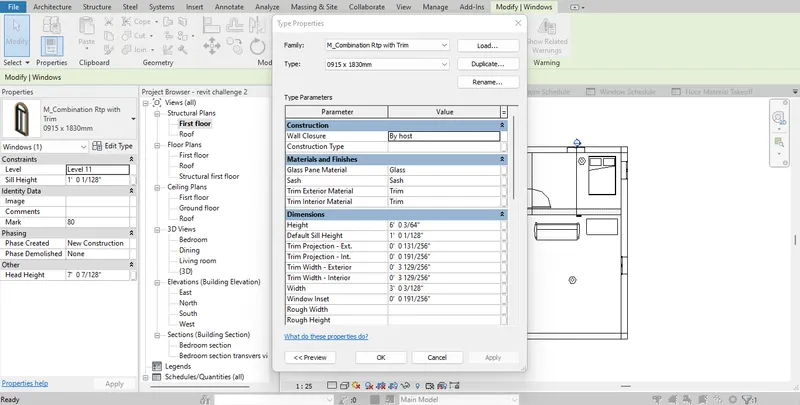

* We can open the project select window in the left side shows edit type click on that it shows parameters.

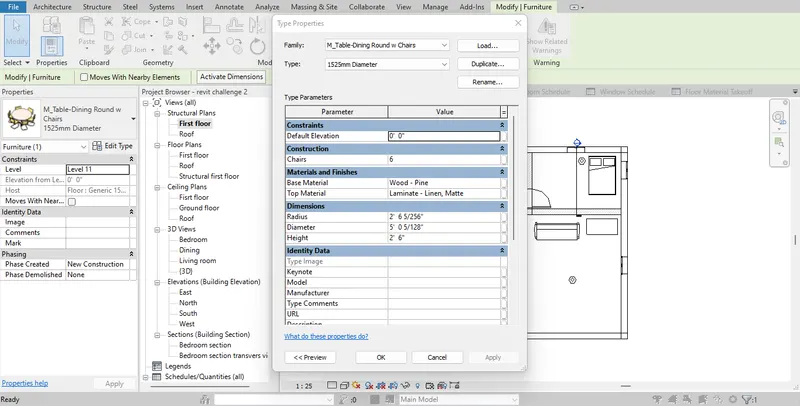

* We can open the project select table in the left side shows edit type click on that it shows parameters.
Result :-
Complete the List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building
