Preparing Schedule & Cost Estimation for a building using REVIT

que 1 ]

a. Using 3D model create a section box=BX
b. To create similar doors and windows in a floor plan layout=CS
c. To reduce the thickness of lines visible in plan views=TL
d. To apply override settings to a floor in the model section view=EOD
e. To increase the range of visibility in a plan view=VR
f. To select the previously selected items=CTRL+<
g. To add annotations to the model views=DI
h. To bring the model elements in line=AL
i. To rotate the model elements=RO
j. To move an object to another location=MV
k. To copy a model element=CO\CC
l. To mirror an element about an axis=MM
m. To create an array of model elements=AR

que 2 ]

aim - create schedule of the following

command used -
view

schedule

quantities

schedule properties

procedure

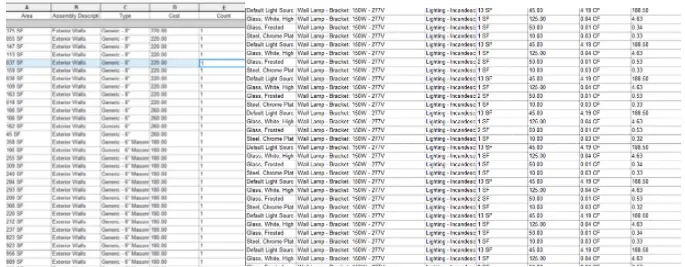

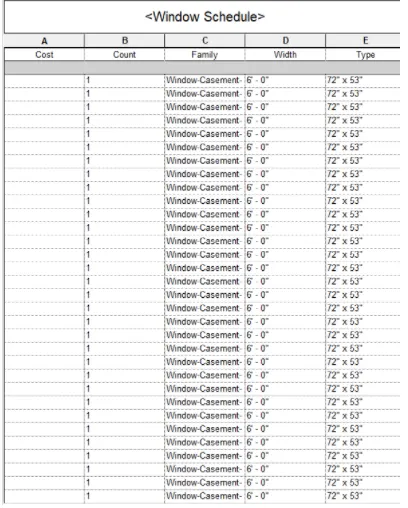

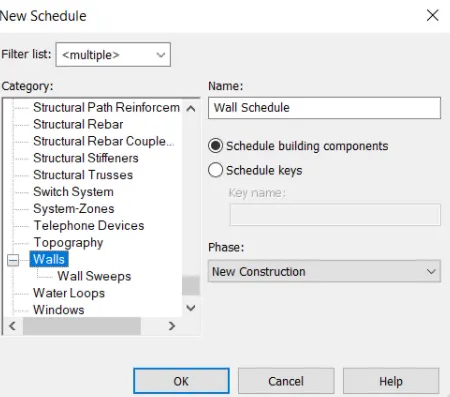

open the architectural template in a revit

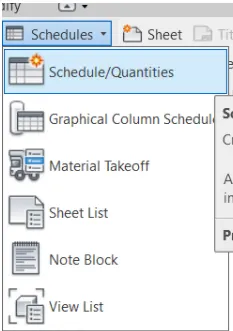

click the view command and select to schedule quantities
select the components such as our walls columns doors etc.
Schedule properties tab will open
select the things which we want to display is Schedule like area of volume type click ok

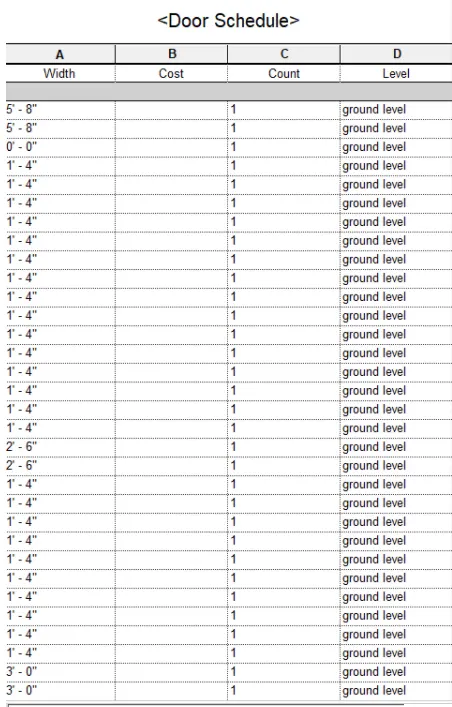

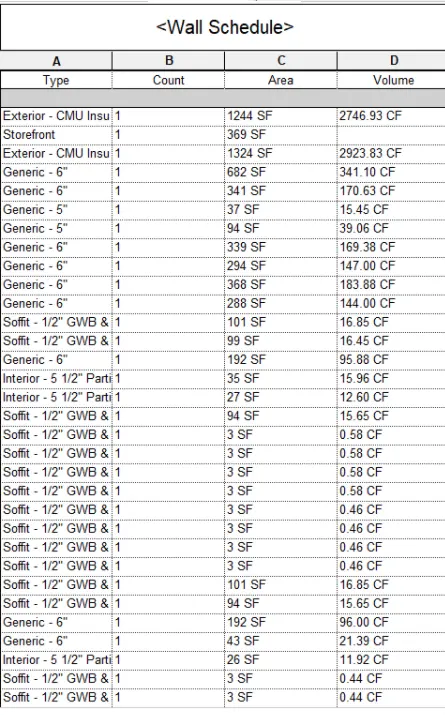

result -

que 3]

aim - Using Revit calculate the area and volume of each room

commands used
view

schedule

procedure =

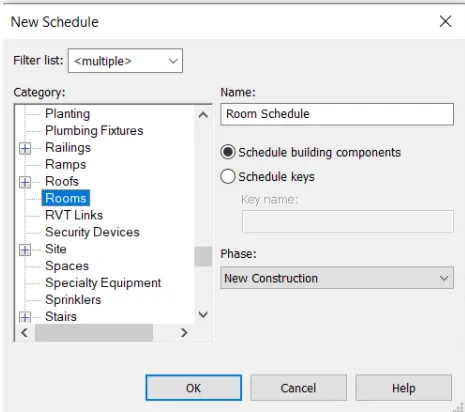

open the architectural file in Revit

select the view option and select schedule in the dialogue box
select to rooms select the parameters like areas volumes

click ok

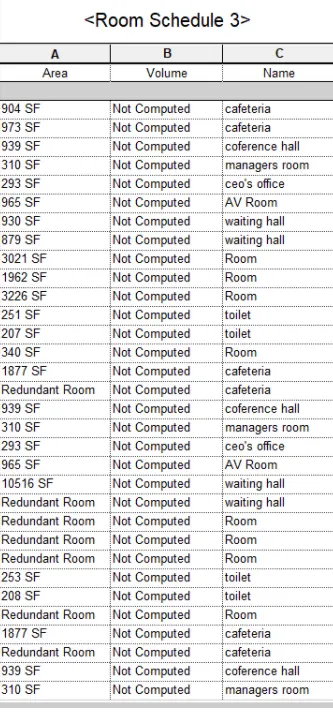

room area schedule is obtained

resullt -

que 4 ]

aim - Create a schedule of the total cost of materiaL

commands used
view

schedule

material takeoff

procedure

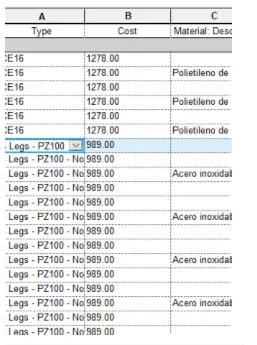

open the architectural templateral revit
select the view tab and selective schedule and

select a material take of specify the name click ok
select the parameter which we need select to the total cost and selected calculated and define the formula for the total cost

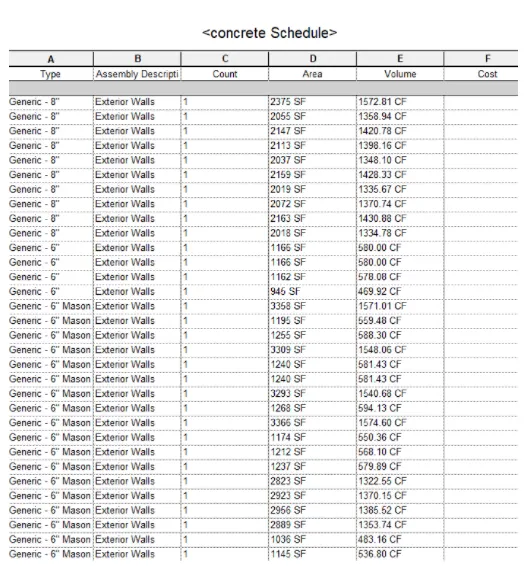

recsult -

que 5 ]

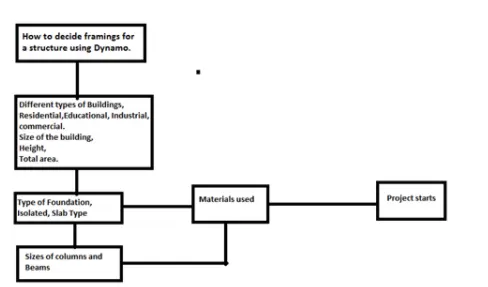

1. How to decide framings for a structure using Dynamo

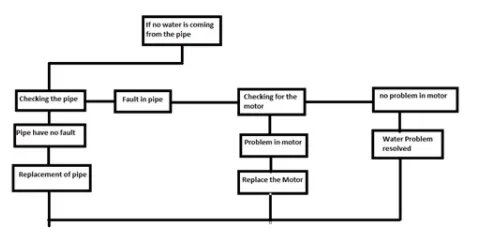

2.If there is no water coming from the pipes

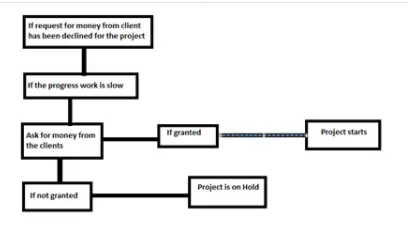

3.If request for money from client has been declined for the project

Q6-

1. Walls

• type of a wall
• length
• width
• height
• material used
• cost
• thickness

2. Floor

• type ofloor-length
• width
• area
• volume
• cost
• thickness

3.Doors

• height of a sill
• width
• materials
• type of door
• height of a lintel
• thickness

4.Windows

• height of a sILL
• lENGTH
• width
• material
• type of a window
• height of a lintel
• thickness

5. Table

• material
• purpose of timber
• length
• width
• material
• height

6.Building

• type of a building
• number of floors
• height
• width
• areA
• material loads on Building
• location
