TITTLE OF PROJECT:

AMERICAN CHOPPER MODEL

OBJECTIVE:

• To create american chopper model parts by using solid works.
• To assemble the chopper model parts.
• To  create photo realistic rendering the images by using photo view 360.

INTRODUCTION:

The chopper models parts are made with different types of tools ans sketches using solid works and also add with decals.the model contains follwing parts.

• chassis
• engine
• pedal
• pedal LHS
• kick stand
• transmission belt
• oil tank
• rear wheel
• front wheel
• rear fender
• front fender
• chain
• gas tank
• front fork

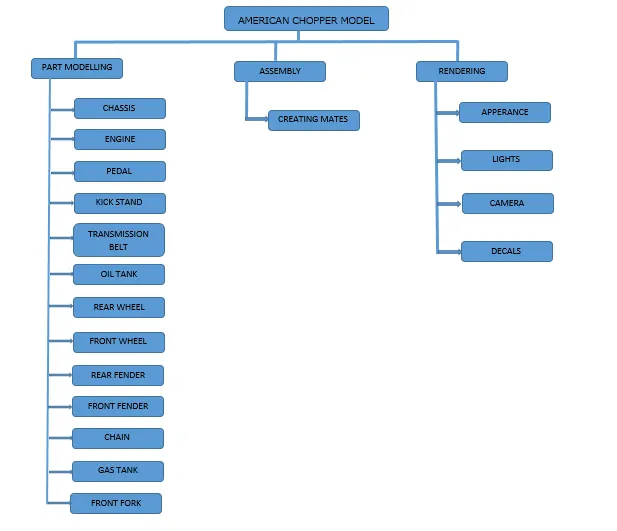

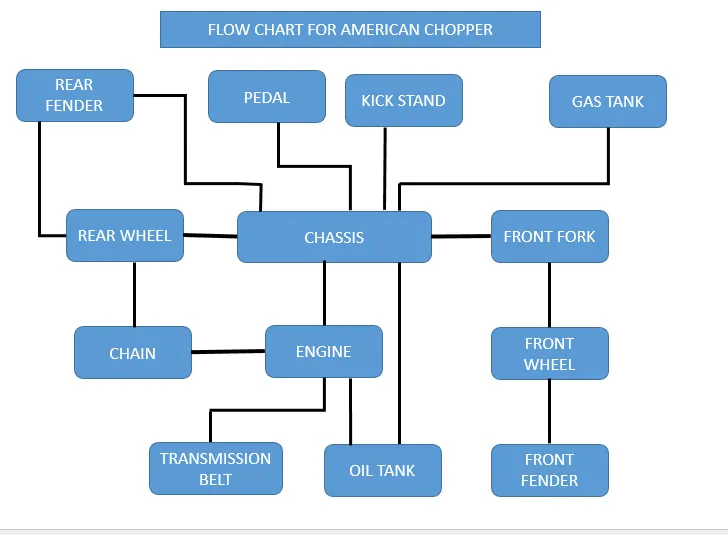

FLOW CHART :

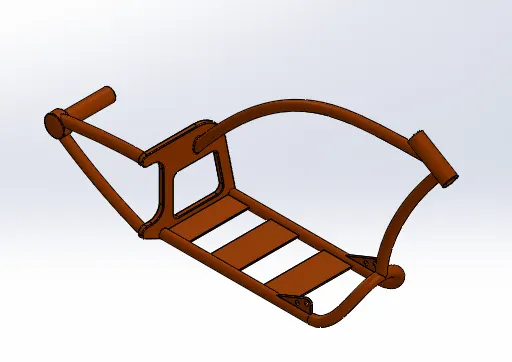

CHASSIS:

It is frame structure of vehicle it support the engine.front end connected with front fork and rear end connected with rear wheel.

COMMANDS USED:

• 2D sketch
• smart dimensions
• apperance
• sketch picture
• projected curve
• sweep
• mirror
• boss extrude
• cut extrude
• chamfer
• fillet
• reference plane
• dome
• split
• combine

IMAGES OF MODELLED PART:

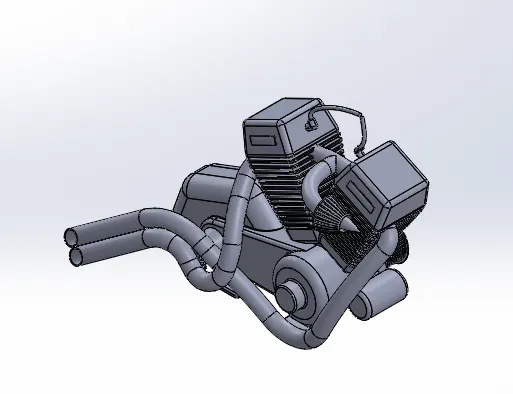

ENGINE:

It is produced power to run the vehicle.that heat energy converted into mechanical energy.typically two stroke or four stroke engine.

COMMANDS USED:

• 2D sketch
• smart dimensions
• sketch picture
• projected curve
• boss extrude
• fillet
• revolve
• circular pattern
• dome
• cut extrude
• chamfer
• linear pattern
• mirror
• split
• sweep
• combine
• composite curve
• trim

IMAGES OF MODELLED PART:

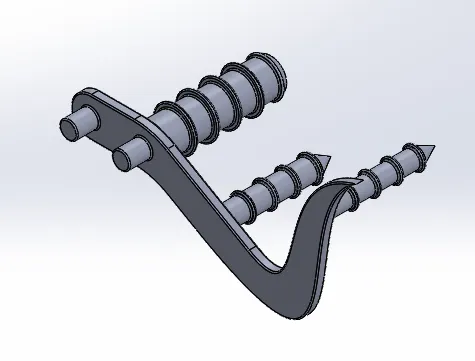

PEDAL:

Pedal are initally attached to the driven wheel.it is activated by mechanism

COMMANDS USED:

• 2D sketch
• smart dimensions
• boss extrude
• fillet
• revolve
• dome
• chamfer
• linear pattern

IMAGES OF MODELLED PART:

PEDAL LHS:

It is mirrored part of pedal across the mid plane

COMMANDS USED:

• Mirror feature

IMAGES OF MODELLED PART:

KICK STAND:

A kick stand usually a piece of metal that flips down from the frame and make contact with the ground.vehicle idle condition to support the bike stationary.

COMMANDS USED:

• 2D sketch
• smart dimensions
• Loft
• dome
• cut extrude
• split
• boss extrude
• fillet

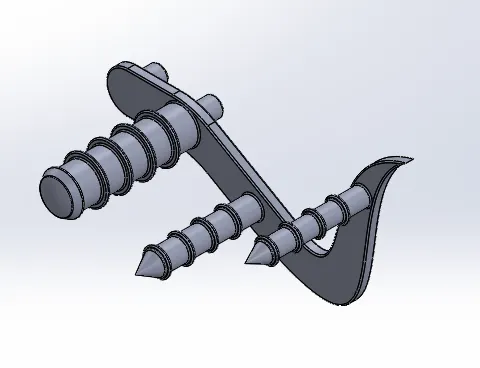

IMAGES OF MODELLED PART:

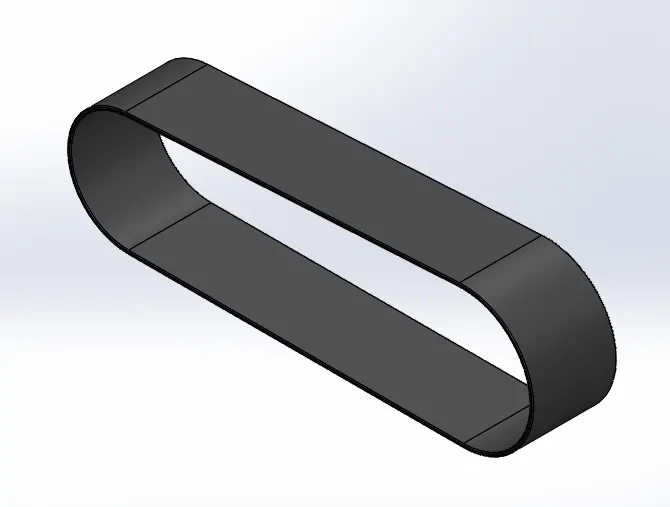

TRANSMISSION BELT:

It is flexible material used for transmit power from one pulley to another pulley.it is rotate over the pulley.

COMMANDS USED:

• 2D sketch
• smart dimensions
• Boss extrude
• fillet
• apperance

IMAGES OF MODELLED PART:

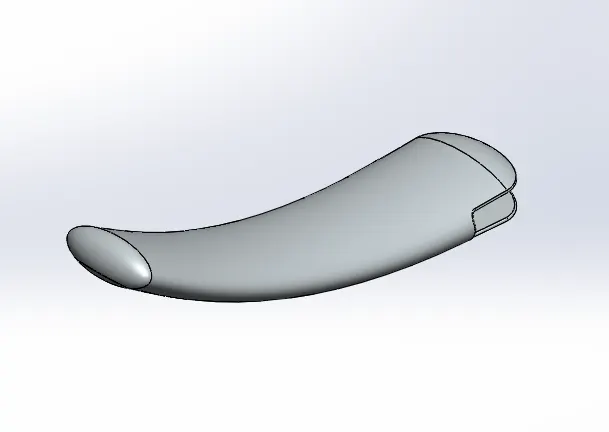

OIL TANK:

It contains and store the oil.oil tank is placed on over the engine.

COMMANDS USED:

• 2D sketch
• smart dimensions
• boss extrude
• combine
• fillet
• shell
• apperance

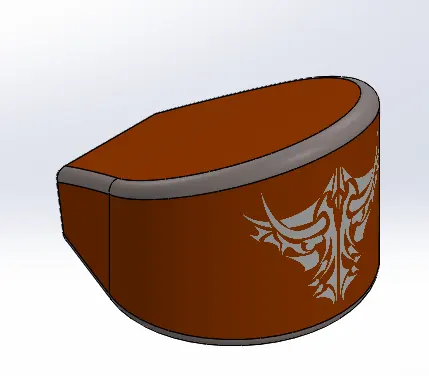

IMAGES OF MODELLED PART:

WHEEL:

The wheels are contact between the ground and move freely from one place to another place.

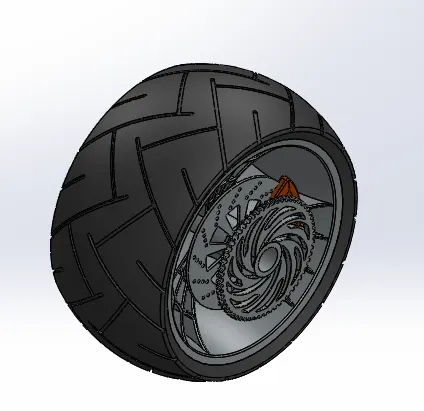

REAR WHEEL:

It is fixed rear side of vehice.it contains following parts.

• RIM
• ROTOR
• TYRE
• CALIPER
• SPROCKET

COMMANDS USED:

• 2D sketch
• smart dimensions
• revolve
• boss extrude
• cut extrude
• circular pattern
• combine
• cut revolve
• fillet
• chamfer
• mirror entities
• offset entities
• apperance

IMAGES OF MODELLED PART:

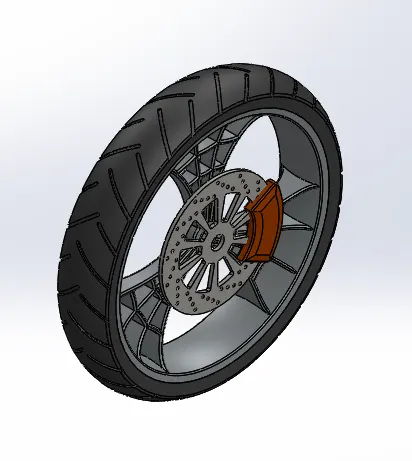

FRONT WHEEL:

It is fixed front side of vehicle.it contains following parts

• RIM
• ROTOR
• CALIPER
• TYRE

COMMANDS USED:

• 2D sketch
• smart dimensions
• apperance
• revolve
• boss extrude
• cut extrude
• circular pattern
• combine
• fillet
• chamfer
• mirror entities
• offset entities

IMAGES OF MODELLED PART:

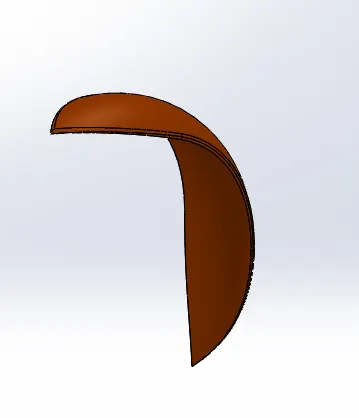

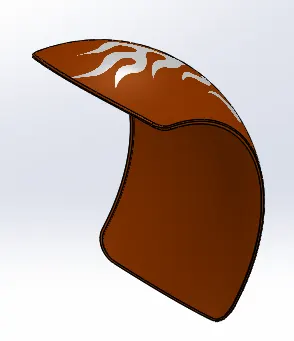

FENDER:

A fender is a part of covering the wheels of vehicle to stop it from throwing off mud water or objects from the road.it protects people and property from dirtiness,damness and damage.

REAER FENDER:

It covers rear side wheel.it contains decals

COMMANDS USED:

• 2D sketch
• smart dimensions
• Apperance
• revolve
• split
• fillet
• shell

IMAGES OF MODELLED PART:

FRONT FENDER:

It covers front side vehicle with decals.

COMMANDS USED:

• 2D sketch
• smart dimensions
• apperance
• revolve
• split
• fillet

IMAGES OF MODELLED PART:

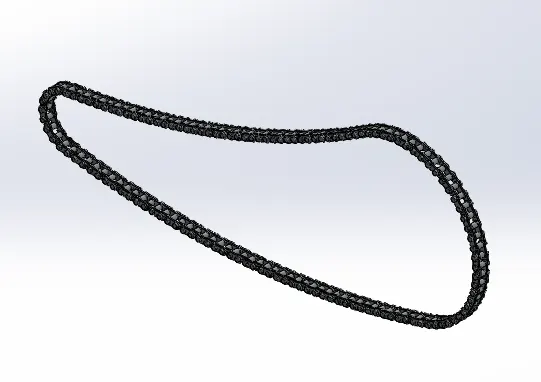

CHAIN:

Chain drive is a way of transmitting mechanical power from one place to another place.it is often used to convey power to the wheels of vehicle.the chain passing over the sprocket gear

messing with the holes in the links of the chain.

COMMANDS USED:

• 2D sketch
• smart dimensions
• Boss extrude
• fillet
• curve driven pattern
• mirror

IMAGES OF MODELLED PART:

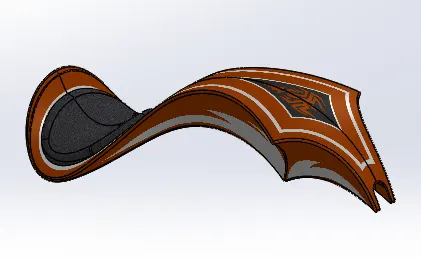

GAS TANK:

A fuel tank is a safe container of flammable fluids through any stroage tank for fuel may be so called the terms is typically applied to part of engine in which the fuel is stroed and propelled

realesd into the engine.

it contain three decals

COMMANDS USED:

• 2D sketch
• smart dimensions
• Apperance
• sketch picture
• surface sweep
• surface trim
• projected curve
• surface loft
• boundary surface
• mirror
• surface knit
• split
• surface extrude
• fillet
• cut sweep
• shell

IMAGES OF MODELLED PART:

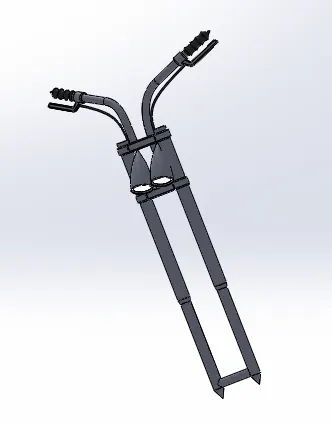

FRONT FORK:

Fork is connected to front wheel axis.fork end joined to suspension system is also known as shock absorbs in a vehice shock absorbs reduce the effort of travelling over rough ground leading improved the riding quality.

COMMANDS USED:

• 2D sketch
• smart dimensions
• Revolve
• boss extrude
• cut extrude
• fillet
• dome
• cut revolve
• body move copy
• projected curve
• sweep
• reference plane
• mirror
• combine
• linear pattern
• mirror entities
• apperance

IMAGES OF MODELLED PART:

ASSEMBLY:

The parts were modelled and assembled one by one using mate command.the chassis is the first component of american chopper this reference for all the component.

ASSEMBLE IMAGES OF CHOPPER MODEL:

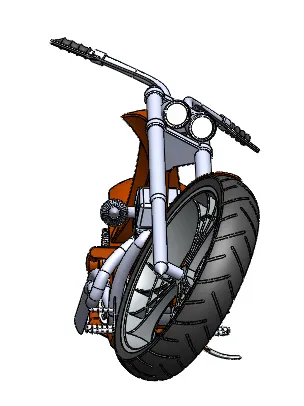

FRONT VIEW:

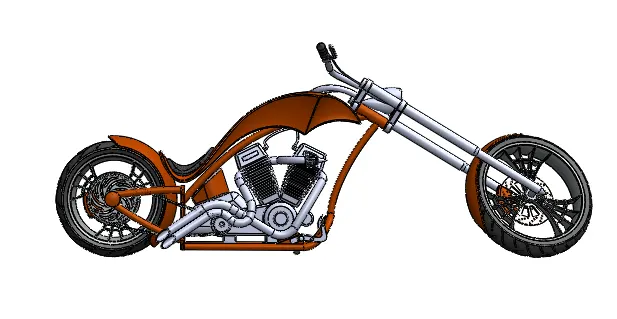

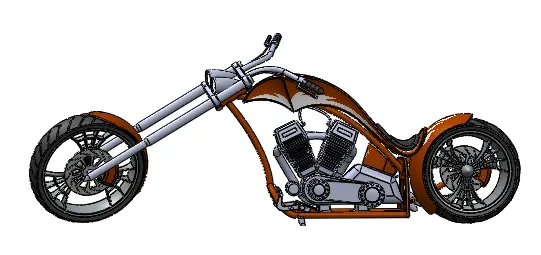

RIGHT VIEW:

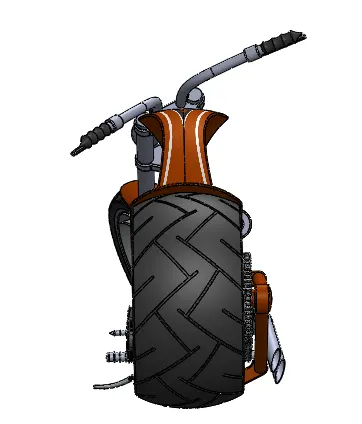

BACK VIEW:

LEFT VIEW:

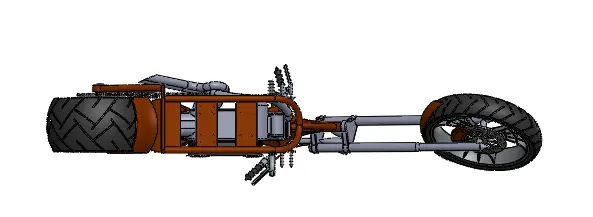

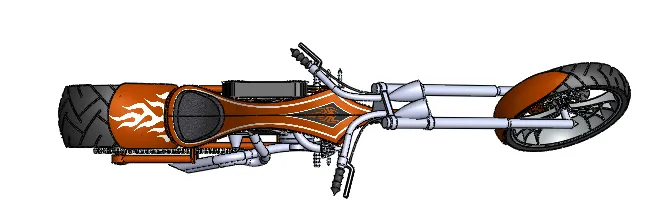

TOP VIEW:

BOTTOM VIEW:

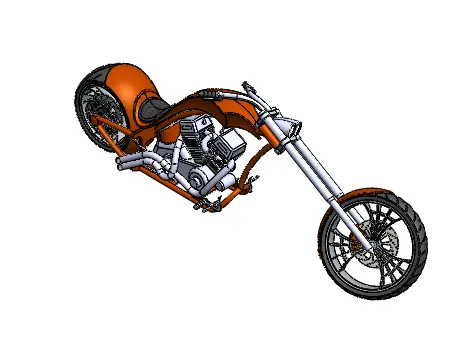

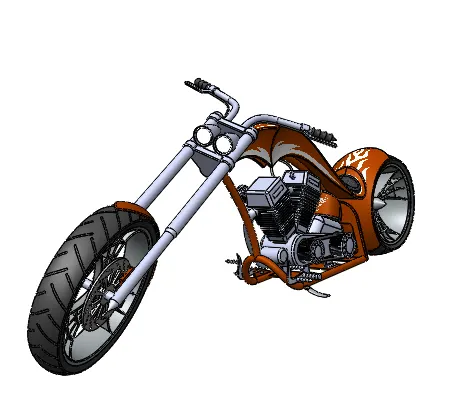

ISOMETRIC VIEW:

CAMERA VIEW:

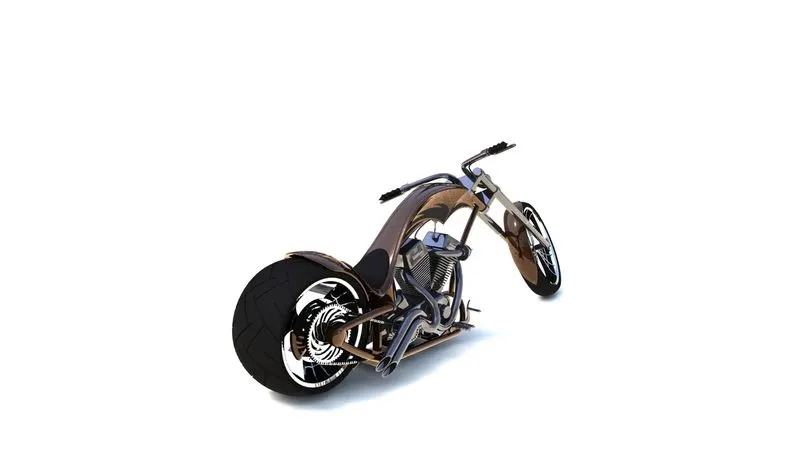

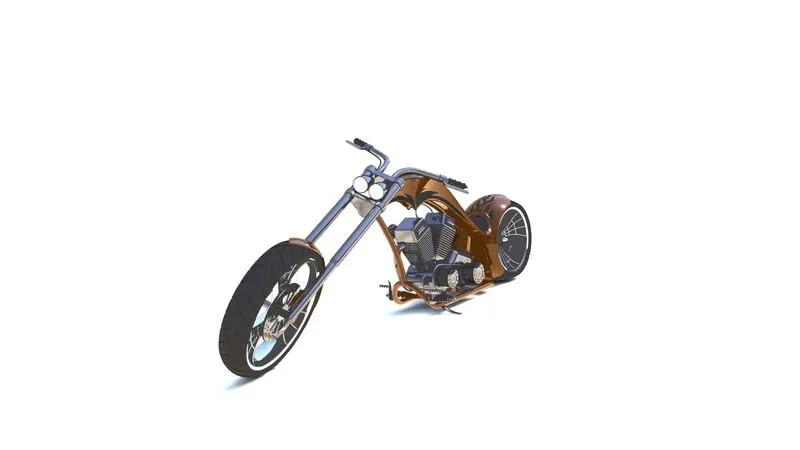

PHOTOREALISTIC RENDERING IMAGES:

CONCLUSION:

The american chopper model parts were creted and assembled by using solidworks. and photo realistic render were created using photo view 360 successfully.
