Photo Realistic Rendering

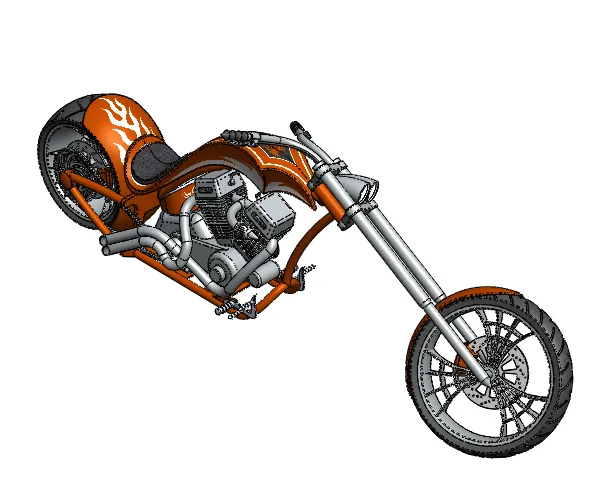

Design and Render of American Chopper

1. AIM: To design a model of American Chopper using Solidworks and Rendering by using Solidworks Visualize.

2. Objective:

1. To design a Individual component of a American Chopper by using Solidworks in Part mode.
2. To design a Assembly by inserting all the components into the Solidworks Assembly and constraint them using available mates.

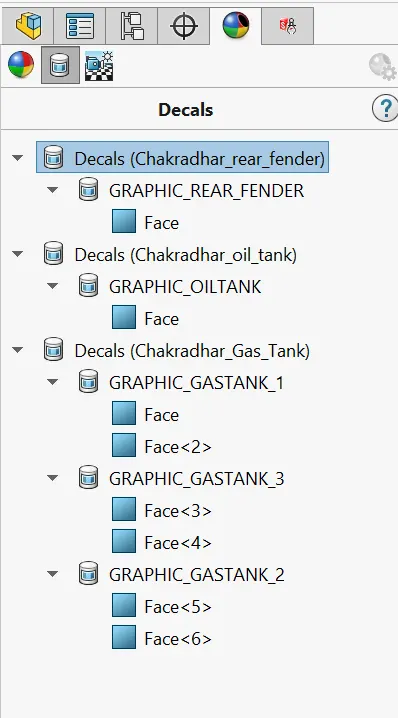

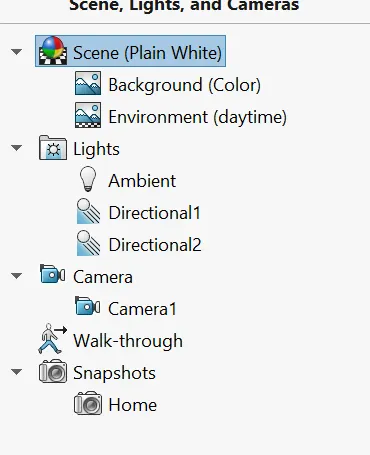

3. To assign decals, lights, camera etc.
4. By inserting this model into Solidworks Visualize and render the model with various environments.

3. Introduction:

Solidworks:

SolidWorks is a solid modeler, and utilizes a parametric feature-based approach which was initially developed by PTC (Creo/Pro-Engineer) to create models and assemblies. The software is written on Parasolid-kernel.

Building a model in SolidWorks usually starts with a 2D sketch (although 3D sketches are also available). The sketch consists of geometry such as points, lines, arcs, conics (except the hyperbola), and splines. Dimensions are added to the sketch to define the size and location of the geometry. Relations are used to define attributes such as tangency, parallelism, perpendicularity, and concentricity. The parametric nature of SolidWorks means that the dimensions and relations drive the geometry, not the other way around. The dimensions in the sketch can be controlled independently, or by relationships to other parameters inside or outside the sketch.

In an assembly, the analog to sketch relations are mates. Just as sketch relations define conditions such as tangency, parallelism, and concentricity with respect to sketch geometry, assembly mates define equivalent relations with respect to the individual parts or components, allowing the easy construction of assemblies. SolidWorks also includes additional advanced mating features such as gear and cam follower mates, which allow modeled gear assemblies to accurately reproduce the rotational movement of an actual gear train.

Finally, drawings can be created either from parts or assemblies. Views are automatically generated from the solid model, and notes, dimensions and tolerances can then be easily added to the drawing as needed. The drawing module includes most paper sizes and standards.

Solidworks Visualize:

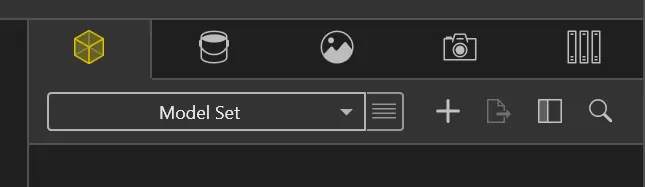

Soliworks Visualize is a tool which helps in rendering the models. We have several options like Adding a Camera, Changing environment, Background, changing Appearances of the model.

4. Design Methodology:

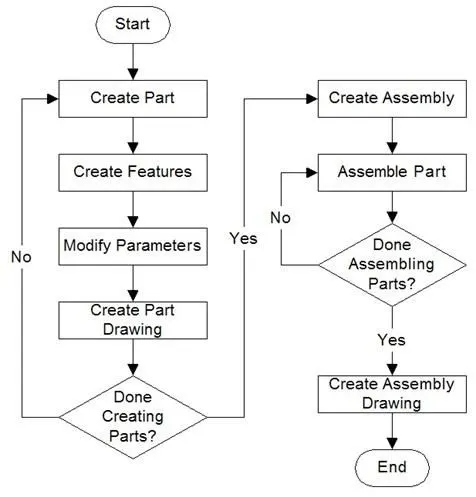

FlowChart:

• We have created each individual part of this model in Soliworks.
• After finishing the all components, We started creating sub assemblies.After sub assemblies We created a final assembly.
• We insert all our components/sub-assemblies into the environment of SW assembly and constraint them using different Mates/Conditons available.

5. Description:

• We will discuss each part individually and we will discuss the commands used in that part.

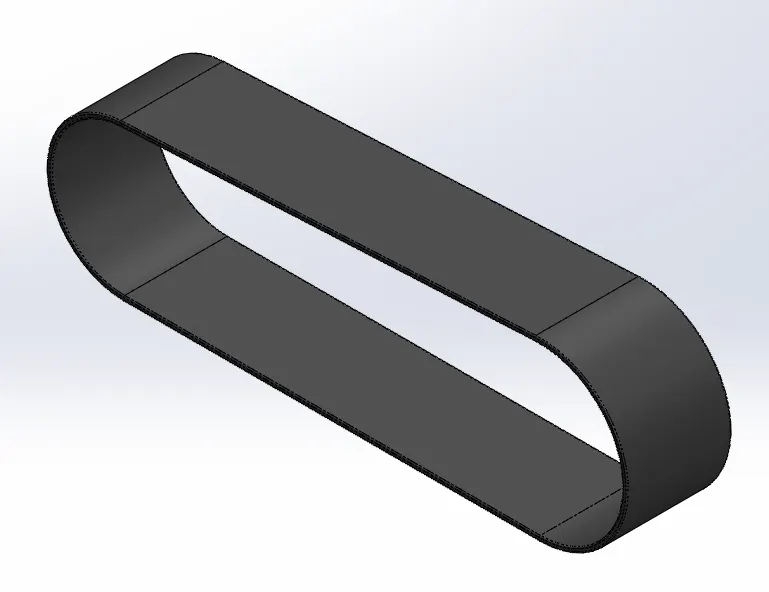

1. Transmission Belt

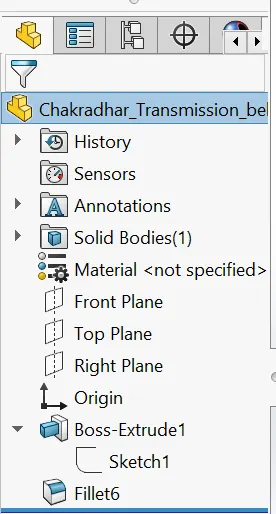

Image of a Transmission Belt Feature Tree

Features Used:

Sketch: To create a any part We have start with Skecth in a 2-D Plane.

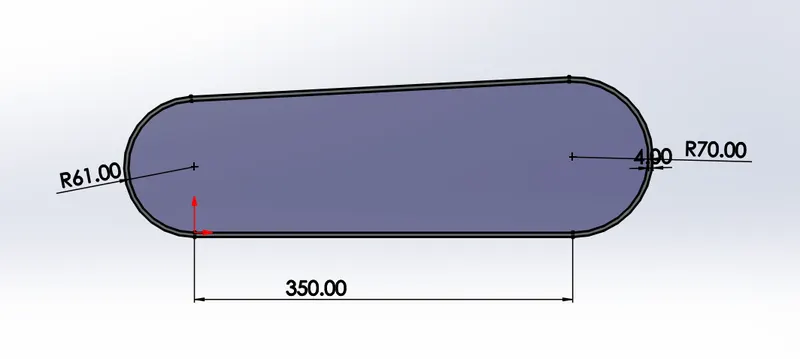

The Sketch we have created by giving the proper dimensions is

• There are different options to create a Sketch by selecting the plane.[ Line,Circle,Spline,Rectangle,Arc,Ellipse,Slot,Fillet].
• To edit the sketch We have Trim Entities, Convert Entities,Offset Entities,Mirror entities, Linear,circular pattern etc.
• For Dimensioning We use Smart Dimension.

Note: Before closing the sketch ,The Sketch should be fully defined.

Boss Extrude: This feature is used to Convert a closed 2D sketch into 3D Sketch.

In this Example We extruded the part blindly up to 88.00 mm

We have another options to extrude the sketch[Up to vertex, Up to surface, offset, Midplane etc]

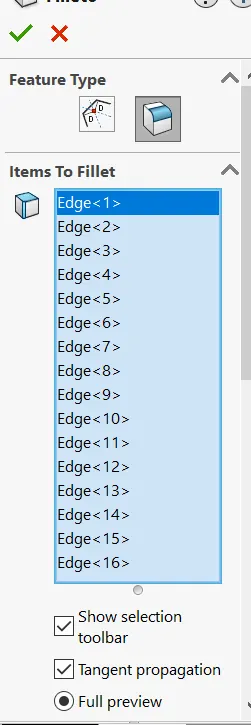

Fillet: This feature is used to convert Sharp corner to round edges.

In this Example we Creted a filet in differnts parts for example

• We have to select the edges to apply fillet
• Assign the radius value for fillet [In this example we used 1.00 mm radius].

Appearance:Finally we added a apperance to the part.

2. Kick Stand:

Image of a Kick Stand

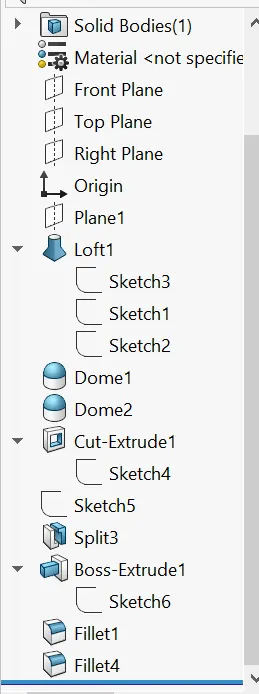

Feature Tree

Featurers Used:

• Sketch: First we define a closed sketch by proper dimension. We draw a guide curve in 3 differnet sketches
• Loft Base: This feature creates a solid body between two closed profiles and wehave to give guide curves inorder to govern the profiles.
• Dome: This feature creates a dome like structure on the flat face. This feature is majorly applied to faces. Select one or more planar or non-planar faces. You can apply dome to faces whose centroid lies outside the face. This allows you to apply domes to irregularly shaped contours.

1. We have to select the face to convert in to dome.
2. Assign the distance value.
3. Select the elliptical dome profile

• Extrude Cut: This helps removing the solid body from the solid body

1. Select the type of extrusion and give distance values.
2. You can also select the parts by using selected contours.

• Split: This feature is used to separate the single solid body in to seperate bodies.

1. First you need to create an open/closed sketch which acts as a trim tool.
2. Slect the sketch and click on Cut part which cuts the solid body into seperate bodies.

• Boss Extrude: This feature is used to convert a 2D sketch into 3D model.
• Fillet: This feature is used to convert Sharp corner to round edges.
• Appearance: Add color to the part

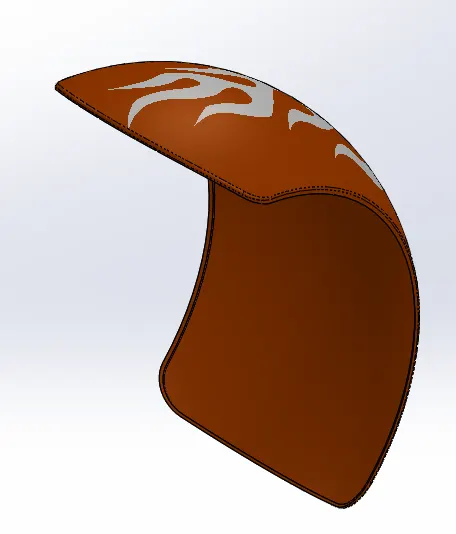

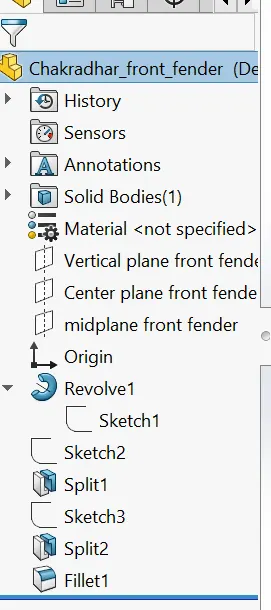

3. Front Fender

Image of a Front Fender Feature Tree

Features Used:

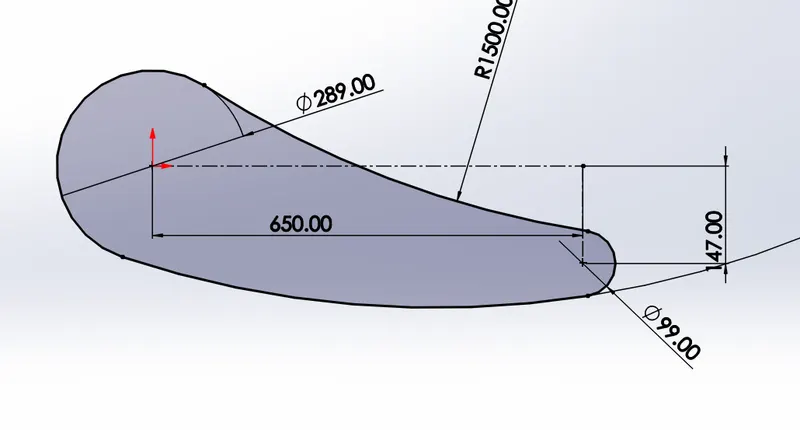

• Sketch: First we define a closed sketch by proper dimension.

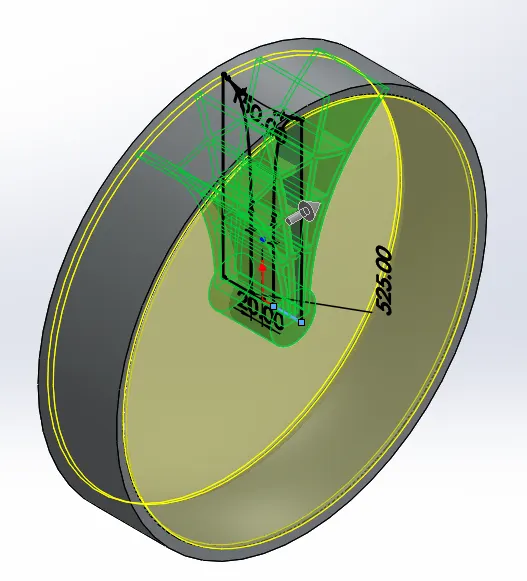

• Revolve Boss: This feature is used to create a closed revolving body with respect to axis.

1. Select the closed sketch that needs to be revolved.
2. Select the axis of revolution by which the sketch will revolve.

• Split: This feature is used to separate the single solid body in to seperate bodies.
• Fillet: This feature is used to convert Sharp corner to round edges.
• Appearance: Add color to the part.

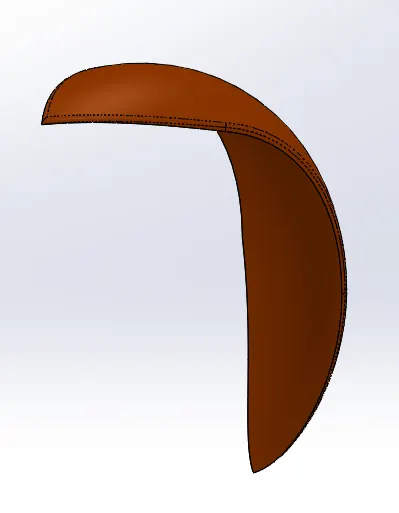

4. Rear Fender

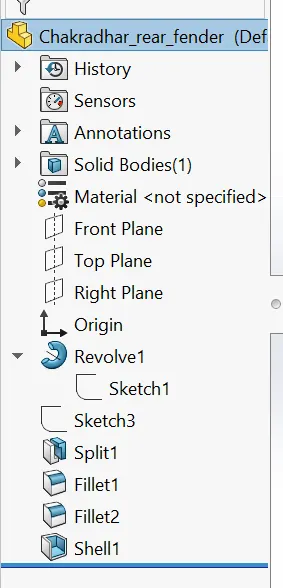

Image of a Rear Fender Feature tree

Features Used:

• Sketch: First we define a closed sketch by proper dimension.
• Revolve Boss: This feature is used to create a closed revolving body with respect to axis.

1. Select the closed sketch that needs to be revolved.
2. Select the axis of revolution by which the sketch will revolve.

• Split: This feature is used to separate the single solid body in to seperate bodies.
• Fillet: This feature is used to convert Sharp corner to round edges.

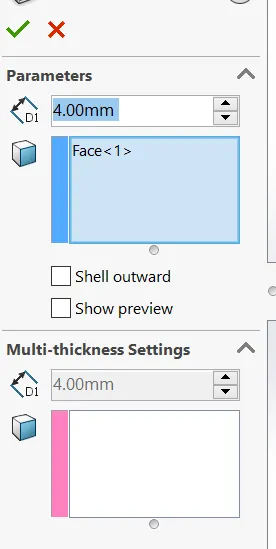

• Shell: To convert solid body into hollow/ thin body.

1. By selecting a face it will remove the body and make remaining part as a thin body
2. Assign the thickness value

• Appearance: Add color to the part.

5. Pedal:

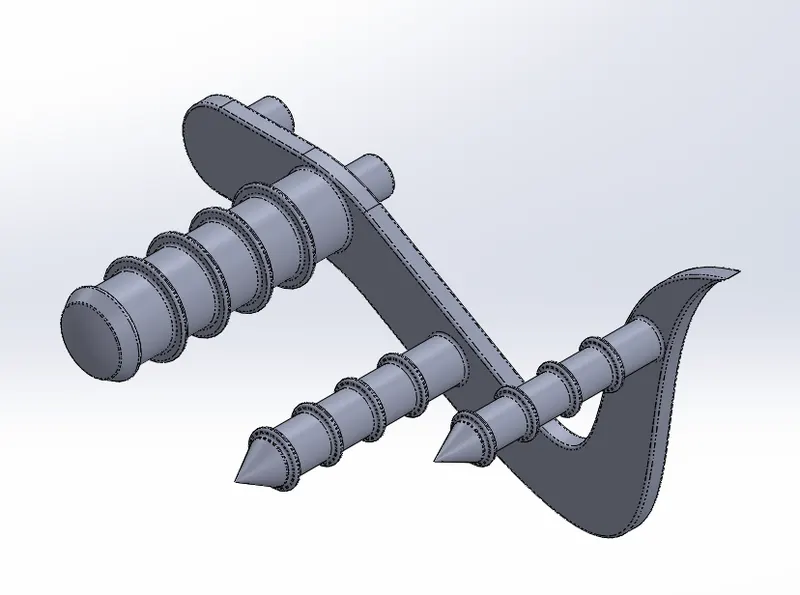

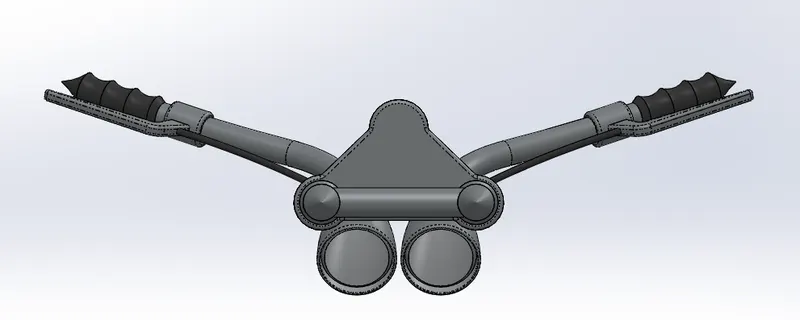

Image of a Pedal

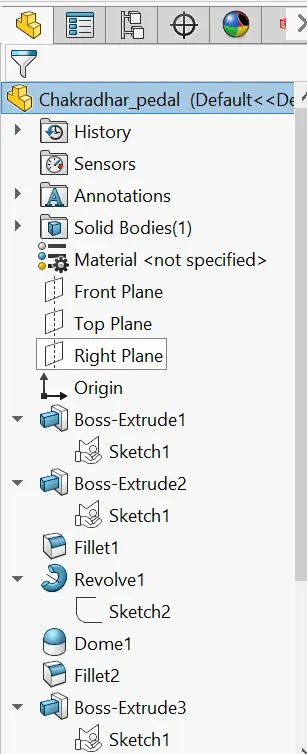

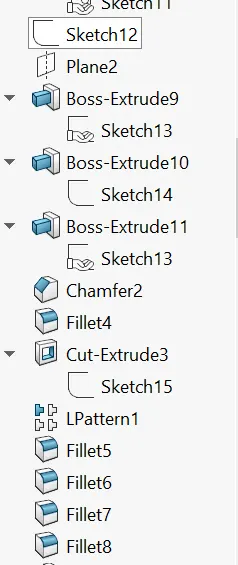

Feature Tree

Features used:

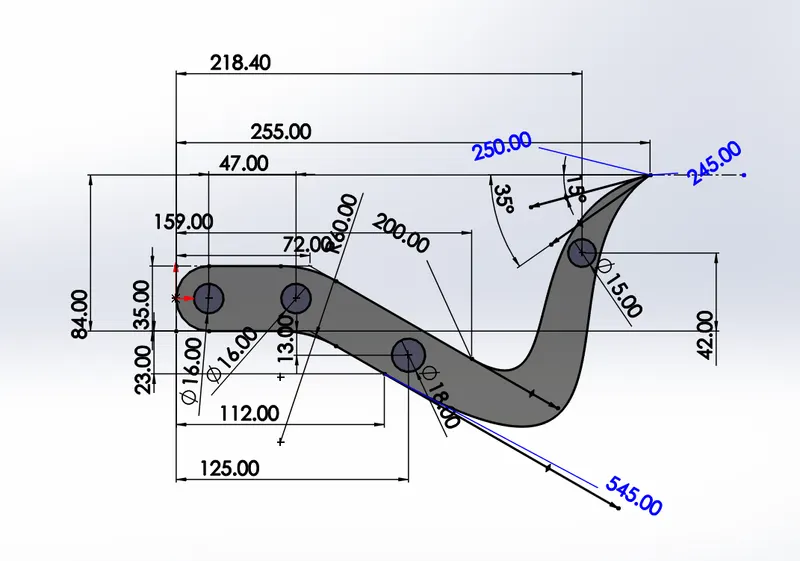

• Sketch: First we define a closed sketch by proper dimension.

• Boss Extrude: Created a extrude boss and extended it up to pedal.
• Revolve Boss: This feature is used to create a closed revolving body with respect to axis.

1. Here we revolve the high end pedal.

• Dome: Applied Spherical dome on it.

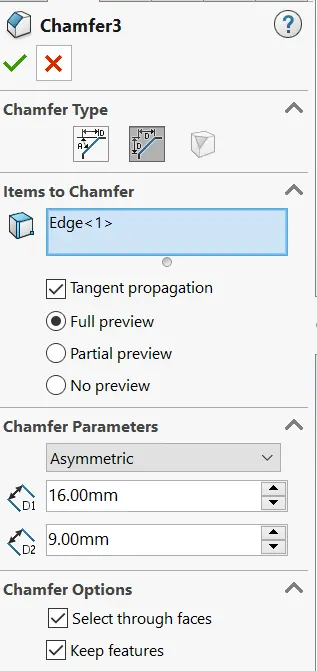

• Chamfer: This feature is used to convert sharp edges into chamfers.

1. Select the type of chamfer and enter the values.
2. Select the edges and faces you want to chamfer.

Here we can select symmetric or Assymetric with our convience.

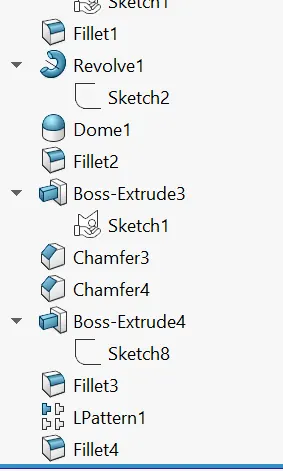

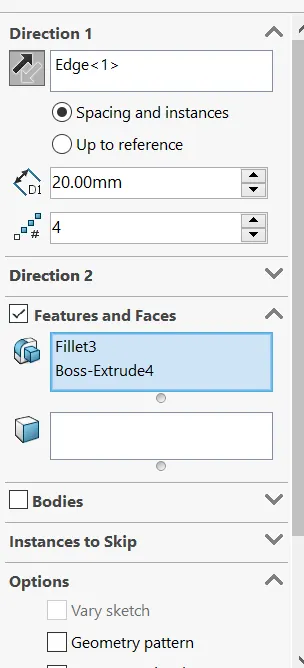

• Linear Pattern: This feature is used to pattern the bodies linearly with respect to axis.

1. Select a linear edge that you want to pattern in that direction.
2. Assign values for insatances and distance between them.
3. Choose bodies or features with respect to your choice.

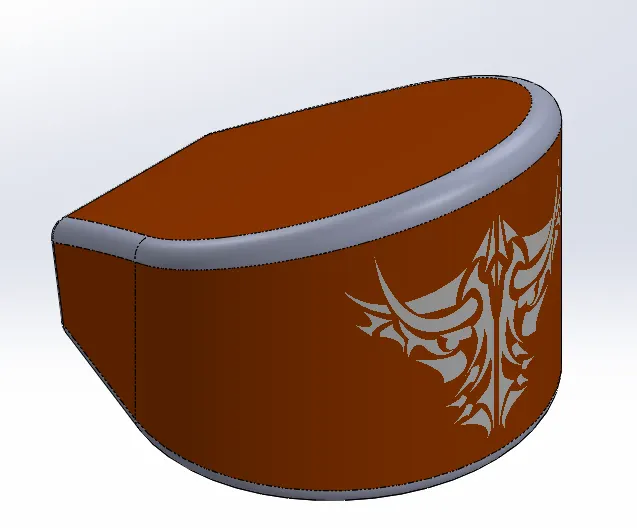

6. Oil Tank:

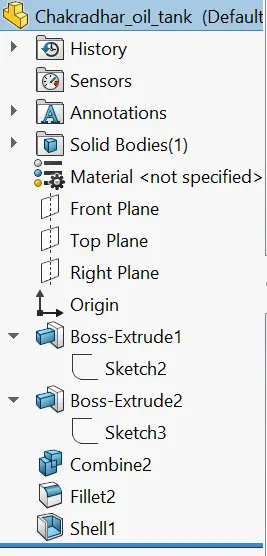

Image of an Oil Tank: Feature Tree:

Features Used:

• Sketch: First we define a closed sketch by proper dimension.
• Boss Extrude: Here we used two boss extrudes in two different sketchs to create different solid bodies.

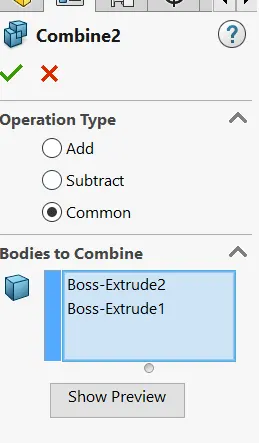

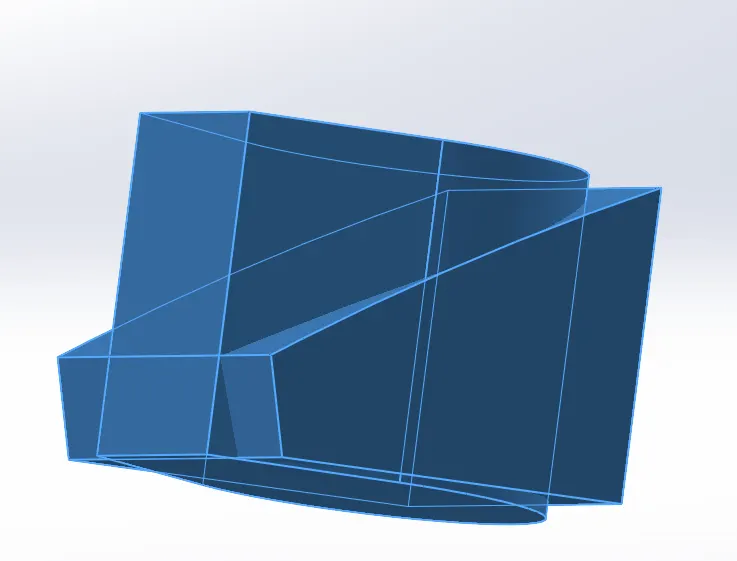

• Combine: In order to remove the extra material we used comine feature to combine the two bodies.

• Fillet: This feature is used to convert Sharp corner to round edges.
• Shell: To convert solid body into hollow/ thin body.

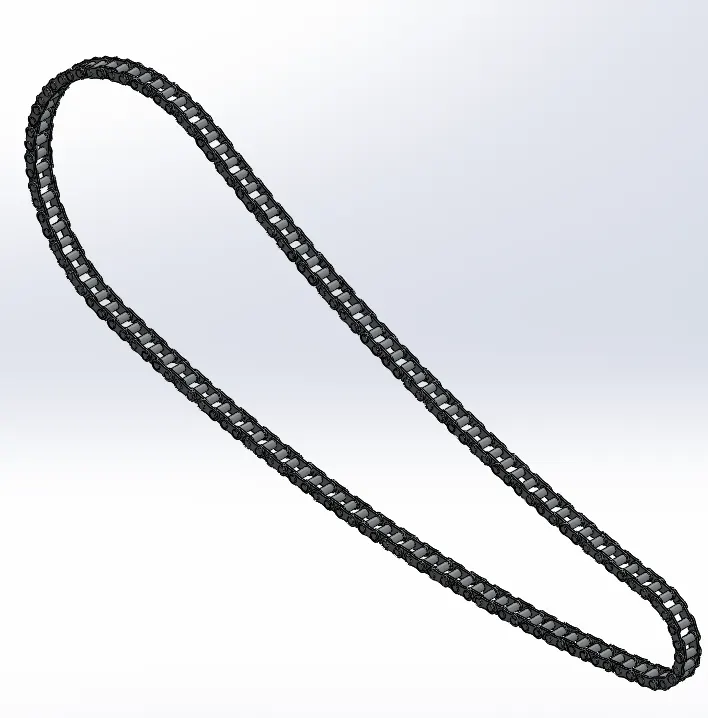

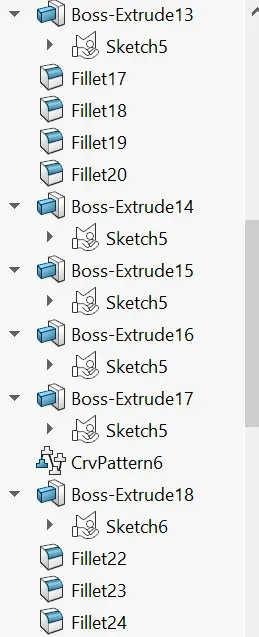

7. Chain:

Image of a Chain:

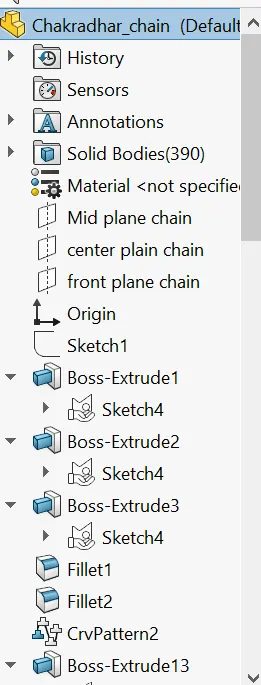

Feature Tree

Features Used:

• Sketch: First we define a closed sketch in the chain path.

• Here we created a Inner link, Outer link, Pin.
• Boss Extrude: By using Boss extrude we connect the outer link and inner link by using pins.
• Fillet: This feature is used to convert Sharp corner to round edges.

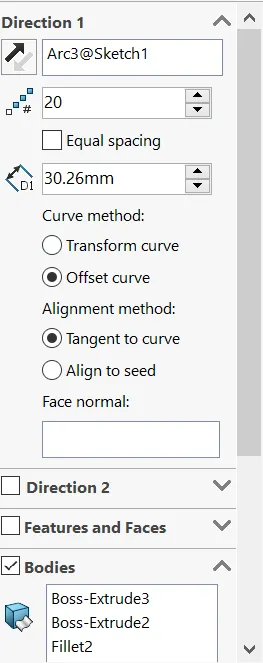

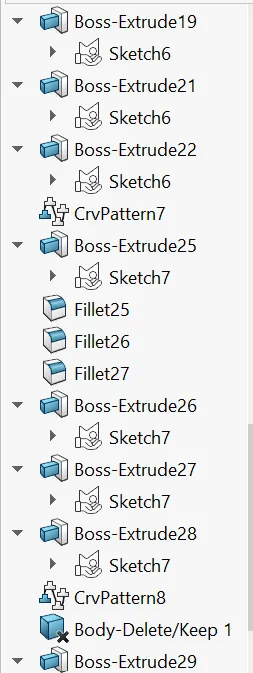

• Curve Pattern: This feature helps in patterining the bodies/features/faces by using a curve.

1. First we have to select a arc or curve for path.
2. And give no of instances and distance value.
3. Select bodies or features to be patterned.

• This process is continued for four times for four differtent curves.

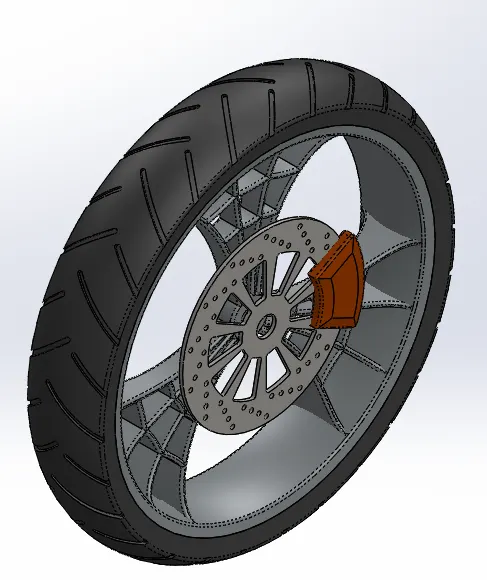

8. Front Wheel:

Image of a Front Wheel.

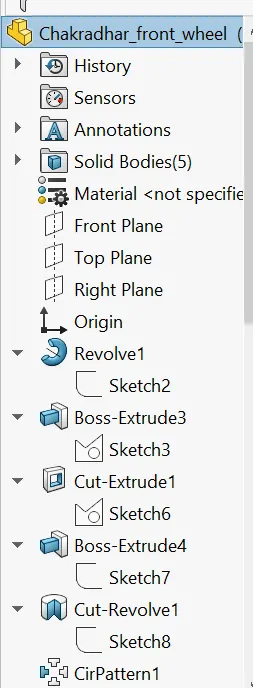

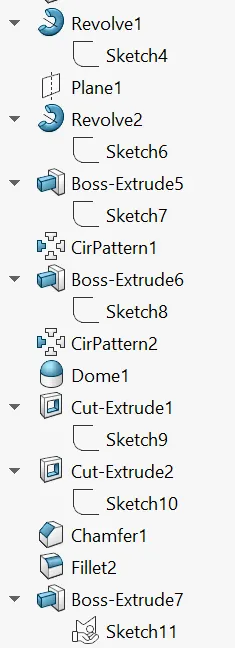

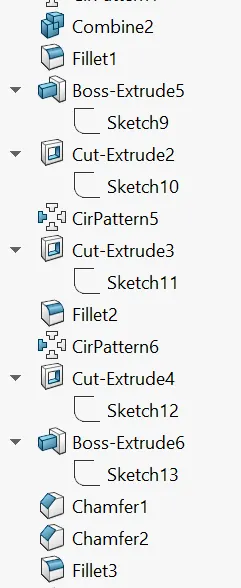

Feature Tree:

Features Used:

• Sketch: First we define a closed sketch by proper dimension.
• Revolve Boss: This feature is used to create a closed revolving body with respect to axis.
• Revolve cut: This feature is used to cut a revolved body part.

• Extrude Boss: This feature is used to convert a 2D sketch into 3D model.
• Extrude Cut: This helps removing the solid body from the solid body
  1. Select the type of extrusion and give distance values.
  2. You can also select the parts by using selected contours.
• Fillet: This feature is used to convert Sharp corner to round edges.

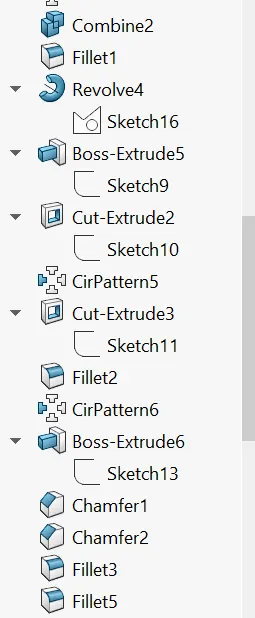

• Circular Pattern: This feature helps in patterining the bodies/features/faces along the circle by giving certain distances.

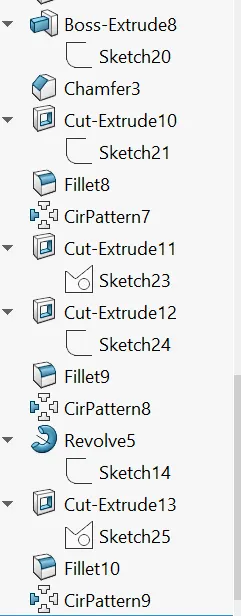

9. Rear Wheel:

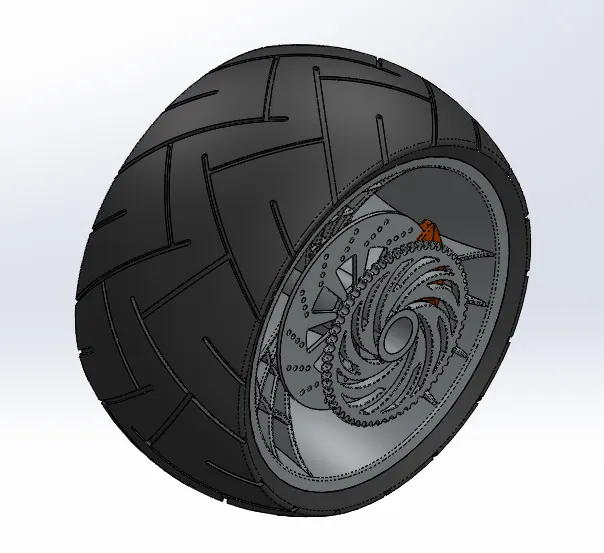

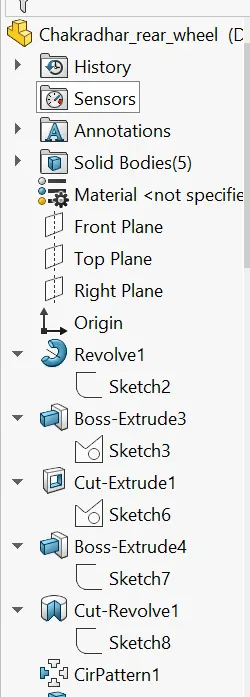

Image of a Rear Wheel:

Features Tree:

Features Used:

• Sketch: First we define a closed sketch by proper dimension.
• Revolve Boss: This feature is used to create a closed revolving body with respect to axis.

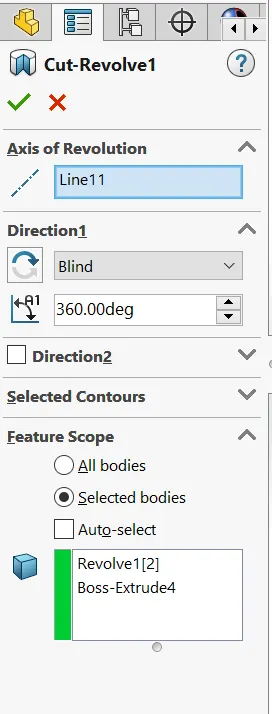

• Revolve cut: This feature is used to cut a revolved body part.
• Extrude Boss: This feature is used to convert a 2D sketch into 3D model.
• Extrude Cut: This helps removing the solid body from the solid body
  1. Select the type of extrusion and give distance values.
  2. You can also select the parts by using selected contours.
• Fillet: This feature is used to convert Sharp corner to round edges.
• Circular Pattern: This feature helps in patterining the bodies/features/faces along the circle by giving certain distances.

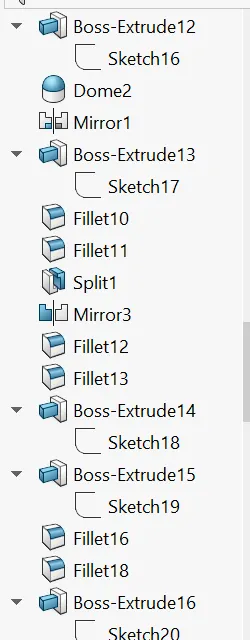

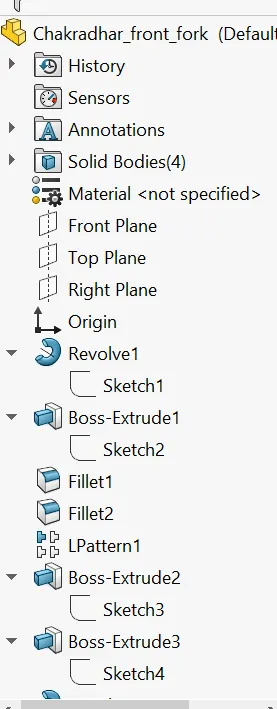

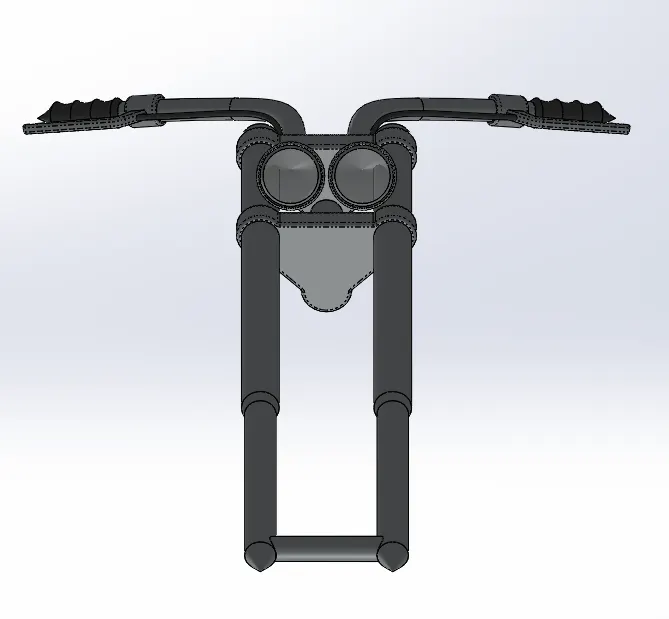

10. Front Fork:

Image of a Front Fork:

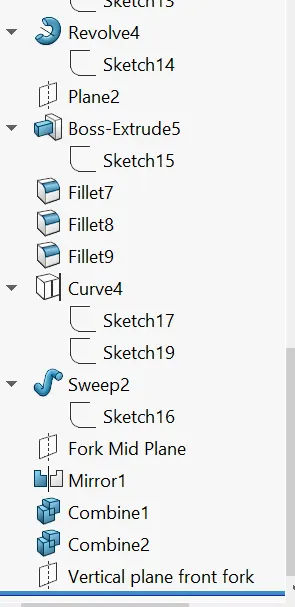

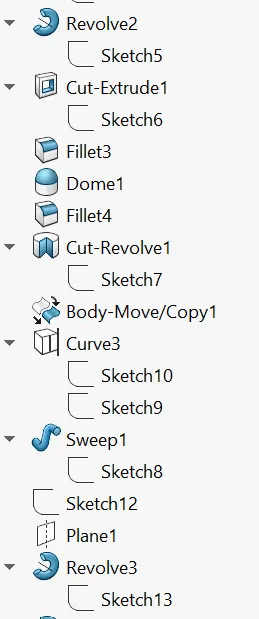

Feature Tree:

Features Used:

• Sketch: First we define a closed sketch by proper dimension.
• Revolve Boss: This feature is used to create a closed revolving body with respect to axis.
• Fillet: This feature is used to convert Sharp corner to round edges.
• Dome: Applied Spherical dome on it.

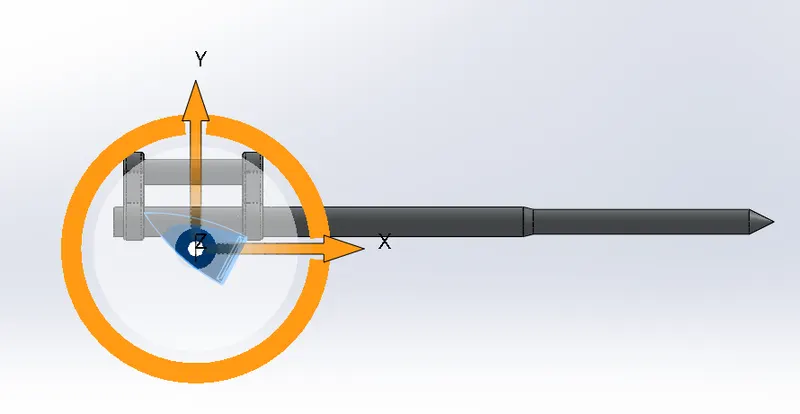

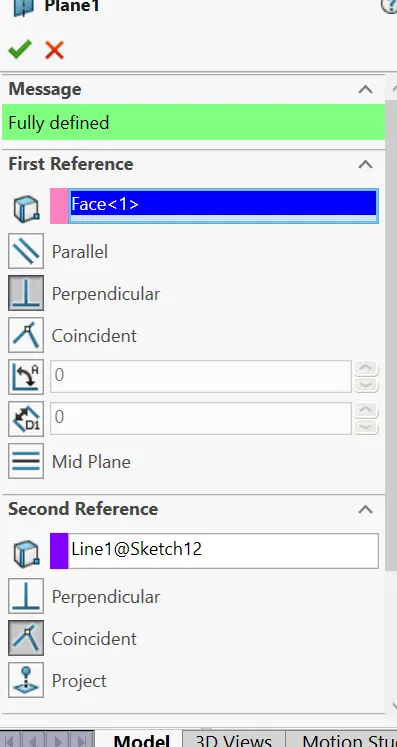

• Plane: Here we Inserted a palne by using reference geometry. We can select a reference to create a new plane.

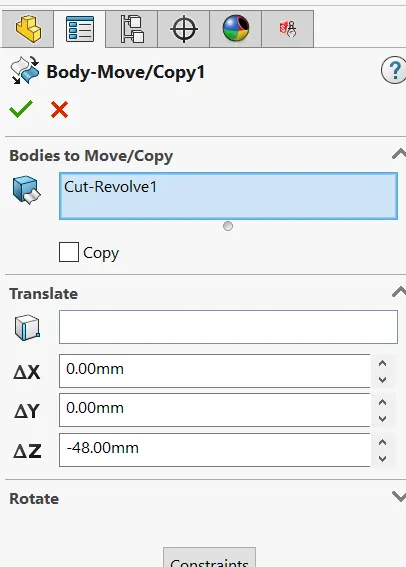

• Copy/Move Bodies: To Move or tanslate or rotate the bodies

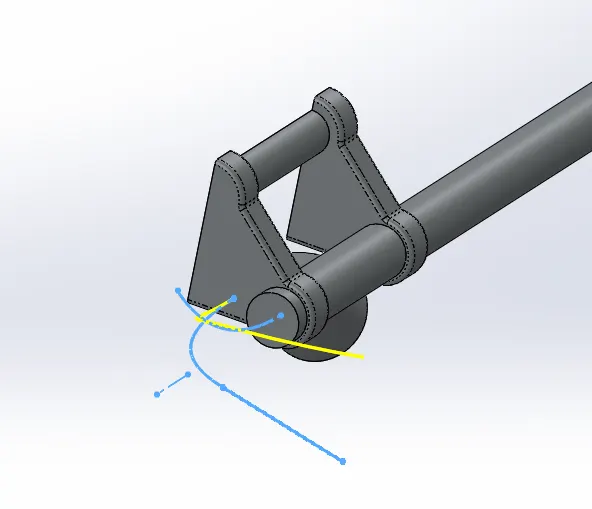

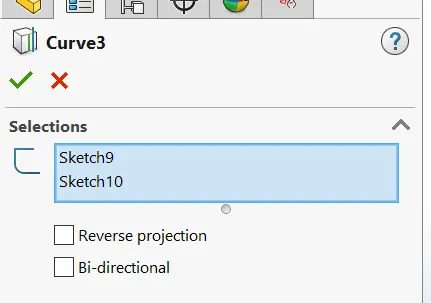

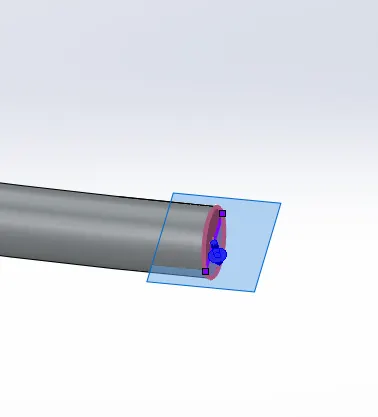

• Pojected Curve: Since we cannot draw a 3D curve, we used a projected curve. By drawing a curves in different palnes and applying a projection curve it gives a 3D curve.

• Swept Boss: To create a solid profile along the sepcified path

1. Select the Profile and Path.
2. Select the type of the profile.

• Mirror: This feature is used to mirror the parts with respect to the axis.

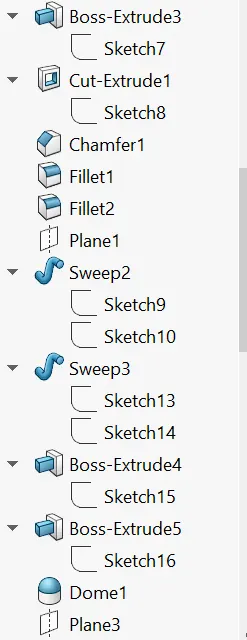

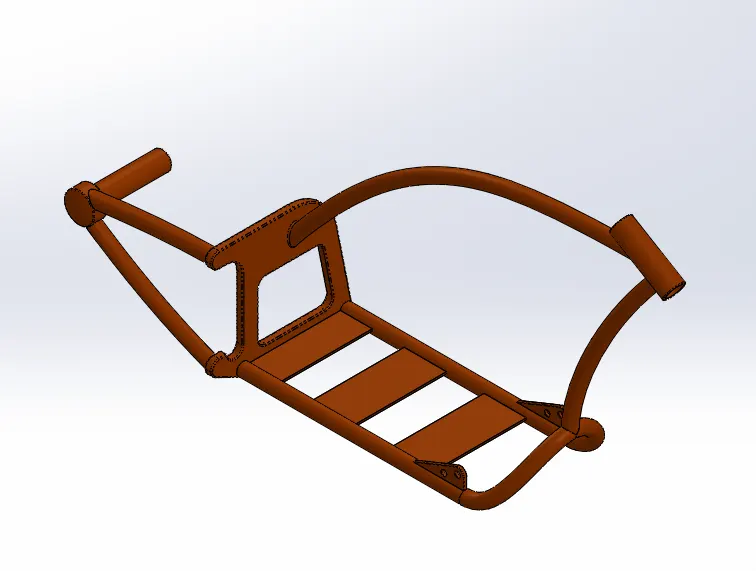

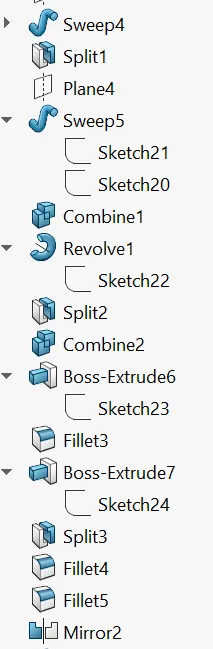

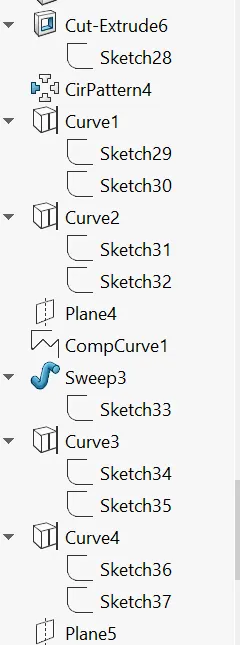

11. Chasis:

Image of a chasis

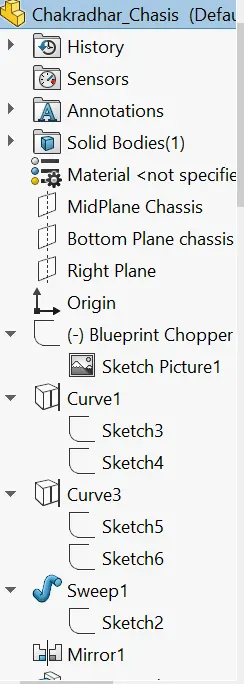

Feature Tree:

Features Used:

• We have to insert a image of chopper bike for reference with the help of sketch picture.
• Sketch: First we define a closed sketch by proper dimension.
• Extrude Boss: This feature is used to convert a 2D sketch into 3D model.
• Extrude Cut: This helps removing the solid body from the solid body
  1. Select the type of extrusion and give distance values.
  2. You can also select the parts by using selected contours.
• Fillet: This feature is used to convert Sharp corner to round edges.
• Dome: Applied dome on it.
• Plane: Here we Inserted a palne by using reference geometry. We can select a reference to create a new plane.
• Pojected Curve: Since we cannot draw a 3D curve, we used a projected curve. By drawing a curves in different palnes and applying a projection curve it gives a 3D curve.
• Swept Boss: To create a solid profile along the sepcified path
• Mirror: This feature is used to mirror the parts with respect to the axis.
• Combine: In order to remove the extra material we used comine feature to combine the two bodies.

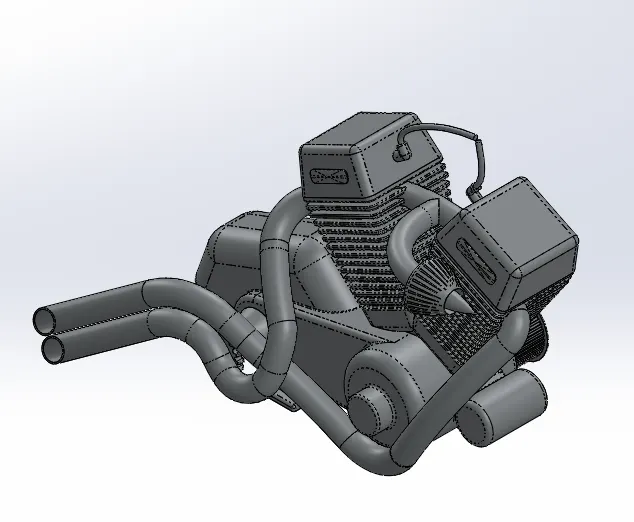

12. Engine:

Image of an Engine:

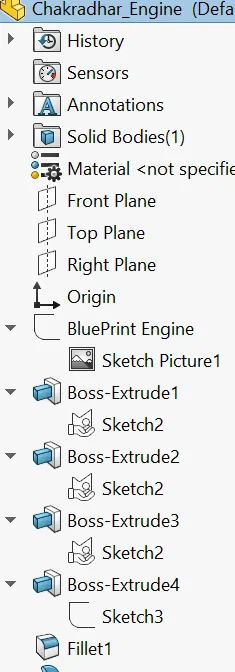

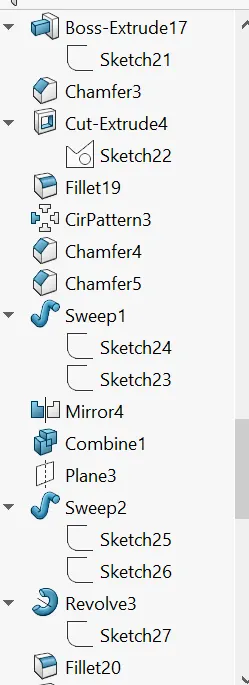

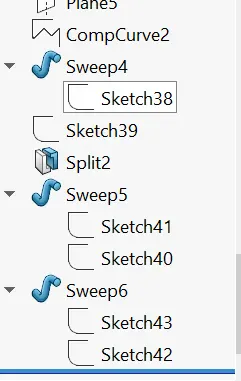

Feature Tree:

Features Used:

• Sketch: First we define a closed sketch by proper dimension.
• Extrude Boss: This feature is used to convert a 2D sketch into 3D model.
• Fillet: This feature is used to convert Sharp corner to round edges.
• Revolve Boss: This feature is used to create a closed revolving body with respect to axis.
• Extrude Cut: This helps removing the solid body from the solid body
  1. Select the type of extrusion and give distance values.
  2. You can also select the parts by using selected contours.
• Circular Pattern: This feature helps in patterining the bodies/features/faces along the circle by giving certain distances.
• Dome: Applied dome on it.
• Plane: Here we Inserted a palne by using reference geometry. We can select a reference to create a new plane.
• Pojected Curve: Since we cannot draw a 3D curve, we used a projected curve. By drawing a curves in different palnes and applying a projection curve it gives a 3D curve.
• Linear Pattern: This feature is used to pattern the bodies linearly with respect to axis.
• Circular Pattern: This feature helps in patterining the bodies/features/faces along the circle by giving certain distances.

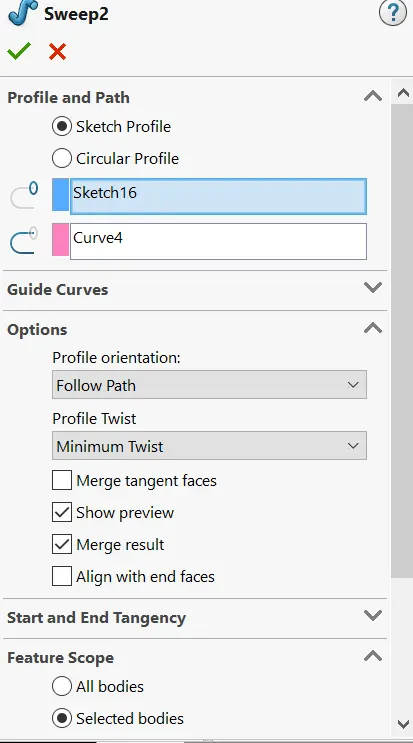

• Swept Boss: To create a solid profile along the sepcified path
• Mirror: This feature is used to mirror the parts with respect to the axis.
• Combine: In order to remove the extra material we used comine feature to combine the two bodies.
• Copy/Move Bodies: To Move or tanslate or rotate the bodies
• Split: This feature is used to separate the single solid body in to seperate bodies.

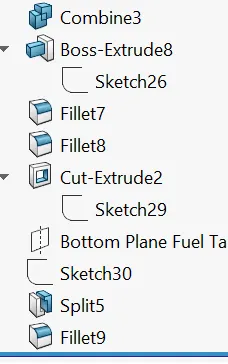

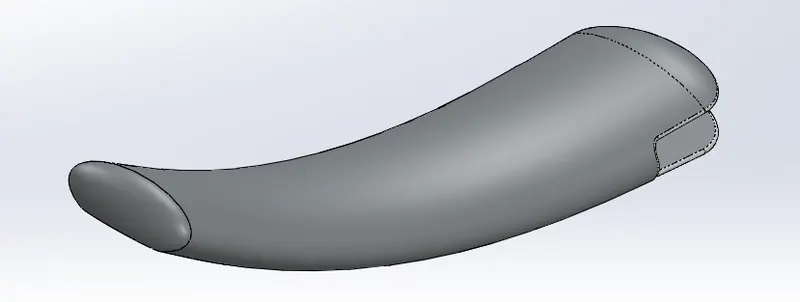

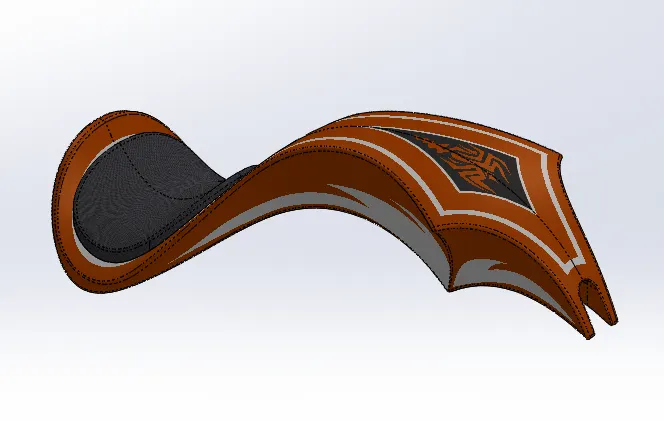

13. Gas Tank:

Image of an Gas Tank

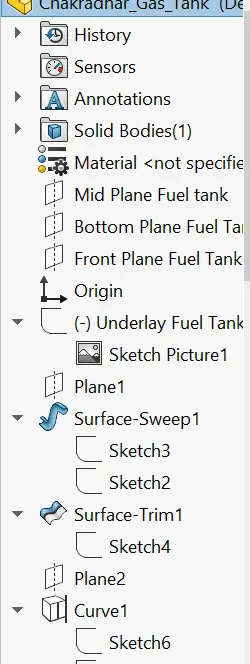

Feature Tree

Features Used:

• Sketch: First we define a closed sketch by proper dimension.
• Swept Surface: To create a Swept Surface along the sepcified path. This work exactly as the solid bodies.
• Lofted Surface: This feature creates a surface between two closed profiles and wehave to give guide curves inorder to govern the profiles.

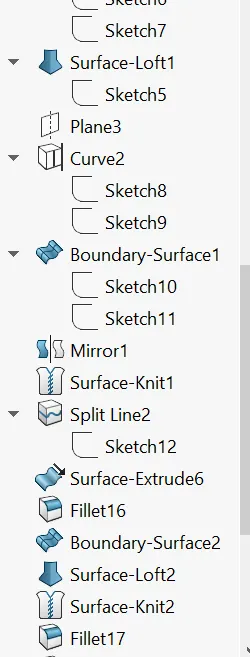

• Boundary Surface: This feature creates a surface along the boundary.
• Knit Surface: To combine one or more surfaces Knit Surface is used.
• Trim surface: To trim the surface material it is used.
• Sweep cut: This feature is used to cut a solid model.
• Pojected Curve: Since we cannot draw a 3D curve, we used a projected curve. By drawing a curves in different palnes and applying a projection curve it gives a 3D curve.
• Fillet: This feature is used to convert Sharp corner to round edges.
• Shell: To convert solid body into hollow/ thin body.

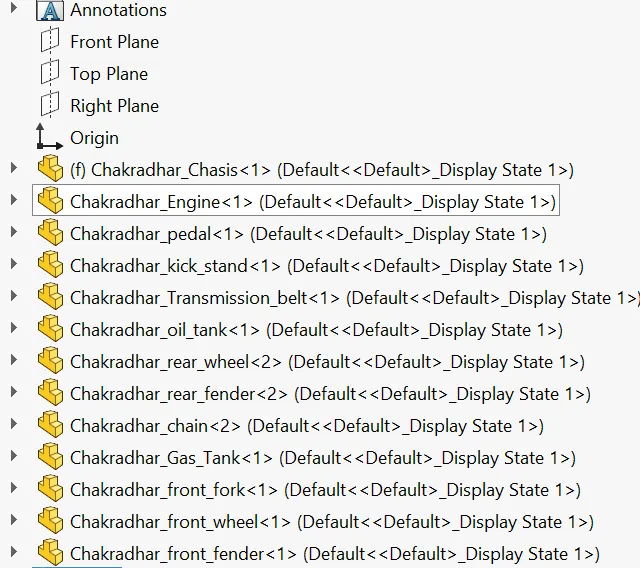

6.Assembly:

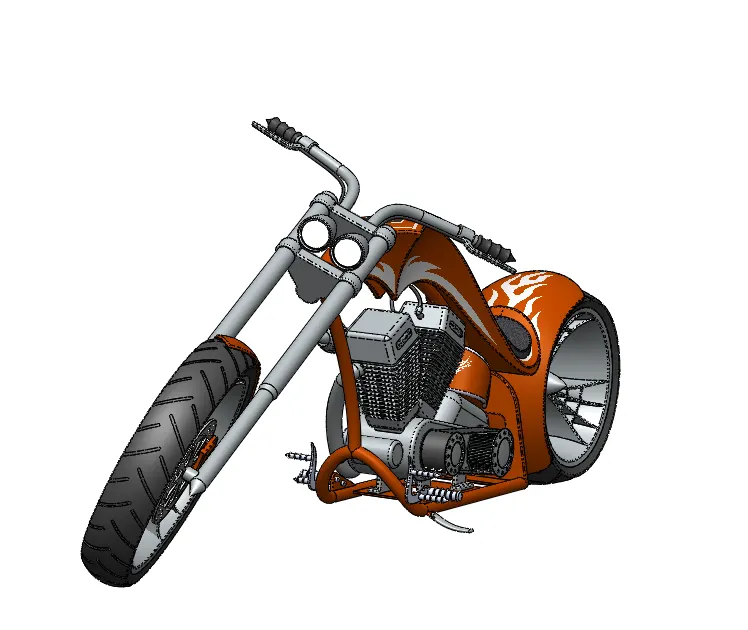

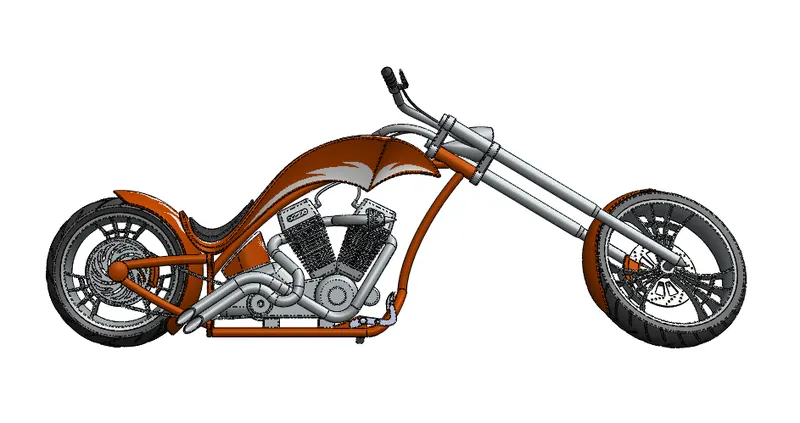

Assembly Images:

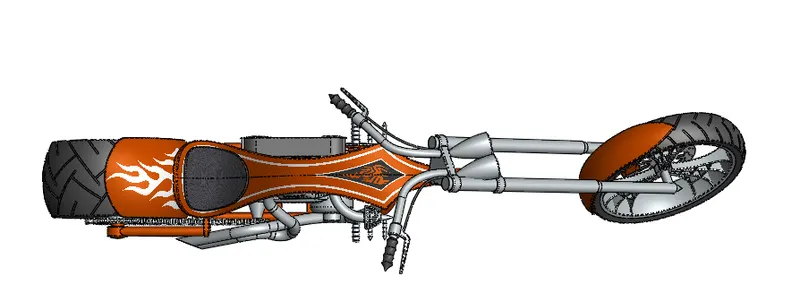

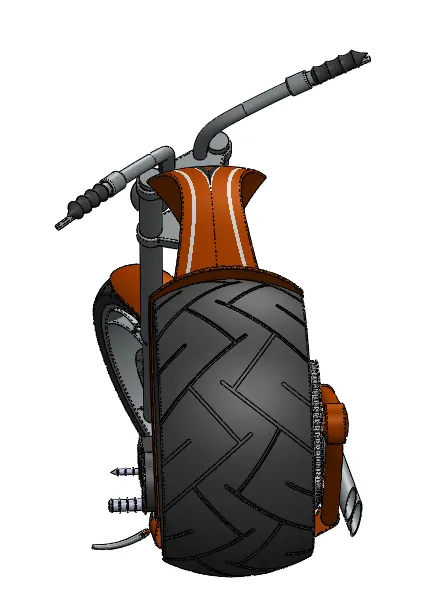

• Camera View

• Front View

• Side Views

• Top View

• Isometric View

Feature Tree:

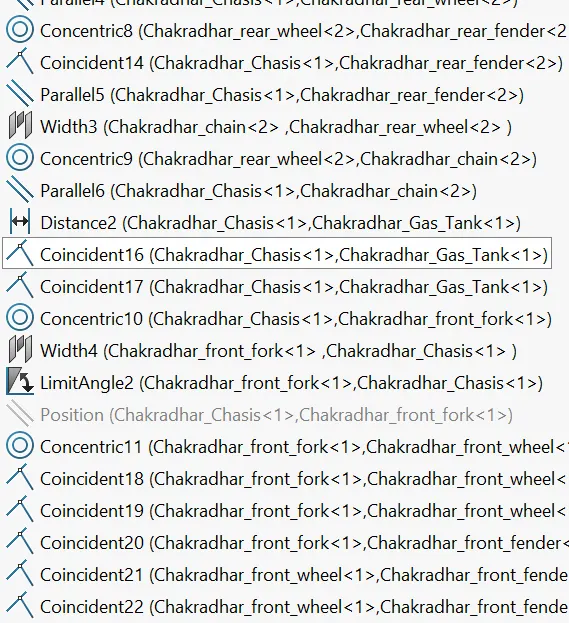

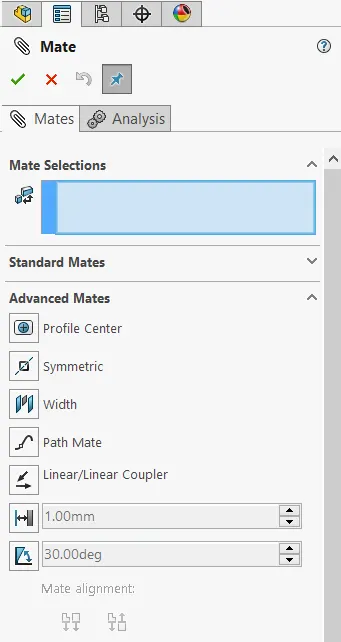

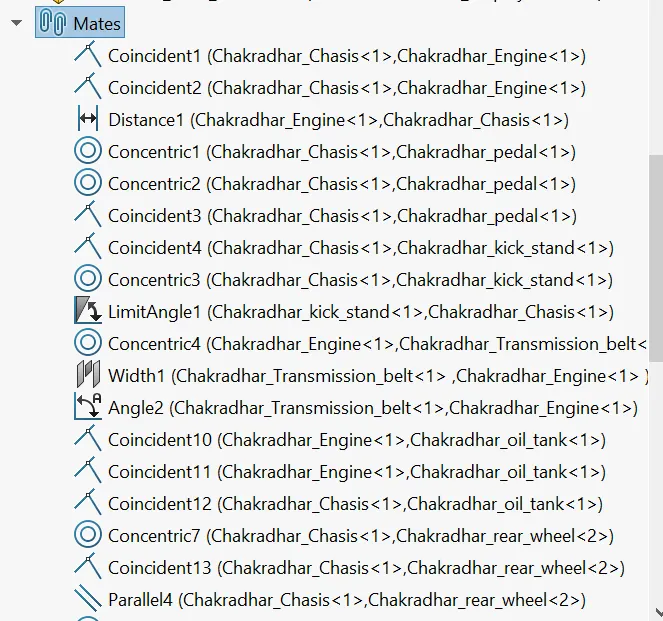

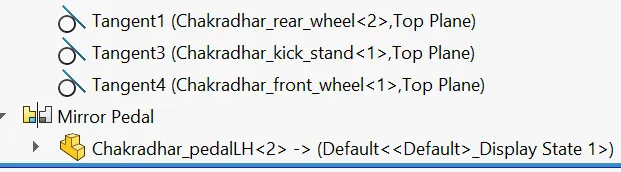

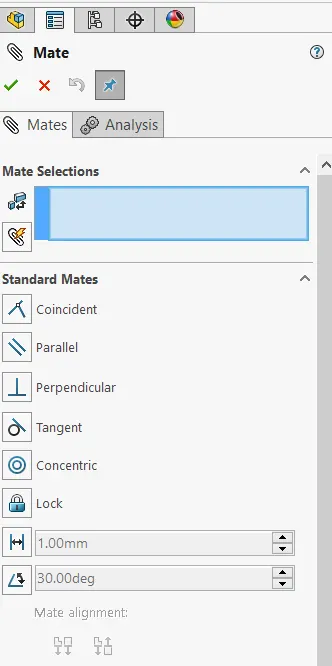

Mates Used:

• Coincident: Makes two surfaces coincident with each other.
• Tangent: Makes a Surface tangent to the plane.
• Concentric: Applies concentric relation between two different circular profiles.
• Parallel: Applies parllel condition between two surfaces.
• Width: Makes sure that centers for two different pairs of surface always align.
• Distance: It Fixes two faces/edges/points at a specified distance.
• Angle: Fixes two Faces/Edges at a specified angle.

7. Rendering:

• Using Photoview 360:

1. We can apply decals

2. We can view scenes, and add lights and cameras.

Solidworks Visualize:

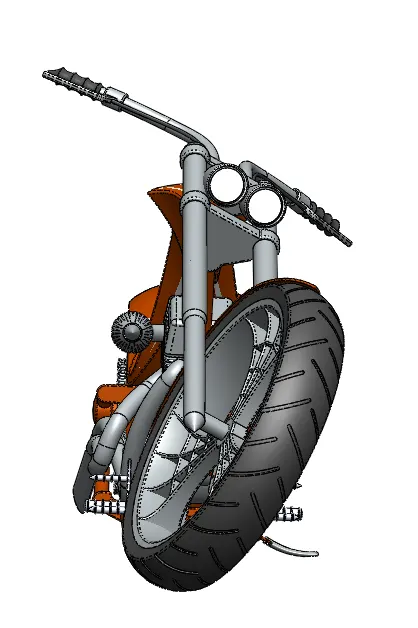

We impor the AmericanChopper model into the Solidworks visualize and applied different renders on it.

Before rendering the mage we have set the settings

Settings:

• First we have to import the American chopper assembly by drop down the file menu button.

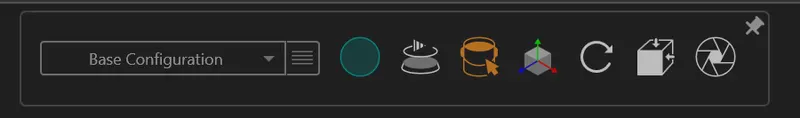

A) View Manager

1. Rendering Selection
2. Turntable
3. Selection tool
4. Object Manupulation tools
5. Camera tools
6. View Presets
7. Output tools

B) Model Settings

• Apperance: To add Color to the model
• Scene: To add diiferent scenes in background and environment to the model.
• Camera: To add different views to the models.
• Library: To browse and get different appearances, scenes from either local or cloud storage.

C) Rendered Images

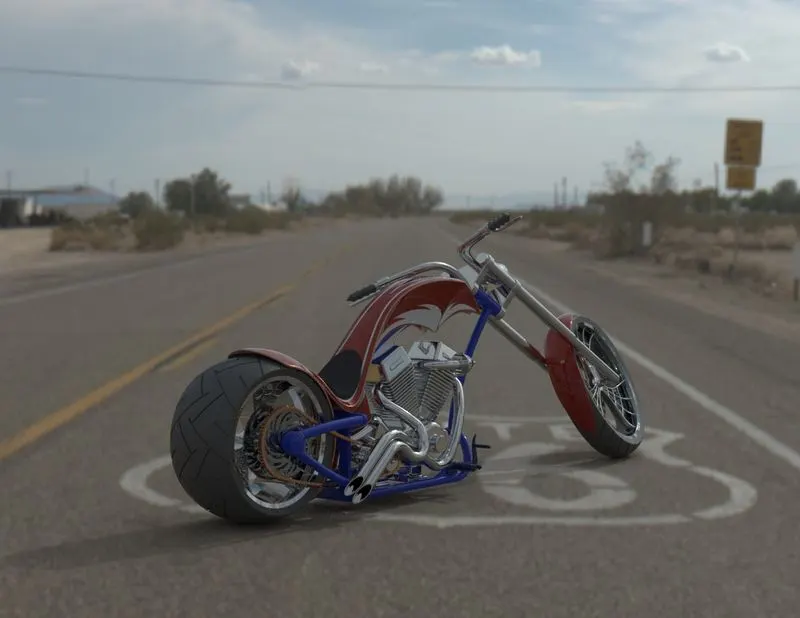

• Route 66

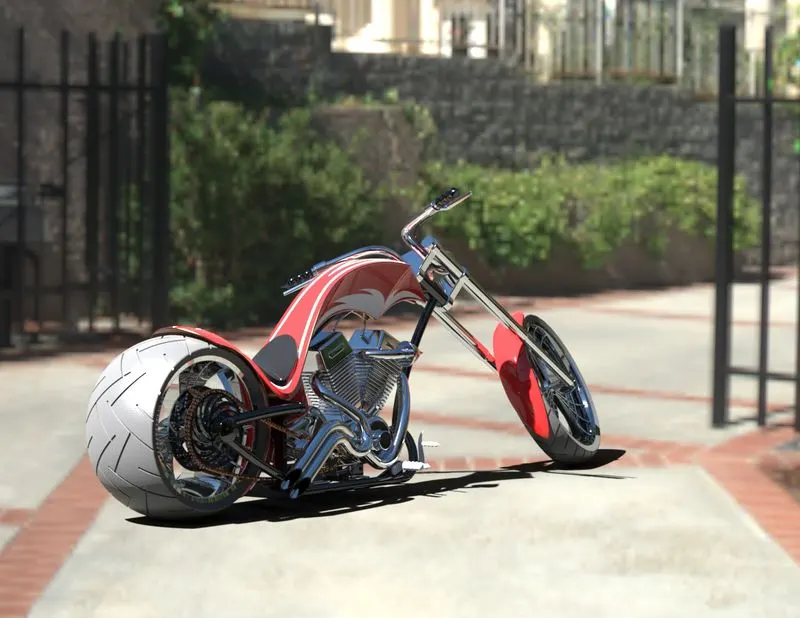

• Sunny Driveway

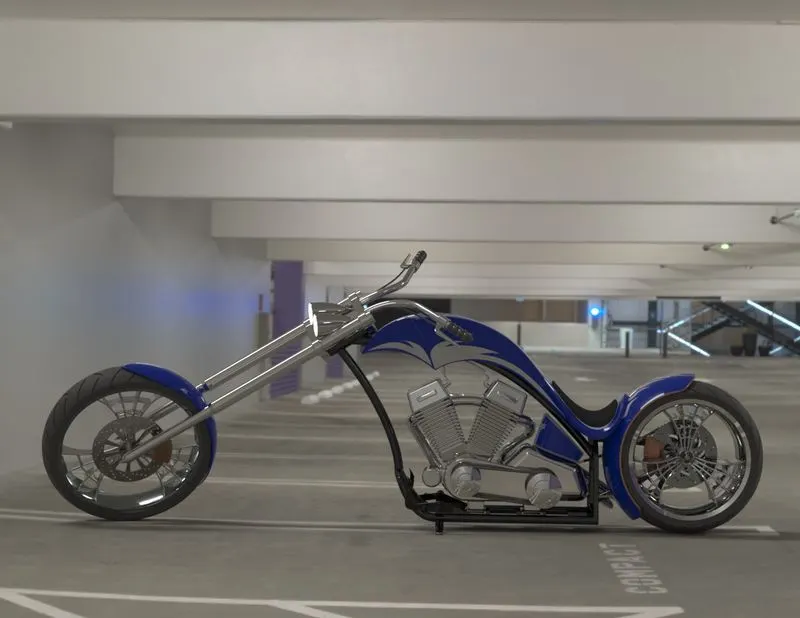

• Modern Garage:

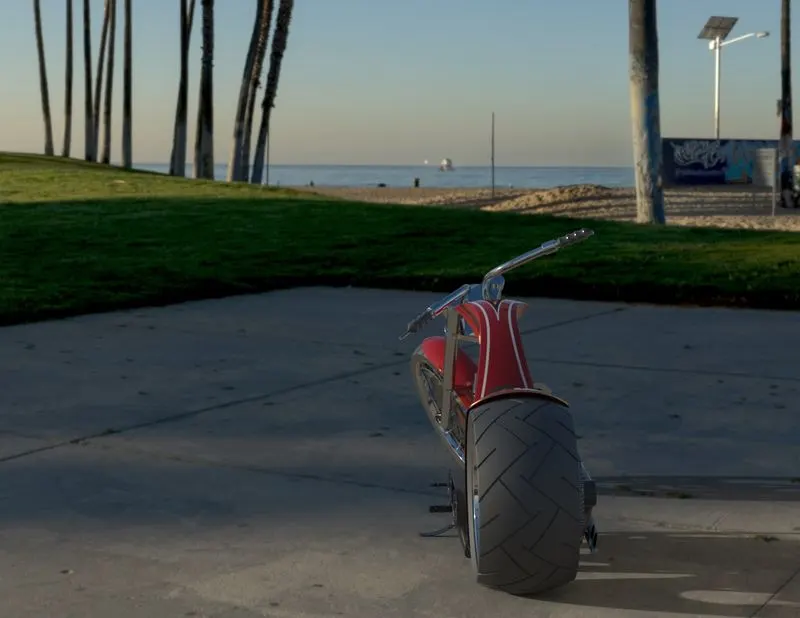

• Vieane Beach:

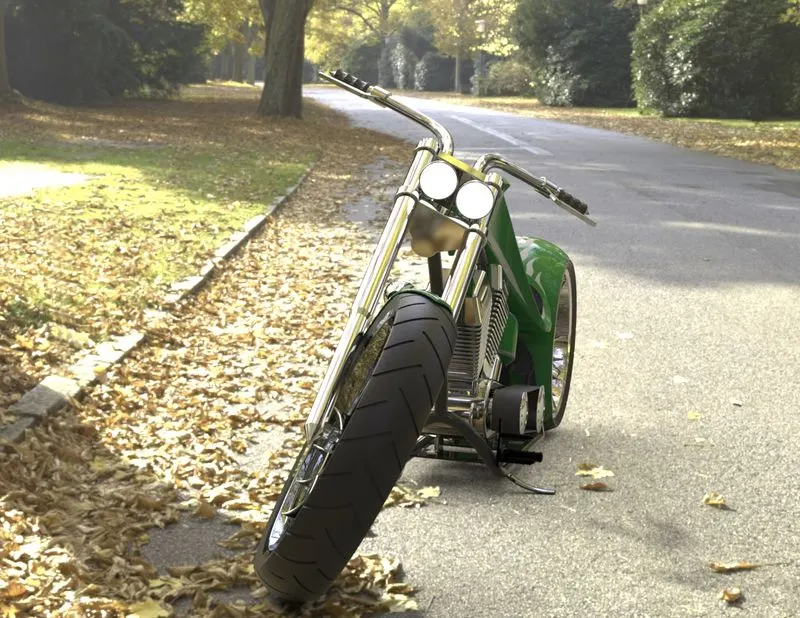

• Fall Street:

8.Conclusion:

• All individual parts are created in Solidworks part mode and assemble all parts in Solidworks assembly mode.
• Render the images is done in Solidworks Visuvalization.
