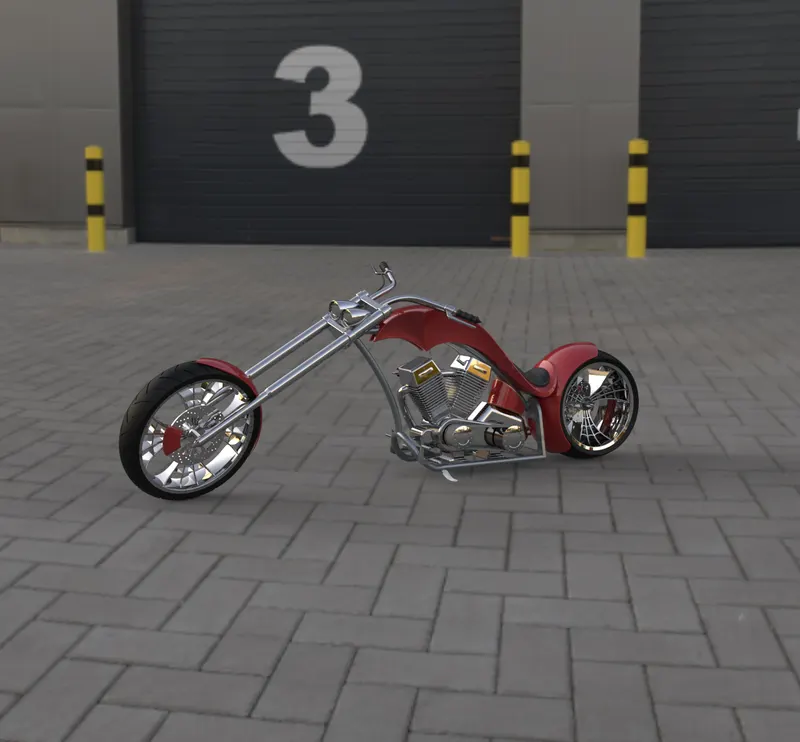

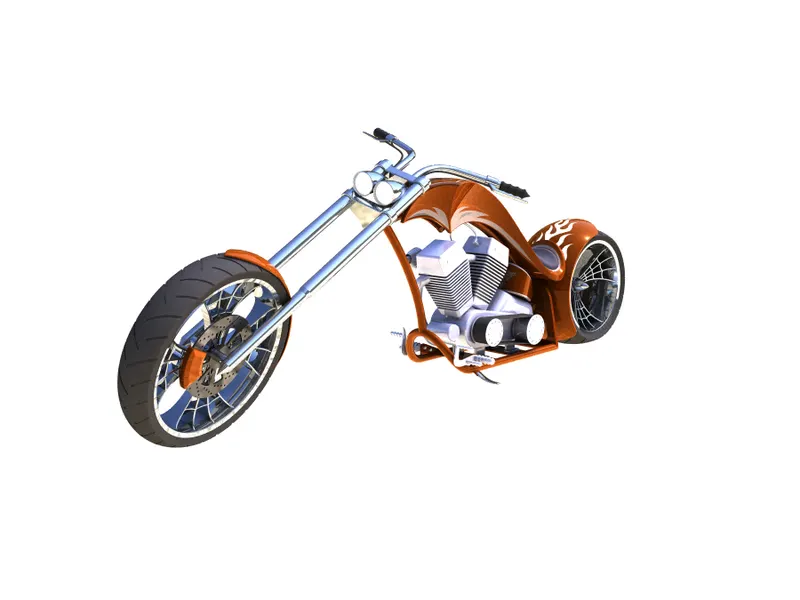

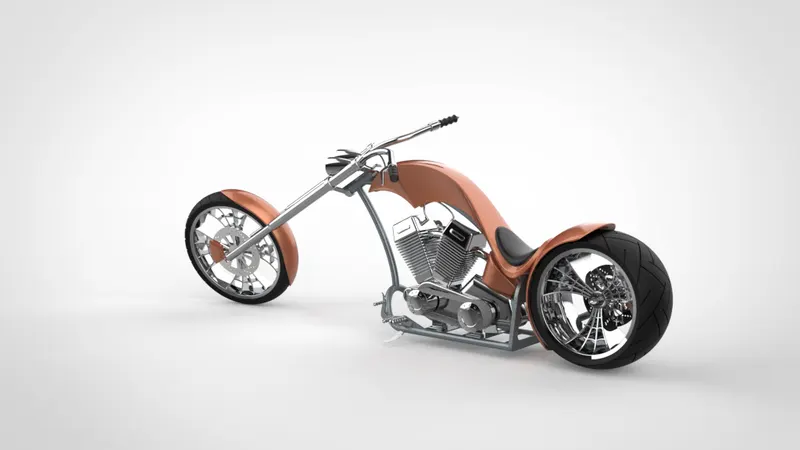

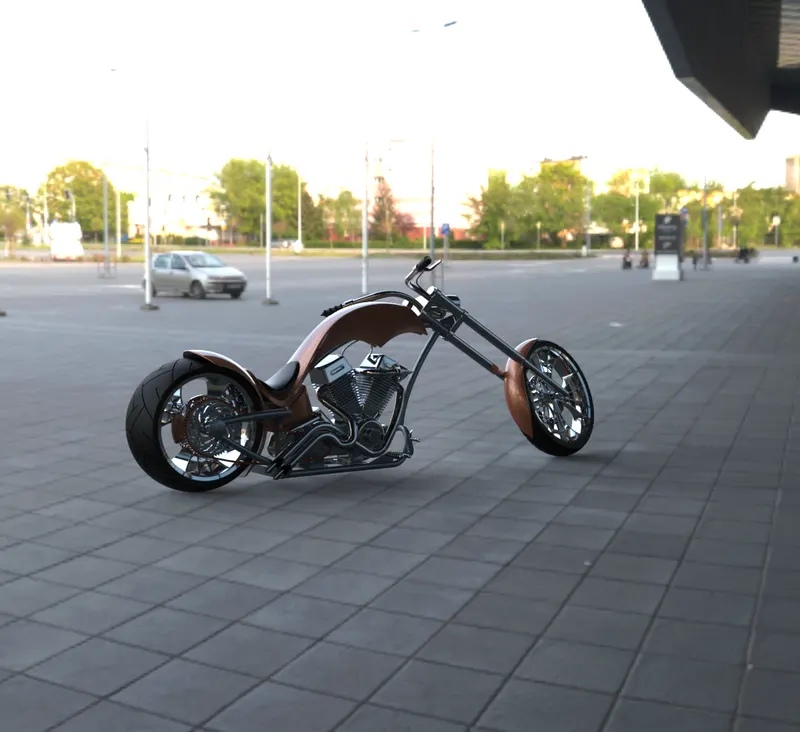

Photo Realistic Rendering

Modeling of American Chopper in Solidworks :

Introduction :

Solidworks is one of the prominanant modelling

Software available. This software is mainly used

To model 3D parts using 2D sketch. It also has

The option to specify the material and look for

The model which we create. It has other Add-in

Features like photoview360 which helps in

Rendering of the final model to make look

Photo realistic. In this project we learned about

Detailed design of American chopper parts and

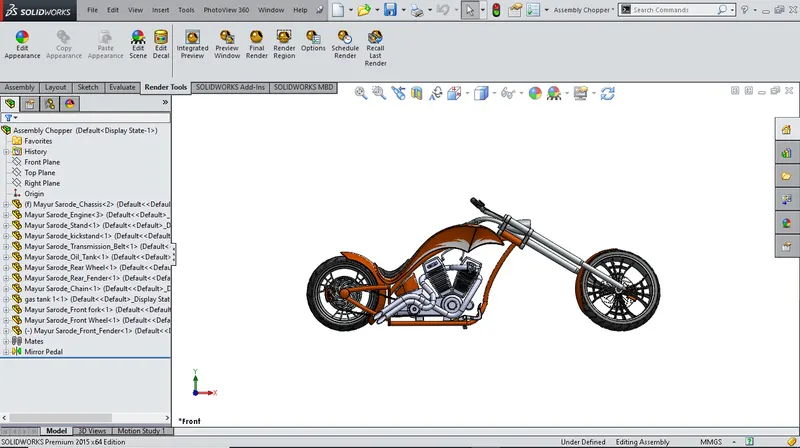

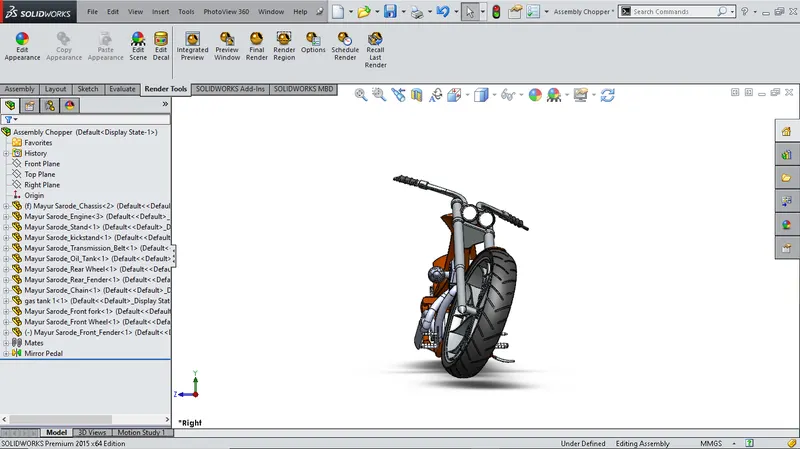

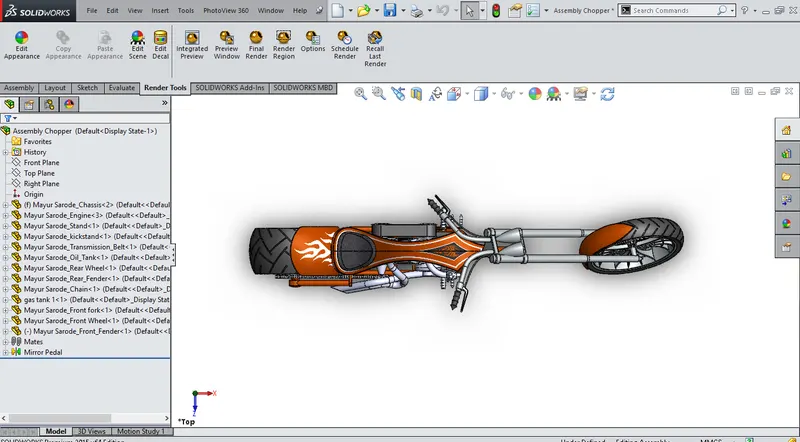

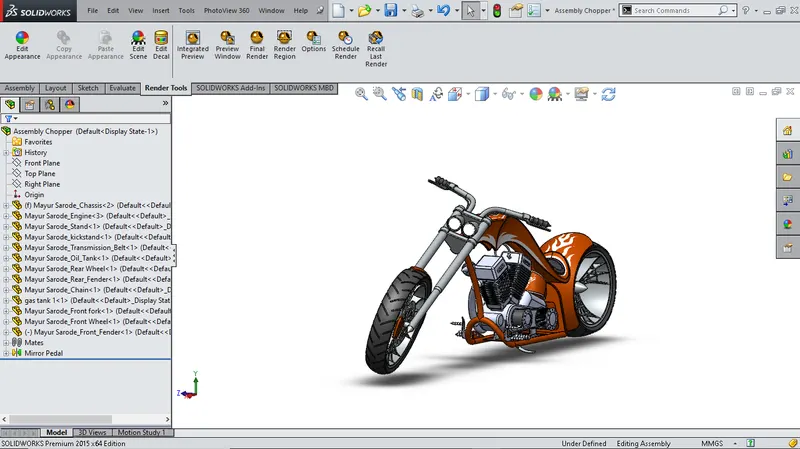

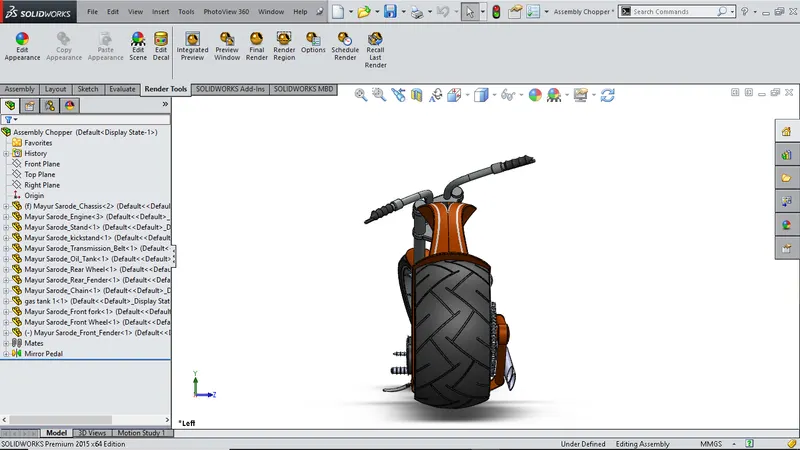

Assembling them and rendering the final

Chopper after the assembly.

American Chopper is an American reality

Television series that airs on Discovery Channel,

Produced by pilgrim Films & Television. The

Series centers on paul teutul sr., and his son

Paul Teutul jr., who manufacture custom

Chopper-style motorcycles.

Objective :

The main objectives of this project are:

• To create individual parts of chopper using solidworks.
• To assemble all the individual parts into a chopper
• To know the application of decals,lights,camera etc.

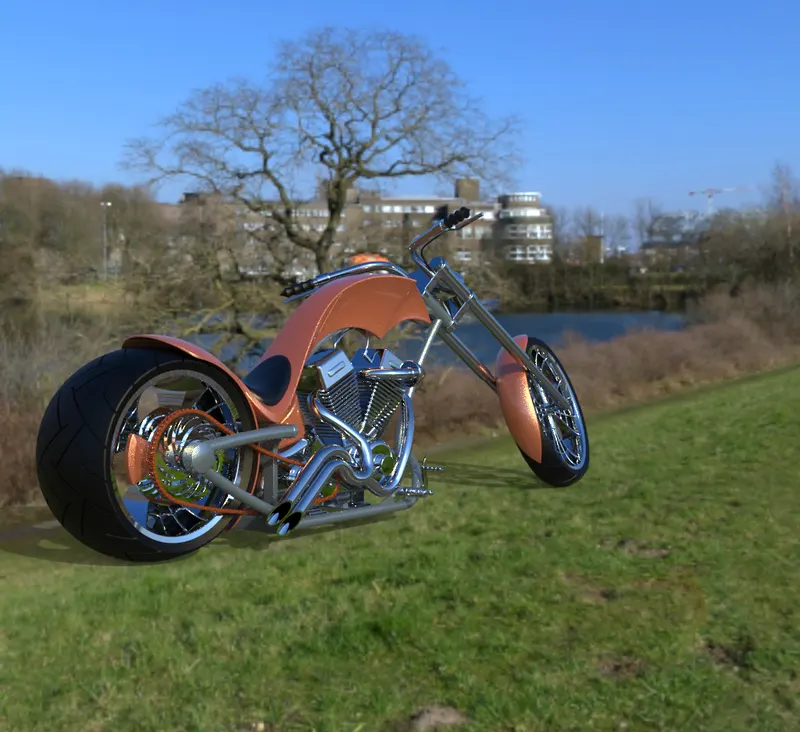

• To create photorealistic model and render it using photoview 360 and solidworks visualize.

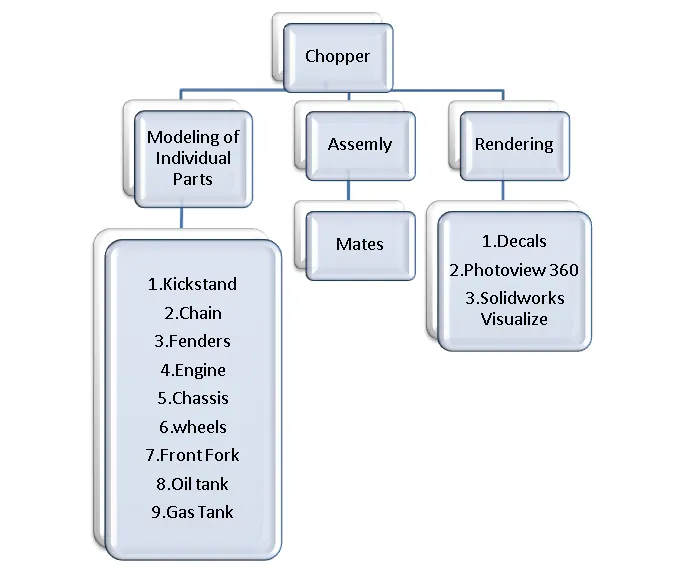

Design Methodology/Approach:

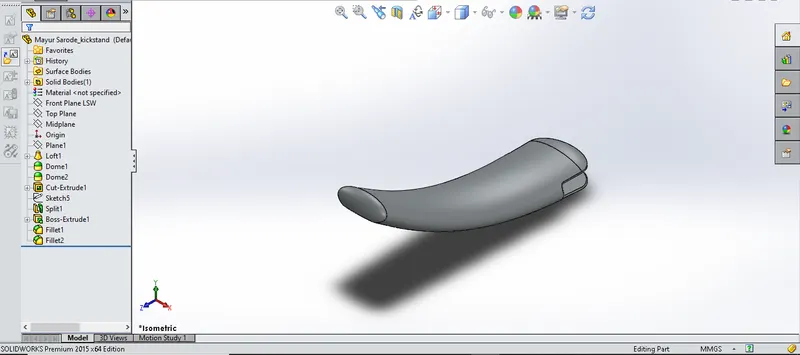

Kickstand:

It is also known as side stand. It is used to

Support the chopper while it needs to rest on

The ground.

Features used to create Kickstand:

• Sketch
• Loft
• Dome
• Extrude boss
• Extrude cut
• Fillet
• Split

Sketch:

The sketch is a 2D representation of the model.

These are known as entities in solidworks. e.g.:

Line,rectangle,spline,circle,arc etc.

Loft:

The loft feature allows you to generate

Complex geometry. It does this by interploting

Surfaces between various cross section of the

Model. These cross sections can be sketched,

Faces or edges. In the loft interface the cross

sections are considered as loft profiles.

Dome:

This feature is majorly applied to faces. Select

One or more planar or non-planar faces. You

Can apply dome to faces whose centroid lies

Outside the face. This allows you to apply

Domes to regularly shaped contourd.

Extrude Boss/Base:

This feature is used to convert a 2D sketch into

3D model.

Extrude Cut:

This feature is used to remove materials from

The 3D model. It is just opposite to extrude boss

Because it cuts a sketch profilr while Extruding.

You can cut in both directions and mainly used

For creating holes,channels,slots etc.

Fillet:

This feature create a rounded internal or

External face on the part. You can fillet all the

Edges of a face, edges, loops etc.

Split:

This tool is used to project an entity onto other

Surface or curved or planar faces. You can also

Split faces on multiple bodies with one

Command.

Procedure followed to create model of

Kickstand:

• First open a new solidworks part.
• Before creating the sketch change the

Default planes as follows:

1. Front plane-front plane
2. Top plane-top plane
3. Right plane-mid plane

• Then, select midplane and start sketch
• Then 2D sketch is created in the front

       Plane and dimensions are gives and

       Sketch is fully defined,while sketching we

       Use spline and trim commands.

• There are two new planes created and

       Elipse is drawn in the new plane as per the

       Requirement.

• Then loft command is used to create

        Loft for the kickstand.

• The extrude cut is used to cut parts which

        are not required for the stand.

• Then the dome feature is applied to the

       Smaller face of the kickstand to make the

       face round and smooth.

• Fillets are applied on the sharper edges for

       required radius.

• Then finally the part is saved by the name

        “kickstand”.

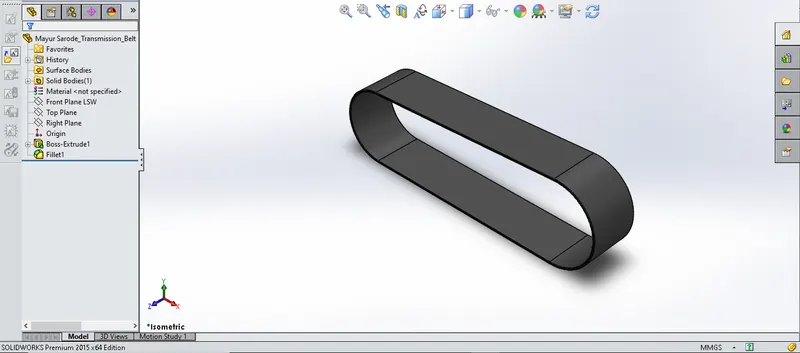

Transmission Belt:

This is used to transmit power from engine to

Gear box.

Feature used to create Transmission Belt:

• Sketch
• Offset
• Extrude
• Fillet
• Appearances

Offset:

Offset one or more entities, selected

Model edges or model faces by specified

Distance. For e.g. you can offset sketch entities

Such as splines or arcs, set of model edges,

Loops and so on. You can offset finite lines, arcs

And splines.

Procedure to create a model of transmission

Belt:

• Firstly, open a new solidworks part.
• Then, select the front plane and select the

Sketch.

• The 2D sketch is created in the frony plane

       And dimensions and relations are given to

       Make the sketch fully defined.whilw

       Sketching offset command is used to make

       A duplicate sketch to some distance.

• After this process the sketch is closed.

       Then the extrude command is used to

       Covert 2Dsketch to 3D model.

• Then fillet is given to the belt as per the

       Given dimensions.

• Then finally the model is saved on the

       Name “Transmission Belt”.

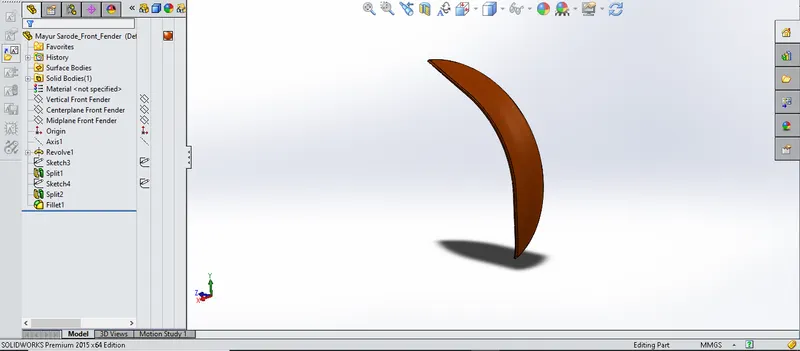

Front Fender:

The front fender is mounted on the front

Fork above the wheel to protyrct the rider and

The chopper other parts from the debris and

Foreign particles.

Features used to create Front fender:

• Sketch
• Offset entities
• Trim entities
• Revolve
• Dynamic mirror
• Split
• Appearances

Revolve:

Create a sketch that contains one or more

Profiles and a centre line or an edge to use as

The axis round which feature revolve tools.

Dynamic Mirror:

Dynamic mirror, it is used as you sketch the

Entities, they are mirrored about the

Presketched sketch entity.

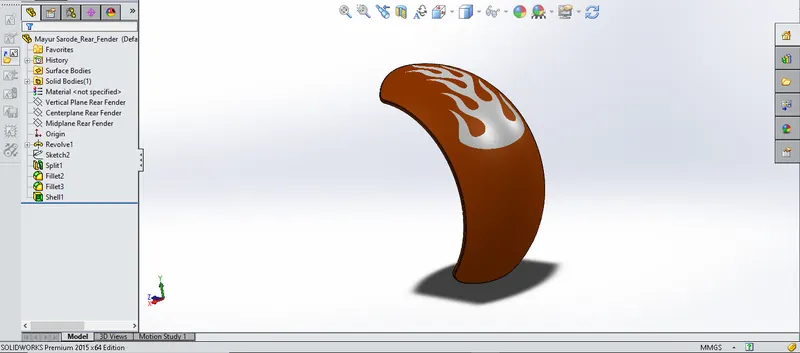

Rear Fender:

The use of rear fender is same as front

Fender. The rear fender is mounted on the

Chassis of the rear part above the rear wheel.

Features used to model Rear Fender:

• Sketch
• Offset entities
• Trim entities
• Revolve
• Appearances

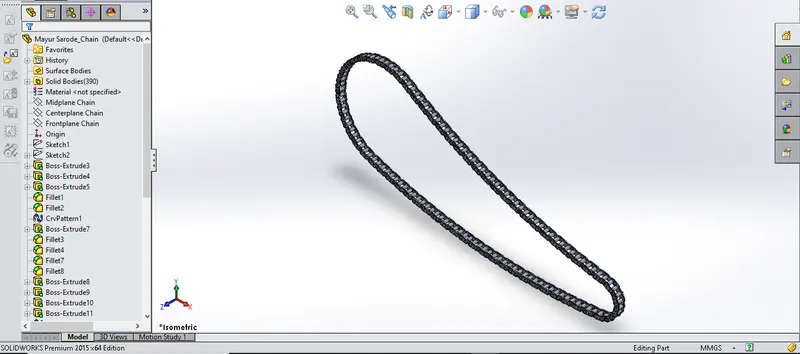

Chain:

Chain is a type of transmission system that is

Used to transmit a power from the engine to

The rear wheel. The sprocket is used to transmit

The power to the chain. The sprocket is

Connected with the shaft with the help of a key.

Features used to create Chain:

• Sketch
• Trim
• Fillet
• Blocks
• Extrude
• Patterns
• Appearances

Trim entities:

You can make, save, edit and insert blocks for

Drawing items and sketch entities that you use

Often, such as standard notes, title blocks, label

Positions and so on. You can attach blocks to

Geometry or to drawing viws and you can

Insert them into sheet formats.

To make blocks:

1. Create a sketch
2. Click make block (tools>block>make block)
3. Select the entity you want to make as a

Block for block entities

4. Click ok and save the first block
5. Repeat steps 2-4 for another block
6. With the sketch in edit mode, add

Necessary relations.

7. Finally save the part

Patterns

The curve driven pattern tool allows you to

Create patterns along a pattern or3D curve. You

Can base your pattern on aopen curve or on a

Closed curve such as circle. In the chain part

Curve driven pattern is used.

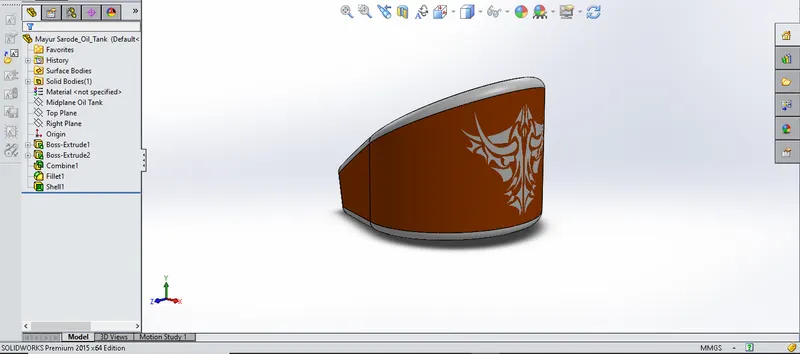

Oil tank:

The oil tank is used to store the oil required to

Run the engine. It is a hollow one. The thickness

Of the oil tank is given by 3 mm in our chopper

Model.

Features used to create oil tank:

• Sketch
• Boss extrude
• Combine
• Fillet
• Shell

Shell:

The shell feature is used to define the thickness

Of thin and thick shell elements.

Combine:

Combine feature is used to combine manually

Two bodies like add, substract ets…

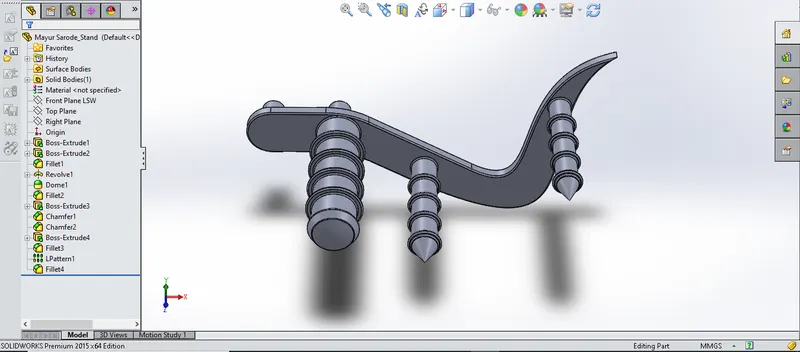

Pedal:

Pedal is external part attached to the

Chassis. The pedal is used to place the leg on

Top of that to give comfort to the rider.

Features used to create pedal:

• Sketch
• Extrude
• Fillet
• Linear pattern
• Dome
• Chamfer

Chamfer:

A cut on the edge or corner of something that

Makes it slope slightly rather being perfectly

Square.

Linear pattern:

It is also same as circular pattern. The feature or

The bodies are pattern linearly.

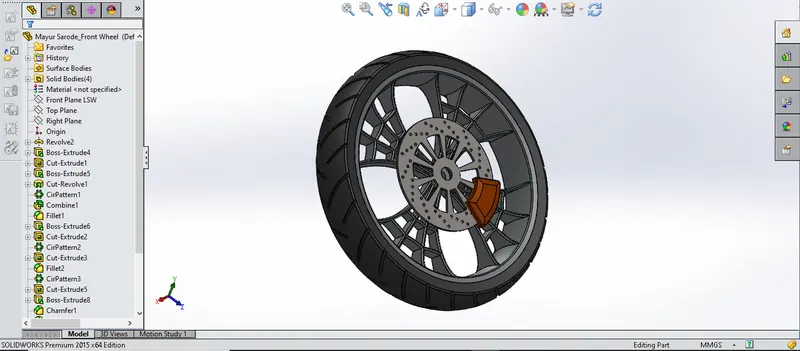

Front wheel:

A wheel is acircular block made of steel/alloy

Material. On the top of wheel, the tire is

Covered. The tire is made of rubber and it has

Thin wires within it.

Feature used to create front wheel:

• Sketch
• Revolve
• Trim
• Fillet sketch
• Boss extrude
• Revolve cut
• Linear pattern
• Chamfer
• Cut extrude
• Circular pattern

Circular pattern:

Circular pattern is used to create a pattern of

Spokes and the pattern of groves available in

The tire. It is also used to creates holes in the

Discs of the front wheel. The parent

Bodies/feature are used to create number of

Instances required to create the pattern

Circularly.

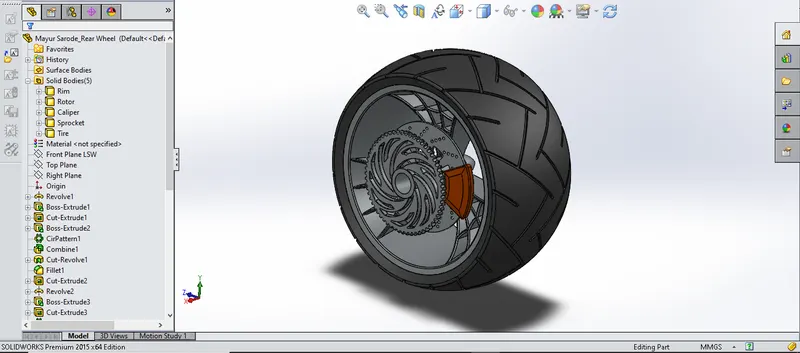

Rear wheel:

A circular object that revolves on an axis and is

Fixed below a vehicle or other object enabling it

To move easily over the ground

The disc and sprocket are attached with rear

Wheel.

The chain is connected between the engine and

Rear wheel.

Features used to create rear wheel

• Sketch
• Revolve
• Trim
• Sketch fillet
• Extrude boss
• Planes
• Revolve cut
• Linear pattern
• Chamfer
• Fillet feature
• Extrude cut
• Cicular pattern

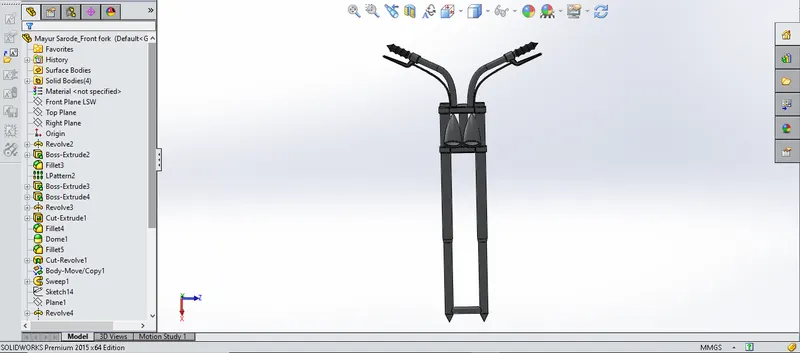

Front fork:

Most motorcycles today use telescopic forks for

The front suspension. The forks can be most

Easily understand as simply large hydraulic

Shock absorbers with inernal coil springs. They

Allow the front wheel to react to imperfections

In the road while isolating the rest of the

Motorcycle from that motion.

Features used to create Front fork:

• Sketch
• Extrude
• Trim
• Revolve
• Split
• Move/copy bodies
• Dome
• Mirror
• Combine
• Projected curve
• Sweep



Move/copy Body:

By using mirror faces with a midplane selected

Only the chosen faces within the revolve will be

Mirrored. Mirroring bodies can be used whether

In a single or multibody part and allows you to

Select solid geometry instead of the features

And faces in a body. In the fork part thr one part

Is created and the other part is mirrored. Then

The parts are manually combined.

Projected curve:

Projected curve is a kind of a 3d curve which is

Projected based on the two different 2d

Sketches.

Sweep:

With the sweep feature we can create a shape

By moving a 2D sketch profile along a 2D or 3D

Sketch path.

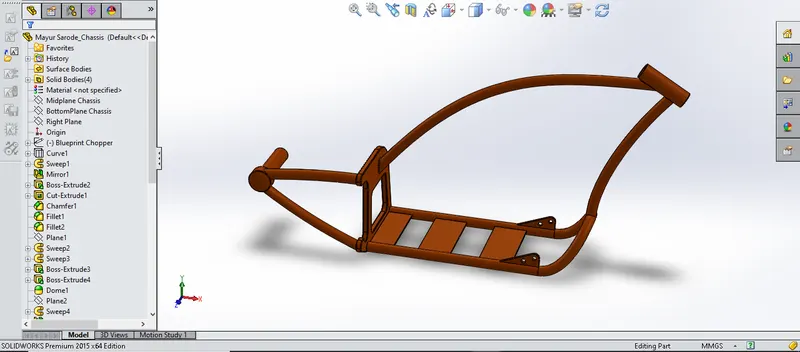

Chassis:

A chassis or a frame forms its skelton. All the

Components of a motorcycles like suspension,

Wheels, fuel tank,seats,handle bars etc. are

Attached to this base structure which lends a

Motorcycle its strength and ability to handle

Well.

Features used to create chassis:

• Sketch
• Offset
• Convert entities
• Project curve
• Trim
• Sweep
• Split
• Revolve
• Cut extrude
• Fillet
• Combine

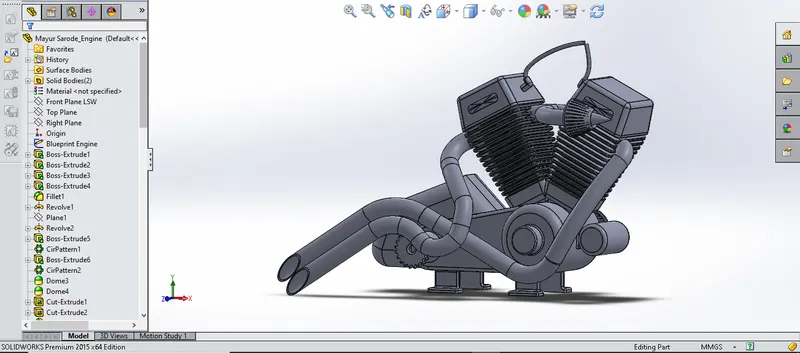

Engine:

Engine is the prime mover for the bike. The

Engine converts a chemical energy into the heat

Energy and then the heat energy is converted to

Mechanical work.

The mechanical work in the engine is a

Rotational motion. This rotation is transmitted to

Wheel with the help of chain and sprocket

Through the gear box and clutch.

Features used to create engine:

• Sketch
• Trim
• Revolve
• Boss extrude
• Extrude cut
• Offset
• Dome
• Fillet
• Projected curve
• Composite curve
• Sweep
• Mirror
• Circular pattern
• Split

Composite curve:

This feature is used to join two curves and make

Them a single curve. E.g. combining a projected

Curve to another curve etc.

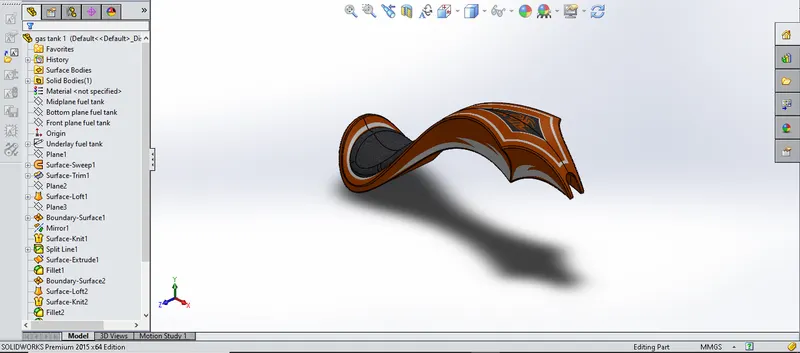

Gas tank:

Gas tanks are used to store gas and its gas

To the engine when required.

Features used to create Gas tank:

• Trim
• Projected curve
• Sweep surfaces
• Loft surfaces
• Fill surface
• Surface trim
• Surface knit
• Sweep cut
• Fillet

Loft surfaces:

Loft surfaces are surfaces generated by multipl

3D curves or existing edges creating a smooth

Tangency between the selected curves.



Sweep surfaces:

Sweep surfaces are surfaces that are generated

From a section curve positioned along a path

Fill surface:

The fill surface feature constructs a surface path

With any number of sided with in a boundary

Defined by existing model edges, sketches or

Curves including composite curves.

Surface Trim:

Primarily used to cut away material from a

Surface and provides two modes: standard and

Mutual.

Surface knit:

Surface knit is used to knit two free edges/

Open edges of the surface together. Also it

Reduces the gap between two edges of the

Surfaces.

Assembly of the chopper:

• Initially the chassis part is inserted in the

       assembly by using insert parts in the

       option. After that the part is inserted in the

       assembly environment and click ok to fix

      the chassis.

• After that the other parts of the chopper

       Inserted into the assembly and given

       Possible mate condition.

Features used to assemble chopper:

• Inserting parts
• Mates

Mates:

Mates create geometric relationship between

The assembly componenets. Ass we add mates,

We define the allowable directions of linrar or

Rotational motion of the componenents. We can

Move a componenet within its degree of

Freedom, visualising the assembly behaviour.

Rendering:

• Rendering is a process of creating realistic

       Images of the photorealistic model with

       The environment.

• Rendering has been done in two ways in

       Solidworks:

• Photoview 360
• Solidworks visualize

 In the photorealistic model some of the mate

Conditions and positions are changed to render

Realistic models.

Then, the photorealistic model is rendered into

Realistic images with different views.



Photoview 360:

Photoview 360 is a visualization and rendering

Solution includes with solidworks. providing a

Highly interactive environmrnt for viewing

Designs as well as for creating photo- realistic

Rendering it can be used to showcase our

Designs as well.

Solidworks visualize:

Soliworks visualize provides a suite of Stand

alone software tools that combine Industry

leading rendering capabilities with Visual

design-oriented featres and workflows,

Allowing easy and fast creation of visual content

That communicates a design vision, passion

And emotion.

Conclusion:

• The parts of the chopper are modelled.
• The parts are inserted into the assembly

        Environment and the chopper is Assembled.

• The realistic image was rendered with the

        use of the photoview 360 and solidworks visualize.
