DESIGNING AND MODELING OF A BMW 7 SERIES CAR

MODELING AND RENDERING OF A BMW 7 SERIES CAR USING SOLIDWORKS.

1.Objective

Make a 3D cosmetic model of a bmw 7 series car using surface and solid features.

Here i used 3D sketches & 2d sketches feature to make the shape of it.

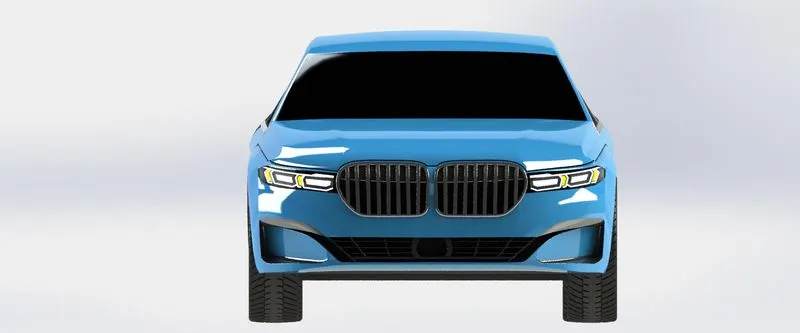

Assembling the body of car with wheels and rendered it to see realistic view of a car.

While in making of this car project my idea was to split it into two categories in first phase i'll give the basic shape of car there will be no detailing and in second phase i can it solid phase also there i'll add details to this project. "if can reach that phase" "actually at that time i was not so sure that i could that phase because previous this project failed"

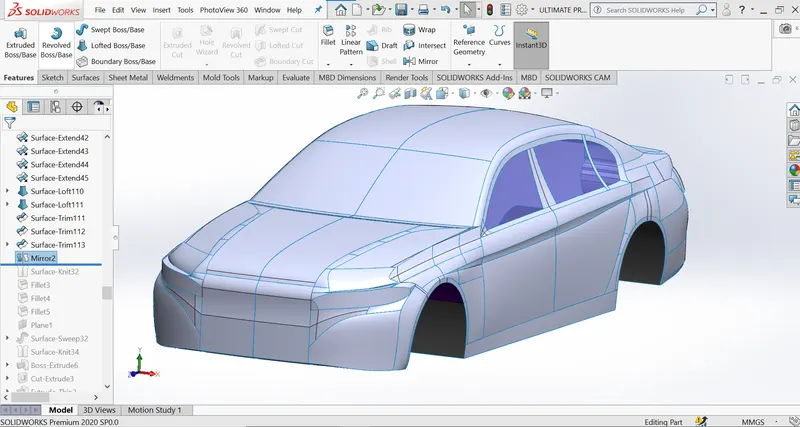

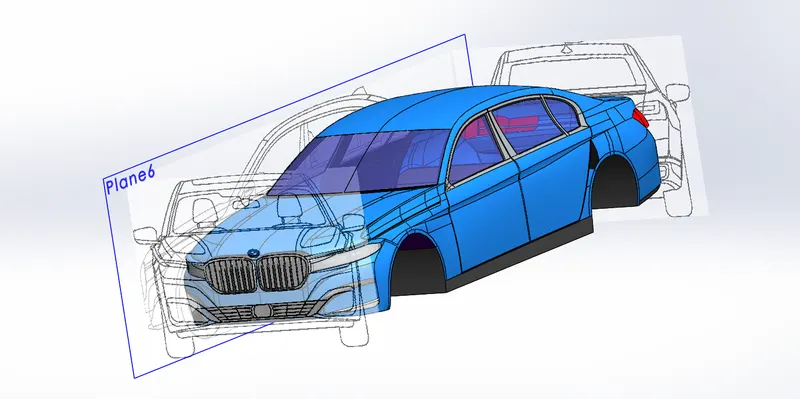

First i gave the shape of car model by surfacing it's like raw shape no details were added at that time, only the shape of car was made with it's Bonnet, side doors, front grill & Rear door and the complete surface body is knitted and made solid.

Now at that point my First phase has gone over "And it's like no uturn for me ofcourse after 60days almost perday more than 6 hrs u can't fail any how i have to it if at this i failed then in i my complete life i wolud see my self a failed person" Next i have added details to griil like a BMW made a light of car and modeling of its wheels giving colour to my car.

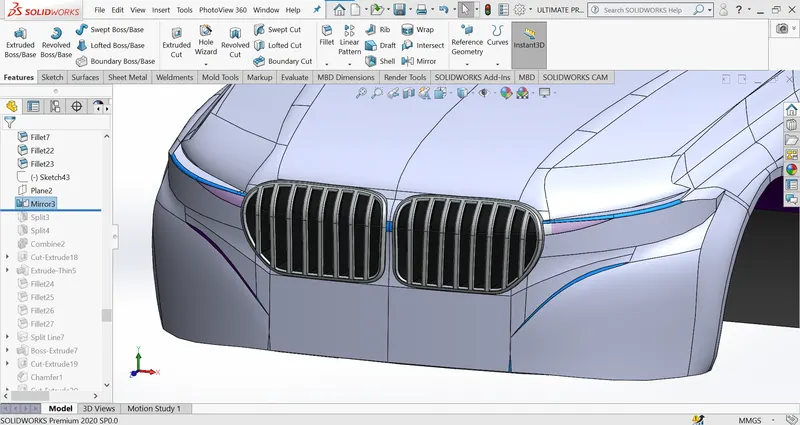

This unique BMW grill took little more time as i espected but here i learned usage of split & extrude feature very deeply almost i went all possible options of them it took a week.

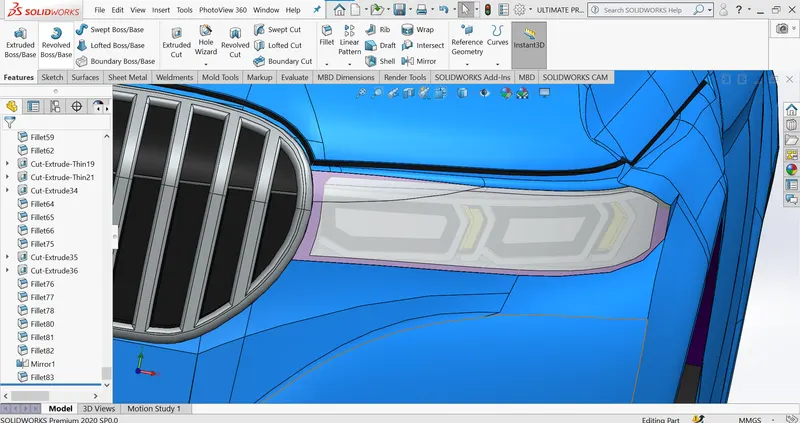

This is the lovely part that i have done on this car really not on only modelling also how it looks after rendering n i have tale care of those part also beacuse it like eyes i should be like if see the car my attention should be seeken by the headlight.
