PREPARE MOLDS FOR CAR DOOR BEZEL WHICH INCLUDES CORE, CAVITY, SLIDERS, WASHERS & SPACE FOR LOCKING MECHANISM

PREPARE MOLDS FOR DOOR BEZEL WHICH INCLUDES CORE, CAVITY, SLIDERS, WASHERS & SPACE FOR LOCKING MECHANISM

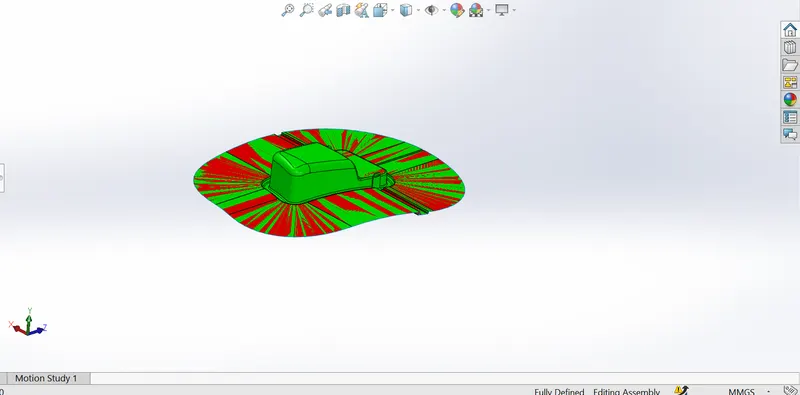

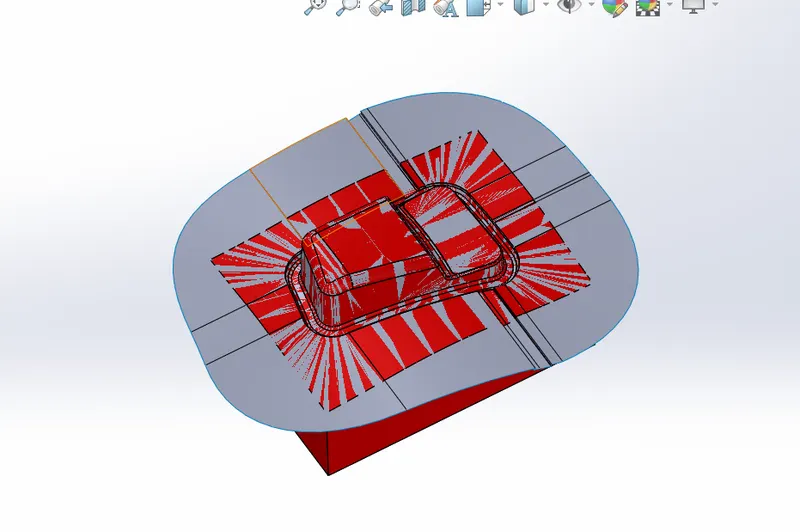

• Open car door bezel part where core & cavity surfaces are created.

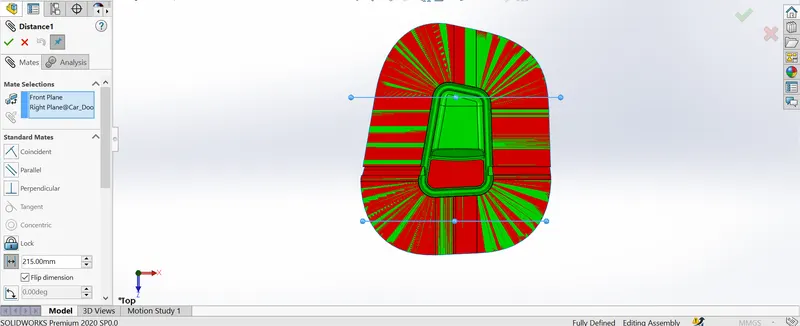

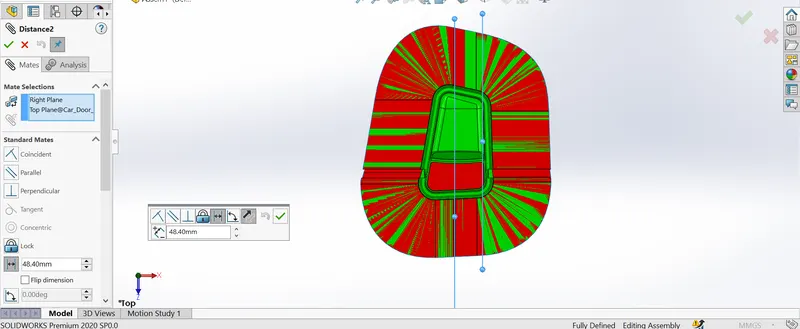

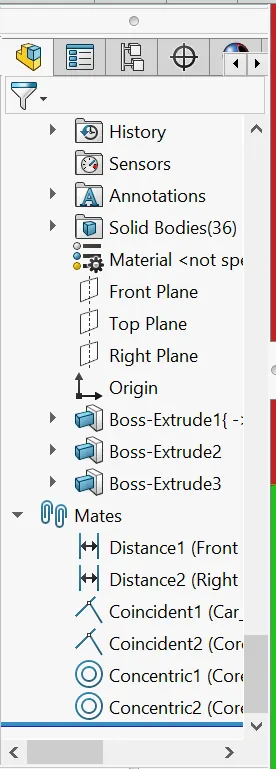

• First rotate the part and alligns origin of assemblly with the core & cavity blocks and orign of other component create further, apply suitable mates to do it.

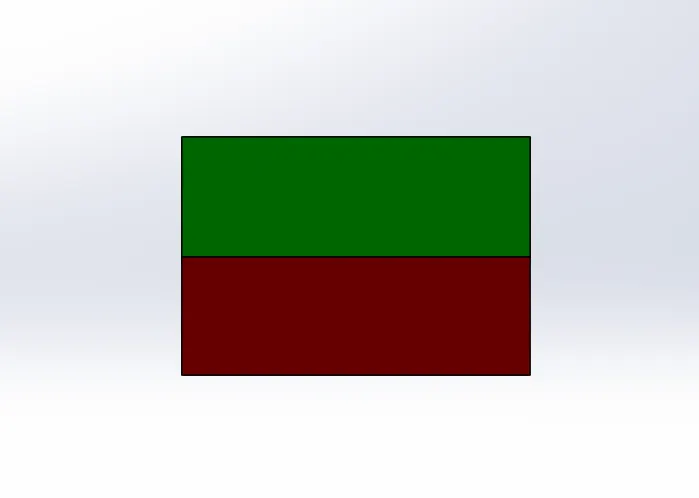

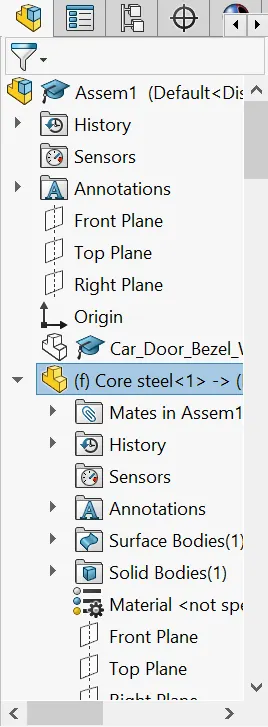

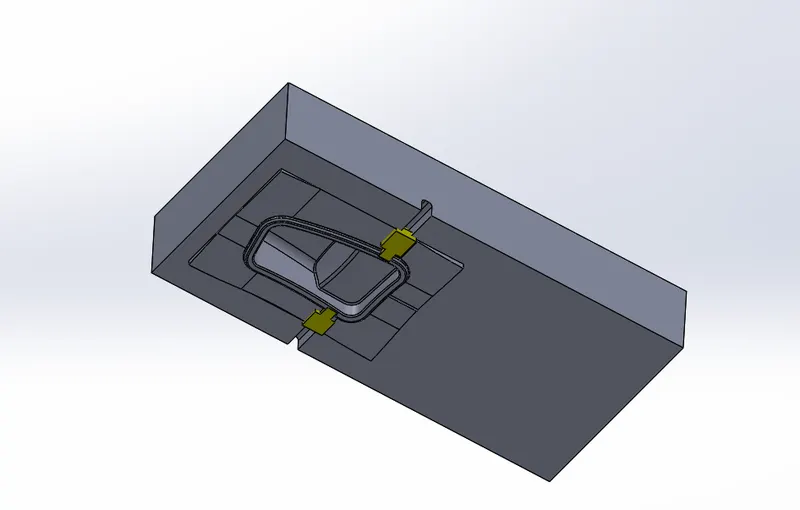

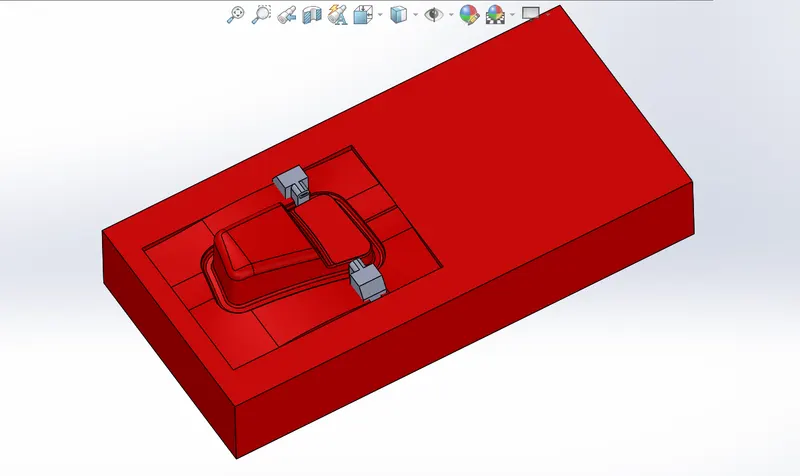

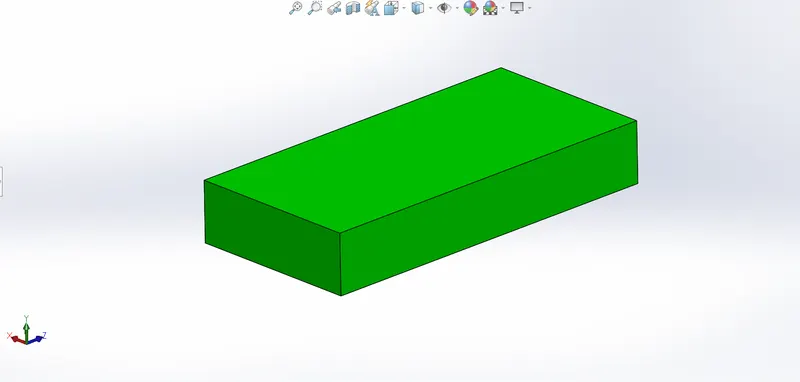

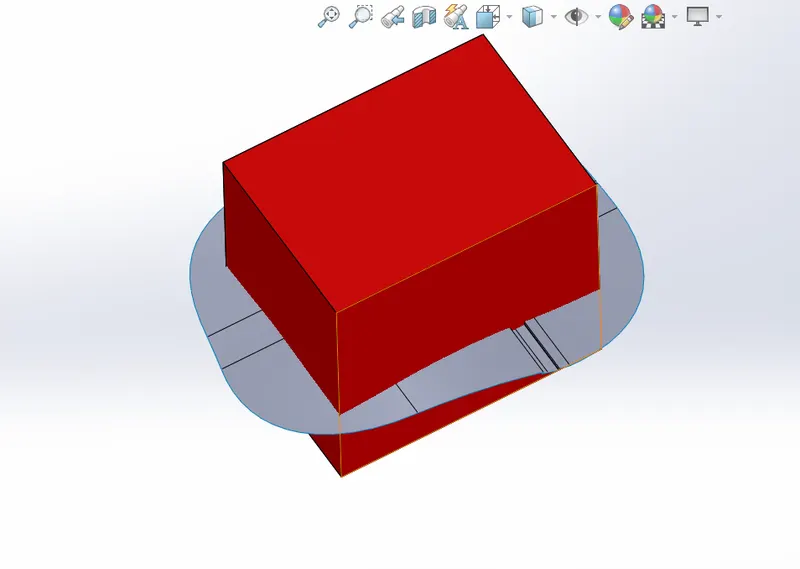

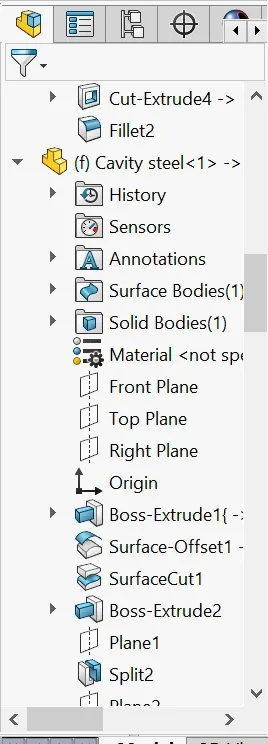

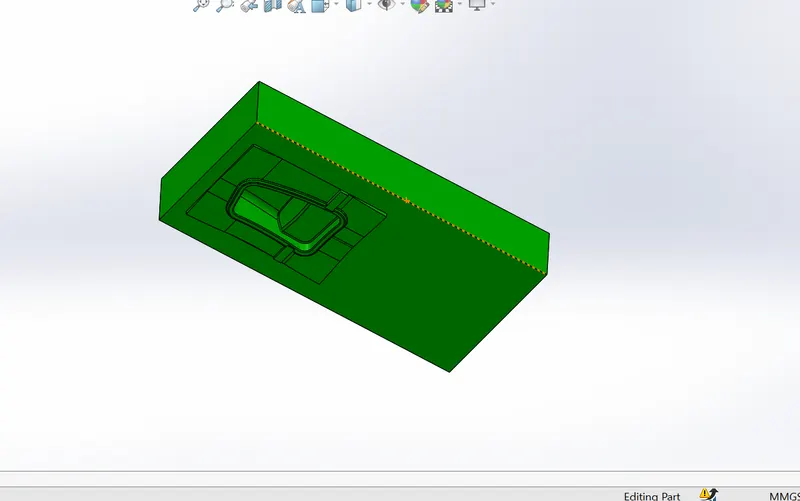

• Insert two new components and rename as a core steel & cavity steel then open each part seperatly then create two solid blocks one is smaller and another is big small block is then is cut with surface of offset surface from cardoor bezzle and then big block is extruded from one vertex of previous block to it's surface.

1. Similarly same process for cavity blocks.

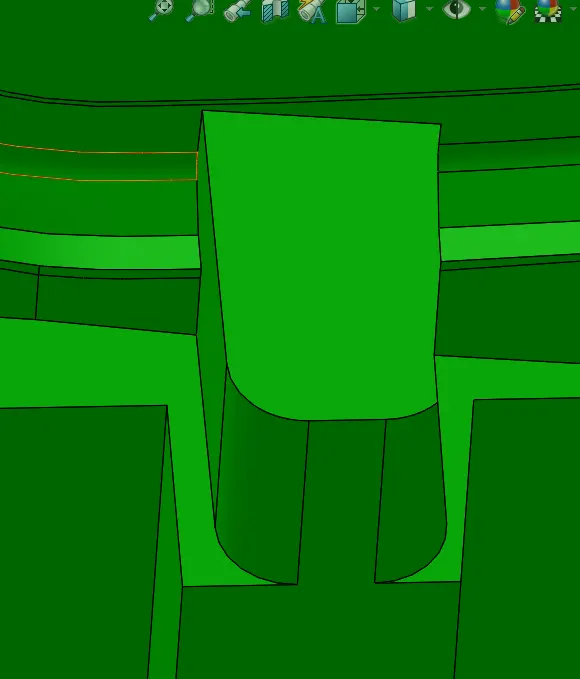

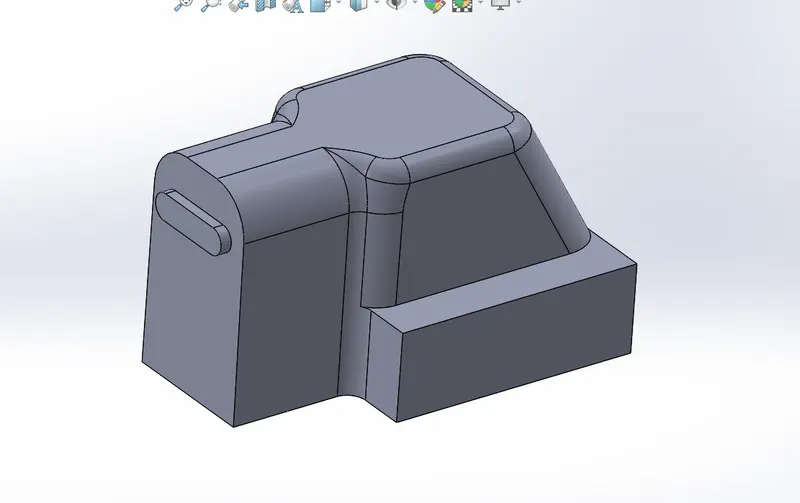

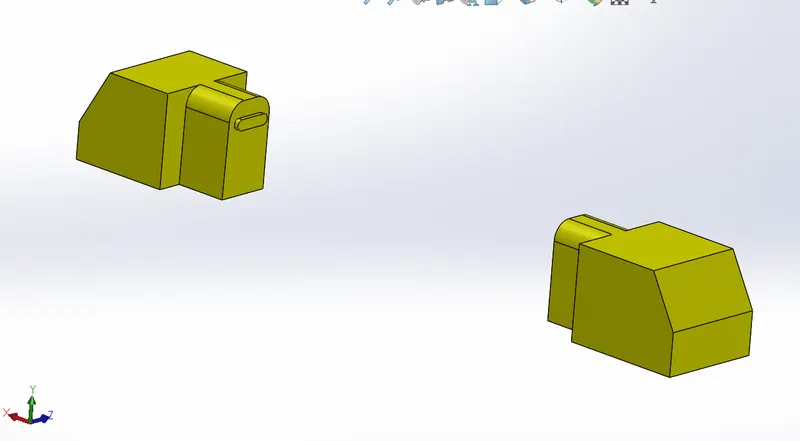

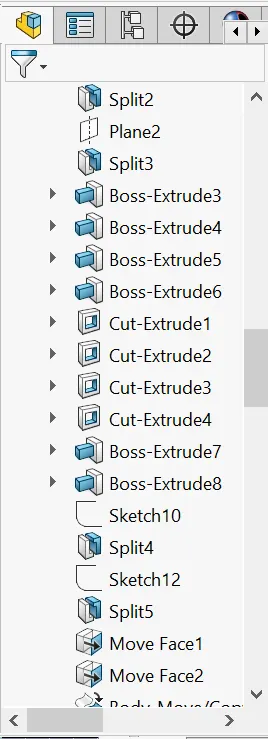

• After creating blocks we'll work on making sliders and prosess will be carry on cavity blocks like split, cut extrude, extrude boss then save seperatly sliders in parasolid format.

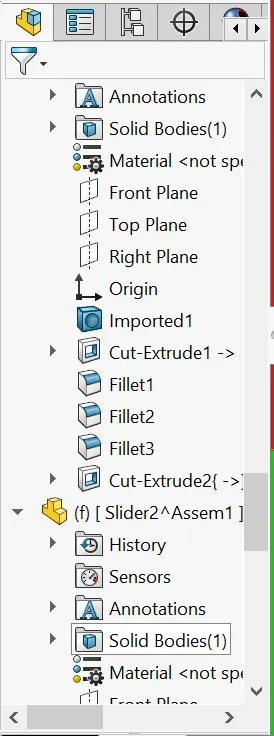

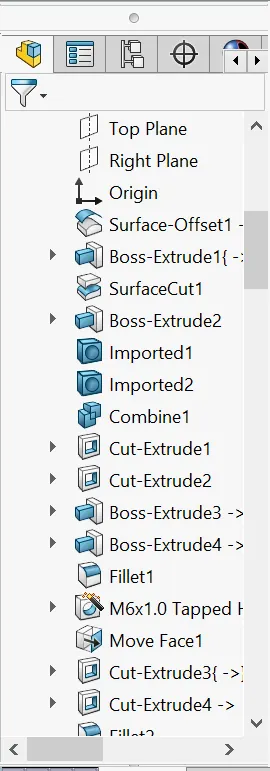

• Open core part seperatly and import parasolid file of slider then in combine option perform subtract slider to core cavity blocks.

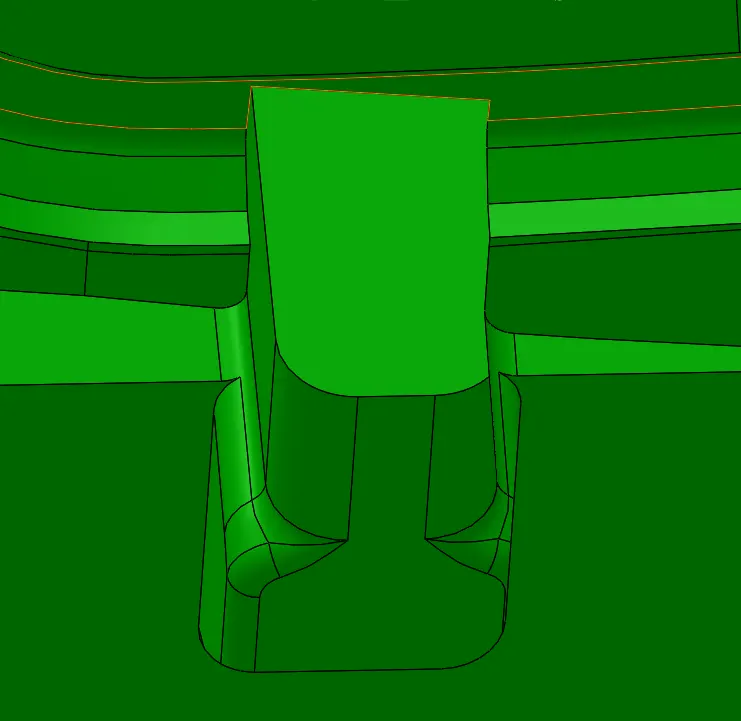

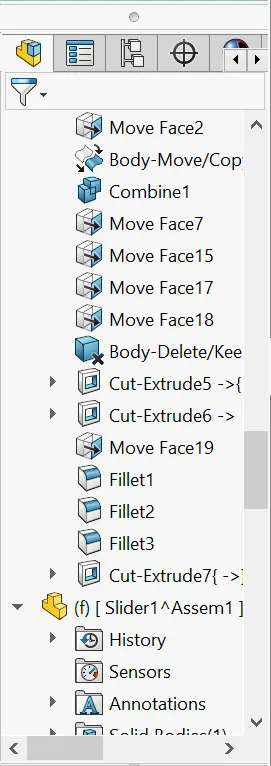

• Apply some fillets over slider and change core & cavity part accordingly.

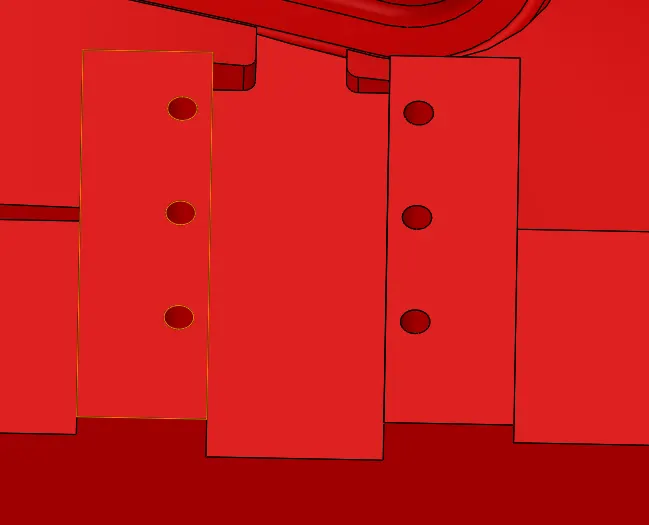

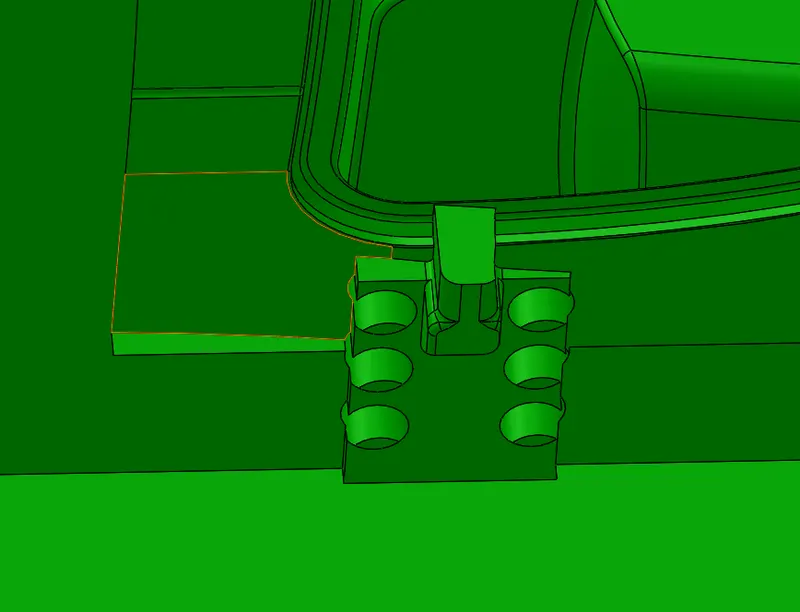

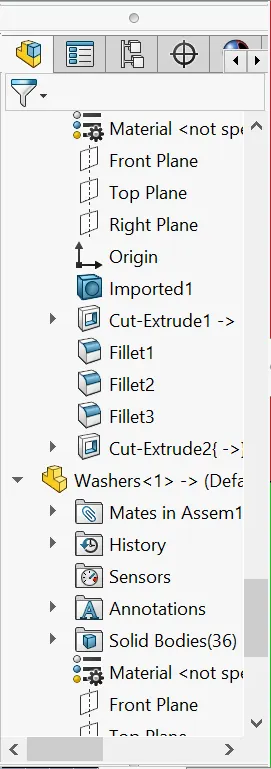

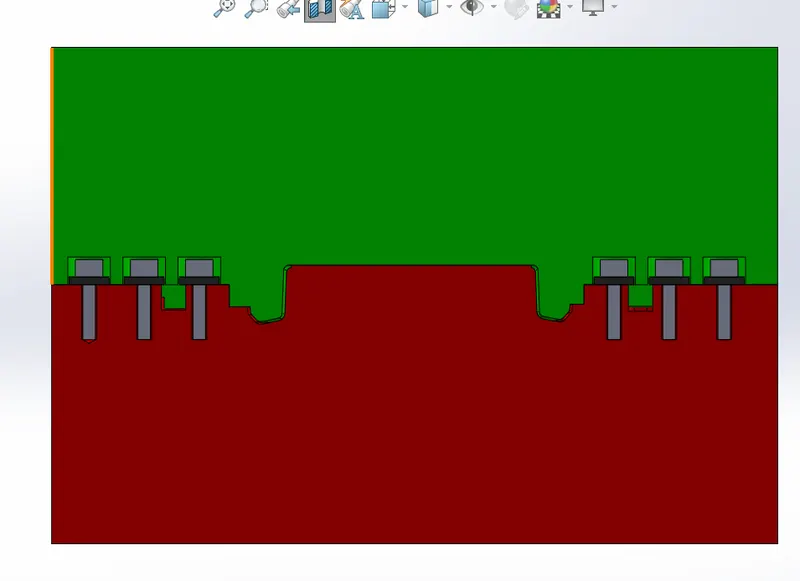

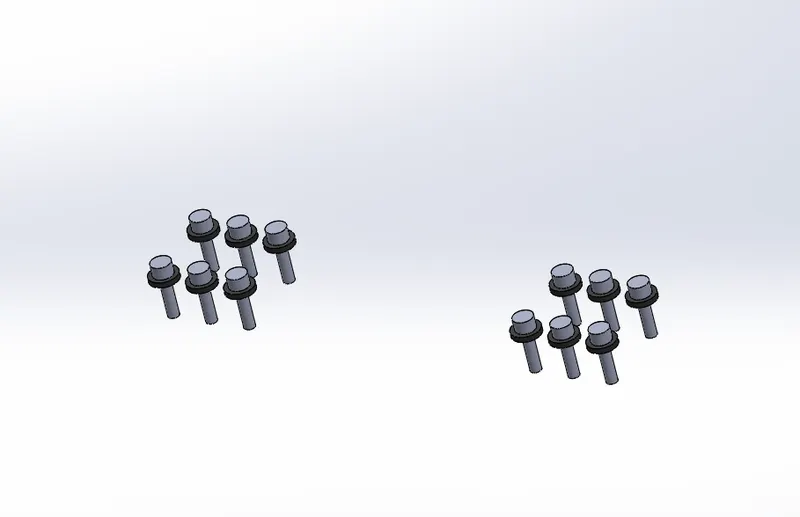

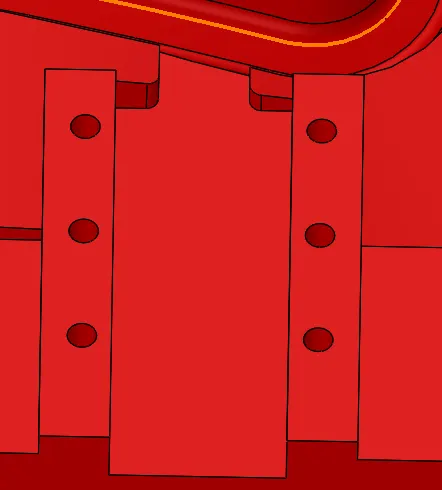

• Create washers and nuts and place it on core surface & create holes in core & cavity to accomodate accordingly.

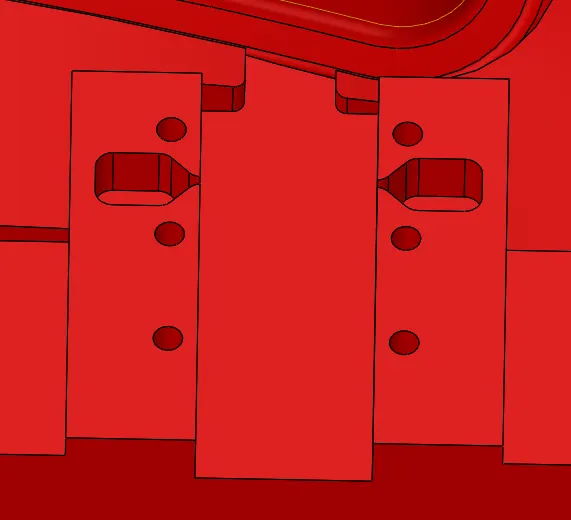

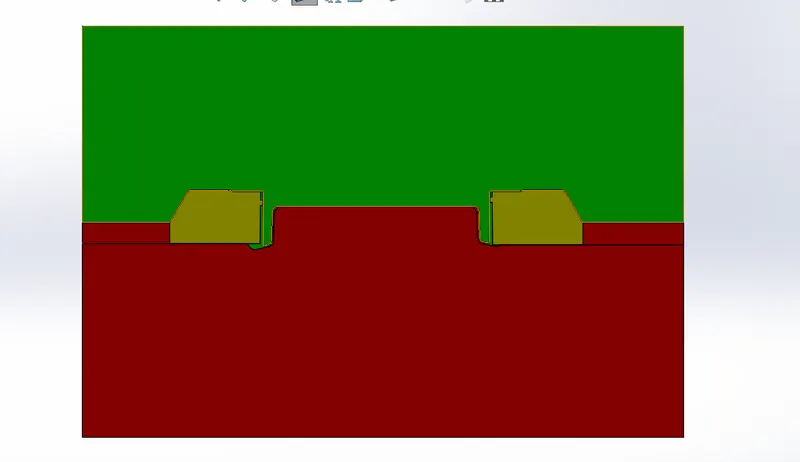

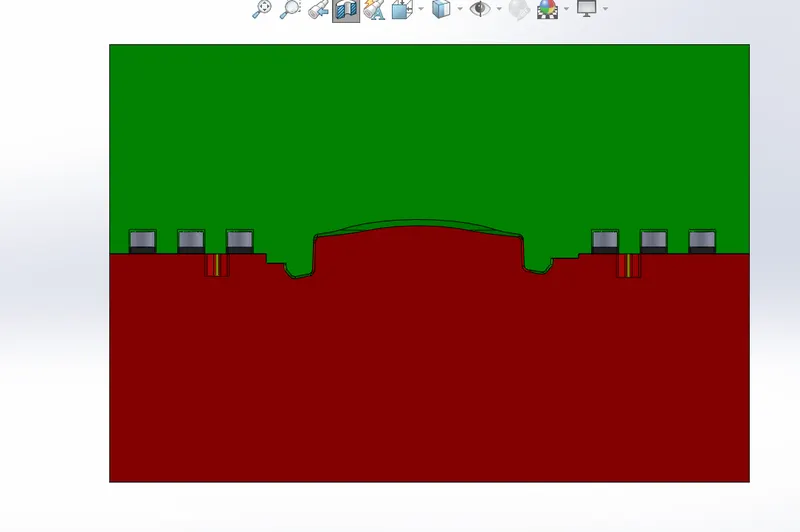

• To create cuts for locking mechanism in core & sliders blocks first move the surface 10 mm extra.
