Internal Geneva Mechanism

Aim:

To perform the geneva mechanism on created the 3D model to perform the motion study at different speed.

Introduction:

Geneva mechanism, also called Geneva Stop, one of the most commonly used devices for producing intermittent rotary motion, characterized by alternate periods of motion and rest with no reversal in direction. It is also used for indexing.

procedure:

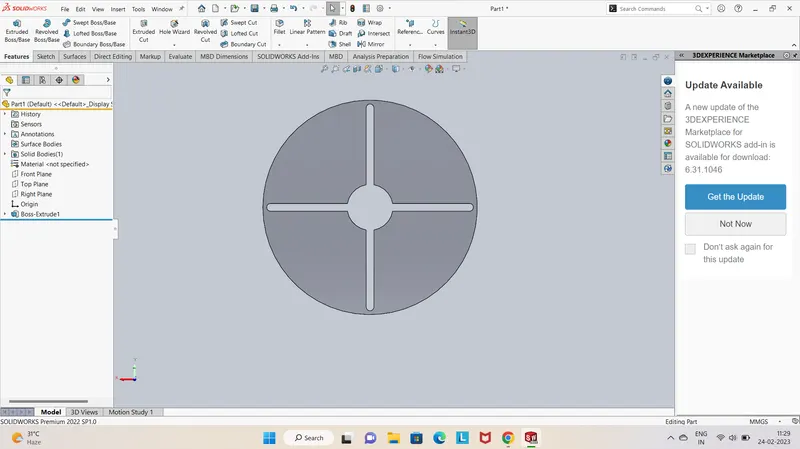

• Design the give 2D model infomation 3D model

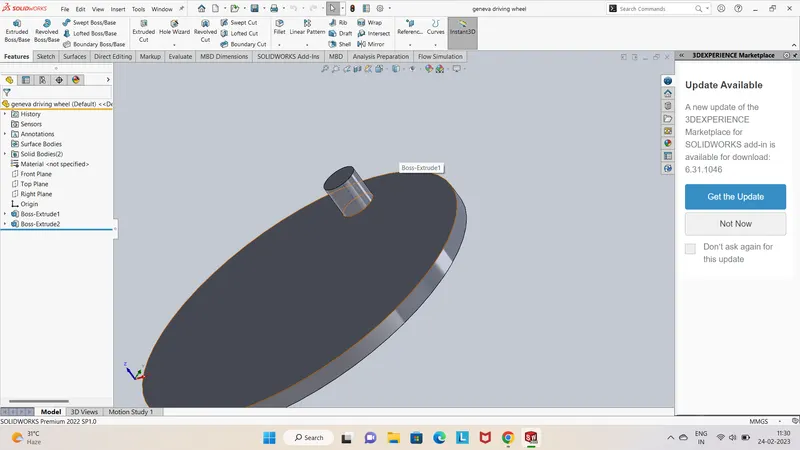

• Design the geneva driven wheel and geneva driving wheel.
• 3D models of driven wheel and driving wheel.

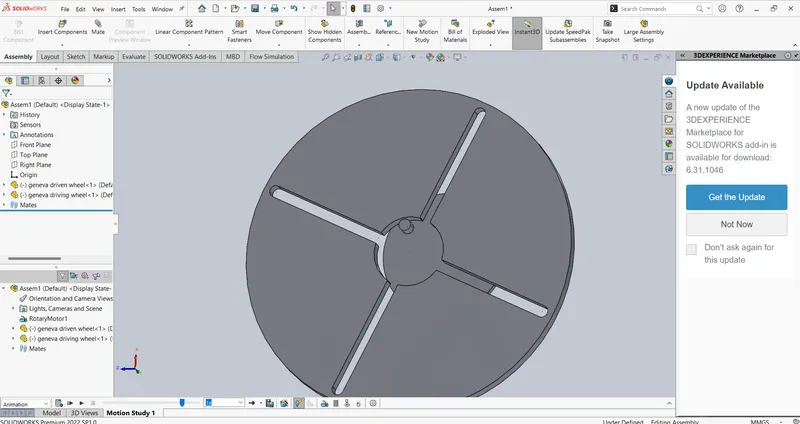

• Now we have to do the assembly

• Add the given data as input

10rpm and 60frames

20 rpm at 120 frames

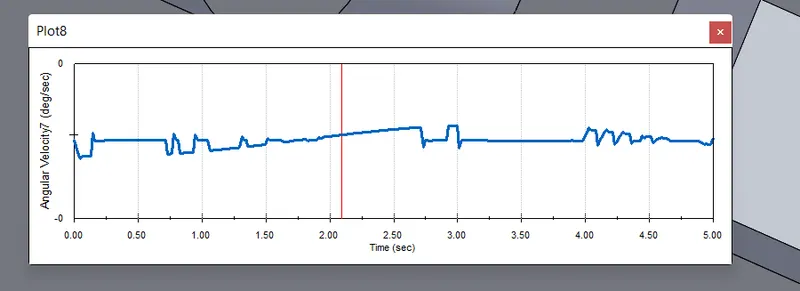

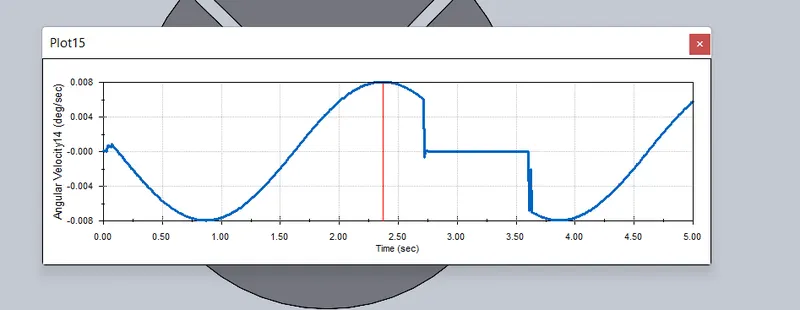

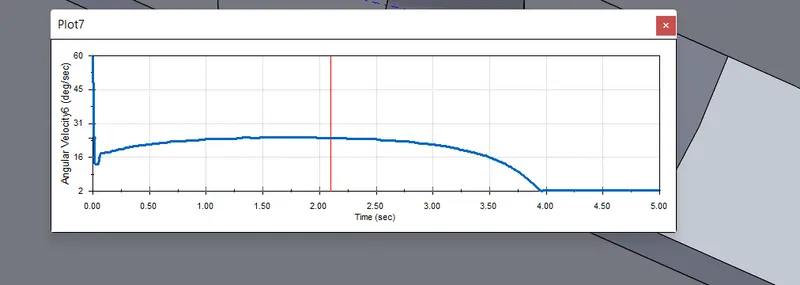

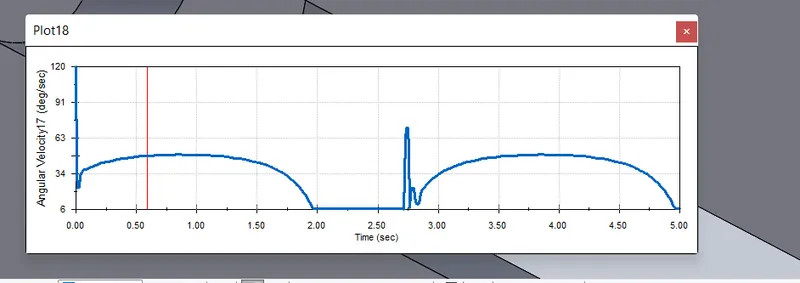

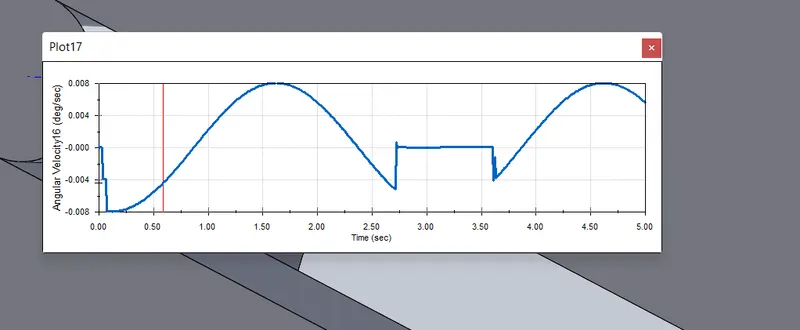

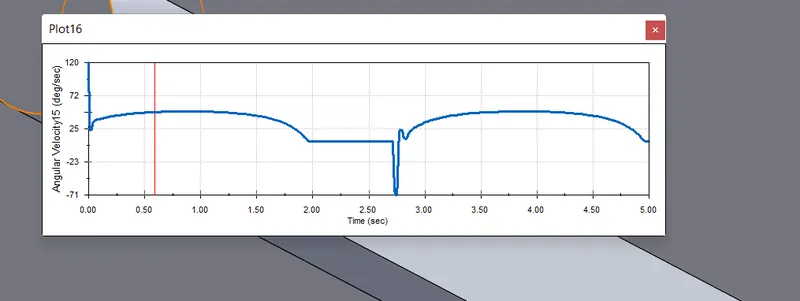

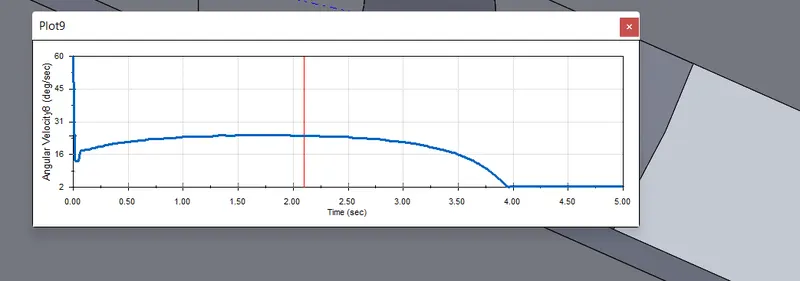

Here are results of given model
