II. Answer in detail

AIM: To create a G+4 Residential building as per NBC standards and make it a central model file. And also the model should contain:

1. The sloped roof at the top level of the building (10 degrees)
2. Architectural components including furniture and home appliances
3. Room tags and Annotations
4. Section cut through each room either longitudinally or transversely
5. Create a camera view on each room and add it in a sheet template.

TOOLS REQUIRED:

• File tab
• Architecture tab
• Manage tab
• Collaborate
• Room
• Load family
• Doors and windows
• Ceiling
• Sheets
• Sections
• Camera (3D view)

PROCEDURE:

• Open a new project file and name it as G+4 concrete building.
• Create a residential building in a selected layout same as of previous challenges without roof.

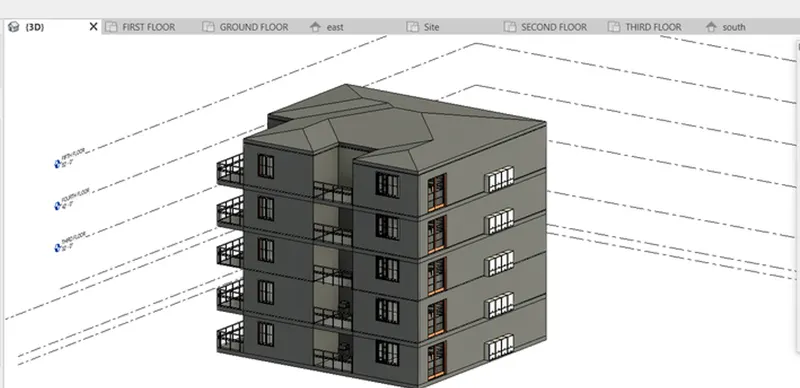

• Now create 4 floors above the building using copy and paste. a. The sloped roof at the top level of the building (10 degrees)

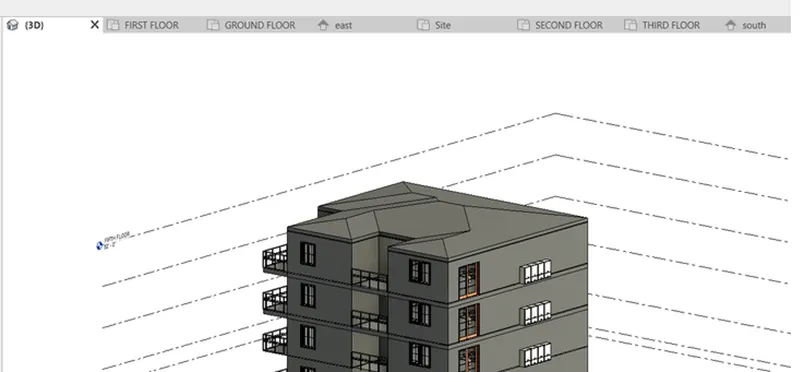

  1. After creating the levels, select the top most level .
  2. Click on architecture tab and select roof ( roof by foot print).
  3. Now select the boundaries of the floor plan and create the roof.

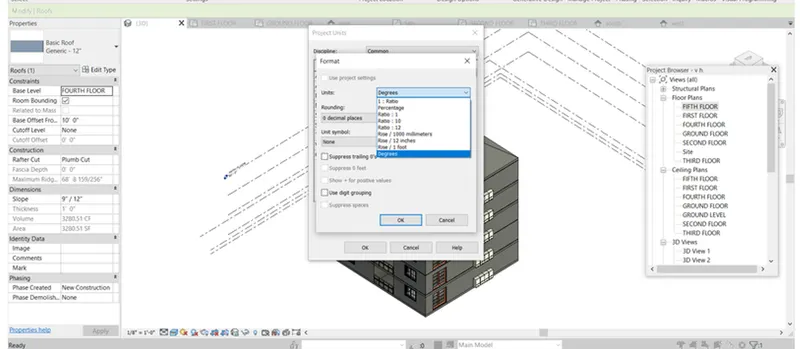

  4. Using manage tab, change the units of slope to degrees.
  5. Now select the created roof and change the slope of the roof to 10 degrees using properties browser.

b.Architectural components including furniture and home appliances

1. Create the required rooms by separating using internal walls.
2. Click on insert tab.
3. Select load family.

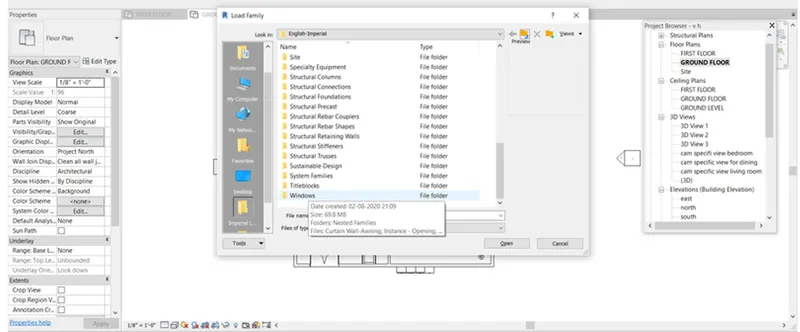

4. All furniture and home appliances are found under load family.
5. Now select the required elements and add them to the residential building.

All the required elements are added as per the requirement of different rooms.

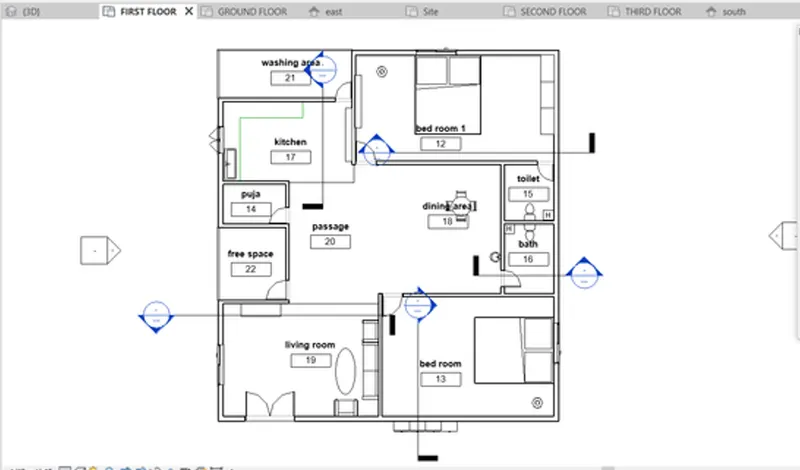

c.Room tags and Annotations

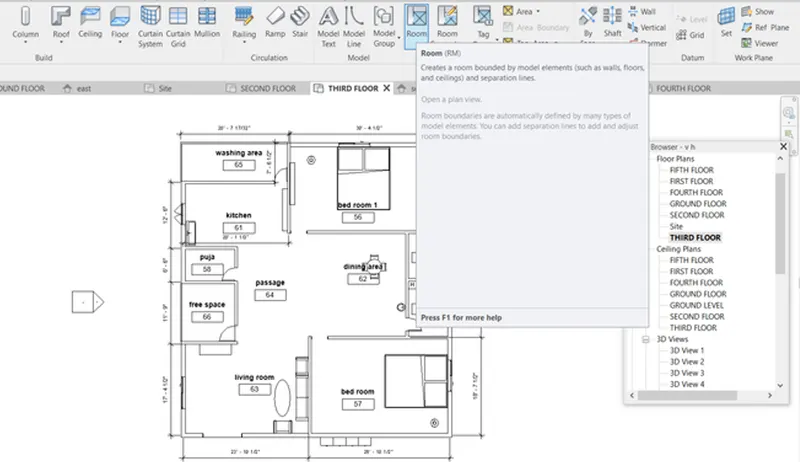

1. Click on architecture tab.
2. Now select the room property to separate different rooms.

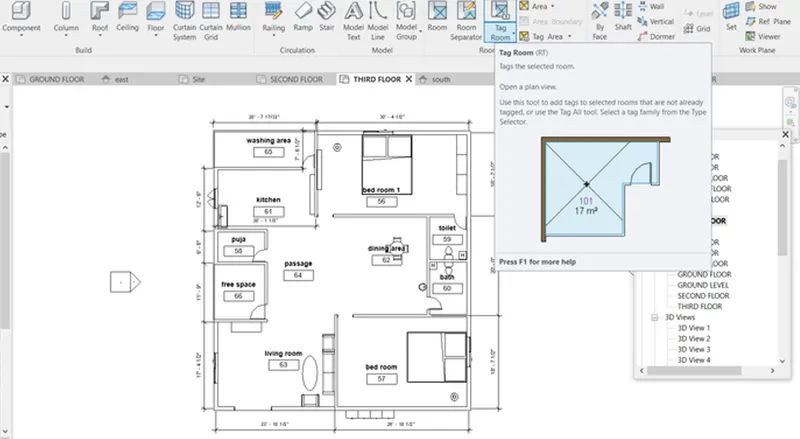

3. By using tag room property tag all rooms and name them accordingly.
4. Now to annotate room dimensions click on annotate tab.
5. Select annotate with linear dimensions and mark the dimensions(length x breadth) of different rooms. d.Section cut through each room either longitudinally or transversely.

1. Click on view tab and select section property.
2. Now place the section to a room and create a section view.
3. Do the same with all the rooms and under the project browser all sectional views are available.

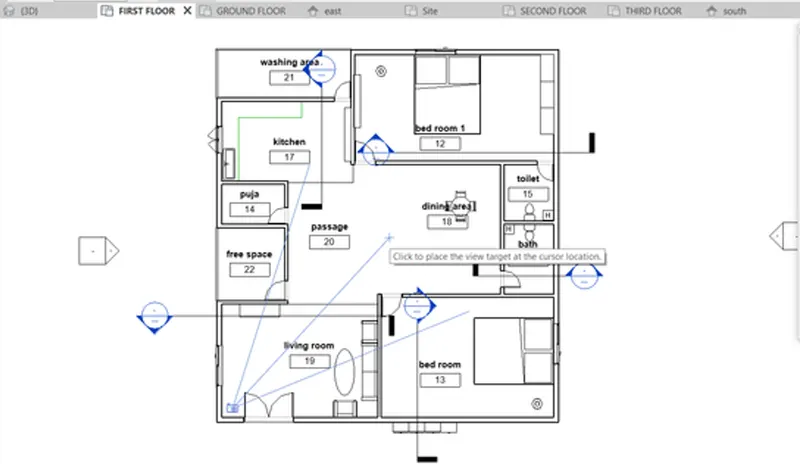

4. Section cut could be longitudinal or transversal according to the placement of the rooms. e.Create a camera view on each room and add it in a sheet template.

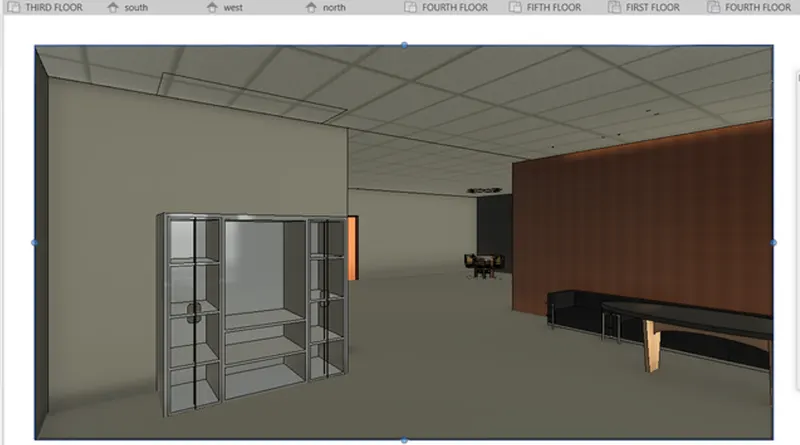

1. Click on the view tab and select the camera in 3D view.
2. Now adjust the camera in a room such that it covers total room.
3. And then the camera view is created for the room.
4. Now do the same with all the rooms.

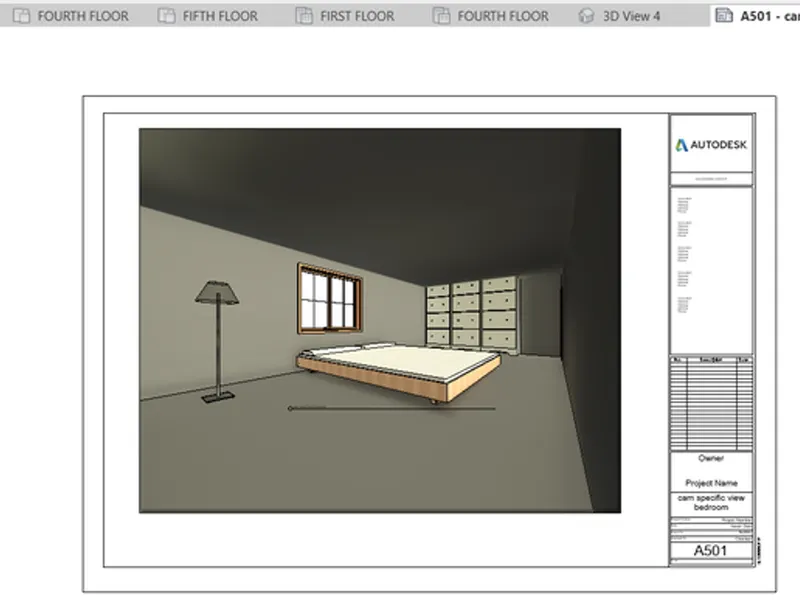

5. Now click on sheet option under view tab.
6. Select the camera view of a room and place them in the sheet. Each sheet contains a camera view of a different room.

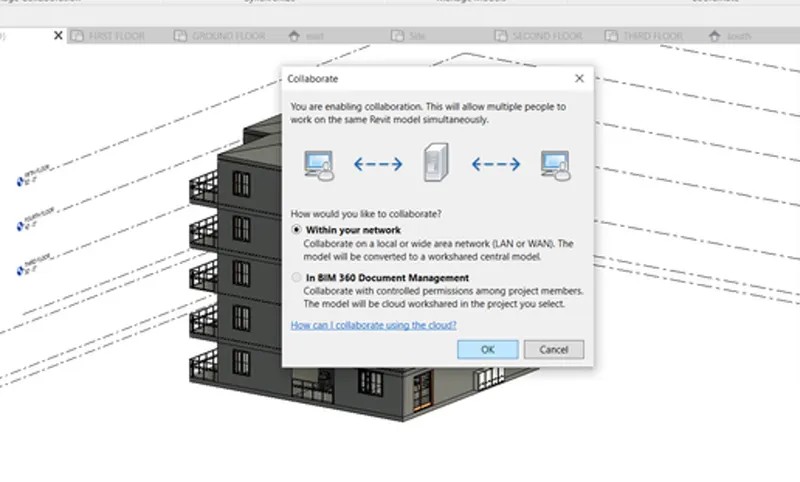

• Click on the collaborate tab and save the file as a central model.

RESULT: A G+4 Residential building as per NBC standards is created and made in to central model. And also all 5 steps that are given below question are included.
