1. Aim: To explain about the mode of failure or damage of the beams in the given figure and are the damages are repairable.

Introduction: To explain about the mode of failure or damage of the beams in the given figure and are the damages are repairable.

Procedure:

A. Observations:

  • In the figure we can see that the concrete has damaged more than the damaged level and we can see the reinforcement also.
  • Concrete crushed and the reinforcement is exposed.
  • Concrete spalled beyond the reinforcement which may be a sign of rupture.
  • Beam top portion looks safe because of the flange advantage from the slab.
  • The crack develops from bottom to top means rebar yielding occurs in support bottom only.
  • The reinforcement is still active at the top.

From these observations we can conclude that

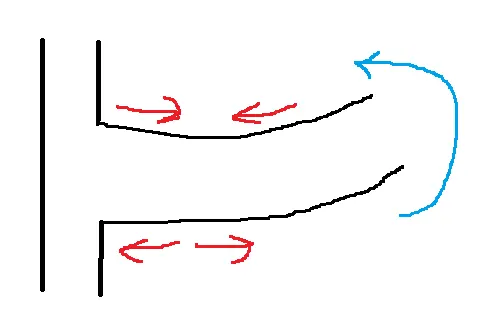

  • Its form of flexural failure due to reversal of stress during earthquake.
  • During the stress reversal, support top experiences compression and bottom experiences tension.
  • Top compression is managed by slab advantage because the slab has concrete but the bottom tension was not satisfied by the provided reinforcement.
  • So that the bottom reinforcement has yielded and it cannot be repaired.
  • And it leads to the crushing of the concrete at the bottom.

B. Observations:

  • Cracks along the Beam-column edge.
  • Cracks seen to have developed through the structure as it looks much wider.
  • Beam looks separated from the column at the joints.
  • Concrete is not severly crushed.

From these observations we can conclude that

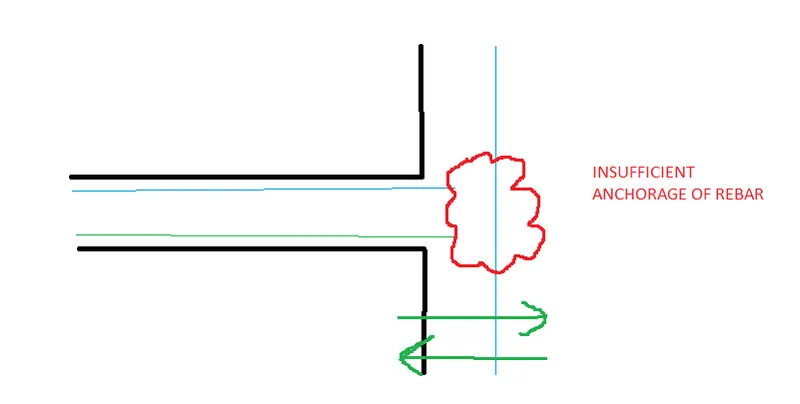

  • Its beam pull out failure due to insufficient development length of reinforcement in joints.

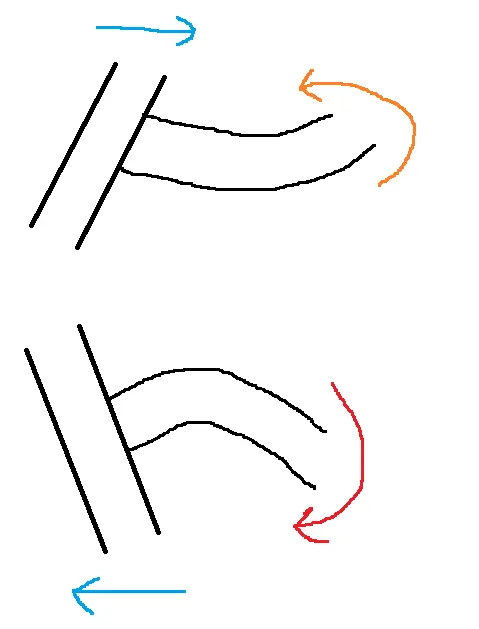

  • During earthquake, The horizontal movement of the structure makes this condition worse and detached to the beam member from the column.
  • Providing anchorage length between two existing concrete is very difficulty. So it is not repairable.

C. Observations:

  • Cracks are exactly at the joint of column-Beam.
  • Cracks in Beam developed through its entire width.
  • Slab is also developed more cracks along the beam width direction.

From these observations we can conclude that

  • It is a plastic hinge failure.
  • The damage occured only in the joint zone first of all.
  • Cyclic lateral loading & stress reversal at the joints led to the damage.
  • Even the slab participated to its best to handle the tension (Slab is severly cracked means it has undergone tension with its flange condition) But unstable to control the damage.
  • The joint can be strengthened.

2. Aim: To explain about the mode of failure or damage of the beams in the given figure and are the damages are repairable.

Introduction: To explain about the mode of failure or damage of the beams in the given figure and are the damages are repairable.

Procedure:

A. Observations:

  • Concrete damaged at the top of the column.
  • Concrete damaged all around the column face.
  • Beams are safe.
  • The location of column looks at edge of the building.
  • No walls are built along the column beams it is probably at the ground floor, for parking car movement access.

From these observations we can conclude that

  • It's a soft storey failure, Technically Plastic hinge formation.
  • Dut to absence of infill walls at the Ground floor, The plastic hinge forms at the top of ground storey columns during lateral movement.
  • Based on the development of crush of the concrete, it can either be repairable or Non-repairable.

B. Observations:

  • Concrete developed complete breakage diagonally.
  • Longitudinal reinforcements are intact.
  • Shear reinforcement spacing looks wider (which means probably lesser shear rebar provideed).

From these observations we can conclude that

  • It's a pure shear failure.
  • Inadequate shear reinforcement compels concrete takes all the shear stresses.

C. Observations:

  • Colums failed completely.
  • Failure at the top of the column.
  • There are two slabs connected to the column, probably one at the mid height of the column.
  • The wooden piles might be a post failure support after column fialed, providing temporary prop toavoid collapse of the entire structure.

From these observations we can conclude that

  • It's a short column failure.
  • An additional slab or a beam connected to a column in mid height leads to this effect.
  • This leads to failure especially if the connection is unintentional and not accounted in design.
  • The failure given in the below picture is not at all repairable.
