Hood design-Week 2

Objective:

The Objective of the project is to Design & Assembly a Hood Inner Panel,Outer Panel,Latch, Hinge and the Reinforcements according to engineering standard using NX cad.

Introduction:

It is the Open body panel as it covers the Engine in Front side of vehicle and its Consist of Outer & Inner Panel,In Inner panel provide for stength and Outer panel for metal cover.In this project I consider the Saftey Criteria,Mount Postion,Stifferner,Wrap around Distance & Hemming Region by using this we design a Hood.

Type of views:

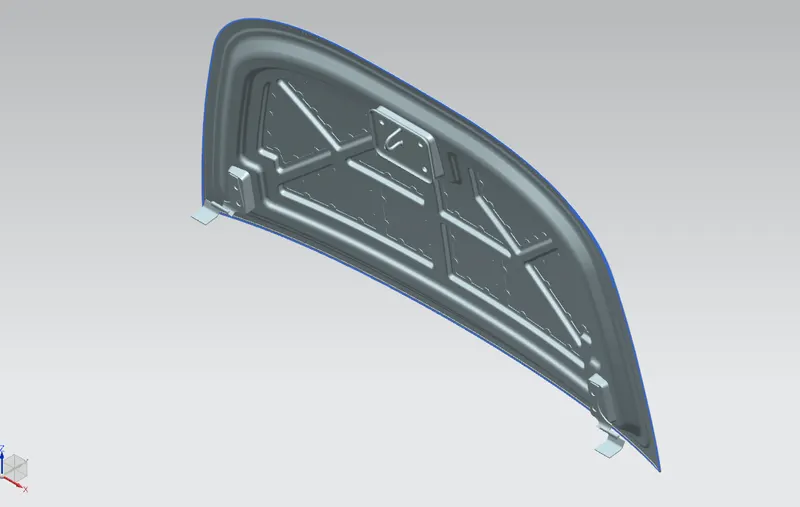

Hood Isometric:

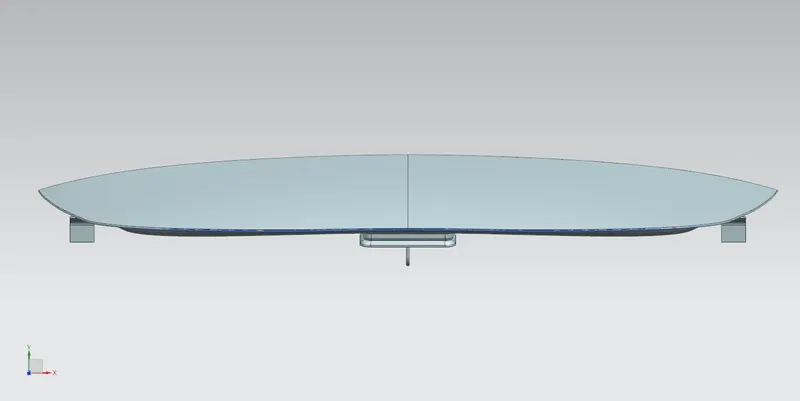

Hood Front:

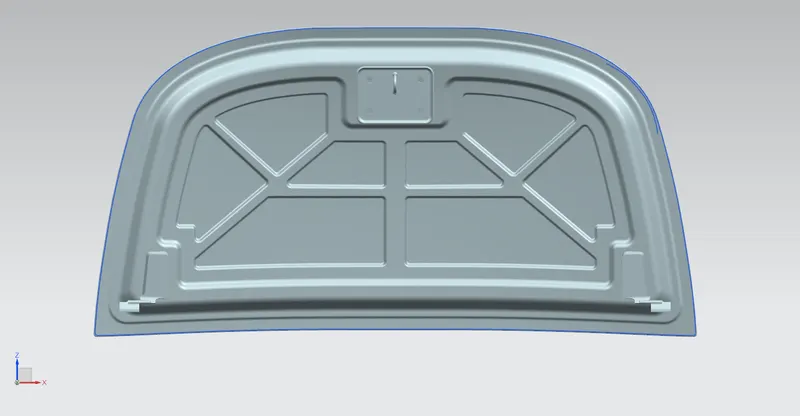

Hood Top:

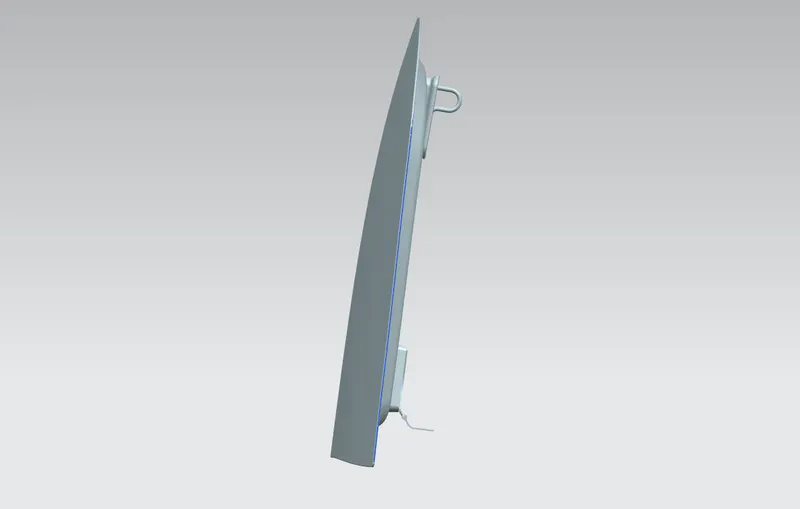

Hood Left:

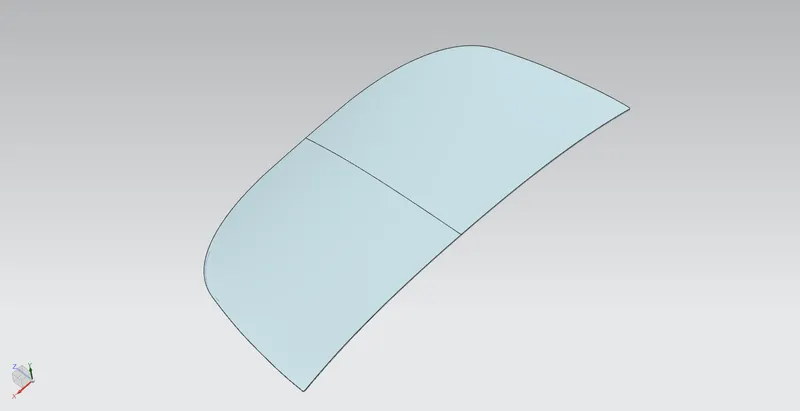

Hood Outer Panel:

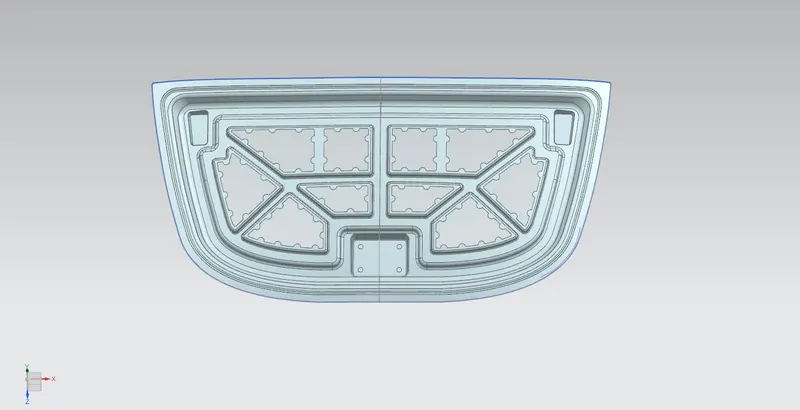

Hood Inner Panel:

Embossing.

It is the process of deformation of the metal takes place because of stretching of the metal due to which the sheet metal is subjected to excessive Thinning and Fracturing.

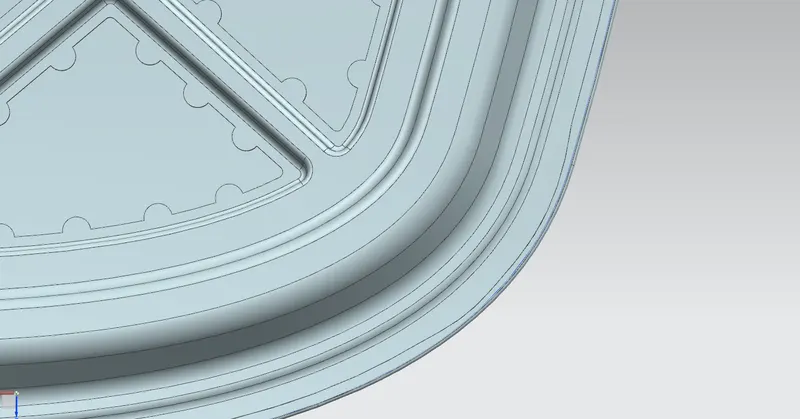

Mastic Data.

Mastic sealants are elastic compound that behaves like the Rubber.It's placed between the outer and inner panels.It can be observe shock from both inner and outer panels thus reducing NVH.

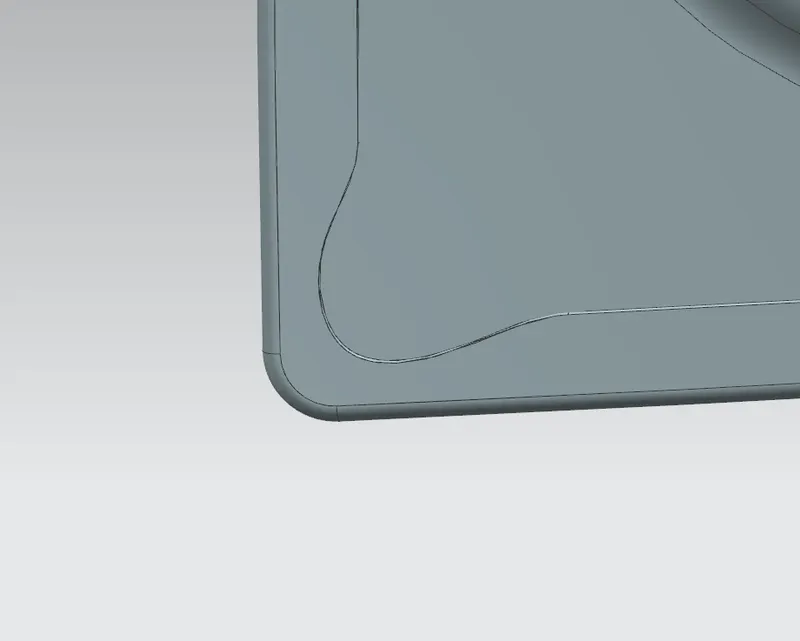

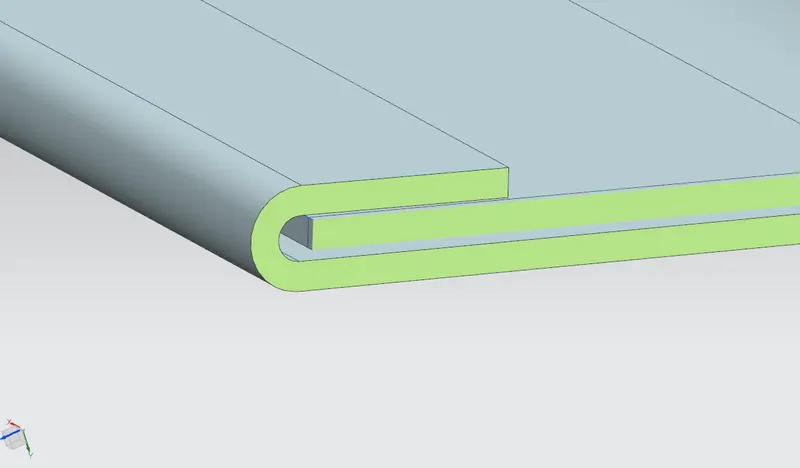

Hood Hemming:

It's a process of joining a Inner and Outer panel of Hood.This method is used for a styling finish of the Hood,If i use the Welling Procces it will affect the Asethatic Surface,so avoid this and use the Hemming method.

Hood Relief Rear:

Hood Front Relief:

Position of Hinge and Striker:

POSITION:

The position of a perfect closing and opening of hood,the striker and latch should be a perpendicular to each other.This is done with the help of latch & striker.

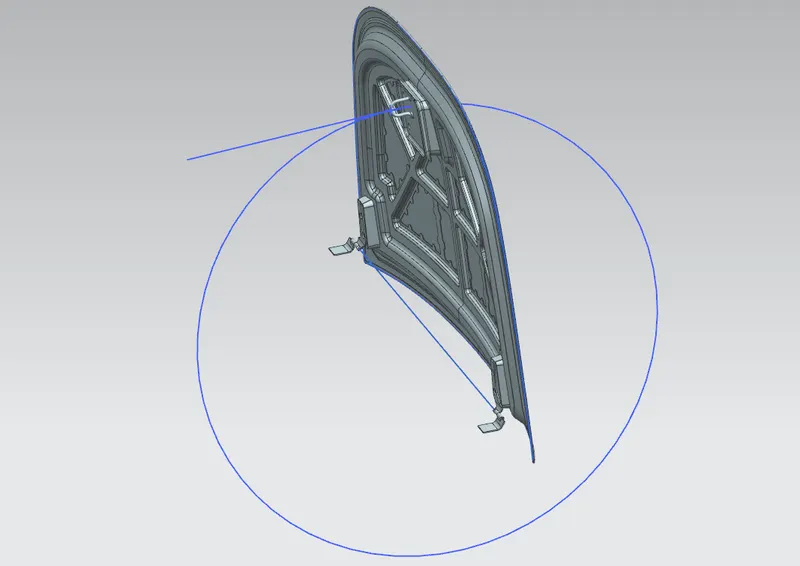

Hood Angle:

Hood open and close angle is desired based on Average Height Human,it may be vary from Country to Country.

Conculsion:

According to Master Section,I Created a Hood panel with a given dimensions and provide hemming using the Engineering standard.
