Foundation Design using SAFE
1. AIM: To Analyse and model Isolated footing as per calculations by using SAFE.
Procedure:
Step 1:

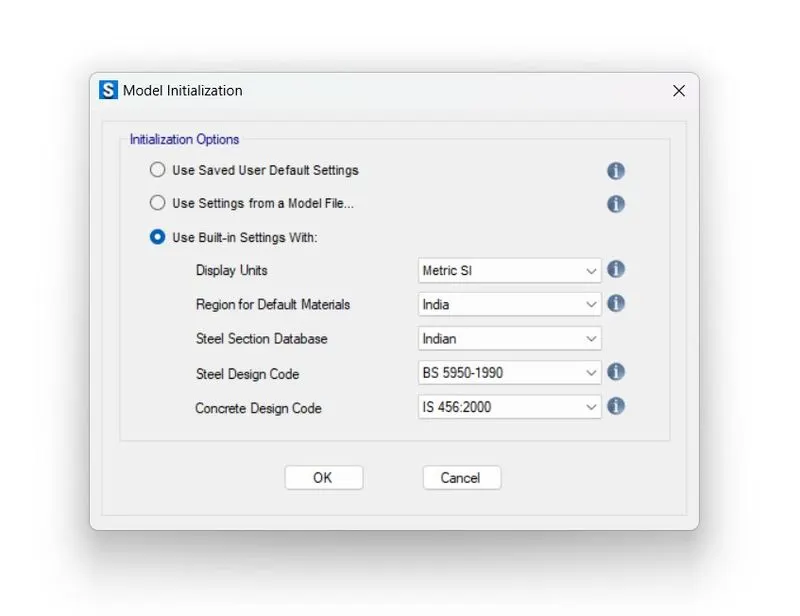

- Open SAFE software

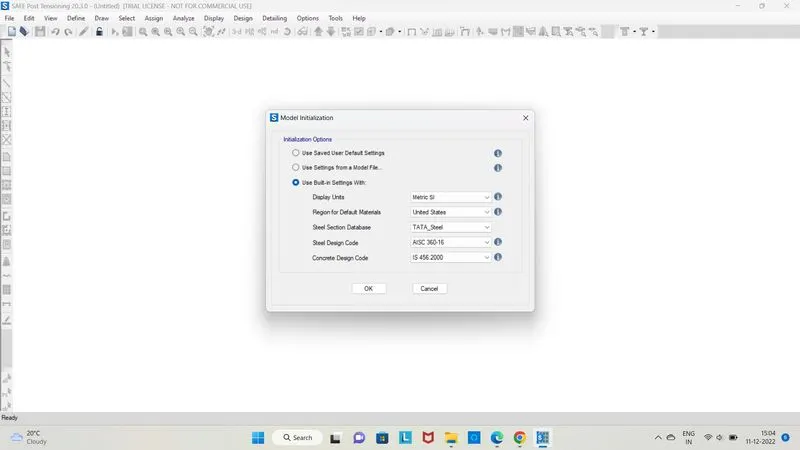

- Set the units as per requirement
Step 2:

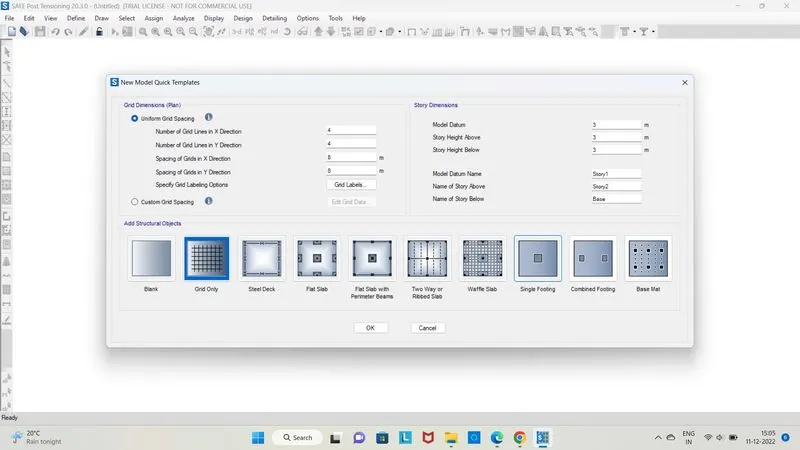

- Select structural object
- Click on Custom grid spacing
Step 3:

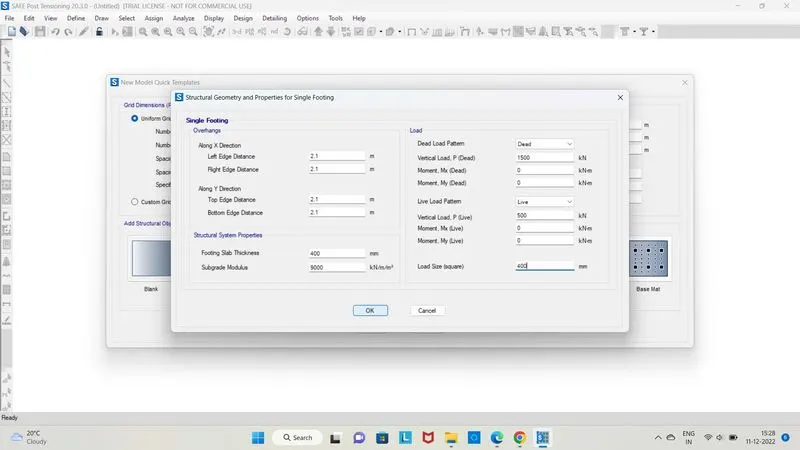

- Enter the distance along the directions and slab thickness
Step 4:

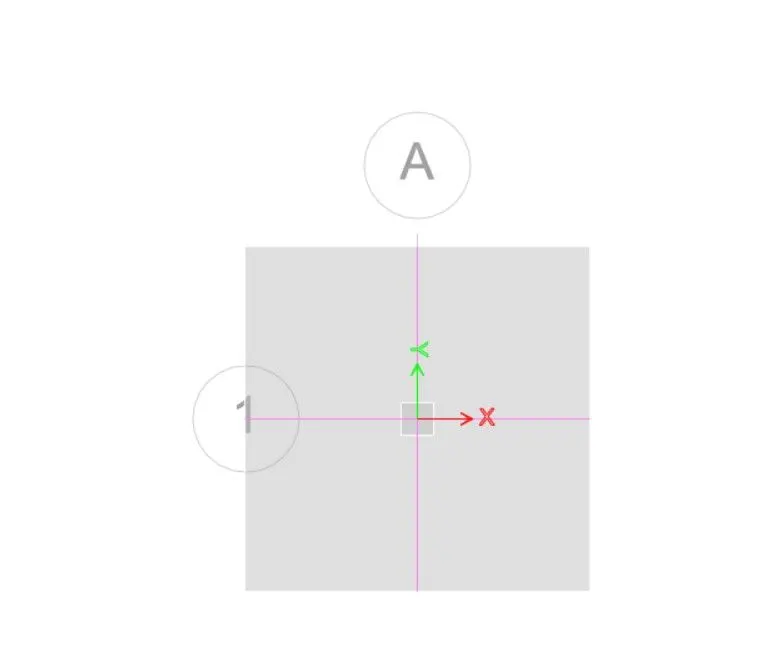

- View of footing as per grid data
Step 5:

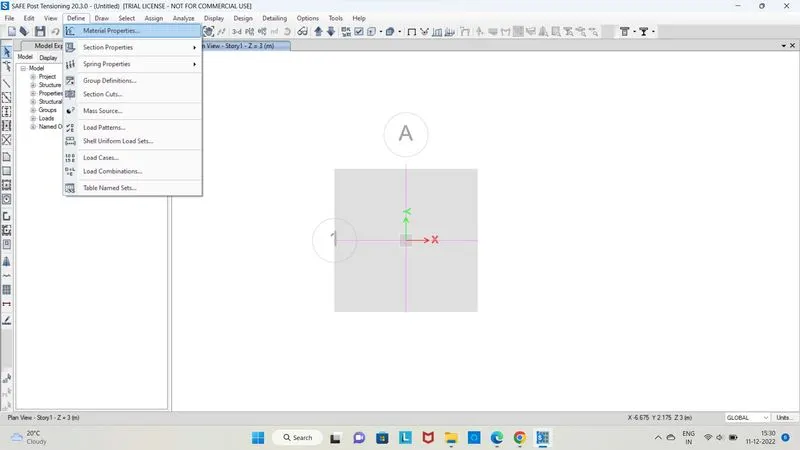

- Go to define select material properties
Step 6:

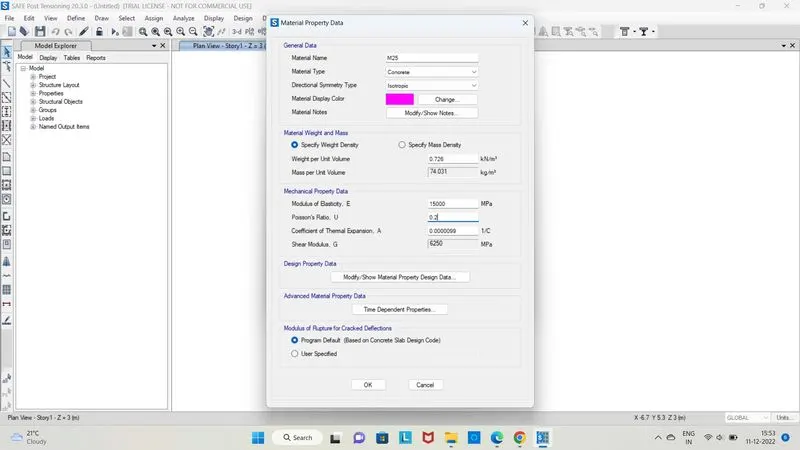

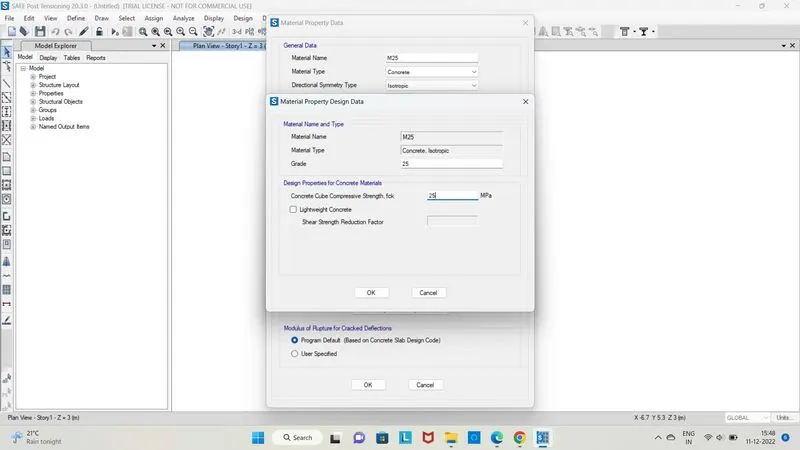

- Add materials(concrete)
Step 7:

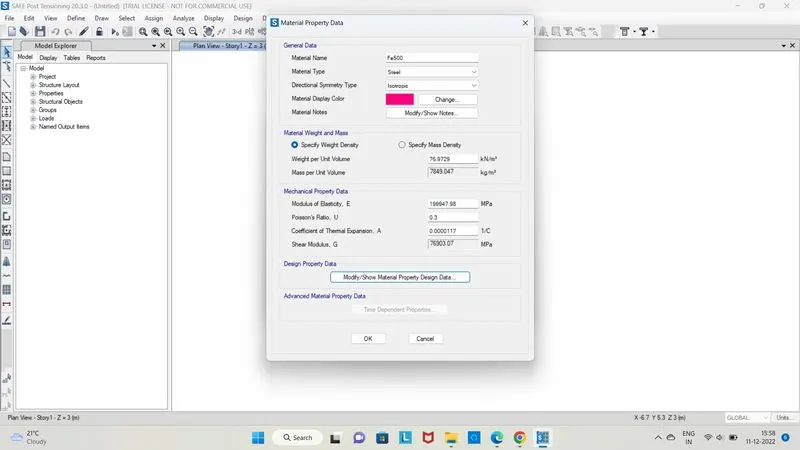

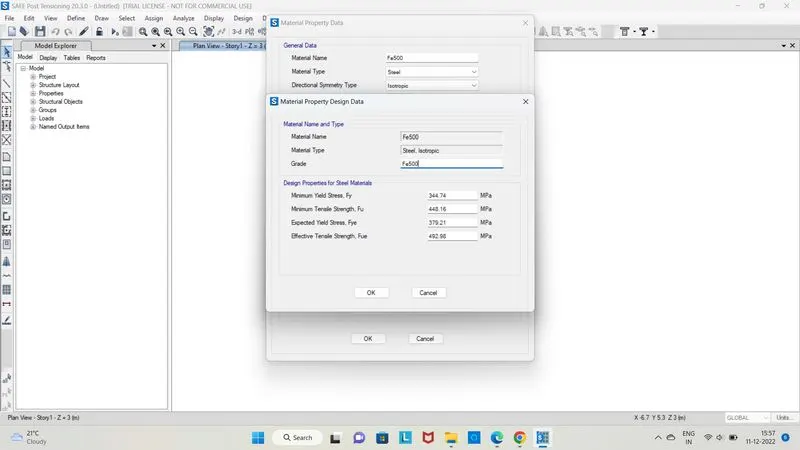

- Similarly add material(steel)
Step 8:

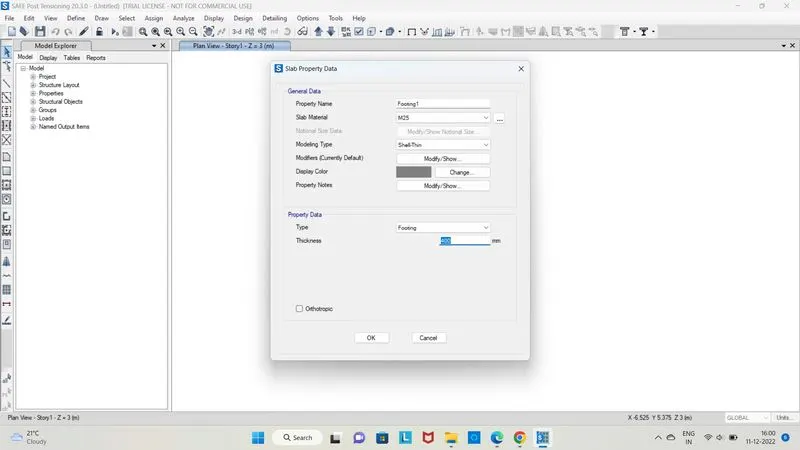

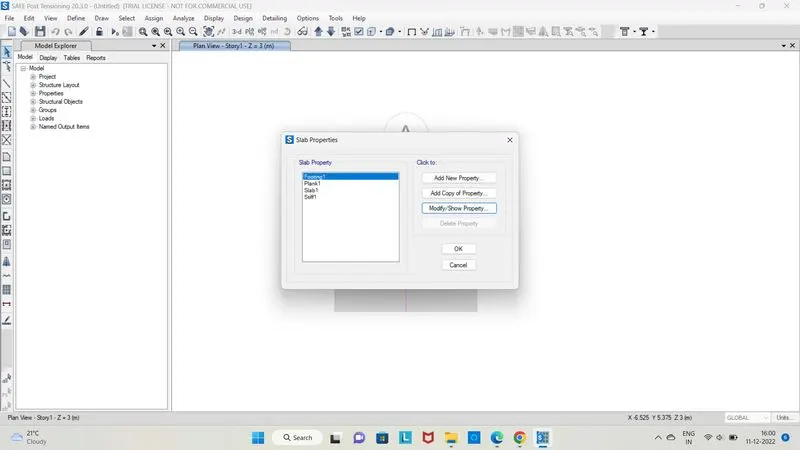

- Add slab properties and modify as footing
Step 9:

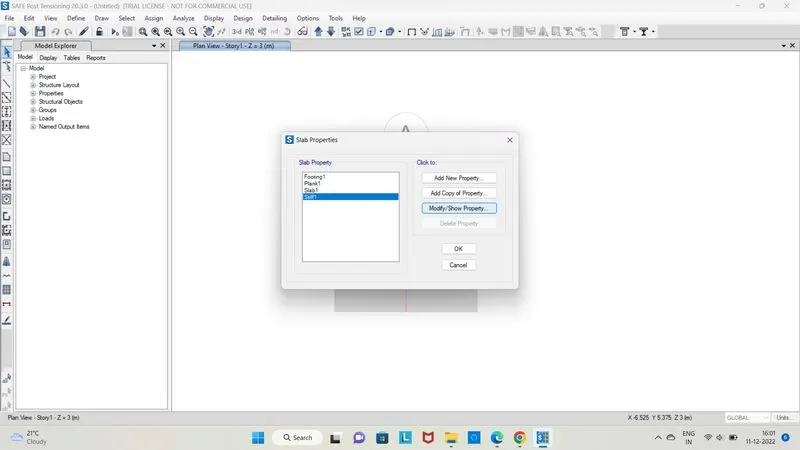

- Add slab properties and modify as stiff1
Step 10:

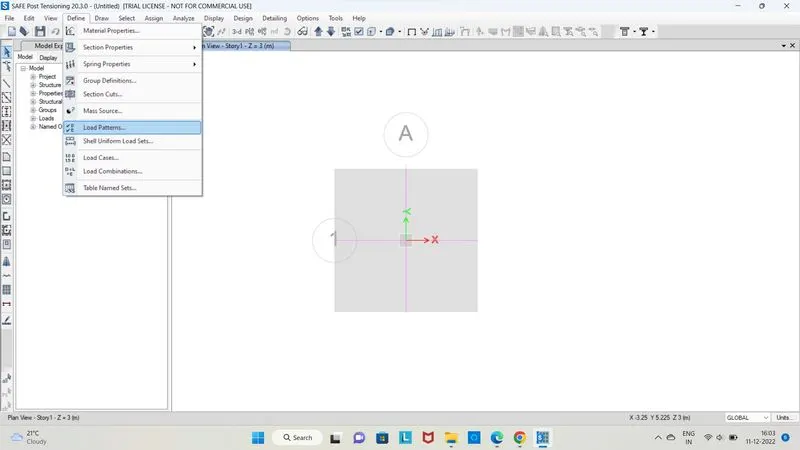

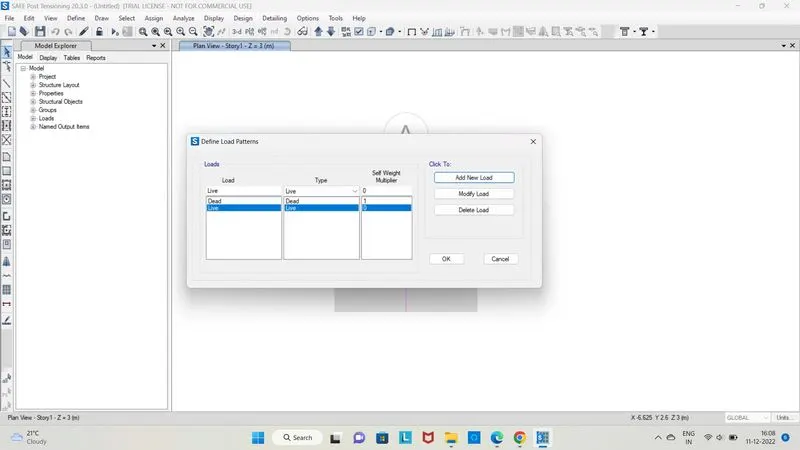

- Go to define select load patterns
Step 11:

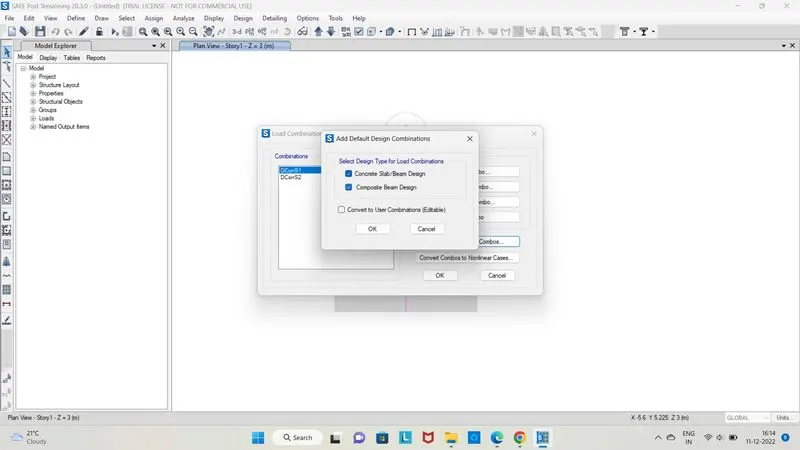

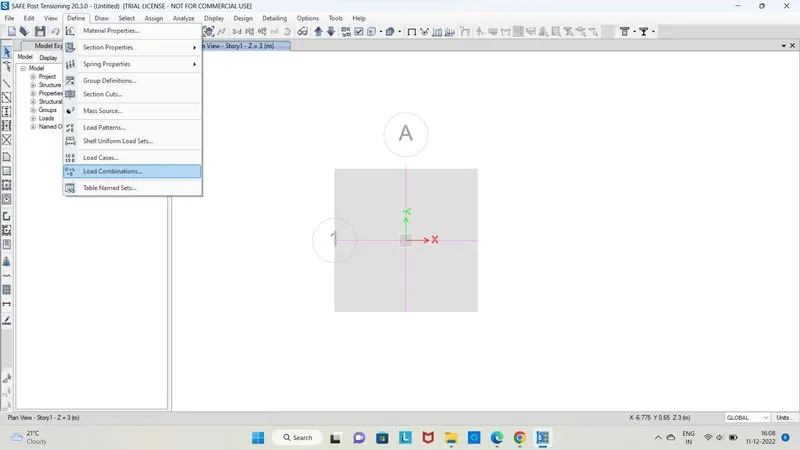

- Go to define select load combinations
Step 12:

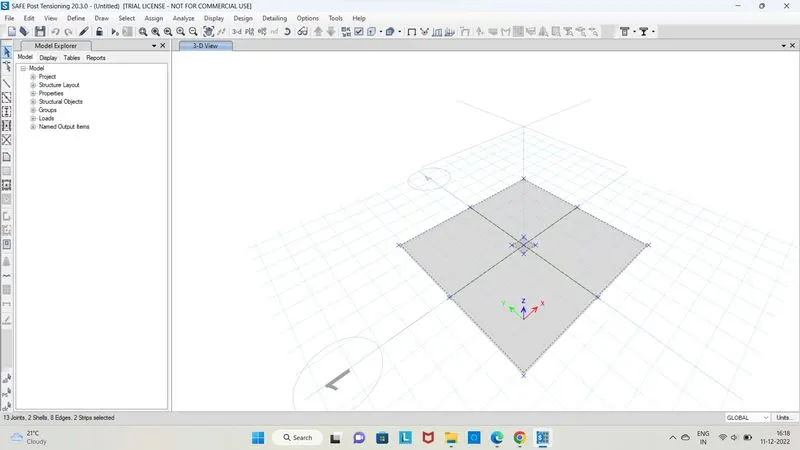

- Click on 3D view
Step 13:

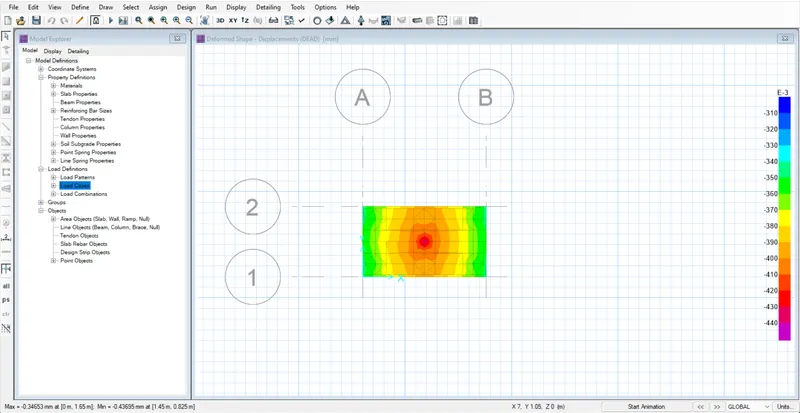

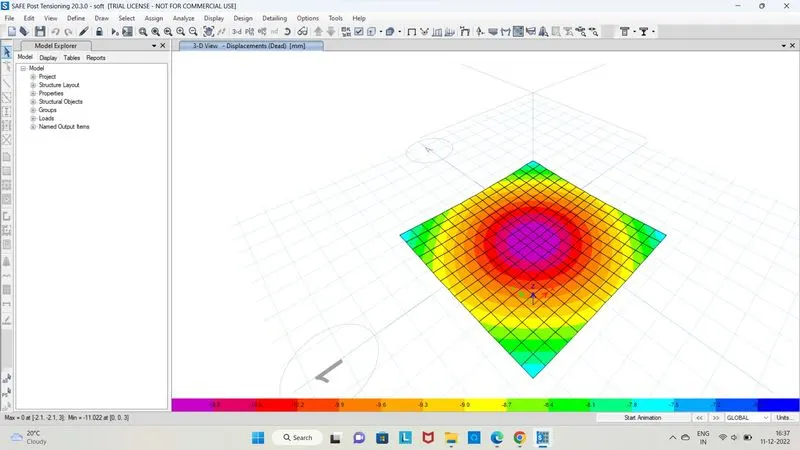

- Run the analysis
Step 14:

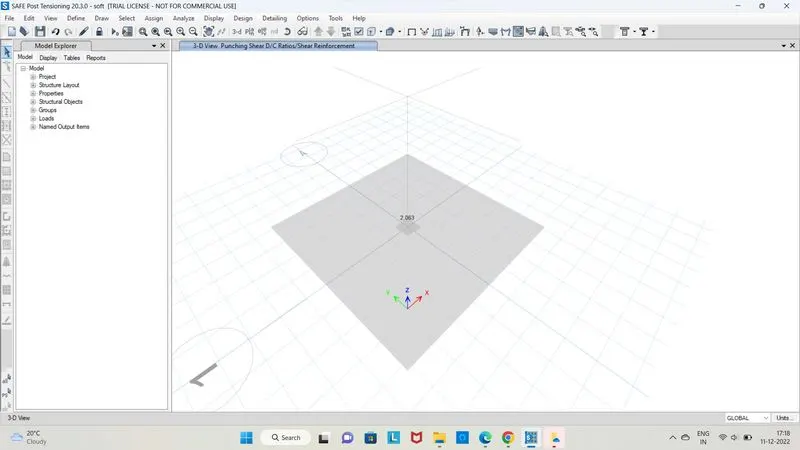

- Click on punching shear Design/Check
Step 15:

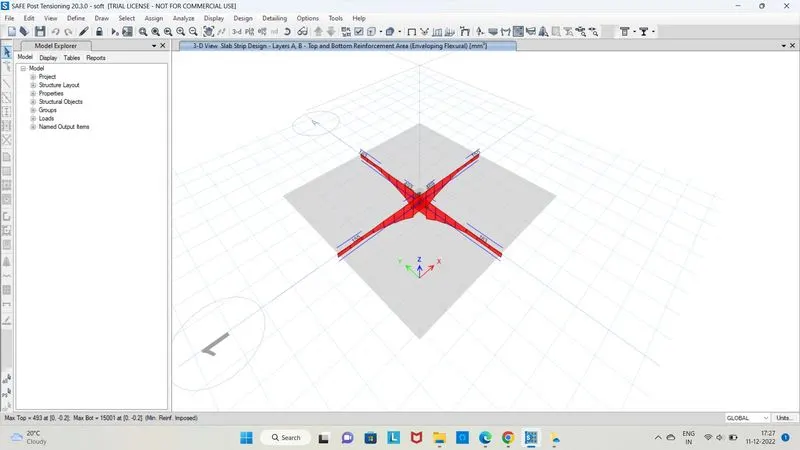

- Reinforcement in both directions
RESULT: Isolated footing is designed using SAFE.
2. Aim: To design the pile cap on SAFE and to evaluate pile group to be used, depth of the pile cap, longitudinal steel on top and bottom face in both directions.
Procedure:
Pile length = 16m
Diameter = 500mm
SBC = 200KN
M25 grade concrete
Column size = 600mm*600mm
Axial load = 1175 KN
No.of piles = axial load/capacity of single pile = 1175/200 = 5.8 = 6piles
Spring constant = EA/L = 25000*3.14*500*500/16000 = 306795
Min spacing between pile = 2.5*500 = 1250mm
Edge spacing = 200mm
Step 1:
Step 2:

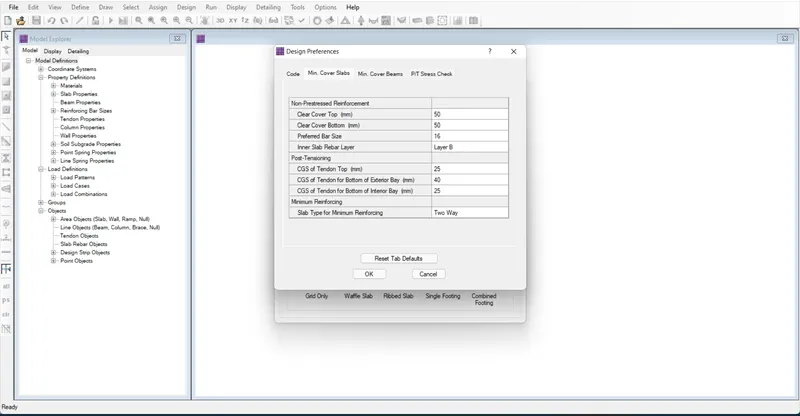

- Design preferences
Step 3:
-

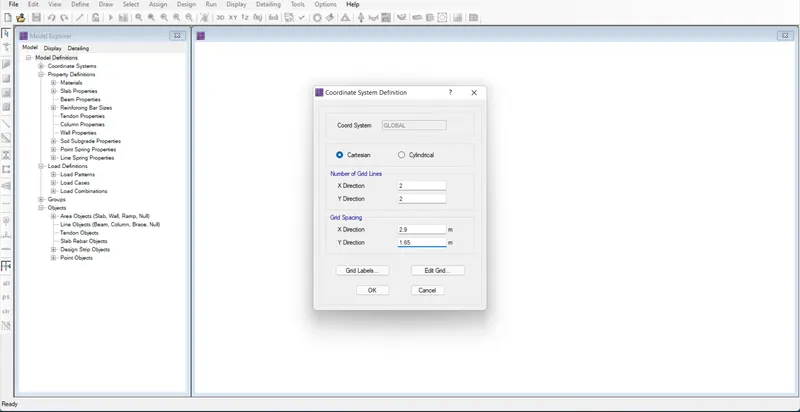

select grid option x direction 2900mm, y direction 1650mm
Step 4:

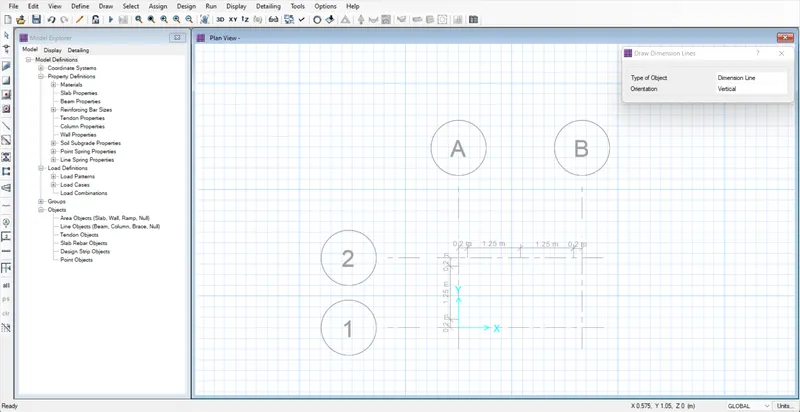

- View as per grid data
Step 5:
- Add materials
Step 6:

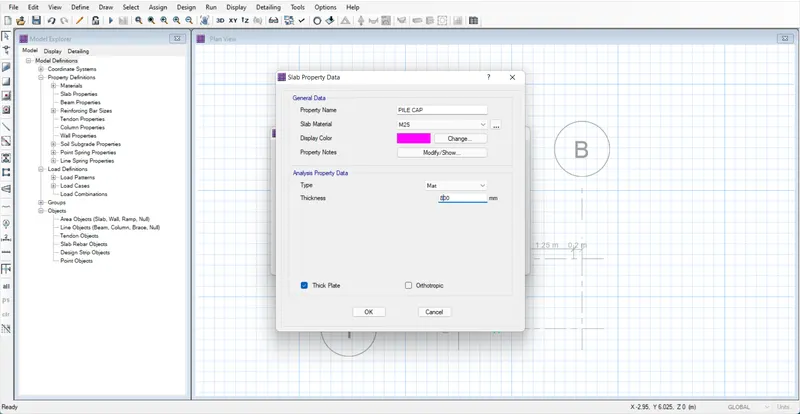

- Add slab properties
Step 7:

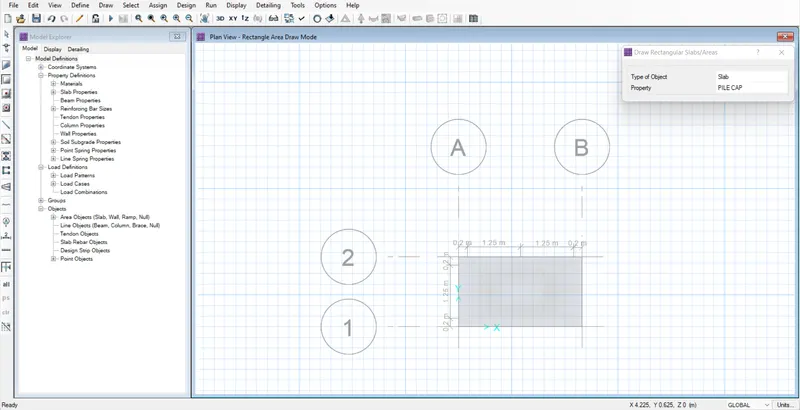

- Slab is added to model
Step 8:

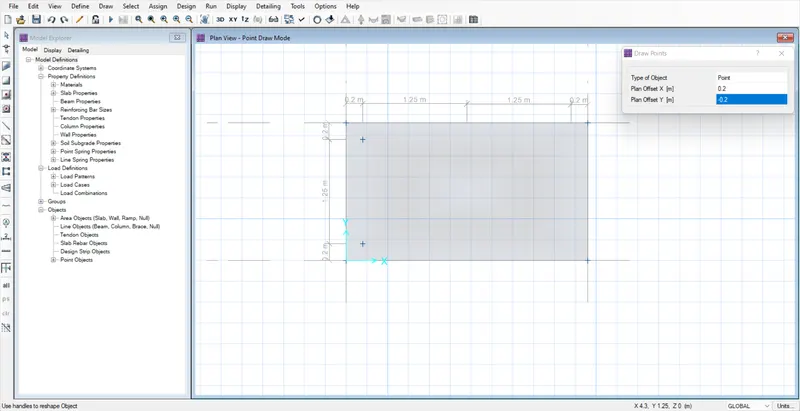

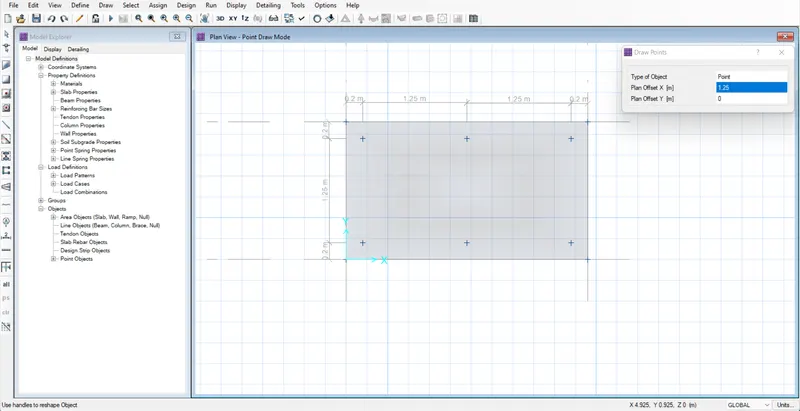

- Draw points
Step 9:

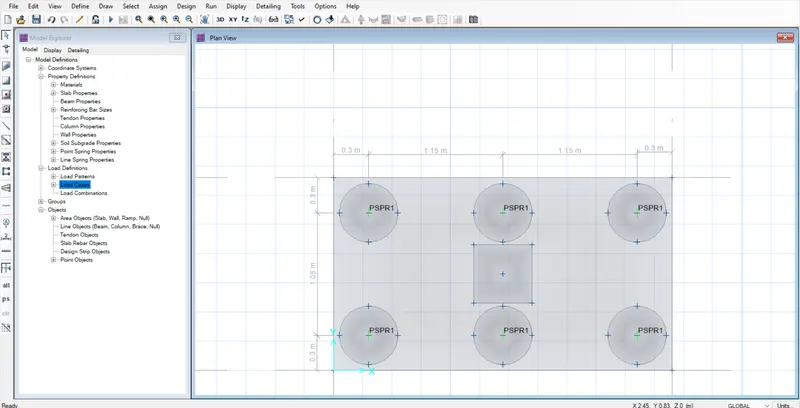

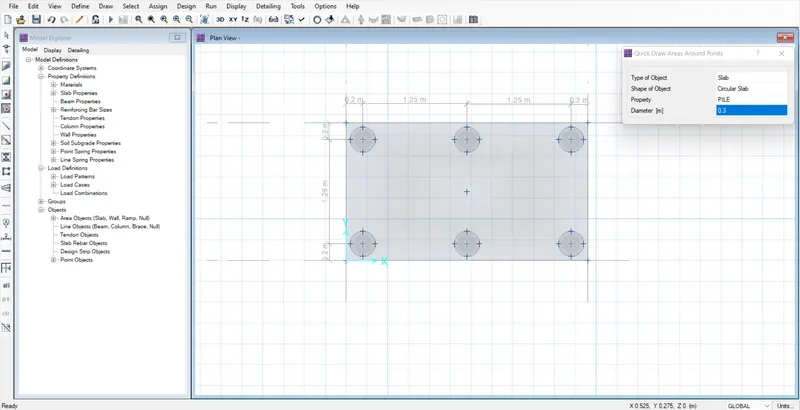

- Add piles 200mm
Step 10:

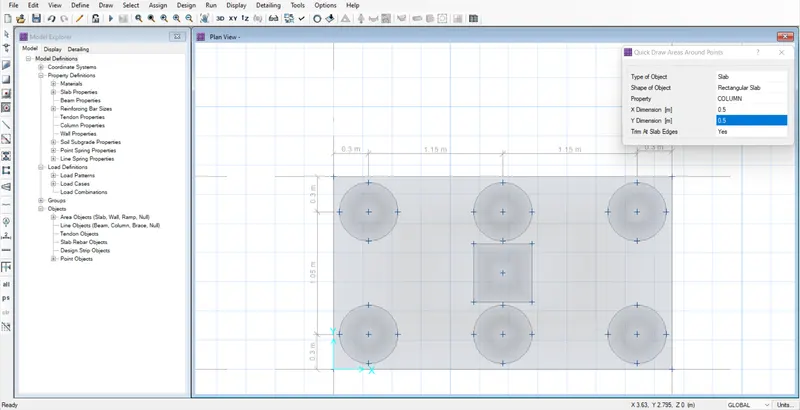

- Draw column of 600*600mm
Step 11:
- Add springs(spring constant)
Step 12:

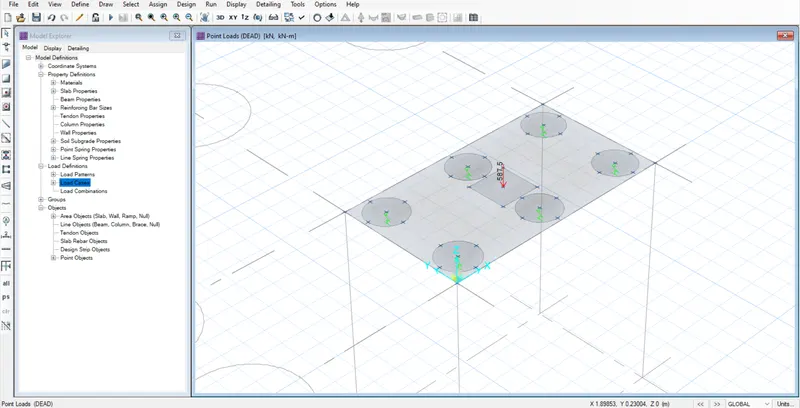

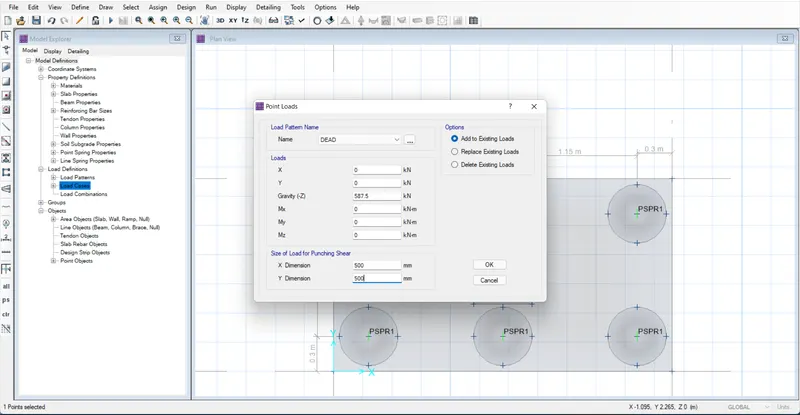

- Loads are added(dead+live)
Step 13:

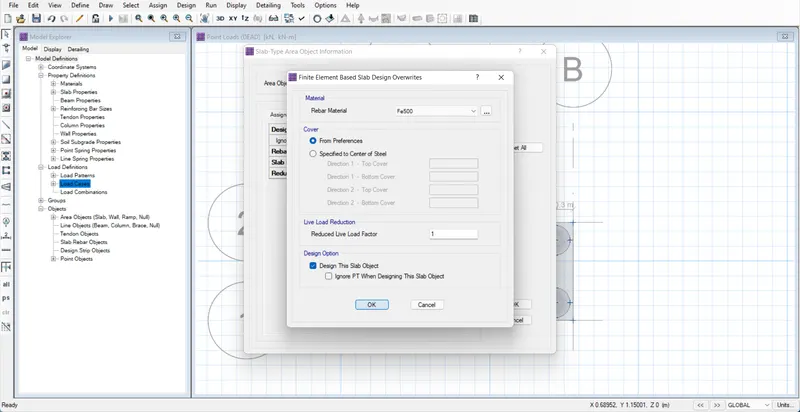

- Select rebar material in load cases
Step 14:

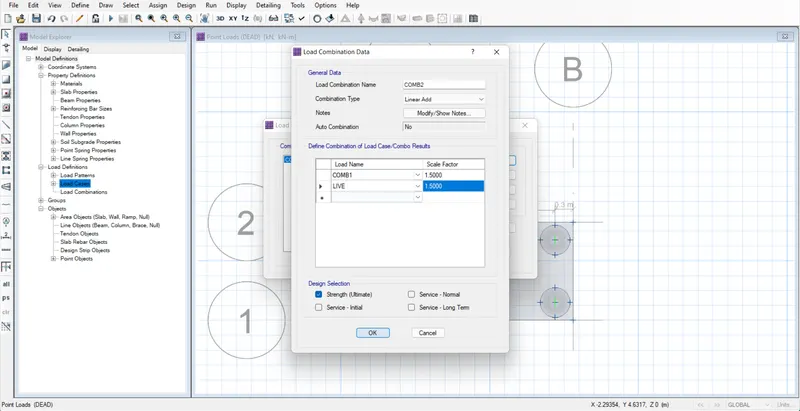

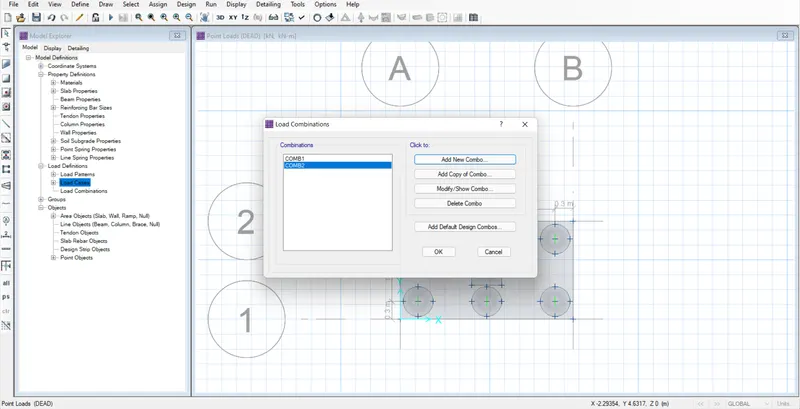

- Add load combination data as COMBO
Step 15:
- Run the analysis
Step 16:

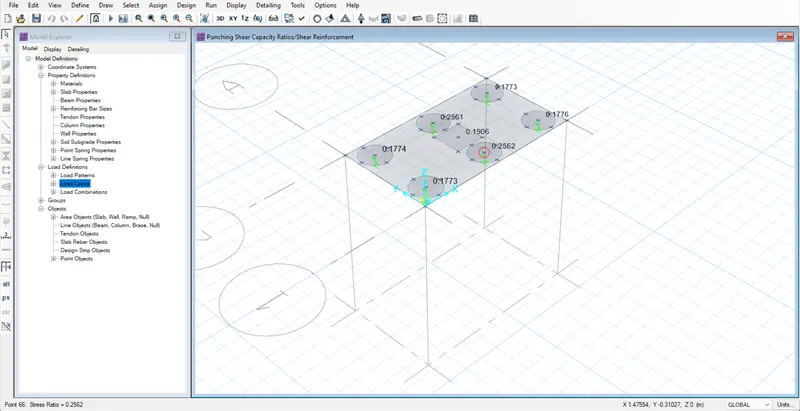

- Punching shear design capacities
Step 17:

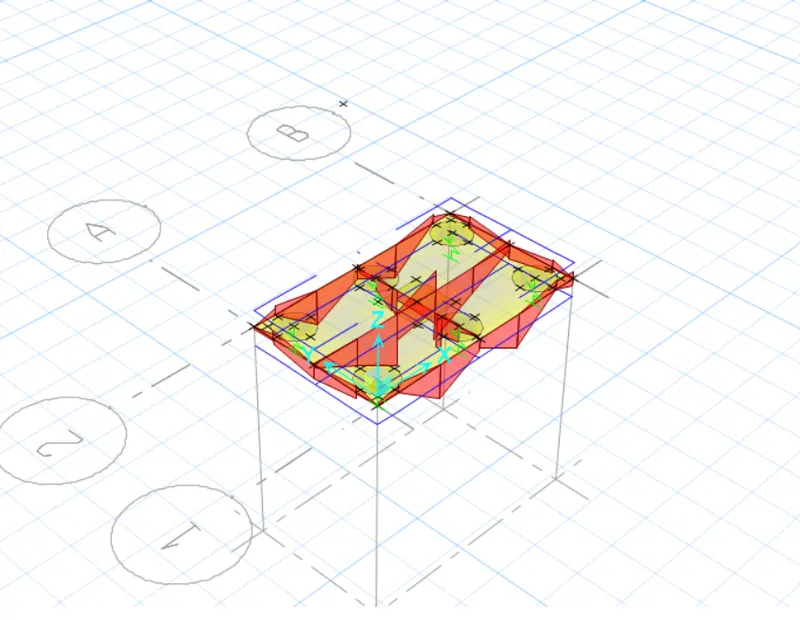

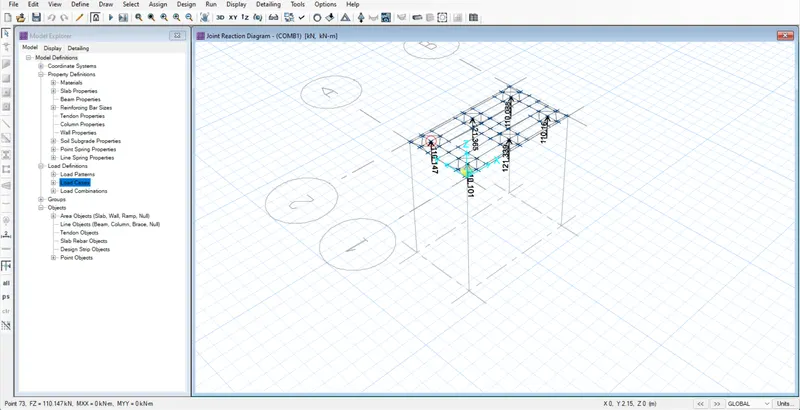

- Forces acted on it Joint reaction diagram
Step 18:
- Run analysis
Result: Pile cap foundation is designed using SAFE software.
