FINAL INDEPENDENT PROJECT

Aim:

To do the motion analysis on the bevel pinion & gear.

Software used:

Solidworks software 2022.

Note:

Units in mm

Procedure:

• First, we will get the gear from the design library of bevel pinion & gear
• As per the required data, we will set up the gear teeth and dimensions
• In this motion study, we will give the input as motor and material
• the material is steel dry.

Advantages :

The biggest benefit to using bevel gears is their mechanical advantage; you can increase or decrease the tooth ratio between the drive and any accompanying wheels to correspondingly increase or decrease the force.

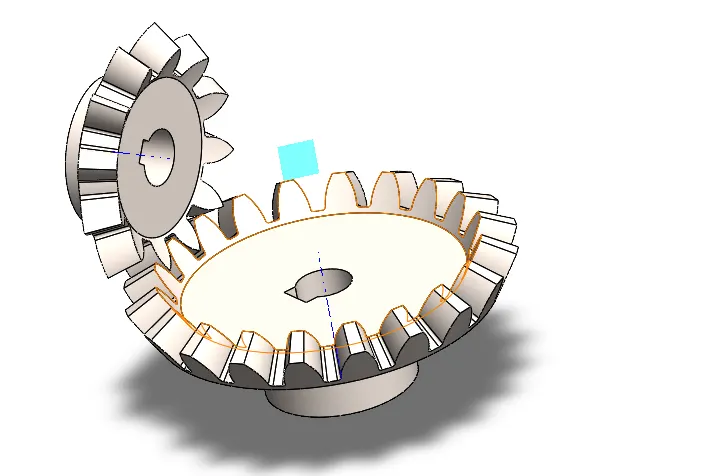

bevel gear:

Bevel gears are gears where the axes of the two shafts intersect and the tooth-bearing faces of the gears themselves are conically shaped. Bevel gears are most often mounted on shafts that are 90 degrees apart but can be designed to work at other angles as well.

the gear ratio of the bevel gear is 3:2 to 5:1

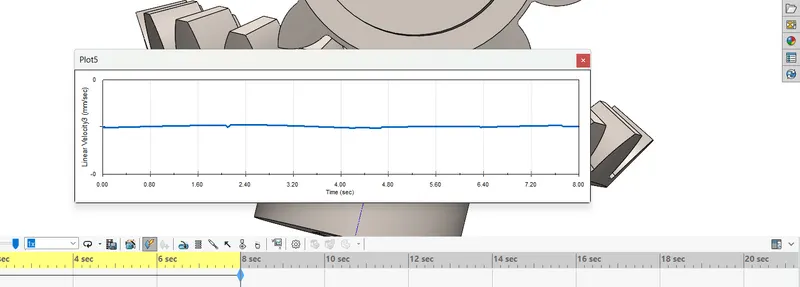

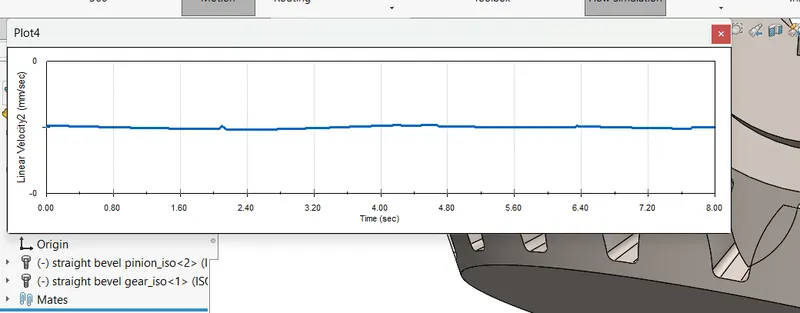

Result:
