Fender Design - Wheel Arch Challenge

Calculate the Wheel Arch gap at required points and check whether the car passes the European standard

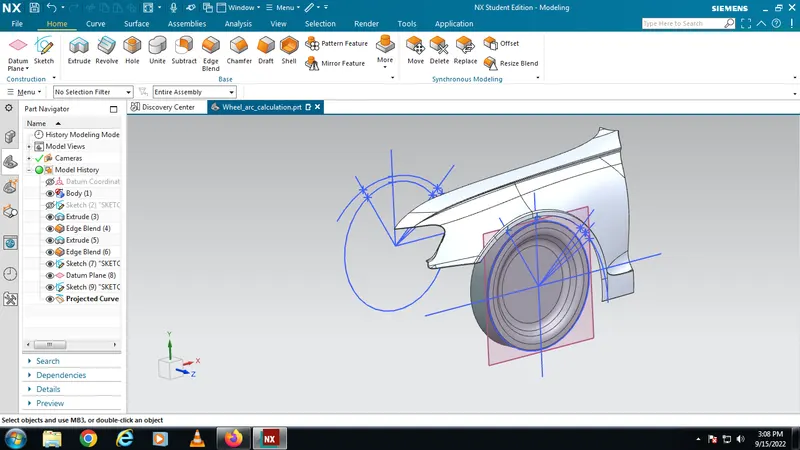

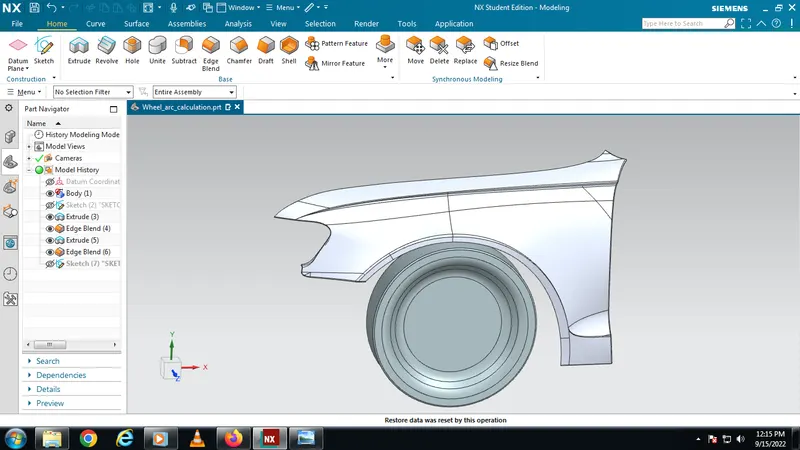

Design -

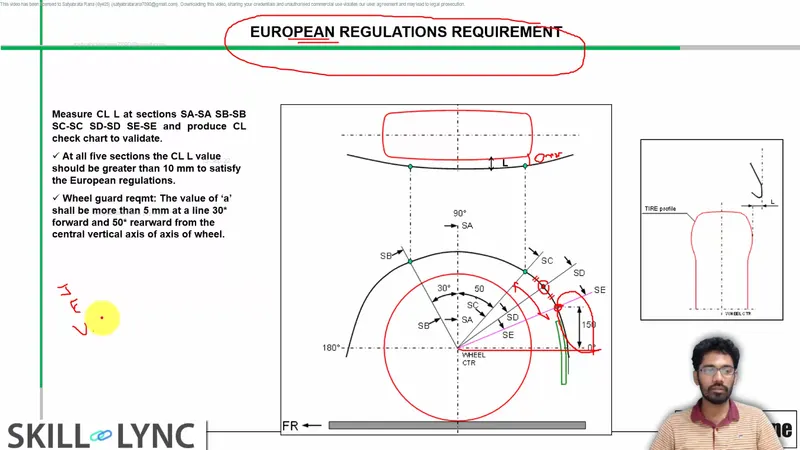

European Standards -

For the given design to pass the european standard conditions are -

• Measure the distances between the points on the wheel circle and fender curve. All of these should be greater than 10mm to satisfy the European regulaton.
• The horizontal distances from SA, SB, and SC points to the fender curve should be at least 5mm.

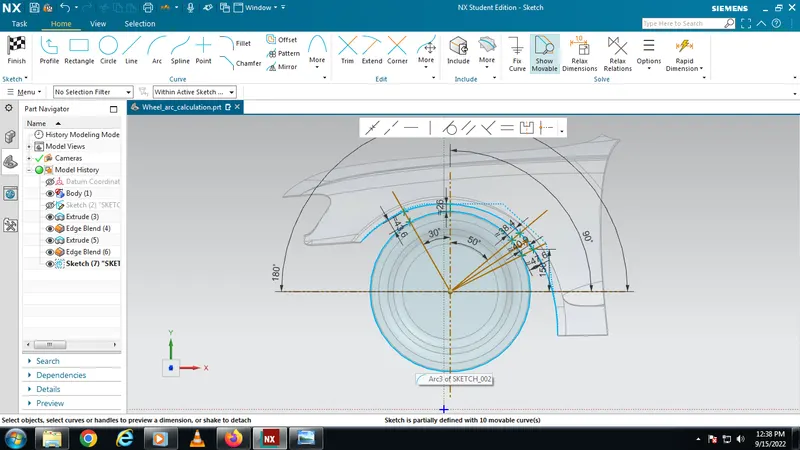

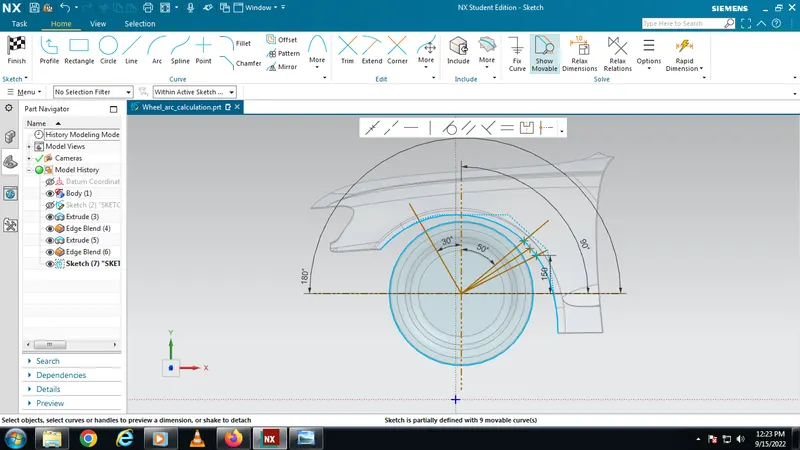

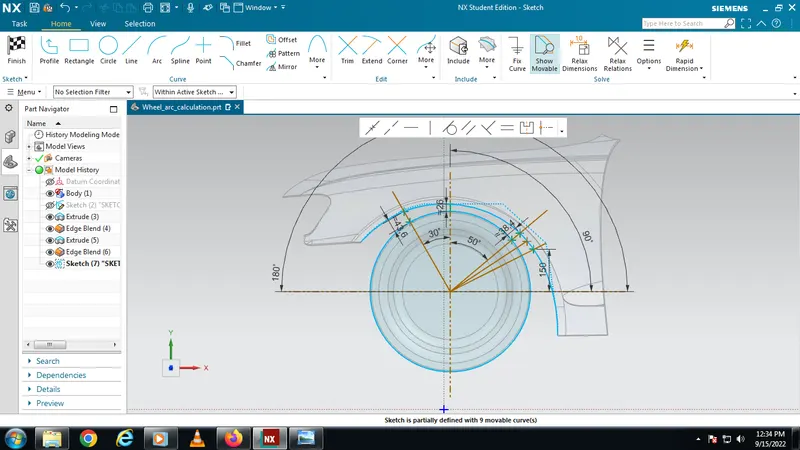

Base Sketch -

Calculations -

I. Measuring the distances between the points on the wheel circle and fender curve

SA-SA

26 mm > 10 mm

SB-SB

43.6 mm > 10 mm

SC-SC

38.4 mm > 10 mm

SD-SD

40.9 mm > 10 mm

SE-SE

47.6 mm > 10 mm

II. Measuring the horizontal distances from SA, SB, and SC points to the fender curve

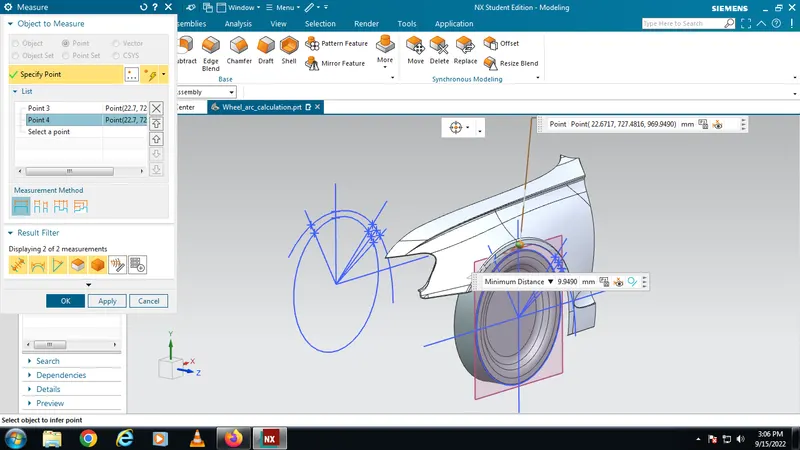

Distance between SA point and fender outer curve = 9.949 mm

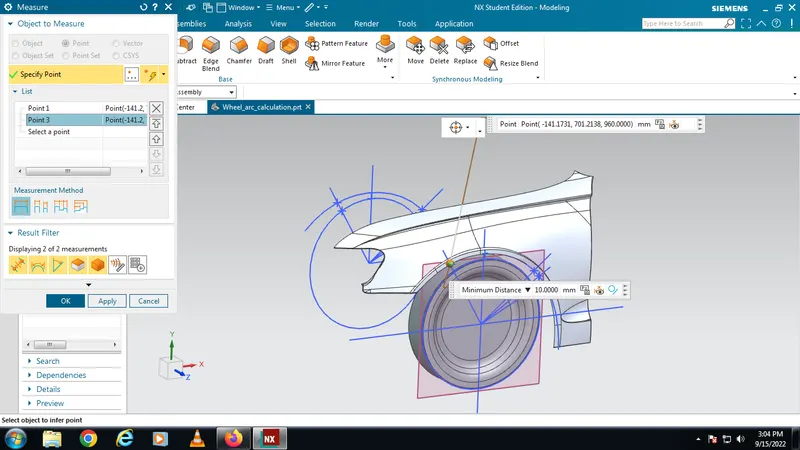

Distance between SB point and fender outer curve = 10 mm

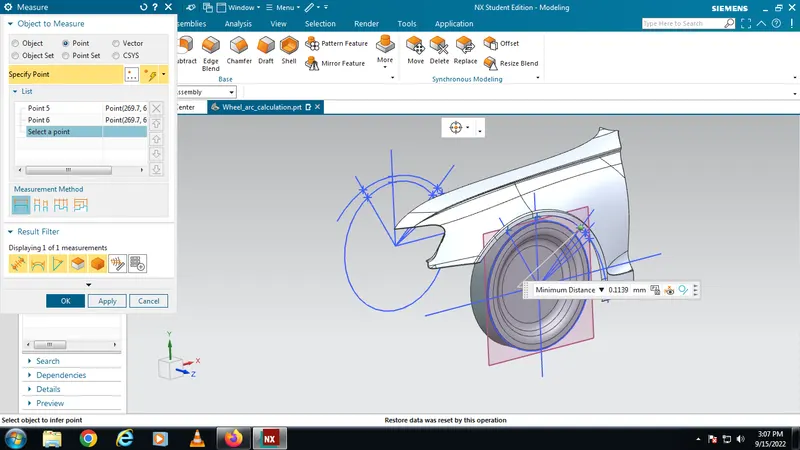

Distance between SC point and fender outer curve = 0.1139 mm

Result :

The given design satisfies all European standards but one, i.e. the distance from SC point to the fender curve (which is just 0.1139 mm), which is way below the recommended 5 mm minimum distance. Therefore, this fender cannot pass the European standards.The gap should be increased.
