Fender Design - Wheel Arch Challenge

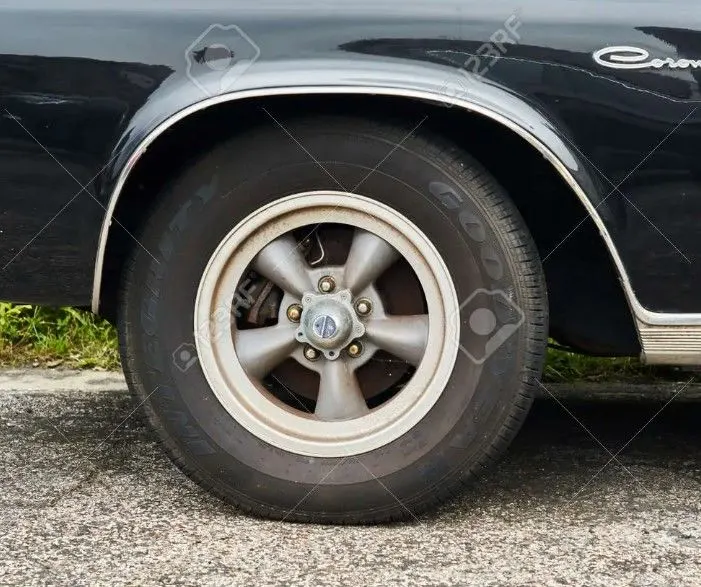

Fender wheel arc:- It is gap measurement of dimension between fender and wheel and for there it has three regulations.

Types of regulation:-

1. Japan regulation
2. European regulation
3. US regulation

• For our measurement we have to take european regulations and it has some criteria which are below.

European regulation:-

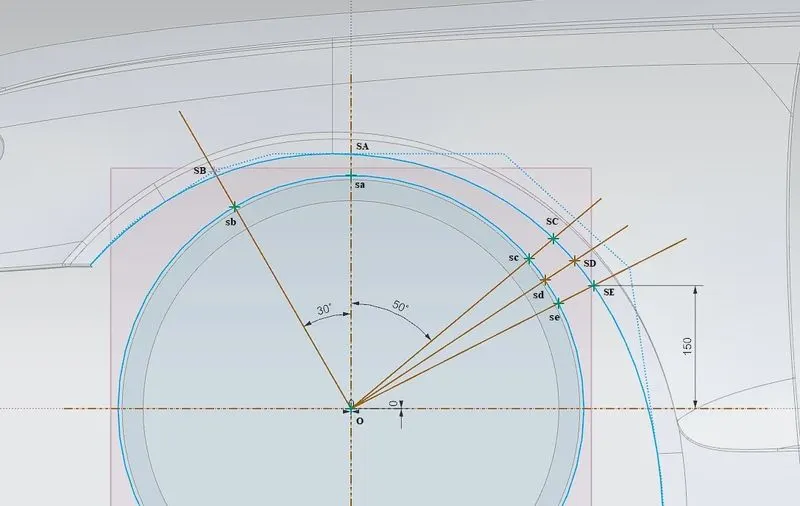

• Dimension between wheel diameter maximum point to fender inner point should be greater than 10mm and below picture we can understand which point.

• Then dimesion between wheel outer face and fender outer face should be greater than 5mm and fender must be outside to the wheel face like shown in below picture.

Conclusion:-

• For finding the dimension we have to find the different point on fender and wheel and it should be as per european regulation, if it's not then design is wrong. and below see the dimensions.

First Measurement criteria:-

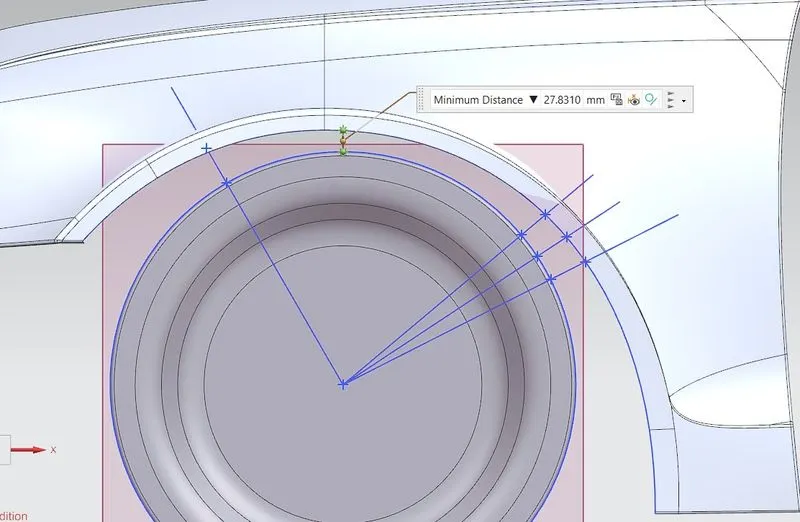

(1) SA to sa = 27.8310mm > 10mm

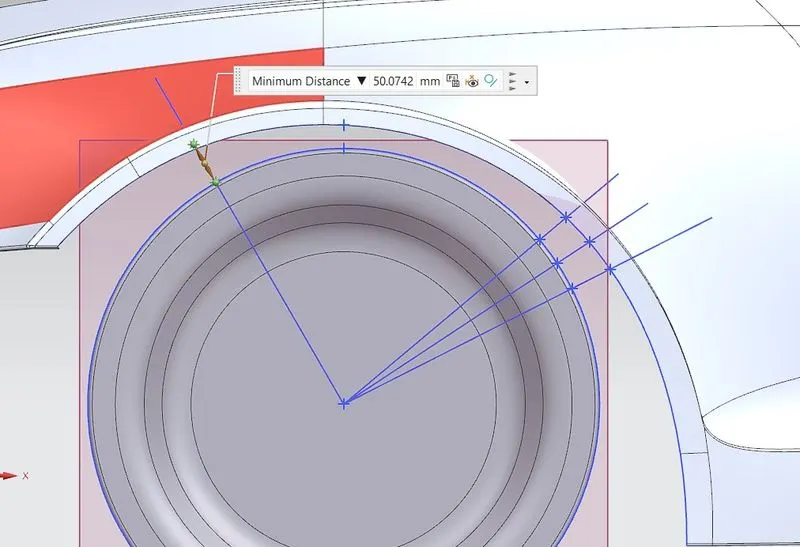

(2) SB to sb = 50.0742mm > 10mm

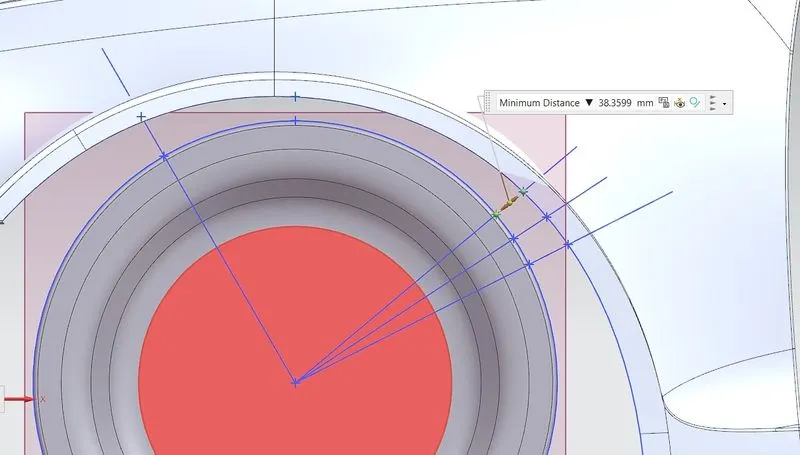

(3) SC to sc = 38.3599mm > 10mm

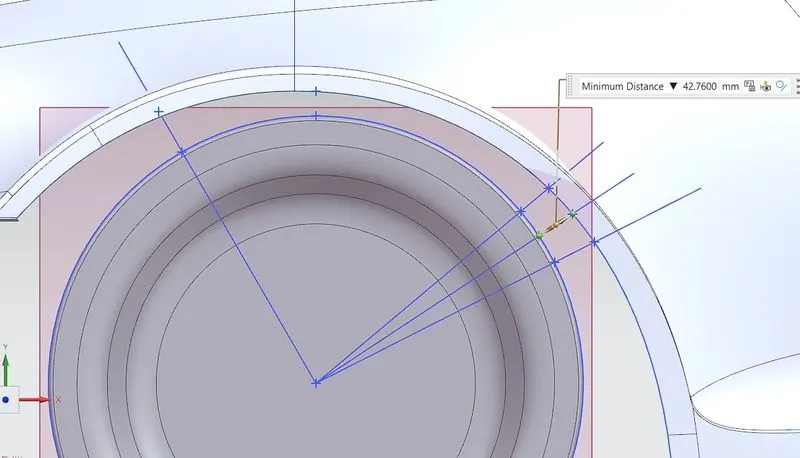

(4) SD to sd = 42.7600mm > 10mm

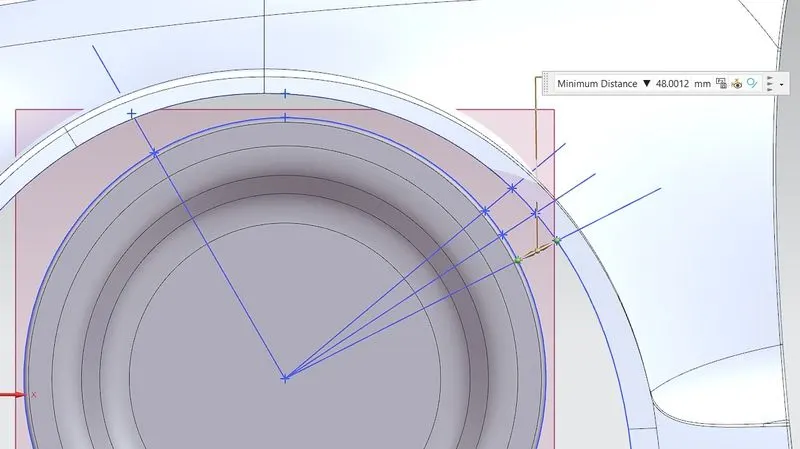

(5) SE to se = 48.0012mm > 10mm

Secont measurement criteria:-

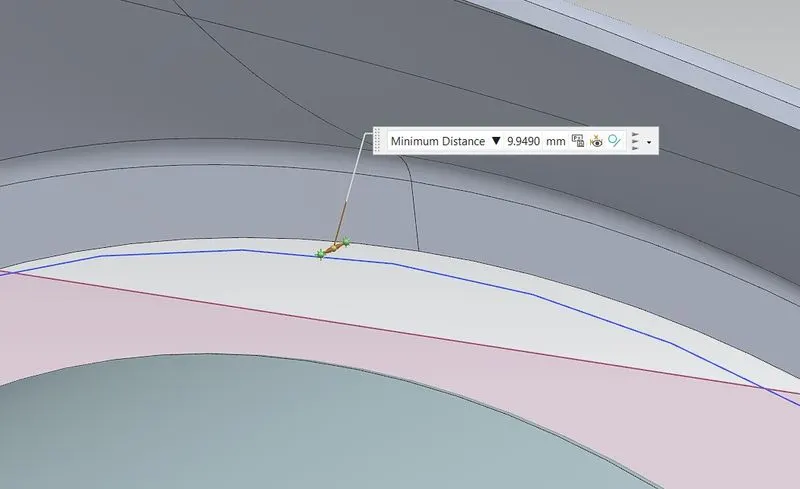

(1) SA point 9.9490mm > 5mm

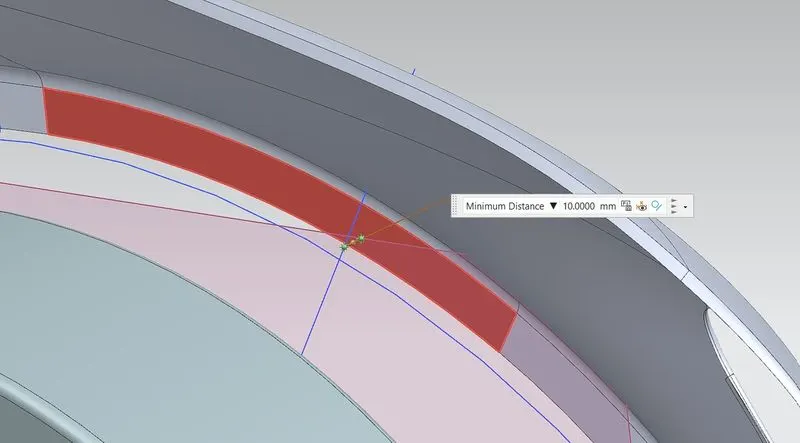

(2) SB point 10mm > 5mm

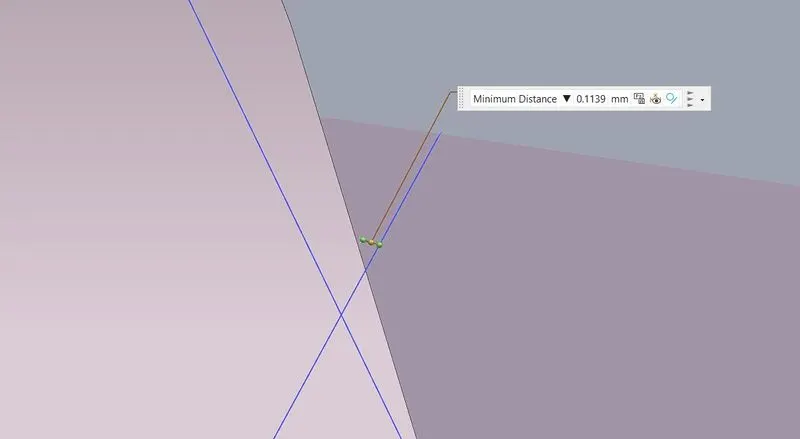

(3) SC point 0.1139mm < 5mm

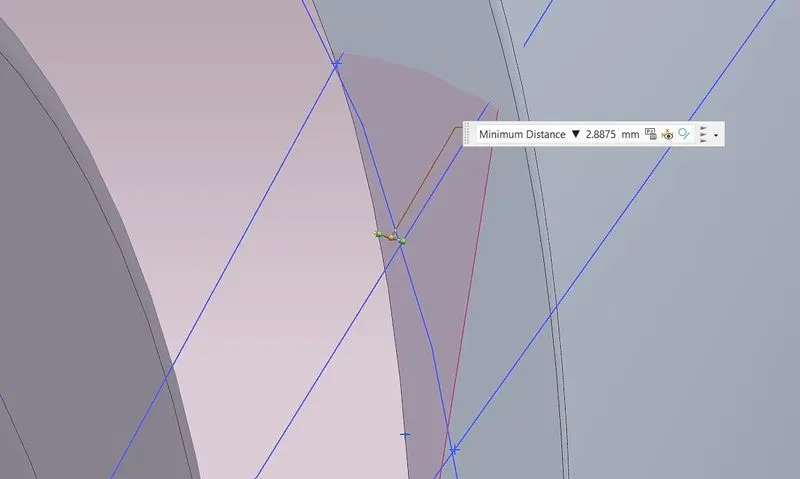

(4) SD point -2.8875mm < 5mm

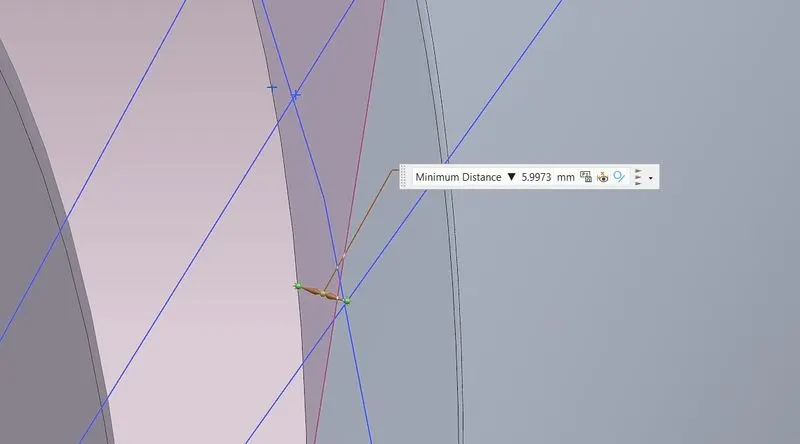

(5) SE point -5.9973mm < 5mm

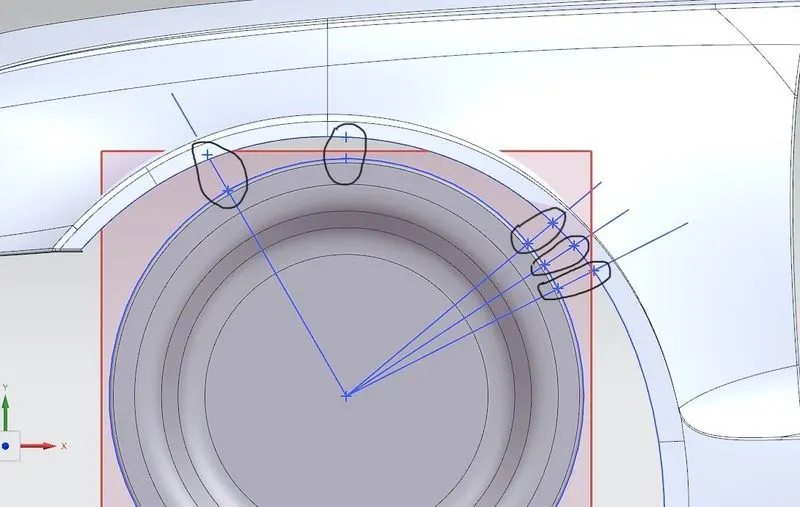

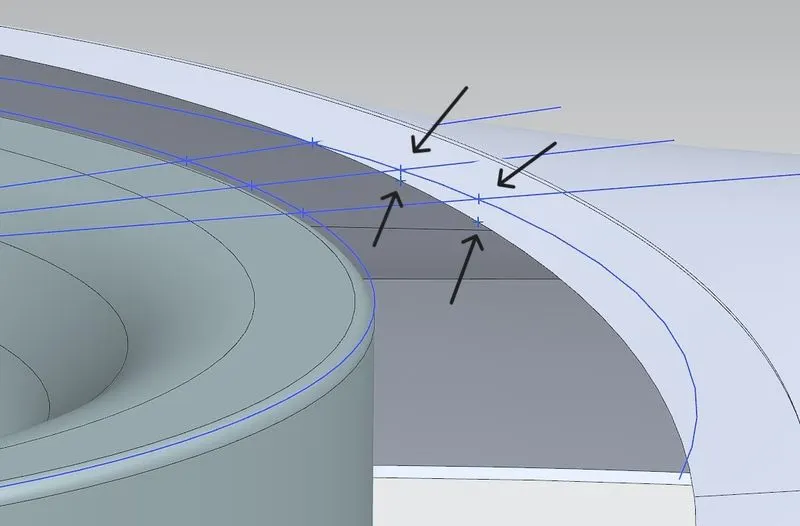

• As you can see in below picture two point of wheel is outside of fender face/point

Dimensions tables:-

Dimension should be greater than 10mm

SA	27.8310	10	OKAY
SB	50.0742	10	OKAY
SC	38.3599	10	OKAY
SD	42.7600	10	OKAY
SE	48.0012	10	OKAY

Dimension should be greater than 5mm

SA	9.9490	5	OKAY
SB	10	5	OKAY
SC	0.1139	5	NOT OKAY
SD	-2.8875	5	NOT OKAY
SE	-5.9973	5	NOT OKAY

Conclusion:- As we can see all dimensions are having as per we require but three dimensions are not so just beacuse of that it has failed according to european regulation, so this design is wrong and for changes we need to return to design team for modifications .
