Fender Design Challenge

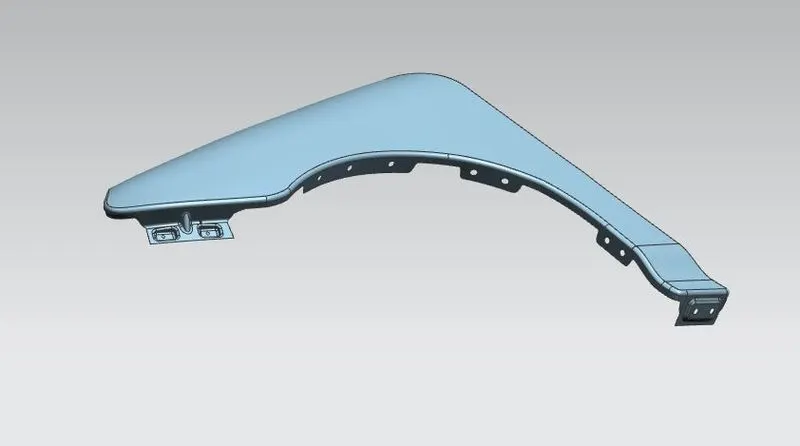

AIM : FENDER DESIGN The main object of this project is to design the BIW(Body in white) of front fender using the fender skin data and master section as the into data by using NX CAD.

TYPES  :

1. FULL BUMPER  TYPE

2. HALF  BUMPER  TYPE

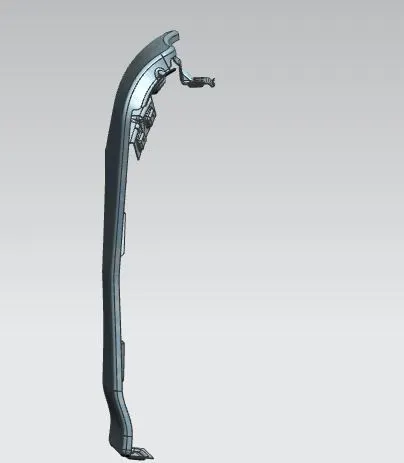

                                                                                        HALF  BUMPER TYPE

IMPORTANT  FACTORS  OF FENDER :

1.To Protect the car and occupants from items like mud,water  & small rocks getting inside.

2. Aerodynamically to have a smooth profie so we dont have to face a lot of Drag

3. Aesthetically looks better according to the other components of the vehicle.

GIVEN DATA :

                                                                MASTER SECTION

DESIGN  CONSIDERATION FOR FENDER DESIGN :

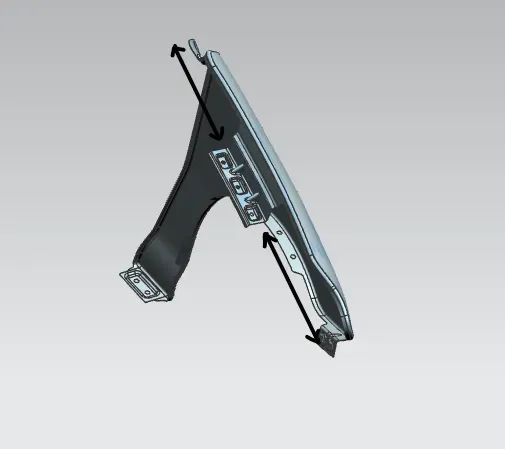

According to the master section there are total 5 mounting regions of fender are as follows :

1. DRIP AREA REGION

2. BUMPER MOUNT

3. SILL AREA

4. A PILLAR

5. BAFFLE MOUNT

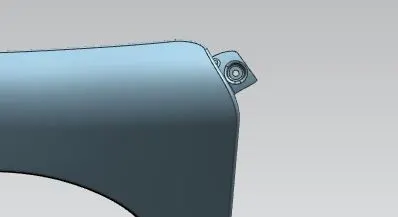

 1. DRIP AREA REGION

while Designing the drip area mounting region  a 200 mm & 150 mm  Clearance gap should be provided for Wiper and Head lights Housing.

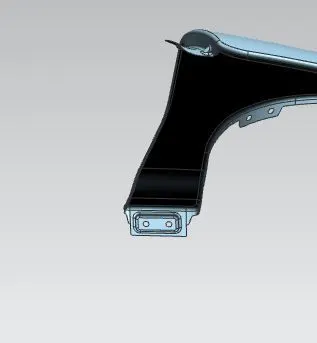

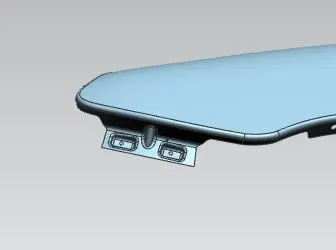

 2. BUMPER MOUNT



3. SILL AREA



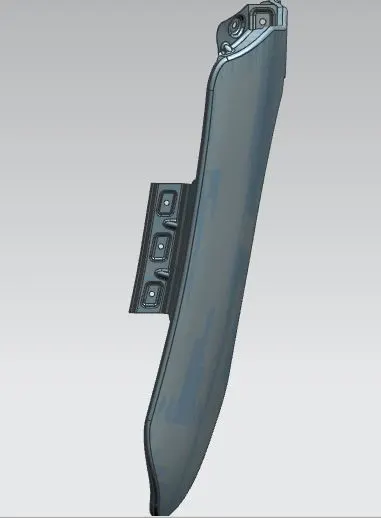

4. A PILLAR



5. BAFFLE MOUNT

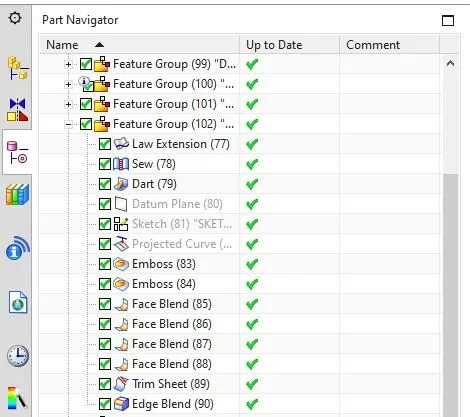

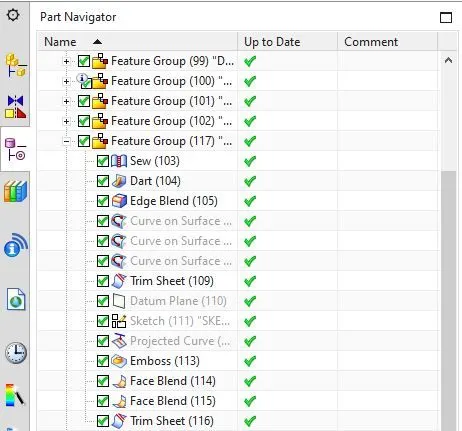

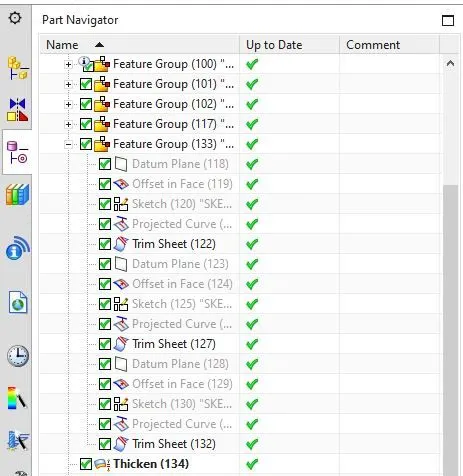

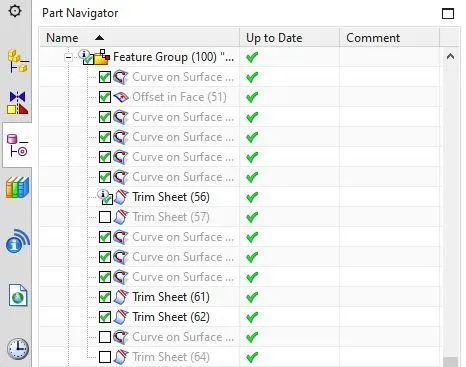

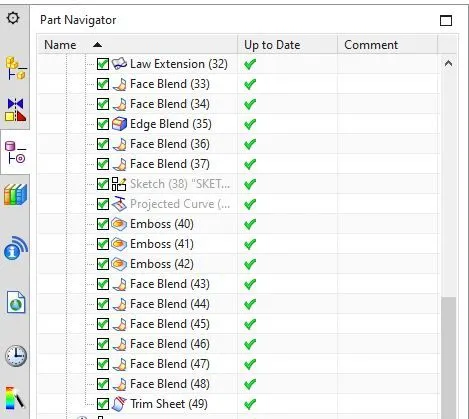

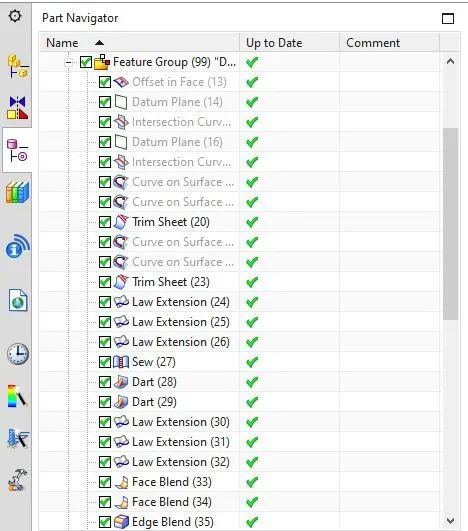

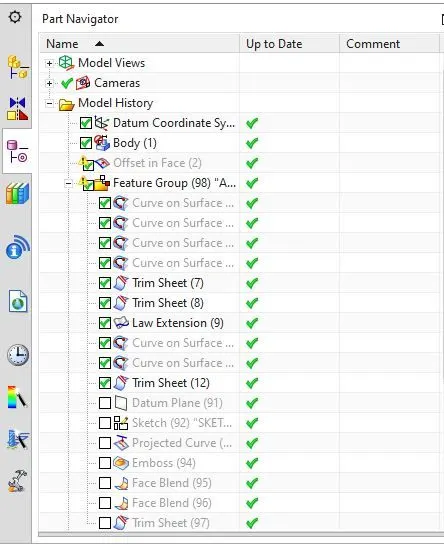

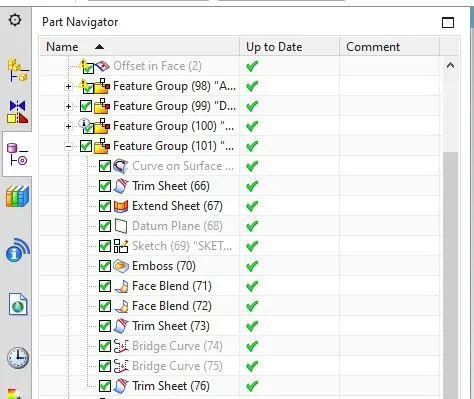

 FEATURE TREE
