Fender Design Challenge

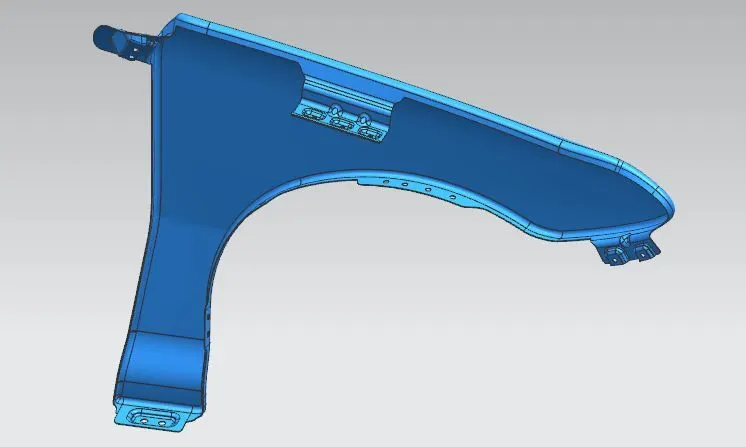

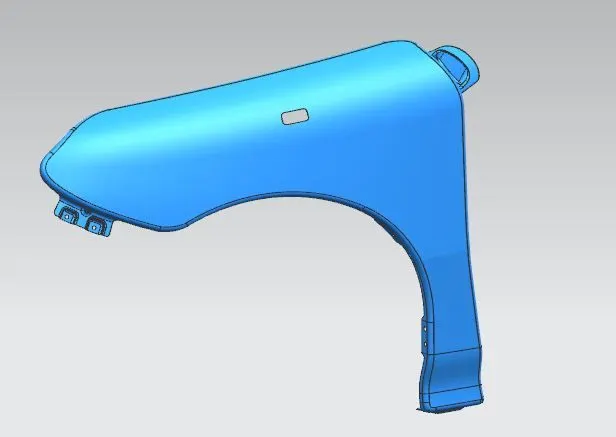

FRONT FENDER
Front fender is a metalic strructure, which is mounted in between of front door and bumper,
this structure protect wheel and engine compartment it plays major role in pedstrian safety also.
Fender design
Types of fenders
Majorly 2 types in fenders.
a) Full bumper type fender
b) half bumper type fender
Fender whee arch regulations
Wheel arch regulations are made by their contry, goverments, regions as well as road safety authority. These regulations made
acccording to their road codition and driving envoirment. it deffers country to country.
some regulations as given below.
US :-
In US 5 mm clearance between tyre and fender, 21 check ponts, it starts from 0 degree to 100 degree
each pont divided into 10 degree.
Europ :-
In european countries they measures, greater than 10 mm clearance from fender to wheel from vertical center
line 30 degree forward and 50 degree reverse and 150 mm height from centerb horizontal axis line.
Japan :-
In japan they also have own standrds, greater than 5 mm clearance from tyre to fender from 30 degree
forward and 50 degree reverse from vertical center axis.
Design cosiderations
Manufacturing process
a) sheet shearing
b) Punching
c) Pearcing
d) Deep drawing
e) Embossing
f) Bending
Mountings of fender
1) A piiler
2) Body mounting
3) Sill area
4) Drip area
5) bumper area
6) Baffle mounting area

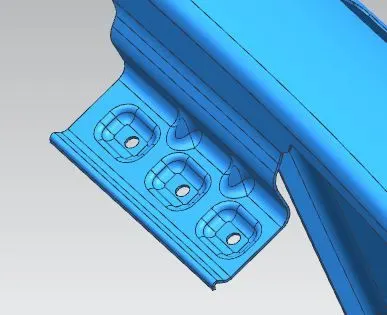

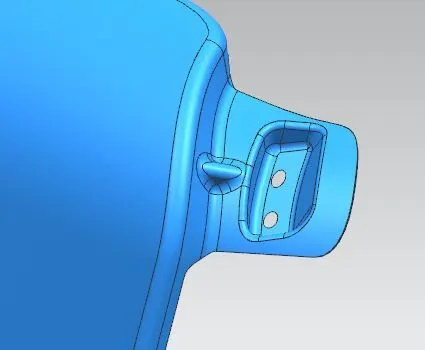

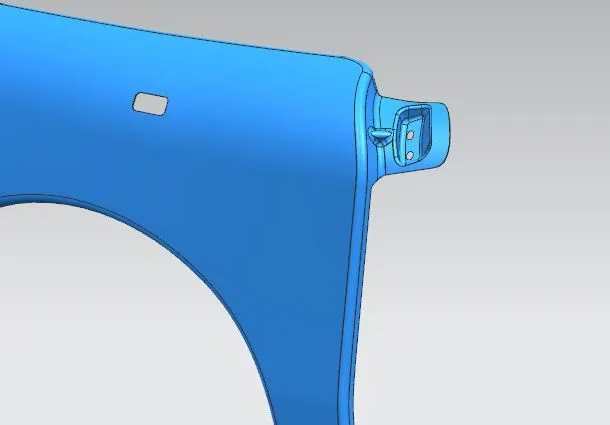

A piller mounting

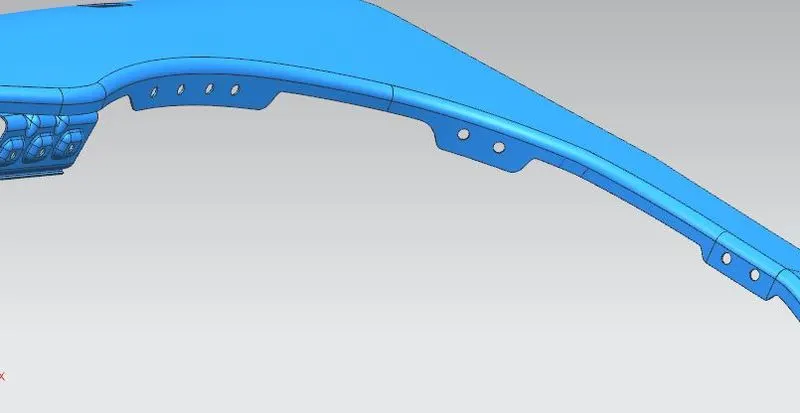

Drip area

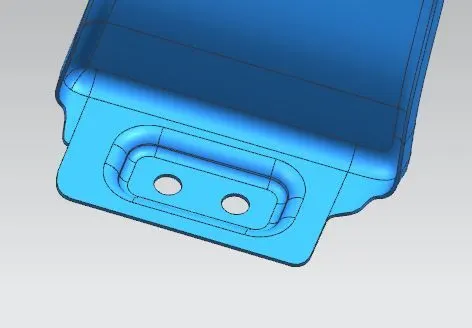

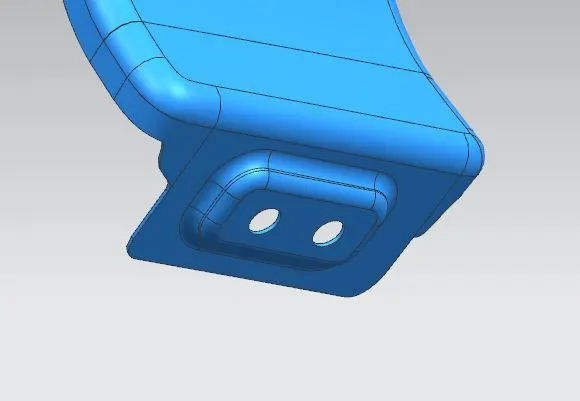

Sill mounting

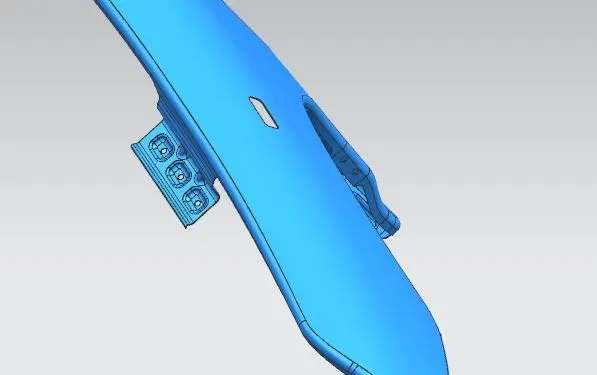

Baffle mounting

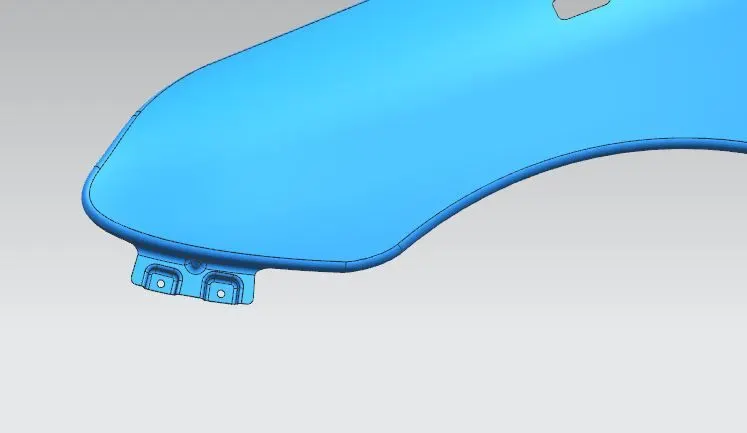

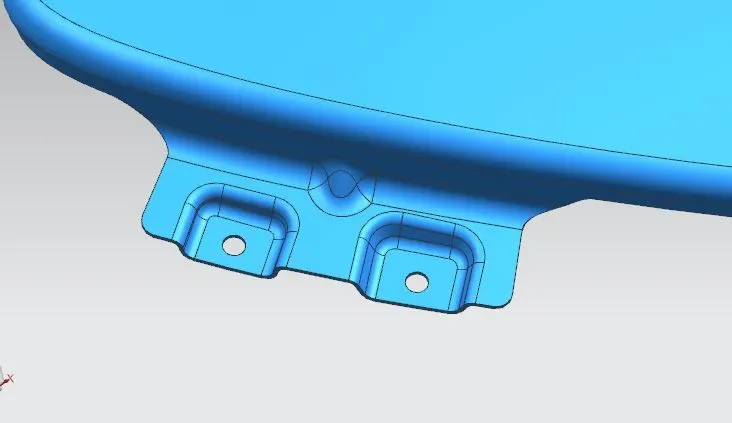

Bumper mounting

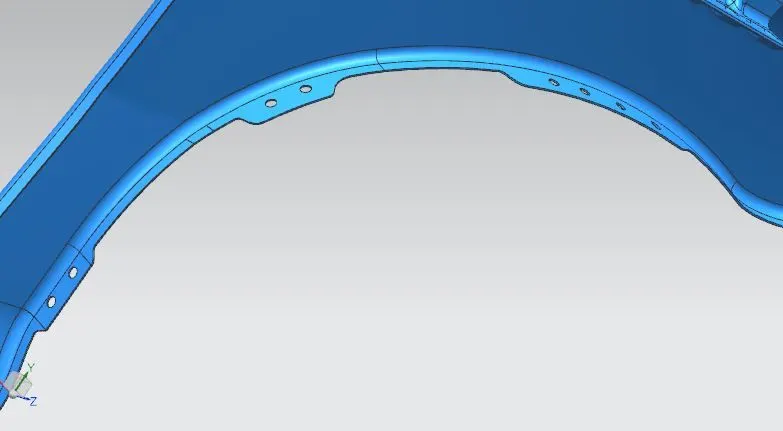

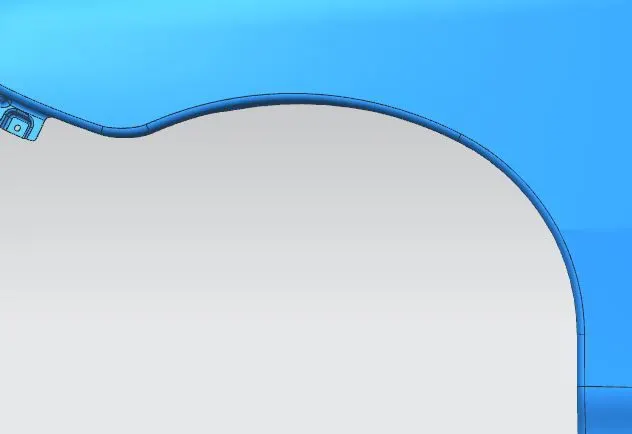

Wheel arch area

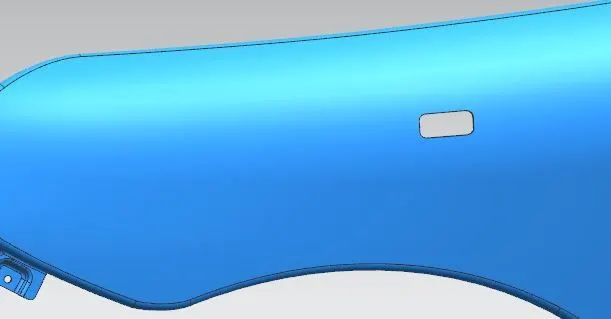

Side indicator lamp pocket
