Fender Design Challenge

A fender is used to prevent splashing of mud from the wheels and it is located over the wheel of the car i.e. two in the front right and left, and two in the rear right and left of your vehicle as shown in Figure

Generally, the fender is classified into Full and half fender. Full fender is used in old cars, the main disadvantage of the full fender is material cost will be high and manufacturing costs also high. In the case of half fender wastage of material is reduced

Fender was integrated with mounting likes Bumper, drip, pillar, sill, and clow

Design standards

• Emboss is used to strengthen the fender parts
• Dart is used for strengthening and to avoid vibrations
• Face blends and edge blends are used for easy manufactures

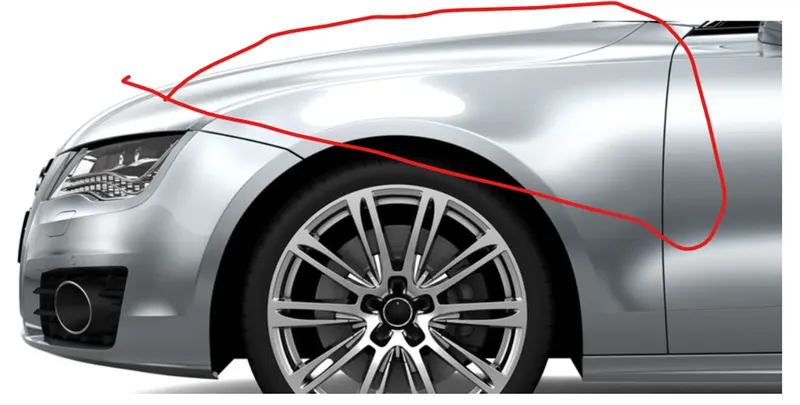

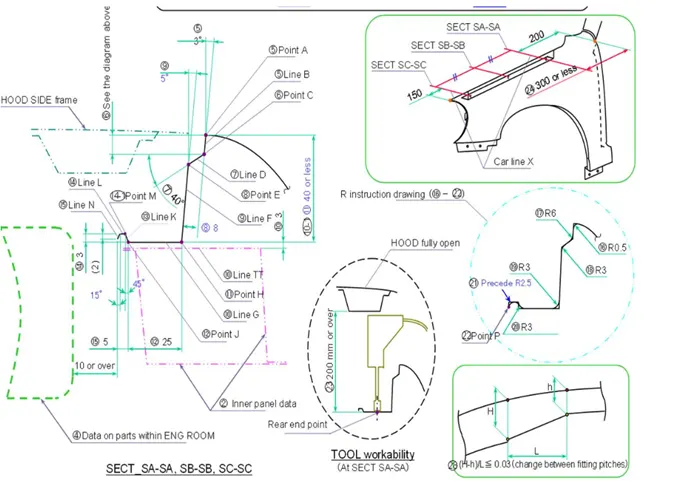

Input diagram for a 3D model of fender design

The major commands used for designing Fender 3D mode as follows

Edge blend

Face blend

Emboss

Dart

Trim sheet

Bridge curve

Datum plane

Law of extension

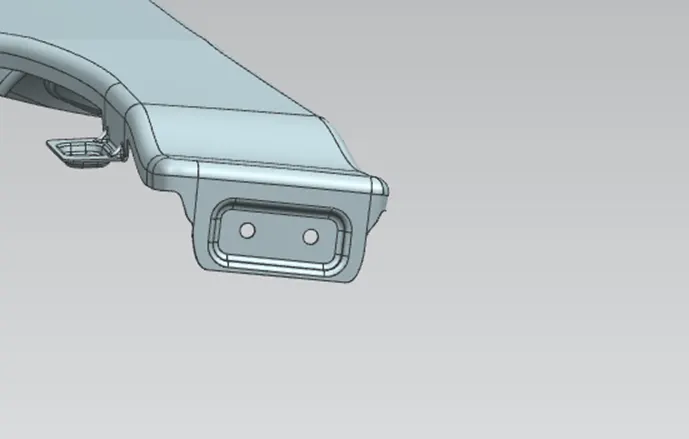

Drip area model

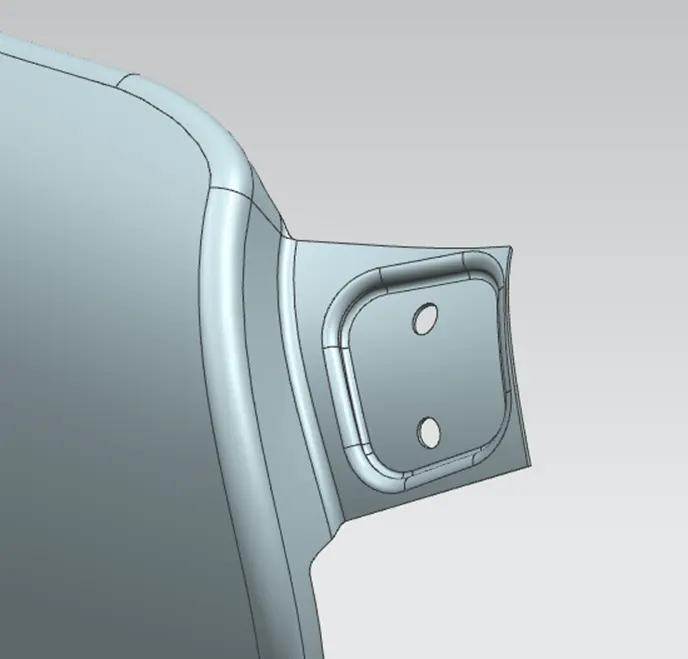

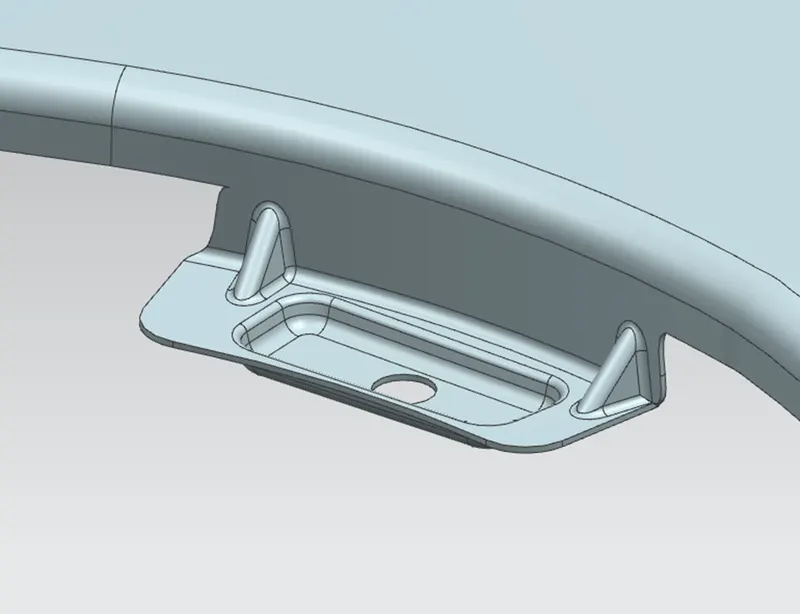

Pillar mount model

Still mount model

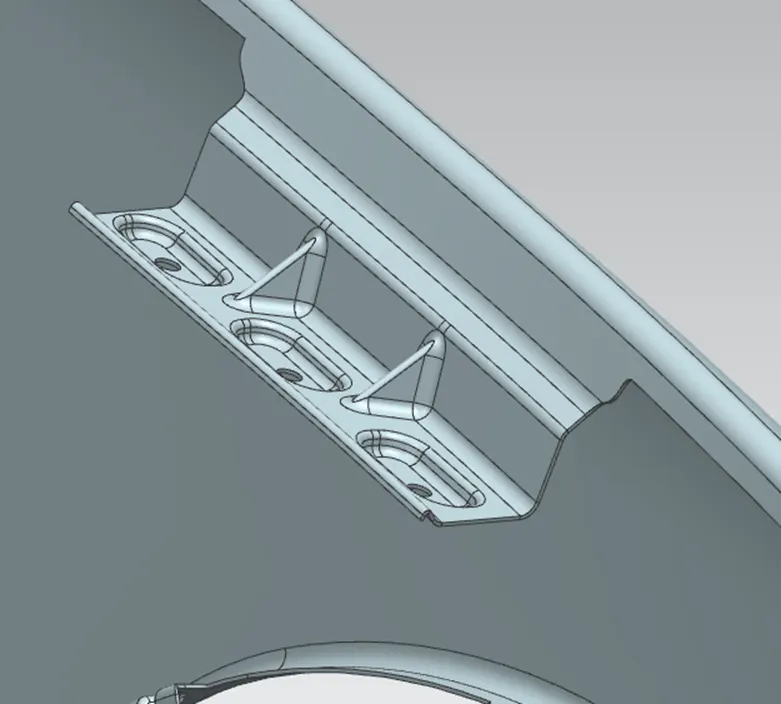

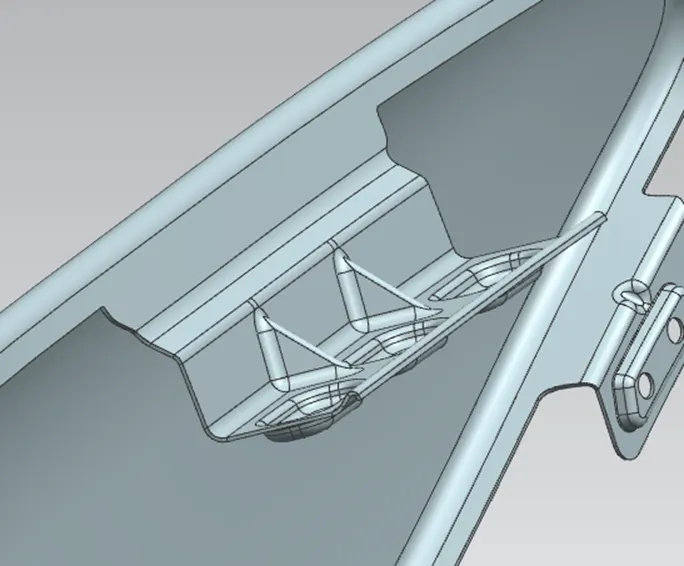

Body mount area

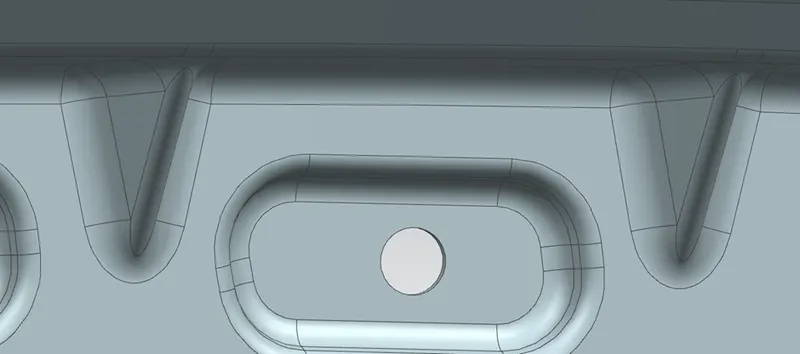

Dart is used to reduce the vibration during running of vehicle

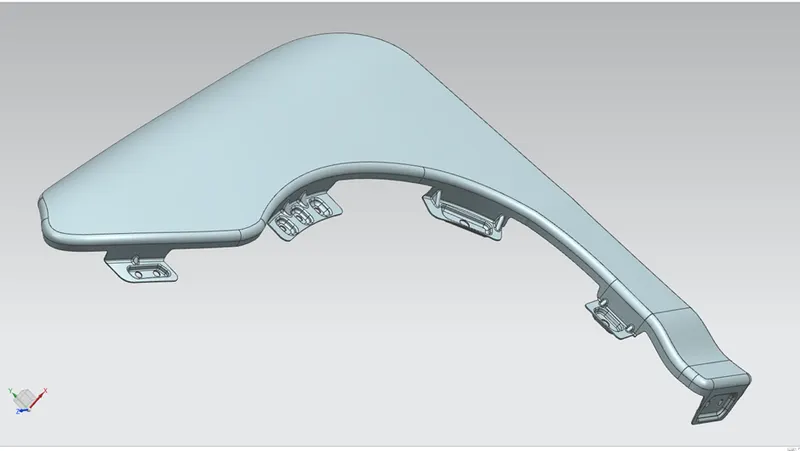

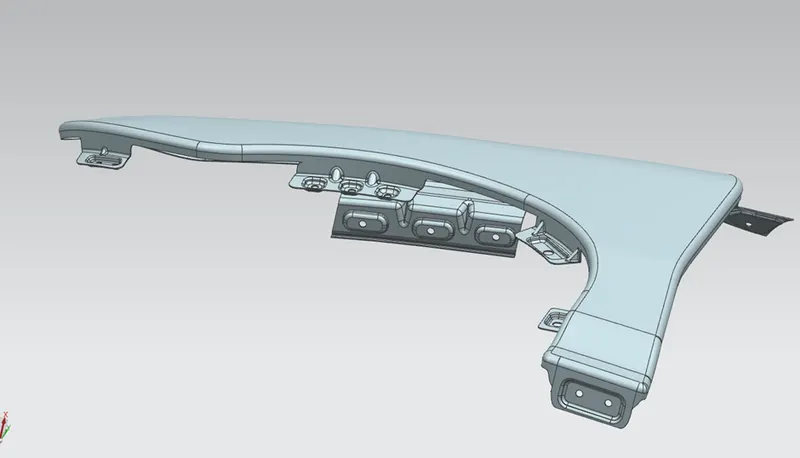

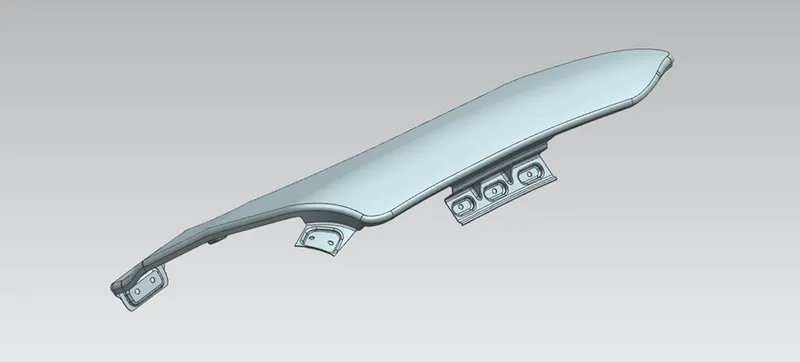

Figure illustrates the complete fender design
