Fender Design Challenge
DESIGNING FENDER USING NX CAD
Aim:
To design the front fender mounting areas in given fender styling skin data provided for car using nx cad software.
Introduction:
It is a protecting housing layer for the wheels to prevent from mud, stone and road rubble thrown into car . It is also protecting pedestrian from injury.
- Location of front fender in car

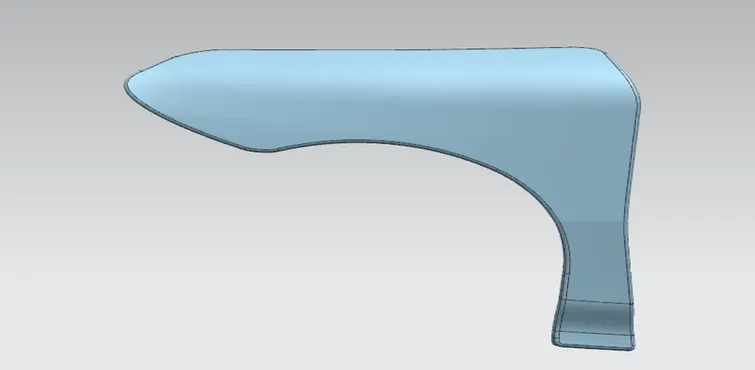

- Styling skin data
Mounting areas for front fender
- Drip mount area
- Pillar mount area
- Sill mount area
- Bumper mount area
- Baffle mount area
- Drip mount area

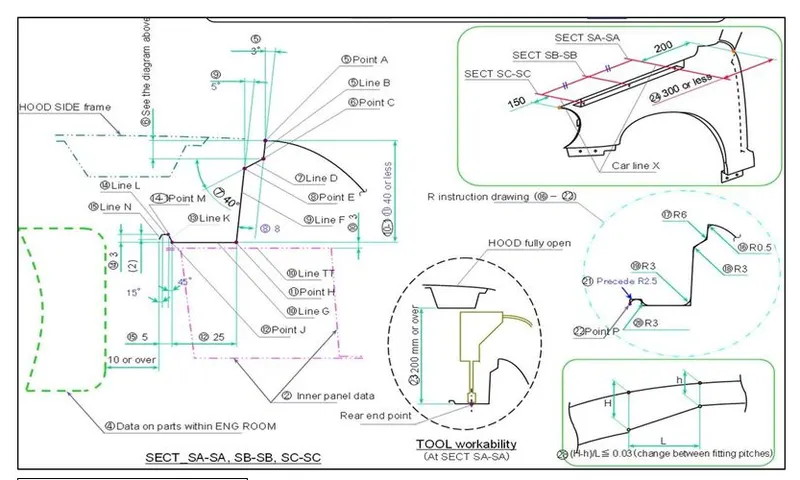

master section data
- Pillar mount area
- Sill mount area
- Bumper mount area
- Baffle mount area

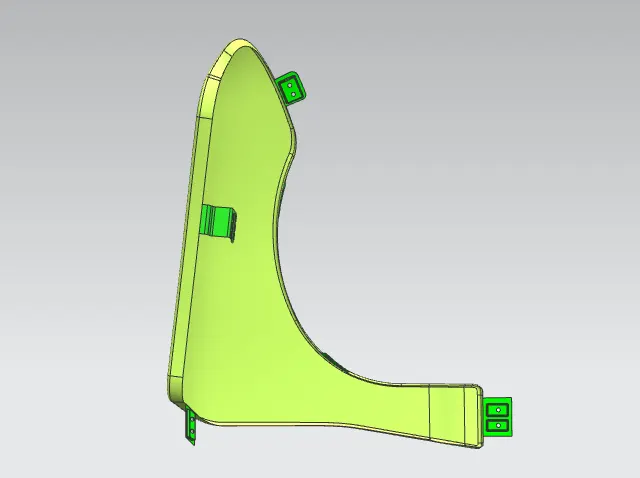

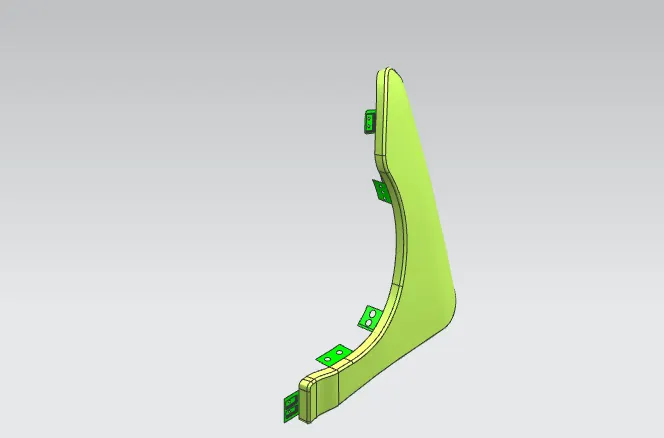

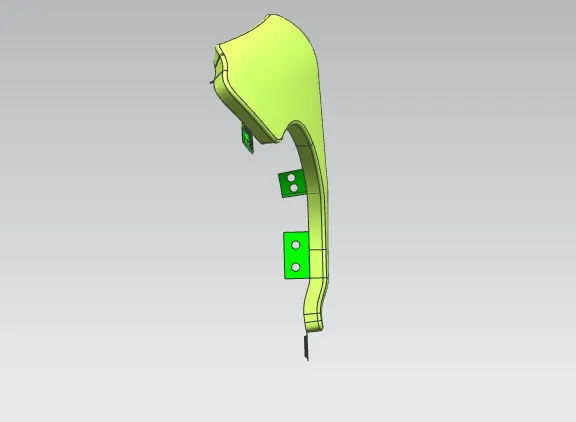

Front fender

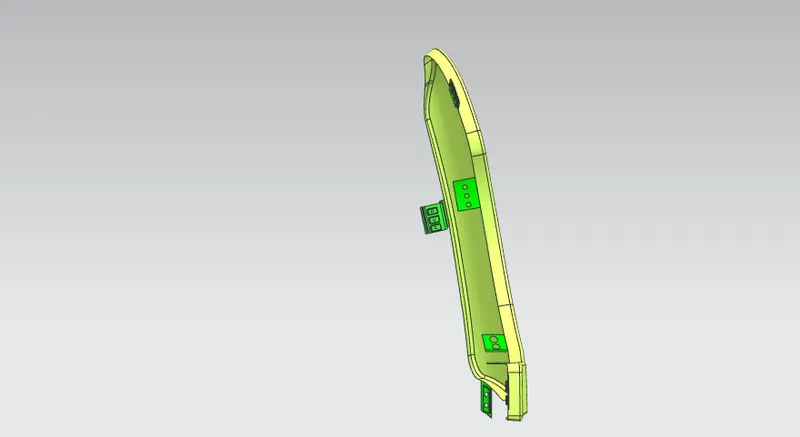

Different views of front fender

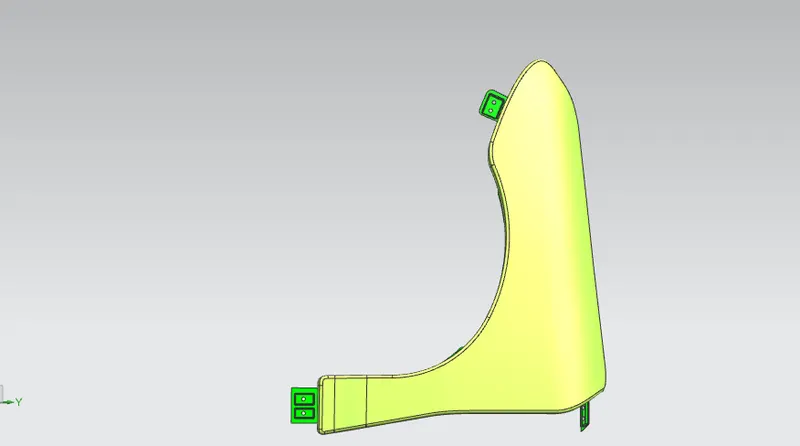

FRONT VIEW
LEFT VIEW
RIGHT VIEW
TOP VIEW

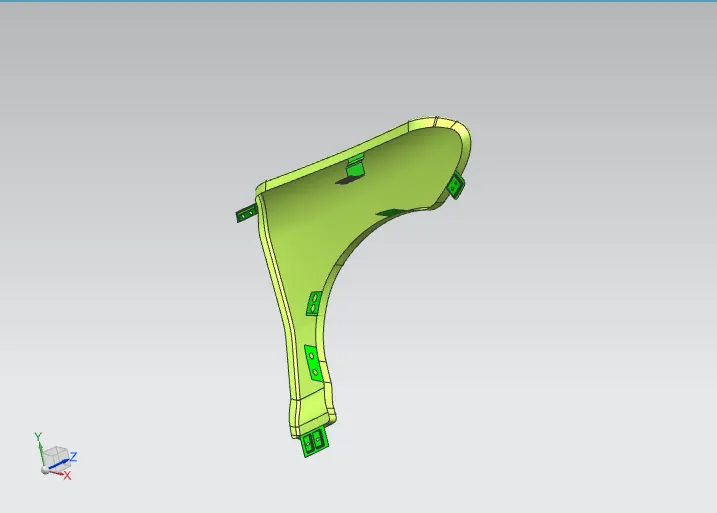

ISOMETRIC VIEW
Result:
The front fender mounting areas of car are designed using nx cad software and styling skin data.
