Fender Design Challenge
OBJECTIVE : To design a Fender from Class A surface using NX CAD

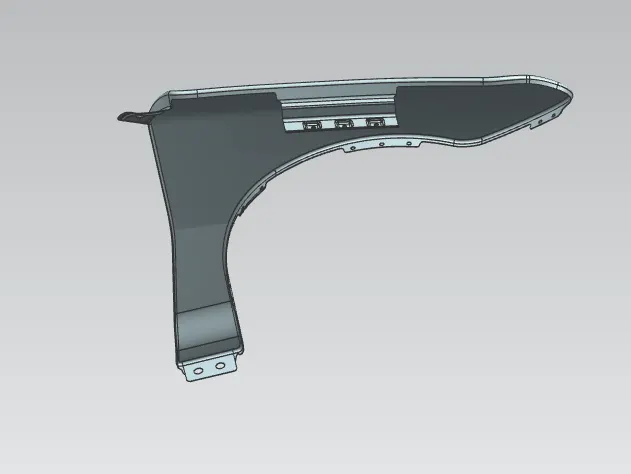

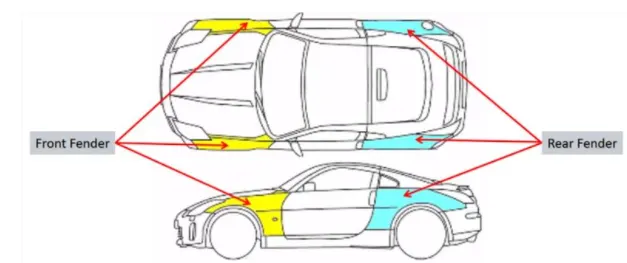

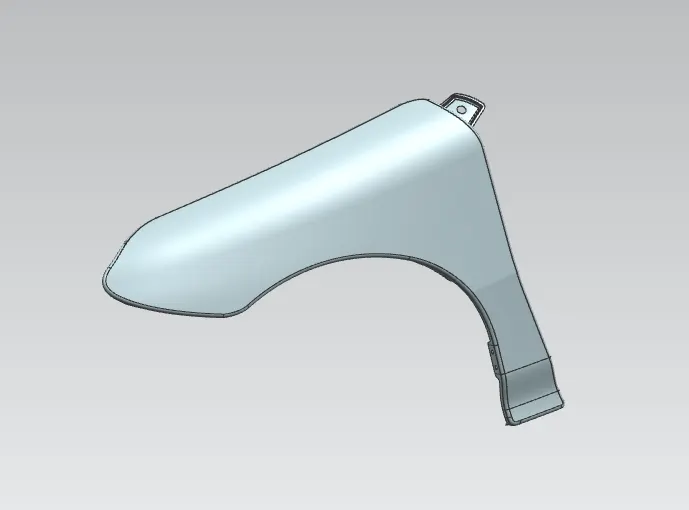

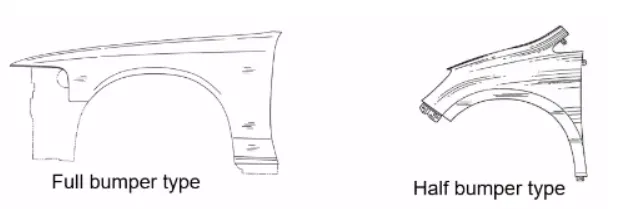

INTRODUCTION : Fender is a part of the automobile which are used both on the front and the rear sides of the vehicle. The front fender prevents muds, sands, rocks etc. to be thrown out into the air. Fenders are of two types, Half Bumper and Full Bumper. In the modern cars the Haf bumper type famous is preferred as it gives good aesthetic look and the part can be manufactured in one sheetmetal blank.

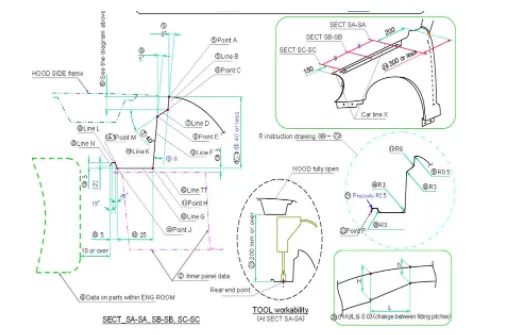

DESIGN CONSIDERATIONS

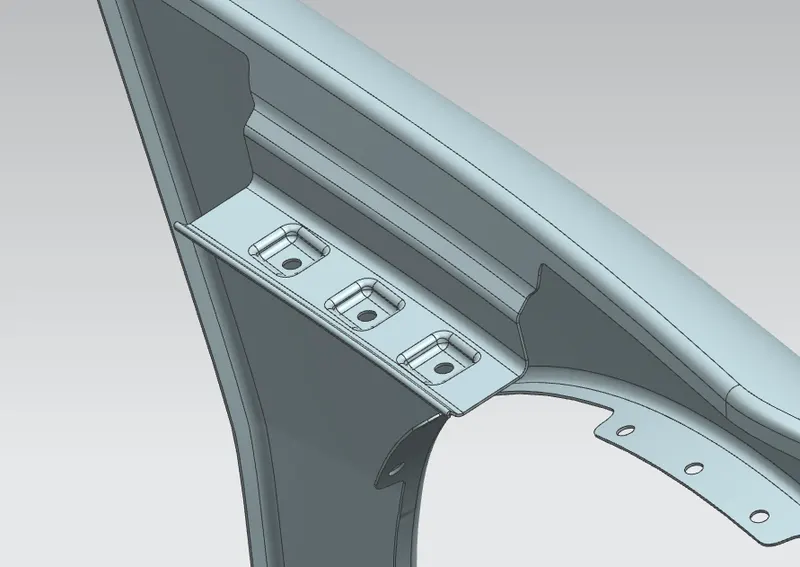

DRIP MOUNTING AREA

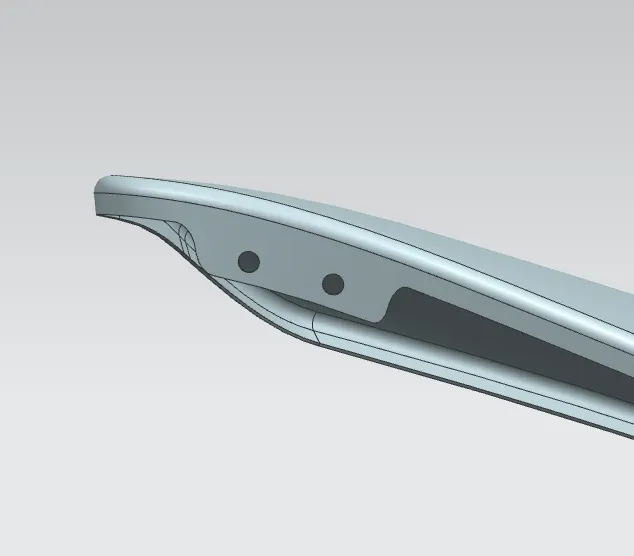

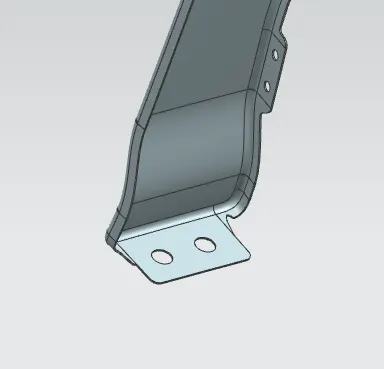

BUMPER MOUNTING AREA

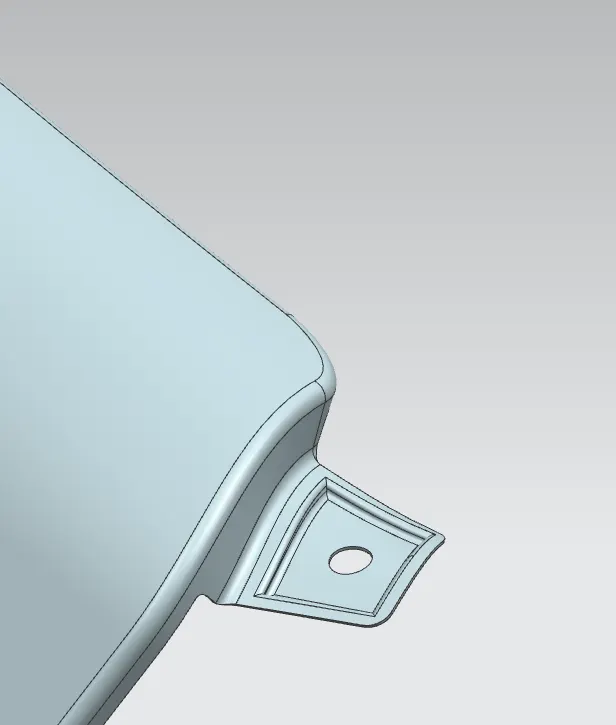

A-PILLAR MOUNTING AREA
BAFFLE MOUNTING AREA

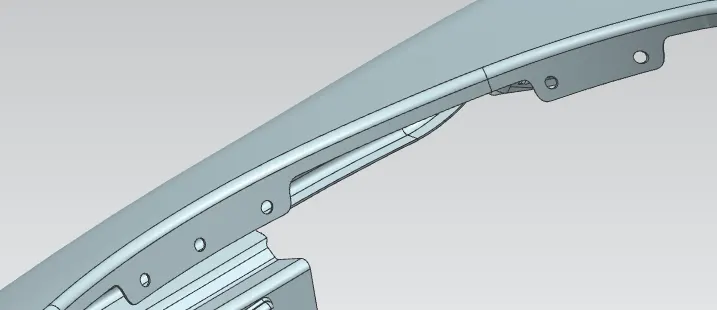

SILL MOUNTING AREA
CONCLUSION : The front fender mount was developed using the given design parameters, successfully.
