Fender Design Challenge

DESIGN OF FRONT FENDER-

OBJECTIVE- To develop the front fender using Nx cad following the design parameters.

INTRODUCTION –

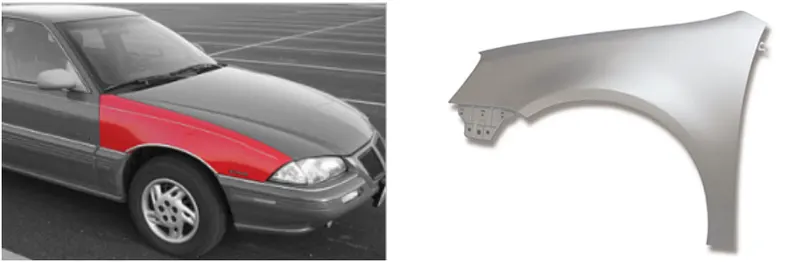

 Front fender is a part of the vehicle that frames the wheel. the primary purpose of the fender is to prevent sand, mud , rock etc from being thrown away into the air by rotating tire . fender can be of two types , full bumper type and half bumper type . nowadays half bumper type fender is typically used. the cost of sheet metal blank is reduced as we can produce two half bumper type fender in single blank . this also leads to reduction of scrap .

DESIGN PARAMETERS –

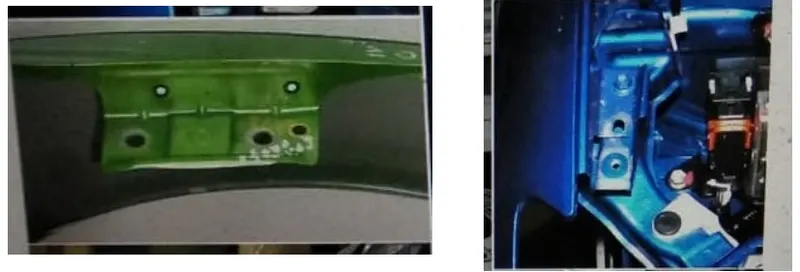

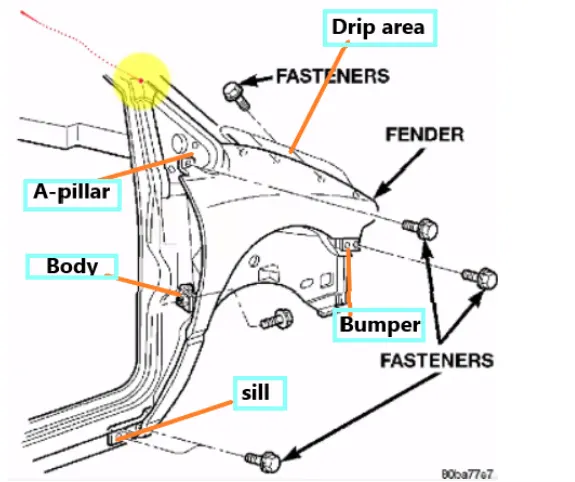

The front fender is manufactured as a separate part , this is then mounted to the body of car , for this the front fender basically has 5 mounting points, but this mounting points can differ from OEm to another OEM .below is the points –

• Drip area-

Drip area mounting is the important part in the fender . this mounting is attached to the engine compartment of the car . fender drip area is mounted via weldnuts to the engine compartment .a min of 150mm distance is kept from the front side and a distance 300mm or less can be kept on the rear side . the total length of drip area from the top of fender should be less than 40mm , this is to avoid the springback during the manufacturing . the edge of the mounting should atleast 10mm away from any nearby component in the engine . a rigidity bead is provided at the end to increase the strength of the mounting .

         A-pillar area -

The A-pillar area mounting depends upon the A-pillar of the car . the mounting can also be provided with ribs to strengthen the part . this mounting is critical in design as it has to be mounted on A-pillar properly .

• Body side area-

Another mounting point is created for the body side on the fender . this mounting is created such that it can be mounted on the body of he car . it may consist of one or two bolting holes .

• Sill area -

Sill area mounting is also an important mounting part .this mounting point is basically on the bottom of the fender . the mounting part should be created such that the fender is firmly attached to the sill .

• Cowl area -

Sometimes fender is also provided with the cowl area mounting . this mounting is on the top side of the fender .

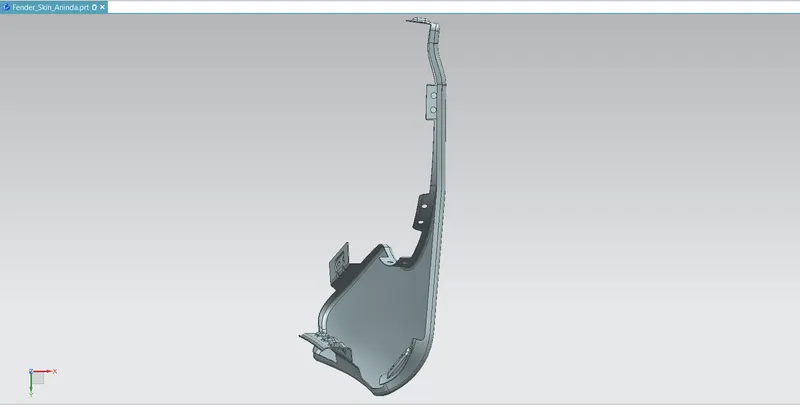

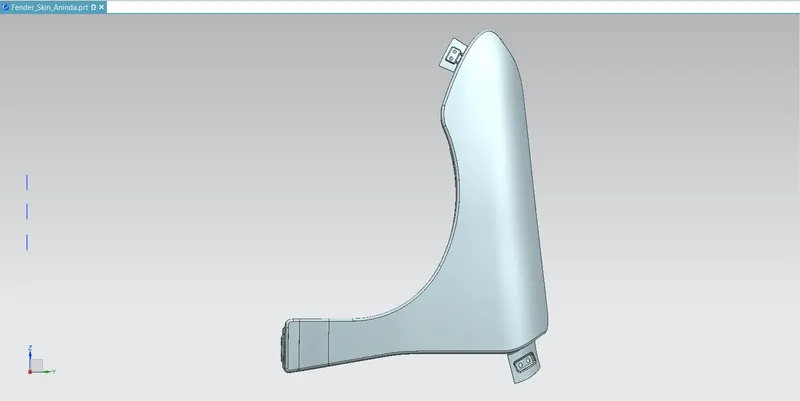

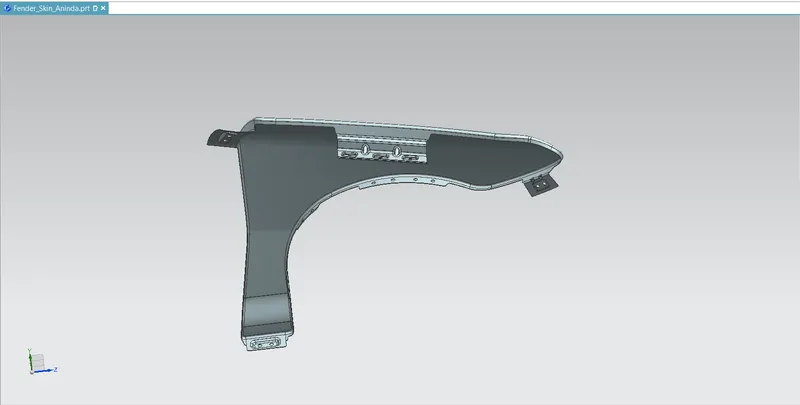

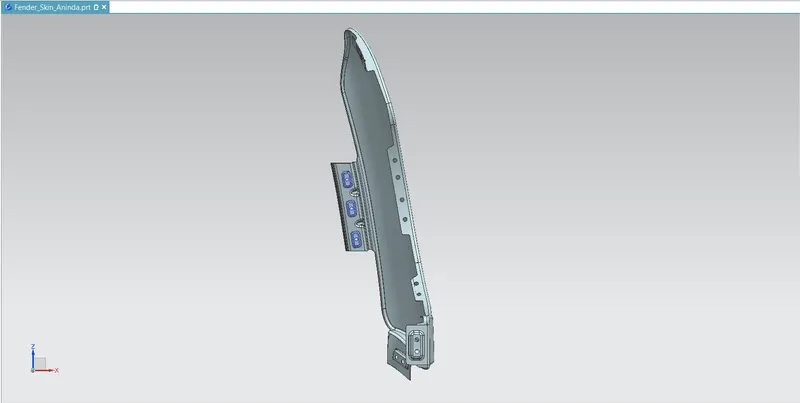

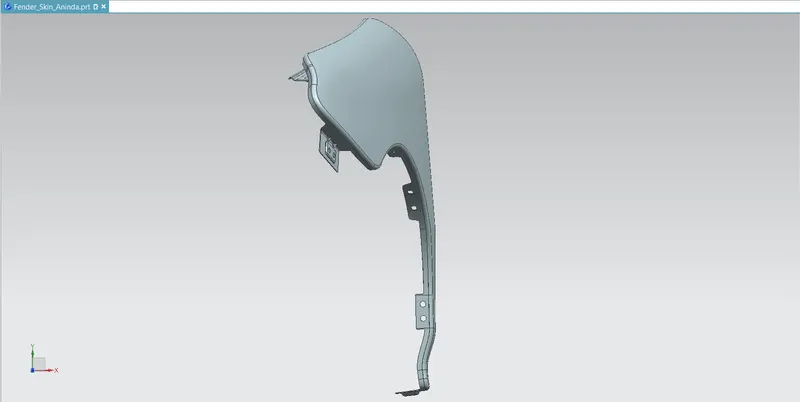

Modelling Views-

Note - All the sketches should be fully constrained .

         - Appropriate feature groups should be created for future works .

         - Distance should be maintained between two holes following the design rule of 2*r (radius of hole) or more than 2r.

CONCLUSION -

We have developed front fender with mounting points following the design parameters and master section.
